Electrolux WTGL08, WTGL05, WTGL04 User Manual

Granul-line Pot washers
electrolux granul-line2
Granul-line
The Granul-line offers the maximum possible performance for utensil washing: a combined washing action of granules, detergent and water ensure that even the dirtiest utensils wash-up perfectly. Whether pots, pans or gastronorm containers are washed, the result is always the same, truly amazing.
WTGL08
WTGL05 WTGL04
electrolux granul-line 3
How do they work?
Granules are mixed together with water and detergent, pumped at high pressure against the pots and pans. The granules provide enough friction to remove even hard water baked on food. Once the granule cycle is finished, the Granul-line continues washing for 1 minute with just water to remove any granules that may have become attached to a pan.
O
A final rinse of 85
C for 30 seconds provides the necessary hygiene to
finish the job.
No more back braking scrubbing for kitchen staff because only the light scraping away of bulky food is required. Granul-line does the rest. This either leaves the workers staff free to perform other tasks or even reduces the number of workers in the pot washing area. Water and detergent consumption is also minimised and hygienic results are guaranteed.
The granule
The heart of the system is the granule. It is made from a special plastic, approved even by the FDA, and not hazardous if accidentally swallowed. It is very resistant against acids and alkaline chemicals as well as elevated temperatures up to 150°C. It is harmless to sewage systems and degrades with water and carbon dioxide.
electrolux granul-line4

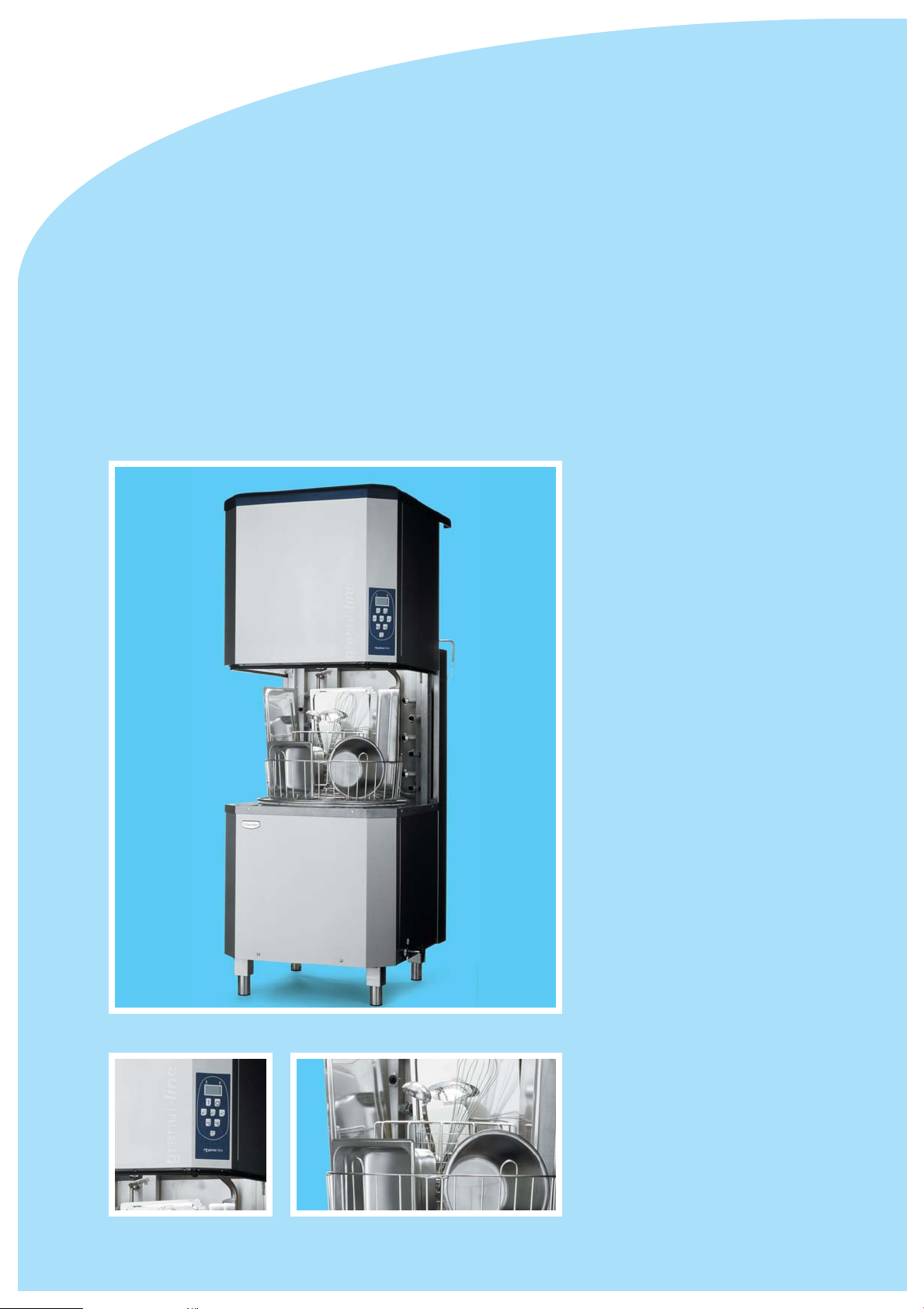

WTGL04 incorporates a fixed capacity pot rack perfect for medium sized kitchen installations up to 500 meals per day. Compact design, occupying
2
only 5m
area.
WTGL04 includes a condensing unit, therefore no ventilation hood is required above the machine in order to vent the steam. The rinse is provided by an atmospheric boiler with a rinse booster pump to guarantee both a
constant pressure and rinse temperature.
Capacity of 4 GN 1/1(200mm deep) or 8 GN 1/2 (200mm deep) containers with a washing result of 65 GN 1/1 containers per hour.
