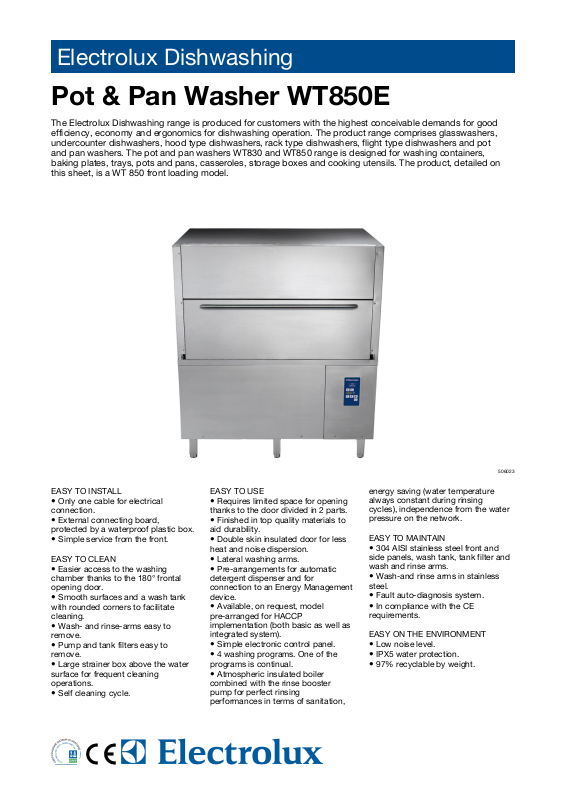

Electrolux Dishwashing

Pot & Pan Washer WT850E

The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. The pot and pan washers WT830 and WT850 range is designed for washing containers,
baking plates, trays, pots and pans, casseroles, storage boxes and cooking utensils. The product, detailed on
this sheet, is a WT 850 front loading model.

EASY TO INSTALL

• Only one cable for electrical

connection.

• External connecting board,

protected by a waterproof plastic box.

• Simple service from the front.

EASY TO CLEAN

• Easier access to the washing

chamber thanks to the 180° frontal
opening door.

• Smooth surfaces and a wash tank

with rounded corners to facilitate
cleaning.

• Wash- and rinse-arms easy to

remove.

• Pump and tank filters easy to

remove.

• Large strainer box above the water

surface for frequent cleaning
operations.

• Self cleaning cycle.

EASY TO USE

• Requires limited space for opening

thanks to the door divided in 2 parts.

• Finished in top quality materials to

aid durability.

• Double skin insulated door for less

heat and noise dispersion.

• Lateral washing arms.

• Pre-arrangements for automatic

detergent dispenser and for
connection to an Energy Management
device.

• Available, on request, model

pre-arranged for HACCP
implementation (both basic as well as
integrated system).

• Simple electronic control panel.

• 4 washing programs. One of the

programs is continual.

• Atmospheric insulated boiler

combined with the rinse booster
pump for perfect rinsing
performances in terms of sanitation,

506023

energy saving (water temperature
always constant during rinsing
cycles), independence from the water
pressure on the network.

EASY TO MAINTAIN

• 304 AISI stainless steel front and

side panels, wash tank, tank filter and
wash and rinse arms.

• Wash-and rinse arms in stainless

steel.

• Fault auto-diagnosis system.

• In compliance with the CE

requirements.

EASY ON THE ENVIRONMENT

• Low noise level.

• IPX5 water protection.

• 97% recyclable by weight.

• CFC free packaging.

Electrolux Dishwashing

Pot & Pan Washer WT850E

WT850EMW

TECHNICAL DATA

Power supply Electric
Water supply
temperature - °C 50
hardness - °f 7-14
Rinse Booster Pump ●
N° of cycles 4
Duration cycles - sec. 180/360/540/inf
External dimensions - mm
width 1552
depth 900
height 1771
Cell dimensions - mm
width 1340
depth 710
height 570
Washing cycle
temperature -°C 55-65
tank capacity - lt. 150
power pump - kW 5
electrical elements - kW 10.5
Hot rinse cycle
duration - sec. 20
temperature during rinse - °C 84
water consumption - lt./cycle 12
Boiler capacity - lt. 18
Boiler elements - kW 10.5
Power - kW
Rinse pump 0.35
total power 17
Net weight - kg. 300

INCLUDED ACCESSORIES

EXTRA RACK FOR CONTAINERS AND TRAYS 2
S/S BASKET FOR POT WASHER,1351 MM 1

ACCESSORIES

EXTRA RACK FOR CONTAINERS AND TRAYS 864182
FILTER FOR PARTIAL DEMINERALIZATION 864017
FILTER FOR TOTAL DEMINERALIZATION 864367
HACCP PRINTER KIT FOR UC, HT AND POTW 864002
INTEGRATED HACCP KIT FOR UC, HT AND POTW 864001
KIT TO MEASURE TOTAL/PART.WATER HARDNESS 864050
S/S BASKET FOR POT WASHER,1351 MM 864192

506023

IGA0202012-05-07Subject to change without notice
