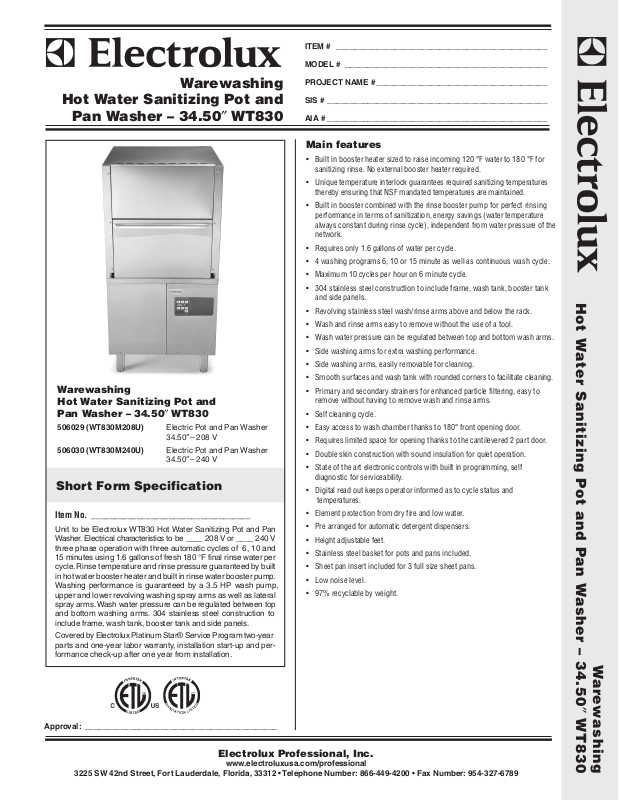

Electrolux 506030, 506029, WT830, WT830M208U, WT830M240U User Manual
ITEM # _______________________________________________
MODEL # _____________________________________________
Warewashing
Hot Water Sanitizing Pot and
Pan Washer – 34.50″ WT830
Warewashing
Hot Water Sanitizing Pot and
Pan Washer – 34.50″ WT830
506029 (WT830M208U) Electric Pot and Pan Washer
34.50″– 208 V
506030 (WT830M240U) Electric Pot and Pan Washer
34.50″– 240 V
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux WT830 Hot Water Sanitizing Pot and Pan
Washer. Electrical characteristics to be ____ 208 V or ____ 240 V
three phase operation with three automatic cycles of 6, 10 and
15 minutes using 1.6 gallons of fresh 180 °F final rinse water per
cycle. Rinse temperature and rinse pressure guaranteed by built
in hot water booster heater and built in rinse water booster pump.
Washing performance is guaranteed by a 3.5 HP wash pump,
upper and lower revolving washing spray arms as well as lateral
spray arms. Wash water pressure can be regulated between top
and bottom washing arms. 304 stainless steel construction to
include frame, wash tank, booster tank and side panels.
Covered by Electrolux Platinum Star® Service Program two-year
parts and one-year labor warranty, installation start-up and performance check-up after one year from installation.
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Main features
• Built in booster heater sized to raise incoming 120 °F water to 180 °F for
sanitizing rinse. No external booster heater required.
• Unique temperature interlock guarantees required sanitizing temperatures
thereby ensuring that NSF mandated temperatures are maintained.
• Built in booster combined with the rinse booster pump for perfect rinsing
performance in terms of sanitization, energy savings (water temperature
always constant during rinse cycle), independent from water pressure of the
network.
• Requires only 1.6 gallons of water per cycle.
• 4 washing programs 6, 10 or 15 minute as well as continuous wash cycle.
• Maximum 10 cycles per hour on 6 minute cycle.
• 304 stainless steel construction to include frame, wash tank, booster tank
and side panels.
• Revolving stainless steel wash/rinse arms above and below the rack.
• Wash and rinse arms easy to remove without the use of a tool.
• Wash water pressure can be regulated between top and bottom wash arms.
• Side washing arms for extra washing performance.
• Side washing arms, easily removable for cleaning.
• Smooth surfaces and wash tank with rounded corners to facilitate cleaning.
• Primary and secondary strainers for enhanced particle filtering, easy to
remove without having to remove wash and rinse arms.
• Self cleaning cycle.
• Easy access to wash chamber thanks to 180° front opening door.
• Requires limited space for opening thanks to the cantilevered 2 part door.
• Double skin construction with sound insulation for quiet operation.
• State of the art electronic controls with built in programming, self
diagnostic for serviceability.
• Digital read out keeps operator informed as to cycle status and
temperatures.
• Element protection from dry fire and low water.
• Pre arranged for automatic detergent dispensers.
• Height adjustable feet.
• Stainless steel basket for pots and pans included.
• Sheet pan insert included for 3 full size sheet pans.
• Low noise level.
• 97% recyclable by weight.
Hot Water Sanitizing Pot and Pan Washer – 34.50″ WT830
Warewashing
Approval: ___________________________________________
Electrolux Professional, Inc.
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
www.electroluxusa.com/professional
Front View
Top View
Warewashing
Hot Water Sanitizing Pot
and Pan Washer – 34.50″ WT830
Electric
Supply voltage: 506029 208 V/3p/60Hz - 48A
506030 240 V/3p/60Hz - 41A
Total Watts: 14.8 kW
Booster heating elements: 12 kW
Tank heating elements: 12 kW
Wash pump size: 3.5 hp
Water
Water supply pressure: 7.25 – 101 psi (50 – 700 kPa)
Water supply temperature: 120 °F (50 °C)
Colder incoming water supply
may lengthen wash cycle time.
Water supply hardness: 8 gpg (14 °fH max)
Gallons per cycle: 1.6 gallons (6.2 liters)
Gallons per hour: 10 gallons (38 liters)
(6 minute cycle))
Initial fill water consumption: 25 gallons (95 liters)
Booster Capacity: 4.8 gallons (18 liters)
Tank Capacity: 25 gallons (95 liters)
Incoming water line size: 0.75″ (19.05 mm)
Drain line size: 1.625″ ID (40 mm) free fall
drainage
Side View
Key Information
N° of cycles: 4 (6, 10, 15 minute and continuous)
Racks per hour: 10 (6 minute cycle)
6 (10 minute cycle)
4 (15 minute cycle)
Noise level: <70 dB
Net weight: 441 lb (200 kg)
Shipping weight: 606 lb (275 kg)
Shipping width: 44.06″ (1120 mm)
Shipping height: 86.63″ (2200 mm)
Shipping depth: 43.31″ (1100 mm)
3
Shipping Volume: 2.71 cu. ft. (95.69 m
Predisposed for external detergent connections.
Hot Water Sanitizing Pot and Pan Washer – 34.50
The company reserves the right to make modifications to the products
without proir notice. All information correct at time of printing.
)
Warewashing
″″
″
WT 830
″″
