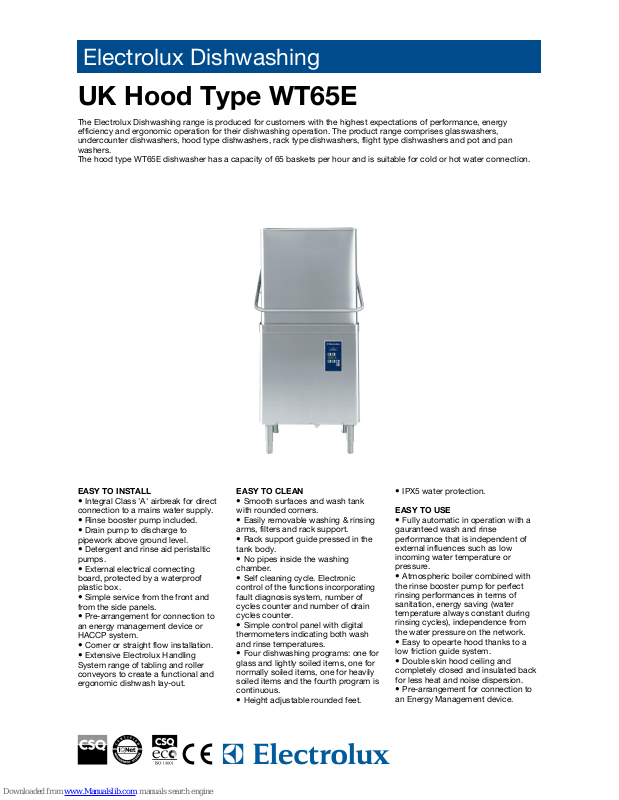

Electrolux Dishwashing
UK Hood Type WT65E
The Electrolux Dishwashing range is produced for customers with the highest expectations of performance, energy
efficiency and ergonomic operation for their dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot and pan
washers.
The hood type WT65E dishwasher has a capacity of 65 baskets per hour and is suitable for cold or hot water connection.
EASY TO INSTALL
• Integral Class 'A' airbreak for direct
connection to a mains water supply.
• Rinse booster pump included.
• Drain pump to discharge to
pipework above ground level.
• Detergent and rinse aid peristaltic
pumps.
• External electrical connecting
board, protected by a waterproof
plastic box.
• Simple service from the front and
from the side panels.
• Pre-arrangement for connection to
an energy management device or
HACCP system.
• Corner or straight flow installation.
• Extensive Electrolux Handling
System range of tabling and roller
conveyors to create a functional and
ergonomic dishwash lay-out.
EASY TO CLEAN
• Smooth surfaces and wash tank
with rounded corners.
• Easily removable washing & rinsing
arms, filters and rack support.
• Rack support guide pressed in the
tank body.
• No pipes inside the washing
chamber.
• Self cleaning cycle. Electronic
control of the functions incorporating
fault diagnosis system, number of
cycles counter and number of drain
cycles counter.
• Simple control panel with digital
thermometers indicating both wash
and rinse temperatures.
• Four dishwashing programs: one for
glass and lightly soiled items, one for
normally soiled items, one for heavily
soiled items and the fourth program is
continuous.
• Height adjustable rounded feet.
• IPX5 water protection.
EASY TO USE
• Fully automatic in operation with a
gauranteed wash and rinse
performance that is independent of
external influences such as low
incoming water temperature or
pressure.
• Atmospheric boiler combined with
the rinse booster pump for perfect
rinsing performances in terms of
sanitation, energy saving (water
temperature always constant during
rinsing cycles), independence from
the water pressure on the network.
• Easy to opearte hood thanks to a
low friction guide system.
• Double skin hood ceiling and
completely closed and insulated back
for less heat and noise dispersion.
• Pre-arrangement for connection to
an Energy Management device.
Page 2
Electrolux Dishwashing
UK Hood Type WT65E
Internet: http://www.electrolux.com/foodservice
IDB0402007-11-19
RINSE AID LEVEL PROBE KIT FOR UC+HT DW 864005
INTEGRATED HACCP KIT FOR UC, HT AND POTW 864001
HACCP PRINTER KIT FOR UC, HT AND POTW 864002
DETERGENT LEVEL PROBE KIT FOR UC+HT DW 864004
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016
BRASS INLET VALVE KIT FOR UC AND HT 864000
BASKET FOR 6 TRAYS 530X370MM-RED 866743
20 L EXTERNAL MANUAL WATER SOFTENER 860430
*NOT TRANSLATED* 922166
*NOT TRANSLATED* 864050
*NOT TRANSLATED* 864026
*NOT TRANSLATED* 864017
*NOT TRANSLATED* 864015
ACCESSORIES
BASKET FOR BULK CUTLERY-BROWN 1
BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 1
BASKET FOR 18 DINNER PLATES 240MM-YELLOW 2
INCLUDED ACCESSORIES
Net weight - kg. 128
total power 12.1
Rinse pump 0.35
drain pump 0.034
Power - kW
water consumption lt./h 3.8
Rinsing
Boiler elements - kW 10.5
Boiler capacity - lt. 12
water consumption - lt./cycle 3.8
temperature during rinse - °C 84
duration - sec. 16
Hot rinse cycle
electrical elements - kW 3
power pump - kW 1.5
tank capacity - lt. 40
temperature -°C 55-65
Washing cycle
height 409
depth 560
width 590
Cell dimensions - mm
height 1507
depth 815
width 735
External dimensions - mm
Door/hood thickness Double Skin Insulated
Basket capacity/h 65
Dishes capacity/h 1180
Duration cycles - sec. 55/65/120/inf
N° of cycles 4
Rinse Booster Pump ●
Drain pump ●
hardness - °f 7-14
temperature - °C 50
Water supply
TECHNICAL DATA
WT65EBIDG
504173
EASY TO MAINTAIN
• Main internal components in 304
AISI stainless steel as well as the
external front and side panels.
• Automatic boiler emptying function.
• Washing pump with automatic drain
function.
• Fault auto-diagnosis system.
• In compliance with H requirements.
EASY ON THE ENVIRONMENT
• Low noise level.
• CFC free packaging.
• 97% recyclable by weight.
• Developed and produced in ISO
9001 and ISO 14001 certified factory.
Page 3
Electrolux Dishwashing
UK Hood Type WT65E
Internet: http://www.electrolux.com/foodservice
IDB0402007-11-19
XR - Connection for detergent dispenser ●
HWI - Hot water inlet G 3/4"
EI - Electrical connection 400 V, 3N, 50
D - Water drain 20 mm
LEGEND
WT65EBIDG
504173
