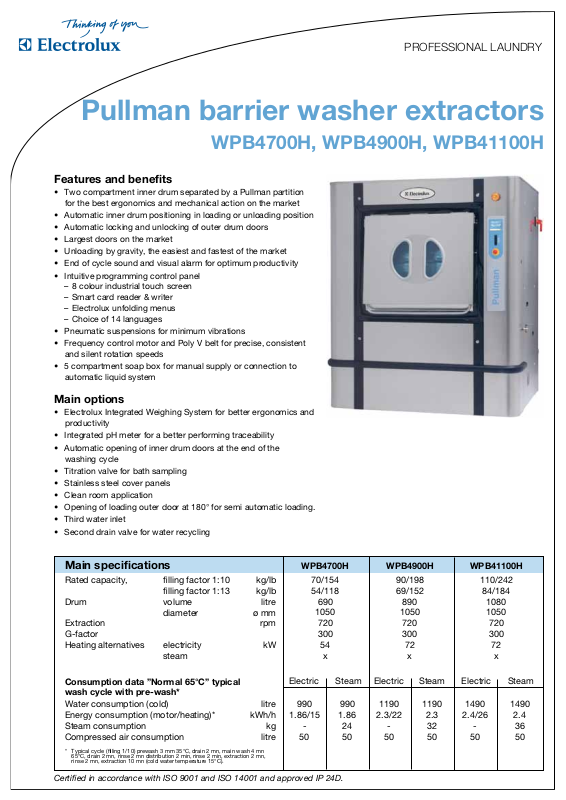

PROFESSIONAL LAUNDRY
Pullman barrier washer extractors
WPB4700H, WPB4900H, WPB41100H
Features and benefits
•Two compartment inner drum separated by a Pullman partition for the best ergonomics and mechanical action on the market
•Automatic inner drum positioning in loading or unloading position
•Automatic locking and unlocking of outer drum doors
•Largest doors on the market
•Unloading by gravity, the easiest and fastest of the market
•End of cycle sound and visual alarm for optimum productivity
•Intuitive programming control panel
–8 colour industrial touch screen
–Smart card reader & writer
–Electrolux unfolding menus
–Choice of 14 languages
•Pneumatic suspensions for minimum vibrations
•Frequency control motor and Poly V belt for precise, consistent and silent rotation speeds
•5 compartment soap box for manual supply or connection to automatic liquid system
Main options
•Electrolux Integrated Weighing System for better ergonomics and productivity
•Integrated pH meter for a better performing traceability
•Automatic opening of inner drum doors at the end of the washing cycle
•Titration valve for bath sampling
•Stainless steel cover panels
•Clean room application
•Opening of loading outer door at 180° for semi automatic loading.
•Third water inlet
•Second drain valve for water recycling
Main specifications |
|
WPB4700H |
WPB4900H |
WPB41100H |
||||
Rated capacity, |
filling factor 1:10 |
kg/lb |
70/154 |
90/198 |
110/242 |
|||
|
filling factor 1:13 |
kg/lb |
54/118 |
69/152 |
84/184 |
|||
Drum |
volume |
litre |
690 |
|
890 |
|
1080 |
|
|
diameter |
ø mm |
1050 |
|
1050 |
1050 |
|
|
Extraction |
|
rpm |
720 |
|
720 |
|
720 |
|
G-factor |
|
|
300 |
|
300 |
|
300 |
|
Heating alternatives |
electricity |
kW |
54 |
|
72 |
|
72 |
|
|
steam |
|
x |
|
x |
|
x |
|
Consumption data ”Normal 65°C” typical |
|
Electric |
Steam |
Electric |
Steam |
Electric |
Steam |
|
wash cycle with pre-wash* |
|
|
|
|
|
|
|
|
Water consumption (cold) |
litre |
990 |
990 |
1190 |
1190 |
1490 |
1490 |
|
Energy consumption (motor/heating)* |
kWh/h |
1.86/15 |
1.86 |
2.3/22 |
2.3 |
2.4/26 |
2.4 |
|
Steam consumption |
|
kg |
- |
24 |
- |
32 |
- |
36 |
Compressed air consumption |
litre |
50 |
50 |
50 |
50 |
50 |
50 |
*Typical cycle (filling 1/10) prewash 3 mm 35°C, drain 2 mn, main wash 4 mn 65°C, drain 2 mn, rinse 2 mn distribution 2 min, rinse 2 min, extraction 2 mn, rinse 2 mn, extraction 10 mn (cold water temperature 15°C).
Certified in accordance with ISO 9001 and ISO 14001 and approved IP 24D.
Electrical connections* |
|
|
WPB4700H |
WPB4900H |
WPB41100H |
|
|
|
|
|
|
|
|
||
Heating |
Voltage |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Electric |
380-415V 3 AC 50/60 Hz |
kW(A) |
65.7 (125) |
87.7 (160) |
91 (160) |
|
|
|
|
|
|
|
|
||
Steam |
380-415V 3 AC 50/60 Hz |
kW(A) |
11.7 (40) |
15.7 (40) |
19 (50) |
|
|
|
|
|
|
|
|
||
or non- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
heated |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Water and steam connections |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Water valves |
|
DN |
32 |
32 |
32 |
|
|
|
|
|
|
|
|
||
Water pressure |
|
kPa |
50-600 |
50-600 |
50-600 |
|
|
|
|
|
|
|
|
||
Capacity at 250 kPa |
|
l/min |
200 |
200 |
200 |
|
|
|
|
|
|
|
|
||
Drain valve |
|
ø mm |
110 |
110 |
110 |
|
|
|
|
|
|
|
|
||
Draining capacity |
|
l/min |
380 |
380 |
380 |
|
|
|
|
|
|
|
|
||
Steam valve |
|
DN |
25 |
25 |
25 |
|
|
|
|
|
|
|
|
||
Steam pressure |
|
kPa |
300-600 |
300-600 |
300-600 |
|
|
|
|
|
|
|
|
||
Compressed air |
|
mm |
6/8 |
6/8 |
6/8 |
|
|
|
|
|
|
|
|
||
Compressed air pressure |
|
kPa |
550-700 |
550-700 |
550-700 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Sound levels |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Airborne sound level (washing/extraction) |
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
dB(A) |
64/83 |
64/83 |
67/83 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Heat emission |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
% of installed power |
|
max |
5 |
5 |
5 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Shipping data |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Weight |
|
|
net, kg |
2600 |
2800 |
2900 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Dimensions in mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
A Width |
|
|
|
1496 |
1726 |
1956 |
|
|
|
|
|
|
|
|
|
B Depth |
|
|
|
1363 |
1363 |
1363 |
|
|
|
|
|
|
|
|
|
C Height |
|
|
|
2040 |
2040 |
2040 |
|
|
|
|
|
|
|
|
|
D |
|
|
|
|
990 |
990 |
990 |
|
|
|
|
|
|
|
|
E |
|
|
|
|
240 |
240 |
240 |
|
|
|
|
|
|
|
|
F |
|
|
|
|
965 |
1080 |
1195 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
G with 180° door opening option only |
|
830 |
830 |
830 |
|
|
|
|
|
|
|
|
|||
H with 180° door opening option only |
|
2580 |
2580 |
2580 |
|
|
|
|
|
|
|
|
|||
I |
|
|
|
|
790 |
790 |
790 |
|
|
|
|
|
|
|
|
K |
|
|
|
|
2075 |
2075 |
2075 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
1 |
Electrical connection |
7 Liquid supply connection |
|
|
|
|
|
|
|
|
|
||||
2 |
Cold water |
8 Soap box |
|
|
|
|
|
|
|
|
|
|
|||
3 |
Hot water |
9 Compressed air |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
||||||
4 |
Cold soft water |
10 Loading/unloading door |
|
|
|
|
Top view |
||||||||
5 |
Steam connection |
11 Control panel |
|
|
|
|
|
|
|
|
|
|
|||
6 |
Drain |
|
12 Vent connection |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* Other voltages available, see installation manual.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Front view |
|
|
|
|
|
|
|
|
|
|
|
|
|
Left side view |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Right side view |
|
|
|
|
|
|
www.electrolux.com/laundrysystems
Share more of our thinking at www.electrolux.com
09.11 |
alter specifications without notice. |
