ITEM # _______________________________________________
MODEL # _____________________________________________

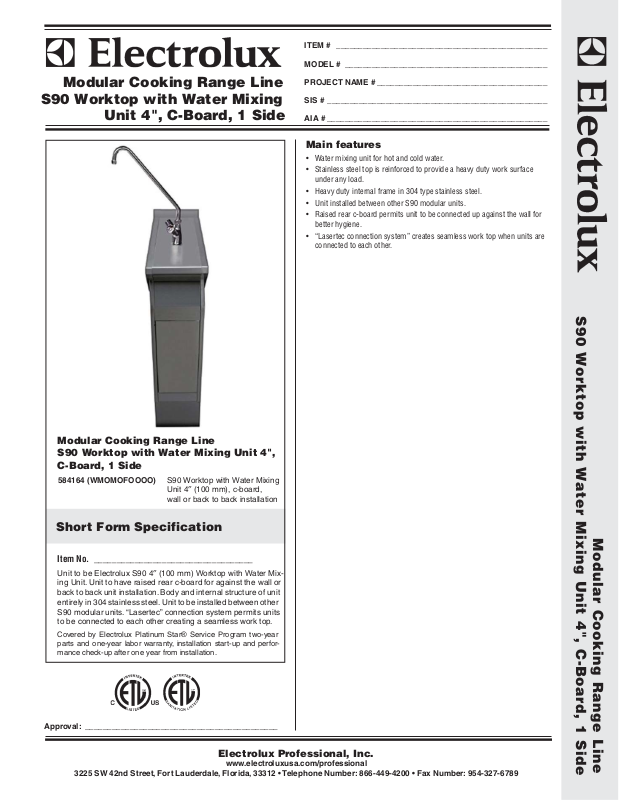

Modular Cooking Range Line
S90 Worktop with Water Mixing
Unit 4", C-Board, 1 Side
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Main features
• Water mixing unit for hot and cold water.
• Stainless steel top is reinforced to provide a heavy duty work surface
under any load.
• Heavy duty internal frame in 304 type stainless steel.
• Unit installed between other S90 modular units.
• Raised rear c-board permits unit to be connected up against the wall for
better hygiene.
• “Lasertec connection system” creates seamless work top when units are
connected to each other.
S90 Worktop with Water Mixing Unit 4", C-Board, 1 Side
Modular Cooking Range Line
S90 Worktop with Water Mixing Unit 4",
C-Board, 1 Side
584164 (WMOMOFOOOO) S90 Worktop with Water Mixing
Unit 4″ (100 mm), c-board,
wall or back to back installation
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux S90 4″ (100 mm) Worktop with Water Mixing Unit. Unit to have raised rear c-board for against the wall or
back to back unit installation. Body and internal structure of unit
entirely in 304 stainless steel. Unit to be installed between other
S90 modular units. “Lasertec” connection system permits units
to be connected to each other creating a seamless work top.
Covered by Electrolux Platinum Star® Service Program two-year
parts and one-year labor warranty, installation start-up and performance check-up after one year from installation.
Approval: ___________________________________________
Modular Cooking Range Line
Electrolux Professional, Inc.
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
www.electroluxusa.com/professional
Modular Cooking Range Line
S90 Worktop with Water Mixing
Unit 4", C-Board, 1 Side
Front View
To p View
Water
Incoming Hot Water line size: 1/2″
Incoming Cold Water line size: 1/2″
Key Information
Net weight: 110 lb (50 kg)
Shipping weight: 154 lb (70 kg)
Shipping width: 11-13/16″ (1200 mm)
Shipping height: 43-5/16″ (1100 mm)
Shipping depth: 43-5/16″ (1100 mm)
Shipping volume: 12.71 cu.ft (0.36 m ³ )
Side View
S90 Worktop with Water Mixing Unit 4", C-Board, 1 Side
Modular Cooking Range Line
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-25-09
