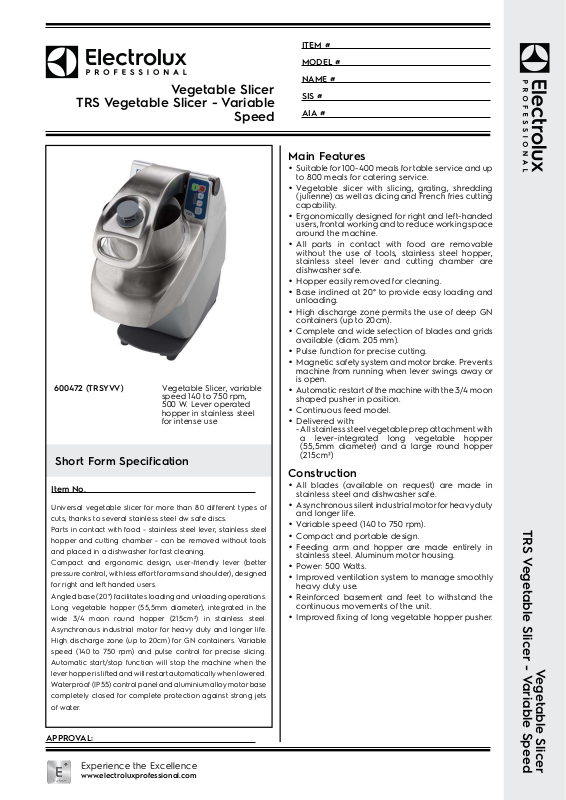

Electrolux TRSYVV Datasheet
|
|
|
|
|
|
ITEM # |
|
|
|
|
|
|
|
MODEL # |
|
|
|
Vegetable Slicer |
|
NAME # |
|
||
|
|
|
SIS # |
||||
|
TRS Vegetable Slicer - Variable |
|
|||||
|
|
|
|
||||
|
|
Speed |
|
AIA # |
|||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main Features |
||
|
|
|
|
|
|||
|
|
|
|
|
∙ Suitable for100-400 meals fortable service and up |
||
|
|
|
|
|
to 800 meals for catering service. |
||
|
|
|
|
|
∙ Vegetable slicer with slicing, grating, shredding |
||
|
|
|
|
|
(julienne) as well as dicing and French fries cutting |
||
|
|
|
|
|
capability. |
||
|
|
|
|
|
∙ Ergonomically designed for right and left-handed |
||
|
|
|
|
|
users, frontal working andto reduce working space |
||
|
|
|
|
|
around the machine. |
||
|
|
|
|
|
∙ All parts in contact with food are removable |
||
|
|
|
|
|
without the use of tools, stainless steel hopper, |
||
|
|
|
|
|
stainless steel lever and cutting chamber are |
||
|
|
|
|
|
dishwasher safe. |
||
|
|
|
|
|
∙ Hopper easily removed for cleaning. |
||
|
|
|
|
|
∙ Base inclined at 20° to provide easy loading and |
||
|
|
|
|
|
unloading. |
||
|
|
|
|
|
∙ High discharge zone permits the use of deep GN |
||
|
|
|
|
|
containers (up to 20cm). |
||
|
|
|
|
|
∙ Complete and wide selection of blades and grids |
||
|
|
|
|
|
available (diam. 205 mm). |
||
|
|
|
|
|
∙ Pulse function for precise cutting. |
||
|
|
|
|
|
∙ Magnetic safety system and motor brake. Prevents |
||
|
|
|
|
|
machine from running when lever swings away or |
||
|
600472 (TRSYVV) |
Vegetable Slicer, variable |
|
is open. |
|||
|
|
∙ Automatic restartofthe machine withthe 3/4 moon |
|||||
|
|
speed 140 to 750 rpm, |
|
shaped pusher in position. |
|||
|
|
500 W. Lever operated |
|
∙ Continuous feed model. |
|||
|
|
hopper in stainless steel |
|
||||
|
|
for intense use |
|
∙ Delivered with: |
|||
|
|
|
|
|
-All stainless steel vegetable prep attachment with |
||
|
|
|
|
|
a lever-integrated long vegetable hopper |
||
|
|
|
|
|
(55,5mm diameter) and a large round hopper |
||
|
|
|
|
|
|||
|
Short Form Specification |
|
(215cm²) |
||||
|
|
Construction |
|||||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
Item No. |
|
|
|
∙ All blades (available on request) are made in |
||
|
|
|
|
stainless steel and dishwasher safe. |
|||
|
|
|
|
|
|||
|
Universal vegetable slicer for more than 80 different types of |
|
∙ Asynchronous silent industrial motorforheavyduty |
||||
|
cuts, thanks to several stainless steel dw safe discs. |
|
and longer life. |
||||
|
|
∙ Variable speed (140 to 750 rpm). |
|||||
|
Parts in contact with food - stainless steel lever, stainless steel |
|
|||||
|
|
∙ Compact and portable design. |
|||||
|
hopper and cutting chamber - can be removed without tools |
|
|||||
|
|
∙ Feeding arm and hopper are made entirely in |
|||||
|
and placed in a dishwasher for fast cleaning. |
|
|||||
|
|
stainless steel. Aluminum motor housing. |
|||||
|
Compact and ergonomic |
design, user-friendly lever (better |
|
||||
|
|
∙ Power: 500 Watts. |
|||||
|
pressure control, with less effortforarmsand shoulder), designed |
|
|||||
|
|
∙ Improved ventilation system to manage smoothly |
|||||
|
for right and left handed users. |
|
|||||
|
|
heavy duty use. |
|||||
|
Angled base (20°) facilitates loading and unloading operations. |
|
∙ Reinforced basement and feet to withstand the |
||||
|
Long vegetable hopper (55,5mm diameter), integrated in the |
|
continuous movements of the unit. |
||||
|
wide 3/4 moon round hopper (215cm²) in stainless steel. |
|
∙ Improved fixing of long vegetable hopper pusher. |
||||
|
Asynchronous industrial motor for heavy duty and longer life. |
|
|
|
|
||
|
High discharge zone (up to 20cm) for GN containers. Variable |
|
|
|
|
||
|
speed (140 to 750 rpm) and pulse control for precise slicing. |
|
|
|
|
||
|
Automatic start/stop function will stop the machine when the |
|
|
|
|
||
|
leverhopperisliftedand will restartautomaticallywhen lowered. |
|
|
|
|
||
|
Waterproof (IP55) control panel and aluminium alloymotorbase |
|
|
|
|
||
|
completely closed for complete protection against strong jets |
|
|
|
|
||
|
of water. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
APPROVAL:
Experience the Excellence
www.electroluxprofessional.com
<![endif]>Slicer Vegetable
<![if ! IE]><![endif]>Speed Variable - Slicer Vegetable TRS
Vegetable Slicer
TRS Vegetable Slicer - Variable
Speed
Included Accessories
∙ 1 of Ejector disc |
PNC 653772 |
Optional Accessories |
|
∙Stainless steel shredding disc with S- PNC 650077 blades 4x4 mm
∙Stainless steel shredding disc with S- PNC 650078 blades 6x6 mm (can also be used
for French fries)
∙Stainless steel shredding disc with S- PNC 650079 blades 8x8 mm (can also be used
for French fries)
∙Stainless steel shredding disc with S- PNC 650080 blades 10x10 mm (can also be used
for French fries)
∙ Stainless steel pressing/slicing disc |
PNC 650081 |
with S-blades 0,6 mm (can be used |
|
for slicing or combined with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650082 |
with S-blades 1 mm (can be used for |
|
slicing or combined with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650083 |
with S-blades 2 mm (can be used |
|
for slicing or combined with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650084 |
with S-blades 3 mm (can be used |
|
for slicing or combined with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650085 |
with S-blades 4 mm (can be used |
|
for slicing or combined with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650086 |
with S-blades 5 mm (can be used |
|
for slicing or combined with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650087 |
with S-blades 6 mm (can be used |
|
for slicing or combined with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650088 |
with S-blades 8 mm (can be used |
|
for slicing or combined with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650089 |
with corrugated S-blades 2 mm |
|
(can be used for slicing or combined |
|
with grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650090 |
with corrugated S-blades 3 mm (can |
|
be used for slicing or combined with |
|
grids) |
|
∙ Stainless steel pressing/slicing disc |
PNC 650091 |
with corrugated S-blades 6 mm (can |
|
be used for slicing or combined with |
|
grids) |
|
∙ Bistrot Pack-set stainless steel discs |
PNC 650092 |
(2mm and 5mm slicing pressing |
|
disc, 2mm grating disc) |
|
∙ Gastronomy Pack-set stainless steel |
PNC 650093 |
discs (2mm, 5mm and 10mm slicing |
|
pressing discs, 2mm grating disc, |
|
4x4mm shredding disc, 10x10mm |
|
dicing grid) |
|
∙Set of 3 stainless steel discs for Pizza PNC 650107 (2mm and 4mm pressing/slicing
discs with S-blades, 7mm grating disc)
∙ Cleaning tool for TRS, TRK & TR210 PNC 650110 5-8-10 mm dicing grids
|
∙ Dicing set 10X10X10MM ( 10mm |
PNC 650112 |
|
|
|
aluminum slicing pressing disc with |
|
|
|
|
205mm diam. and 10mm grid) |
|
|
|
|
∙ Aluminum pressing/slicing disc with |
PNC 650115 |
|
|
|
straight blades 10 mm - for dicing |
|
|
|
∙ Aluminum pressing/slicing disc with |
PNC 650116 |
|
||
|
||||
|
straight blades 8 mm - for dicing |
|
|
|
∙ Stainless steel shredding disc with S- |
PNC 650158 |
|
||
|
||||
|
blades 2x8 mm |
|
|
|
∙ Stainless steel shredding disc with S- |
PNC 650159 |
|
||
|
blades 2x10 mm |
|
|
|
|
∙ Stainless steel pressing/slicing disc with |
PNC 650160 |
|
|
S-blades 10 mm (can be used for slicing or combined with grids)
|
∙ Stainless steel pressing/slicing disc with |
PNC 650161 |
|
|
S-blades 12 mm (can be used for slicing |
|
|
|
or combined with grids) |
|
|
|
∙ Stainless steel pressing/slicing disc with |
PNC 650162 |
|
|
corrugated S-blades 8 mm (can be |
|
|
|
used for slicing or combined with grids) |
|
|
∙ Stainless steel pressing/slicing disc with |
PNC 650164 |
|
corrugated S-blades 10 mm (can be |
|
|
used for slicing or combined with grids) |
|
|
|
PNC 650165 |
|
∙ Stainless steel pressing/slicing disc with |
|
|
S-blades 13 mm (can be used for slicing |
|
|
or combined with grids)
|
∙ Stainless steel shredding disc with S- |
PNC 650166 |
|
|
|
blades 2x2 mm |
|
|
|
|
∙ Stainless steel shredding disc with S- |
PNC 650167 |
|
|
|
blades 3x3 mm |
|
|
|
|
∙ Set of 4 stainless steel discs (2mm and |
PNC 650178 |
|
|
|
5mm slicing pressing discs, 2mm and |
|
|
|
|
7mm grating discs) |
|
|
|
|
∙ Set of 7 stainless steel discs (2mm, 5mm |
PNC 650179 |
|
|
|
and 10mm slicing pressing discs, 2mm |
|
|
|
|
and 7mm grating discs, 4x4mm |
|
|
|
|
shredding disc, 10x10mm dicing grid) |
|
|
|
|
∙ Stainless steel work table with folding |
PNC 653283 |
|
|
|
shelves and disk rack for TRK, TRS and |
|
|
|
|
TR210 table top models |
|
|
|
|
∙ Dicing grid 5x5 mm |
PNC 653566 |
|
|
|
∙ Dicing grid 8x8 mm |
PNC 653567 |
|
|
|
∙ Dicing grid 10x10 mm |
PNC 653568 |
|
|
|
∙ Dicing grid 12x12 mm |
PNC 653569 |
|
|
|
∙ Dicing grid 20x20 mm |
PNC 653570 |
|
|
|
∙ Grid for chips 6x6 mm |
PNC 653571 |
|
|
|
∙ Grid for chips 8x8 mm |
PNC 653572 |
|
|
|
∙ Grid for chips 10x10 mm |
PNC 653573 |
|
|
∙ Stainless steel grating disc 2 mm |
PNC 653773 |
|
||
|
||||
|
∙ Stainless steel grating disc 3 mm |
PNC 653774 |
|
|
|
∙ Stainless steel grating disc 4 mm |
PNC 653775 |
|
|
|
∙ Stainless steel grating disc 7 mm |
PNC 653776 |
|
|
|
∙ Stainless steel grating disc 9 mm |
PNC 653777 |
|
|
|
∙ Stainless steel grating disc for knoedeln |
PNC 653778 |
|
|
|
and bread |
|
|
|
∙ Stainless steel grating disc for parmesan PNC 653779 |
|
|||
|
||||
and bread
Vegetable Slicer
TRS Vegetable Slicer - Variable Speed
The company reserves the right to make modifications to the products without prior notice. All information correct at time of printing.
2021.07.22
