Electrolux SIG 501 User Manual

SIG 501

Operating

and

Installation Instructions

n o

c u

r n

Introduction

This gas cooker has been designed and manufactured to all the necessary British Standards. It also carries the C.E. mark. The cooker complies with European Council Directive 90/396/EEC. It is important that you understand how to use and care for the cooker properly before you use it for the first time. We have written this booklet with your safety in mind. Read the booklet thoroughly before you use the cooker. Keep the booklet in a safe place so that anyone who uses the cooker can read it. Pass the booklet on with the cooker if you give or sell it to someone else.

S I G 5 0 1

For your safety

This cooker is designed for domestic use to cook food. You must not use it for any other purpose. It is not designed for commercial use. Keep children, babies and toddlers away from the cooker at all times. The installation instructions tell you how and where it can be fitted. If the cooker is already installed you must make sure that all instructions have been followed. If you are in any doubt ask a registered person. More details on installation on page 30.

We have included several drawings to show the right and wrong way of doing things.

The right way will have a smiling face by it.

A sad face shows something is wrong.

RATING PLATE

This is situated on the lower front frame of the appliance and can be seen upon opening the top oven cavity door. Alternatively the rating plate may also be found on the back or top of some models (Where applicable). Do not remove the rating plate from the appliance as

this may invalidate the guarantee.

S I G 5 0 1

Contents

Lighting the appliance 4 The grill 7 The hotplate 10 The ovens 13 Oven cooking chart - main oven 16

- second oven 19 Slow cooking 22 Care and cleaning 24 Installing the appliance 30 General information 32 What is wrong and why? 34 Servicing 36

Page

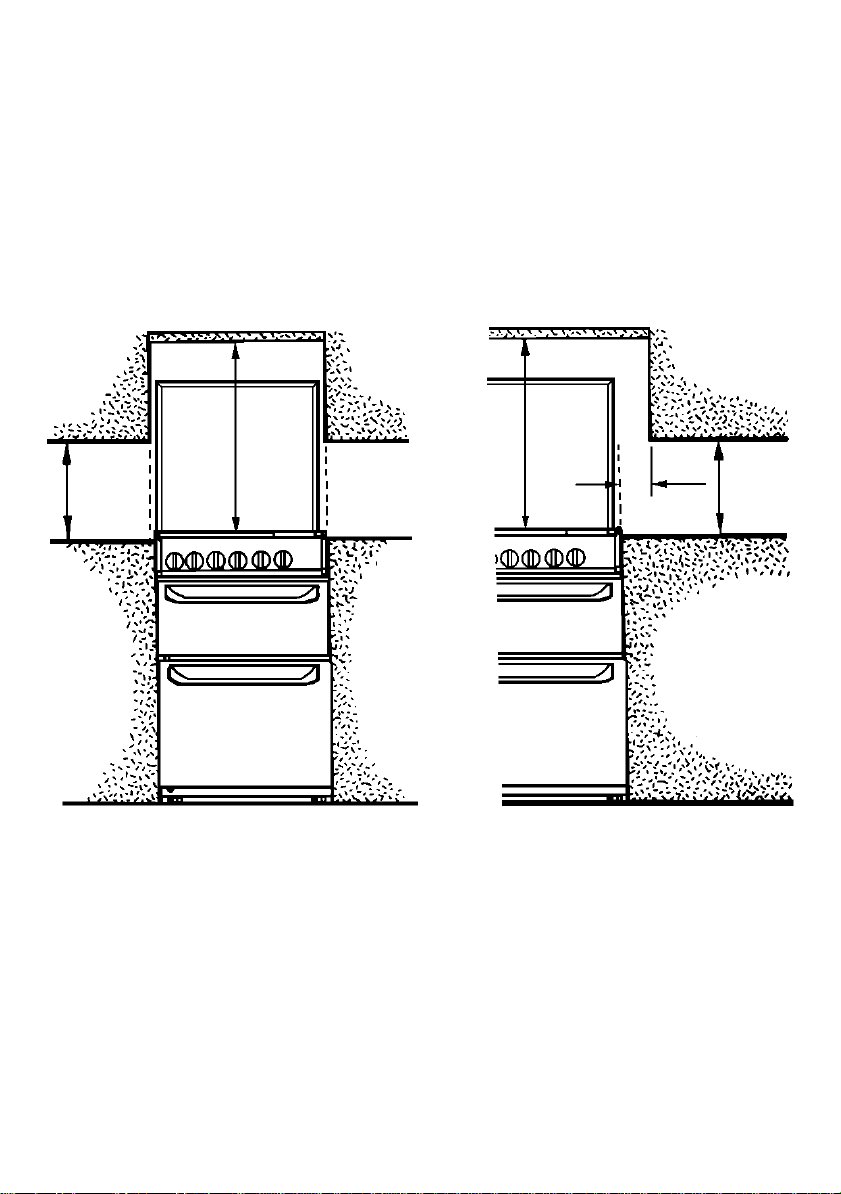

Installation Instructions 38 Technical Data 39 Safety requirements/ventilation 40 Location of appliance 41 Installation 42 Testing 44

Lighting the appliance

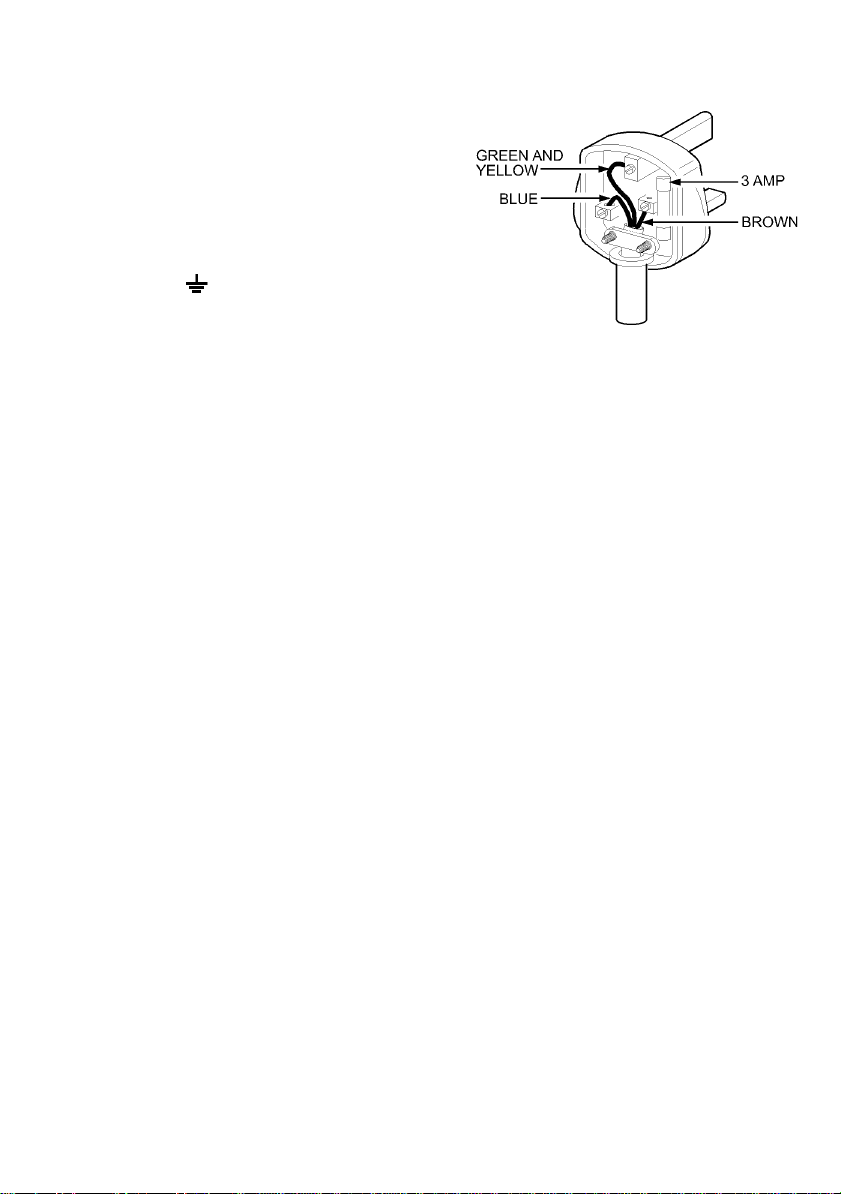

The system works by means of an electric spark system. Details about the plug are given on page 32.

Hotplate

To light

Lighting the appliance

1. Lift up the lid. You cannot use the hotplate when the lid is down.

2. Push in the control knob and turn it to the large flame symbol (highest setting), and press the ignition button immediately. When the burner has lit release the button.

Warning: If the ignition button is not pressed a build up of gas may

cause the flame to spread.

S I G 5 0 1

For your safety

If you close the lid of the appliance while any of the hotplate burners are lit the gas will go out. This is because it would be dangerous if the burners stayed on when the lid was closed.

Always use the control knob to turn off a burner. Do not use the lid as a cut-off device. This will only cut off the gas when the lid is closed. The gas will flow again when the lid is opened.

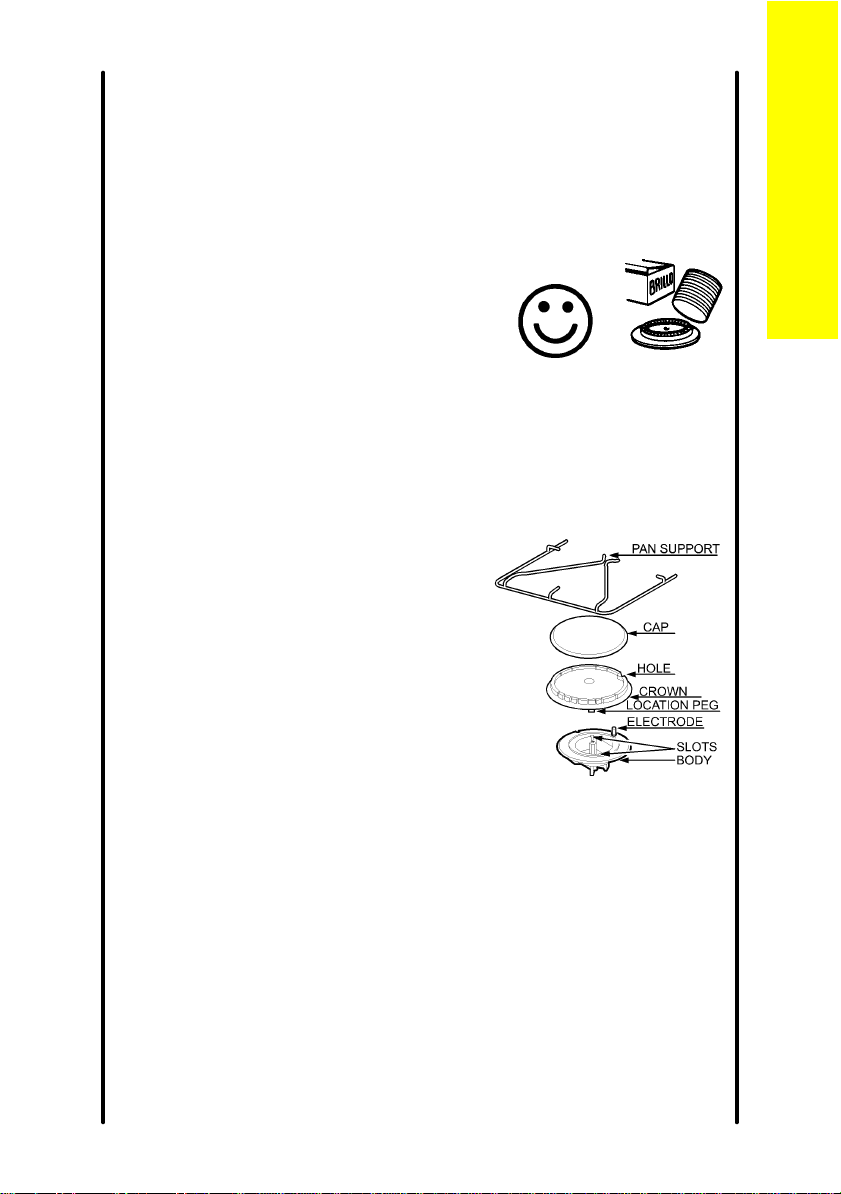

Please note: If you have any trouble lighting a hotplate burner turn all

the hotplate control knobs off and make sure the hotplate burner parts have been replaced correctly. See page 25 for more information.

S I G 5 0 1

Grill/second oven

The grill and the second oven are operated by the same control so you cannot use them both at the same time.

Grill

To light:

1 Open the door. 2 Push in the control knob and turn it to the right to the highest setting.

This is shown by a large flame symbol. Press the ignition button. When the burner has lit release the button.

3 Leave the grill door open when you are using the grill. Warning : If the ignition button is not pressed immediately a build up of

gas may cause the flame to spread.

For your safety

Never cover the grill pan or grid with foil as this can lead to grill fires.

Lighting the appliance

Second oven

To light:

1 Open the oven door. 2 Push in the control knob and turn it to left to gas mark 1. Press the

ignition button. When the burner has lit release the button. There will only be small flames at first.

3 Now turn the control knob to the gas mark

you want.

4 Wait until the burner is showing large

flames.

5 Close the oven door.

Important: Remember to remove the grill pan handle before you use the

second oven.

Main oven

To light:

1 Open the oven door. 2 Push in the control knob and turn it to gas mark 9. After a few

seconds the oven will light automatically and the oven light will illuminate.

Lighting the appliance

3 Now turn the control knob back to the gas

mark you want.

4 Wait until the burner is showing large

flames

5 Close the oven door. If there is an electrical power failure (such as

a power cut) you cannot use the main oven. You can use the second oven.

To turn off any burner

1 Push in the control knob and turn it to the off position. This is shown

by a large dot.

S I G 5 0 1

For your safety

When you are lighting any burner check that it has lit before you leave the appliance. When you are turning off a burner, do not leave the appliance until the flame has gone out.

Oven light

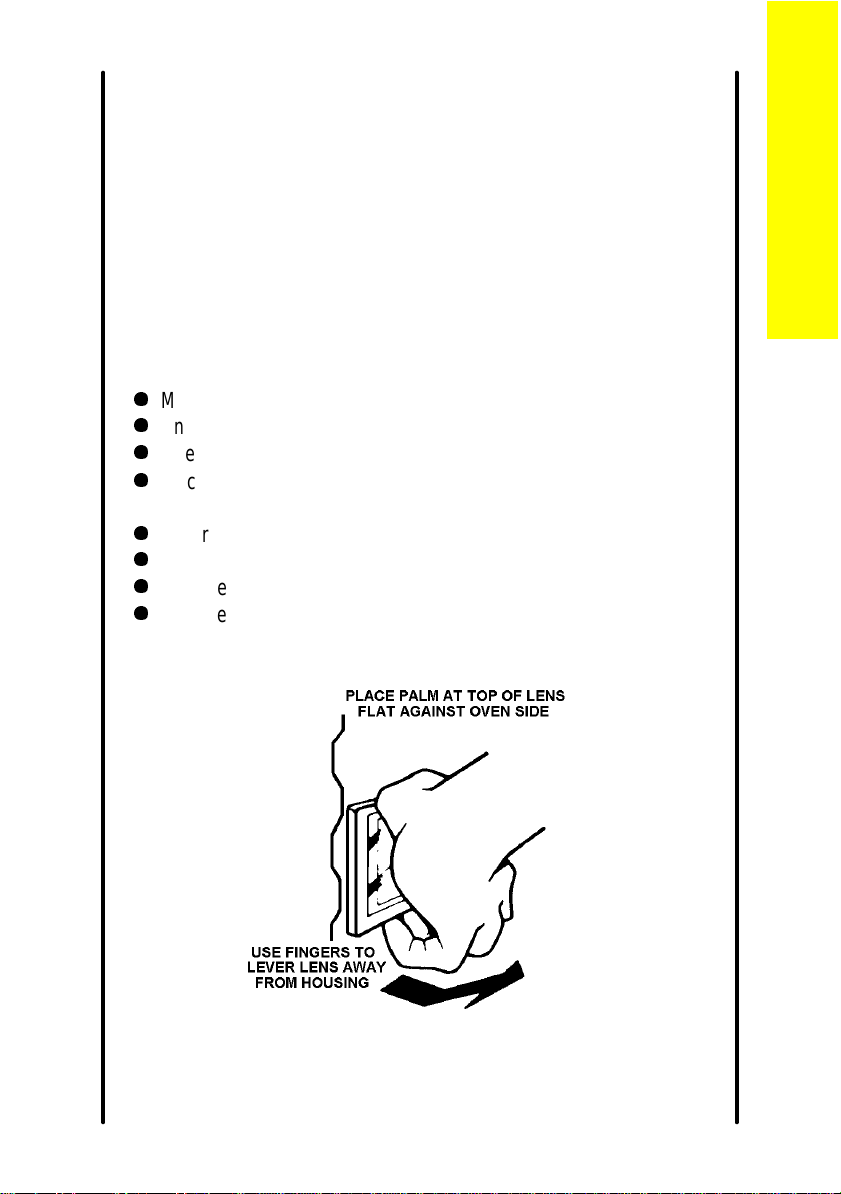

The main oven light will come on when the oven burner is alight. If you need to replace the oven light bulb, follow the instructions given on page

33.

S I G 5 0 1

The grill

The grill is a high-speed grill. The instructions below tell you how to vary the heat setting and how to change the height of the grid to suit the food you are cooking. You should remember to turn the food regularly.

You should not use the grill to keep food warm as it will continue to

cook the food.

Prior to using the grill

We suggest that you operate the grill for approximately 5 - 10 mins to burn off any residue from the surface. During this period a slight odour may be emitted, it is therefore advisable to open a window for ventilation.

When you first operate the grill you may hear some sounds as the burner heats up, this is quite normal and is not a fault on the appliance.

For your safety

The grill pan and handle must be in place before igniting the grill. You must keep the grill door open when the grill burner is lit. Accessible parts may be hot when the grill is used. Young children should be kept away. Never cover the grill pan or grid with foil as this can lead to grill fires

The grill

Heat control

The grill control has two heat settings.

The control knob turns to the right

from 'OFF' to 'LOW' and then to 'HIGH'. Use the high setting for fast cooking such as toast. Use the low setting to cook thicker food such as chicken after you have browned it on the high setting.

Cooking positions

S I G 5 0 1

The grill

There is only one position for the grill shelf

(Position 2). Positions are counted from the top downwards.

Most food should be cooked on the grid in

the grill pan. You can turn the trivet over to suit different thicknesses of food.

You can place some dishes straight on to

the grill shelf. This is useful when you are browning the top of food such as cauliflower cheese.

General

The shelf in the grill/second oven is different from the shelves in the main oven. It is important that you do not swap them over. Only use the shelf with the solid metal plate underneath it in the grill/second oven.

When you are not using the grill you should remove the handle and

store the pan on the shelf in the grill. Turn the grill burner off before you store the pan. Remember that the pan will get hot when you are using the main oven.

You can use the grill compartment to warm plates when you are

using the main oven.

Preheating

You don't usually need to preheat the grill. You may wish to preheat it for a couple of minutes when you are cooking steak or browning food.

Positioning food on the grid

Place food such as toast, tea-cakes and muffins towards the centre of the grid.

Place food which needs a gentle heat,

such as tomatoes and mushrooms towards the edge of the grid.

Arrange meat, meat products and fish to suit their thickness and how you like them cooked.

S I G 5 0 1

The grill pan and handle

The grill pan is supplied with a removable handle. To attach the handle, place the wirework under the cut out in the pan so

that the metal plate hooks over the top of the grill pan. Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to remove the grill pan handle during grilling.

The grill

Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill.

To remove the handle, slide the handle to the right and lift the handle away from the cut out on the grill pan.

Note

If you require an additional handle for your grill pan, this can be ordered from your Local Service Force Centre by quoting part number 311479800\6.

The hotplate

You can only use the hotplate when the lid is open. If you have any

The hotplate

trouble lighting a hotplate burner turn all hotplate control knobs off and make sure the hotplate burner parts have been replaced correctly. See page 25 for more information.

S I G 5 0 1

Heat control

The hotplate control knobs turn anticlockwise from 'OFF' to 'HIGH' and then to 'LOW'. You can adjust the heat by turning the control between the highest and lowest settings. These are shown as a large and a small flame symbol.

Burner sizes

The hotplate has three burner sizes to suit different types of cooking:

Largest burner (Rapid) - use a large pan for food such as chips.

Medium burners (Normal) - use for everyday cooking.

Small burner (Simmer) - use for simmering food such as soups and stews.

RAPID

The largest pan which you should use on any burner is 230mm (9"). The base of the smallest pan should not measure less than 100mm (4").

S I G 5 0 1

For your safety

Take care to avoid burns and scalds when you are reaching across the hotplate.

The hotplate

Use pans with flat bases. They are more stable than pans which are warped.

Do not use pans with very heavy handles which cause the pan to tip.

Put pans on the centre of the burners. Position pan handles so they cannot be

accidentally knocked. Take extra care when you are deep fat frying. Do

not cover the pan with a lid.

RAPID

Do not leave a pan unattended. If the pan catches fire, leave it where it is and turn off all controls.

Place a damp cloth or a fitting lid over the pan to smother the flames.

Never put water on the fire. Leave the pan to cool for 30 minutes.

If you are using a Wok we recommend it has a flat base as it will stand stable on the pan supports. If you use a round based Wok with a collar support, the collar must be of the open wire work type. A closed collar will affect the performance of the burner. Before you use the Wok make sure that the collar is stable on the pan supports. Always follow the instructions that come with the Wok.

Do not use the lid as a work surface or chopping board. This could damage the glass and reduce its strength.

S I G 5 0 1

The hotplate

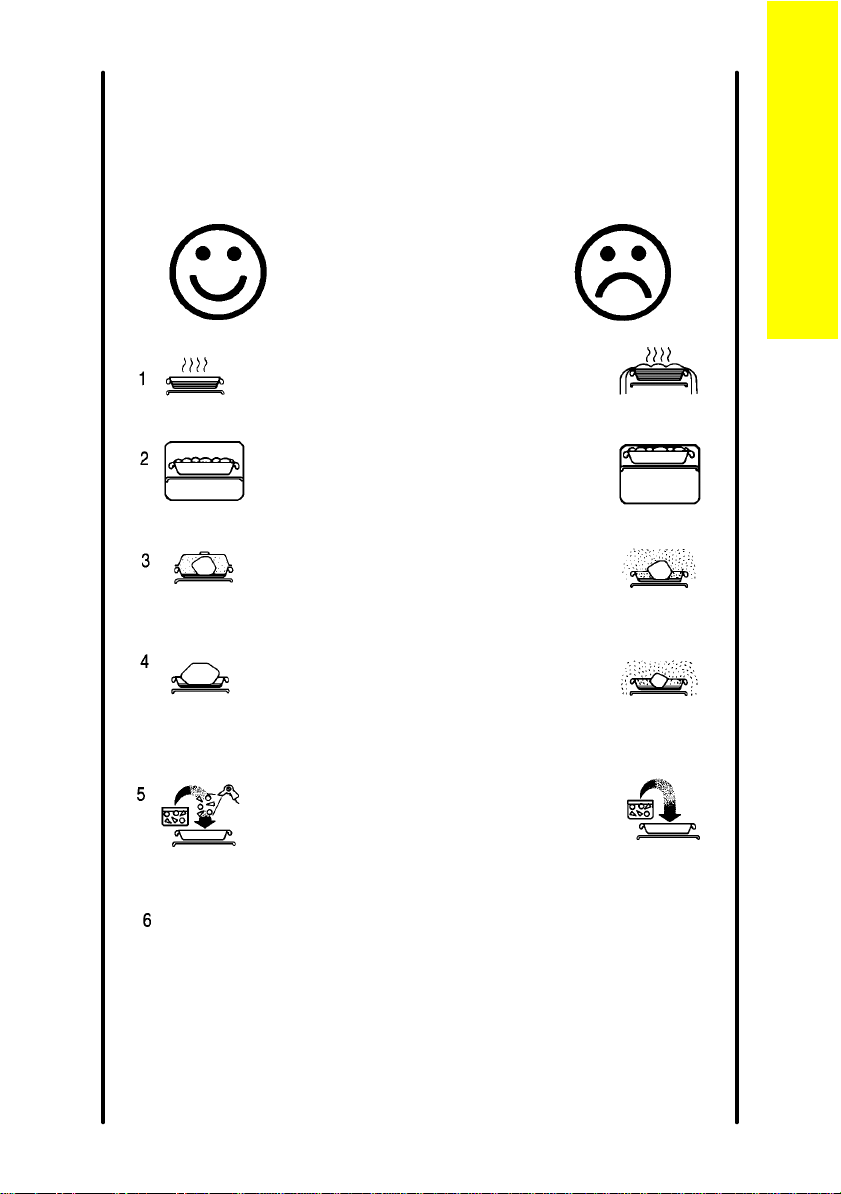

1 Keep flames under the base of pans. If

2 Only heat the amount of liquid you

3 Cover pans with a lid whenever

4 Try cooking more than one vegetable in

Helpful hints

the flames lick round the sides of the pans you are wasting gas.

need. Do not overfill pans.

possible. The food will heat up more quickly and there will be less steam in the kitchen.

the same pan, for example potatoes and carrots.

5 Cut vegetables into smaller pieces.

This way they will cook more quickly.

6 A pressure cooker will save time and

energy.

S I G 5 0 1

The ovens

Before you use the ovens you should wipe them out with a damp cloth to remove any dust.

Heat zones

Main oven - There are zones of heat within the

oven. The temperature in the middle is the gas mark you have chosen. The top of the oven is slightly hotter and the lower shelf slightly cooler. The base of the oven is quite a lot cooler. You can make use of these heat zones when you are cooking foods that need different temperatures all at the same time. If you are cooking more than one tray of similar items, for example cakes or biscuits, swap the trays around during cooking. Or you can remove the top tray when the food is cooked and move the lower tray to the higher shelf to finish cooking.

Second oven - You should turn food round during the cooking time.

Preheating

You do not need to preheat the main or second oven for casseroling and so on.

Preheat the ovens for baking or when you are cooking sensitive food

such as Yorkshire puddings, soufflés and yeast mixtures. When you are cooking or reheating frozen or chilled food read the instructions on the packaging. When you are using the second oven to reheat food you should preheat the oven to gas mark 8. When you need to preheat the oven, we recommend you do so for 20 minutes.

The ovens

Oven shelves

You can slot the oven shelves into any of five positions in the main oven and any of the two positions in the second oven. Positions are counted from the top downwards.

The shelf in the grill/second oven is

different from the shelves in the main oven. Only use the shelf with the solid metal plate underneath it in the grill/second oven. The plate may glow red when you are using the oven. This will not affect the cooking performance.

carried out using the shelf provided in shelf

The ovens

position 2. However when cooking a small joint or a deep cake you can use the shelf on the base of the second oven to allow enough air to circulate around the food. For safety the shelves will only pull out so far. If you want to remove a shelf completely, pull it forward as far as it will go, raise the front edge and lift it out. To put the shelf into a different position, keep the front edge raised, slot the shelf on to the runner, lower the front edge and slide the shelf in.

Baking trays and dishes

S I G 5 0 1

Most second oven cooking should be

Shelf on base

For your safety

Never place cooking dishes, trays and so on over the oven burners. This will damage the appliance as well as the cookware and possibly the floor covering underneath the appliance.

Leave a gap of 13mm (½") between all dishes and the sides of the oven so the heat can circulate properly.

Do not push dishes too far back as food will burn if it overhangs the burner flames.

For the best results from the main oven we recommend that you use a baking tray which is 310mm (12") square. If you use a tray or tin which is larger than this, you may need to turn it around during cooking.

The size of tray which should be used in the second oven should not

be bigger than 310mm x 230mm (12" x 9"). Place the longest side parallel with the door.

Place single dishes on the centre of the shelf. You may need to turn

large items around during cooking. Turn all food round in the second oven.

S I G 5 0 1

Roasting

For best results we recommend open roasting using minimal fat or oil to prevent splashing. It is not necessary to cover meat or poultry or wrap food in foil when roasting as this restricts the circulation of heat and will lead to extended cooktimes. If you are using a roasting bag or cover chicken breast with foil, be prepared to allow an extra 10 - 15 minutes for each 1/2kg (1lb). When cooking large items such as turkeys, the use of foil may be required to prevent the breast becoming dry before the rest of the bird is fully cooked.

Condensation

Condensation may form on the appliance. This is quite normal and nothing to worry about. The condensation forms when heat and moisture are present, for example during cooking. Whenever possible try to make sure that food which contains a lot of moisture, for example casseroles, are covered. If you do notice any condensation, wipe it up straight away.

The ovens
