Electrolux SIG 450 User Manual

SIG 450

Owners handbook

and

Installation Instructions

n o

c u

r n

Introduction

This gas cooker has been designed and manufactured to all the necessary British Standards. It also carries the C.E. mark. The cooker complies with European Council Directive 90/396/EEC.

It is important that you understand how to use and care for the

cooker properly before you use it for the first time.

We have written this booklet with your safety in mind. Read the booklet thoroughly before you use the cooker. Keep the booklet in a safe place so that anyone who uses the cooker can read it. Pass the booklet on with the cooker if you give or sell it to someone else.

S I G 4 5 0

For your safety

The cooker is designed for domestic use to cook food. You must

not use it for any other purpose. It is not designed for commercial

use.

Keep children, babies and toddlers away from the cooker at all

times.

The installation instructions tell you how and where it can be

fitted. If the cooker is already installed you must make sure that

all instructions have been followed. If you are in any doubt ask a

registered person. More details on installation on page 27.

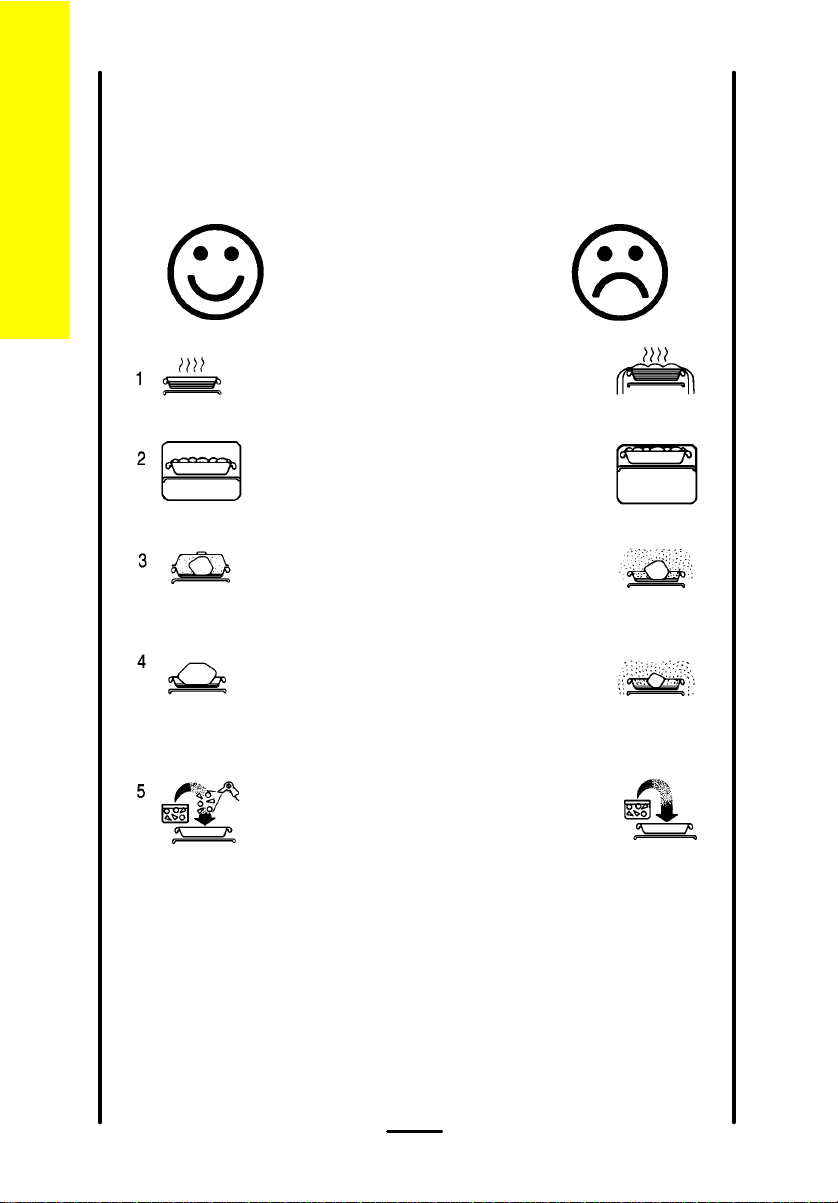

We have included several drawings to show the right and wrong way of doing things.

The right way will have a smiling face by it.

A sad face shows something is wrong.

Do not remove the rating plate from the cooker as this may invalidate

the guarantee.

S I G 4 5 0

Contents

Lighting the cooker 4 The grill 6 The hotplate 9 The oven 12 Oven cooking chart 15 The electronic minute minder 18 Slow cooking 20 Care and cleaning 22 Installing the cooker 27 General information 29 What is wrong and why? 31 Servicing 33

Page

Contents

Installation Instructions 35 Technical Data 36 Safety requirements/ventilation 37 Location of appliance 38 Installation 39 Testing 41

e coo ng t

t g

S I G 4 5 0

Lighting the cooker

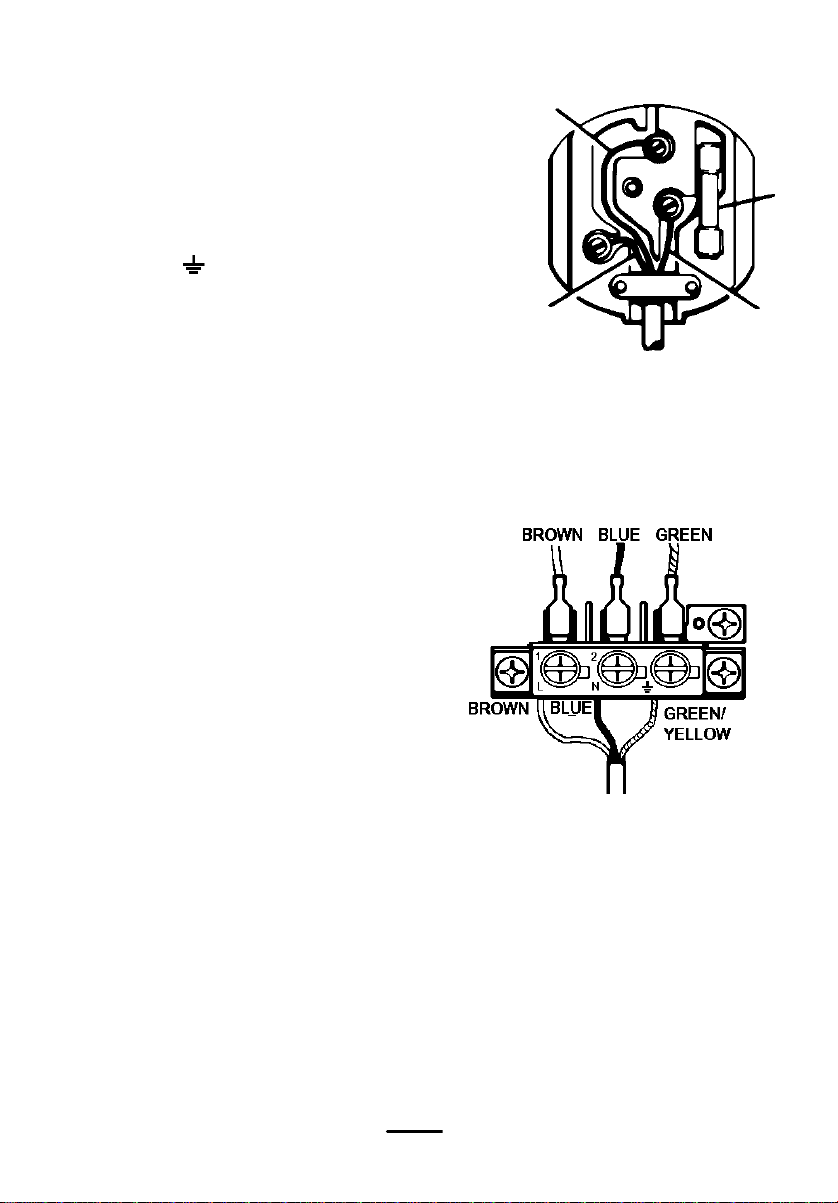

The system works by means of an electric spark system. Details about the plug are given on page 29.

Hotplate & Grill

To light

1. Lift up the lid. You cannot use the hotplate when the lid is down.

2. Push in the control knob and turn it to the large flame symbol

(highest setting), and press the ignition button immediately. When

the burner has lit release the button

RAPID

3. Leave the grill door open when you are using the grill. Warning: If the ignition button is not pressed immediately a build up of

gas may cause the flame to spread.

For your safety

If you close the lid of the cooker while any of the hotplate burners are lit the gas will go out. This is because it would be dangerous if the burners stayed on when the lid was closed.

Always use the control knob to turn off a burner. Do not use the lid as a cut-off device. This will only cut off the gas when the lid is closed. The gas will flow again when the lid is opened.

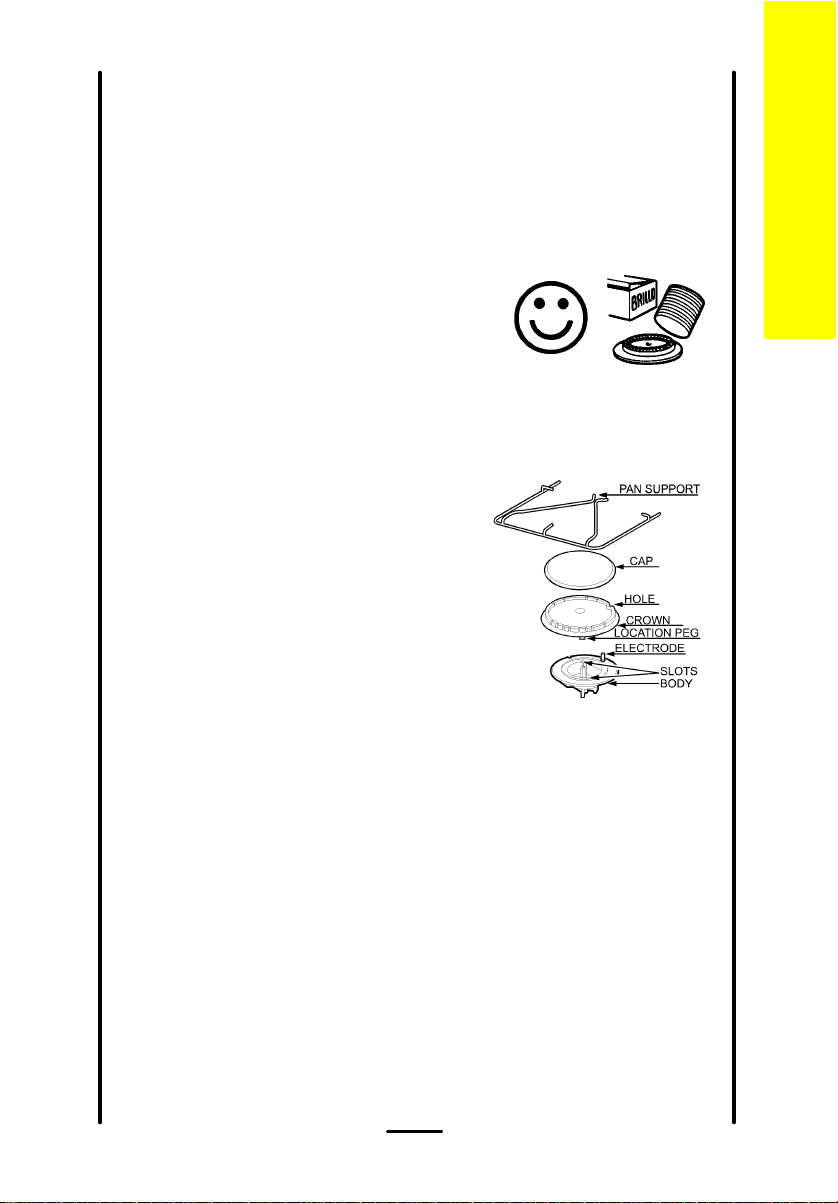

Please note: If you have any trouble lighting a hotplate burner turn all

the hotplate control knobs off and make sure the hotplate burner parts have been replaced correctly. See page 23 for more information.

S I G 4 5 0

The oven

To light:

1 Open the oven door. 2 Push in the control knob and turn it to gas mark 9. The oven will light

automatically and the light will illuminate.

MAIN OVEN

3 Now turn the control knob back to the gas

mark you want. 4 Wait until the burner is showing large

flames.

MAIN OVEN

5 Close the oven door.

To turn off any burner

1 Push in the control knob and turn it to the off position. This is shown

by a large dot.

MAIN OVEN

Lighting the cooker

For your safety

When you are lighting any burner check that it has lit before

you leave the cooker.

When you are turning off a burner, do not leave the cooker

until the flame has gone out.

Oven light

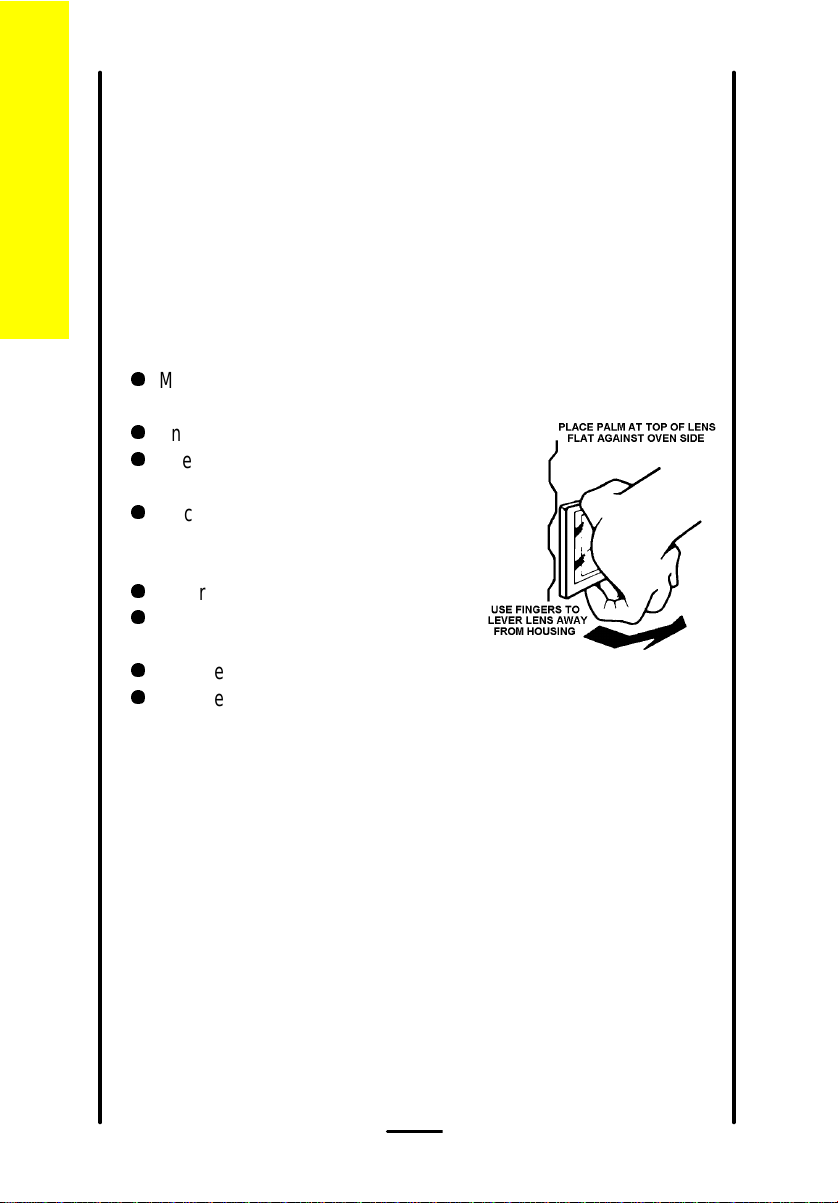

The main oven light will come on when the oven burner is alight. If you need to replace the oven light bulb, follow the instructions given on page

30.

The grill

S I G 4 5 0

The grill

The grill is a high-speed grill. The instructions below tell you how to vary the heat setting and how to change the height of the grid to suit the food you are cooking. You should remember to turn the food regularly.

You should not use the grill to keep food warm as it will continue to cook the food.

For your safety

You must keep the grill door open when the grill burner is lit. Accessible parts may be hot when the grill is used. Young children should be kept away. Never cover the grill pan or grid with foil as this can lead to grill fires.

Heat control

The grill control has two heat settings.

The control knob turns anticlockwise from 'OFF' to 'HIGH' and then to 'LOW'. Use the high setting for fast cooking such as toast. Use the low setting to cook thicker food such as chicken after you have browned it on the high setting.

Cooking positions

There is only one position for the grill shelf.

Most food should be cooked on the grid in the grill pan. You can turn the grid over to suit different thicknesses of food.

You can place some dishes straight on to the grill shelf. This is useful when you are browning the top of food such as cauliflower cheese.

GRILL

General

S I G 4 5 0

The shelf in the grill is different from the shelves in the main oven. It is important that you do not swap them over.

When you are not using the grill you should remove the handle and store the pan on the shelf in the grill. Turn the grill burner off before you store the pan. Remember that the pan will get hot when you are using the main oven.

You can use the grill compartment to warm plates when you are using the main oven.

Preheating

You don't usually need to preheat the grill. You may wish to preheat it for a couple of minutes when you are cooking steak or browning food.

Positioning food on the grid

Place food such as toast, tea-cakes and muffins towards the centre of the grid.

Place food which needs a gentle heat, such as tomatoes and mushrooms towards the edge of the grid. Arrange meat, meat products and fish to suit their thickness and how you like them cooked.

The grill

S I G 4 5 0

The grill pan and handle

The grill pan is supplied with a removable handle. To attach the handle, place the wirework under the cut out in the pan so

that the metal plate hooks over the top of the grill pan. Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to remove the grill pan handle during grilling.

Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill.

To remove the handle, slide the handle to the right and lift the handle away from the cut out on the grill pan.

Note

If you require an additional handle for your grill pan, this can be ordered from Parkinson Cowan by quoting part number 311479800\6.

S I G 4 5 0

The hotplate

You can only use the hotplate when the lid is open. If you have any trouble lighting a hotplate burner turn all hotplate control knobs off and make sure the hotplate burner parts have been replaced correctly. See page 23 for more information.

The hotplate

Heat control

The hotplate control knobs turn anticlockwise from 'OFF' to 'HIGH' and then to 'LOW'. You can adjust the heat by turning the control between the highest and lowest settings. These are shown as a large and a small flame symbol.

Burner sizes

The hotplate has three burner sizes to suit different types of cooking:

Largest burner (Rapid) - use a large pan for food such as chips.

Medium burners (Normal) - use for everyday cooking.

Small burner (Simmer) - use for simmering food such as soups and stews.

RAPID

The largest pan which you should use on any burner is 230mm (9"). The base of the smallest pan should not measure less than 100mm (4").

S I G 4 5 0

For your safety

The hotplate

RAPID

Take care to avoid burns and scalds when you are reaching across the hotplate.

Use pans with flat bases. They are more stable than pans which are warped.

Do not use pans with very heavy handles which cause the pan to tip.

Put pans on the centre of the burners. Position pan handles so they cannot be

accidentally knocked. Take extra care when you are deep fat frying. Do

not cover the pan with a lid. Do not leave a pan unattended. If the pan catches

fire, leave it where it is and turn off all controls. Place a damp cloth or a fitting lid over the pan to

smother the flames.

Never put water on the fire. Leave the pan to cool for 30 minutes. If you are using a Wok we recommend it has a flat

base as it will stand stable on the pan supports. If you use a round based Wok with a collar support, the collar must be of the open wire work type. A closed collar will affect the performance of the burner. Before you use the Wok make sure that the collar is stable on the pan supports. Always follow the instructions that come with the Wok.

Do not use the lid as a work surface or chopping board. This could damage the glass and reduce its strength.

S I G 4 5 0

Helpful hints

1 Keep flames under the base of pans. If

the flames lick round the sides of the pans you are wasting gas.

2 Only heat the amount of liquid you

need. Do not overfill pans.

3 Cover pans with a lid whenever

possible. The food will heat up more quickly and there will be less steam in the kitchen.

4 Try cooking more than one vegetable in

the same pan, for example potatoes and carrots.

The hotplate

5 Cut vegetables into smaller pieces.

This way they will cook more quickly.

6 A pressure cooker will save time and

energy.

The oven

Before you use the oven you should wipe it out with a damp cloth to remove any dust.

Heat zones

There are zones of heat within the oven. The temperature in the middle is the gas mark you have chosen. The top of the oven is slightly hotter and the lower shelf slightly cooler. The base of the oven is quite a lot cooler. You can make use of these heat zones when you are cooking foods that need different temperatures all at the same time. If you are cooking more than one tray of similar items, for example cakes or biscuits, swap the trays around during cooking. Or you can remove the top tray when the food is cooked and move the lower tray to the higher shelf to finish cooking.

Preheating

You do not need to preheat the oven for casseroling and so on. such as Yorkshire puddings, soufflés and yeast mixtures.

When you are cooking or reheating frozen or chilled food read the instructions on the packaging. When you need to preheat the oven, we recommend you do so for 20 minutes.

S I G 4 5 0

Preheat the oven for baking or when you are cooking sensitive food

Oven shelves

You can slot the oven shelves into any of five positions in the oven. Positions are counted from the top downwards. For safety the shelves will only pull out so far. If you want to remove a shelf completely, pull it forward as far as it will go, raise the front edge and lift it out. To put the shelf into a different position, keep the front edge raised, slot the shelf on to the runner, lower the front edge and slide the shelf in.

S I G 4 5 0

Baking trays and dishes

For your safety

Never place cooking dishes, trays and so on over the oven burners. This will damage the cooker as well as the cookware and possibly the floor covering underneath the cooker.

Leave a gap of 13mm (½") between all

dishes and the sides of the oven so the

heat can circulate properly.

heat can circulate properly. Do not push dishes too far back as food

Do not push dishes too far back as food

will burn if it overhangs the burner flames.

For the best results from the oven we recommend that you use a baking tray which is 310mm (12") square. If you use a tray or tin which is larger than this, you may need to turn it around during cooking.

Place single dishes on the centre of the shelf. You may need to turn large items around during cooking.

The oven

Roasting

For best results we recommend open roasting using minimal fat or oil to prevent splashing. It is not necessary to cover meat or poultry or wrap food in foil when roasting as this restricts the circulation of heat and will lead to extended cooktimes. If you are using a roasting bag or cover chicken breast with foil, be prepared to allow an extra 10 - 15 minutes for each 1/2kg (1lb). When cooking large items such as turkeys, the use of foil may be required to prevent the breast becoming dry before the rest of the bird is fully cooked.

Condensation

S I G 4 5 0

The oven

Condensation may form on the cooker. This is quite normal and nothing to worry about. The condensation forms when heat and moisture are present, for example during cooking. Whenever possible try to make sure that food which contains a lot of moisture, for example casseroles, are covered. If you do notice any condensation, wipe it up straight away.
