ELECTROLUX S75300DNX0 User Manual [fr]

S54800DNW0

EL EN TR

˕˲ˠˢ˜ˬ

Refrigerator

6RáXWXFX

ˍˡˤˠ˜ˢ˯˔ˮ˛˰ˤ˯

USER MANUAL

.XOODQPD.óODYX]X

S75300DNX0

NO-FROST Refrigerator

NO-FROST Réfrigérateur

User manual

Guide d’utilisation

Index

BEFORE USING THE APPLIANCE.....................................................................2

Safety Instructions...........................................................................................................2

Recommendations.........................................................................................................3

nstallation and Switching On The Appliance................................................................4

Before Switching On........................................................................................................4

THE VARIOUS FUNCTION AND POSSIBILITIES...............................................5

Mode button......................................................................................................................5

Super freezing mode...............................................................................................................6

Super cooling mode.................................................................................................................7

Turbo mode...............................................................................................................................8

Holiday mode............................................................................................................................9

Economy mode.......................................................................................................................10

Child lock function..................................................................................................................11

Function button.......................................................................................................................11

Freezer compartment temperature adjustment.........................................................12

Refrigerator compartment temperature adjustment.................................................13

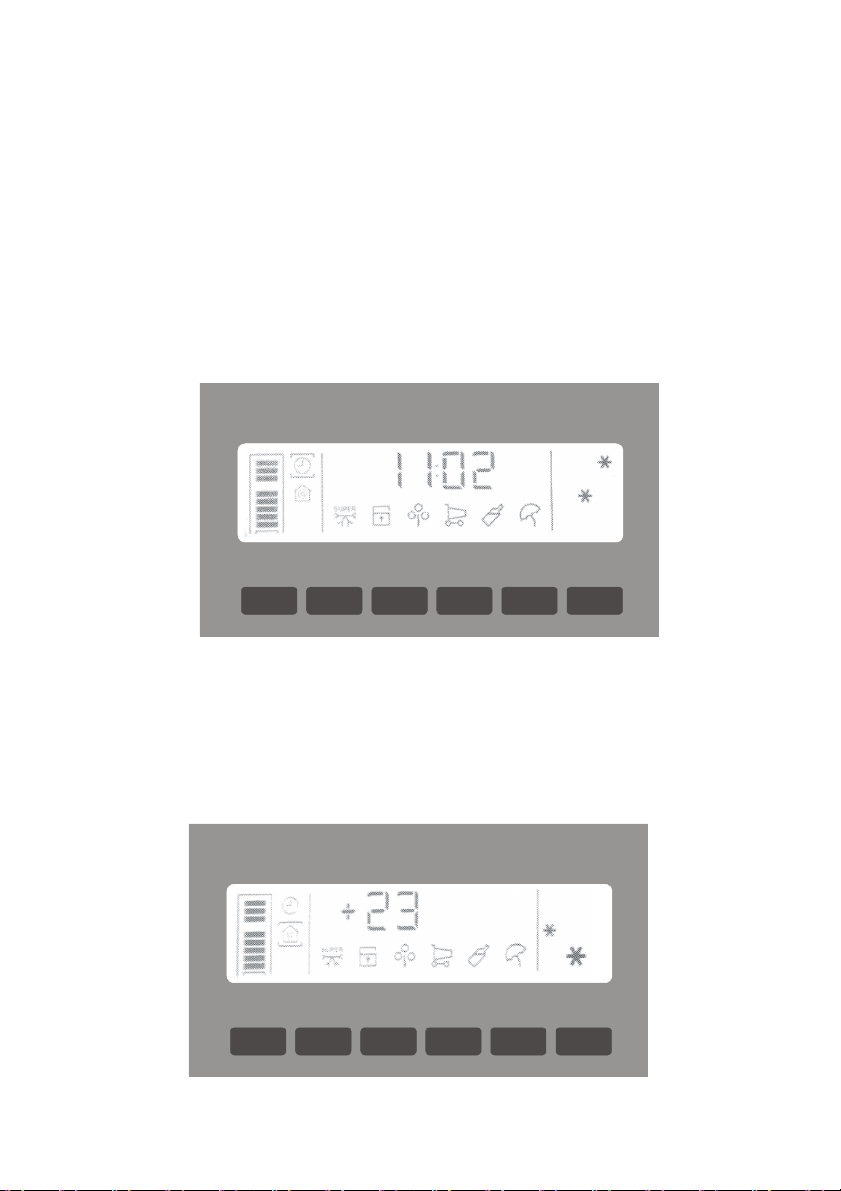

Real time clock..............................................................................................................14

Ambient temperature....................................................................................................14

Door open alarm...........................................................................................................15

On / Off button................................................................................................................15

Accessories...................................................................................................................16

Making Ice Cubes...................................................................................................................16

Fast Freezing Shelf................................................................................................................16

Chiller Shelf.............................................................................................................................16

Drawer....................................................................................................................................17

Wine Rack...............................................................................................................................17

Fresh Dial................................................................................................................................17

Crisper and Crisper Shelf......................................................................................................18

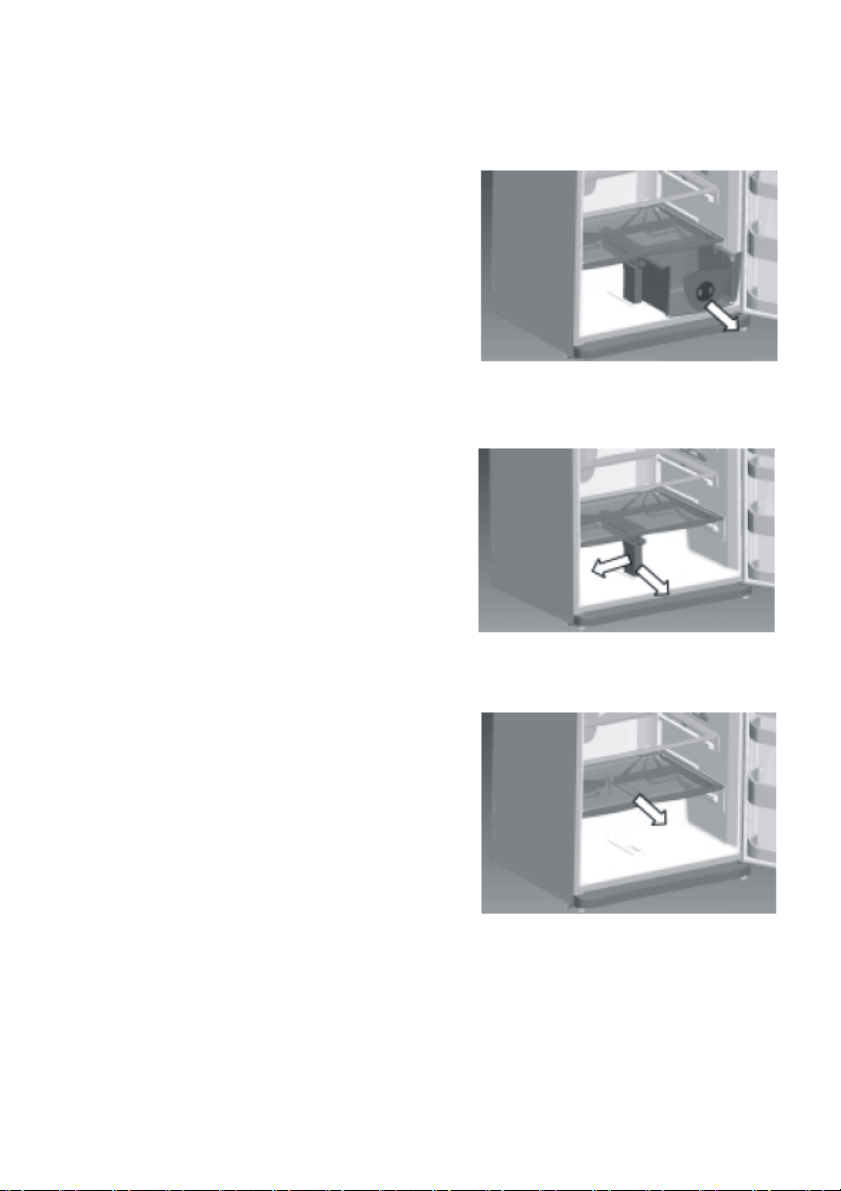

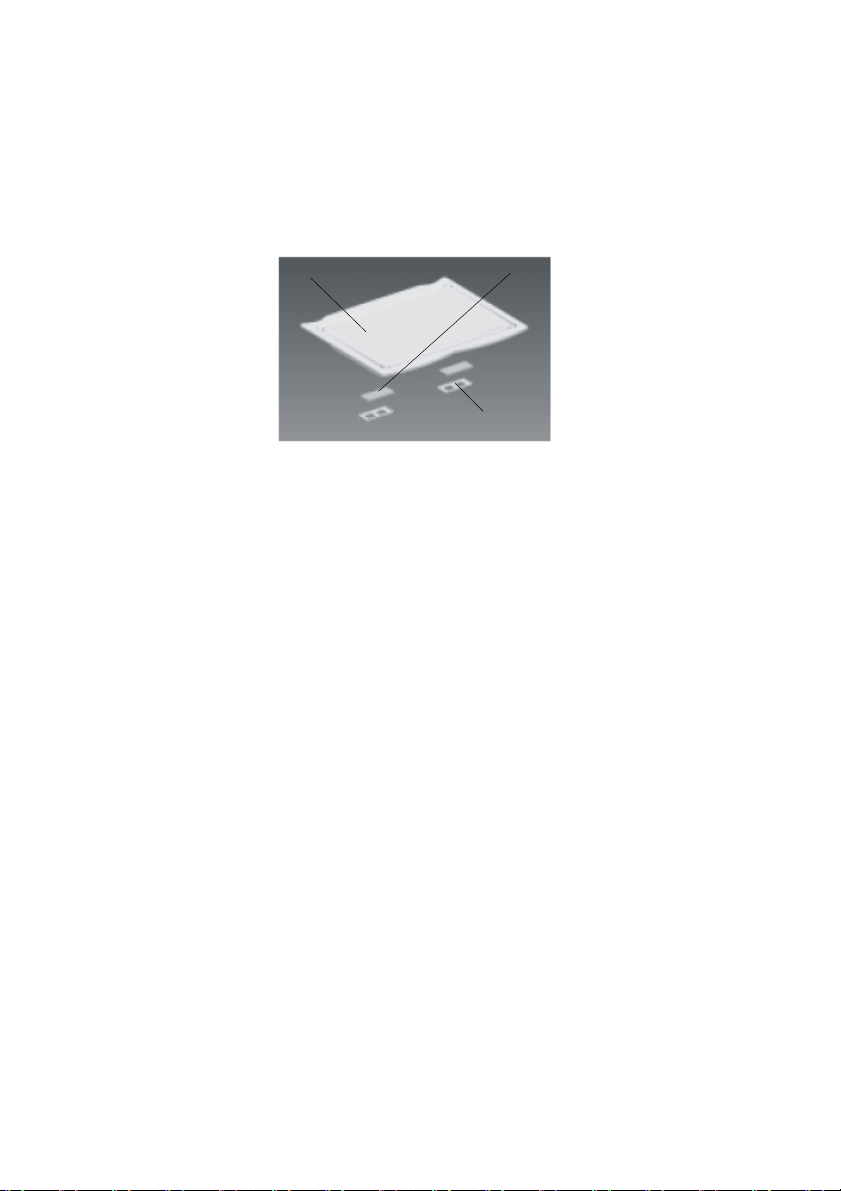

Removing the Crisper Cover........................................................................................19

ARRANGING FOOD IN THE APPLIANCE.........................................................20

Refrigerator Compartment...........................................................................................20

Freezer Compartment...................................................................................................21

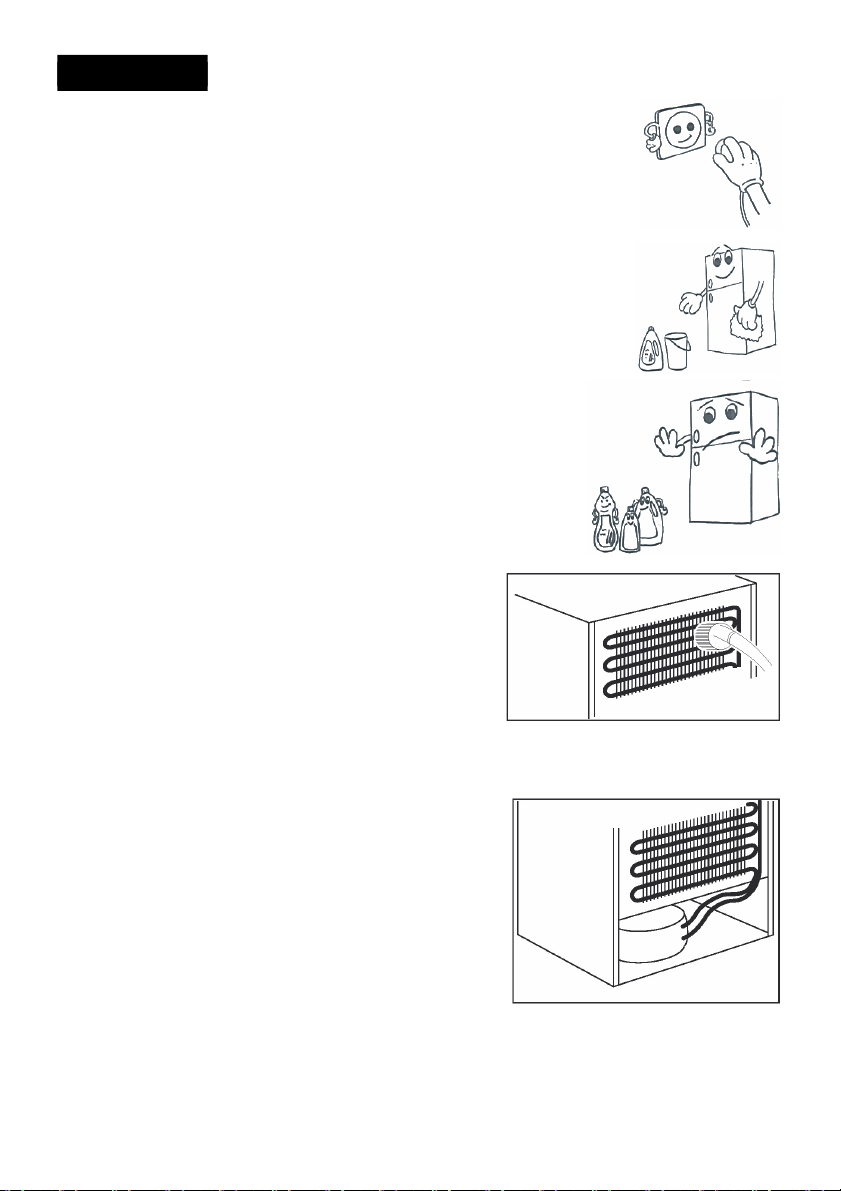

CLEANING AND MAINTENANCE......................................................................25

Defrosting ......................................................................................................................25

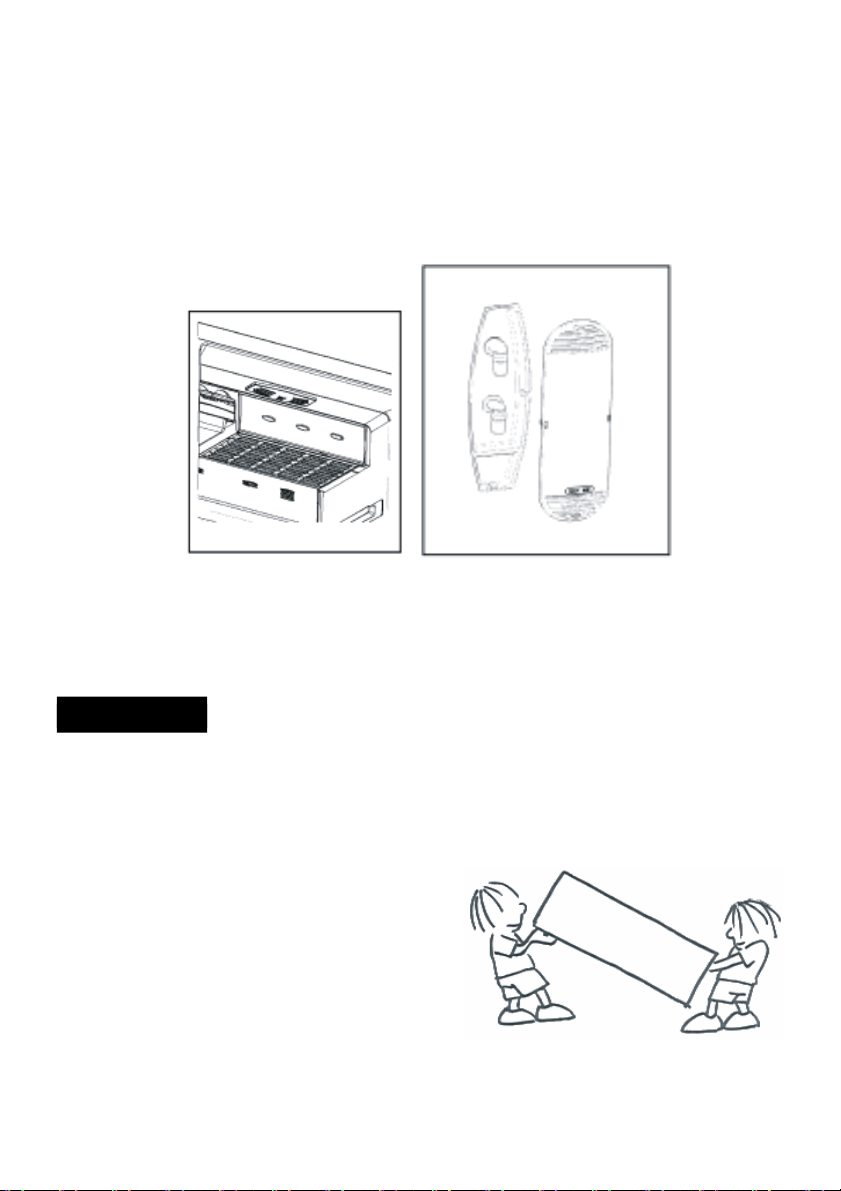

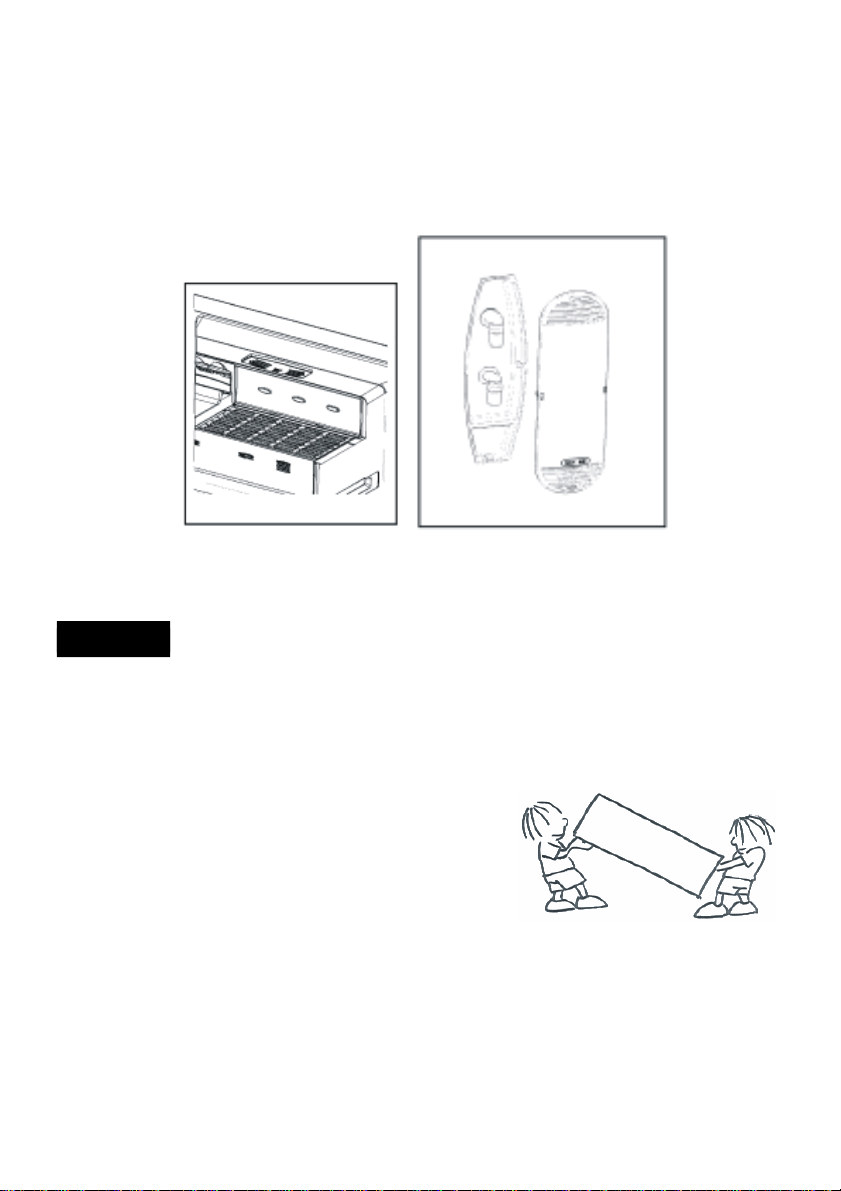

Replacing The Refrigerator and Freezer Light Bulb..................................................26

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION..............26

Changing of Door Opening Direction..........................................................................26

BEFORE CALLING YOUR AFTER SALES SERVICE.........................................27

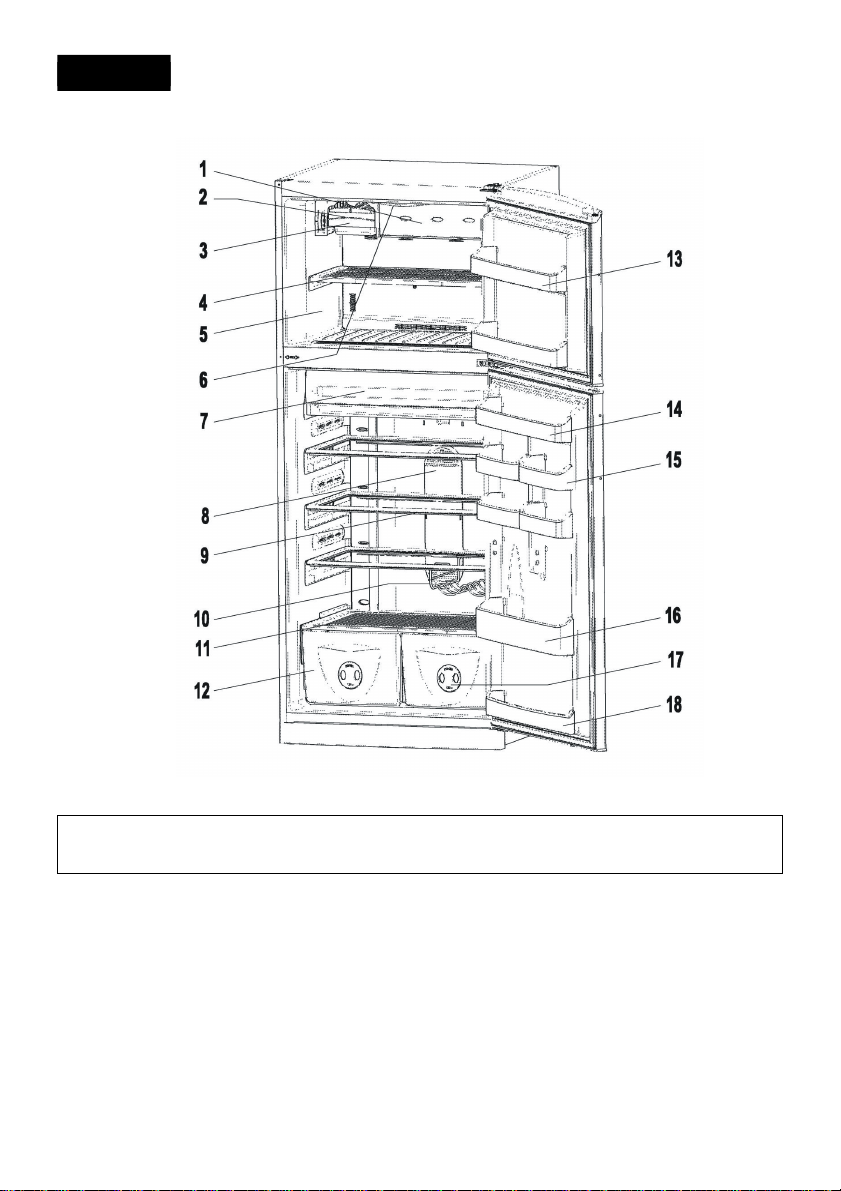

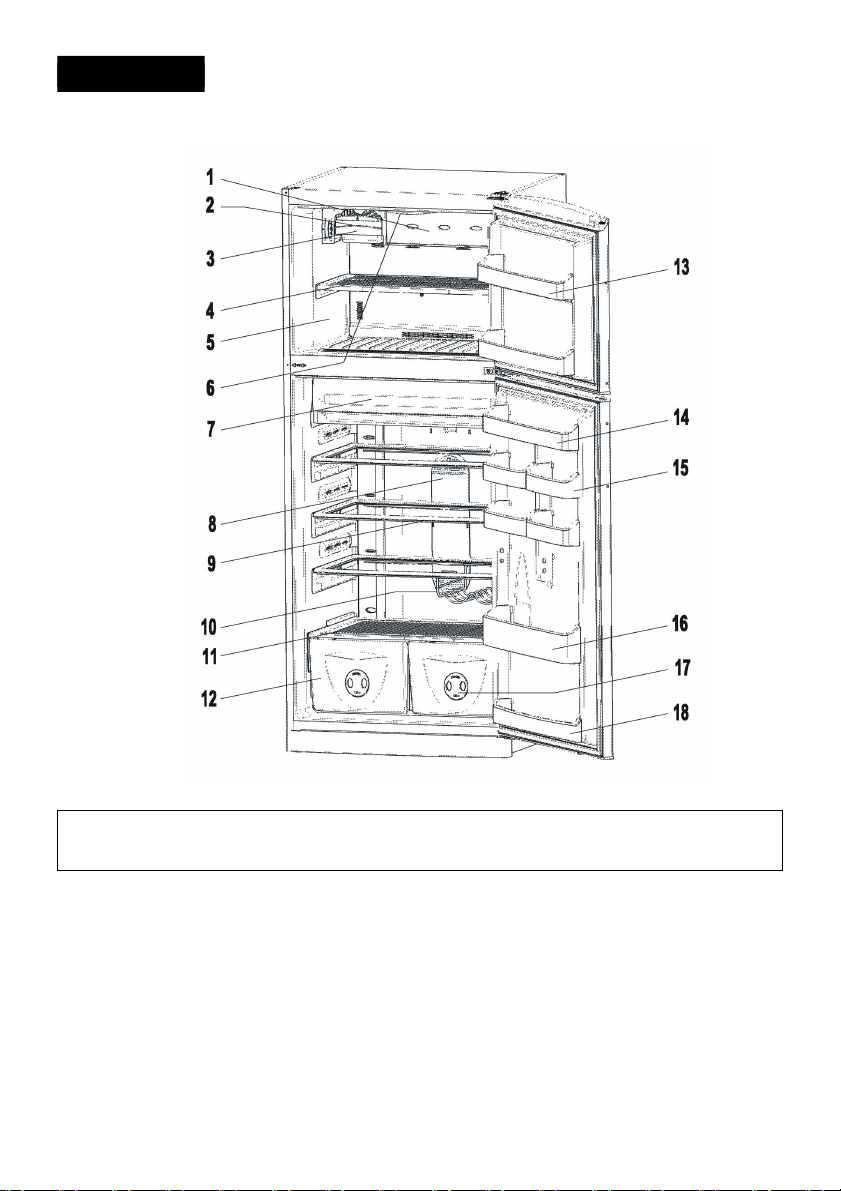

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS.......................31

Tips For Saving Energy.................................................................................................32

UK - 1 -

PART- 1.

BEFORE USING THE APPLIANCE

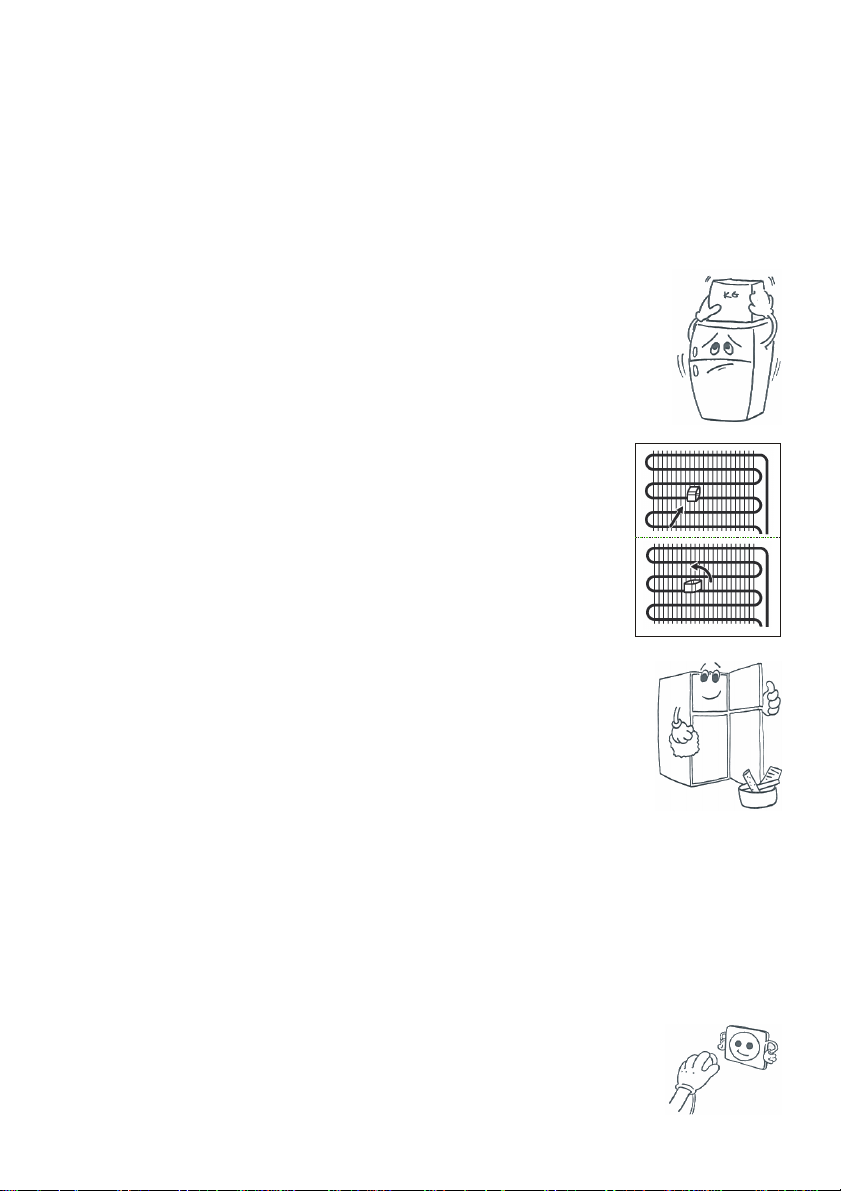

Safety Instructions

• This product contains refrigerant R600a, which is a natural gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes. Call Customer Service for assistance.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.

• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.

• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children who, whilst playing, might lock themselves inside.

• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit to your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipes of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

IMPORTANT NOTE:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation or usage.

UK - 2 -

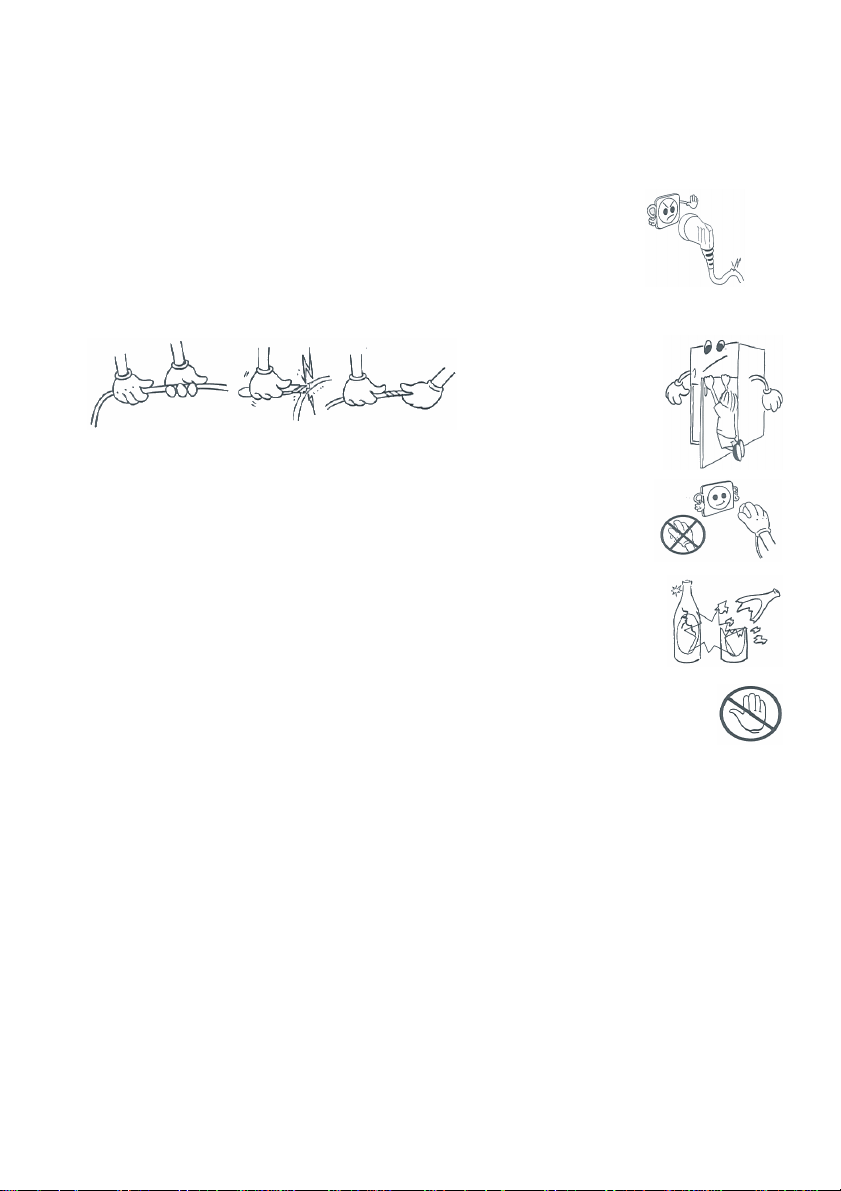

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not use adaptors or extension cords, which could cause overheating or burning.

• Do not plug old, warped power supply cables.

• Do not twist and bend the cables.

• Do not allow children to play with the appliance. Children must NEVER sit on drawers/shelves or hang from the door.

• Do not plug the power supply with wet hands.

• Do not place containers (glass bottles or tin containers) of liquids into the freezer especially gassy liquids as they could cause the container to burst during freezing.

• Bottles, which contain a high percentage of alcohol must be sealed well and placed vertically in the refrigerator.

• Do not touch the cooling surfaces, especially with wet hands as you could be burnt or hurt.

• Do not eat ice, which have just been removed from the freezer.

• If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed qualified person.

• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don’t play with the appliance.

• If the supply cord is damaged it must be replaced by the manufacturer or service agent or similary qualified people in order to avoid a hazard.

UK - 3 -

nstallation and Switching On The Appliance

• This appliance connects to a power source of 220-240V~, 50Hz.

• Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system in your home.

• If the socket does not match the refrigerator plug, replace the plug with a suitable one (at least 16 A)

• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact, we suggest you call an electrician for assistance.

• Manufacturer is not responsible for failure to complete the ground connection as

described in this booklet.

• Do not place the appliance in direct sunlight.

• Only to be used indoors, and kept well away from rain or splashing liquids.

• Place the refrigerator far from heat sources and in a well-ventilated position. The refrigerator should be at least 50 cm from radiators, gas or coal stoves and 5 cm far from electrical stoves.

• Maintain a gap of at least 15cm from the top of the unit.

• Do not place heavy and lots of things on the appliance.

• If the appliance is installed next to another refrigerator or freezer, observe a minimum distance of 2 cm to prevent condensation.

• The appliance must stand firmly and level on the floor Use the two front levelling-feet to compensate for an uneven floor.

• In order to have air circulation under the appliance, the space under the appliance must be open. Don’t close it with carpet, etc.

• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90° to prevent the condenser from touching the wall.

• The outside of the appliance and the accessories inside should be cleaned with a solution of water and liquid soap; the inside of the appliance with sodium bicarbonate dissolved in lukewarm water. After drying replace all the accessories.

Before Switching On

• After transporting, wait 3 hours before plugging the appliance in to the main power to ensure proper performance.

• There can be an odour when you first switch on the appliance. It will disappear after the appliance starts to cool.

UK - 4 -

PART- 2.

THE VARIOUS FUNCTION AND POSSIBILITIES

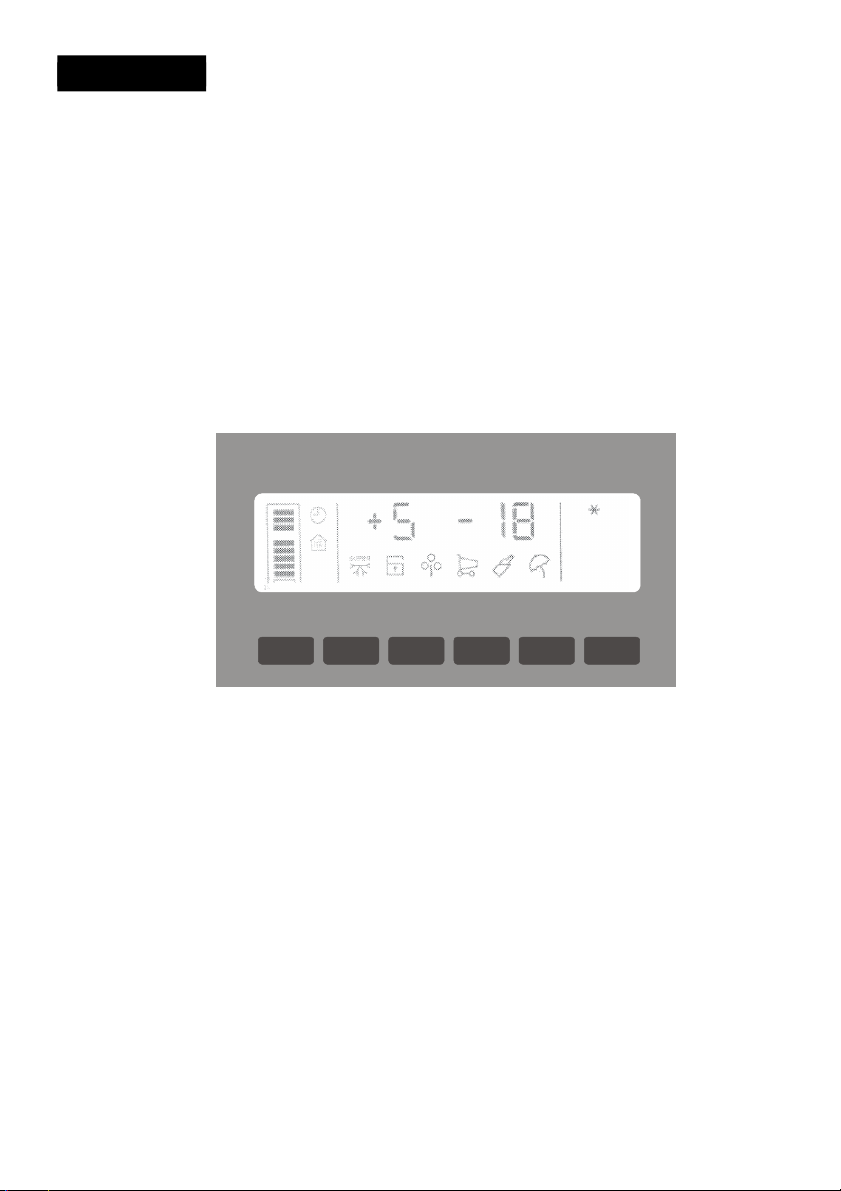

For the first time, when the user has applied the energy to the appliance, the display will show +5 C° for refrigerator compartment, -18 C° for freezer compartment on the screen.

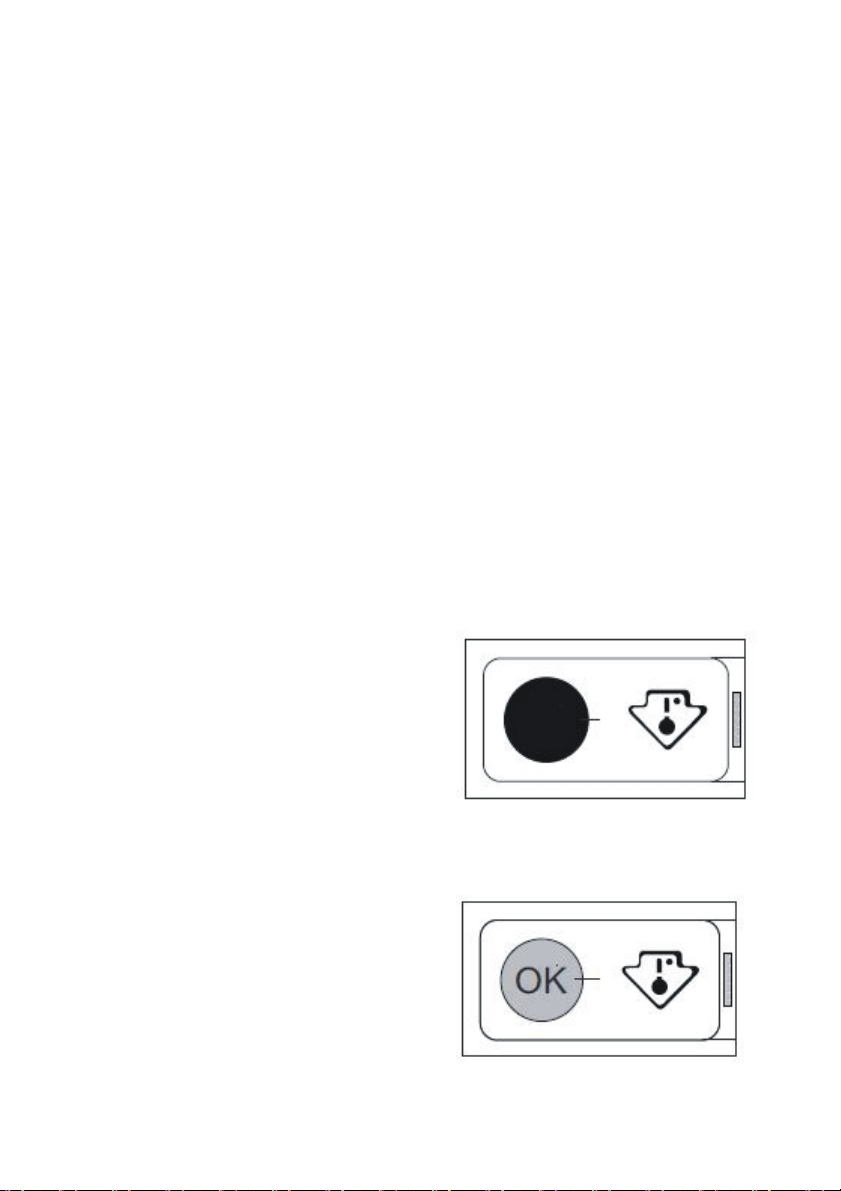

Mode button

• Press once to "Mode” button

• The first pushing will make super freeze symbol activate

• With each pressing on this button, in rows economy, turbo, super cooling and holiday will light.6. push of "MODE" button will be empty and no symbol light.

• When convenient symbol starts to blink, pushing "ok" button will start the mode. If you don't push "ok" button for 9 sec. with blinking, the mode will not be set.

On/OffFunction

UK - 5 -

Mode

Super freezing mode When will apply;

• To freeze lots of food that can not fit into "Fast Freezing Shelf".

• To freeze prepared foods.

• To freeze faster

• To conceal fresh foods and vegetables.

How to use;

• Press “Mode” button till super freezing symbol will light.

• If you push "Ok" button within 9 sec., the mode will be set and buzzer will sound as "beep-beep". If you don't push "ok" button within 9 sec., symbol will blink 9 times, the mode will not be set.

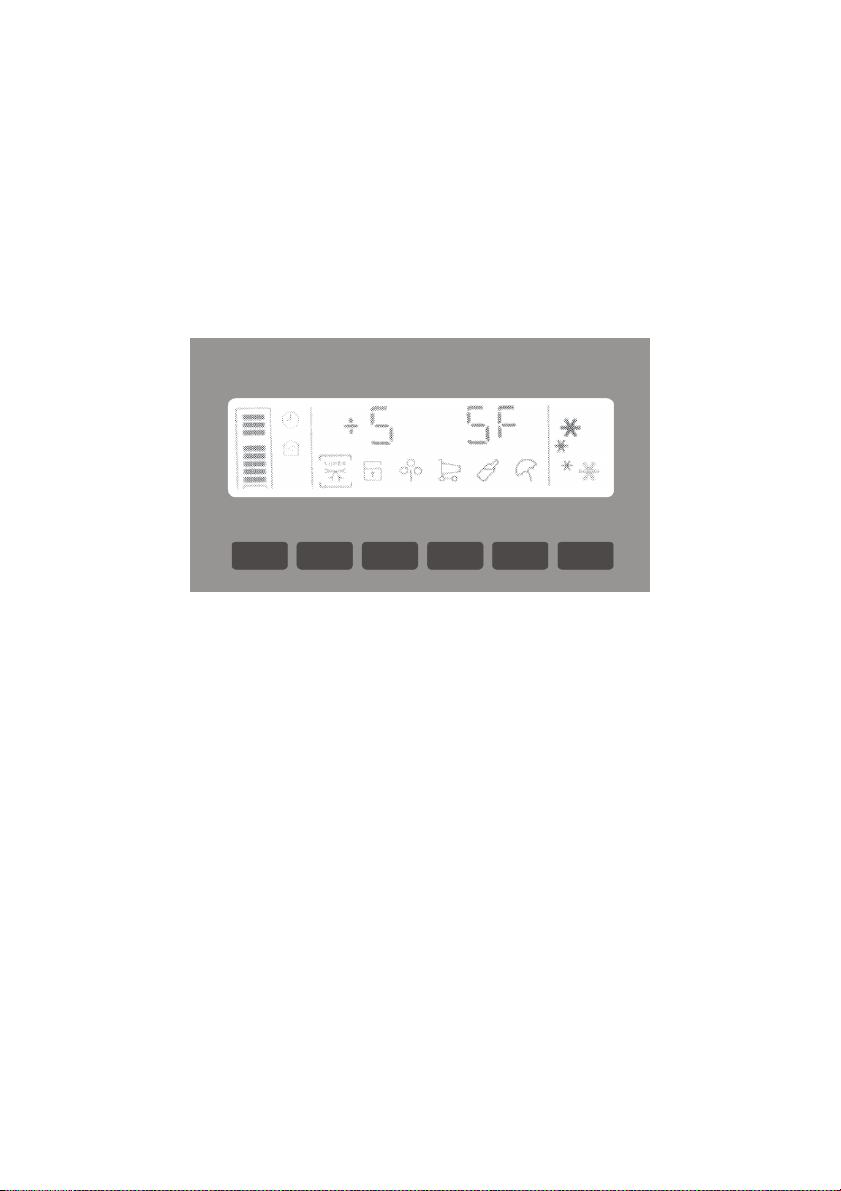

• Freezer temperature segment will show "SF" during this mode.

• Freezer / Refrigerator temperature adjusting will not be done.

• If you want to cancel this mode, you will select this mode again. After selecting, if you push "Ok" button within 9 sec., the mode will be cancelled and buzzer will sound as "beep-beep". If you don't push "Ok" button within 9 sec., symbol will blink 9 times, the mode will not be cancelled. After cancelling the temperature values that are set at last will be seen on the number segments.

• If you want to select another mode, you will select the relevant mode by pushing mode button, then push ok button within 9 sec.

On/OffFunction

Mode

NOTE: Super Freeze will be cancelled automatically after 24 hour or when freezer sensor < -32 C°.

UK - 6 -

Super cooling mode When will apply;

• To cool the prepared foods.

• To cool and conceal a lots of food in refrigerator compartment.

• To cool the drinking more quickly.

How to use;

• Press " Mode" button till super cooling symbol will light

• If you push "Ok" button within 9 sec., the mode will be set and buzzer will sound as "beep-beep".

• If you don't push "Ok" button within 9 sec., symbol will blink 9 times, the mode will not be set.

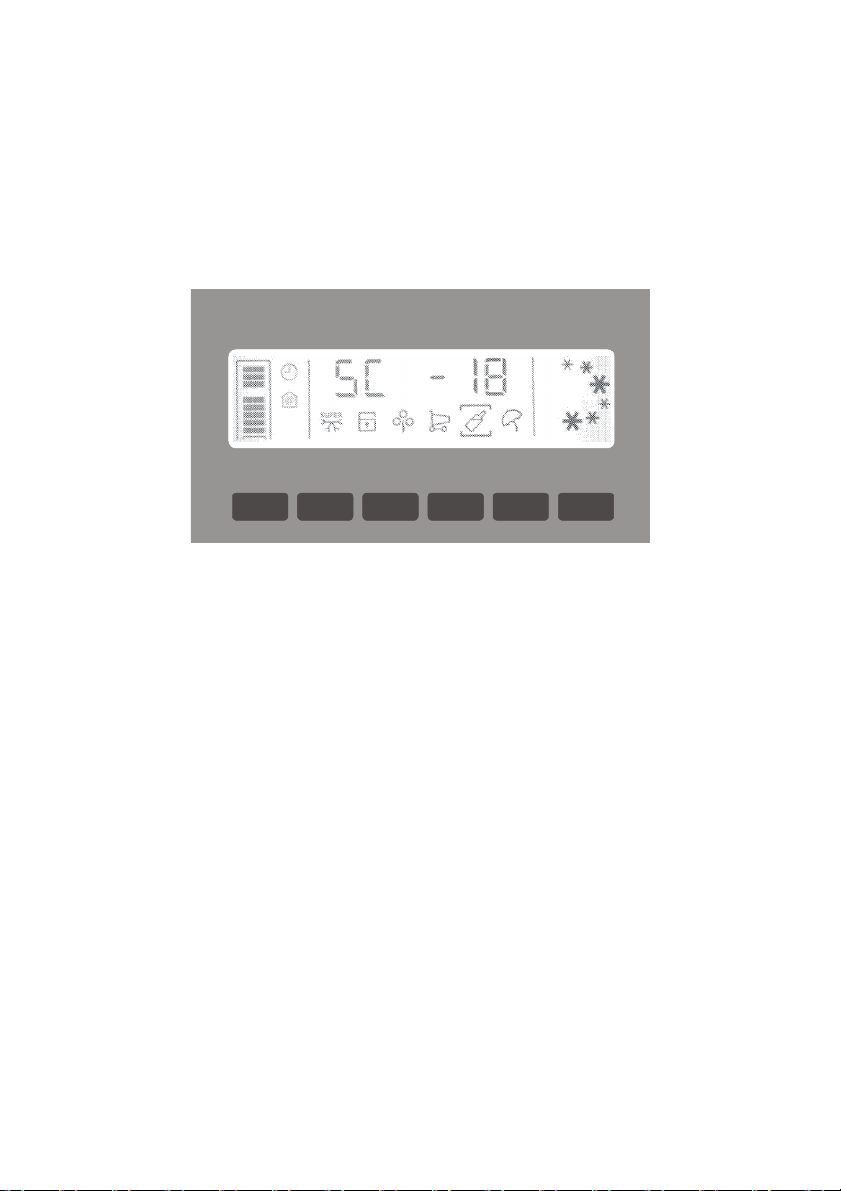

• Cooling temperature segment will show "SC" during this mode.

• Freezer / Refrigerator temperature adjusting will not be done.

• If you want to select another mode, you will select the relevant mode by pushing mode button, then push ok button within 9 sec.

On/OffFunction

Mode

NOTE: Super Cooling will be cancelled automatically after 8 hour or when refrigerator sensor<0 C°.

UK - 7 -

Turbo mode When will apply;

Turbo mode principle is the same with super cooling and super freezing mode is selected at the same time.

How to use;

• Press "Mode" button till turbo symbol will light

• If you push "Ok" button within 9 sec., the mode will be set and buzzer will sound as "beep-beep".

• If you don't push "Ok" button within 9 sec., symbol will blink 9 times, the mode will not be set.

• The second way to select the mode, if you select super freezing and super cooling mode together, turbo mode will be active, too.

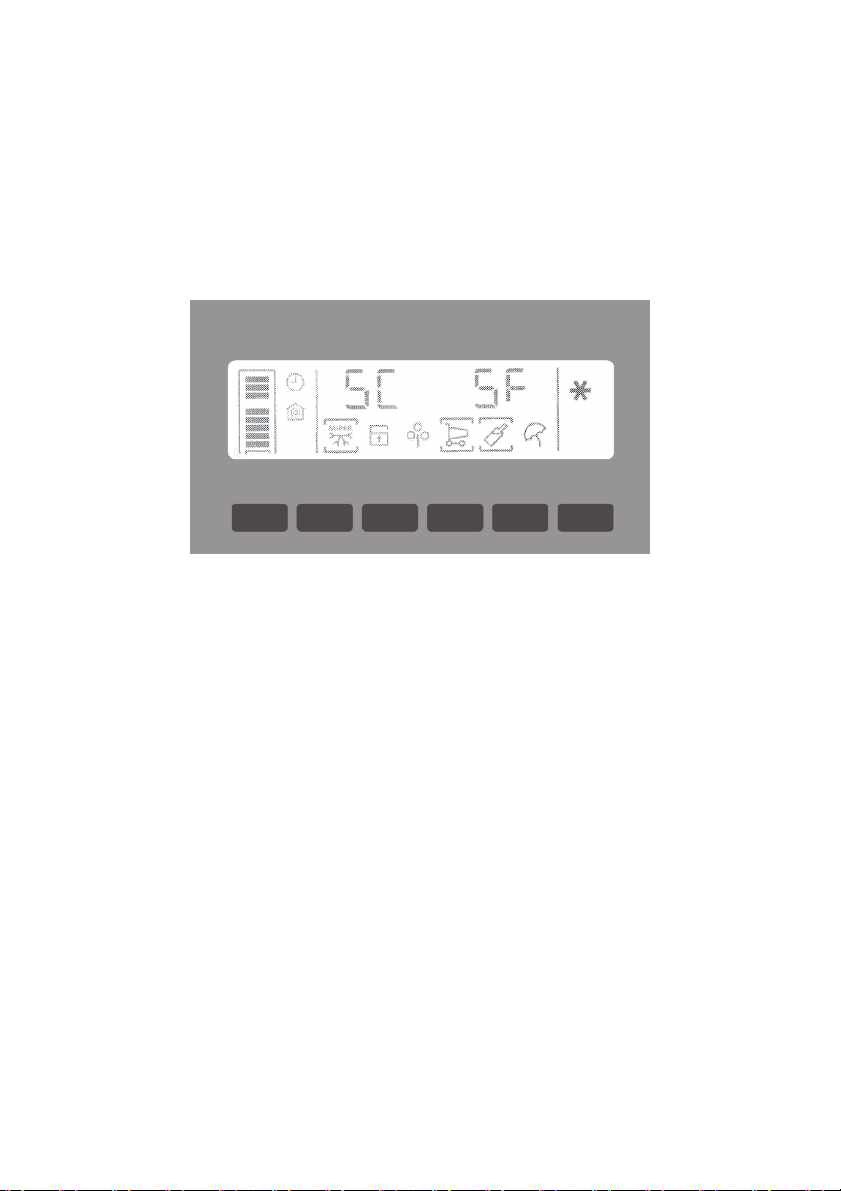

• Cooling temperature segment will show "SC" and freezer temperature segment will show "SF" during this mode.

• Freezer / Refrigerator temperature adjusting will not be done.

• Super freezing and super cooling mode will be active till turbo mode is cancelled.

• Turbo mode can be cancelled by two way. a) You can select turbo mode again. After selecting, if you push "Ok" button within 9

sec., the mode will be cancelled and buzzer will sound as "beep-beep". If you don't push "Ok" button within 9 sec., symbol will blink 9 times, the mode will not be cancelled.

b) You can cancel the super freeze or super cooling mode. By this way one of these

models will be cancelled. And turbo mode will be cancelled.

On/OffFunction

UK - 8 -

Mode

Holiday mode When will apply;

If you will not use the refrigerator for a long time like during holiday, for only working freezer compartment, this mode is chosen.

How to use;

• Press "Mode" button till holiday symbol will light.

• If you push "Ok" button within 9 sec., the mode will be set and buzzer will sound as "beep-beep". If you don't push "Ok" button within 9 sec., symbol will blink 9 times, the mode will not be set.

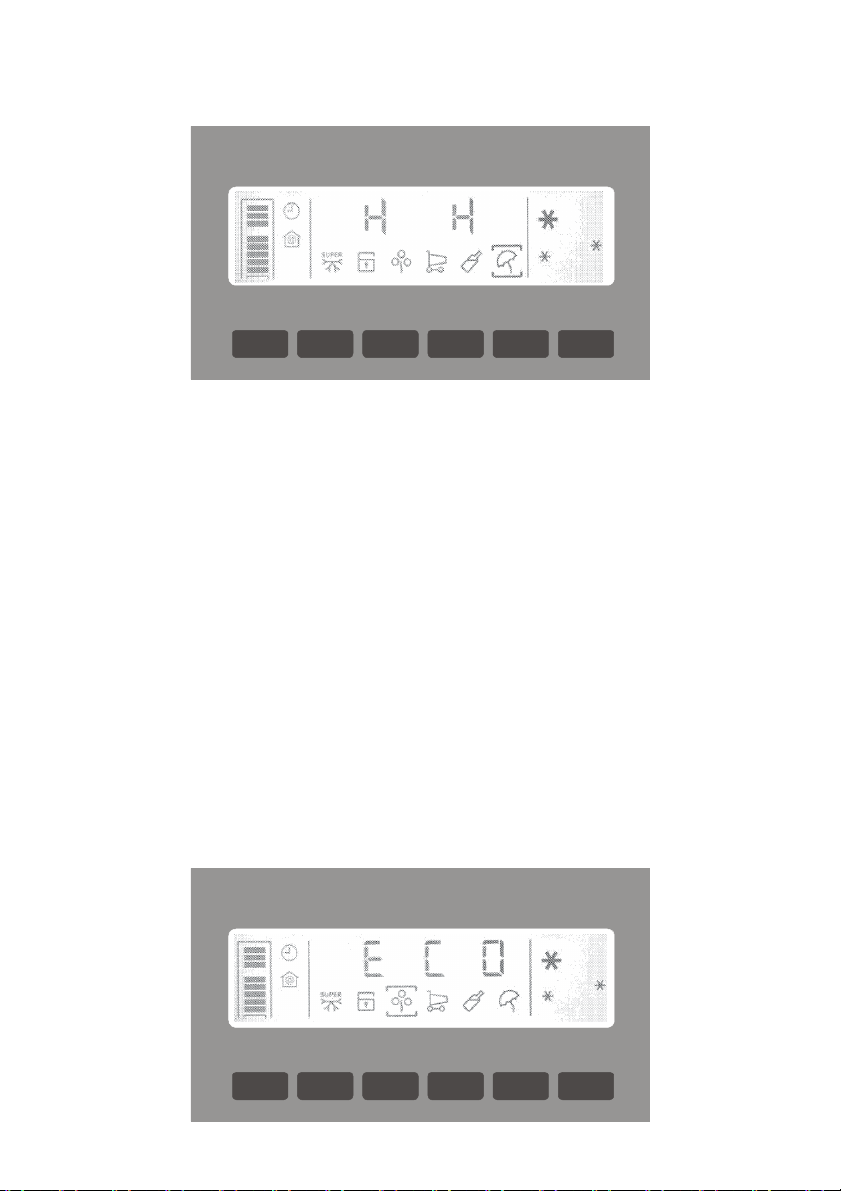

• Cooling / Freezer temperature segment will show "H" during this mode.

• Freezer / Refrigerator temperature adjusting will not be done.

• If you want to cancel the holiday mode, you will select the holiday mode again. After selecting, if you push "Ok" button within 9 sec., the mode will be cancelled and buzzer will sound as "beep-beep". If you don't push "Ok" button within 9 sec., symbol will blink 9 times, the mode will not be cancelled.

• Freezer and Refrigerator compartment will go on to work with the set values in normal regulation.

On/OffFunction

UK - 9 -

Mode

Economy mode When will apply;

• If you want to use at a set value is defined in the control circuit.

• Both compartments will work in the normal regulation with the set values.

How to use;

• Press "Mode" button till economy symbol will ligh.

• If you push "Ok" button within 9 sec., the mode will be set and buzzer will sound as "beep-beep". If you don't push "Ok" button within 9 sec., symbol will blink 9 times, the mode will not be set.

• The screen will show "ECO" during this mode.

• Freezer / Refrigerator temperature adjusting will not be done.

• No mode can be active when economy mode is active.

• Mode will be cancelled by selecting ECONOMY mode again. After selecting, if you push "Ok" button within 9 sec., the mode will be cancelled and buzzer will sound as "beep-beep". If you don't push "Ok" button within 9 sec., symbol will blink 9 times, the mode will not be cancelled.

On/OffFunction

UK - 10 -

Mode

Child lock function

This refrigerator is equipped with a lock system for protection against children's misusing.

Setting the Child Lock

Press the "F" and "R" buttons continuously for 5 sec. at the same time. Lock symbol will light.

On/OffFunction

Mode

Cancelling the Child Lock

Function can be cancelled by the same way.

Function button

• Press once to "Function "button.

• The first pushing will make freezer compartment activate to adjust the freezer temperature.

• With each pressing on this button, in rows refrigerator compartment, real time clock, ambient temperature will light 5. push of FUNCTION button will be empty but empty area will show alarm symbol in alarm position.

UK - 11 -

Freezer compartment temperature adjustment

• Press "Function" button.

• With each pressing on this button, in rows refrigerator compartment model (to adjust freezer temperature), then refrigerator compartment model (to adjust refrigerator temperature), real time clock, ambient temperature will light 5. push of FUNCTION button will be empty but empty area will show alarm symbol in alarm position.

• Freezer temp adjusting can be done by selecting freezer compartment then pushing function button then pushing + / - buttons.

• You can adjust the freezer temperature by pushing "+" button to increase.

• You can adjust the freezer temperature by pushing "-" button to decrease.

• When you are adjusting the temperature of freezer, you can waits 2 sec or push “Ok” button for confirmation.

• The temperature value of freezer compartment will be seen at the right side of the screen.

• If you push "Mode" button during manual temp, adjusting, first mode symbol will light and manual temp, adjusting will be cancelled.

• If appliance was set to holiday, super freeze, super cool, economy mode (symbol was lighting) before temp adjusting, appliance will go on to work in previous mode. When previous mode is cancelled / finished manually or automatically appliance will start to work in adjusted values.

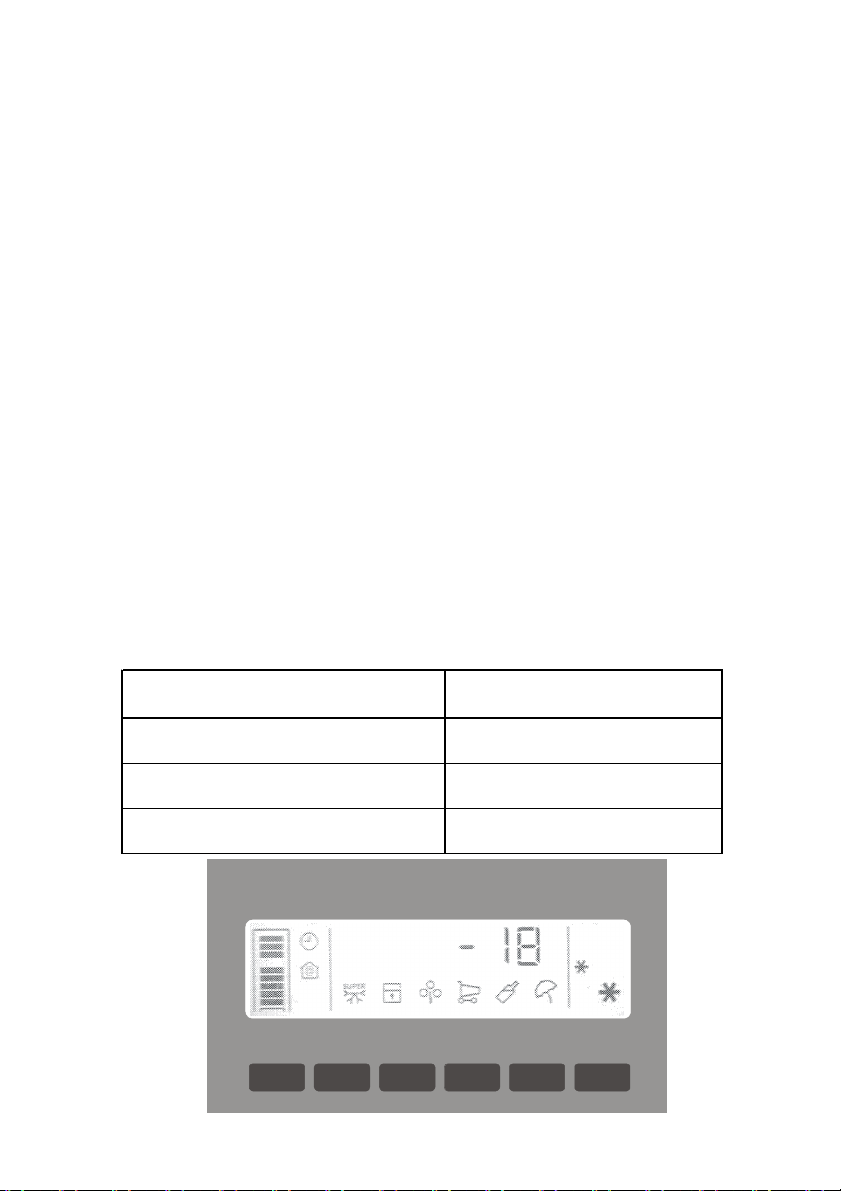

Recommended Settings For Freezer Compartment Temperature

When will settleFreezer Cabinet Inside Temperature

For little amount stocking -16C° or -17C° Normal stocking -18C°, -19C°, -20C° or -21C° For lots of food stocking -22C°, -23C° or -24C°

On/OffFunction

UK - 12 -

Mode

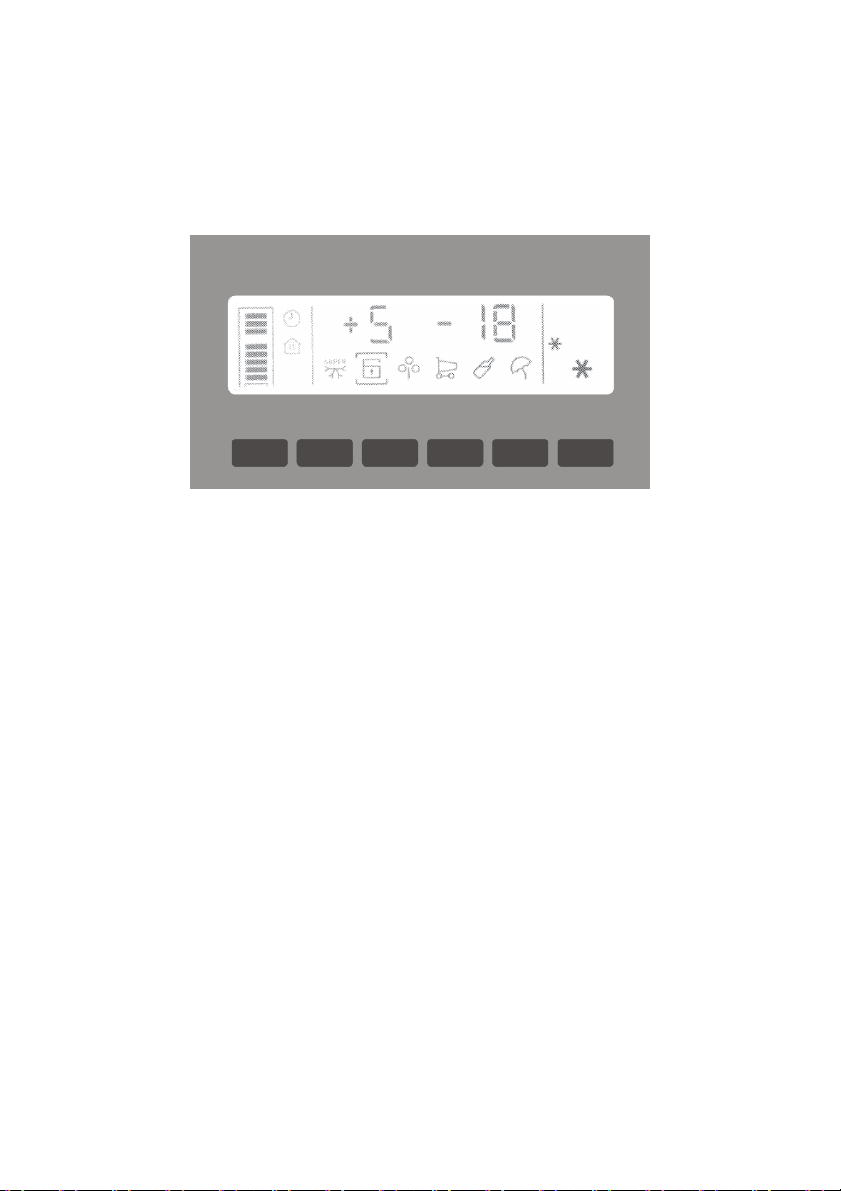

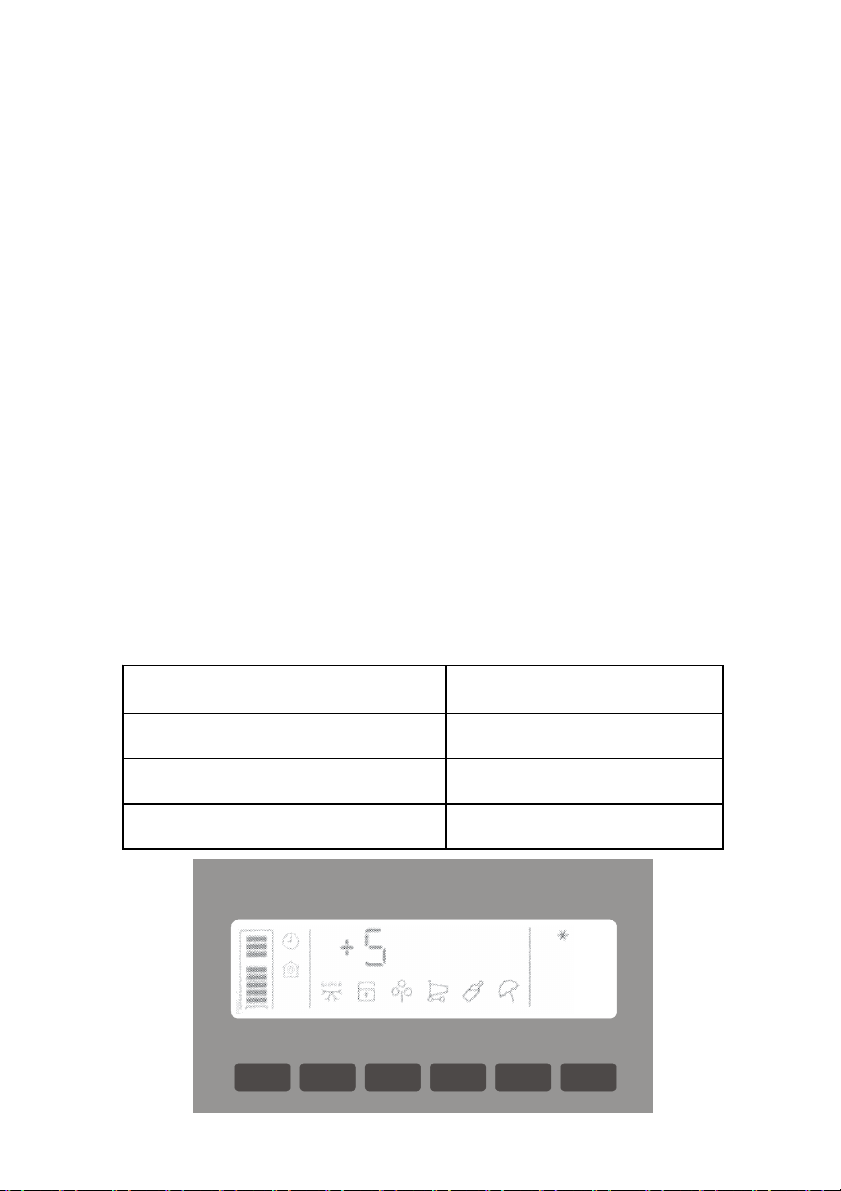

Refrigerator compartment temperature adjustment

• Refrigerator temp adjusting can be done by selecting refrigerator compartment then pushing "Function" button then pushing + / - buttons.

• Refrigerator temperature values seen in number segment will be +2, +3, +4, +5, +6, +7, +8 CO.

• You can adjust the refrigerator temperature by pushing "+" button to increase.

• You can adjust the refrigerator temperature by pushing "-" button to decrease.

• When you are adjusting the temperature of refrigerator, you can waits 2 sec or push “Ok” button for confirmation.

• The temperature value of refrigerator compartment will be seen at the left side of the screen.

• If you push "Mode" button during manual temp, adjusting, first mode symbol will light and manual temp, adjusting will be cancelled.

• If you push "Function" button during manual temp adjusting, manual temp, adjusting will be cancelled.

• If appliance was set to holiday, super freeze, super cool, economy mode ( symbol was lighting) before temp adjusting, appliance will go on to work in previous mode. When mode is cancelled / finished manually or automatically appliance will start to work in adjusted values.

Recommended Settings For Refrigerator Compartment Temperature

When will settleRefrigerator Cabinet Inside Temperature

For lots of food stocking +2C° or +3C° Normal stocking +4C°, +5C°, +6C° or +7C° For little amount stocking -8C°

On/OffFunction

UK - 13 -

Mode

Real time clock

• Real time clock symbol is selected by pushing to "Function" button for 3 times.

• When the real time is seen on display, you can push to "Ok" button, then you can adjust the clock by pushing "+" and "-" buttons. If you want to set the values, you will push to "Ok" button.

• After pushing "Ok" button to set, minute number segment will blink. Also you can adjust the value by using (+) or (-) buttons. Then you should push "Ok" button to set. Or after adjusting, you will not push any buttons for 3 sec after it sounds as "beepbeep". It shows that setting operation is ok.

• Showing real time clock on the screen can be cancelled by pushing the "Function" button.

• This function is selectable for user. When it is chosen the clock will be seen on the screen. When you push the "Function" button; this function will be cancelled.

On/OffFunction

Mode

Ambient temperature

Showing ambient temperature can be done by pushing "Function" button until the relevant symbol blinks and the screen shows ambient temperature of the area that is device is placed.

If you want to cancel this function, you will push "Function" button again.

On/OffFunction

Mode

UK - 14 -

Door open alarm

Door alarm sounds when the one of two door opens more than 2 minutes continuously. When the door open alarm occurs;

a) The open door's compartment of display will blink, b) Backlight of LCD (it will be red) and alarm symbol will blink. c) The buzzer will sound as "beep-beep" (The buzzer can sound max. 1 hour.) d) The alarm symbol will blink.

If you want to stop the buzzer, you can close the doors or you can push "Ok" button. If you push "Ok" button, the display will stay in red until you close the door.

On / Off button

When you push the “On / Off” button (if the display is on position), Number 3 is seen on the freezer and refrigerator segments on the screen. And it countdowns one by one like 3 - 2 - 1 - Off. Then the backlight goes out. After 3 sec. the number segment will show the real time clock.

• You can open the display by pushing "On / Off" button.

• When the display is in off position, the mode, the set temperature values that is set before being off will go on again. This means that the appliance is running with the last mode or set temperature. The display actions only change.

On/OffFunction

UK - 15 -

Mode

Accessories

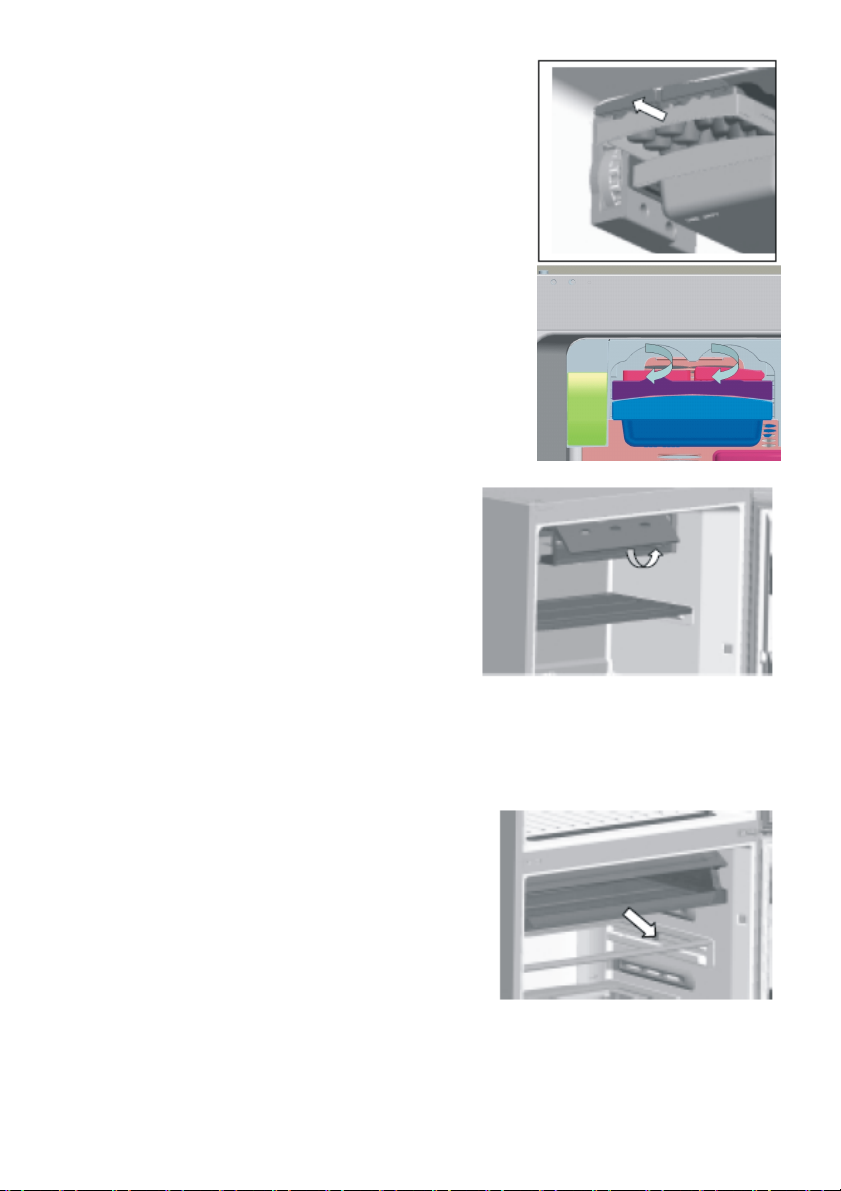

Making Ice Cubes

• Take out the ice making tray

• Fill the water up to the marked line.

• Place the ice making tray in its original position

• When ice cubes are formed, twist the lever to drop off ice cubes into the icebox.

Do not fill the icebox itself with water in order to make ice. It can be broken.

Fast Freezing Shelf

• Use the fast freezing shelf to freeze home cooking (and fresh foods which is wanted to freeze) more quickly because of the freezing room’s greater freezing power.

• For opening the shelf pull the cover up, and slide it in to the shelf. You can close it in the same way.

Note that; be sure that the cover of fast freezing shelf is closed before closing the compartment door. If not, it can not show its fast freezing power.

Chiller Shelf

Keeping food in the Chiller compartment allows food to retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water.

(Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc...

Do not put foods you want to freeze or ice trays in order to make ice.

(in the refrigerator compartment)

UK - 16 -

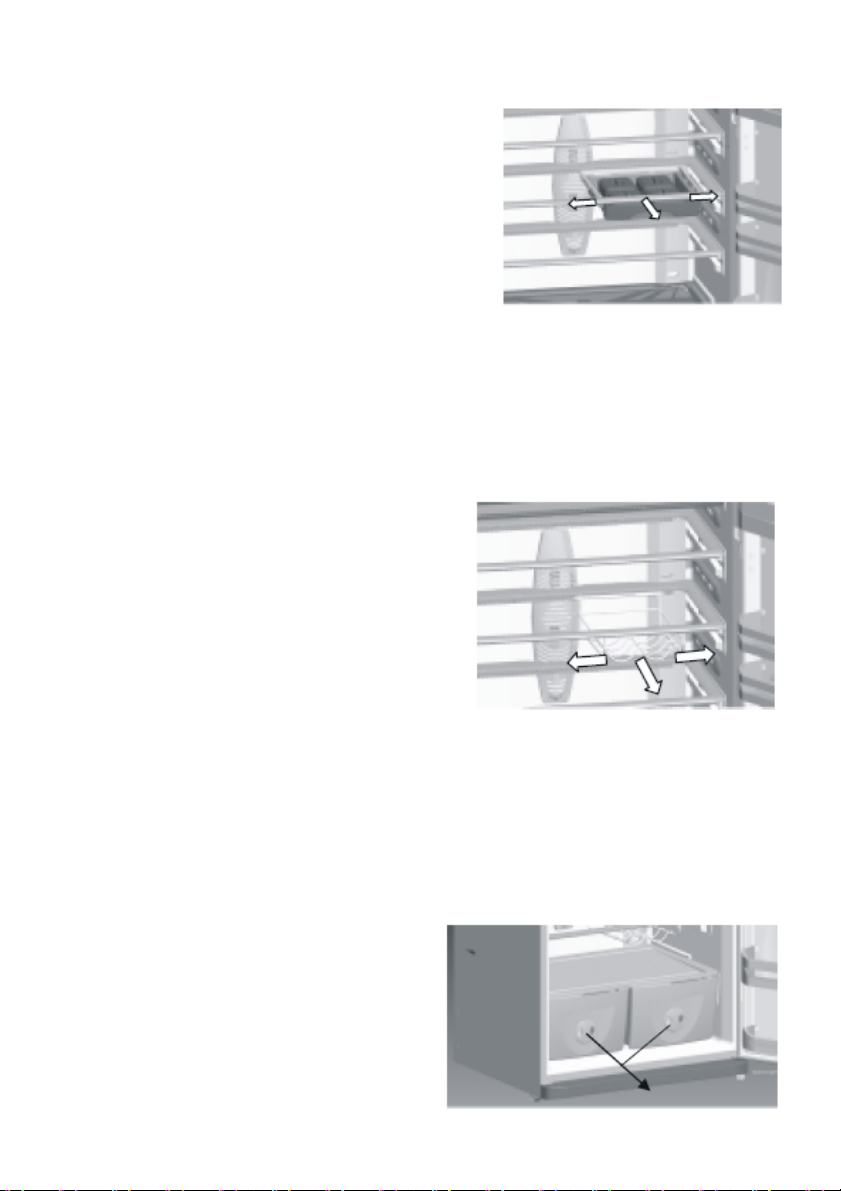

Drawer

(In some models)

Drawer compartment has four pieces of drawer boxes in order to allow you to keep your foods and use these for breakfast easily.

For consumer’s usage comfort and for the optimum storage of foods, you can easily move your drawer to right or to left direction.

Also you can easily pull the drawer compartment and take it out when needed.

Note: In order to prevent drying of the foods and mixing of the smells you should close drawer boxes cover.

Wine Rack

(In some models)

It allows you to keep your bottles in horizontal position.

You can easily load the shelf under the wine rack by moving wine rack to right or to left.

If you do not need to this accessory please pull the glass shelf towards you and then take out wine rack from glass shelf by moving it to right or left. Please do not forget that you can fix it on any of the glass shelves in the refrigerator compartment.

NOTE: make sure the bottles are properly sealed before placing in the wine rack.

Fresh Dial

In case of the crisper is totally full, the fresh dial located in front of crisper should be opened. By means of this the air in the crisper and humidity rate will be controlled and food life will be increased.

UK - 17 -

Fresh Dial

Crisper and Crisper Shelf

(In some models)

The crisper compartment absorbs and decomposes ethylene gas (*) emitted from fruits and vegetables with a “FILTER” in the crisper shelf, keeping fruits and vegetables fresh. The filter also eliminates unpleasant odours from inside the crisper, and control the excess water released by the vegetables, maintaining a high humidity environment inside the crisper. When the crisper shelf become dirty, remove the filter by taking out the filter cover and wash the crisper cover with water.

Crisper CoverHumidity Control Filter

Filter Cover

! Do not wash the “Humidity-Control Filter” with water.

(*) NOTE; Ethylene is a gas, produced from fruits and vegetables, which accelerates the ageing of fruits and vegetables. For example, spinach and broccoli turn to yellow colour easily in places where ethylene gas is abundant

UK - 18 -

Removing the Crisper Cover

First Step : Removing the crispers

• Pull the crisper out as far as possible and pull the front part up and out

Second Step: Taking out the Partition between the crispers.

• Bend the Partition toward left from the bottom

• Take out the Partition crisper

Third Step: Taking out the crisper cover

• Pull out the crisper cover.

NOTE: Reverse the above procedure to reinsert the crispers.

All written and visual descriptions in the accessories

may vary according to the appliance model.

UK - 19 -

+ 47 hidden pages
