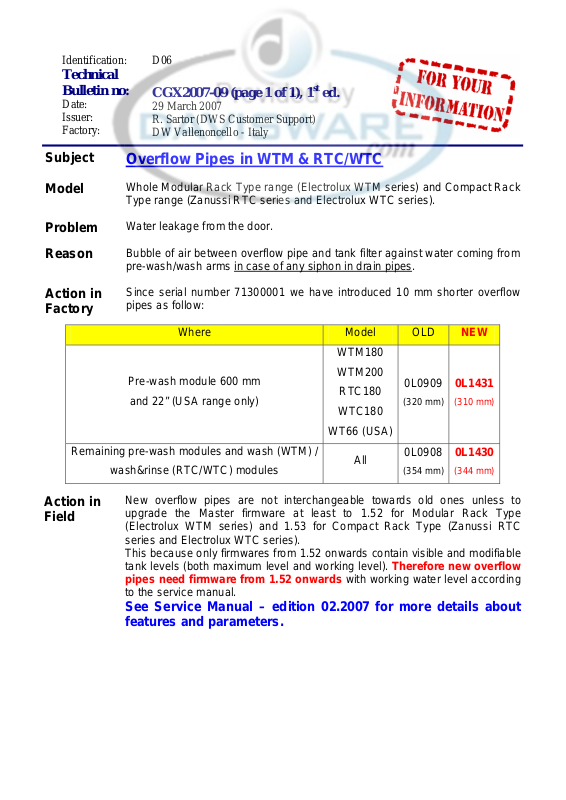

Identification:

Technical
Bulletin no:

Date:
Issuer:
Factory:

D06

CGX2007-09 (page 1 of 1), 1st ed.

29 March 2007
R. Sartor (DWS Customer Support)
DW Vallenoncello - Italy

Subject
Model

Problem
Reason

Action in
Factory

Overflow Pipes in WTM & RTC/WTC

Whole Modular Rack Type range (Electrolux WTM series) and Compact Rack
Type range (Zanussi RTC series and Electrolux WTC series).

Water leakage from the door.
Bubble of air between overflow pipe and tank filter against water coming from

pre-wash/wash arms
Since serial number 71300001 we have introduced 10 mm shorter overflow

pipes as follow:

Where Model OLD

Pre-wash module 600 mm

and 22” (USA range only)

in case of any siphon in drain pipes.

WTM180
WTM200

0L0909

RTC180

(320 mm)

WTC180

WT66 (USA)

NEW

0L1431

(310 mm)

Remaining pre-wash modules and wash (WTM) /

Action in
Field

All

wash&rinse (RTC/WTC) modules

New overflow pipes are not interchangeable towards old ones unless to
upgrade the Master firmware at least to 1.52 for Modular Rack Type
(Electrolux WTM series) and 1.53 for Compact Rack Type (Zanussi RTC
series and Electrolux WTC series).
This because only firmwares from 1.52 onwards contain visible and modifiable
tank levels (both maximum level and working level). Therefore new overflow

pipes need firmware from 1.52 onwards with working water level according

to the service manual.

0L0908

(354 mm)

0L1430

(344 mm)

See Service Manual – edition 02.2007 for more details about
features and parameters.
