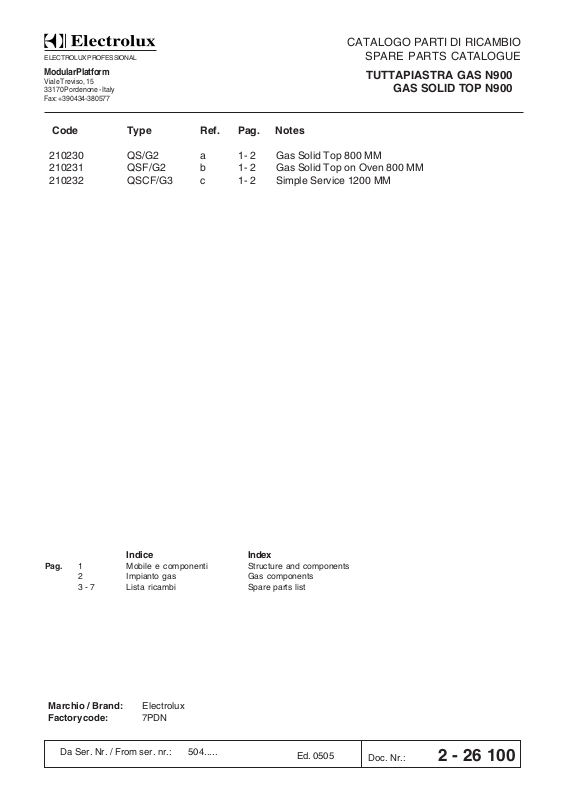

Page 1
CATALOGO PARTI DI RICAMBIO
ELECTROLUX PROFESSIONAL
Modular Platform
Viale Treviso, 15
33170 Pordenone - Italy
Fax: +39 0434-380577
Code Type Ref. Pag. Notes
210230 QS/G2 a 1- 2 Gas Solid Top 800 MM
210231 QSF/G2 b 1- 2 Gas Solid Top on Oven 800 MM
210232 QSCF/G3 c 1- 2 Simple Service 1200 MM
SPARE PARTS CATALOGUE
TUTTAPIASTRA GAS N900
GAS SOLID TOP N900
Indice Index
Pag. 1 Mobile e componenti Structure and components
2 Impianto gas Gas components
3 - 7 Lista ricambi Spare parts list
Marchio / Brand: Electrolux
Factory code: 7PDN
Da Ser. Nr. / From ser. nr.: 504.....
Ed. 0505
Doc. Nr.:
2 - 26 100
Page 2
16
13
14
L
I
O
8
34
52
13a
18
12
2
35
23
38
58
33
6
4
11
26
25
9
15
19
17
20
18
57
17
15
51
36
53
32
29a
37
37
54
7
40
5
42
41
50
49
10
48
3
55
TUTTAPIASTRA GAS N900
GAS SOLID TOP N900
1a
40
39
56
46
1
44
43
47
31
45
29
28
24
19
57
17
22
17
27
21
30
Da Ser. Nr. / From ser. nr.: 504.....
Page: 1
Ed. 0505
Doc. Nr.:
2 - 26 100
Page 3
118
94
84
85
111
110
104
105
116
113
105
95
102
96
97
98
84
85
74
123
99
83
82
F
86
84
83
74
75
137
78
77
136
76
81
G
124
119
114
109
84
106
107
71
A
117
E
70
76
89
72
73
91
90
92
H
118
115
112
110
81
D
104
87
88
82
120
79
121
93
120
121
101
122
81
100
106 / 107
139
138
98
C
86
84
99
127
TUTTAPIASTRA GAS N900
GAS SOLID TOP N900
97
94
Da Ser. Nr. / From ser. nr.: 504.....
132
135
94
Page: 2
B
80
128
103
134
131
133
Ed. 0505
127
130
84
86
140
126
129
Doc. Nr.:
108
125
2 - 26 100
Page 4
A - Ugello bruciatore / Burner nozzle ø60
6DGT Code
0C0141 ø1.95 2H/2E+ G20 20mbar
0C0143 ø2.20 2ELL G25 20mbar
0C0142 ø2.05 2L G25 25mbar
0A2101 ø1.25 3+3B/P G30/31 28-30/37mbar
0C0147 ø1.10 3B/P G30/31 50mbar
0A2475 ø2.25 No CE G20 10mbar
059359 ø3.60 G110
Ref. / Notes
A - Ugello bruciatore / Burner nozzle ø100
6DGT Code
0C0144 ø2.60 2H/2E+ G20 20mbar
0C0146 ø2.75 2ELL G25 20mbar
0C0145 ø2.65 2L G25 25mbar
0A2089 ø1.60 3+3B/P G30/31 28-30/37mbar
0C0148 ø1.45 3B/P G30/31 50mbar
059383 ø2.80 No CE G20 10mbar
0A2106 ø5.00 G110
Ref. / Notes
D - Vite di minimo / Min screw ø60
6DGT Code
002899 n°80 2H/2E+ G20 20mbar
002899 n°80 2ELL G25 20mbar
002899 n°80 2L G25 25mbar
002911 n°55 3+3B/P G30/31 28-30/37mbar
002925 n°50 3B/P G 30/31 50mbar
002899 n°80 No CE G20 10mbar
- adjust G110
E - Pilota fuochi / Pilot nozzle open burner
6DGT Code
053670 n°41 2H/2E+ G20 20mbar
053670 n°41 2ELL G25 20mbar
053670 n°41 2L G25 25mbar
054593 n°25 3+3B/P G 30/31 28-30/37mbar
054593 n°25 3B/P G30/31 50mbar
053670 n°41 No CE G20 10mbar
053669 n°75 G110
Ref./ Notes
Ref./ Notes
D - Vite di minimo / Min screw ø100
6DGT Code
002902 n°105 2H/2E+ G20 20mbar
002902 n°105 2ELL G25 20mbar
002902 n°105 2L G25 25mbar
002769 n°75 3+3B/P G30/31 28-30/37mbar
002991 n°65 3B/P G30/31 50mbar
002902 n°105 No CE G20 10mbar
- adjust G110
C - Ugello pilota FORNO / Pilot nozzle OVEN
6DGT Code
059215 n°27 2H/2E+ G20 20mbar
059215 n°27 2ELL G25 20mbar
059215 n°27 2L G25 25mbar
059216 n°14 3+3B/P G 30/31 28-30/37mbar
059216 n°14 3B/P G30/31 50mbar
059215 n°27 No CE G20 10mbar
059356 n°50 G110
Ref./ Notes
Ref./ Notes
H - U gello TuttaPiastra / Burner nozzle SolidTop
6DGT Code
058980 ø2.45 2H/2E+ G20 20mbar
056795 ø2.70 2ELL G25 20mbar
059529 ø2.55 2L G25 25mbar
0A2089 ø1.60 3+3B/P G30/31 28-30/37mbar
0A2082 ø1.40 3B/P G30/31 50mbar
006470 ø2.95 No CE G20 10mbar
058628 ø5.50 G110
Ref. / Notes
F - Pilota TuttaPiastra / Pilot nozzle SolidTop
6DGT Code
059215 n°27 2H/2E+ G20 20mbar
059215 n°27 2ELL G25 20mbar
059215 n°27 2L G25 25mbar
059216 n°14 3+3B/P G30/31 28-30/37mbar
059216 n°14 3B/P G30/31 50mbar
059215 n°27 No CE G20 10mbar
059381 n°75 G110
Ref./ Notes
B - Ugello FORNO / Burner nozzle OVEN
6DGT Code
056471 ø2.25 2H/2E+ G20 20mbar
002267 ø2.45 2ELL G25 20mbar
004727 ø2.35 2L G25 25mbar
002862 ø1.50 3+3B/P G30/31 28-30/37mbar
059364 ø1.30 3B/P G30/31 50mbar
0C0747 ø2.70 No CE G20 10mbar
059365 ø5.50 G110
G - Vite di minimo T.P. / Min sc rew SolidTop
6DGT Code
006193 ø1.60 2H/2E+ G20 20mbar
006193 ø1.60 2ELL G25 20mbar
006193 ø1.60 2L G25 25mbar
0C0800 ø1.10 3+3B/P G30/31 28-30/37mbar
002926 ø0.90 3B/P G30/31 50mbar
006193 ø1.60 No CE G20 10mbar
- adjust G110
Ref. / Notes
Ref./ Notes
Da Ser. Nr. / From ser. nr.: 504.....
Page: 3
Ed. 0505
Doc. Nr.:
2 - 26 100
Page 5
TUTTAPIASTRA GAS N900
GAS SOLID TOP N900
Code Type Ref. Notes
210230 QS/G2 a Gas Solid Top 800 MM
210231 QSF/G2 b Gas Solid Top on Oven 800 MM
210232 QSCF/G3 c Simple Service 1200 MM
Pos
Factory
Code
6 Dgt
Code
Descr izione Description
Ref. /
Notes
Pagina 1 Page 1
1 0315252601 026806 PIEDINO CON VITE SCREW FOOT FO R TOP a
0835856900 0C0204 PIEDE FOOT b c
1a 0508898900 0C0122 PIASTRA DI RINFORZO PER PIEDE PLATE FOR FOO T b c
2 0870853100 0C2094 FIANCO DESTRO TOP RIGHT SIDE PANEL TOP a
0529824303 0C1989 FIANCO DESTRO MONOBLOCCO RIGHT SIDE PANEL FREESTANDING b c
3 0870853200 0C2095 FIANCO SINISTRO TOP LEFT SIDE PANEL TOP a
0529824403 0C1990 FIANCO SINISTRO MONOBLOCCO LEFT SIDE PANEL FREESTANDING b c
4 0527836602 0C2402 RINFORZO DESTRO MONOBLOCCO RIGHT SIDE PANEL STIFFENING FR.ST. b c
0527836702 0C2401 RINFORZO SINISTRO MONOBLOCCO LEFT SIDE PANEL STIFFENING FR.ST. b c
6 0147018088 0C1289 ADESIVO STRUTTURALE STRUCTURAL ADHESIVE TAPE
7 0529828701 0C0031 SCHIENALE TOP 800mm BACK PANEL TOP 800mm a
0529829403 0C0162 SCHIENALE MO NOBLOCCO 800mm BACK PANEL FREESTANDING 800mm b
0529829502 0C0163 SCHIENALE MO NOBLOCCO 1200mm BACK PANEL FREESTANDING 1200mm c
8 0870848000 0C2089 RIPIANO TUTT APIASTRA 800mm WORKTOP SOLIDT OP 800mm a b
0870848101 0C2090 RIPIANO SIMPLE SERVICE 1200MM WORKTOP SIMPLE SERVICE 1200MM c
9 0853886400 0C2053 CRUSCOTTO TUTTAPIASTRA TOP CONTROL PANEL SOLID TOP a
0853886500 0C52054 CRUSCOTTO TUTTAP. su FORNO CONTROL PANEL SOLID TOP on OVEN b
0853886700 * CRUSCOTTO SIMPLE SERVICE CONTROL PANEL SIMPLE SERVICE c
10 0527850500 0C0156 PIASTRA FISSAGGIO FIANCHI SIDE PANEL JOINTING PLATE
11 0140088006 0L0113 GUARNIZIONE CRUSCOTTO GASKET, CONTROL PANEL
12 0510821301 0C0787 SEMIPIASTRA GHISA HALF PLATE CAST IRON
13 0210021601 026953 DISCO RADIANTE DISK, PLATE
13a 0330294200 001158 GANCIO SOLLEVADISCO RINGS HOOK
14 0167098028 * OLIO PROTETTIVO PROTECTIVE OIL
15 0510821002 0C1985 GRIGLIA GHISA FUOCHI APERTI CAST IRON GRATE OPEN BURNER c
16 0510821104 0C1986 GRIGLIA CAMINO LARGE GRID CHIMNEY
17 0548859700 0C2009 MANOPO LA PER RUBINETTO GAS KNOB, GAS CO CK
18 0548858000 0C2007 GHIERA FUOCO ANTERIORE RING KNOB, FRONT BURNER
19 0548858100 0C2008 GHIERA FUOCO POSTERIORE RING KNOB, REAR BURNER c
20 0218912211 069567 MO LLETTA PER GHIERA RING, RING KNOB
21 0548868001 0C2023 MANOPOLA PER TERMO ST. VALVOLA KNOB, GAS VALVE THERMOSTAT b c
22 0548863300 0C2021 MANOPOLA PER ACCENDITORE VALV. KNOB. G AS VALVE IGNITER b c
23 0548857900 0C2006 GHIERA PER VALVOLA FORNO KNOB RING. GAS VALVE OVEN b c
24 0518801801 053342 MO LLA PER MARCHIO SPRING, BRAND
25 0507859001 059219 G RIGLIA PROTEZIONE BULBO GRILL, PROTECTIO N PROBE b c
26 0214584201 066823 MO LLA PER BULBO SPRING, BULB b c
27 0529837000 0C1234 PORTA FORNO DO OR, OVEN b c
28 0529836700 0C0176 CONTROPORTA INNER DOOR O VEN b c
Da Ser. Nr. / From ser. nr.: 504.....
Page: 4
Ed. 0505
Doc. Nr.:
2 - 26 100
Page 6
TUTTAPIASTRA GAS N900
GAS SOLID TOP N900
Code Type Ref. Notes
210230 QS/G2 a Gas Solid Top 800 MM
210231 QSF/G2 b Gas Solid Top on Oven 800 MM
210232 QSCF/G3 c Simple Service 1200 MM
Pos
Factory
Code
6 Dgt
Code
Descrizione Description
Ref. /
Notes
Pagina 1 Page 1
29 0560839601 0C0197 ISO LAMENTO PORTA FORNO INSULATION, OVEN DOOR b c
29a 0560839400 0C0195 ISOLAMENTO FORNO INSULATION, OVEN b c
29b 0560839501 0C0196 ISOLAMENTO SCHIENA FORNO INSULATION, BACK OVEN b c
30 0831825200 0C2030 MANIGLIA FORNO HANDLE, O VEN DOO R b c
31 0835848100 0C0203 CERNIERA PORTA FORNO HINGE, OVEN DOOR b c
32 0205075423 052725 COPRICERNIERA HING E COVER b c
33 0529838400 0C0181 GUIDA PER GRIG LIA FORNO GRATE LEADING b c
34 0330260842 025020 G RIGLIA FORNO GRID; OVEN b c
35 0510818901 0C0123 SUO LA SOLE b c
36 0800833100 0C0198 COPERTURA FORO PILOT A COVERING, PILOT b c
37 0516802900 0C0134 VITE PER GUIDA FORNO SCREW, GRATE LEADING b c
38 0516803000 0C0135 DISTANZIALE PER GUIDA SPACER, GRATE LEADING b c
39 0529852303 0C1648 FONDO VANO BOTTOM PANEL CUPBOARD c
40 0529852400 0C0184 FIANCO DESTRO VANO RIGHT SIDE PANEL CUPBOARD c
41 0529852501 0C0185 CIELO VANO TO P PANEL CUPBOARD c
42 0830898200 0C0201 MAGNETE PORTA MAGNET, DOOR c
43 0529860101 0C1996 PORTA SINISTRA LEFT DOOR, CUPBOARD c
44 0529836800 0C0177 CONTROPORTA INNER DOOR c
45 0548861301 0C2016 MANIGLIA PORTA SINISTRA HANDLE, LEFT DOOR c
46 0516860801 0C0138 CERNIERA INFERIORE DESTRA BOTTOM HINGE, RIGHT c
47 0516860901 0C0139 CERNIERA SUPERIORE DESTRA TOP HINGE, RIGHT c
48 0529835402 0C0165 SUPPORTO CERNIERA FORNO SUPPORT FOR HINGE, DOOR OVEN b c
49 0541810600 0C0187 TAPPO POSTERIORE RIPIANO STOPPER
50 0516860700 0C0137 PIASTRA GIUNZIONE APPARECC. JOINTING REAR PLATE
51 0870838205 0C0218 FACCIATA FORNO 800mm FRO NT OVEN 800mm b
0870838305 0C0219 FACCIATA FORNO 1200mm FRONT OVEN 1200mm c
52 0529850500 0C0182 PIASTRINA FACCIATA FIANCO PLATE FRONT OVEN b c
53 0529835503 0C0166 INVOLUCRO FORNO GAS OVEN SHELL b c
54 0529835702 0C0167 SCHIENALE FORNO G AS REAR SIDE PANEL OVEN b c
55 0147018082 006451 NASTRO ADESIVO ALLUMINIO BAND b c
56 0529881702 0C0234 FONDO TOP 800mm BORROM PANEL TOP 800mm a
0529828206 0C0159 FONDO MO NOBLOCCO 800mm BOTTOM PANEL FREEST. 800mm b
0529828305 0C1647 FONDO MO NOBLOCCO 1200mm BOTTO M PANEL FREEST. 1200mm c
57 0543815000 059293 G UARNIZIONE MANOPO LA
58 0543821000 053816 G UARNIZIONE MANOPO LA
Da Ser. Nr. / From ser. nr.: 504.....
Page: 5
Ed. 0505
Doc. Nr.:
2 - 26 100
Page 7
TUTTAPIASTRA GAS N900
GAS SOLID TOP N900
Code Type Ref. Notes
210230 QS/G2 a Gas Solid Top 800 MM
210231 QSF/G2 b Gas Solid Top on Oven 800 MM
210232 QSCF/G3 c Simple Service 1200 MM
Pos
Factory
Code
6 Dgt
Code
Descrizione Description
Ref. /
Notes
Pagina 2 Page 2
70 0529836401 0C0173 ANTERIORE CAMINO FORNO F RONT CHIMNEY OVEN b c
71 0529836501 0C0174 POSTERIORE CAMINO FORNO REAR CHIMNEY OVEN b c
72 0524892501 0C0788 CAMERA COMBUSTIONE COMBUSTION CHAMBER
73 0524892601 0C0789 ANTERIORE CAMINO FRONT PANEL CHIMNEY
74 0524895800 0C0790 PANNELLO PROTEZIONE LATERALE PROTECTION SIDE PANEL
75 0524892901 * DISTANZIALE PANN. PROTEZIONE LAT. SPACER, PROTEC.SIDE PANEL
76 0206260400 057382 CORNICE VETRINO SPIA FRAME, INSPECTION GLASS
77 0282217401 057402 GUARNIZIONE VETRINO SPIA GASKET, INSPECTIO N GLASS
78 0275290025 057400 VETRINO SPIA INSPECTIO N GLASS
79 0853864302 0C0792 RIBALTA TUTTAPIASTRA TOP MANIFOLD SOLIDTOP a
0853864400 0C0793 RIBALTA TUTTAPIASTRA SU FORNO MANIFOLD SOLIDTOP on OVEN b
0853864500 0C0794 RIBALTA SIMPLESERVICE MANIFO LD SIMPLESERVICE c
80 0516863900 0C0140 FILTRO FILTER b c
81 0835857201 0C0205 RUBINETTO GAS GAS TAP
82 0835861300 0C0795 CONDUTTURA BRUCIATORE GAS PIPE, BURNER
83 0517879000 0C0796 CONDUTTURA PILOTA GAS PIPE, PILOT
84 0214164400 052125 RACCORDO PILOTA PIPE FITTING PILOT PIPE
85 0215199700 052127 BICONO RUBINETTO DOUBLE CONE, GAS TAP
86 0517808700 059161 BICONO PILOTA DOUBLE CONE, PILOT
87 0511805801 059375 PORTAUGELLO INJECTOR HOLDER
88 0214105101 020997 CONTRODADO PORTAUGELLO LOCK NUT, INJECTOR HOLDER
89 0830865104 059374 BRUCIATORE BURNER
90 0210942401 052377 SPARTIFIAMMA FLAME SPREADER
91 0206117200 052374 DISCO PER BRUCIATORE DISK, BURNER
92 0206410400 052500 TEGOLO CONTACTOR
93 0215086000 051774 BOCCOLA BUSH
94 0830884101 005503 PILOTA PILOT BURNER
95 0524893000 0C0797 SUPPORTO PILOTA HOLDER PILOT
96 0831800500 0C0202 TERMOCOPPIA THERMOCOUPLE
97 0214162000 0C0121 RACCORDO TERMOCOPPIA PIPE FITTING, THERMOCOUPLE
98 0830863300 059380 ELETTRODO ELECTRODE
99 0214164101 057960 RACCORDO ELETTRO DO PIPE FITTING, ELECTRODE
100 0835834900 002605 ACCENDITORE PIEZO PIEZOELECTRIC IGNITER
101 0638883500 006514 CAVO IGNITION CABLE
102 0541809000 002816 COPERTURA PULSANTE PIEZO COVER, PIEZO
103 0506833401 054029 GUARNIZIONE UGELLO GASKET, INJ ECTOR b c
104 0835857401 0C0206 CONDUTTURA ANTERIORE FUOCHI PIPE, FRONTAL OPEN BURNER c
105 0835857501 0C0207 CONDUTTURA POSTERIORE FUOCHI PIPE, REAR OPEN BURNER c
106 0517870101 0C0151 CONDUTTURA ANTERIORE PILOTA PIPE, FRONTAL PILOT c
107 0517870202 0C0152 CONDUTTURA POSTERIO RE PILOTA PIPE, REAR PILOT c
108 0835859300 0C0209 VALVOLA G AS MERTIK GAS VALVE MERTIK b c
109 0515827401 053665 BICONO DOUBLE CONE c
110 0510819003 0C0124 SUPPORT O VENTURI SUPPORT, VENTURI c
111 0510820602 0C0133 VENTURI 10 KW VENTURI, 10 KW c
112 0510819103 0C0125 VENTURI 6 KW VENTURI, 6 KW c
Da Ser. Nr. / From ser. nr.: 504.....
Page: 6
Ed. 0505
Doc. Nr.:
2 - 26 100
Page 8
TUTTAPIASTRA GAS N900
GAS SOLID TOP N900
Code Type Ref. Notes
210230 QS/G2 a Gas Solid Top 800 MM
210231 QSF/G2 b Gas Solid Top on Oven 800 MM
210232 QSCF/G3 c Simple Service 1200 MM
Pos
Factory
Code
6 Dgt
Code
Descr izione Description
Ref. /
Notes
Pagina 2 Page 2
113 0543829700 0C0188 GUARNIZIONE OR O RING c
114 0510819203 0C0126 CORPO BRUCIATORE 10 KW BURNER 10 KW c
115 0510819303 0C0127 CORPO BRUCIATORE 6KW BURNER 6KW c
116 0510819401 0C0128 SPARTIFIAMMA; 10 KW FLAME SPREADER 10 KW c
117 0510819501 0C0129 SPARTIFIAMMA 6kW FLAME SPREADER 6kW c
118 0806820902 0C0199 PILOTA PILOT BURNER c
119 0831800500 0C0202 TERMOCOPPIA THERMOCOUPLE c
120 0514862501 051950 RACCORDO VALVOLA - RIBALTA PIPE FIT TING , MAINF OLD - GAS VALVE b c
121 0215170716 050682 OG IVA VALVOLA - RIBALTA RING , MAINFOLD - GAS VALVE b c
122 0806836300 0C1323 CONDUTTURA FORNO PIPE, OVEN b
835857602 0C0208 CONDUTTURA FORNO PIPE,OVEN c
123 0516869500 0C0149 RACCO RDO VALVOLA - COND.FORNO PIPE FITTING, G AS VALVE - OVEN b c
124 0516869600 0C0150 BICONO VALVOLA - COND.FORNO DOUBLE CONE, GAS VALVE - OVEN b c
125 0214108111 0A2125 DADO, CONDUTTURA FORNO NUT, OVEN PIPE b c
126 0215073101 060325 BICONO, CONDUTTURA FORNO DOUBLE CONE, OVEN PIPE b c
127 0517870302 0C0153 CONDUTTURA PILOTA PIPE, PILOT b c
128 0830860902 059221 BRUCIATORE FORNO OVEN BURNER b c
129 0511805401 059250 PORTAUGELLO INJECTOR HOLDER b c
130 0214105101 020997 CONTRODADO LOCK NUT b c
131 0830827102 054085 AREATORE AREATOR b c
132 0830852501 020094 TERMOCOPPIA FO RNO THERMOCOUPLE OVEN b c
133 0529836201 0C0171 SQUADRETTA PILOTA BRACKET, PILOT b c
134 0529836300 0C0172 PROTEZIONE PILOTA PROTECTION, PILOT b c
135 0529836600 0C0175 PARAFIAMMA BRUCIATORE FORNO FLAME SPREADER, OVEN b c
136 0560842400 0C0798 ISOLAMENTO CENTRALE CENTRAL INSULATION
137 0560844600 0C0799 ISOLAMENTO LATERALE SIDES INSULATIO N
138 0529835902 0C0168 CONVOGLIATORE BRUCIATORE PROTECTION, BURNER b c
139 0529836000 0C0169 CHIUSURA PER CONVOGLIATORE PROTECTION TIGHTENER b c
140 0529836101 0C0170 CHIUSURA PER BRUCIATORE OVEN BURNER TIGHTENER b c
Da Ser. Nr. / From ser. nr.: 504.....
Page: 7
Ed. 0505
Doc. Nr.:
2 - 26 100
Loading...
