Electrolux QR2520X User Manual

Page 1
QR2520W QR2520X
EN User manual
Page 2
2
CONTENTS
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6. WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8. NOISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DEAR CUSTOMER
Thank you for choosing this Husqvarna-Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.husqvarna-electrolux.se
Register your product for better service:
www.husqvarna-electrolux.se
Buy Accessories, Consumables and Original spare parts for your appliance:
www.husqvarna-electrolux.se/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
Page 3
ENGLISH 3
1.
SAFETY INSTRUCTIONS
In the interest of your safety and to en­sure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mis­takes and accidents, it is important to ensure that all people using the appli­ance are thoroughly familiar with its op­eration and safety features. Save these instructions and make sure that they re­main with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on ap­pliance use and safety. For the safety of life and property keep the precautions of these user's instruc­tions as the manufacturer is not respon­sible for damages caused by omission.
1.1 Children and vulnerable people safety
• This appliance is not intended for use by persons (including children) with re­duced physical, sensory or mental ca­pabilities, or lack of experience and knowledge, unless they have been giv­en supervision or instruction concern­ing use of the appliance by a person responsible for their safety.
Children should be supervised to en­sure that they do not play with the ap­pliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the ap­pliance as you can) and remove the door to prevent playing children to suffer electric shock or to close them­selves into it.
• If this appliance featuring magnetic door seals is to replace an older appli­ance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you dis­card the old appliance. This will pre­vent it from becoming a death trap for a child.
1.2 General safety
WARNING!
Keep ventilation openings, in the appli­ance enclosure or in the built-in struc­ture, clear of obstruction.
• The appliance is intended for keeping foodstuff and/or beverages in a nor­mal household and similar applica­tions such as:
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients in hotels,
motels and other residential type environments;
– bed and breakfast type environ-
ments;
– catering and similar non-retail appli-
cations.
• Do not use a mechanical device or any artificial means to speed up the thaw­ing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compati­bility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
If the refrigerant circuit should be­come damaged:
– avoid open flames and sources of
ignition
– thoroughly ventilate the room in
which the appliance is situated
• It is dangerous to alter the specifica­tions or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or elec­tric shock.
Page 4
4
WARNING!
Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service per­sonnel to avoid hazard.
1.
Power cord must not be length­ened.
2.
Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3.
Make sure that you can come to the mains plug of the appliance.
4.
Do not pull the mains cable.
5.
If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6.
You must not operate the appli­ance without the lamp cover (if foreseen) of interior lighting.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the ap­pliance to direct sunlight.
• Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for house­hold room illumination.
1.3 Daily use
• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instruc­tions.
• Do not clean the appliance with metal objects.
• Regularly examine the drain in the re­frigerator for defrosted water. If neces­sary, clean the drain. If the drain is blocked, water will collect in the bot­tom of the appliance.
1.5 Installation
For electrical connection careful­ly follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not con­nect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appli­ance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve suffi­cient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is ac­cessible after the installation of the ap­pliance.
• Connect to potable water supply only (If a water connection is foreseen).
1.6 Service
• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
1.4 Care and cleaning
• Before maintenance, switch off the ap­pliance and disconnect the mains plug from the mains socket.
Page 5
1.7 Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its refriger­ant circuit or insulation materials. The appliance shall not be dis­carded together with the urban refuse and rubbish. The insula­tion foam contains flammable
2. CONTROL PANEL
Display
1
Temperature warmer button
2
Temperature colder button
3
OK button
4
Mode button
5
ON/OFF button
6
It is possible to change predefined sound of buttons to a loudly one by pressing together Mode button and Temperature colder button for some seconds. Change is reversible.
2.1 Display/Indicator
A CB D
GH F E
A)
Timer indicator
B)
COOLMATIC function
C)
Holiday function
D)
Temperature indicator
E)
Alarm indicator
F)
Child Lock function
G)
Minute Minder function
H)
Humidity function
gases: the appliance shall be dis­posed according to the applica­ble regulations to obtain from your local authorities. Avoid damaging the cooling unit, espe­cially at the rear near the heat ex­changer. The materials used on this appliance marked by the
symbol
1
56 4 3 2
are recyclable.
2.2 Switching on
To switch on the appliance do these steps:
1.
Connect the mains plug to the pow­er socket.
2.
Press the ON/OFF button if the dis­play is off.
3.
If "dEMo" appears on the display, the appliance is in demonstration mode. Refer to "What to do if..." paragraph.
4.
The temperature indicators show the
set default temperature. To select a different set temperature re­fer to "Temperature regulation".
If the door remains open for some minutes, the light will turn off automatically. The light is re­set by closing and opening the door itself.
2.3 Switching off
To switch off the appliance do these steps:
1.
Press the ON/OFF button for few
seconds.
2.
The display switches off.
ENGLISH 5
Page 6
6
3.
To disconnect the appliance from the power disconnect the mains plug from the power socket.
ature colder button and the Tempera­ture warmer button.
2.6 Child Lock function
2.4 Temperature regulation
The set temperature of the fridge may be adjusted by pressing the temperature button. Set default temperature: +5°C for the fridge. The temperature indicator shows the set temperature. The set temperature will be reached within 24 hours.
After a power failure the set tem­perature remains stored.
2.5 Minute Minder function
The Minute Minder function is to be used to set an acoustic alarm at the pre­ferred time, useful for example when a recipe requires to cool down a mixture for a certain length of time. To switch on the function:
1.
Press the Mode button until the cor­responding icon appears.
The Minute Minder indicator flashes. The Timer shows the set value (30
minutes) for a few seconds.
2.
Press the Temperature colder or the Temperature warmer button to change the Timer set value from 1 to 90 minutes.
3.
Press the OK button to confirm. The Minute Minder indicator is
shown.
The Timer start to flash (min). At the end of the countdown the Minute Minder indicator flashes and an audible alarm sounds:
1.
Press OK button to switch off the
sound and terminate the function. It is possible to deactivate the function at any time during the countdown:
1.
Press the Mode button until the Mi-
nute Minder indicator flashes.
2.
Press the OK button to confirm.
3.
The Minute Minder indicator goes
off. It is possible to change the time during the countdown by pressing the Temper-
To lock the buttons from unintentional operation select the Child Lock function. To switch on the function:
1.
Press the Mode button until the cor­responding icon appears.
2.
The Child Lock indicator flashes.
3.
Press the OK button to confirm. The Child Lock indicator is shown.
To switch off the function:
1.
Press the Mode button until the Child Lock indicator flashes.
2.
Press the OK button to confirm.
3.
The Child Lock indicator goes off.
2.7 COOLMATIC function
If you need to insert a large amount of warm food, for example after doing the grocery shopping, we suggest activating the COOLMATIC function to chill the products more rapidly and to avoid warming the other food which is already in the refrigerator. To switch on the function:
1.
Press the Mode button until the cor­responding icon appears.
The COOLMATIC indicator flashes.
2.
Press the OK button to confirm. The COOLMATIC indicator is
shown. The COOLMATIC function shuts off au­tomatically after approximately 6 hours. To switch off the function before its au­tomatic end:
1.
Press the Mode button until the
COOLMATIC indicator flashes.
2.
Press the OK button to confirm.
3.
The COOLMATIC indicator goes off.
The function switches off by se­lecting a different fridge set tem­perature.
2.8 Extra Humidity function
If you need to increase the humidity in the refrigerator, we suggest activating the Extra Humidity function: To switch on the function:
Page 7
1.
Press the Mode button until the cor­responding icon appears.
The Extra Humidity indicator flashes.
2.
Press the OK button to confirm. The Extra Humidity indicator is
shown.
To switch off the function:
1.
Press the Mode button until the Ex­tra Humidity indicator flashes.
2.
Press the OK button to confirm.
3.
The Extra Humidity indicator goes off.
ENGLISH 7
The fridge temperature indicator
shows the set temperature.
2.
Press the OK button to confirm.
The Holiday indicator is shown. To switch off the function:
1.
Press the Mode button until the Hol-
iday indicator flashes.
2.
Press the OK button to confirm.
3.
The Holiday indicator goes off.
The function switches off by se­lecting a different fridge set tem­perature.
2.9 Holiday function
This function allows you to keep the re­frigerator closed and empty during a long holiday period without the forma­tion of a bad smell.
The fridge compartment must be empty with holiday function on.
To switch on the function:
1.
Press the Mode button until the cor­responding icon appears.
The Holiday indicator flashes.
3. DAILY USE
3.1 Vegetable Drawer
The drawer is suitable for storing fruit and vegetables. Some models have a separator inside the drawer that can be placed in differ­ent positions to allow for the subdivision best suited to personal needs. All parts inside the drawer can be re­moved for cleaning purposes.
3.2 Clean Air Control Filter
Your appliance is equipped with a car­bon filter behind the air lever flap.
2.10 Door open alarm
An acoustic alarm will sound if the door is left open for a few minutes. The door open alarm conditions are indicated by:
• flashing Alarm indicator
• acoustic buzzer When normal conditions are restored (door closed), the alarm will stop. During the alarm, the buzzer can be switched off by pressing any button.
The filter purifies the air from unwanted odours in the fridge compartment pre­serving food quality. On delivery the filter is in a plastic bag. Refer to "Installation of the Clean Air Control filter" for instructions.
Make sure that the air lever flap is closed to obtain proper func­tion.
Page 8
8
3.3 Movable shelves
The walls of the refrigerator are equip­ped with a series of shelves support so that the shelves can be positioned as de­sired. Some shelves must be lifted up by the rear edge to enable them to be re­moved.
Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.
3.4 Bottle rack
Place the bottles (with the opening fac­ing front) in the pre-positioned shelf.
If the shelf is positioned horizon­tally, place only closed bottles.
This bottle holder shelf can be tilted in order to store previously opened bot­tles. To obtain this result, pull the shelf up so it can rotate upwards and be placed on the next higher level.
Page 9
3.5 Positioning the door shelves
3.6 Cleaning the interior
ENGLISH 9
To permit storage of food packages of various sizes, the door shelves can be placed at different heights. To make these adjustments proceed as follows: gradually pull the shelf in the direction of the arrows until it comes free, then repo­sition as required.
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.
Do not use detergents or abra­sive powders, as these will dam­age the finish.
4. HELPFUL HINTS AND TIPS
4.1 Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warm­er settings to allow automatic defrost­ing and so a saving in electricity con­sumption.
Check that the drain hose at the rear of the cabinet discharges into the drip tray
4.2 Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporat­ing liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it
4.3 Hints for refrigeration
Useful hints:
Page 10
10
Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most. Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible. Milk bottles: these should have a cap and should be stored in the bottle rack on the door. Bananas, potatoes, onions and garlic, if not packed, must not be kept in the re­frigerator.
4.4 Hints for temperature inside the fridge
• A suitable temperature inside the fridge is approx. +5° C. When the temperature regulator is set to +5°C this represents the mean temperature in the fridge. It is normal with higher temperature in the top of the fridge.
If the temperature regulator is set to a cold temperature, the ambient tempera-
ture is high or if the fridge is fully loaded the compressor will run for a longer time. If too cold, change to a higher temperature setting.
Do not place food against or close to the temperature sensor (A) or any shelves towards the water drain hole. This can result in too cold temperatures.
A
• If you want to check the temperature of food stored in the refrigerator, place a glass of water centrally in the cabinet, and put a proper thermome­ter with an accuracy of +/– 1 °C into it. After 6 hours the temperature can be monitored. The measuring shall be performed under steady-stated condi­tions (without changing the load).
5. CARE AND CLEANING
CAUTION!
Unplug the appliance before car­rying out any maintenance oper­ation.
This appliance contains hydrocar­bons in its cooling unit; mainte­nance and recharging must therefore only be carried out by authorized technicians.
5.1 Periodic cleaning
The equipment has to be cleaned regu­larly:
• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed clean­ing products or wax polishes to clean the interior as this will dam­age the surface and leave a strong odor.
Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve
Page 11
the performance of the appliance and save energy consumption.
Take care of not to damage the cooling system.
ENGLISH 11
New active filters can be purchased from your local dealer. Refer to "Installation of the Clean Air Control filter" for instructions.
When moving the cabinet, lift it by the front edge to avoid scratching the floor.
Many proprietary kitchen surface clean­ers contain chemicals that can attack/ damage the plastics used in this appli­ance. For this reason use a soft cloth rinsed in warm water and neutral soap emulsion for cleaning external surfaces.
Do not use detergents or abra­sive paste as these will damage the paint, or stainless steel anti finger print coating.
After cleaning, reconnect the equipment to the mains supply.
5.2 Replacing the Clean Air Control filter
To get the best performance replace the Clean Air Control filter once every year.
5.4 Cleaning the ventilation grille
5.3 Periods of non-operation
When the appliance is not in use for long periods, take the following precau­tions:
1.
disconnect the appliance from elec­tricity supply
2.
remove all food
3.
defrost and clean the appliance and all accessories
4.
leave the door/doors open to pre­vent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.
The ventilation grille can be removed for washing. Make sure the door is open and then:
• Loosen the upper edge of the grille by pulling outward/downward.
• Pull the grille straight out to complete­ly remove it.
• Vacuum clean under the cabinet.
Page 12
12

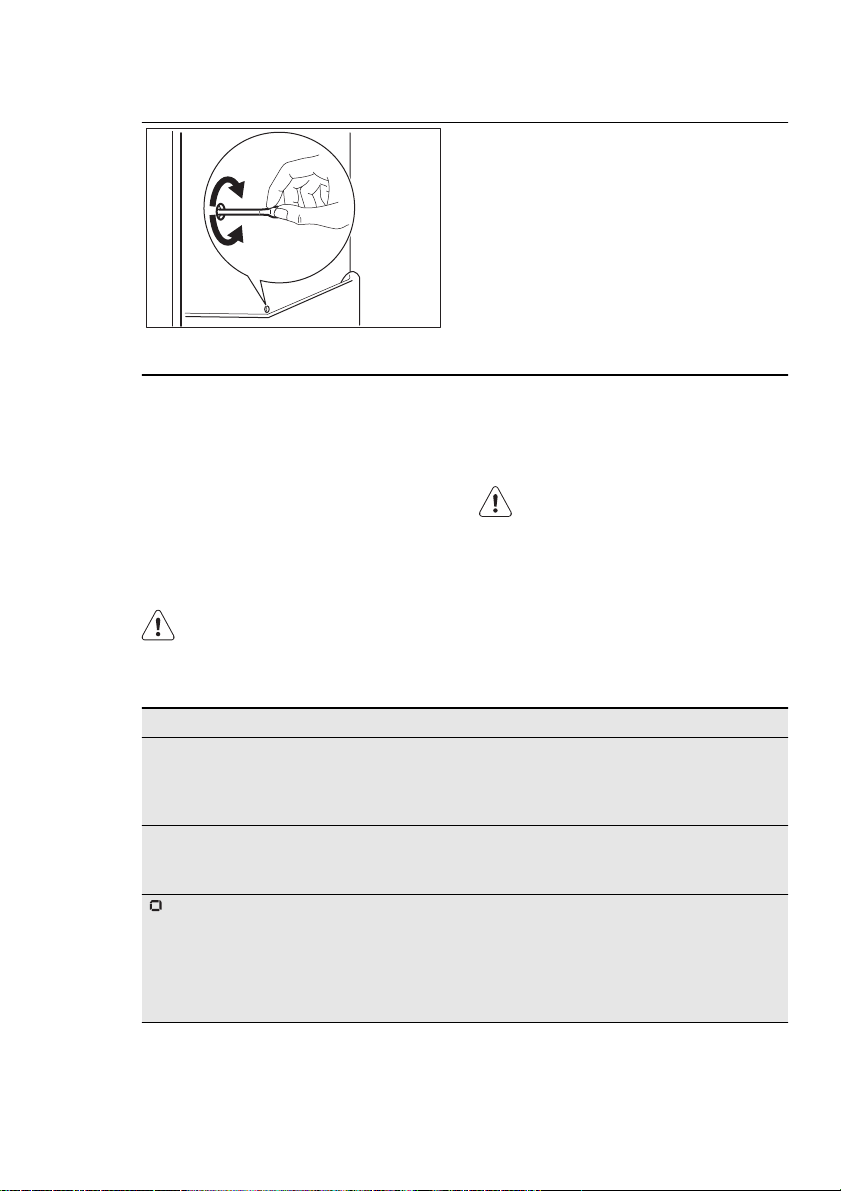

5.5 Defrosting the refrigerator
6. WHAT TO DO IF…
Frost is automatically eliminated from the evaporator of the refrigerator com­partment every time the motor compres­sor stops, during normal use. The de­frost water drains out through a drain hole into a special container at the back of the appliance, over the motor com­pressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and drip­ping onto the food inside.
During operation of the appliance some smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart in­formation is given about them to avoid unnecessary charges on service.
The operation of the appliance goes with certain sounds (com­pressor and circulating sound). This not means a trouble, but a normal operation.
The appliance operates discon­tinuously, so the stopping of compressor does not mean be­ing no current. That is why you must not touch the electrical parts of the appliance before breaking the circuit.
Problem Possible cause Solution
The appliance is noisy.
The appliance is not sup­ported properly.
Check if the appliance stands stable (all feet and wheels should be on the floor). Refer to "Levelling".
The buzzer sounds. The Alarm icon flash-
The door is not closed correctly.
Refer to "Door open alarm".
ing.
upper or lower square is shown in the temperature dis­play.
An error has occurred in measuring the tempera­ture
Call your service represen­tative (the cooling system will continue to keep food products cold, but temper­ature adjustment will not be possible)
Page 13
Problem Possible cause Solution
“dEMo” appears on the display.
The appliance is in dem­onstration mode.
Keep pressed approxi­mately 10 sec the OK but­ton since a long sound of buzzer is heard and the display shut off for a short while: appliance start works regularly.
The compressor runs continuously.
The door is not closed
The door has been
The Temperature regula­tor may be set incorrectly.
correctly.
opened too frequently.
Set a warmer temperature.
Refer to "Closing the door".
Do not keep the door open longer than necessa­ry.
The food temperature is
too high.
Let the food temperature decrease to room temper­ature before storage.
The room temperature is
too high.
Water flows inside the refrigerator.
The water outlet is clog­ged.
Food prevent that water
flows into the water col-
Decrease the room tem­perature.
Clean the water outlet.
Make sure that food do not touch the rear plate.
lector.
Water flows on the ground.
The melting water outlet does not flow in the evap­orative tray above the
Attach the melting water outlet to the evaporative tray.
compressor.
The temperature in the appliance is too
The Temperature regula­tor may be set incorrectly.
Set a warmer temperature.
cold.
The temperature in the appliance is too
The Temperature regula­tor may be set incorrectly.
Set a lower temperature.
warm.
The door is not closed
correctly.
The food temperature is
too high.
Refer to "Closing the door".
Let the food temperature decrease to room temper­ature before storage.
The temperature in the refrigerator is too warm.
Large quantities of food
There is no cold air circu­lation in the appliance.
to be cooled were put in at the same time.
Make sure that there is cold air circulation in the appliance.
Insert smaller quantities of food to be cooled at the same time.
ENGLISH 13
Page 14
14
Problem Possible cause Solution
The appliance does not operate.
The mains plug is not
The appliance is switched off.
connected to the mains
Switch on the appliance.
Connect the mains plug to the mains socket correctly.
socket correctly.
The appliance has no
power. There is no volt­age in the mains socket.
Connect a another electri­cal appliance to the mains socket. Check fuse. Con­tact a qualified electrician.
The lamp does not work.
The door has been open
The lamp is defective. Refer to "Replacing the
lamp".
Close the door.
to long.
Door interferes with ventilation grill.
Misaligned door. The appliance is not lev-
The appliance is not lev­elled.
Refer to "Levelling".
Refer to "Levelling".
elled.
As much as the advice does not lead to result, call the nearest brand-mark service.
2.
6.1 Replacing the lamp
The appliance is equipped with a long­life LED interior light. Only service is allowed to replace the lighting device. Contact your Service Center .
If necessary, adjust the door. Refer to "Installation".
3.
If necessary, replace the defective door gaskets. Contact the Service Center.
6.2 Closing the door
1.
Clean the door gaskets.
7. INSTALLATION
WARNING!
Read the "Safety Information" carefully for your safety and cor­rect operation of the appliance before installing the appliance.
7.1 Positioning
Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:
Cli-
Ambient temperature mate class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Page 15
7.2 Location
ENGLISH 15
50 mm
7.3 Electrical connection
Before plugging in, ensure that the volt­age and frequency shown on the rating plate correspond to your domestic pow­er supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the do-
To ensure best performance, if the appli­ance is positioned below an overhang­ing wall unit, the minimum distance be­tween the top of the cabinet and the wall unit must be at least 40 mm . Ideally, however, the appliance should not be positioned below overhanging wall units. The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard. In this case, the space behind the top
cupboard must be at least 50 mm deep.
mestic power supply socket is not earth­ed, connect the appliance to a separate earth in compliance with current regula­tions, consulting a qualified electrician. The manufacturer declines all responsi­bility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.
7.4 Removing the transport support
Your appliance is equipped with trans­port support to secure the door during transportation.
3
To remove them do these steps:
• Open the door.
• Remove the transport support from the door sides.
• Remove the transport support from the lower hinge (some models).
2
Some models are fitted with a si­lencing pad under the cabinet. Do not remove this pad.
7.5 Rear spacers
Install the spacers provided within the accessory bag as shown in the figure. Install the spacers on the back side of the panel.
Page 16
16
7.6 Levelling
When placing the appliance ensure that it stands level. If necessary adjust the feet using the adjustment spanner sup­plied. Door alignment is dependent on proper levelling.
7.7 Installation of the Taste Guard Filter
The Taste Guard Filter is an active car­bon filter which absorbs bad odours maintain the best flavour and aroma for all foodstuffs without risk of odour cross contamination. On delivery the carbon filter is in a plas­tic bag to preserve performance.
• Open the air lever flap.
• Take the filter out of the plastic bag.
• Insert the filter in the slot found in the back of the air lever flap.
• Close the air lever flap.
The filter should be handled carefully so fragments do not loosen from the surface. Make sure that the air lever flap is closed to obtain proper func­tion.
7.8 Door reversibility
12
To change the opening direction of the door, do these steps:
• Remove the plug from the power.
• Remove the ventilation grille. Remove the upper filling and install it on the opposite side of the grille.
• Remove the pedal hole cover and in­stall the cover provided in the acces­sory bag on the opposite side of the grille.
• Lay down the appliance back side down on a wooden support.
• Unscrew the handle from the top (1) and the bottom (2) of the door.
Page 17
ENGLISH 17
1
2
34
3
2
WARNING!
Reposition, level the appliance, wait for at least four hours and then connect it to the power socket.
Do a final check to make sure that:
• All screws are tightened.
• Unscrew the hinge (1) and remove the cover plate (2) and the support (3).
• Remove the cover (4) on the opposite side and install the support (3) the cov­er plate (2) and the hinge (1). Install the cover (4) on the opposite side.
• Unscrew the lower hinge (1). Move the pin to the opposite side (2).
• Unscrew and move the pedal to the
1
opposite side (3).
• Screw on the lower hinge on the op­posite side.
• Tighten the pin with the adjustment spanner supplied.
• Use a small screw driver to remove the bushing on the top of the door and move it to the opposite side on the door.
• Install the handle on the opposite side.
• Raise the appliance and install the ventilation grille.
• Put the cabinet in position.
• The magnetic seal adheres to the cab­inet.
• The door opens and closes correctly.
If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket.
8. NOISES
There are some sounds during normal running (compressor, refrigerant circula­tion).
Page 18
18
SSSRR
HISSS!
R!
CLICK!
BRRR!
OK
SSSRRR!
HISSS!
SSSRRR!
HISSS!
BLUBB!
CLICK!
BRRR!
CRACK!
CLICK!
BRRR!
BLUBB!
BLUBB!
CRACK!CRACK!
Page 19
9. TECHNICAL DATA
Dimension
Height 1800 mm
Width 595 mm
Depth 623 mm
Voltage 230 V
Frequency 50 Hz
The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.
10. ENVIRONMENT CONCERNS
ENGLISH 19
Recycle the materials with the symbol applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic
. Put the packaging in
appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
Page 20
www.husqvarna-electrolux.se/shop
298376912-D-432012
Loading...
