1
Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new product.
IF ANY P
ARTS ARE MISSING CONTACT:-
Electrolux Outdoor Products Customer Service Department direct
Telephone : 01325 300303, Fax : 01325 318193
Safety
General
1. Never allow children or people unfamiliar with these
instructions to use the trimmer. Local regulations
may restrict the age of the operator.
2. Only use the trimmer in the manner and for the
functions described in these instructions.
3. Never operate the trimmer when you are tired, ill or
under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or
hazards occurring to other people or their property.
Electrical
1. The British Standards Institute recommend the use
of a Residual Current Device (R.C.D.) with a tripping
current of not more than 30mA. Even with a R.C.D.
installed 100% safety cannot be guaranteed and
safe working practice must be followed at all times.
Check your R.C.D. every time you use it.
2. Before use, examine cable for damage, replace it if
there are signs of damage or ageing.
3. Do not use the trimmer if the electric cables are
damaged or worn.
Mini Trim Auto +
If not used properly this trimmer can be dangerous! This trimmer can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and
efficiency in using this trimmer. The operator is responsible for following the warning and safety instructions in this manual and on the trimmer.
Explanation of Symbols on the Mini Trim/MT21
Warning
Read the user instructions carefully to
make sure you understand all the controls and what they do.
Keep others, including children, pets and
bystanders outside the 10 metre hazard
zone. Stop the trimmer immediately if you
are approached.
The use of eye protection is recommended to protect against objects thrown by
the cutting line.
To avoid the possibility of electric shock,
do not use in damp or wet conditions.
Switch off! Remove plug from mains
before adjusting, cleaning or if cable is
entangled or damaged.
Warning: The cutting line continues to rotate after the
machine has been switched off.
Please note: This manual covers various products. Please read the user instructions carefully to fully identify, assemble and use the features that apply to your trimmer.
Upper Shaft
Switch Lever
Electric Cable with
moulded on plug
Guard
Instruction
Manual
Lower
Shaft
Mini Trim/MT21/
Mini Trim Auto
Upper Shaft
Switch Lever
Electric Cable with
moulded on plug
Guard
Instruction
Manual
Lower
Shaft
Steady
Handle
10m
360º
Page 3
2
4. Immediately disconnect from the mains electricity
supply if the cable is cut, or the insulation is damaged. Do not touch the electric cable until the electrical supply has been disconnected. Do not repair
a cut or damaged cable. Replace it with a new
one.
5. Your extension cable must be uncoiled, coiled
cables can overheat and reduce the efficiency of
your trimmer.
6. Keep the cable clear of the cutting area and obstacles at all times.
7. Do not pull cable around sharp objects.
8. Always switch off at the mains before disconnecting
any plug, cable connector or extension cable.
9. Never pull on the cable to disconnect any of the plugs.
10. Switch off, remove plug from mains and examine
electric supply cable for damage or ageing befor
e
winding cable for storage. Do not repair a damaged
cable, replace it with a new one. Use only our
replacement cable.
11. Always wind cable carefully, avoiding kinking.
12. Use only on AC mains supply voltage shown on the
product rating label.
13. Our trimmers are double insulated to EN60335.
Under no circumstance should an earth be connected to any part of the trimmer.
Preparation
1. While using your product always wear substantial
footwear and long trousers.
2. Before using the machine and after any impact,
check for signs of wear or damage and repair as
necessary.
3. Inspect the area to be cut before each use. Remove
all objects such as stones, broken glass, nails, wire,
string etc, which can be thrown or become entangled in the trimmer head.
4. Check that the cutting head is fitted correctly.
Use
AVOID ACCIDENTAL STARTING. KEEP YOUR
HANDS AND FINGERS AWAY FROM THE SWITCH
LEVER.
1. Use the trimmer only in daylight or good artificial light.
2. Avoid operating your trimmer in wet grass, where
feasible.
3. Take care in wet grass, you may lose your footing.
4. On slopes, be extra careful of your footing and wear
non-slip footwear.
5. Do not walk backwards when trimming, you could
trip. Walk never run.
6. Keep cutting head below waist level.
7. Switch off before pushing the trimmer over surfaces
other than grass.
8. Never operate the trimmer with damaged guards or
without guards in place.
9. Never fit metal cutting elements.
10. Keep hands and feet away from the cutting means at
all times and especially when switching on the motor.
11. Never pick up or carry a trimmer by the cable.
12. Do not lean over the trimmer guard - objects may
be thrown by the cutting line.
13. Remove the plug from the mains :
- before leaving the trimmer unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- if you hit an object. Do not use your trimmer until
you are sure that the entire trimmer is in a safe
operating condition;
- if the trimmer starts to vibrate abnormally. Check
immediately. Excessive vibration can cause injury.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the
trimmer is in safe working condition.
2. Replace worn or damaged parts for safety.
3. Only use the replacement cutting line specified for
this product.
4. Only use replacement parts and accessories recommended by Electrolux Outdoor Products.
5. To avoid the risk of injury keep fingers and hands
clear of the line cutter on the leading edge of the
guard.
6. Inspect and maintain the trimmer regularly. Any
repairs must be carried out by an authorised repairer.
Cables
IMPORTANT
Use only 1.00mm
2
size cable up to 30 metres length
maximum.
Maximum rating:
1.00mm
2
size cable, 10 amps 250 volts AC.
YOUR TRIMMER IS SUPPLIED WITH AN ELECTRIC MAINS CABLE WIRED DIRECTLY INTO
THE PRODUCT.
1. Mains Cables and Extension Cables are available
from your local Electrolux Outdoor Products
Approved Service Centre.
2. Do not wire an extension cable directly to your product yourself. Please contact your local Electrolux
Outdoor Products Approved Service Centre for further
information on the connectors and kits available.
3. Only use extension cables specifically designed for
outdoor use.
CONNECTORS
Our connectors are suitable for use with 2 core cable
only. Under no circumstances should these connectors
be used for earthed products.
All of our connectors and cables are of splashproof construction. They are not waterproof and must not be left
outside permanently nor should they be submerged or
immersed in water. Do not let cable lay or trail through
pools of water or splashed with water from hose pipes.
MAINS PLUG REPLACEMENT
• If the plug supplied is cut off it should be
destroyed. There is an electric shock hazard if a
cut off plug is inserted into a 13 amp socket.
1. No earth required. Our products are double insu-
lated to EN60335 and under no circumstances
should an earth be connected to any part of the
product.
2. Ensure the mains voltage suits your product.
3. IMPORTANT!
The wires in the mains lead are coloured in accordance
with the following code:
BLUE - NEUTRAL
BROWN - LIVE
The wire which is coloured BLUE must be connected to
the Terminal which is marked with the letter ‘N’ or
coloured BLACK. The wire which is coloured BROWN
must be connected to the Terminal which is marked with
the letter ‘L’ or coloured RED.
4. It is important that the outer sheath is clamped correctly into the 3-pin plug.
5. If in doubt consult your local Service Repairer or
qualified electrician before the machine is used.
6. A 5 Amp fuse must be fitted to the Mains Plug.
7. The normal plug fuse and household fuse only protect the electrical equipment and are not a safeguard against electrocution.
If your product is hard wired i.e. non-detachable
mains electric cable, a conversion kit and extension cable is available from all Electrolux Outdoor
Products Approved Service Centres which can be
found in your local Yellow Pages.
Page 4
3

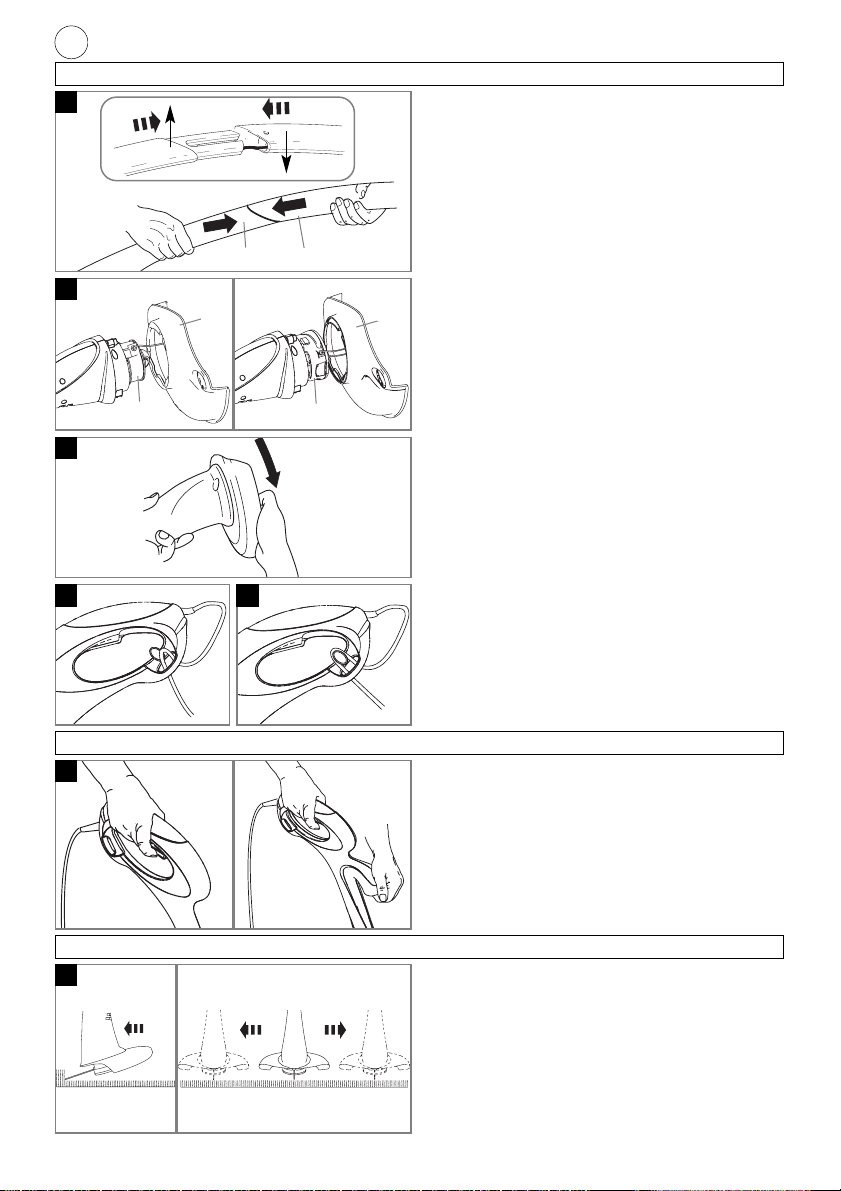

Assembly Instructions
Shaft Assembly (A)
1. Locate the lower shaft (A1) into the upper shaft (A2).
2. Grasp firmly and hold steady the lower shaft. Locate
the upper shaft and snap together firmly.
• The unit is correctly assembled when the gap
between the upper and lower shaft has been
closed.
Safety Guard Assembly (B) & (C)
1. Locate the safety guard (B1) over the cutting head
(B2). Ensure the nylon line is fed through the hole in
the safety guard as illustrated in fig B.
2. Push into location and turn safety guard in the direction illustrated in Fig C, until a click is heard and the
safety guard is securely locked in position.
• ENSURE THE SAFETY GUARD IS SECURELY IN
PLACE BY ATTEMPTING TO TWIST GUARD.
Cable Restraint (D) & (E)
1. Form loop in mains cable and push the loop through
the slot as illustrated in picture (D).
2. To secure, position loop over the hook and pull the
cable back through the slot as illustrated in picture
(E).
A
1
2
Starting and Stopping
1
2
B
Mini Trim/MT21
Mini Trim Auto/
Auto +
C
2
1
D E
F
WARNING
Cutting head continues to rotate after the trimmer
has been switched off.
To start your trimmer
Squeeze the switch lever (F).
To stop your trimmer
Release the switch lever (F).
How to Trim
WARNING: The use of eye protection is recommended. Do not lean over the trimmer guard whilst trimming, objects may be thrown by the cutting line. Do
not allow cutting head to rest on the ground. Do not
overload your trimmer. Overloading can be avoided
by making sure the motor speed does not drop unduly. Disconnect the mains electricity supply before
attempting any maintenance or adjustment.
1. Cut with cutting line at an angle using the tip (G).
2. Swing trimmer in and out of the cutting area taking
small cuts (G).
2
1
G
Page 5
4

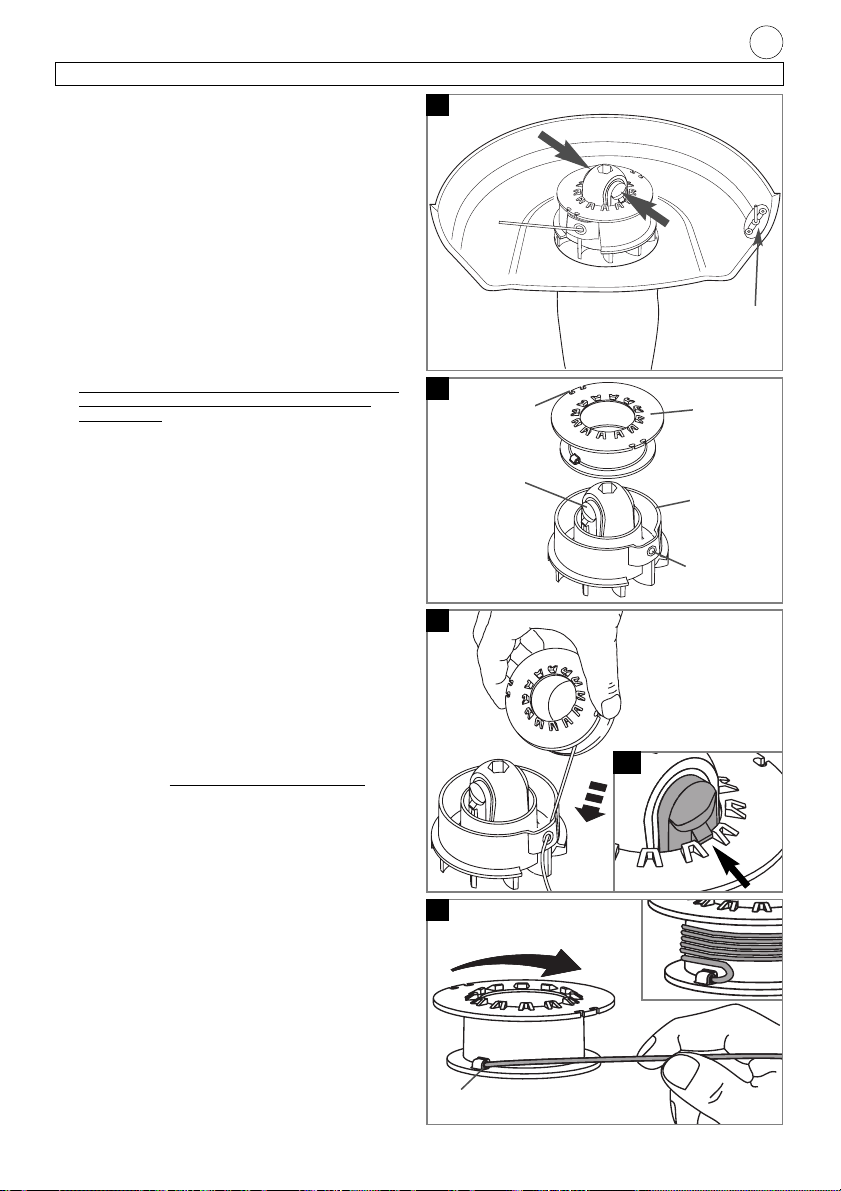

To feed the nylon line
1. Press and hold the two latches (H).
2. Gently pull the line until it reaches the line cutter.
3. Release the two latches. Check that the spool is
locked in position.
4. If too much line has been fed out, press the two
latches and turn the spool anti-clockwise until the
line is at the desired length.

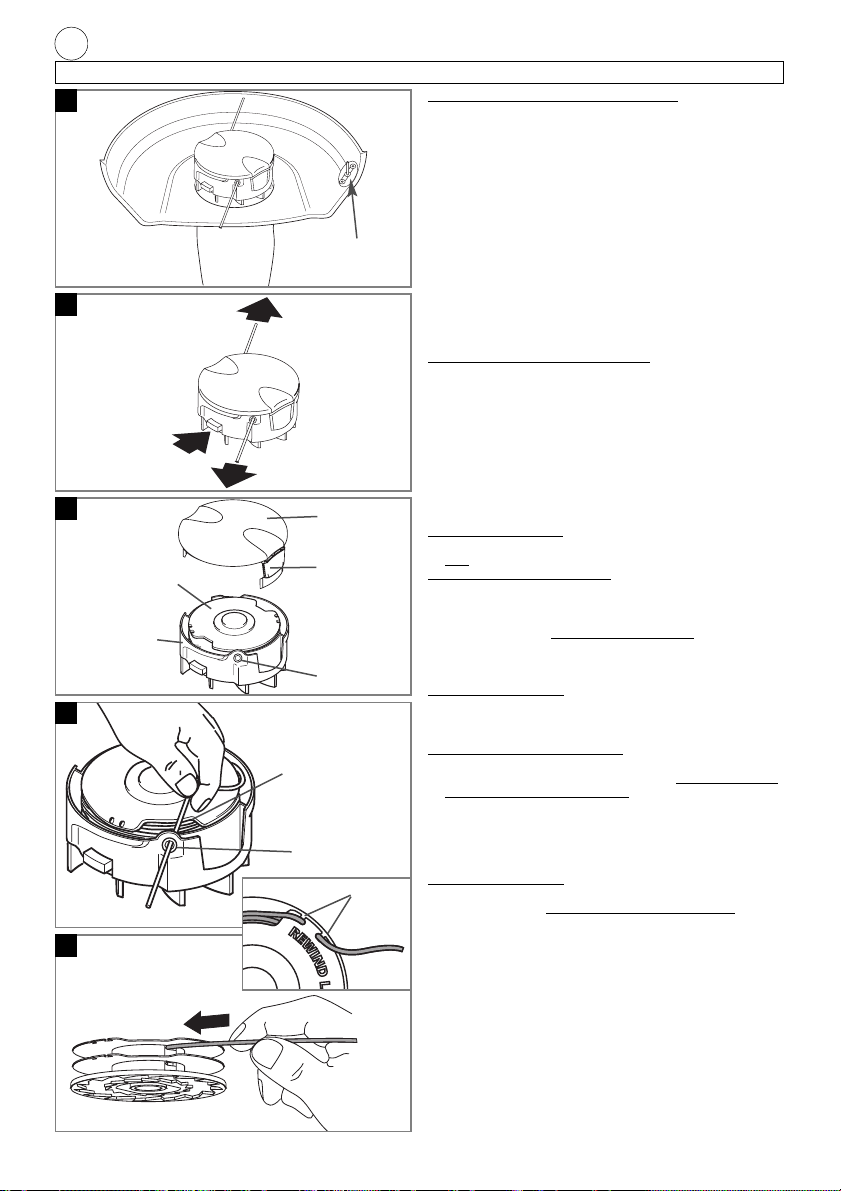

To remove spool
1. Press and hold the two latches.
2. Pull spool out of spoolholder (J).
When refitting the spool
1. Keep all areas of the spool and spoolholder clean.
Failure to do so may prevent the spool from being
securely located in the spoolholder.
2. Make sure the line is placed through the slot in the
spoolholder (K).
3. Place spool into spoolholder and press down into
place.
4. Check that the spool is corr
ectly fitted by trying
to remove the spool without depressing the
latches (K1).
To replace nylon line
Replacement line is available from most Electrolux
Outdoor Products stockists. You can buy it either as
spool and line complete or as nylon line only.
To replace spool and line complete
1. Remove old spool.
2. Release line from cleat. Unwind approximately
100mm of line and feed through slot in spoolholder
(K).
3. Re-fit spool into spoolholder. Check that the spool is
locked in position.
To replace nylon line on spool
1. Take approximately 5 metres of line line and insert
into one of the line lock holes in the spool (L).
2. Wind line onto spool in the direction of the arrows on
the top of the spool. Care should be taken to ensure
that the line is neatly coiled on the spool (L).
3. Leave approximately 100mm of line unwound and
feed through slot in spoolholder (K).
4. Replace spool into spoolholder.
Ensure spool is correctly fitted.
Remember! Your trimmer is designed to use only
nylon line with a maximum diameter of 1.5mm
. Use
only genuine Electrolux Outdoor Products nylon line.
Fault Finding Hints
WARNING! Disconnect from the mains electricity
supply before attempting any maintenance or
adjustment.
1. Line too short.
Feed out line.
2. Line broken inside of spoolholder.
Remove spool and re-thread line.
3. Line jammed on spool.
Remove spool and rewind line to remove crossed loops.
4. Poor performance.
Ensure the inside of the spoolholder is clean and
free from debris.
5. Line snaps continuously.
Use only tip of nylon line to trim. If symptoms still
persist, change spool and line.
6. Line will not pull out.
Check that line has been released from cleat.
7. IF FAULT PERSISTS
Contact Electrolux Outdoor Products Customer
Service. Telephone 01325 300303.
Manual Line Feed System
Line cutter
Spool
Spoolholder
Latches
Slot
H
J
K
L
Line lock
hole
Cleat
K1
Page 6
5
Automatic Line Feed System
How the automatic line feed works (M)
1. When initially switching on the trimmer, a small length
of line is fed out.
2. A ‘clattering’ noise will be heard when the nylon line hits
the line cutter. DO NOT BE ALARMED this is quite
normal. After approximately 5 seconds the line will be
cut to the correct length and the noise will reduce as
the motor reaches full speed.
• Make sure the motor is up to full speed before trimming.
3. If the noise of the nylon line being cut cannot be heard,
more line will need to be fed out.
4. To feed more line, it is first necessary to to allow the
motor to stop completely, then re-start, allowing the
motor to reach full speed.
5. Repeat step 4. until you hear the line hitting against the cutter. (Do not repeat this procedure more than 6 times)
6. If problems are experienced with the automatic line
feed refer to Fault Finding Chart.
T
o manually feed the nylon line (N)
1. If required line can be fed out manually.
2. To operate, press and release manual line feed button,
whilst gently pulling on one of the lines until the line
reaches the line cutter.
3. When the required amount of line is fed out, gently pull
on the second line (there is no need to press the manual line feed button again).
4. If the line extends past the line cutter, too much line
has been fed out.
5. If too much line is fed out, remove the spool cap and click
spool anti-clockwise until the line is at the desired length.
T
o r
emove spool cap
1. Press and hold in the two cap release latches. (P).
2. Pull
cap away from the spoolholder. (P).
When r
efitting the spool cap
1. Keep all areas of the cap and spoolholder clean.
Failure to do so may prevent the cap being securely
located in the spoolholder.
2. Replace the cap, pr
essing firmly DOWN towards the
spoolholder to ensure cap is fully located.
3. Check that the cap is correctly fitted by trying to remove
it without depressing the two latches.
T
o replace nylon line.
For your convenience it is recommended you buy spool and
line complete. Nylon line only is also available. Both are
available from Electrolux Outdoor Products stockists.
T
o fit spool and line complete:
1. Remove old spool.
2. Place new spool into spoolholder with cut out ar
eas of
the spool in line with eyelets as shown in figure Q.
3. Release one line from cleat and feed line through eyelet (Q).
4. Repeat for second line.
• Ensure spool is fully located by gently rotating it during
fitment, whilst keeping the spoolholder steady.
5. Refit the cap.
T
o fit nylon line only:
• Remember! Your Trimmer is designed to use only
nylon line with a maximum diameter of 1.5mm
. Use
only genuine Electrolux Outdoor Products nylon line.
1. IMPORTANT - Always wind the line onto the upper
section of the spool first.
Take approximately 5 metres of line. Insert 15mm of
line into one of the holes in the upper section of the
spool (R) and wind line in the direction of the arrows on
the top of the spool. Leave approximately 100mm of
line unwound and place into cleat as illustrated in figure
R. Repeat on lower section of spool.
2. Care should be taken to ensure that the line is neatly
coiled on the spool. Failure to do so will impair the efficiency of the automatic line feed.
3. Then fit spool as described in ‘To fit spool and line
complete’, section above.
Line cutter
Manual line
feed button
Cap
Cap release
latch
Spool
Spoolholder
Eyelet
M
N
P
Q
R
Cleat
Cut out area
of spool
Eyelet
Page 7
6
Maintenance
Environmental Information
After you have finished using your trimmer follow the
procedure below:
1. Disconnect from the mains electricity supply.
2. Never clean your trimmer with water, cleaning fluids, or solvents, just remove debris with a suitable
tool, a soft brush or dry cloth.
3. Using a soft brush, clean around the inside of the
safety guard, the cutting head and the motor
housing air vents. (Fig S, T).
4. Inspect the trimmer carefully, especially the parts
of the cutting head.
5. If your trimmer is damaged in any way contact
your local Electrolux Outdoor Products approved
service centre.
• Never use a damaged trimmer.
6. Wind cable carefully to avoid kinking.
7. Store in a cool, dry place and out of reach of children.
Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001)
using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products’ life.
• Packaging is recyclable and plastic components have been labelled (where practical) for categorised
recycling.
• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information.
Service Recommendations
• Your product is uniquely identified by a silver and black product rating label.
• We strongly recommend that your product is serviced at least every twelve months, more often in a professional application.

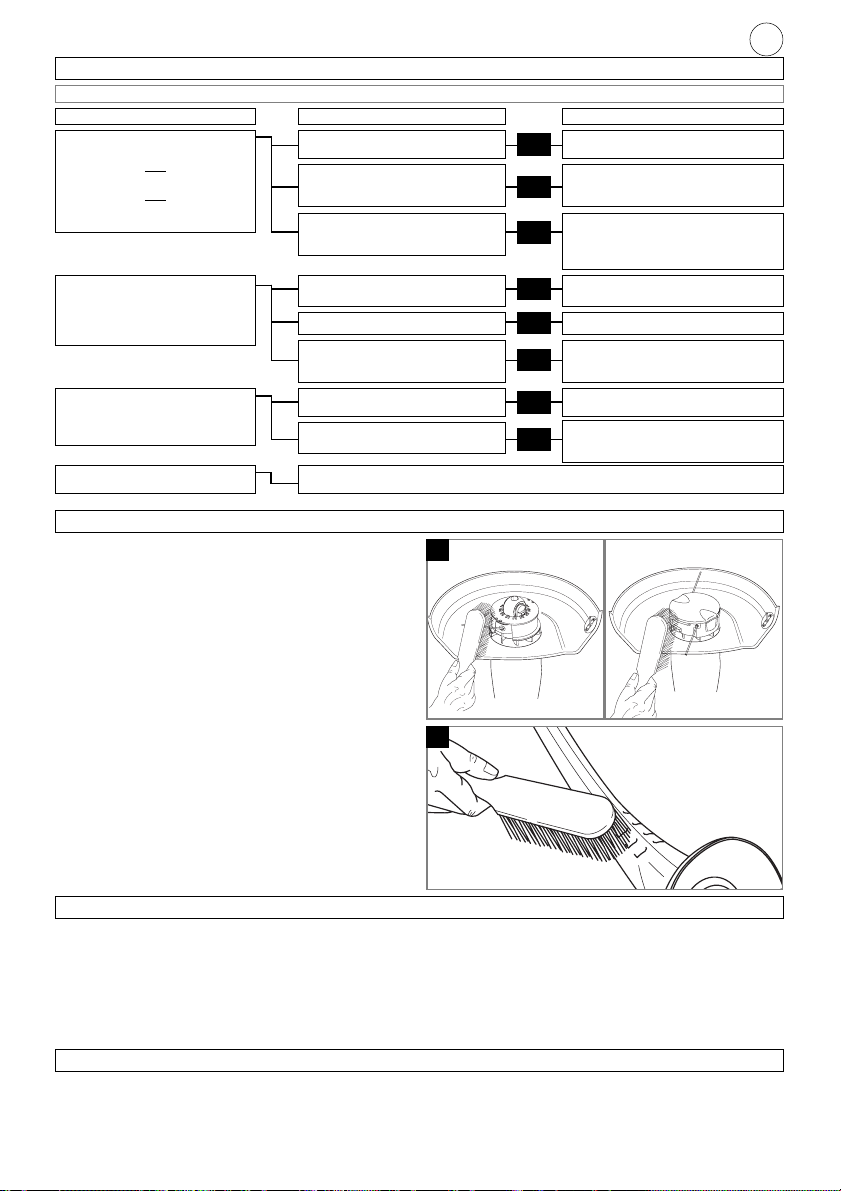

Fault Finding Chart (Automatic Line Feed only)
WARNING Disconnect from the mains electricity supply before attempting any maintenance or adjustment.
FAULT CHECK ACTION
Is the automatic line feed working?
Manually feed out line.
Is the line fed out and visible?
Has line been removed from
cleat?
Remove cap and spool, free line
and re-fit spool and cap.
The line may be jammed on the
spool. Rewind line to remove
crossed loops. Check that line is
in correct section of spool.
Is the manual line feed working?
Has too much line been fed out? Rewind line.
Contact your local approved Service
Centre or Electrolux Outdoor
Products Customer Service.
Is the line cutter missing from
the safety guard?
Contact Electrolux Outdoor Products Customer Service
Telephone : 01325 300303
No
No
No
Yes
Yes
LINE NOT FEEDING
OR
LINE TOO SHORT
OR
TRIMMER VIBRATES
CONTINUOUS
CLATTERING NOISE
LINE SNAPS CONTINUOUSLY
IF NONE OF THE ABOVE
OR IF FAULT PERSISTS
Has the motor reached full
speed before use?
No
Allow the motor to reach full speed
before use
Are you using the trimmer correctly?
?
Only use tip of nylon line to trim.
Is the line jamming on the
spool?
Yes
Rewind the line on the spool, if
symptoms still persist, change
spool and line.
S
T
Page 8
Newton Aycliffe, 24/07/2003
M. Bowden,
Research & Development Director
A
D
93 dB(A)
E
91 dB(A)
F
77.4 dB(A)
G
4.59 m/s
2
H
2.1 kg
ET21/MT21
A
D
93 dB (A)
E
91 dB (A)
F
82.9 dB(A)
G
4.85 m/s
2
H
2.5 kg
ET23DX
A
D
93 dB (A)
E
91 dB (A)
F
82.9 dB(A)
G
4.85 m/s
2
H
3.1 kg
ET23+DX
5119436-03
Electrolux Outdoor Products
Aycliffe Industrial Park
NEWTON AYCLIFFE
Co.Durham DL5 6UP
ENGLAND
Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice.
Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and
trademarks in several countries.
© Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ
Registered number 974979 England
If any part is found to be defective due to faulty manufacture
within the guarantee period, Electrolux Outdoor Products,
through its Authorised Service Repairers will effect the repair or
replacement to the customer free of charge providing:
(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or faulty adjust-
ment by the user.
(d) The failure has not occurred through fair wear and tear.
(e) The machine has not been serviced or repaired, taken apart
or tampered with by any person not authorised by
Electrolux Outdoor Products.
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used outside of the country for
which it was specified.
(i) The machine has not been used commercially.
* This guarantee is additional to, and in no way diminishes
the customers statutory rights.
Failures due to the following are not covered, therefore it is important that
you read the instructions contained in this Operator's Manual and understand how to operate and maintain your machine:
Failures not covered by guarantee
* Replacing Nylon Line.
* Failures as a result of not reporting an initial fault.
* Failures as a result of sudden impact.
* Failures as a result of not using the product in accordance
with the instructions and recommendations contained in this
Operator's Manual.
* Machines used for hire are not covered by this guarantee.
* The following items listed are considered as wearing parts and their life
is dependent on regular maintenance and are, therefore not normally
subject to a valid warranty claim: Nylon Line, Electric Mains Cable
* Caution!
Electrolux Outdoor Products does not accept liability under the
warranty for defects caused in whole or part, directly or indirectly
by the fitting of replacement parts or additional parts that are not
either manufactured or approved by Electrolux Outdoor Products,
or by the machine having been modified in any way.
EC Declaration of Conformity
The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million
Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold
each year to a value of approx. USD 14 billion in more than 150 countries around the world.
Guarantee & Guarantee Policy
I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP. Certify that the product:-
Category........ Electric Lawn Trimmer
Make.............. Electrolux Outdoor
Products
Conforms to the specifications of Directive
2000/14/EEC
I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP Certify that a sample of the above
product has been tested using directive
81/1051/EEC as a guide. The maximum Aweighted sound pressure level recorded at
operator position under free field semi anechoic chamber conditions was :-
I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP Certify that a sample of the above
product has been tested using ISO 5349 as
a guide. The maximum weighted root mean
square value of vibration recorded at operator’s hand position was:-
Type of Cutting Device.............Cutting Line
Identification of Series...............See Product Rating Label
Conformity Assessment Procedure....ANNEX VI
Notified Body..............................I.T.S., Cleeve Road, Leatherhead,
Surrey. KT22 7SB England
Other Directives:-.......................98/37/EEC, 89/336/EEC,
73/23/EEC
& applicable standards:- EN786:1996, EN786:1996, IEC60335-1:1991,
IEC60335-2-91:1997, EN61000-3-2, EN61000-3-3, EN55014-1,
EN55014-2
Type............................................................................. A
Width of Cut................................................................. B
Speed of Rotation of Cutting Device........................... C
Guaranteed sound power level................................... D
Measured Sound Power Level.................................... E
Level............................................................................ F
Value........................................................................... G
Weight......................................................................... H
B
21 cm
B
23 cm
B
23 cm
C
13000 RPM
C
11500 RPM
C
11500 RPM
A
D
95 dB (A)
E
94 dB (A)
F
82.3 dB(A)
G
4.5 m/s
2
H
3.1 kg
ET25+DX
B
25 cm
C
10500 RPM
The Electrolux Group. The world’s No.1 choice.
Loading...
