LAVADORA-SECADORA

WASHER-DRYER

MANUAL DE USO

INSTRUCTION BOOKLET

EW 1250 WI

124 972 040

Page 2

ENGLISH

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly

important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

Page 3

Maintenance 47

Bodywork 47 Detergent dispenser drawer 47 Drain filter 47 Water inlet filter 47 Emergency emptying out 48 Frost precautions 48

Something not working? 49-50

Warnings 29-30 Disposal 30 Tips for en vir onmental protection 30 Technical specifications 31 Installation 32

Unpacking 32 Positioning 32 Water inlet 33 Water drainage 33 Electrical connection 33 Building-in 34-35

Your new washer-dryer 36 Description of the appliance 36

Detergent dispenser drawer 36

Use 37

Control panel 37 Controls 37 Washing hints 37

Sorting the laundry 38 Temperatures 38 Before loading the laundry 38 Maximum loads 38 Laundry weights 38 Removing stains 38 Detergents and additives 39

Drying hints 40

Load 40 Garments not suitable for drying 40 Drying symbols on garment labels 40 Duration of the drying cycle 40 Modification of the drying time 40 Fibre residue 40

Additional drying 40 International wash code symbols 41 Operating sequence 42-43 Washing programmes 44-45 Drying times 46

Contents

Page 4

ENGLISH

Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.

• Any electrical work required to install this appliance must be carried out by a qualified electrician.

• Any plumbing work required to install this appliance must be carried out by a qualified plumber.

• After having installed the machine, check that it is not standing on its electrical supply cable.

• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash and dry fabrics which are designed to be machine washed and dried. Follow the instructions on each garment label.

• Do not overload the appliance. Follow the instructions in the instruction book.

• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.

• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.

• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.

• If you use a liquid detergent with a dispenser which has to be placed directly in the drum, remember to remove this dispenser before drying.

• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

Warnings

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.

• Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.

• Always unplug the appliance and shut the water tap after use.

General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• During high temperature wash programmes and during the drying cycle the door glass may get hot. Do not touch it!

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

Page 5

Disposal

Tips for environmental protection

Packaging materials

The materials marked with the symbol are recyclable.

>PE<=polyethylene >PS<=polystyrene >PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded (for both washing and drying cycles).

• The machine will consume less energy if the laundry is adequately spun before being dried.

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum.

• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

Page 6

ENGLISH

DIMENSIONS Height 82 cm

Width 60 cm Depth 54 cm

WASHING DRYING

MAXIMUM LOAD Cotton 4.5 kg 2.25 kg

Synthetics 2 kg 1.5 kg Delicates 2 kg -

Woollens 1 kg SPIN SPEED 1200 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz

TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 5 N/cm

Maximum 80 N/cm

This appliance complies with the following EEC Directives: 73/23/EEC of 19/02/73 relating to low voltage 89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Technical specifications

Page 7

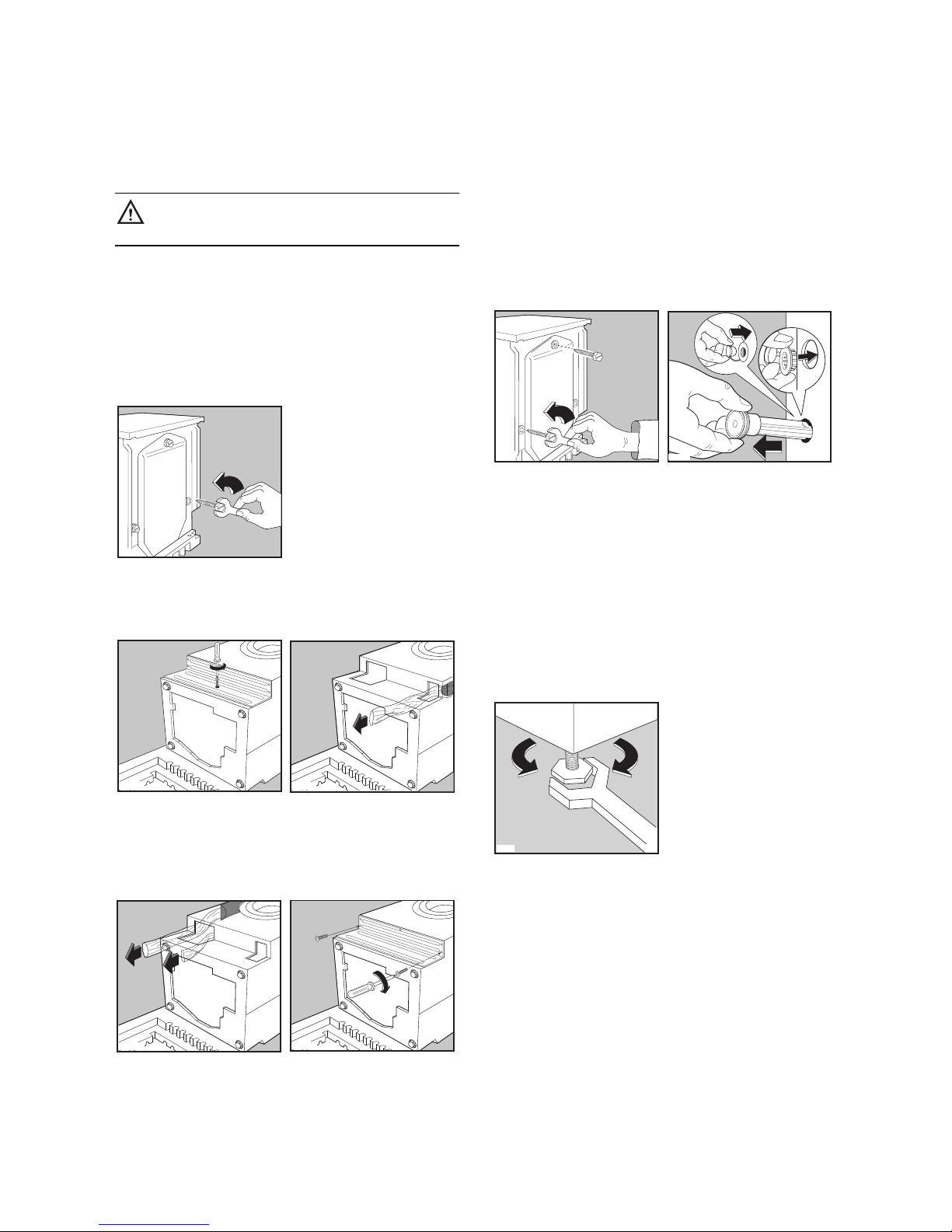

Unpacking

All transit bolts and packing must be removed

before using the appliance.

You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

1. Using a spanner, unscrew and remove the rear right-hand bolt and lay the machine on its back, taking care not to squash the hoses. This can be avoided by placing one of the corner packing pieces between the machine and the floor.

2. Remove the polystyrene base and take off the bottom panel by unscrewing the central screw.

3. Carefully remove the right-hand bag.

4. Carefully slide out the other bags.

5. Re-fit the bottom panel using the 4 screws supplied with the door hinges (in the plastic bag) and the previously removed screw.

P0453

P0016

P0015

P0457

P0255

6. Set the machine upright and remove the two remaining bolts from the back.

7. Pull out the three plastic spacers from the holes into which the bolts were fitted.

8. Plug the open holes with the plugs which you will find in the plastic envelope containing the instruction booklet.

Positioning

Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Carefully level by screwing the adjustable feet in or out. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

P1051

P0020

P0256

Installation

Page 8

ENGLISH

Water inlet

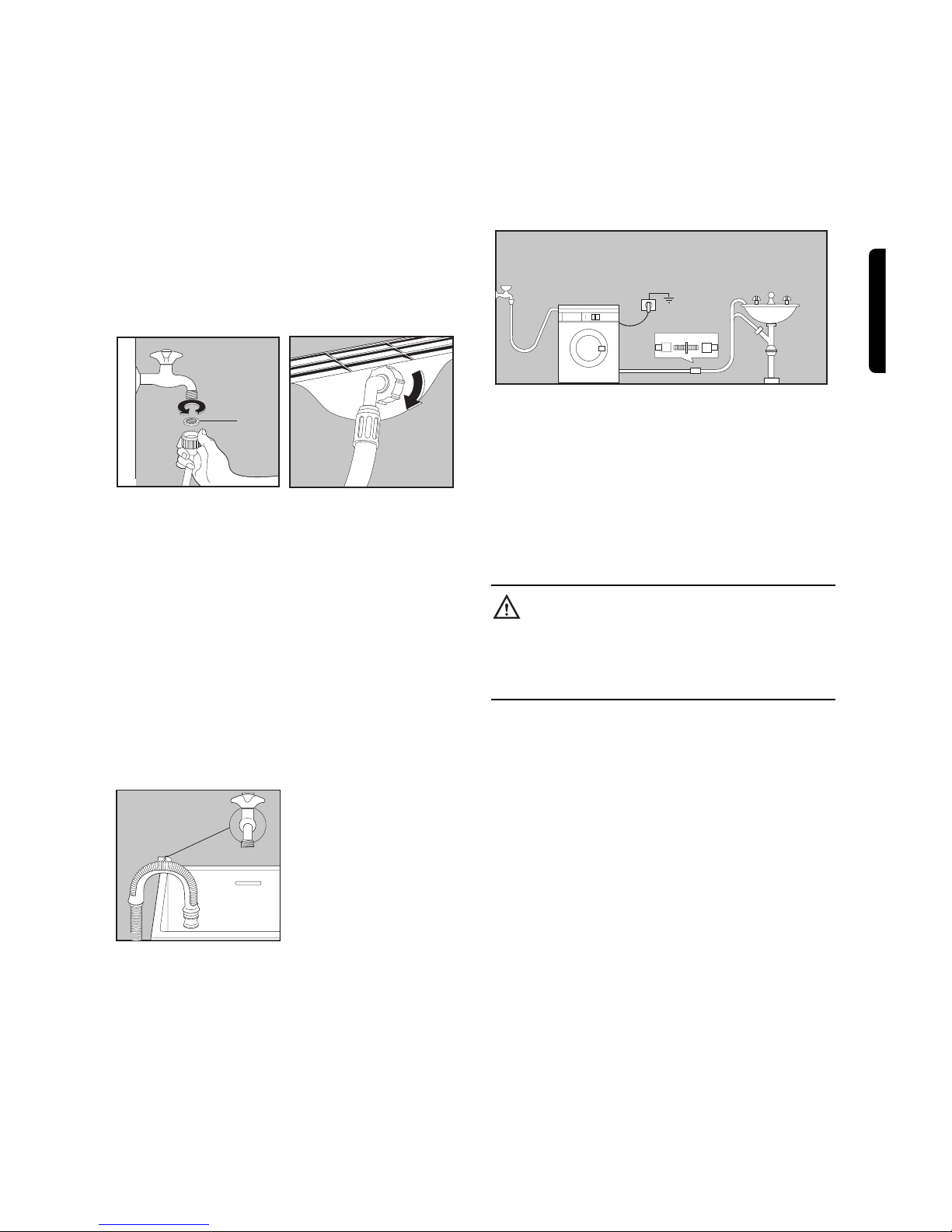

Connect the water inlet hose to a tap with a 3/4" thread after having inserted the small filter “A” supplied with the machine.

The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks.

The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

Water drainage

The end of the drain hose can be positioned in three ways:

Hooked over the edge of a sink using the plastic hose guide supplied with the machine. In this

case, make sure the end cannot come unhooked when the machine is emptying. This could be done by tying it to the tap with a piece of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm. The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

P0022

P0021

P0003

The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be raised.

Electrical connection

This machine is designed to operate on a 220-230 V, single-phase, 50 Hz supply.

Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use.

Connect the machine to an earthed socket.

The manufacturer declines any responsibility

for damage or injury through failure to comply with the above safety precaution. Should the appliance power supply cable need to be replaced, this should be carried out by our Service Centre.

P0023

Page 9

Building-in

This appliance has been designed to be built into the kitchen furniture. The recess should have the dimensions shown in picture A.

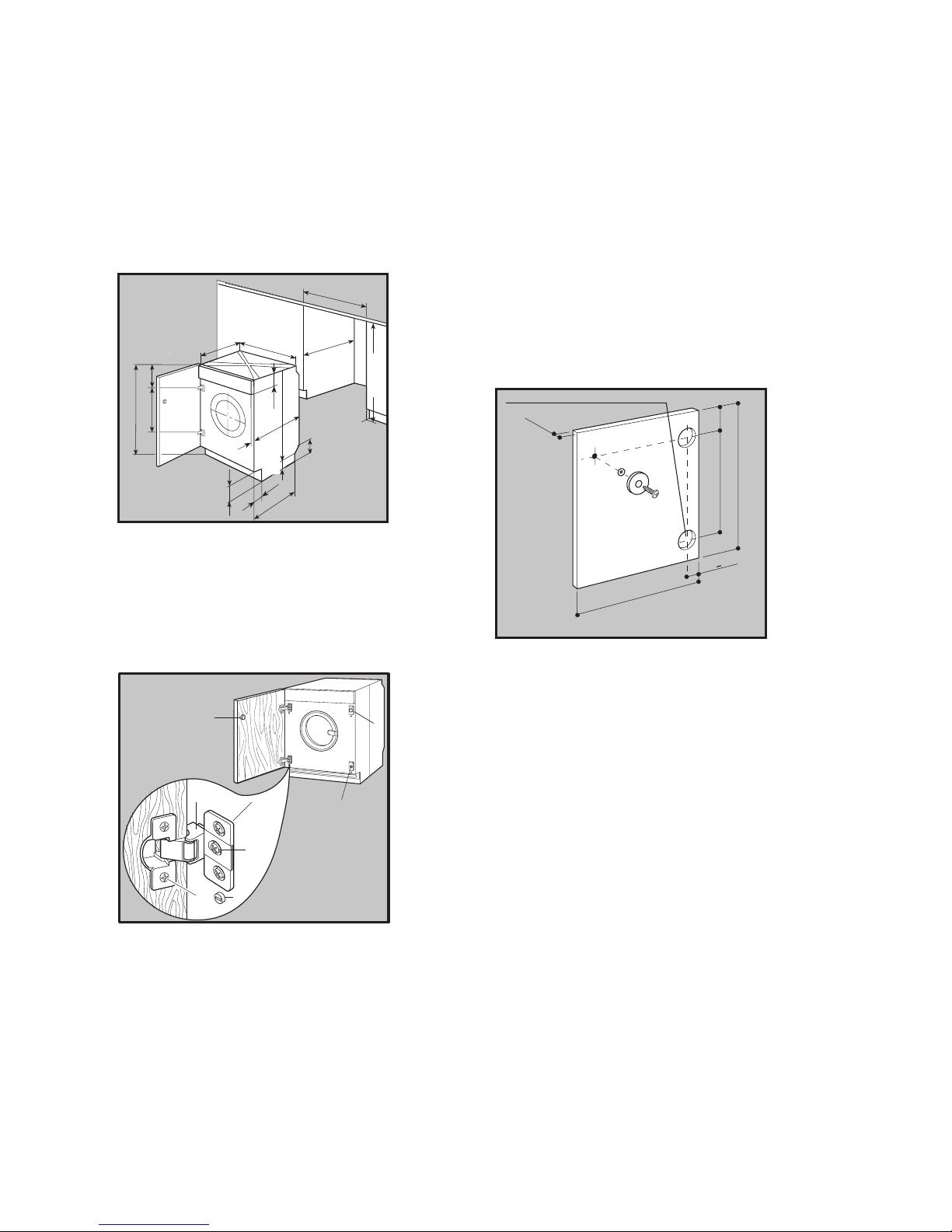

Preparation and assembly of the door

The machine is originally pre-arranged for the assembly of a door opening from right to left. In this case it is sufficient to screw in the hinges (1) and the counter-magnet (6) provided with the appliance, at the right level (Fig. B).

a) Door

The dimensions of the door should be:

- width 595-598 mm

- thickness 16-22 mm The height (C-Fig. C) depends on the height of the adjacent furniture's base.

P0982

P0965

820 min

600 min.

600

596

416

176,5

818

541

195

490

160

120

515

165

b) Hinges

To mount the hinges it is necessary to drill two holes (dia. 35 mm, depth 14 mm) on the inner side of the door. The distance between the holes must be 416 mm.

The distance (B) from upper edge of the door to the centre of the hole depends on the adjacent furniture's dimensions.

The required dimensions are given in the picture C. The hinges will be fixed to the door by means of

screws for wood (2-Fig. B).

c) Mounting the door

Fix the hinges to the machine by means of the M5x8 screws (3-Fig. B). The hinges can be adjusted to compensate for possible uneven thickness of the door. To align the door perfectly it is necessary to loosen the screw (3-Fig. B), adjust the door and tighten the screw again.

Ø 35 mm - Depth 14 mm

16-22

22+1,5

595-598

416

P0026

Page 10

ENGLISH

d) Counter-magnet (6)

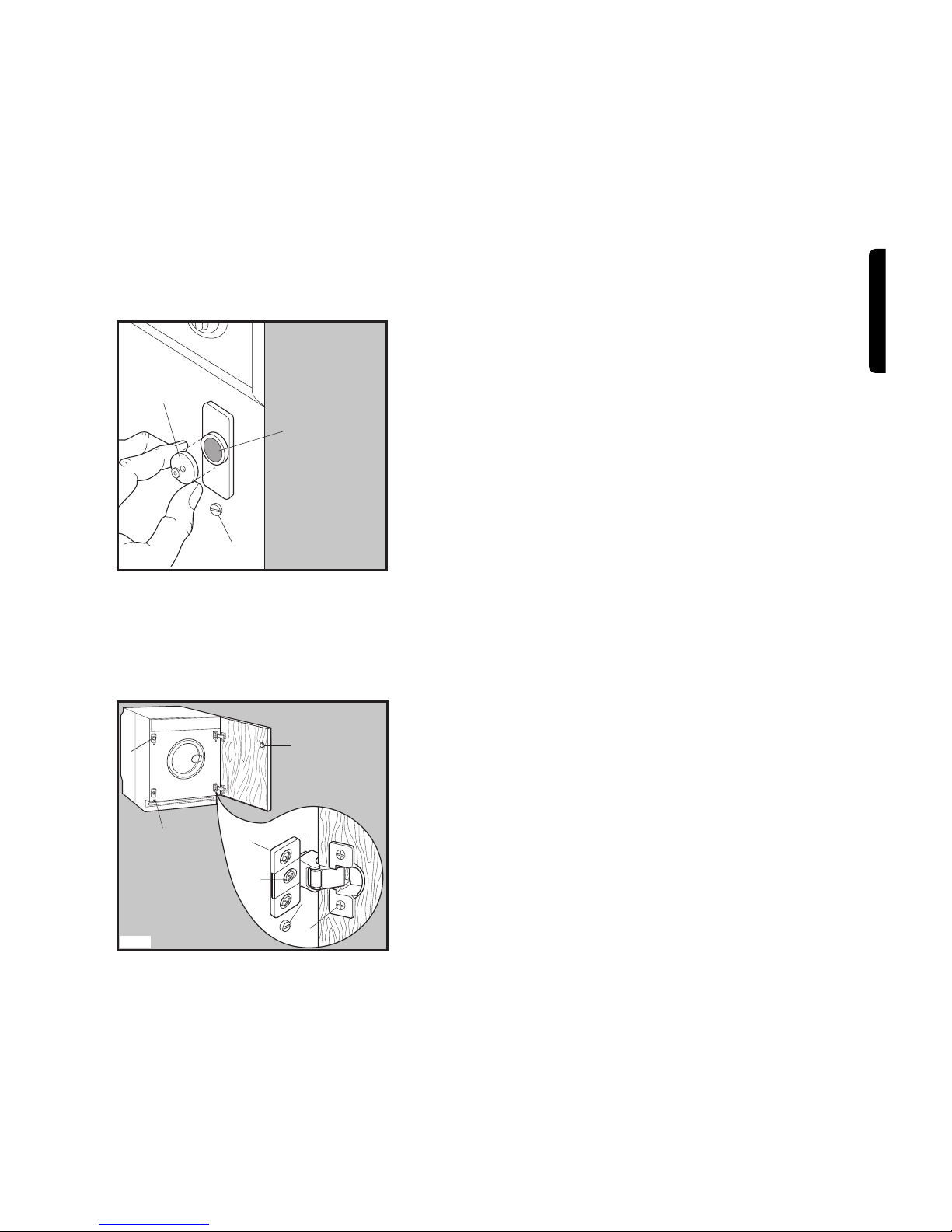

The appliance is pre-arranged for a magnetic closure of the door. To enable a correct operation of this device, it is necessary to screw the counter-magnet (6) (steel disk + rubber ring) into the inner side of the door. Its position must correspond to the magnet (4) on the appliance (see picture D).

If the door has to be opened from left to right, invert the position of the plates (7), the magnet (4) and the rubber cap (5) (Fig. B and E). Mount the countermagnet (6) and the hinges (1) as previously described.

Important: the plastic screw (8) should never be loosened (Fig. B and E).

When the appliance is installed the power supply cable must be easily accessible.

P0983

P0984

Page 11

This new washing machine, which is fitted with the Direct Spray system, patented Electrolux, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption.

Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed.

• The temperature selector dial will allow you to choose the most suitable temperature for your laundry.

• The special wool programme with its new delicate wash system treats your woollen with extreme gentleness.

• The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes from being deformed.

• The two drying programmes will give your wash that soft, relaxed feel whatever the weather.

• The balance control device ensures the machine is stable during the spin.

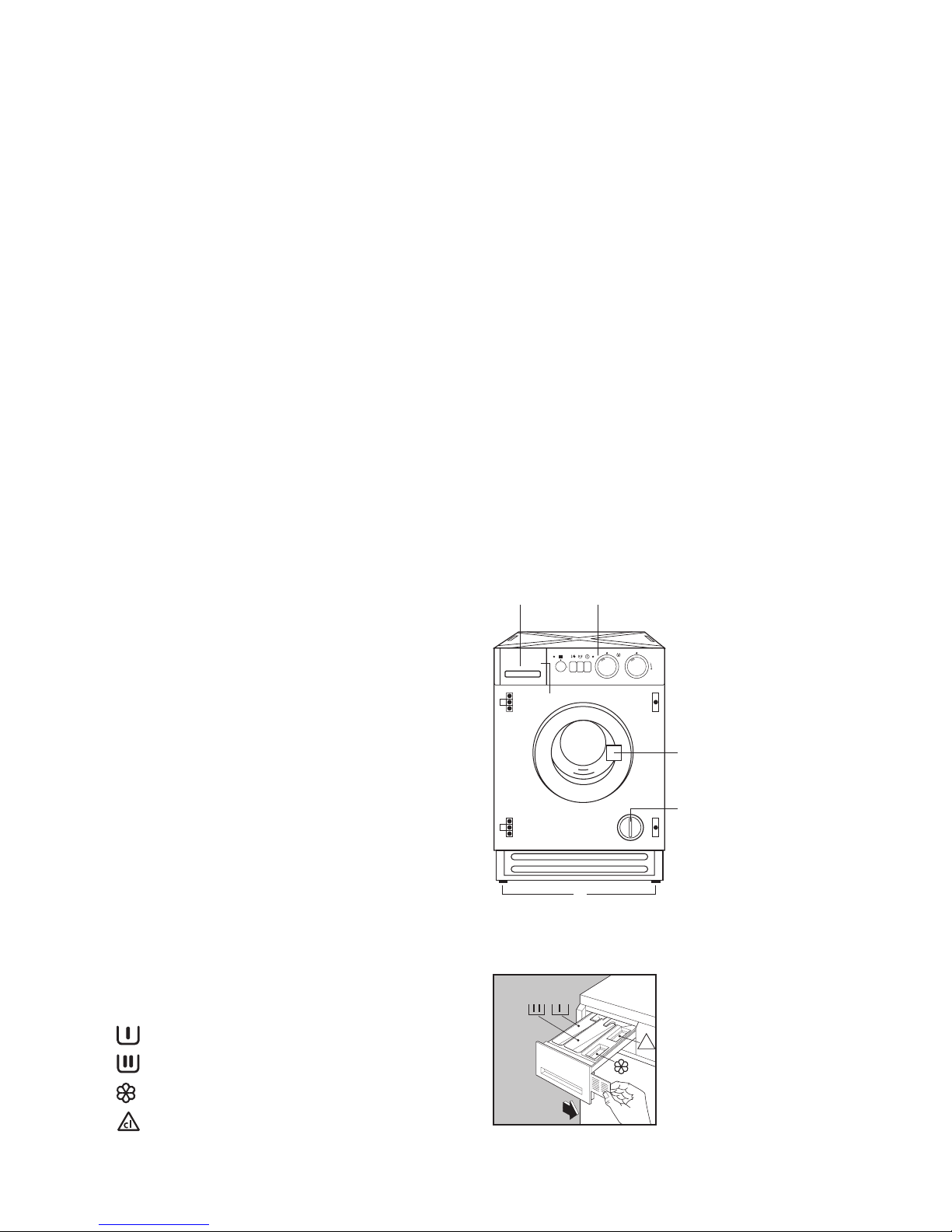

1 Detergent dispenser drawer 2 Programme chart 3 Control panel 4 Door handle 5 Drain filter 6 Adjustable feet

Detergent dispenser drawer

Prewash Main wash Fabric softener, starch Bleaching agent

Your new washer-dryer

Description of the appliance

P0238

Page 12

ENGLISH

Use

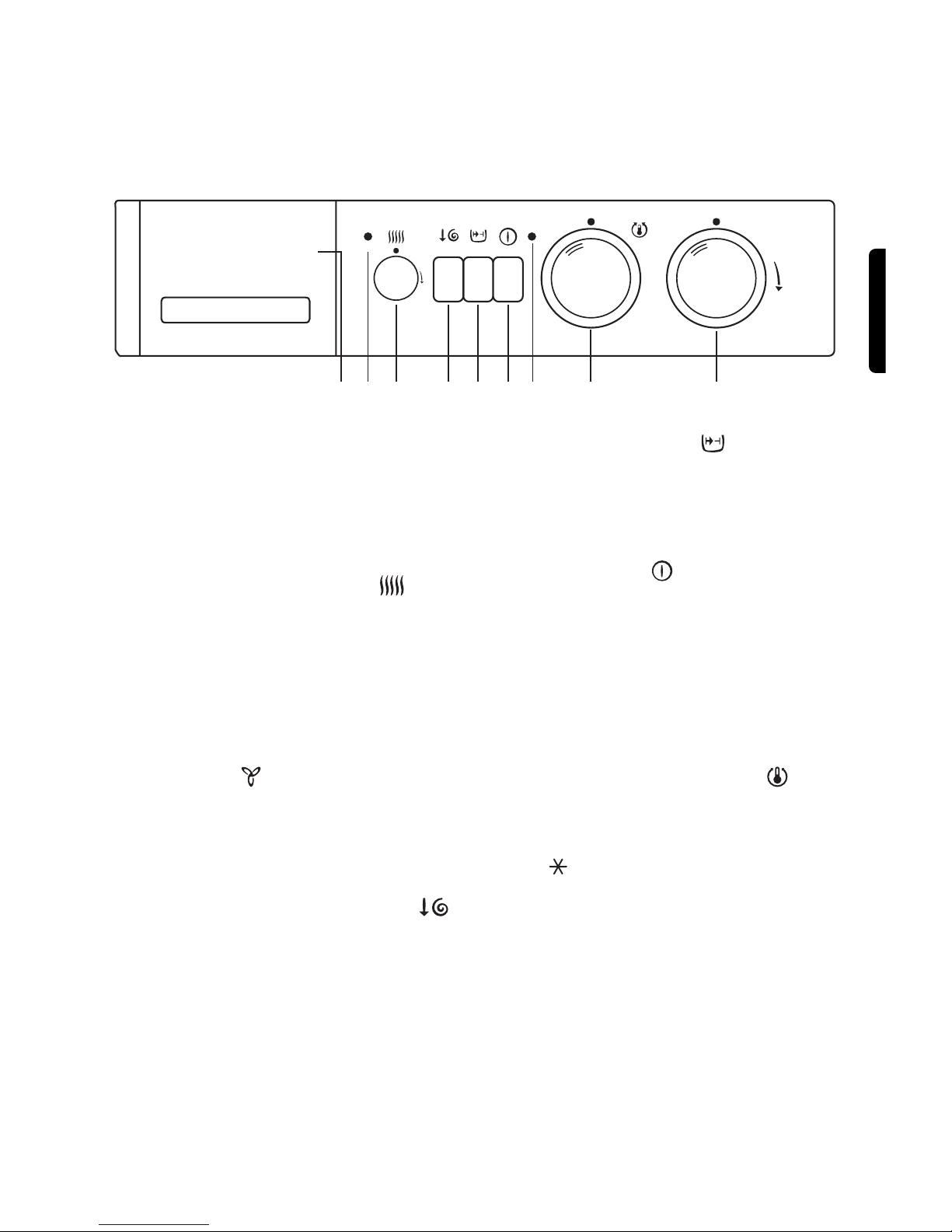

1 Programme chart

It will help you to choose the most suitable washing and drying programme.

2 Drying pilot light

It illuminates when drying starts.

3 Drying time selector dial

Graduated up to 120 minutes for cotton and synthetics, allows drying time to be selected according to the type and amount of laundry and the required degree of dryness:

- blue sector for cotton

- yellow sector for synthetics Turn the dial clockwise only.

Cooling phase

To allow the laundry to cool down, a cooling phase starts automatically 10 minutes before the end of drying and this phase must in no circumstances be reduced or interrupted.

4 Spin speed reduction button

By depressing this button the spin speed is reduced as follows:

- from 1200 to 650 rpm on programmes for cotton and linen,

- from 900 to 650 rpm on programme “P” for synthetics and delicates,

- from 1000 to 650 rpm on programme “P” for wool.

This button should not be used when performing the automatic washing & drying in order to avoid lengthy driying times.

5 Quick wash button

By pressing this button on programmes for cotton and synthetics the washing time is reduced by approx. 35 minutes. To be used for lightly soiled laundry.

6 On/Off button

Press this button to start the machine, press again to interrupt a programme or switch off the power supply to the machine.

7 Operating pilot light

This light is on whilst the machine is operating and goes out when the ON/OFF button is pressed again.

8 Temperature selector dial

Depress the dial to pop it out and then turn it clockwise or anti-clockwise to select the required temperature.

Position means that the machine will wash with cold water.

9 Programme selector dial

To select the required programme, turn this dial clockwise until the programme letter is exactly opposite the pointer.

Depress the dial to pop it out before turning it.

123 45 67 8 9

Control panel

Page 13

Washing hints

Sorting the laundry

Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

Temperatures

90° for normally soiled white cottons and linen

(e.g. tea cloths, towels, tablecloths, sheets...)

60° for normally soiled, colour fast garments

(e.g. shirts, night dresses, pyjamas....) in

linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).

(cold)for delicate items (e.g. net curtains), mixed

30°-40° laundry including synthetic fibres and

woollens bearing the label «pure new wool, machine washable, non-shrink».

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed; Synthetics: drum no more than half full; Delicate fabrics and woollens: drum no more than

one third full. Washing a maximum load makes the most efficient

use of water and energy. For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative: bathrobe 1200 g napkin 100 g quilt cover 700 g sheet 500 g pillow case 200 g tablecloth 250 g towelling towel 200 g tea cloth 100 g night dress 200 g ladies’ briefs 100 g man’s work shirt 600 g man’s shirt 200 g man’s pyjamas 500 g blouse 100 g men’s underpants 100 g

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Page 14

ENGLISH

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

– powder detergents for all types of fabric, – powder detergents for delicate fabrics (60°C max)

and woollens,

– liquid detergents, preferably for low temperature

wash programmes (60°C max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without prewash must be selected.

The washing machine incorporates a recirculation system which allows an optimal use of the concentrated detergent.

Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme.

Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme.

The bleaching agent (chlorine) can be used only for white or fast coloured cotton and linen items. Pour it into the compartment marked .

Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX»

mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

Follow the product manufacturers’ instructions on quantities to use.

Use less detergent if: – you are washing a small load, – the laundry is lightly soiled, – large amounts of foam form during washing.

Degrees of water hardness

Level Characteristic

Degrees

German

°dH

French

°T.H.

soft

medium

hard

very hard

0- 7 8-14

15-21

more than

0-15 16-25 26-37

more than

1 2 3 4

Page 15

Drying hints

As a dryer, the machine works on the condensation principle.

Therefore, the water tap must be open and the

drain hose must drain water into a sink or into the drain pipe, even during the drying cycle.

Load

Warning: Loads of washed laundry exceeding these values

must be divided before being dried, otherwise poor results will be obtained.

Garments not suitable for drying

• Particularly delicate items such as synthetic curtains, woollen and silk, garments with metal inserts, nylon stockings, bulky garments such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be machine dried.

• Garments padded with foam-rubber or materials similar to foam-rubber must not be machine dried; they represent a fire hazard.

• Also, fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

Drying symbols on garment labels

Always look at the garment label to check whether garments can be machine dried.

The following symbols refer to drying:

Machine drying is usually possible Normal drying (normal temperature) Gentle drying (reduced temperature) Do not machine dry

Duration of the drying cycle

The drying time can vary according to

• the final spin speed;

• the required degree of drying (store dry or iron dry);

• the type of laundry;

• the size of load.

The usual drying times are indicated in the programme chart. As you become more familiar with the appliance, you will discover the drying times that best suit your needs according to the various type of fabric. It is a good idea to make a note of these times.

Modification of the drying time

If you wish to modify the drying time when a drying programme is running, turn the time selector dial

clockwise to the required time.

Fibre residue

After drying fluffy fabrics, such as new towels, it is advisable to perform a gentle rinse (progr. N) to be sure that any residue that may remain in the tub is completely removed and does not stick to garments dried afterwards.

After each drying cycle the filter should be checked and cleaned.

Additional drying

Should the laundry still be too wet at the end of the programme, set another short drying cycle.

Warning! To prevent the formation of creases or shrinking of fabrics, avoid excessive drying.

max. load

(dry weight)

2.25 kg

1.5 kg

Linen and cottons Synthetics

Sort of laundry

Page 16

ENGLISH

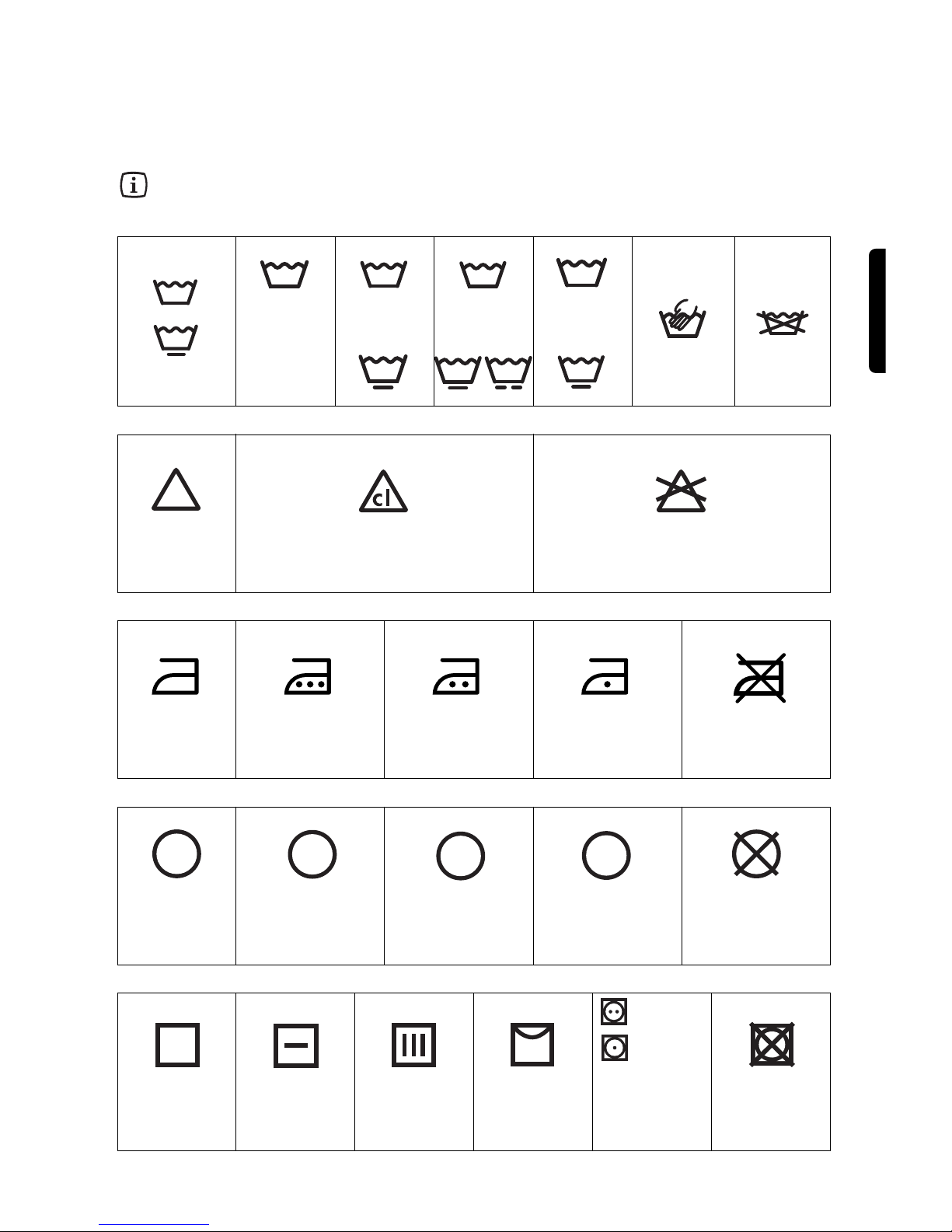

International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic wash

Delicate wash

Max. wash

temperature

95°C

Max. wash

temperature

60°C

Max. wash

temperature

40°C

Max. wash

temperature

30°C

Hand wash Do not

wash

at all

Bleaching Bleach in cold water Do not bleach

Ironing Hot iron

max 200°C

Warm iron

max 150°C

Lukewarm iron

max 110°C

Do not iron

Dry cleaning Dry cleaning

in all solvents

Dry cleaning in

perchlorethylene,

petrol, pure alcohol,

R 111 & R 113

Dry cleaning

in petrol,

pure alcohol

and R 113

Do not

dry clean

Drying Flat On the line On clothes

hanger

Tumble dry

high temperature

low temperature

Do not

tumble dry

Page 17

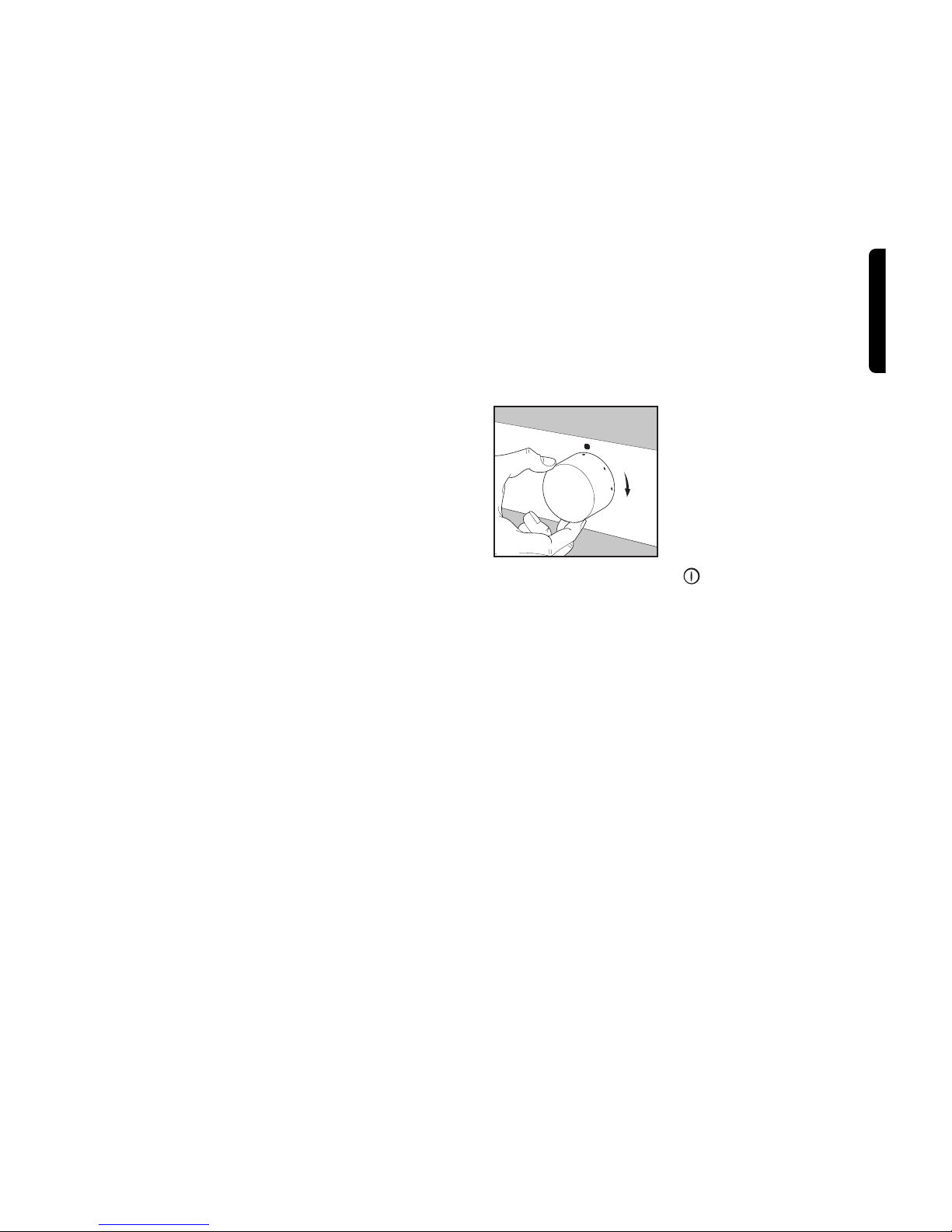

4.Select the temperature

Turn the dial to the required setting.

5.Select the required option(s)

6.Select the programme and start

the machine

Turn the programme selector dial clockwise to the required programme and press the On/Off button: the operating pilot light comes on and the machine starts to operate.

P0228S

P0429

P0455

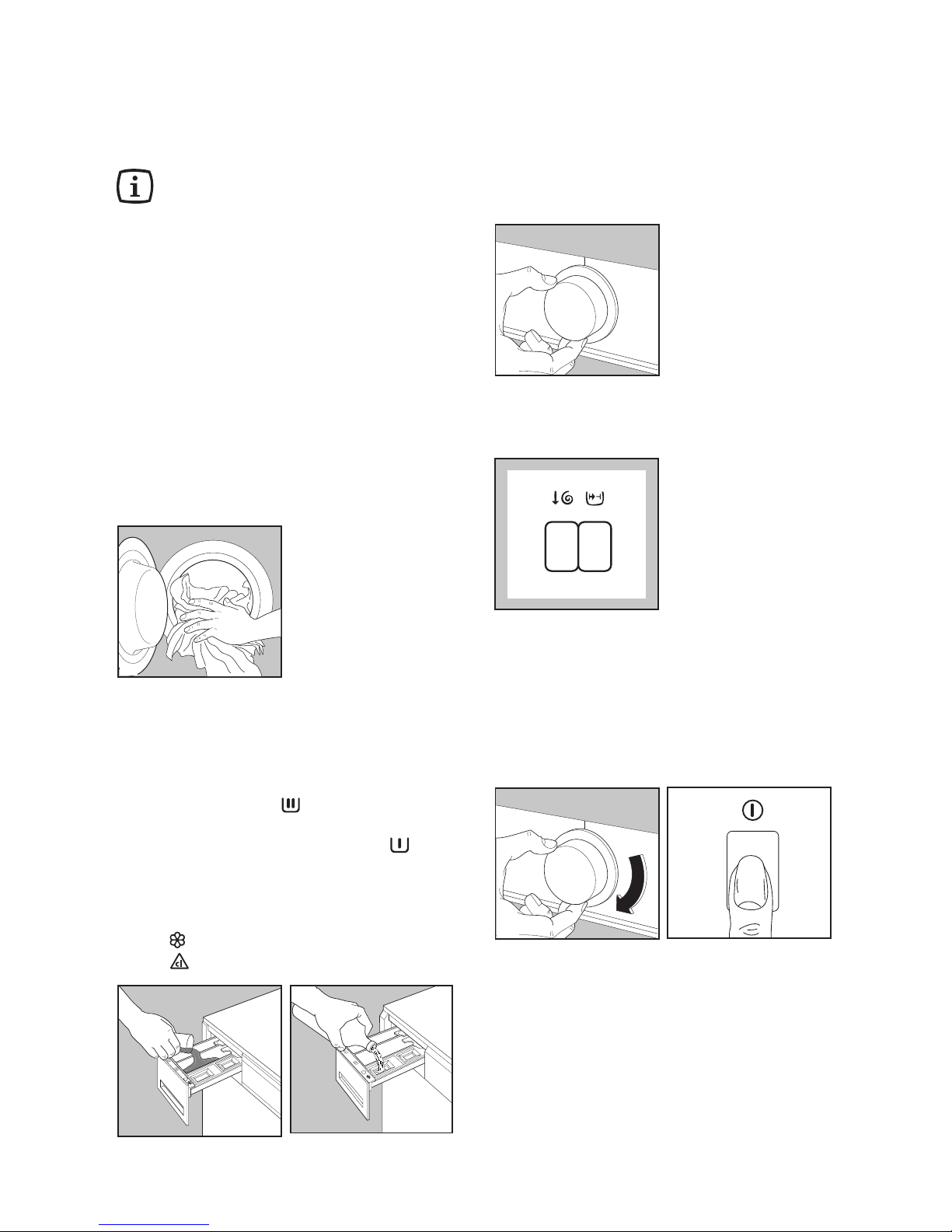

Operating sequence

Washing only

Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine.

1.Place the laundry in the drum

Open the door. Place the laundry in the drum, one item at a time,

shaking them out as much as possible. Close the door.

2.Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the manufacturer in a graduated cup and pour it into the main wash compartment .

If you wish to carry out the prewash, pour detergent into the appropriate compartment marked .

3.Measure out the additives

If required, pour fabric softener into the compartment marked , and bleach into the compartment marked without exceeding the «MAX» mark.

P0163

P0164

P0004

Page 18

ENGLISH

Drying only

Warning! Do not exceed the maximum laundry

loads:

- 2.25 kg for linen and cottons

- 1.5 kg for synthetics. The water tap must be open and the drain hose must

be positioned in the sink or connected to the drain pipe.

1. Select the drying programme “G” for cotton or “K” for synthetics.

2. Select the drying time in the appropriate sector.

3. Press the ON/OFF button to start the programme.

4. At the end of the cycle, press the ON/OFF button again to switch the appliance off.

5. Remove the laundry.

Automatic washing and drying (NON-STOP programme)

Warning! For NON-STOP programmes, it is also

essential not to exceed the maximum load sizes of

2.25 kg for cotton and 1.5 kg for synthetics.

If you use a dosing device in a washer-dryer, please ensure the dosing device/ball is removed before carrying out a drying programme.

1. Load the laundry.

2. Add detergent and additives.

3. Select the wash programme and the temperature.

4. Select eventually the required options by means of the relevant buttons. If possible, do not reduce the spin speed to avoid a too long drying time so saving energy.

5. Select the drying time.

6. Start the programme by depressing the ON/OFF button.

7. At the end of the programme, press the ON/OFF button again to switch the machine off.

8. Remove the laundry.

P0864S

7.At the end of the programme

The machine stops automatically. If you have selected a programme which ends with

the water of the last rinse left in the tub, drain the water before opening the door. Select programme “Q” (drain) or “P” (short spin).

Wait one or two minutes before opening the door to give the electric locking mechanism time to release it.

Depress the On/Off button again to switch the machine off. The operating pilot light goes out.

Remove the laundry. Turn the drum by hand to make sure it is completely

empty, so as to avoid any forgotten items being damaged in a subsequent wash (e.g. shrinking) or their colour running into a load of whites.

Release any buttons which have been pressed. Turn the water tap off and unplug the machine. Leave the door ajar to air the machine.

Page 19

Programme table

Washing programmes for cotton and linen

In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the 60°C wash programme for cotton (programme “B”).

* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It corresponds to the highest temperature for each wash programme.

Programme

Rinses

Spin

60°-90°

40°-60°

30°-40°

COLD

Temp. Fabrics

Additional

functions

4.5 kg

2.2

1.9

1.1

0.6

0.1

Max. load

Consumptions*

Energy

kWh

Water

150

130

125

100

Duration

min.

WHITES HEAVY SOILED, WITH PREWASH, for example work garments, sheets, household linen, underwear, towels

WHITES NORMALLY SOILED, WITHOUT PREWASH, for example household linen, sheets, shirts, underwear

FAST COLOUREDS, for example shirts, blouses, terry cloths

NON-FAST COLOUREDS, for example shirts, blouses, underwear

This programme can be used for rinsing hand washed garments

Separate spin for cotton and linen

Page 20

ENGLISH

Programme table

At the end of these programmes the machine stops with the water of the last rinse left in the tub to prevent the fabrics from creasing. To drain the water select programme “P” or “Q”.

When the automatic NON-STOP washing plus drying programme is used, the water is emptied out automatically and there is a short spin at 900 rpm before drying starts.

Washing programmes for synthetics, mixed fabrics, delicates and wool

Programme

SYNTHETICS HEAVY SOILED, WITH PREWASH, underwear, coloured items, shirts, blouses

SYNTHETICS NORMALLY SOILED, WITHOUT PREWASH, for example shirts, blouses, mixed fabrics

WOOL Special programme for garments bearing the “Pure new wool, non-shrink, machine washable” label

DELICATES, for example curtains

This programme can be used for rinsing hand washed garments

Separate spin for synthetics, delicates and wool

For emptying out the last rinse water of these programmes

Rinses

Short

spin

Drain

30°-60°

30°-40°

COLD

Temp. Fabrics

Additional

functions

2 kg

1 kg

2 kg

1.0

0.8

0.6

Max. load

Consumptions*

Energy

kWh

Water

Duration

min.

Page 21

Cotton and linen (towels, T-shirts, bathrobes)

Synthetics and mixed fabrics (jumpers, blouses, underwear, household linen)

Cotton and linen (sheets, tablecloths, shirts, etc.)

Synthetics and mixed fabrics (shirts, blouses, household linen)

Programme table

(*) The STORE DRY drying programme for cotton is the reference programme for the Energy Label data, in compliance with EC directive 92/75.

Drying times

Degree of

drying

2.25 kg

1,5 kg

1.5 kg

1 kg

2.25 kg

1,5 kg

1.5 kg

1 kg

1200

900

1200

900

Store dry (*) Suitable for items to put away without ironing

Iron dry Suitable for ironing

Type of fabric Max. load Spin speed

100

Drying time

mins

Page 22

ENGLISH

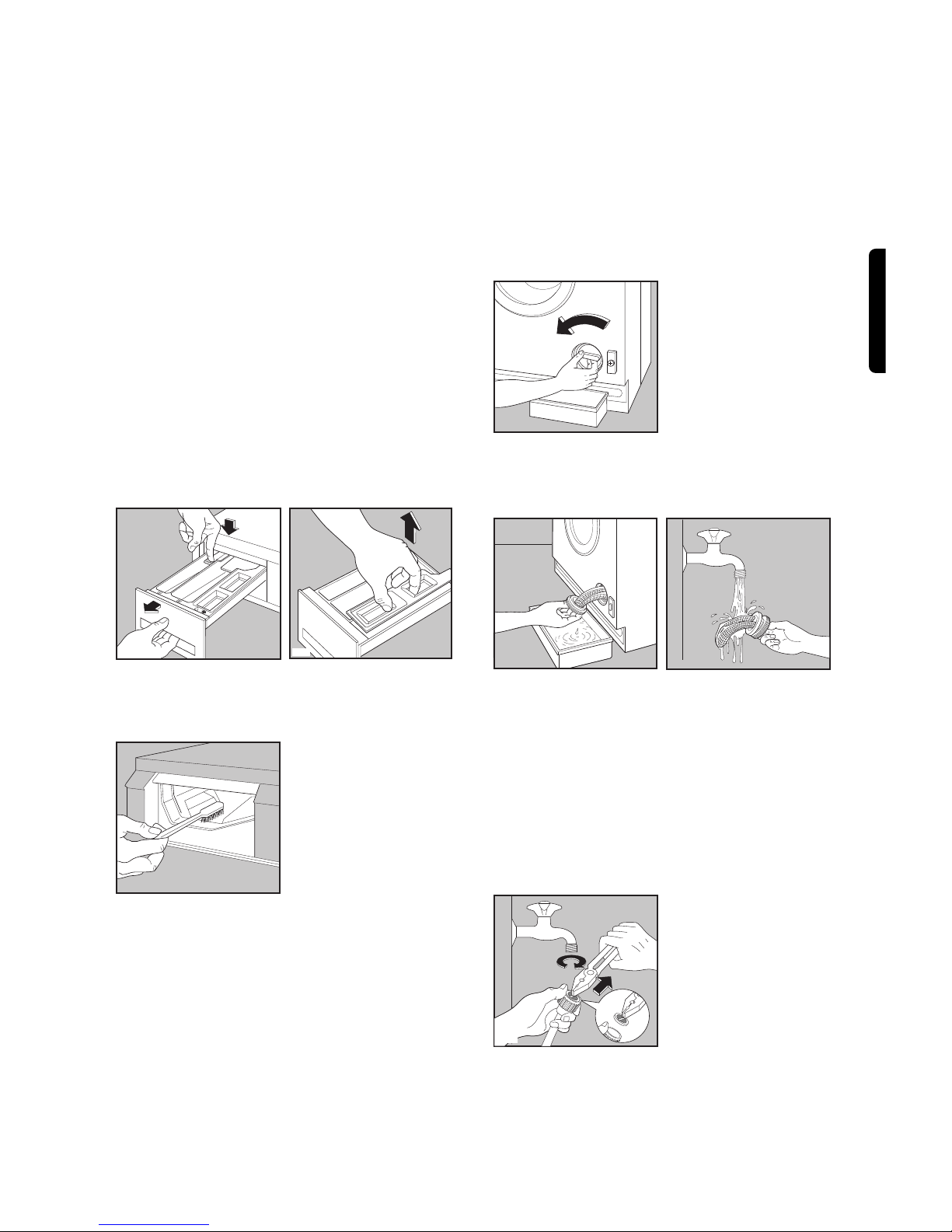

1.Bodywork

Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

2.Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer.

Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner.

To facilitate cleaning, the top part of the additive compartments can be removed.

Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

P0038

P0165

P0166

3.Drain filter

The drain filter collects threads and small objects inadvertently left in the laundry. Check regularly that the filter is clean.

Place a container under the filter and unscrew it.

Pull out the filter. Clean the filter under a running tap, then refit it,

screwing it fully in.

4.Water inlet filter

If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked.

Turn off the water tap. Unscrew the hose from the tap and remove the filter. Clean it with a stiff brush. Refit the filter and screw the hose back onto the tap.

P0041

P0040

P0039

P0037

Maintenance

Page 23

5.Emergency emptying out

If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine:

• pull out the plug from the power socket;

• close the water tap;

• if necessary, wait until the water has cooled down;

• place a bowl on the floor;

• put the drain hose end into the bowl and let the water come out.

Should it not be possible to have access to the outlet hose because, for example, the appliance is built in the kitchen furniture, slightly loosen the outlet filter after placing a bowl on the floor, to let the water come out slowly.

At the end screw the filter again.

6.Frost precautions

If the machine is installed in a place where the temperature could drop below 0°C, proceed as follows:

• Close the water tap and unscrew the water inlet hose from the tap.

• Place the end of the drain hose and that of the inlet hose in a bowl placed on the floor.

• Select programme “Q” and run it until the machine stops.

• Remove the plug from the socket.

• Screw the water inlet hose back on and put the drain hose back in its place.

By doing this, any water remaining in the machine is removed, avoiding the formation of ice and, consequently, breakage of the affected parts.

When you use the machine again, make sure that the ambient temperature is above 0°C.

Page 24

ENGLISH

Something not working?

Problems which you can resolve yourself.

Problem Possible cause

• The machine does not start up:

• The door is not firmly closed.

• The machine is not plugged in or there is no power at the socket.

• The main fuse has blown.

• The programme selector dial is not positioned correctly and the ON/OFF button has not been depressed.

• The machine does not fill:

• The water tap is closed.

• The inlet hose is squashed or kinked.

• The filter in the inlet hose is blocked.

• The door is not properly closed.

• The machine fills then empties immediately:

• The end of the drain hose is too low. Refer to relevant paragraph in “water drainage” section.

• The machine does not empty and/or does not spin:

• The drain hose is squashed or kinked.

• A programme which stops with water in drum has been selected.

• The laundry is not evenly distributed in the drum.

• The drain filter is clogged.

• There is water on the floor:

• Too much detergent or unsuitable detergent (creates too much foam) has been used.

• Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.

• The drain hose is damaged.

• Unsatisfactory washing results:

• Too little detergent or unsuitable detergent has been used.

• Stubborn stains have not been treated prior to washing.

• The correct temperature was not selected.

• Excessive laundry load.

• The machine vibrates or is noisy:

• The transit bolts and packing have not been removed.

• The support feet have not been adjusted.

• The laundry is not evenly distributed in the drum.

• Maybe there is very little laundry in the drum.

• The door will not open:

• The programme is still running.

• The door lock has not been released.

• There is water in the drum.

Page 25

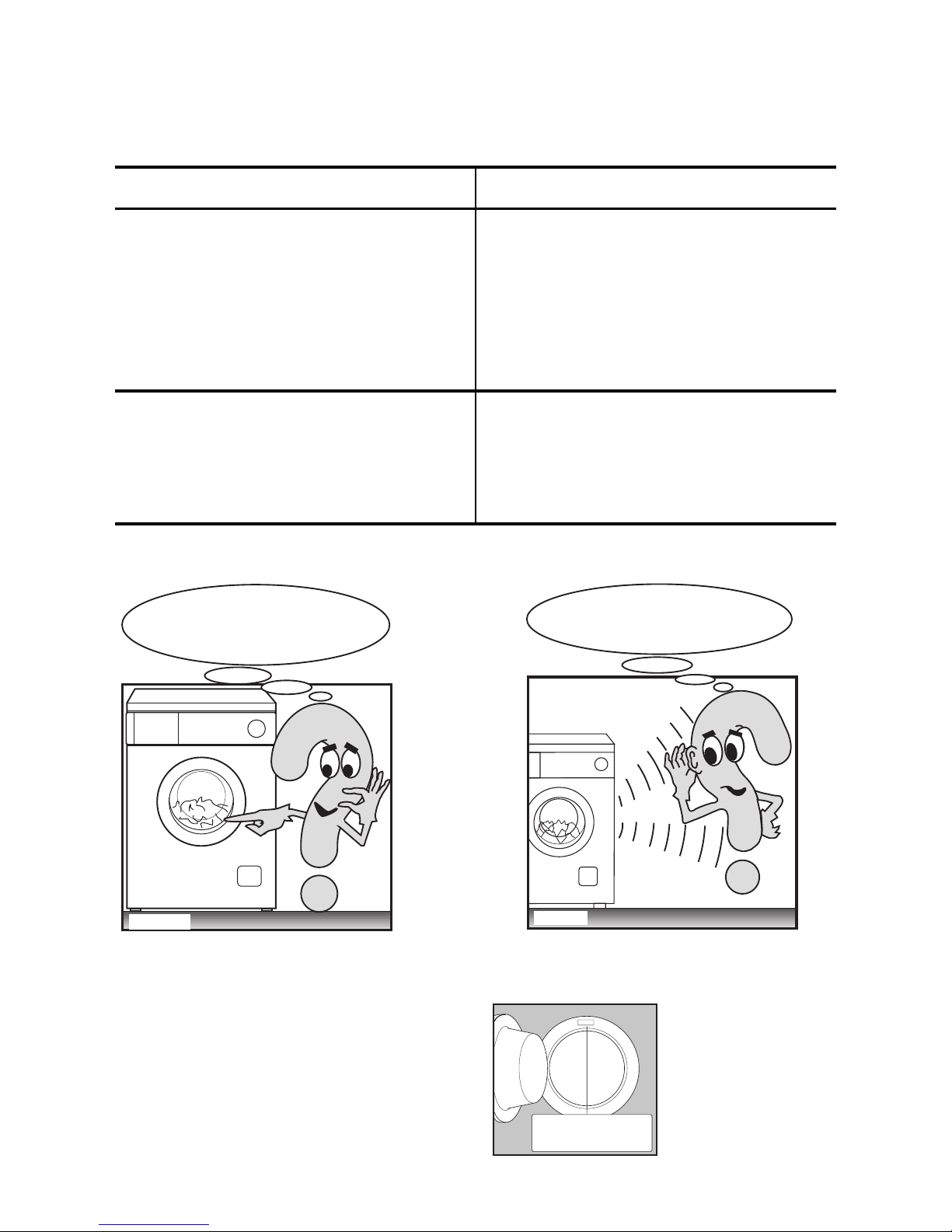

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Mod. ..........

Prod. No. ...........

Ser. No. .........

Mod.

..........

Ser.

P0042

P1035UK

Water is not

visible in the machine. The machine,

which is the result of modern technology, runs

in a very economical way with low water

consumption. Performance is

nevertheless excellent.

The machine makes an unusual

noise. The machine is fitted with a commutator

motor which improves machine

performance.

P1034UK

Problem Possible cause

• Spinning starts late or the machine does not spin:

• The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and reselect the spin programme.

• The machine does not dry or the laundry is not dry enough:

• The drying time has not been selected.

• The tap is closed.

• The drain filter is blocked.

• A suitable drying time in the correct sector has not been selected.

• The drum is overloaded.

Page 26
