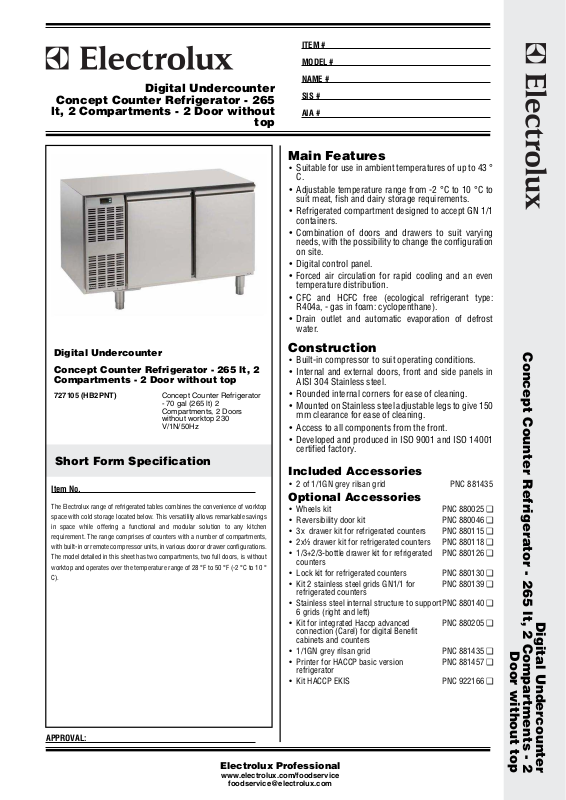

Electrolux HB2PNT User Manual

ITEM #

MODEL #

NAME #

Digital Undercounter

Concept Counter Refrigerator - 265

lt, 2 Compartments - 2 Door without

SIS #

AIA #

top

Main Features

•Suitable for use in ambient temperatures of up to 43 °

C.

•Adjustable temperature range from -2 °C to 10 °C to

suit meat, fish and dairy storage requirements.

•Refrigerated compartment designed to accept GN 1/1

containers.

•Combination of doors and drawers to suit varying

needs, with the possibility to change the configuration
on site.

•Digital control panel.

•Forced air circulation for rapid cooling and an even

temperature distribution.

•CFC and HCFC free (ecological refrigerant type:

R404a, - gas in foam: cyclopenthane).

•Drain outlet and automatic evaporation of defrost

water.

Digital Undercounter
Concept Counter Refrigerator - 265 lt, 2

Compartments - 2 Door without top

727105 (HB2PNT)Concept Counter Refrigerator

- 70 gal (265 lt) 2
Compartments, 2 Doors
without worktop 230
V/1N/50Hz

Short Form Specification

Item No.

The Electrolux range of refrigerated tables combines the convenience of worktop
space with cold storage located below. This versatility allows remarkable savings
in space while offering a functional and modular solution to any kitchen
requirement. The range comprises of counters with a number of compartments,
with built-in or remote compressor units, in various door or drawer configurations.
The model detailed in this sheet has two compartments, two full doors, is without
worktop and operates over the temperature range of 28 °F to 50 °F (-2 °C to 10 °
C).

Construction

•Built-in compressor to suit operating conditions.

•Internal and external doors, front and side panels in

AISI 304 Stainless steel.

•Rounded internal corners for ease of cleaning.

•Mounted on Stainless steel adjustable legs to give 150

mm clearance for ease of cleaning.

•Access to all components from the front.

•Developed and produced in ISO 9001 and ISO 14001

certified factory.

Included Accessories

•2 of 1/1GN grey rilsan gridPNC 881435

Optional Accessories

•Wheels kit PNC 880025 ❑

•Reversibility door kitPNC 880046 ❑

•3x drawer kit for refrigerated countersPNC 880115 ❑

•2x½ drawer kit for refrigerated countersPNC 880118 ❑

•1/3+2/3-bottle drawer kit for refrigerated

counters

•Lock kit for refrigerated countersPNC 880130 ❑

•Kit 2 stainless steel grids GN1/1 for

refrigerated counters

•Stainless steel internal structure to support

6 grids (right and left)

•Kit for integrated Haccp advanced

connection (Carel) for digital Benefit
cabinets and counters

•1/1GN grey rilsan gridPNC 881435 ❑

•Printer for HACCP basic version

refrigerator

•Kit HACCP EKISPNC 922166 ❑

PNC 880126 ❑

PNC 880139 ❑
PNC 880140 ❑
PNC 880205 ❑

PNC 881457 ❑

Concept Counter Refrigerator - 265 lt, 2 Compartments - 2

Digital Undercounter

Door without top

APPROVAL:

Electrolux Professional

www.electrolux.com/foodservice

[e-mail]

Digital Undercounter

Concept Counter Refrigerator - 265 lt,

2 Compartments - 2 Door without top

Front

Electric

Supply voltage:

727105(HB2PNT)230 V/1N ph/50 Hz

Key Information

Built-in Compressor and Refrigeration Unit
External dimensions, Height800 mm
External dimensions, Width1234 mm
External dimensions, Depth700 mm
External dimensions, Weight114 kg
Depth with doors open:1102 mm
Number and type of doors:2
Door hinges:1 Left+1 Right
Number and type of grids

(included):2 GN 1/1

Refrigeration Data

Top

Compressor power:1/4 hp, self-contained
Refrigerant type:R404a
Refrigeration power:343 W
Refrigerant weight:130 kg

EI=Electrical connection

Side

Concept Counter Refrigerator - 265 lt, 2 Compartments - 2 Door without

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

Digital Undercounter

top

201 1.04.12
