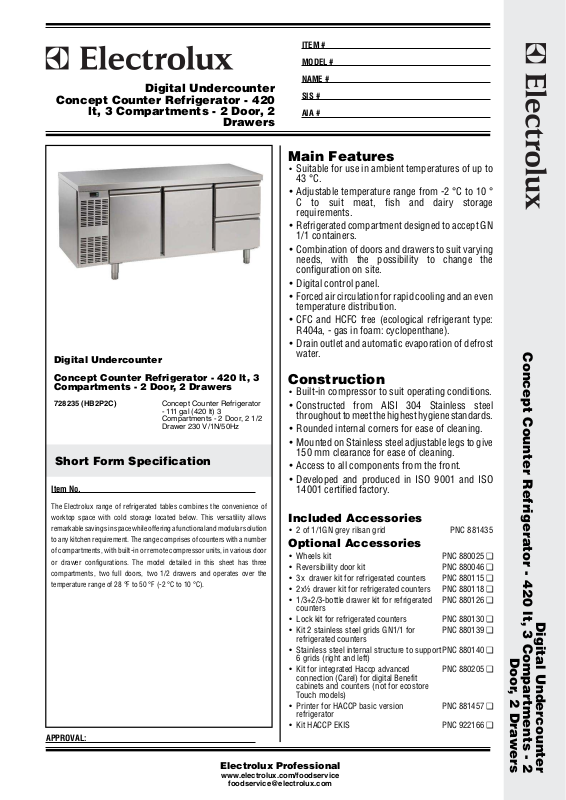

Electrolux HB2P2C User Manual

Concept Counter Refrigerator - 420

Digital Undercounter

Digital Undercounter

lt, 3 Compartments - 2 Door, 2

Drawers

ITEM #

MODEL #

NAME #

SIS #

AIA #

Main Features

•Suitable for use in ambient temperatures of up to

43 °C.

•Adjustable temperature range from -2 °C to 10 °

C to suit meat, fish and dairy storage
requirements.

•Refrigerated compartment designed to accept GN

1/1 containers.

•Combination of doors and drawers to suit varying

needs, with the possibility to change the
configuration on site.

•Digital control panel.

•Forced air circulation for rapid cooling and an even

temperature distribution.

•CFC and HCFC free (ecological refrigerant type:

R404a, - gas in foam: cyclopenthane).

•Drain outlet and automatic evaporation of defrost

water.

Concept Counter Refrigerator - 420 lt, 3 Compartments - 2

Concept Counter Refrigerator - 420 lt, 3
Compartments - 2 Door, 2 Drawers

728235 (HB2P2C)Concept Counter Refrigerator

- 111 gal (420 lt) 3
Compartments - 2 Door, 2 1/2
Drawer 230 V/1N/50Hz

Short Form Specification

Item No.

The Electrolux range of refrigerated tables combines the convenience of
worktop space with cold storage located below. This versatility allows
remarkable savings in space while offering a functional and modular solution
to any kitchen requirement. The range comprises of counters with a number
of compartments, with built-in or remote compressor units, in various door
or drawer configurations. The model detailed in this sheet has three
compartments, two full doors, two 1/2 drawers and operates over the
temperature range of 28 °F to 50 °F (-2 °C to 10 °C).

APPROVAL:

Construction

•Built-in compressor to suit operating conditions.

•Constructed from AISI 304 Stainless steel

throughout to meet the highest hygiene standards.

•Rounded internal corners for ease of cleaning.

•Mounted on Stainless steel adjustable legs to give

150 mm clearance for ease of cleaning.

•Access to all components from the front.

•Developed and produced in ISO 9001 and ISO

14001 certified factory.

Included Accessories

•2 of 1/1GN grey rilsan gridPNC 881435

Optional Accessories

•Wheels kit PNC 880025 ❑

•Reversibility door kitPNC 880046 ❑

•3x drawer kit for refrigerated countersPNC 880115 ❑

•2x½ drawer kit for refrigerated countersPNC 880118 ❑

•1/3+2/3-bottle drawer kit for refrigerated

counters

•Lock kit for refrigerated countersPNC 880130 ❑

•Kit 2 stainless steel grids GN1/1 for

refrigerated counters

•Stainless steel internal structure to support

6 grids (right and left)

•Kit for integrated Haccp advanced

connection (Carel) for digital Benefit
cabinets and counters (not for ecostore
Touch models)

•Printer for HACCP basic version

refrigerator

•Kit HACCP EKISPNC 922166 ❑

PNC 880126 ❑

PNC 880139 ❑
PNC 880140 ❑
PNC 880205 ❑

PNC 881457 ❑

Digital Undercounter

Door, 2 Drawers

Electrolux Professional

www.electrolux.com/foodservice

[e-mail]

Concept Counter Refrigerator - 420 lt,

3 Compartments - 2 Door, 2 Drawers

Digital Undercounter

Front

Electric

Supply voltage:

728235(HB2P2C)230 V/1N ph/50 Hz

Key Information

Built-in Compressor and Refrigeration Unit
External dimensions, Height850 mm
External dimensions, Width1721 mm
External dimensions, Depth700 mm
External dimensions, Weight150 kg
Number and type of doors:2
Depth with doors open:1102 mm
Number and type of grids

(included):2 GN 1/1

Top

Refrigeration Data

Compressor power:1/3 hp
Refrigerant type:R404a
Refrigeration power:448 W
Refrigerant weight:160 kg

EI=Electrical connection

Side

Concept Counter Refrigerator - 420 lt, 3 Compartments - 2 Door, 2

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

Digital Undercounter

Drawers

201 1.04.12
