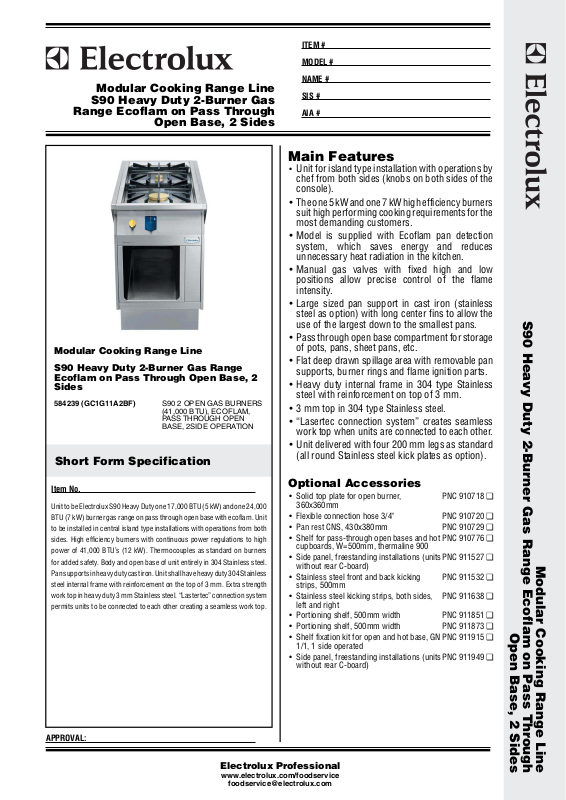

Electrolux GC1G11A2BF User Manual

Modular Cooking Range Line

S90 Heavy Duty 2-Burner Gas

Range Ecoflam on Pass Through

Open Base, 2 Sides

Modular Cooking Range Line
S90 Heavy Duty 2-Burner Gas Range

Ecoflam on Pass Through Open Base, 2
Sides

584239 (GC1G11A2BF)S90 2 OPEN GAS BURNERS

(41,000 BTU), ECOFLAM,
PASS THROUGH OPEN
BASE, 2SIDE OPERA TION

Short Form Specification

ITEM #

MODEL #

NAME #

SIS #

AIA #

Main Features

•Unit for island type installation with operations by

chef from both sides (knobs on both sides of the
console).

•The one 5 kW and one 7 kW high efficiency burners

suit high performing cooking requirements for the
most demanding customers.

•Model is supplied with Ecoflam pan detection

system, which saves energy and reduces
unnecessary heat radiation in the kitchen.

•Manual gas valves with fixed high and low

positions allow precise control of the flame
intensity.

•Large sized pan support in cast iron (stainless

steel as option) with long center fins to allow the
use of the largest down to the smallest pans.

•Pass through open base compartment for storage

of pots, pans, sheet pans, etc.

•Flat deep drawn spillage area with removable pan

supports, burner rings and flame ignition parts.

•Heavy duty internal frame in 304 type Stainless

steel with reinforcement on top of 3 mm.

•3 mm top in 304 type Stainless steel.

•“Lasertec connection system” creates seamless

work top when units are connected to each other.

•Unit delivered with four 200 mm legs as standard

(all round Stainless steel kick plates as option).

S90 Heavy Duty 2-Burner Gas Range Ecoflam on Pass Through

Item No.

Unit to be Electrolux S90 Heavy Duty one 17,000 BTU (5 kW) and one 24,000
BTU (7 kW) burner gas range on pass through open base with ecoflam. Unit
to be installed in central island type installations with operations from both
sides. High efficiency burners with continuous power regulations to high
power of 41,000 BTU’s (12 kW). Thermocouples as standard on burners
for added safety. Body and open base of unit entirely in 304 Stainless steel.
Pan supports in heavy duty cast iron. Unit shall have heavy duty 304 Stainless
steel internal frame with reinforcement on the top of 3 mm. Extra strength
work top in heavy duty 3 mm Stainless steel. “Lastertec” connection system
permits units to be connected to each other creating a seamless work top.

APPROVAL:

Optional Accessories

•Solid top plate for open burner,

360x360mm

•Flexible connection hose 3/4"PNC 910720 ❑

•Pan rest CNS, 430x380mmPNC 910729 ❑

•Shelf for pass-through open bases and hot

cupboards, W=500mm, thermaline 900

•Side panel, freestanding installations (units

without rear C-board)

•Stainless steel front and back kicking

strips, 500mm

•Stainless steel kicking strips, both sides,

left and right

•Portioning shelf, 500mm widthPNC 911851 ❑

•Portioning shelf, 500mm widthPNC 911873 ❑

•Shelf fixation kit for open and hot base, GN

1/1, 1 side operated

•Side panel, freestanding installations (units

without rear C-board)

PNC 910718 ❑

PNC 910776 ❑
PNC 911527 ❑
PNC 911532 ❑
PNC 911638 ❑

PNC 911915 ❑
PNC 911949 ❑

Modular Cooking Range Line

Open Base, 2 Sides

Electrolux Professional

www.electrolux.com/foodservice

[e-mail]

S90 Heavy Duty 2-Burner Gas Range

Ecoflam on Pass Through Open Base, 2

Modular Cooking Range Line

Sides

Front

Gas

Gas Power:

584239(AGGRABGOOM)40908 Btu/hr (12 kW)

Natural Gas;Butane/Propane;

Gas Type Option:

Town Gas on request

Gas Inlet:3/4" NPT
Natural gas - Pressure:7" w.c. (17.4 mbar)
LPG Gas Pressure:11" w.c. (27.7 mbar)

Key Information

Storage Cavity Dimensions
(width):340 mm

Storage Cavity Dimensions
(height):358 mm

Storage Cavity Dimensions
(depth):860 mm

Net weight:70 kg
Shipping weight:90 kg
Shipping height:900 mm

Top

Shipping width:500 mm
Shipping depth:900 mm
Shipping volume:0.32 m³

EQ=Equipotential screw

G=Gas connection

Side

S90 Heavy Duty 2-Burner Gas Range Ecoflam on Pass Through Open

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

Modular Cooking Range Line

Base, 2 Sides

2009.10.24
