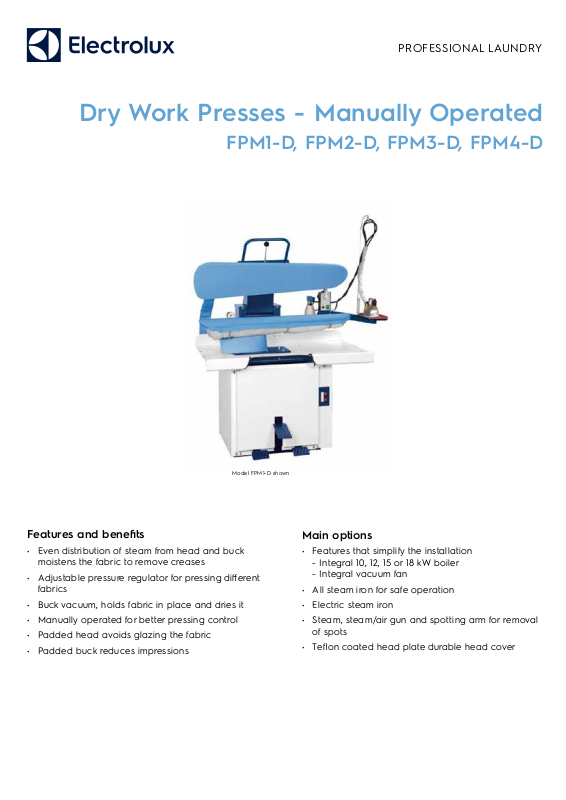

PROFESSIONAL LAUNDRY

Dry Work Presses - Manually Operated

FPM1-D, FPM2-D, FPM3-D, FPM4-D

Model FPM1-D shown

Features and benefits

• Even distribution of steam from head and buck
moistens the fabric to remove creases

• Adjustable pressure regulator for pressing different
fabrics

• Buck vacuum, holds fabric in place and dries it

• Manually operated for better pressing control

• Padded head avoids glazing the fabric

• Padded buck reduces impressions

Main options

• Features that simplify the installation

- Integral 10, 12, 15 or 18 kW boiler

- Integral vacuum fan

• All steam iron for safe operation

• Electric steam iron

• Steam, steam/air gun and spotting arm for removal
of spots

• Teflon coated head plate durable head cover

Electrical connections Standard Built-in Built-in

G

NO

A

boiler vacuum

Voltage

208-240V 3 AC 50/60 Hz kW alt. 10 0.25
380-415V 3/3N AC 50/60 Hz kW 12 4
15
18

Steam and air connection

Steam DN 15 - 15
Rec. steam pressure kPa 400-600 - 400-600
Steam consumption kg/h 14-25 - 14-25
Condensate DN 15 - 15
Water supply mm - Ø13 ­Boiler drain DN - 15 ­Vacuum mm Ø100 Ø100 ­Vacuum air consumption m
Vacuum depression mm H

3

/h 900 - 500

O 10-20 - 5-8

2

Weight (with boiler)

net, kg 279 374 298
crated, kg 330 425 350
boxed, kg 394 489 415

Dimensions in mm

A Width 1470 1470 1470
B Depth 1135 1135 1135
C Height 1270 1270 1270
D 1030 1030 1030
E 800 800 800
F 1600 1600 1600
G 1190 1190 1190
H 370 370 370
I 230 230 230
J 470 470 470
K 205 205 205
L 445 445 445
M 540 540 540
N 180 180 180
O 140 140 140

1 Close pedal
2 Electrical connection - iron, vacuum, boiler only
3 Steam connection
4 Condensate
5 Water supply - internal boiler only
6 Boiler drain - internal boiler only
7 Vacuum outlet - internal boiler only

H

I

FPM1-D

G

KJ

FPM2-D

G

L

K

FPM3-D

M

5618

FPM4-D

F

C

1

2

5619 A

3, 4

B

Front Rear sideLeft side

www.electrolux.com/professional

Share more of our thinking at www.electrolux.com

50°

5619 B

3

4

D

E

7
5

5619 C

6

Art. No. 438913341/2015.01.14

We reserve the right to alter specifications without notice.
