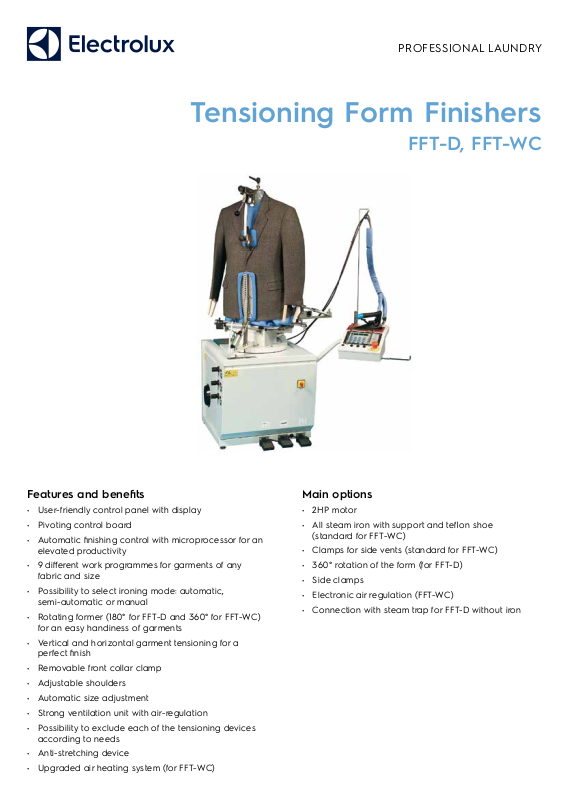

Tensioning Form Finishers
FFT-D, FFT-WC
Features and benefits
• User-friendly control panel with display
• Pivoting control board
• Automatic finishing control with microprocessor for an
elevated productivity
• 9 different work programmes for garments of any
fabric and size
• Possibility to select ironing mode: automatic,
semi-automatic or manual
• Rotating former (180° for FFT-D and 360° for FFT-WC)
for an easy handiness of garments
• Vertical and horizontal garment tensioning for a
perfect finish
• Removable front collar clamp
• Adjustable shoulders
• Automatic size adjustment
• Strong ventilation unit with air-regulation
• Possibility to exclude each of the tensioning devices
according to needs
• Anti-stretching device
• Upgraded air heating system (for FFT-WC)
Main options
• 2HP motor
• All steam iron with support and teflon shoe
(standard for FFT-WC)
• Clamps for side vents (standard for FFT-WC)
• 360° rotation of the form (for FFT-D)
• Side clamps
• Electronic air regulation (FFT-WC)
• Connection with steam trap for FFT-D without iron
E
Electrical connections
Voltage
400V 3N AC 50Hz kW(A)
208-240V 3 AC 60Hz kW(A)
Steam, air and vacuum connection
Steam DN
Rec. steam pressure psi
Steam consumption lb/h
Condensate DN
Compressed air DN
Rec. air pressure psi
Air consumption gallon/min
Shipping data
net, kg/lbs
crated, kg/lbs
Dimensions in mm/inch
A Width
B Depth
C Height
D
E
F
G
H
I
J
K
L
M
1 Control panel
2 Electrical connection
3 Steam inlet
4 Condensate
5 Air inlet
FFT-D FFT-WC
1.2(10) 1.2(10)
1.2(10) 1.2(10)
15 15
0.07-0.09 0.07-0.09
33-44 44-55
15 15
8 8
87-102 87-102
10.6 10.6
160/353 170/375
180/397 190/419
620 / 24 7/16 620 / 24 7/16
1020 / 40 3/16 1020 / 40 3/16
1575 - 2325 / 1575 - 2325 /
62 - 91 9/16 62 - 91 9/16
780 - 1530 / 780 - 1530 /
30 11/16 - 60 1/4 30 11/16 - 60 1/4
550 / 21 5/8 550 / 21 5/8
345 / 13 9/16 345 / 13 9/16
795 / 31 5/16 795 / 31 5/16
1330 / 52 3/8 1330 / 52 3/8
830 / 32 11/16 830 / 32 11/16
530 / 20 7/8 530 / 20 7/8
160 / 6 5/16 160 / 6 5/16
40 / 1 9/16 40 / 1 9/16
45 / 1 3/4 45 / 1 3/4
W00169
F
D
3
5
4
J
K
L
M
2
Rear side
J
M
1
C
G
I
B
Right side
A
H
Front
