Page 1

132 985 931

EWF 1246

ODHGIES GIA THN EGKATASTASH

KAI TH CRHSH

PLUNTHRIO ROUCWN

Page 2

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

Page 3

ENGLISH

Maintenance 24-25

Bodywork 24 Door seal 24 Detergent dispenser drawer 24 Drain pump 24 Water inlet filter 24 Emergency emptying out 25 Frost precautions 25

Something not working? 26-27

Warnings 4-5 Disposal 5 Tips for environmental protection 5 Technical specifications 6 Installation 7

Unpacking 7 Positioning 7 Water inlet 7-8 Water drainage 8 Electrical connection 8

Your new washing machine 9 Description of the appliance 9

Detergent dispenser drawer 9

Use 10

Control panel 10 Controls 10-15 Washing hints 16-17

Sorting the laundry 16 Temperatures 16 Before loading the laundry 16 Maximum loads 16 Laundry weights 16 Removing stains 16

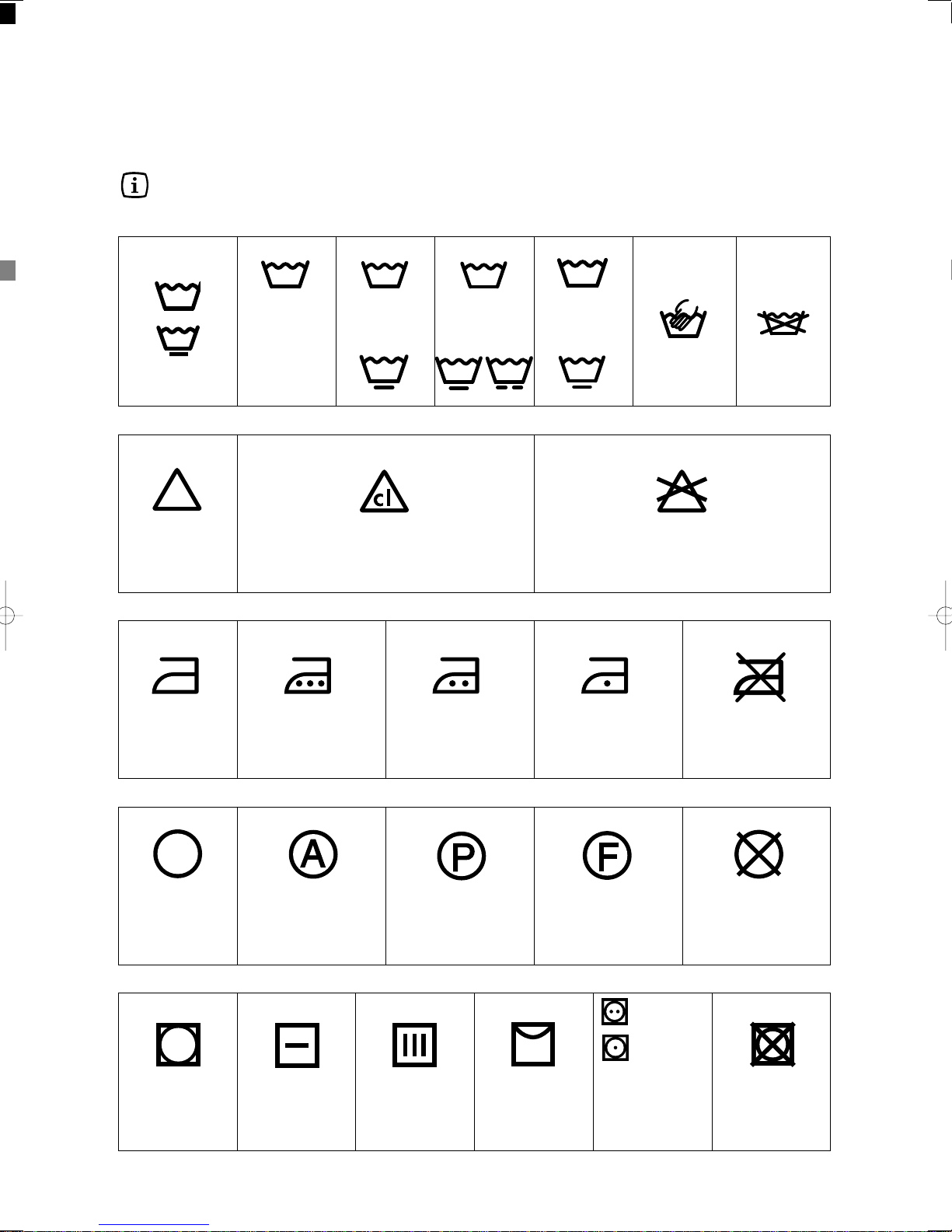

Detergents and additives 17 International wash code symbols 18 Operating sequence 19-21 Washing programmes 22-23

Contents

Page 4

Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.

• Any electrical work required to install this appliance must be carried out by a qualified electrician.

• Any plumbing work required to install this appliance must be carried out by a qualified plumber.

• After having installed the machine, check that it is not standing on its electrical supply cable.

• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.

• Do not overload the appliance. Follow the instructions in the instruction book.

• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.

• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.

• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.

• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

Warnings

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.

• Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.

• Always unplug the appliance and shut the water tap after use.

General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• During high temperature wash programmes the door glass may get hot. Do not touch it!

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

Page 5

ENGLISH

Disposal

Tips for environmental protection

Packaging materials

The materials marked with the symbol are recyclable.

>PE<=polyethylene >PS<=polystyrene >PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded.

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

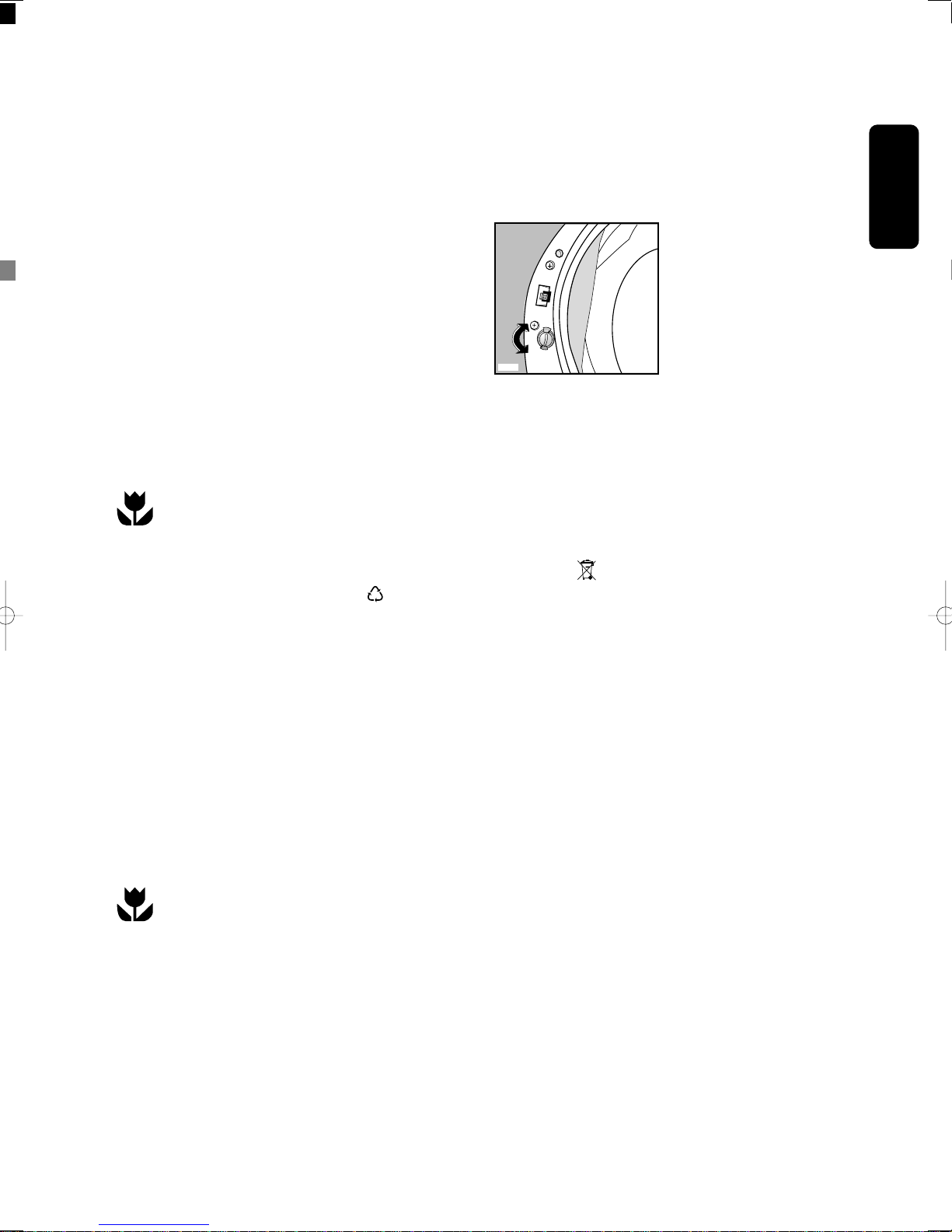

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum. To avoid this the machine incorporates a special feature. To activate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin.

To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until the groove is vertical.

• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

P1131

Page 6

DIMENSIONS Height 85 cm

Width 60 cm Depth 63 cm

MAXIMUM LOAD Cotton 7 kg

Synthetics 3 kg Delicates 3 kg Woollens and handwash 2 kg

Silk 1 kg SPIN SPEED 1200 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz

TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 0,05 MPa

Maximum 0,8 MPa

This appliance complies with the following EEC Directives: 73/23/EEC of 19/02/73 relating to low voltage 89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Technical specifications

Page 7

ENGLISH

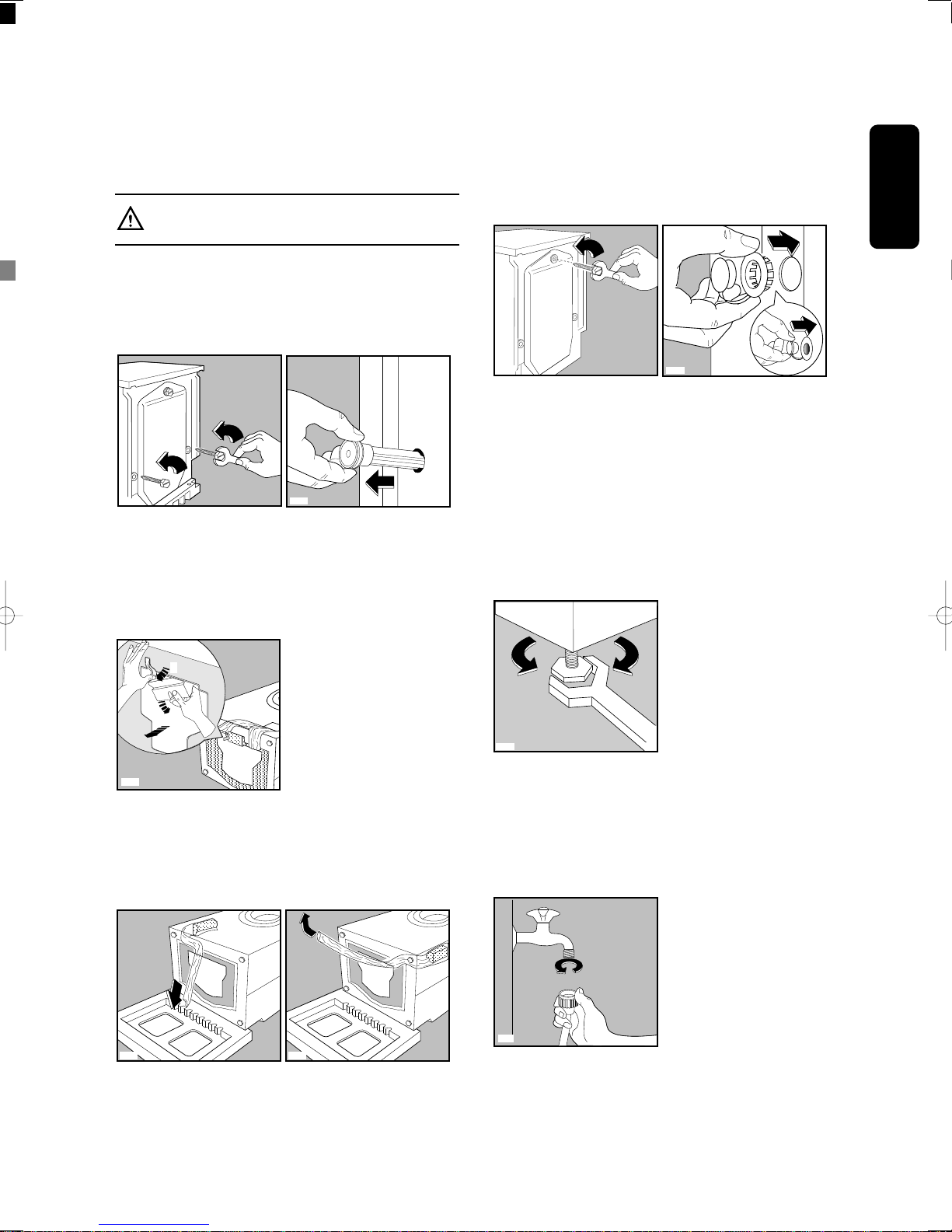

Unpacking

All transit bolts and packing must be removed before using the appliance.

You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

1. Using a spanner, unscrew and remove the two

rear bottom screws. Slide out the two plastic pins.

2. Lay the machine on its back, taking care not to

squash the hoses. This can be avoided by placing one of the corner packing pieces between the machine and the floor.

3. Remove the polystyrene block from the bottom of

the machine and release the two plastic bags.

4. Very carefully slide out the left polythene bag,

removing it towards the right and then downwards.

5. Very carefully slide out the right polythene bag,

removing it towards the left and then upwards.

6. Set the machine upright and remove the

remaining rear screw. Slide out the relevant pin.

P1127

P1126

P1124

P0001

P1129

7. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet.

Positioning

Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Carefully level by screwing the adjustable feet in or out. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

Water inlet

Connect the water inlet hose to a tap with a 3/4" thread.

Do not use already employed hoses for water connection.

The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks.

P1088

P1051

P0002

P1128

Installation

Page 8

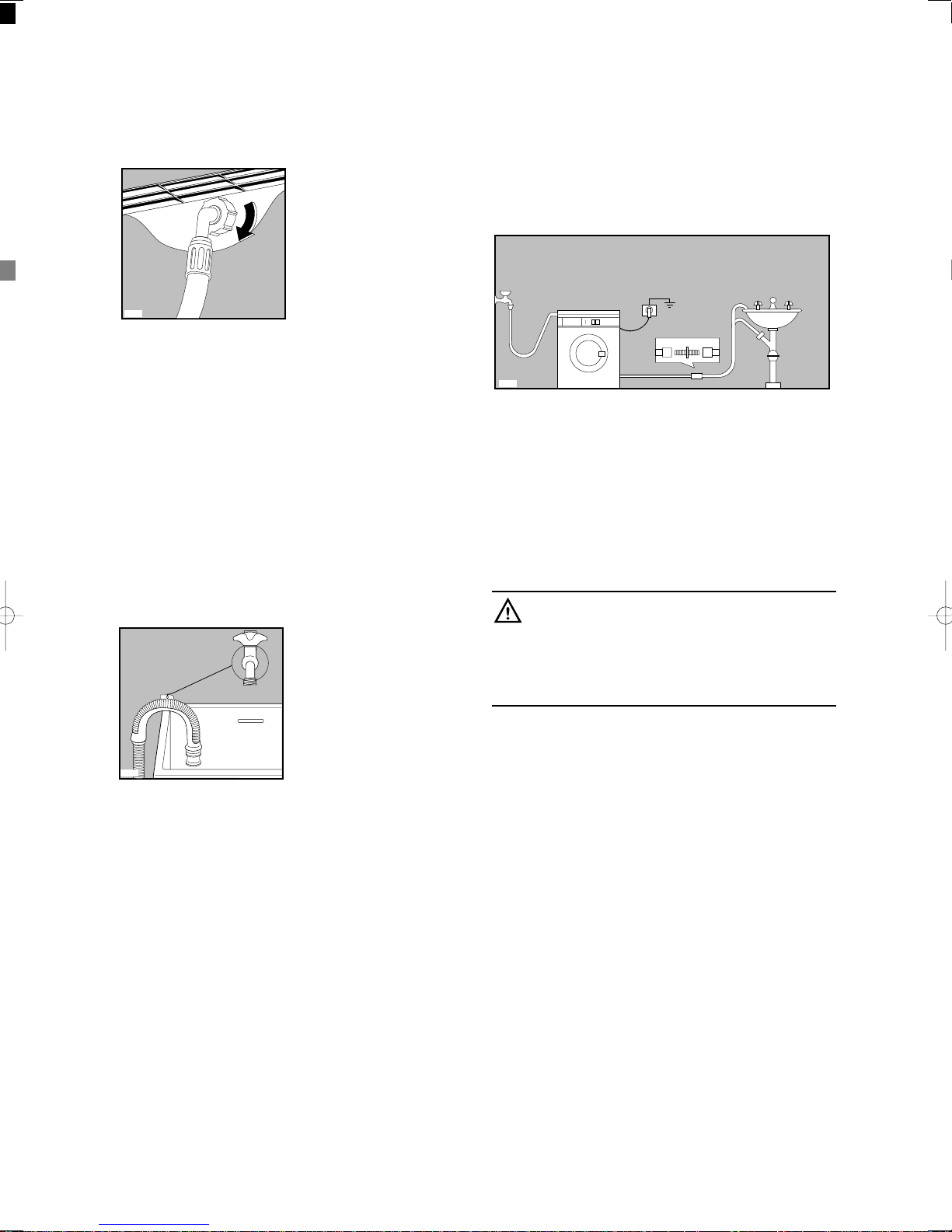

The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

Water drainage

The end of the drain hose can be positioned in three ways:

Hooked over the edge of a sink using the plastic hose guide supplied with the machine. In this

case, make sure the end cannot come unhooked when the machine is emptying. This could be done by tying it to the tap with a piece of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm. The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

P0022

P0021

The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be raised.

Electrical connection

This machine is designed to operate on a 220-230 V, single-phase, 50 Hz supply.

Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use.

Connect the machine to an earthed socket.

The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.

Important!

When the appliance is installed the power supply cable must be easily accessible.

P0023

Page 9

ENGLISH

This new machine, which is fitted with the New Jet System, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

• The special HANDWASH programme with its new delicate wash system treats your delicate items with extreme care.

• The special wool programme with its new delicate wash system treats your woollens with extreme care.

• The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes from being deformed.

• The balance control device ensures the machine is stable during the spin.

1 Detergent dispenser drawer 2 Control panel 3 Door locked light 4 Door handle 5 Drain pump 6 Adjustable feet

Door locked light

It stays on during the whole programme indicating that the door is locked.

When the light goes out, the door can be opened (see page 21).

Detergent dispenser drawer

Prewash Main wash Fabric softener, starch Bleaching agent

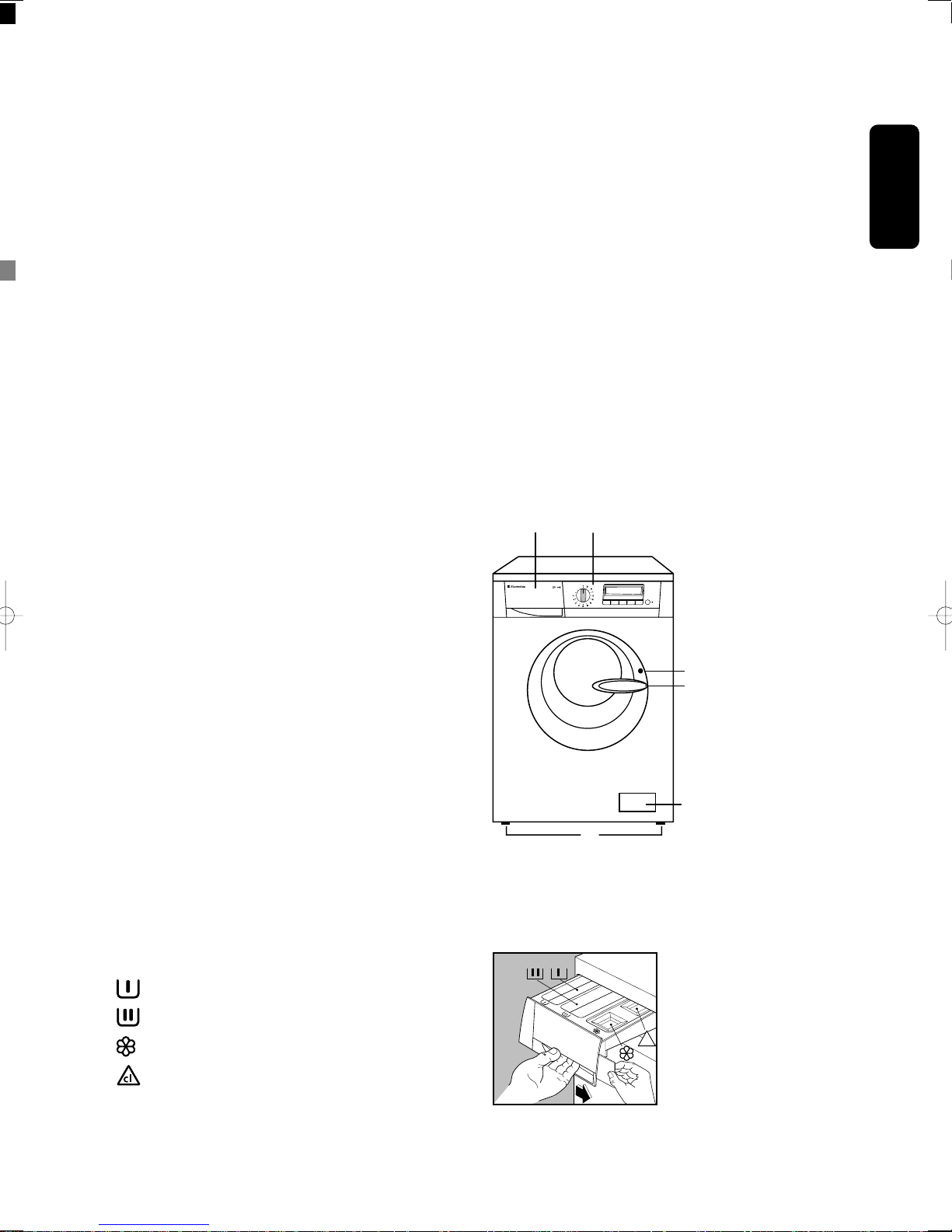

Your new washing machine

Description of the appliance

3 4

Change

Options

Exit

START/ PAUSE

EWF 12 46

Temp. Sp in

C0115

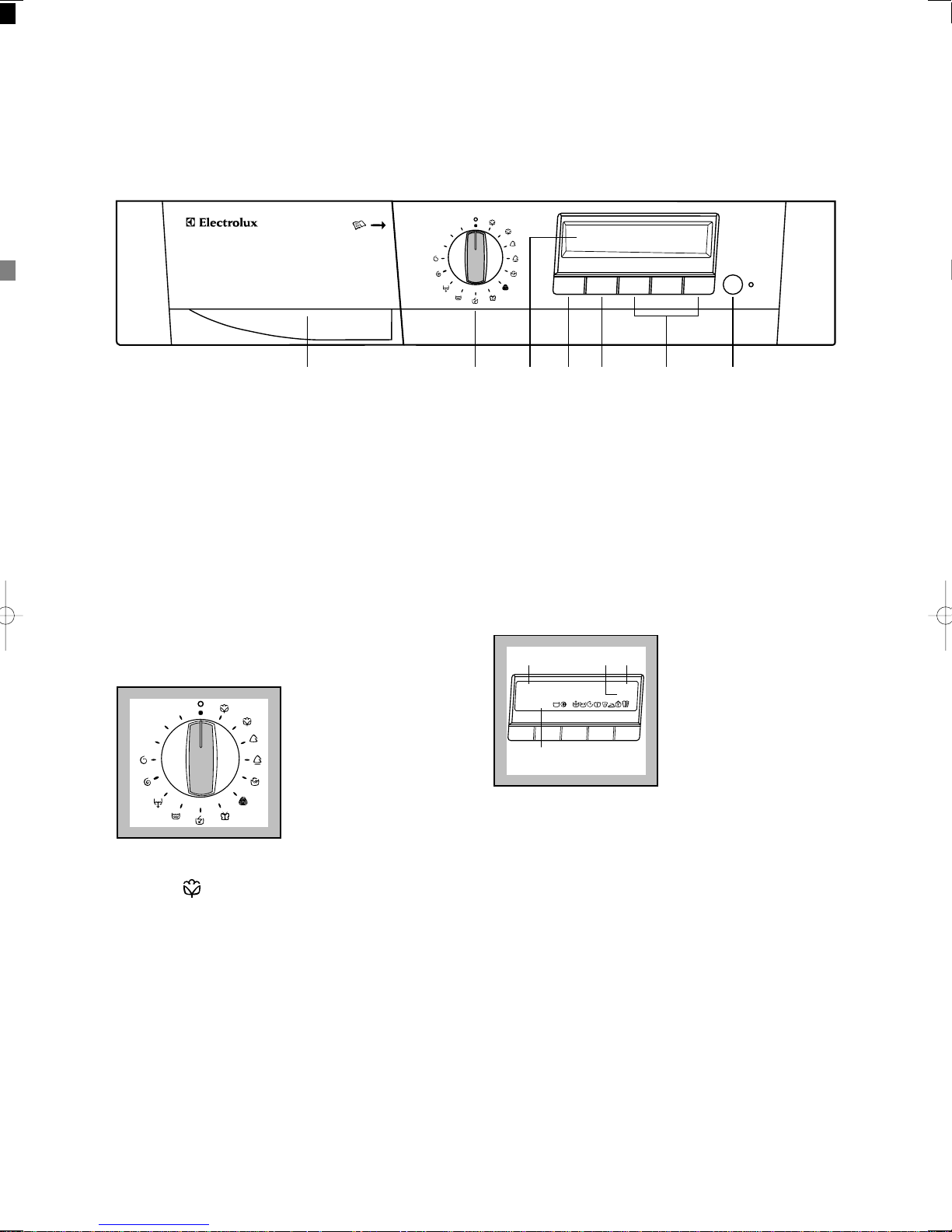

Page 10

Use

1 Programme chart

A programme chart is in the interior part of the detergent dispenser drawer or is provided with the instruction booklet.

2 Programme selector dial

The selector dial is divided into 4 sections:

• Cotton, synthetics and delicates (blue section)

• Handwash, wool, silk and mini-programme (green section)

• Rinses, drain, spin and delicate spin (grey section)

• Memory 1, memory 2, memory 3 (green section)

The selector dial can be turned either clockwise or anticlockwise.

Position E corresponds to the ENERGY SAVING programme for cotton and position O to Reset programme/Switching OFF of the machine. At the end of the programme the selector dial must be turned to position O, to switch the machine OFF.

Attention!

If you turn the programme selector dial to another programme when the machine is working, a warning message appears for 4 seconds on the display while the buzzer sounds for 3 times .

3 Display

The DISPLAY is used for setting a large number of functions and combine them with each other using only a few control elements (1 programme selector dial and 6 buttons). This simple control method is made easy thanks to the interactive display. Interactive means that the washing machine display changes to reflect each step you have entered. This ensures that only those settings that make sense are made. You are able to see the current settings at any time in the information panel and in the option row.

1. Information panel shows the current settings

2. Real time clock

3. End cycle time

4. Selection shows temperature, spin speed, options and extras.

4 Temperature button “Temp.”

Press this button repeatedly to increase or decrease the temperature, if you want your laundry to be washed at a temperature different from the one proposed by the washing machine. Maximum temperatures are 90°C for cotton, 60°C for synthetic fabrics, 40°C for delicate fabrics, wool and fabrics to be hand-washed, 30°C for silk and «Miniprogramme», while «0» corresponds to cold wash. By depressing Temperature “Temp.” button, the relevant message will appear on the second row of

Change

Options

Exit

Cotton Cycle and at

08.30

10.55

90°C 1200

1 23

Temp. Spin

Change

Options

Exit

START/

PAUSE

1234567

EWF 1246

Temp. Spin

Control panel

Page 11

ENGLISH

the display (instead of «cycle end at»). In the corner of the third row appears the indication of the selected temperature.

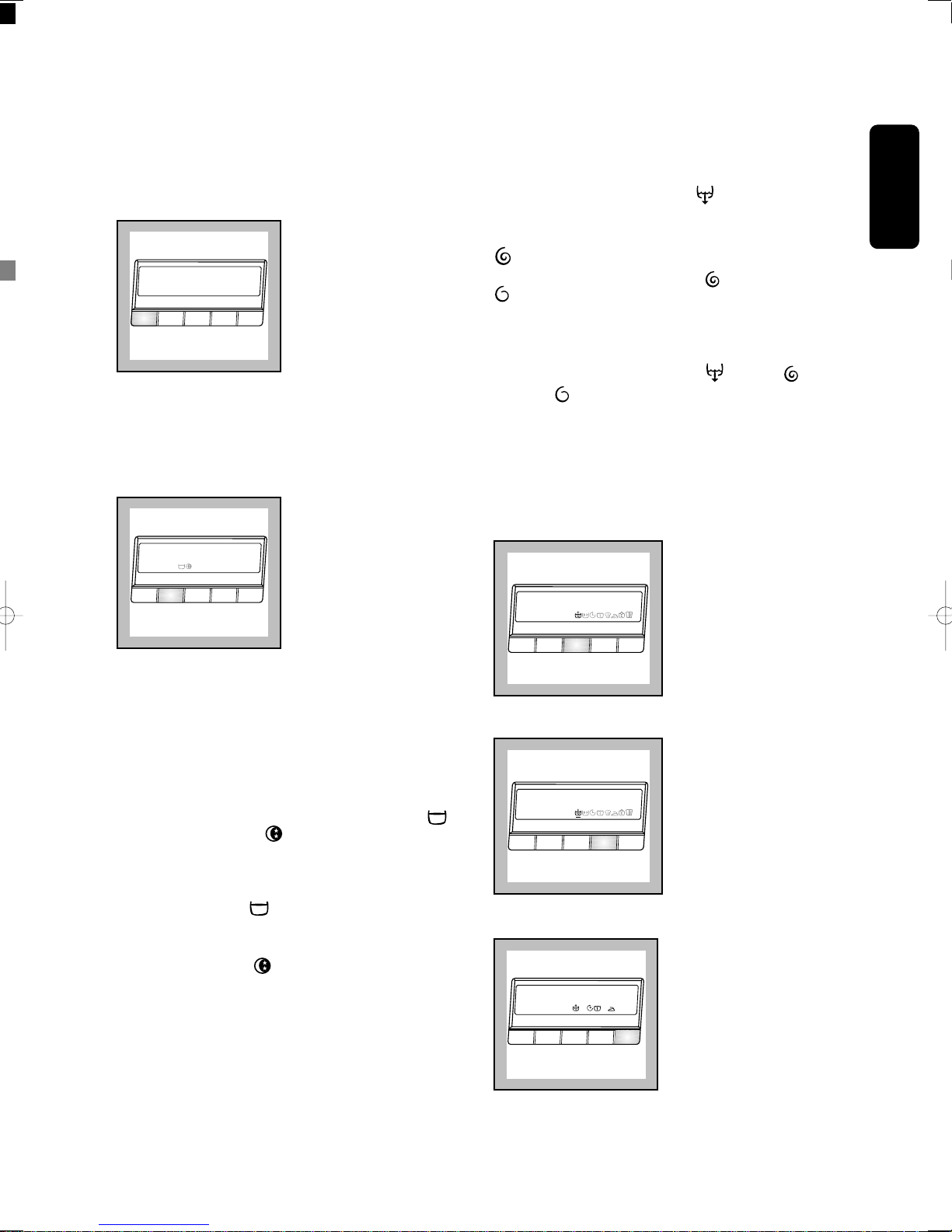

5 Spin Speed button “Spin”

Press this button repeatedly to change the spin speed, if you want your laundry to be spun at a speed different from the one proposed by the washing machine.

Maximum speeds are:

• for cotton: 1200 rpm

• for synthetic, wool, and fabrics to be handwashed: 900 rpm;

• for delicate, silk fabrics, miniprogramme: 700 rpm;

By depressing the Spin speed button you can also choose No Spin option «0», Rinse Hold option and Night cycle option . No spin «0» option eliminates all the spin phases and increases the rinses number for cottons and synthetics.

Rinse hold position : when you choose this option, the machine will not drain the water of the last rinse, so as not to wrinkle the laundry.

Night cycle position : when you choose this option, the machine will not drain the water of the last rinse, so as not to wrinkle the laundry. As all spinning phases are suppressed, this washing cycle is very noiseless and it can be selectionned at night or in times with a more economical power rate. On cotton and synthetic programmes the rinses will be performed with more water. To complete the cycle, choose one of the following programmes:

Change

Options

Exit

COTTON MAX 1200

08.30

10.55

1200

Temp. Spin

Change

Options

Exit

COTTON MAX 90°C

08.30

10.55

40°C 1200

Temp. Spin

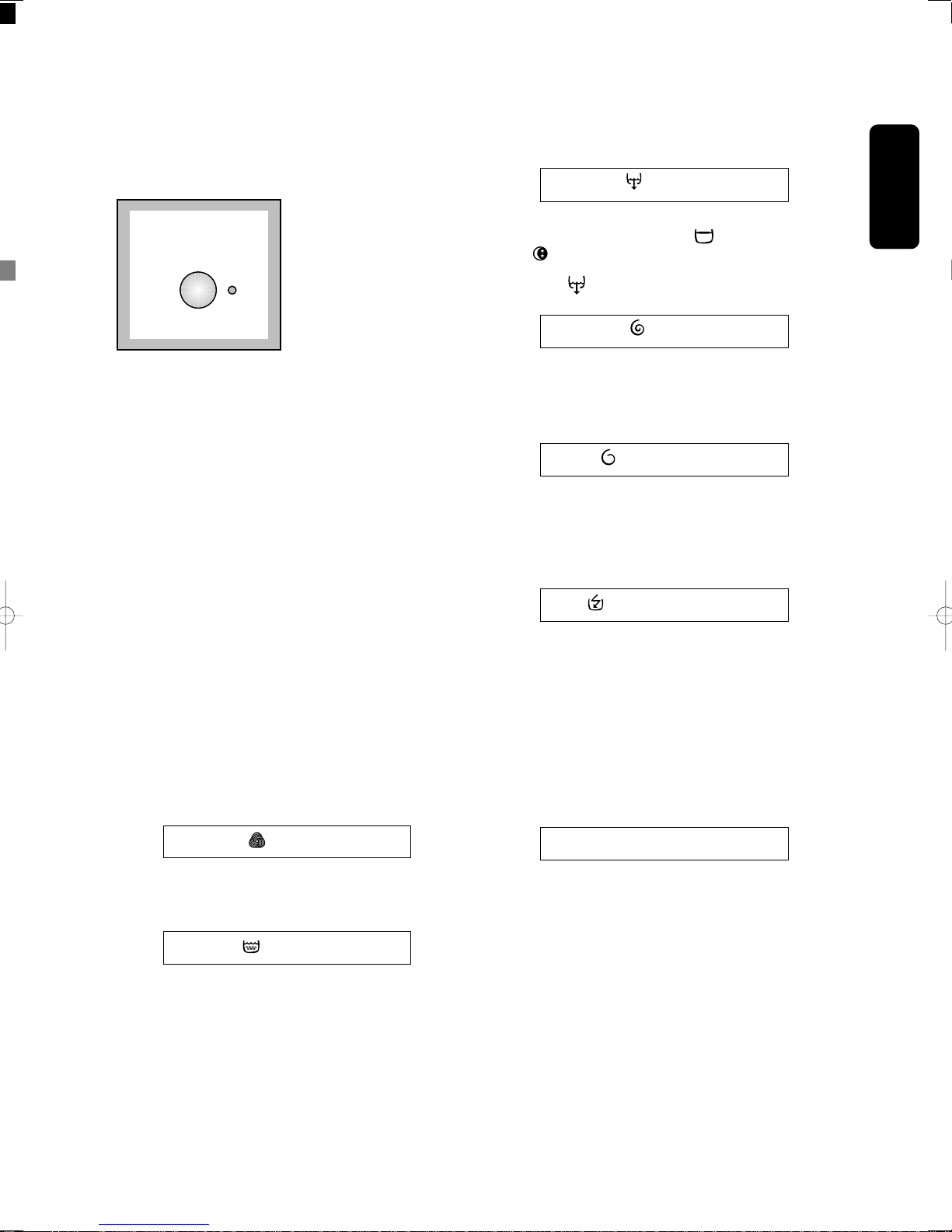

Drain

To drain the water select Drain programme by means of the selector dial, then press the START button.

Spin

To spin the laundry choose spin or delicate spin

programme by means of the

selector dial; select spin speed by means of button

“Spin” and then press the START/PAUSE button. Important!

Before choosing the programme (Drain), (Spin) or (Delicate Spin) the selector dial has to be positioned on «O» (OFF).

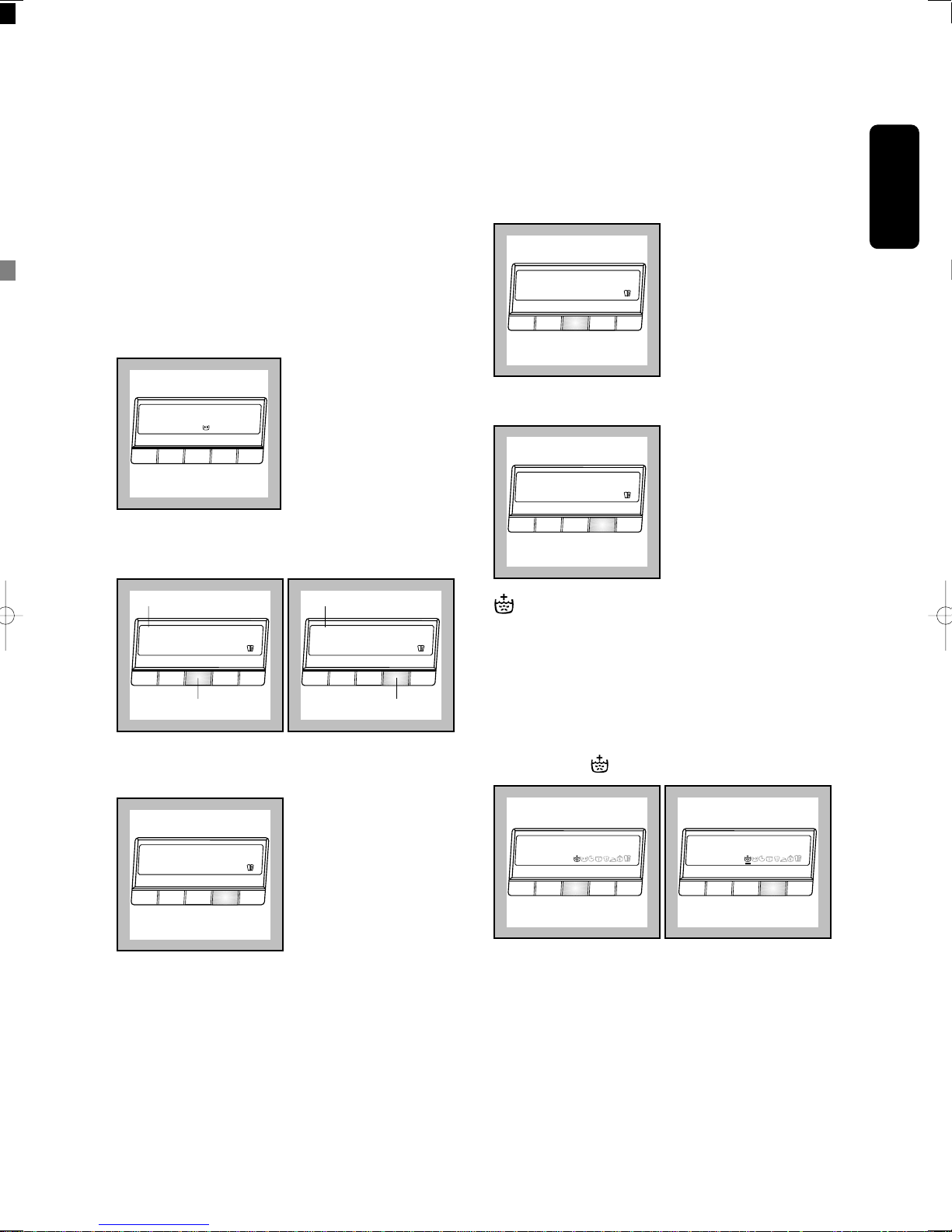

6 «Options», «Change» and «Exit»

buttons

Options button allows you to move through the

option icons.

Change button allows you to select/change the status of the different icons.

Exit button allows you to return to the previous selection.

Change

Options

Exit

COTTON CYCLE END AT

08.30

10.55

60°C 1200

Temp. Spin

Change

Options

Exit

Extra Rinse Yes 10.55

Temp. Spin

Change

Options

Exit

Extra Rinse No 10.55

Temp. Spin

Page 12

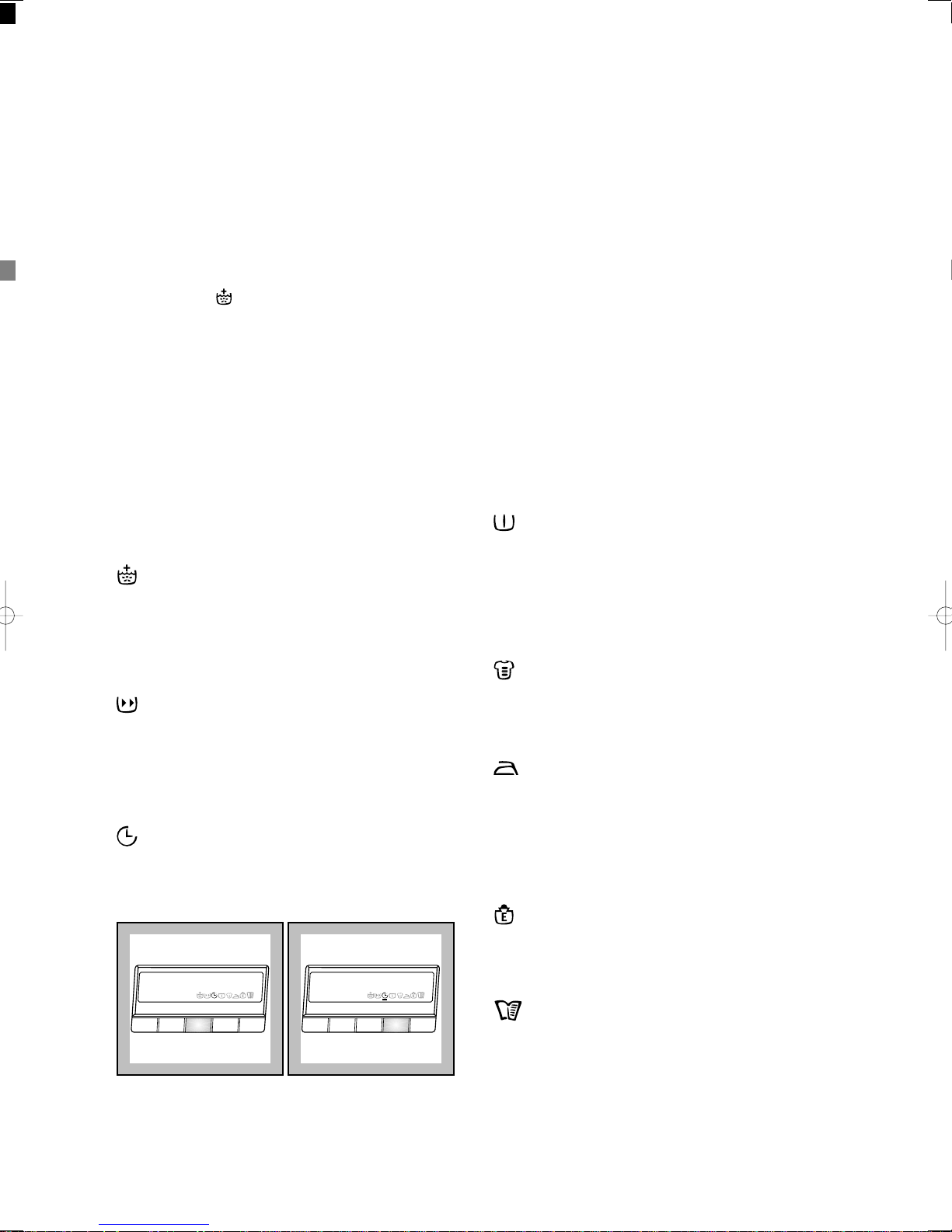

Depending on the program, different functions can be combined. These must be selected after choosing the desired program and before depressing the START/PAUSE button. By depressing the "Options" button, all the symbol icons, allowed for the selected programme will appear in the display (allowed for the selected programme). The first option will start flashing. Its name and status will appear in the display. If you want to change the option status, press "Change" button. There will appear a line below the selected icon, indicating that the option is set. To select the other options press again the «Options» button and proceed as before. Once you have completed the selection of the options, pressing the «Exit» button, the selected icons will remain fixed in the display.

Note: To modify the already chosen option selections, repeat the previous procedure.

Important! While selecting the option, if you press the temperature “Temp.”, “Spin” , or Start/Pause button, the relative function will be executed.

EXTRA RINSE: this option can be selected with all programmes, except the wool/handwash programs and miniprogramme.The machine will add 2 rinses for cottons and 1 rinse for synthetics, delicates and silk. This option is recommended for people who are allergic to detergents, and in areas where the water is very soft.

TIME SAVING: this option can be used for lightly soiled cotton, synthetic or delicates items in order to obtain a good washing program in a short time. The washing time will be reduced according to the type of fabric and the selected temperature. Selecting this option «Short» or «Very Short» will be shown in the display.

DELAY START: this option makes it possible to delay the starting of the washing program by 30 min 60 min - 90 min, 2 hours and then by 1 hour till 20 hours. The delay you have selected is indicated in the display.

You must select this option after you have set the program and before you press the START/PAUSE button. You can cancel the delay time at any moment, before

Change

Options

Exit

Delay Start Start in 30 min 11.25

Temp. Spin

Change

Options

Exit

Delay Start No 10.55

Temp. Spin

you press the START/PAUSE button. If you have already pressed the START/PAUSE button and you wish to cancel the Delay time proceed as follows:

1. set the washing machine to PAUSE by pressing the START/PAUSE button;

2. deselect the Delay start option, changing the status;

3. press the START/PAUSE button to start the program.

Important!

The selected delay can be changed only after selecting the washing program again. The door will locked throughout the delay time. If you need to open the door, you must first set the washing machine to PAUSE by pressing the START/PAUSE button. After you have closed the door, press the START/PAUSE button again. The Delay Start cannot be selected with SPIN/GENTLE SPIN and DRAIN programmes.

PREWASH: select this option if you wish your

laundry to be prewashed before the main wash (not available for wool and handwash cycle, miniprogram and silk). The Prewash ends with a short spin at 650 rpm in programmes for cotton and synthetic fabrics, whereas in the program for delicate fabrics the water is only drained.

INTENSIVE: for heavy soiled laundry.

This option can be selected only for cottons and synthetics. The washing time will be prolonged according to the cycle temperature and the fabric type.

EASY IRON: selecting this button the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the machine will perform 6 rinses instead of 3 for cotton and 4 rinses instead of 3 for synthetics. This function can be used for cotton and synthetic fabrics. If this option is selected for cotton programmes, the spin speed automaticaly will reduce to 1000 rpm.

ECONOMY: this option can be selected only for synthetics lightly or normally soiled with a temperature of 40°C or higher. The washing time will be prolonged. If you select 60°C-50°C-40°C, the washing temperature will be reduced to 42°C.

MENU:

Menu option is used for selecting various basic settings without affecting the particular wash programme. These basic settings will remain active until they are deselected/modified. To move through the different Menu settings use the «Options» button. To change/confirm the selected setting use the

Page 13

ENGLISH

«Change» button.

MEMORY

Programme settings that are frequently used can be saved (e.g. cotton, 90°C, 1200 rpm, with time saving). There are 3 memory spaces available for this purpose. The saved programme can be selected in the same way as any other wash programme by means of the selector dial. Example: Cotton , 90°C, 1200 rpm, with Time saving.

1. Select the cycle and programme settings.

2. Enter the Menu option and select one of the memory positions. A «Store programme?» message will appear in the display.

3. To memorise the selected programme press the «Change» button. «Stored» message will appear in the display.

To change the memorized programme setting repeat the procedure from the beginning.

SOUND

The sound setting permits you to modify the volume of the sound emitter. You can choose between different levels: low, no sound and normal.

Change

Options

Exit

Programme Stored

Temp. Spin

Change

Options

Exit

Memory 1 Store programme?

Temp. Spin

Change

Options

Exit

Setup

Temp. Spin

Change

Options

Exit

Cotton Cycle end at

08.30

10.55

60°C 1200

Temp. Spin

Example:

1. Enter the Menu option and select the sound setting.

2. Use the «Change» button to select the desired level.

RINSE +

The washing machine is set such that its water consumption is extremely economical. For people with allergies and in areas where the water is very soft, it can however be helpful to use more water when rinsing. When you select RINSE +, 2 additional rinses will be carried out for cottons and 1 additional rinse for synthetics, delicates and silk items. If RINSE + has been selected, will appear in the option row.

Change

Options

Exit

Extra Rinse Yes 10.55

Temp. Spin

Change

Options

Exit

Extra Rinse No 10.55

Temp. Spin

Change

Options

Exit

Sound Low or No Sound

Temp. Spin

Change

Options

Exit

Sound Normal

Temp. Spin

Page 14

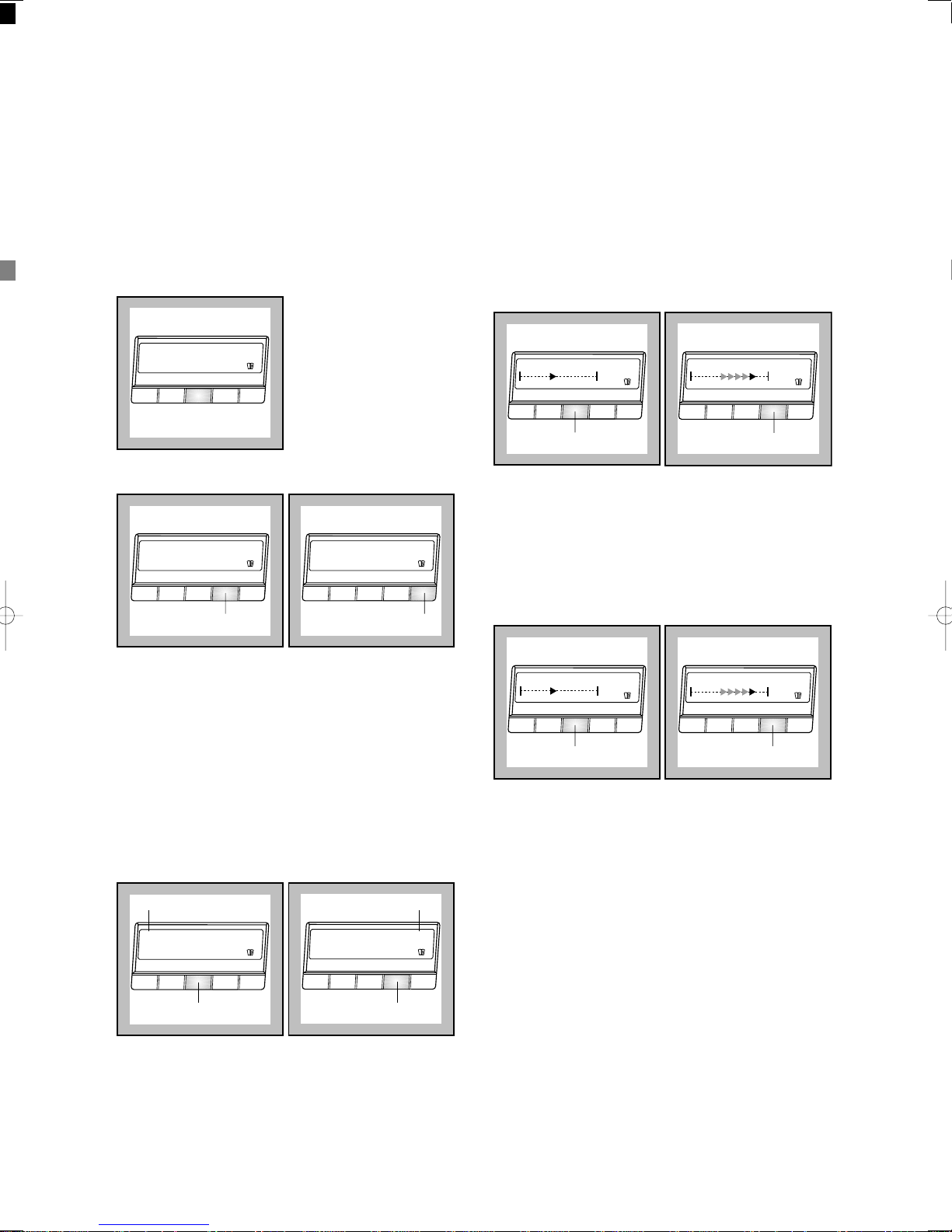

LANGUAGE

You can change the language setting if you would like the indicators in the display to appear in a different language.

Example:

1. Enter the Menu option and select the Language setting.

2. Press the «Change» button to select the desired Language.

CLOCK

The clock setting permits you to modify/set up the current time. It is important to keep it updated as the current END Cycle Time depends on it. Example:

1. Enter the Menu option and select the Clock setting.

2. With a short/single time pressure of the «Change» button, the time varies minute by minute. With a continue pressure of the «Change» button, the time varies 10 minutes by 10 minutes.

Change

Options

Exit

Clock Set Time

14.46

Temp. Spin

Change

Options

Exit

Clock Set Time

14.45

Temp. Spin

Change

Options

Exit

Einstellungen

Temp. Spin

Change

Options

Exit

Sprache DEUTCH

Temp. Spin

Change

Options

Exit

Language ENGLISH

Temp. Spin

CONTRAST

The Contrast setting allows you to modify the optical characteristic of the display. Example:

1. Enter the Menu option and select the Contrast setting.

2. Use the «Change» button to set up the desired contrast level.

BRIGHTNESS

The Brightness setting allows you to modify the backlight intensity of the display. Example:

1. Enter the Menu option and select the Brightness setting.

2. Use the "Change"button to set up the desired brightness level.

Note:

At the end of the programme if no button is pressed for approximately 10 minutes the backlight intensity goes off.

Change

Options

Exit

Brightness

Temp. Spin

Change

Options

Exit

Brightness

Temp. Spin

Change

Options

Exit

Contrast

Temp. Spin

Change

Options

Exit

Contrast

Temp. Spin

Page 15

ENGLISH

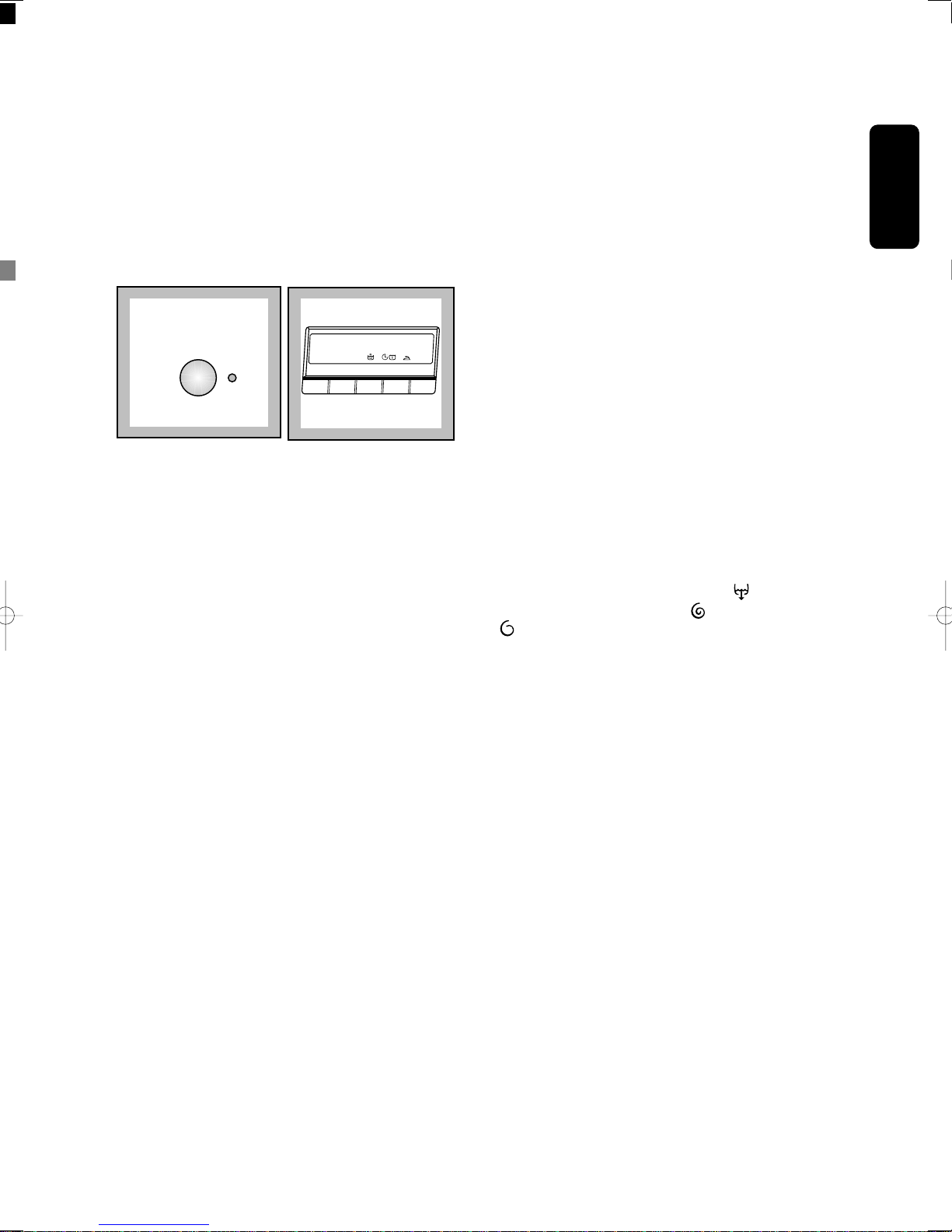

7 START/PAUSE button

This button has 2 functions:

● Start: after you have selected the desired

programme and options, press this button to start the washing machine. The light close to the

button will stop flashing and remain lit. If you have selected a delay time option, the countdown will begin and will be shown on the display.

● Pause: when you press this button again, the

programme in progress is interrupted. The light

close to the button will start flashing. To restart

the programme, press the button again. When you PAUSE the cycle, it becomes possible to

open the door if:

● The washing machine is not in the heating phase;

● The level of the water is not high;

● The drum is not turning.

Important! You must set the washing machine to PAUSE before you make any change in the programme in progress.

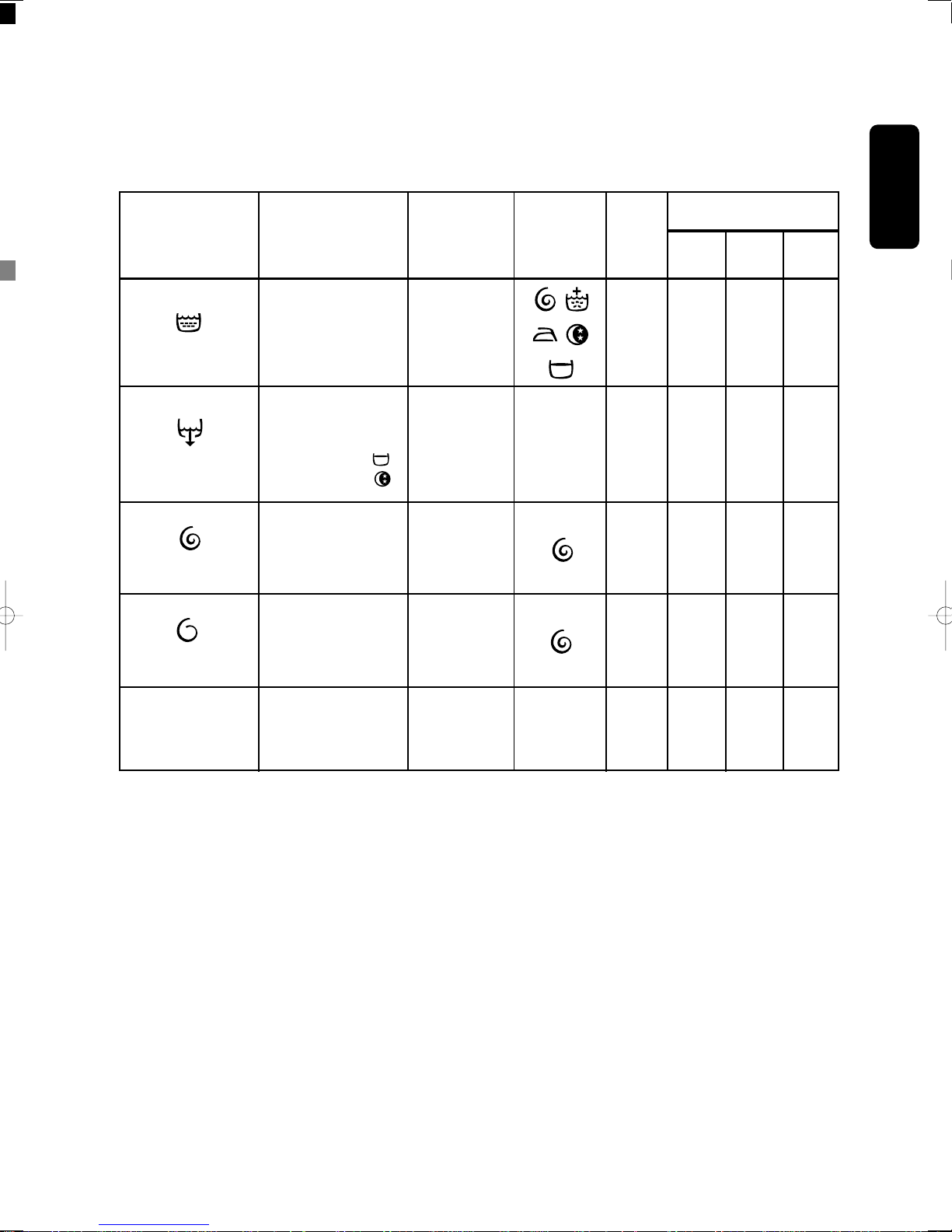

Programme information

Washing programme for machine washable wool as well as for hand washable woollens and delicate fabrics with the “hand washing” care symbol.

With this programme it is possible to rinse and spin garments which have been washed by hand. The machine performs 3 rinses, followed by a final spin at maximum speed. The spin speed can be reduced by depressing button

Spin

. The final spin is foreseen only for cotton

items as in the spin programme.

Rinses

Wool

START/

PAUSE

For emptying out the water of the last rinse in programmes with the Rinse hold or Night cycle option . Turn first the programme selector dial to O, then select programme and depress the START/PAUSEbutton.

Separate spin at maximum speed for hand washed garments. It has to be used for cotton items. You can reduce the speed by means of button Spin to adapt it to the fabrics to be spun.

Separate spin at max. 700 rpm. speed for hand washed garments. It has to be used for synthetic, delicate, wool/handwashed, silk items. You can reduce the speed by means of button Spin to adapt it to the fabrics to be spun.

This is a complete programme that can be combined with the following options: spin speed reduction, no spin, rinse hold or night cycle, delayed start.

To be used for laundry which is lightly soiled or which needs freshening up. Max load 3 kg. Washing temperature 30°C Programme duration 30 minutes Final spin speed 700 r.p.m.

To reset a programme and to switch off the machine turn the selector dial to O. Now can a new programme be selected.

O = Cancelling/OFF

Mini programme

Delicate Spin

Spin

Drain

Page 16

Washing hints

Sorting the laundry

Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

Temperatures

90°-95° for normally soiled white cottons and linen

(e.g. tea cloths, towels, tablecloths, sheets...)

50°-60° for normally soiled, colour fast garments

(e.g. shirts, night dresses, pyjamas....) in

linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).

(cold) for delicate items (e.g. net curtains), mixed

30°-40° laundry including synthetic fibres and

woollens bearing the label «pure new wool, machine washable, non-shrink».

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed; Synthetics: drum no more than half full; Delicate fabrics and woollens: drum no more than

one third full. Washing a maximum load makes the most efficient

use of water and energy. For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative: bathrobe 1200 g napkin 100 g quilt cover 700 g sheet 500 g pillow case 200 g tablecloth 250 g towelling towel 200 g tea cloth 100 g night dress 200 g ladies’ briefs 100 g man’s work shirt 600 g man’s shirt 200 g man’s pyjamas 500 g blouse 100 g men’s underpants 100 g

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any

Page 17

ENGLISH

residual marks with bleach. Ink: depending on the type of ink, moisten the fabric

first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

– powder detergents for all types of fabric, – powder detergents for delicate fabrics (60°C max)

and woollens,

– liquid detergents, preferably for low temperature

wash programmes (60°C max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without prewash must be selected.

The washing machine incorporates a recirculation system which allows an optimal use of the concentrated detergent.

Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme.

Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme.

The bleaching agent (chlorine) can be used only for white or fast coloured cotton and linen items. Pour it into the compartment marked .

Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX»

mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

Follow the product manufacturers’ instructions on quantities to use.

Use less detergent if: – you are washing a small load, – the laundry is lightly soiled, – large amounts of foam form during washing.

Degrees of water hardness

Level Characteristic

Degrees

German

°dH

French

°T.H.

soft

medium

hard

very hard

0- 7 8-14

15-21

more than

0-15 16-25 26-37

more than

1 2 3 4

Page 18

International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic wash

Max. wash

temperature

95°C

Delicate wash

Bleaching Bleach in cold water Do not bleach

Ironing Hot iron

max 200°C

Max. wash

temperature

60°C

Max. wash

temperature

40°C

Warm iron

max 150°C

Max. wash

temperature

30°C

Hand wash Do not

Lukewarm iron

max 110°C

wash

at all

Do not iron

Dry cleaning Dry cleaning

Drying Flat On the line On clothes

in all solvents

Dry cleaning in

perchlorethylene,

petrol, pure alcohol,

R 111 & R 113

hanger

Dry cleaning

in petrol,

pure alcohol

and R 113

Tumble dr y

Do not

dry clean

high temperature

low temperature

Do not

tumble dry

Page 19

ENGLISH

4. Switch the machine ON

Turn the selector dial to the desired programme to switch the appliance on. To switch the appliance off turn it to «O».

Switching the appliance for the first time.

LANGUAGE

When switching on the appliance for the first time you must set the language in which you want the indicators in the display to appear.

Important!

If the display is not showing any language, the appliance has already been switched on once. In such case, go to the chapter «Change language» if you would like to change the language setting.

Example:

1.Press the «Change» button until the desired language appears in the display.

2.Press the EXIT button to confirm the selection.

All indicators in the display will appear in this language from now on. When the appliance is switched on again all indicators in the display will appear in this language.

Note:

If the undesired language has been set, press contemporary SPIN + OPTIONS buttons for about 2 seconds in order to change the language. Follow the instructions as before.

Change

Options

Exit

Einstellungen

Temp. Spin

Change

Options

Exit

Sprache DEUTCH

Temp. Spin

Change

Options

Exit

Language ENGLISH

Temp. Spin

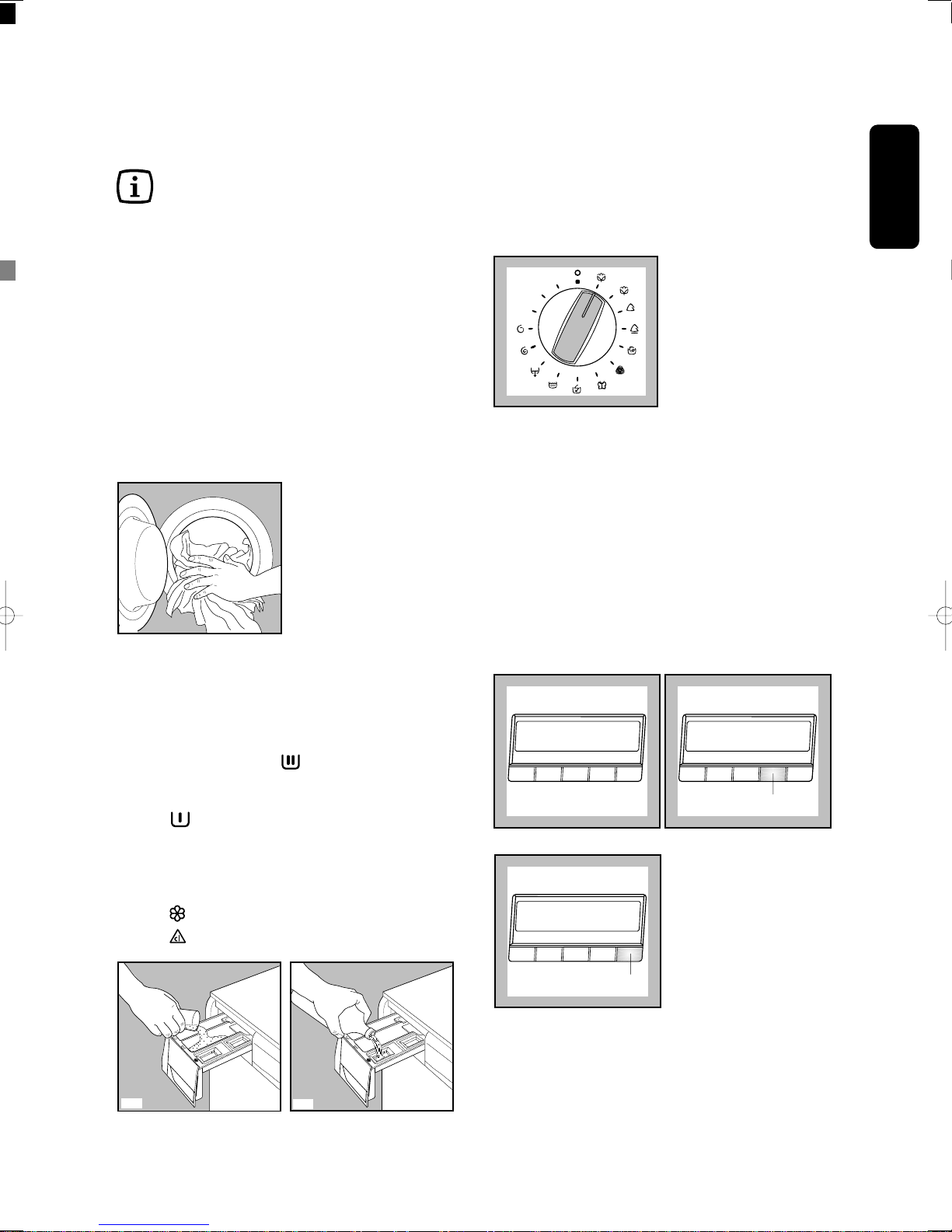

Operating sequence

Before washing your first load of laundry, we recommend that you run a cotton cycle at 90°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine.

1.Place the laundry in the drum

Open the door. Place the laundry in the drum, one item at a time,

shaking them out as much as possible. Close the door.

2.Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the manufacturer in a graduated cup and pour it into the main wash compartment .

If you wish to carry out a programme with prewash, pour detergent into the appropriate compartment marked .

3.Measure out the additives

If required, pour fabric softener into the compartment marked and the bleach into the compartement marked , without exceeding the «MAX» mark.

C0117

C0116

P0004

Page 20

7.Select the Spin Speed “Spin”, the Rinse Hold or Night cycle

Press the SPIN SPEED button repeatedly, in order to select the desired spin speed or No Spin «O» or the Rinse Hold or the Night Cycle options. The relevant message will appear on the second row of the display. The selected spin level will be shown on the third row next to the spin button. If you select the Rinse Hold or Night Cycle options, the machine will stop at the end of the programme with the water still in the tub.

8. Select the desired options

Depress the relevant buttons to select the required options.

Depending on the selected programme only certain options are available and shown during the selection phase. Note: Not all the options are compatible between themselves. The uncompatible option icons will disappear.

9. Select the DELAY TIME

Before you start the programme, if you wish the starting to be delayed, choose the DELAY option. The selected delay time value (up to 20 hours) will appear on the display while selecting. The end cycle will be updated and shown on the relative position of the display.

Change

Options

Exit

Delay Start Start in 30 min 11.25

Temp. Spin

Change

Options

Exit

Delay Start No 10.55

Temp. Spin

Change

Options

Exit

COTTON MAX 1200

08.30

10.55

1000

40°C

Temp. Spin

SETTING THE TIME

You should set the time prior to the first wash and when changing to and from daylight savings time. See «Clock setting», Menu.

5. Select the desired programme/fabric

Turn the selector dial, in order to select the desired programme/fabric. The relevant message will appear in the display. The display will show the END CYCLE TIME of the selected programme, calculated on the basis of the maximum load for each type of fabric. The START/PAUSE button light will start flashing. If the load of laundry to be washed is small, at the beginning of the cycle the display will still indicate the END CYCLE relevant to the maximum load. The duration value will be gradually adjusted during the execution of the cycle.

6. Select the temperature “Temp.”

Press the TEMPERATURE button if you wish to select a temperature value different from the one proposed by the washing machine. The message of the maximum available temperature appears on the second row of the display (instead of «cycle end at»). In the corner of the third row appears the indication of the selected temperature.

Change

Options

Exit

COTTON MAX 90°C

08.30

10.55

40°C 1200

Temp. Spin

Change

Options

Exit

Cotton Cycle and at

08.30

10.55

60°C 1200

Temp. Spin

Page 21

ENGLISH

If these requirements are met, when you pause the washing machine, the relevant message appears in the display, the door locked light goes out and the door can be opened. Should it not be possible to open the door, the door locked light is on should it be absolutely necessary to do so, switch the machine off by turning the selector dial on "O" position. After approximately 3 minutes, you can open the door.

Pay attention to the level and temperature of the water in the washing machine!

14. End of programme

At the end of the programme, the washing machine stops automatically, gives an audible signal (if option no sound has not been selected), and displays the relevant message.

If you had selected the RINSE HOLD or NIGHT CYCLE option, the START/PAUSE button light is off and the door locked light is on. To drain or spin first turn the programme selector dial to «O» and then to drain programme or spin/delicate spin programme /.

Release of the lock is also indicated by the coming on of the message "Door openable" (cycle ended) and the going out of the door locked light. Turn the programme selector dial to «O» to switch the machine off.

Remove the laundry from the washing machine. Check whether the drum is completely empty, by rotating it with your hand. The purpose of this is to prevent any items of laundry from remaining accidentally in the drum, where they might get damaged in a subsequent wash (e.g. by shrinking) or bleed colour into another load of laundry. We advise you to close the water supply tap and disconnect the plug from the socket. Leave the door ajar in order to air the washing machine.

10. Start the programme

Press the START/PAUSE button. The relevant light will stop flashing. The message relevant to the phase that is in progress will be shown in the display. If you have chosen a delayed start, the washing machine will begin the countdown.

11. How to change a programme during its cycle

Before you make any change, you must pause the washing machine by pressing the START/PAUSE button. It is possible to change any phase before the programme carries it out. When the programme has started, you can only reset it by turning the programme selector dial to «O» and then you can select the new programme. The washing water remains in the tub.Start the new programme by depressing the START/PAUSE button. Note: To drain the water before starting the new cycle you have to cancel the programme and select the DRAIN cycle.

12. Cancelling a programme

Turn the selector dial to «O» to cancel a programme which is running. Now you can select a new programme.

13.How to open the door during the cycle of a programme

You can open the door, after having set the washing machine to PAUSE, provided the following conditions exist:

● the washing machine is not in the heating phase

beyond 55°C;

● the level of the water is not high;

● the drum is not turning.

Change

Options

Exit

COTTON Washing

08.30

12.00

40°C 1200

Temp. Spin

START/

PAUSE

Page 22

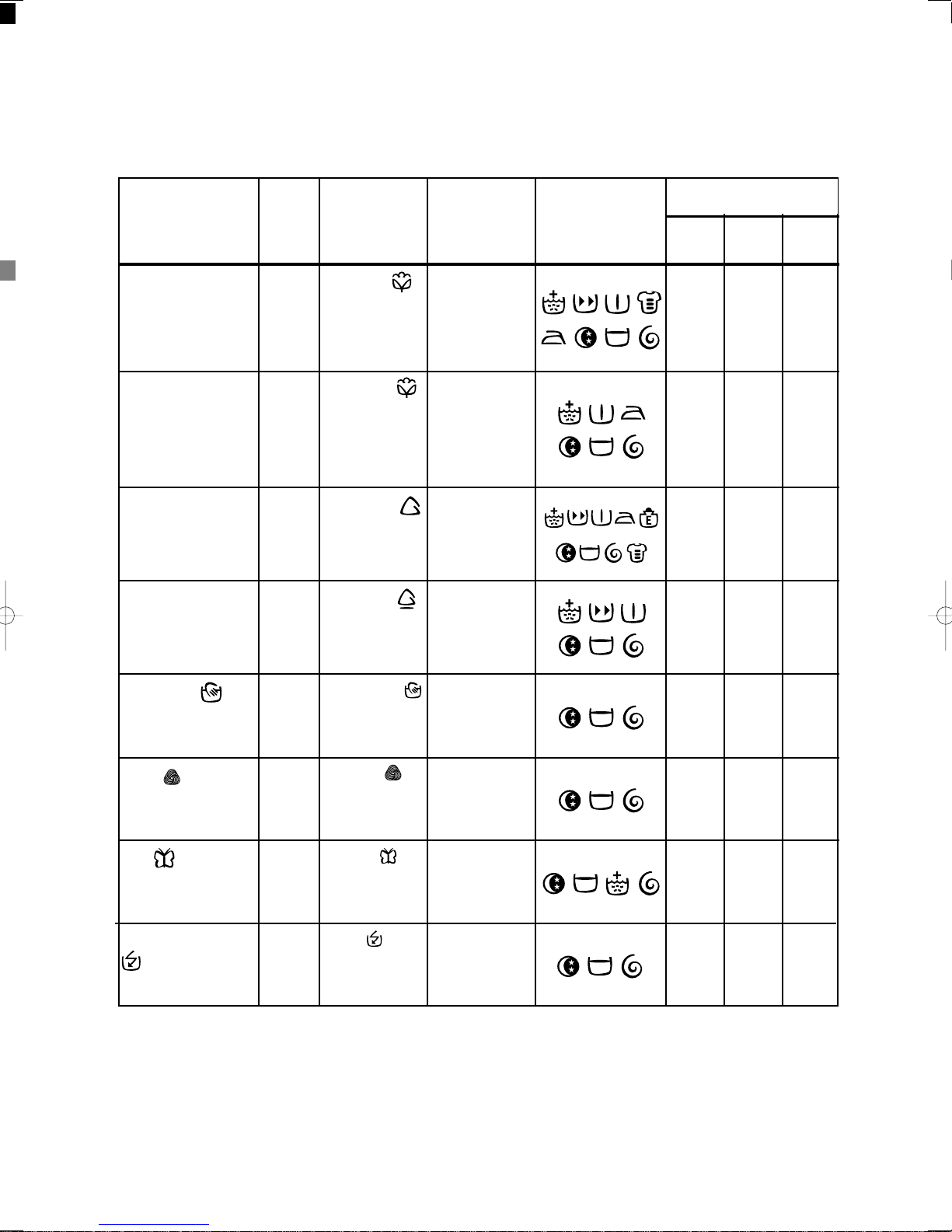

Programme table

* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending

on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It refers to the highest temperature for each wash programme.

** In compliance with EC directive 92/75 the consumption figures indicated on the Energy label refer to this

programme at E60°C. The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this machine. Licence No. M9605.

Type of laundry

and symbols on

labels

1.19

2.04

1.05

1.27

0.6

57 58

0.4 55

0.3

0.4

White and coloureds cotton:

e.g. sheets, tablecloths, household linen

White and coloured cotton Economy**: e.g.

shirts, blouses, underwear, towels, house-hold linen

Synthetic fabrics:

e.g. shirts, blouses, underwear

Delicate fabrics: e.g. acrylic fabrics, viscose, polyester, synthetic blends

Wool

Handwash

6 kg

7 kg

3 kg

Max

load

Programme/ temperature

Available options

Consumption*

Energy

kWh

Water

litres

Time

h/min.

Cottons

O(cold)-

90°C

Cottons E 60°-50°-40°C

Synthetics

O(cold)-60°C

Delicates O(cold)-40°C

Wool

O(cold)-40°C

Hand wash

O(cold)-40°C

Description of

programme

Main wash at O(cold)-90°C 3 rinses Long spin

Main wash at 60°-50°-40°C 3 rinses Long spin

Main wash at O(cold)-60°C 3 rinses Short spin

Main wash at O(cold)-40°C 3 rinses Short spin

Silk

30°C

Main wash at 30°C 3 rinses Short spin

0.35

Miniprogramme

30°C

Main wash at 30°C 2 rinses Short spin

Washing Programmes

3 kg

2.05

2.20

2 kg

1 kg

3 kg

Page 23

ENGLISH

Programme table

* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending

on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.

Programme

selector dial

position

---

Rinses

Drain

Spin

Delicate Spin

Reset/Off

6 kg

Wash

load

max.

Programme

Addictional

functions

Consumption*

Energy

kWh

Water

litres

Time

h/min.

For rinsing items

For empting out the water of the last rinses of programmes with option and Night Cycle

Separate long spin for cottons

Separate short spin for synthetics, delicates, wool/hanwash and silk

For cancelling the programme which is running or to switch the machine off.

Programme

description

3 rinses with liquid additive, if required. Long spin at max. speed

Water draining

Drain and spin at the max. speed

Drain and delicate spin

Special Programmes

0.15

Page 24

1.Bodywork

Clean the outside of the machine with soap and water only. Rinse with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

2.Door seal

Check from time to time the door seal and eliminate eventual possible objects that could be trapped in the fold.

3.Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer.

Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner.

To facilitate cleaning, the top part of the additive compartments can be removed.

C0119

C0118

P1050

Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

4.Drain pump

The pump should be inspected if

• the machine does not empty and/or spin

• the machine makes an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump.

Proceed as follows:

• Disconnect the appliance.

• If necessary wait until the water has cooled down.

• Open the pump door.

• Place a container close to the pump to collect any spillage.

• Release the emergency emptying hose, place it in the container and remove its cap.

• When no more water comes out, unscrew the pump cover and remove the pump. Always keep a rag nearby to dry up spillage of water when removing the pump.

P1115

P1114

P0038

Maintenance

Page 25

ENGLISH

• Remove any objects from the pump impeller by rotating it.

• Put the cap back on the emergency emptying hose and place the latter back in its seat.

• Screw the pump cover fully in.

• Close the pump door.

5.Water inlet filter

If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked.

Turn off the water tap. Unscrew the hose from the tap. Clean the filter with a stiff brush. Screw the hose back onto the tap.

P1090

P1117

6.Emergency emptying out

If the water is not discharged, proceed as follows to empty out the machine:

• pull out the plug from the power socket;

• close the water tap;

• if necessary, wait until the water has cooled down;

• open the pump door;

• place a bowl on the floor and place the end of the emergency emptying hose into the bowl. Remove its cap. The water should drain by gravity into the bowl. Whe the bowl is full, put the cap back on the hose. Empty the bowl. Repeat the procedure until water stops flowing out;

• clean the pump if necessary as previously described;

• replace the emergency emptying hose in its seat after having plugged it;

• screw the pump cover again and close the door.

7.Frost precautions

If the machine is installed in a place where the temperature could drop below 0°C, proceed as follows:

• Remove the plug from the socket.

• Close the water tap and unscrew the water inlet hose from the tap.

• Place the end of the emergency emptying hose and that of the inlet hose in a bowl placed on the floor and let water drain out.

• Screw the water inlet hose back on and reposition the emergency emptying hose after having put the cap on again.

By doing this, any water remaining in the machine is removed, avoiding the formation of ice and, consequently, breakage of the affected parts.

When you use the machine again, make sure that the ambient temperature is above 0°C.

Page 26

Something not working?

Problems which you can resolve yourself.

During machine operation it is possible that one of the following messages appear on the display:

- Problem with the water supply: “No incoming water. Check tap & hose”

- Problem with water draining: “No drain. Check drain hose /filter”

- Door open: “Door not closed. Please check” Once the problem has been eliminated, press the START/PAUSE button to restart the programme. If after

all checks, the problem persists, contact your local Service Centre.

Problem Possible cause

• The machine does not start up:

• The door is not firmly closed. ( “Door not closed. Please check”)

• The machine is not plugged in or there is no power at the socket.

• The main fuse has blown.

• The START/PAUSE button has not been depressed.

• The DELAY START option has been selected.

• The programme selector dial is not positioned.

• The machine does not fill:

• The water tap is closed. (“No incoming water. Check tap & hose”)

• The inlet hose is squashed or kinked. (“No incoming water. Check tap & hose”)

• The filter in the inlet hose is blocked. (“No incoming water. Check tap & hose”)

• The door is not properly closed. ( “Door not closed. Please check”)

• The machine fills then empties immediately:

• The end of the drain hose is too low. Refer to relevant paragraph in “water drainage” section.

• The machine does not empty and/or does not spin:

• The drain hose is squashed or kinked. (“No drain.

Check drain hose /filter”)

• The RINSE HOLD option , NIGHT CYCLE or NO SPIN «O» has been selected.

• The laundry is not evenly distributed in the drum.

• The drain pump is clogged. (“No drain. Check

drain hose /filter”)

• There is water on the floor:

• Too much detergent or unsuitable detergent (creates too much foam) has been used.

• Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.

• The drain hose is damaged.

• The cap on the emergency emptying hose has not been replaced after cleaning the pump.

Page 27

ENGLISH

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Mod. ..........

Prod. No. ...........

Ser. No. .........

M o d

. ..........

P r

od . No

. ...........

r. N o

. ......

...

P0042 BD

P1035UK

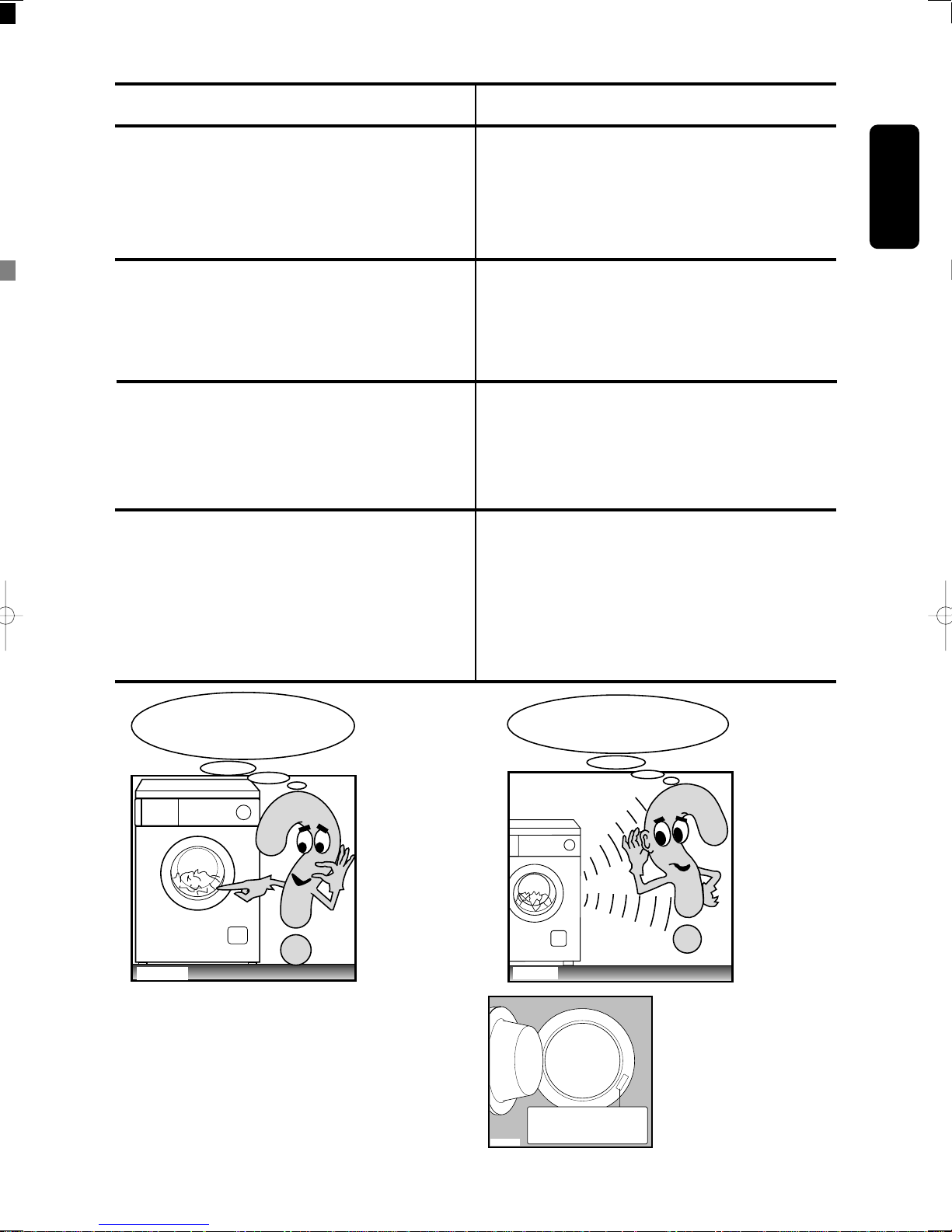

Water is not

visible in the machine. The machine,

which is the result of modern technology, runs

in a very economical way with low water

consumption. Performance is

nevertheless excellent.

The machine makes an unusual

noise. The machine is fitted with a commutator

motor which improves machine

performance.

P1034UK

Problem Possible cause

• Spinning starts late or the machine does not spin:

• The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin programme.

• The door will not open:

• The programme is still running.

• The door lock has not been released.

• There is water in the drum.

The door could be opened only when «Door openable» message appears in the display and the door locked light goes off.

• The machine vibrates or is noisy:

• The transit bolts and packing have not been removed.

• The support feet have not been adjusted.

• The laundry is not evenly distributed in the drum.

• Maybe there is very little laundry in the drum.

• Unsatisfactory washing results:

• Too little detergent or unsuitable detergent has been used.

• Stubborn stains have not been treated prior to washing.

• The correct temperature was not selected.

• Excessive laundry load.

Page 28

From the Electrolux Group. The world’s No. 1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
