EW9W8862E9

EN Washer Dryer User Manual

Page 2

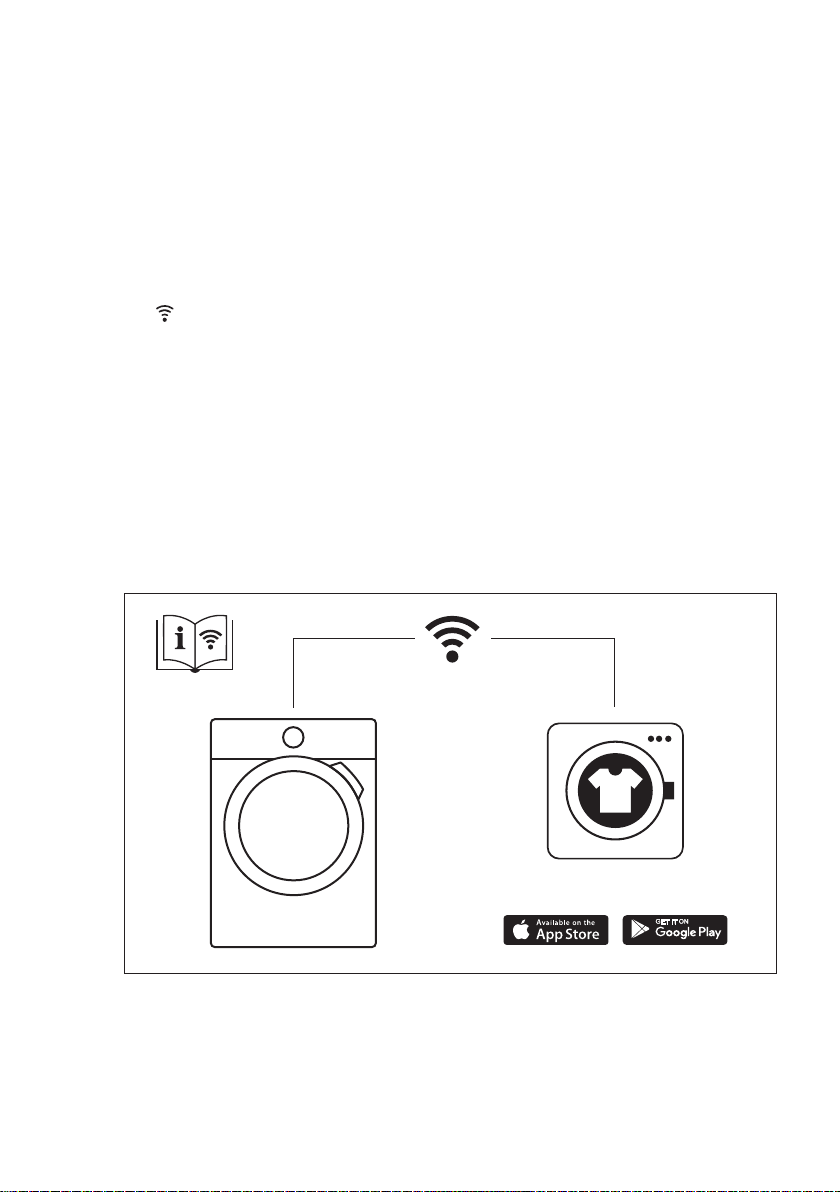

My Electrolux Care app

www.electrolux.com2

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................6

3. PRODUCT DESCRIPTION................................................................................ 9

4. TECHNICAL DATA.............................................................................................9

5. INSTALLATION................................................................................................ 10

6. ACCESSORIES................................................................................................15

7. CONTROL PANEL........................................................................................... 16

8. DIAL AND BUTTONS....................................................................................... 18

9. PROGRAMMES............................................................................................... 20

10.

WI-FI - CONNECTIVITY SETUP............................................................... 27

11. BEFORE FIRST USE..................................................................................... 29

12. SETTINGS......................................................................................................29

13. DAILY USE..................................................................................................... 30

14. DAILY USE - WASHING & DRYING.............................................................. 35

15. DAILY USE - DRYING ONLY......................................................................... 37

16. FLUFF IN THE FABRICS............................................................................... 38

17. HINTS AND TIPS........................................................................................... 38

18. CARE AND CLEANING..................................................................................41

19. TROUBLESHOOTING....................................................................................48

20. CONSUMPTION VALUES..............................................................................54

21. ENVIRONMENTAL CONCERNS................................................................... 56

Page 3

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Warning / Caution-Safety information General information and tips Environmental information

ENGLISH 3

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

Page 4

www.electrolux.com4

and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children of less than 3 years of age should be kept

away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do

not play with the appliance.

• Keep all packaging away from children and dispose of

it appropriately.

• Keep detergents away from children.

• Keep children and pets away from the appliance when

the door is open.

• If the appliance has a child safety device, it should be

activated.

• Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

• Do not change the specification of this appliance.

• This appliance is intended to be used in household

and similar applications such as:

– staff kitchen areas in shops, offices and other

working environments;

– by clients in hotels, motels, bed & breakfast and

other residential type environments;

– areas for communal use in blocks of flats or in

launderettes.

• The appliance shall be installed as a freestanding

product or below the kitchen worktop if space margins permit.

• Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

Page 5

ENGLISH 5

side, that would prevent the appliance door from being

fully open.

• Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation.

• The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

• WARNING: The appliance must not be supplied

through an external switching device, such as a timer,

or connected to a circuit that is regularly switched on

and off by a utility.

• Ensure good air ventilation in the room where the

appliance is installed to avoid the backflow of

unwanted gases into the room from appliances

burning gas or other fuels, including open fires.

• Exhaust air must not be discharged into a flue which is

used for exhausting fumes from any appliances

burning gas or other fuels.

• The operating water pressure at the water entry point

from the outlet connection must be between 0.5 bar

(0.05 MPa) and 8 bar (0.8 MPa).

• The appliance maximum load is 10 kg. Do not exceed

the maximum load of each programme (refer to the

"Programmes" chapter).

• The appliance must be connected to the water mains

using the new supplied hose sets, or other new hose

sets supplied by the Authorised Service Centre.

• Old hose sets must not be reused.

• If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

• Wipe away lint or packaging debris that has

accumulated around the appliance.

• Do not run the appliance without filters. Clean the lint

filter before or after each use.

• Items that have been soiled with substances such as

vegetable or mineral oil, acetone, alcohol, petrol,

Page 6

www.electrolux.com6

kerosene, spot removers, turpentine, waxes and wax removers should be washed separately with an extra amount of detergent before being dried in the washer dryer.

• Do not use the appliance if items have been soiled

with industrial chemicals.

• Do not dry unwashed items in the wash dryer.

• Items such as foam rubber (latex foam), shower caps,

waterproof textiles, and rubber backed articles and clothes, or pillows fitted with foam rubber pads should not be dried in the washer dryer.

• Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s instructions.

• Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

• Never stop the washer dryer before the end of the

drying cycle unless all items are quickly removed and separated so that residual heat can dissipate.

• The final part of the washer dryer cycle takes place

without heat (cool down cycle) to ensure that items reach a temperature that will not cause damage to them.

• Do not use high pressure water sprays and/or steam

to clean the appliance.

• Clean the appliance with a moist cloth. Use only

neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

The installation must comply with relevant national regulations.

• Follow the installation instructions supplied with the appliance.

• Do not install or use the appliance where the temperature can be less than 5°C or higher than 35 °C.

• Always keep the appliance vertical when it is being moved.

Page 7

ENGLISH 7

• To make sure the compressor works properly, wait 6 hours after the installation before using the appliance.

• Make sure that there is air circulation between the appliance and the floor.

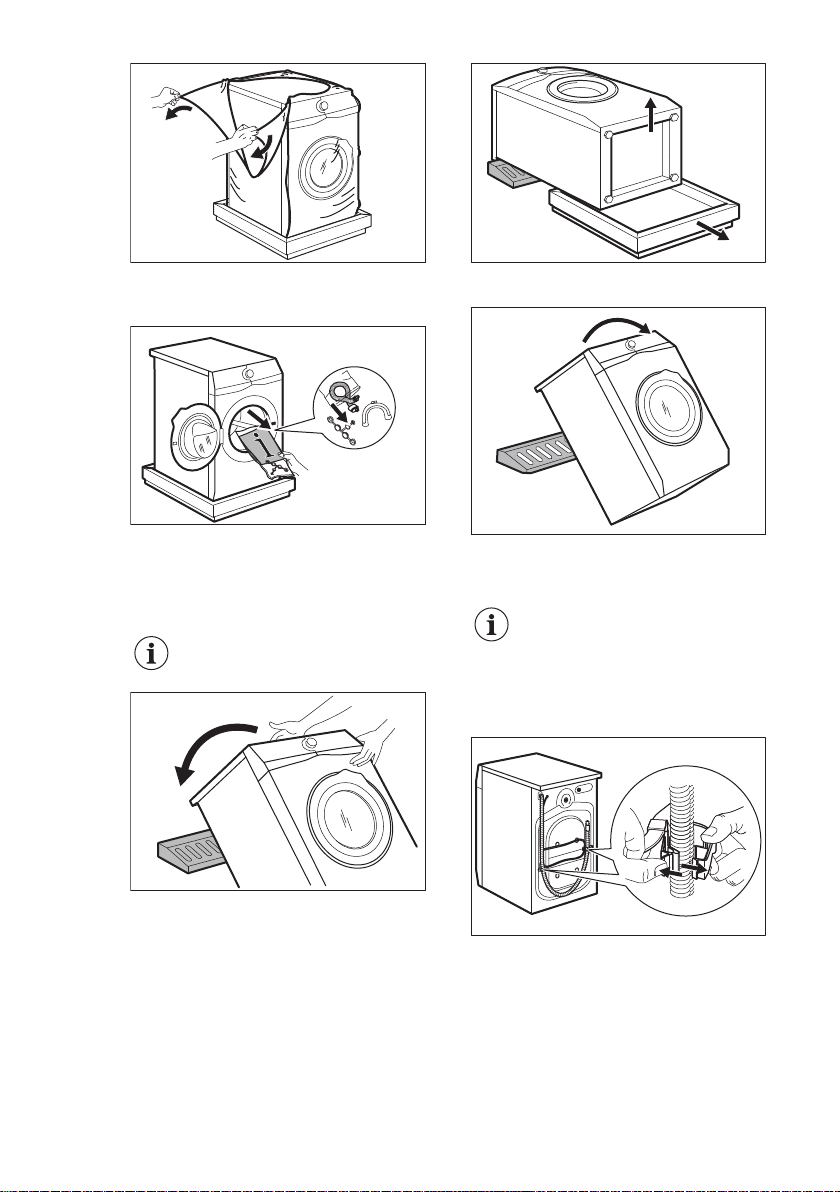

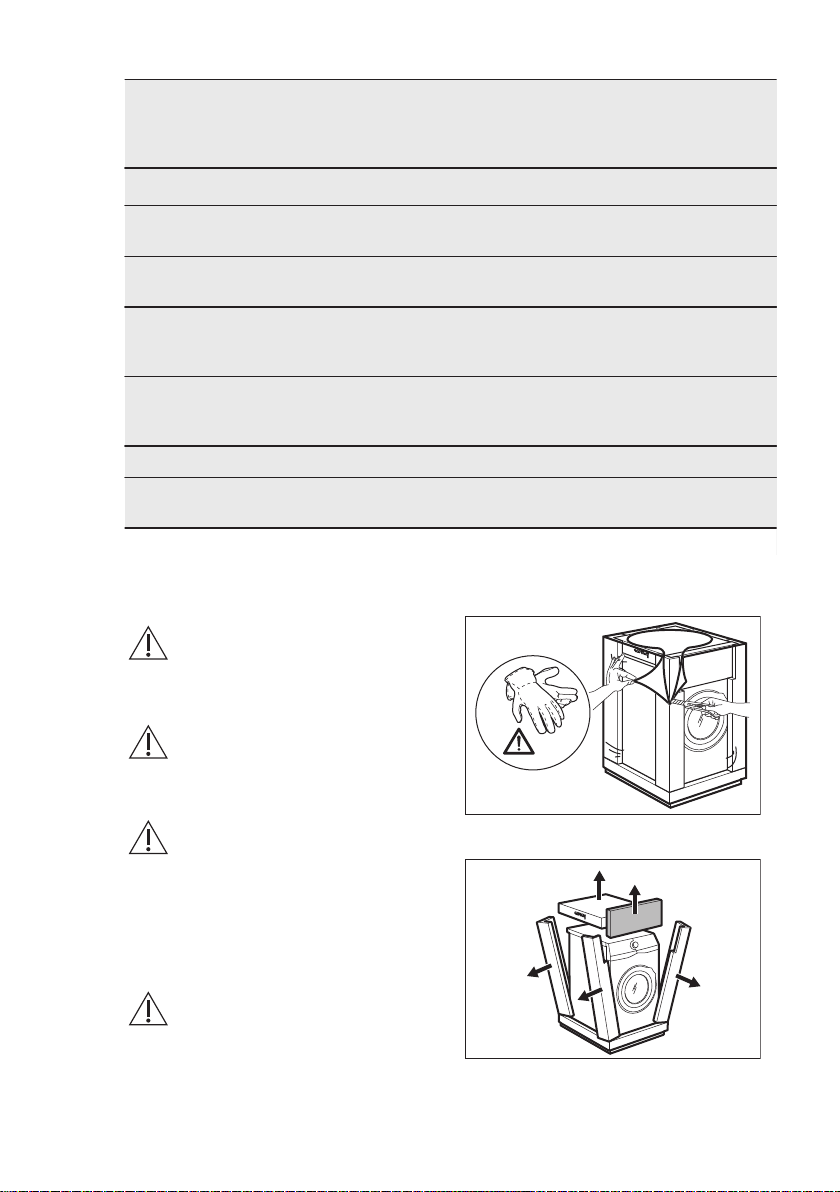

• Remove all the packaging and the transit bolts.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Do not install or use a damaged appliance.

• Do not install the appliance where the appliance door cannot be fully opened.

• Adjust the feet to have the necessary space between the appliance and the flooring.

• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

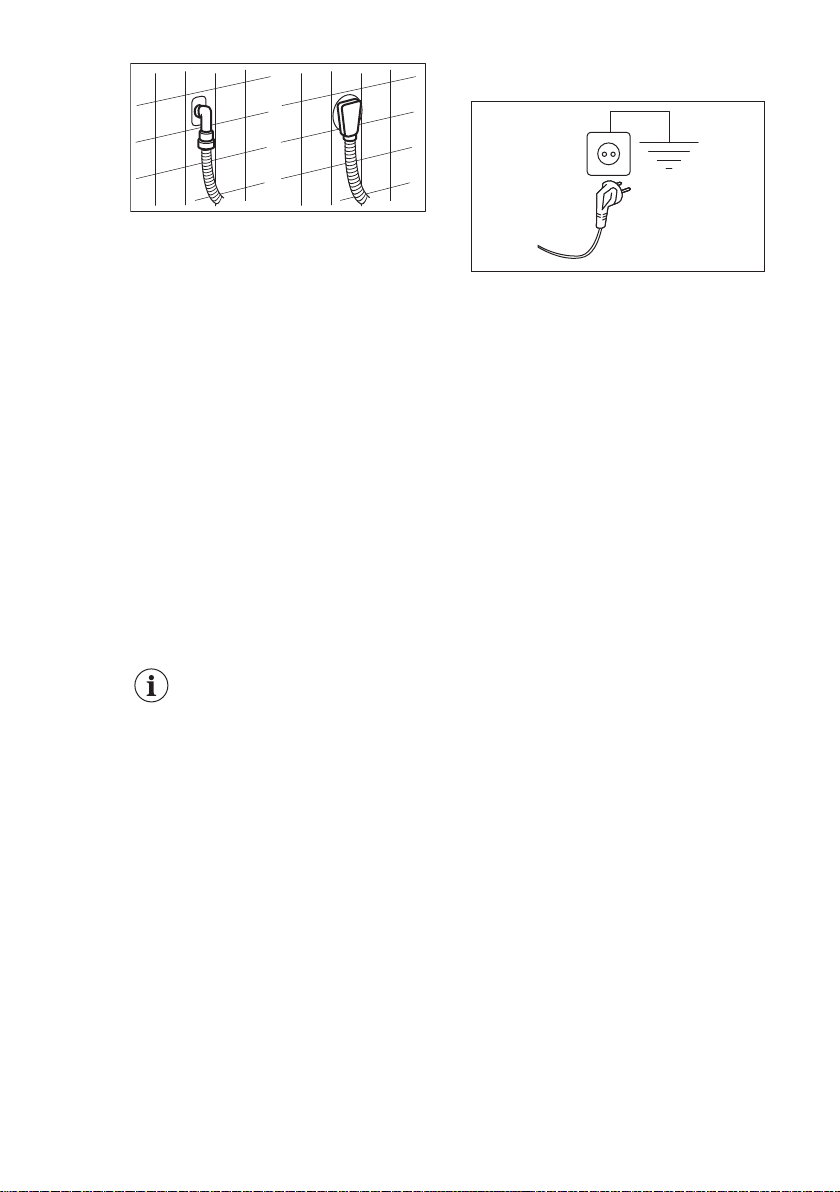

2.2 Electrical Connection

WARNING!

Risk of fire and electric shock.

• The appliance must be earthed.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug with wet hands.

2.3 Water Connection

• The inlet water shall not exceed 25 °C.

• Do not cause damage to the water hoses.

• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.

• Ensure that there are no visible water leaks during and after the first use of the appliance.

• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.

• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.

• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.

• Make sure that there is access to the tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not touch the glass door while a programme operates. The glass can get hot.

• Do not dry damaged (torn, frayed) items that contain padding or fillings.

• If laundry has been washed with a stain remover, carry out an additional rinse cycle before starting a drying cycle.

• Make sure that all metal objects are removed from the laundry.

• Dry only fabrics that are suitable to dry in the appliance. Follow the cleaning instruction on the item label.

• Do not sit or stand on the open door of the appliance.

• Do not dry dripping wet clothes in the appliance.

• Do not let hot items to touch the plastic parts of the appliance.

Page 8

www.electrolux.com8

• Remove a detergent ball (if used) before starting a drying programme.

• Do not use a detergent ball if setting a non-stop programme.

2.5 Compressor

WARNING!

Risk of damage to the appliance.

• The compressor and its system in the washer-dryer is filled with the special agent which is free from fluorochlorohydrocarbons. This system must stay tight. The damage of the system can cause a leakage.

2.6 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.

• Please note that self-repair or nonprofessional repair can have safety consequences and might void the guarantee.

• The following spare parts will be available for 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed circuit boards, electronic displays,

pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.7 Disposal

• Disconnect the appliance from the mains electrical and water supplies.

• Cut off the mains electrical cable close to the appliance and dispose of it.

• Remove the door catch to prevent children or pets from becoming trapped in the drum.

• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

Page 9

3. PRODUCT DESCRIPTION

1 32 4

00000000

00A

Mod.

xxxxxxxxx

000V ~ 00Hz 0000 W

910000000

A B C

Prod.No.

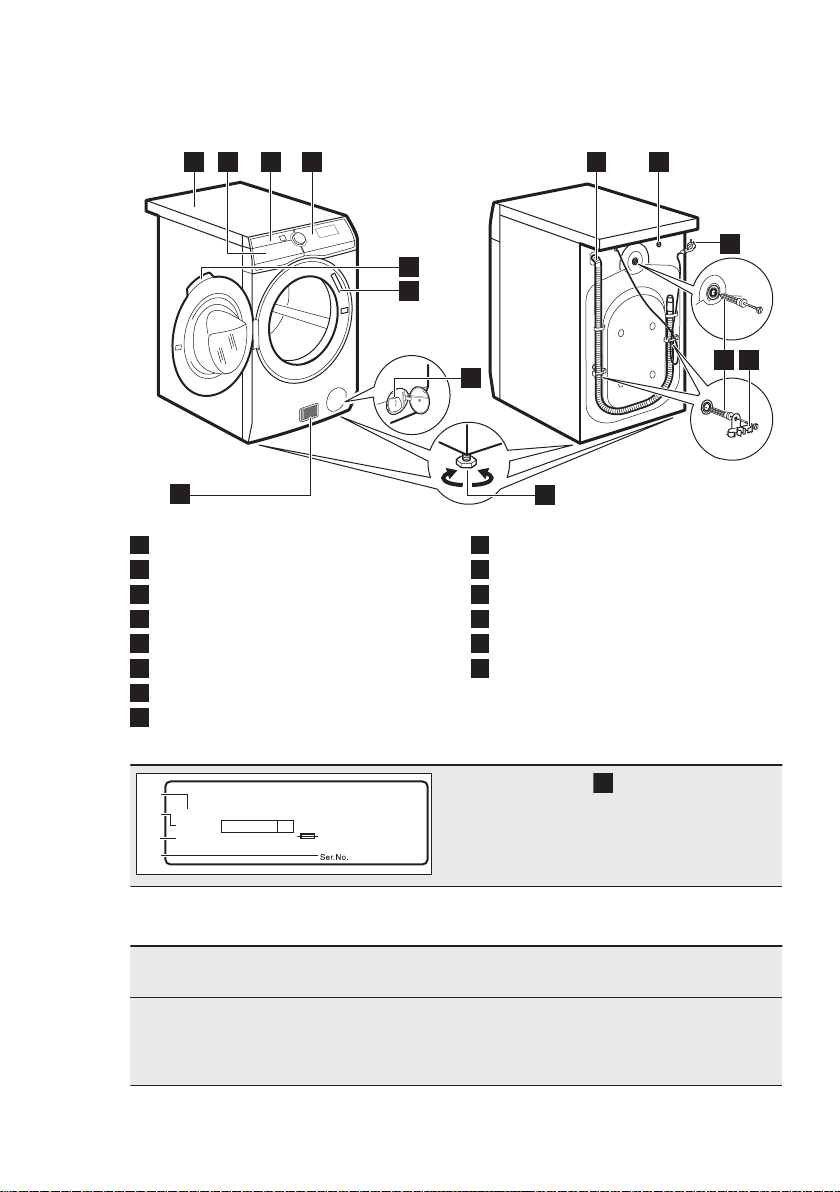

3.1 Appliance overview

ENGLISH 9

Worktop

Detergent dispenser

Air filter(s)

Control panel

Door handle

Rating plate

Drain pump filter

Feet for levelling the appliance

4. TECHNICAL DATA

Dimension Width/ Height/ Total

Electrical connection Voltage

depth

Overall power Fuse Frequency

Airflow slots

Water drain hose

Water inlet valve

Mains cable

Transit bolts

Hose supports

The rating plate 6 reports the model name (A), product number (B), electrical ratings (C) and serial number (D)).

59.7 cm /87.0 cm /66.0 cm

230 V 2200 W 10 A 50 Hz

Page 10

www.electrolux.com10

Level of protection against ingress of solid parti‐ cles and moisture ensured by the protective cov‐ er, except where the low voltage equipment has no protection against moisture

Water supply

Water supply pressure Minimum

Ambient temperature Minimum

Maximum wash load Cotton

Maximum dry load Cotton

Spin Speed Maximum spin speed 1551 rpm

This product contains HFC - R134a/GWP1430 0.14 kg fluorinated gas hermetically sealed.

Connect the water inlet hose to a water tap with a 3/4'' thread.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

Maximum

Synthetics Wool

IPX4

Cold water

0.5 bar (0.05 MPa) 8 bar (0.8 MPa)

5 °C 35 °C

10 kg 4 kg

1.5 kg

6 kg 4 kg 1 kg

5.1 Unpacking

WARNING!

Remove all the packaging and the transit bolts before installing the appliance.

WARNING!

As you will put down the appliance on the rear side,

wait about 6 hours before you use it. This time is

necessary to enable the compressor to work properly.

WARNING!

Use the gloves.

1. Remove the external film. If necessary, use a cutter.

2. Remove the cardboard top and the polystyrene packaging materials.

3. Remove the internal film.

Page 11

ENGLISH 11

4. Open the door and remove the

polystyrene piece from the door seal and all the items from the drum.

5. Carefully put the appliance down on its rear side.

6. Put the front polystyrene packaging element on the floor under the appliance.

Make sure not to damage the hoses.

8. Pull up the appliance in vertical position.

9. Remove the power supply cable and the drain hose from the hose holders.

It is possible to see water flowing from the drain hose. This is due to the testing with water of the appliance in factory.

7. Remove the polystyrene protection from the bottom.

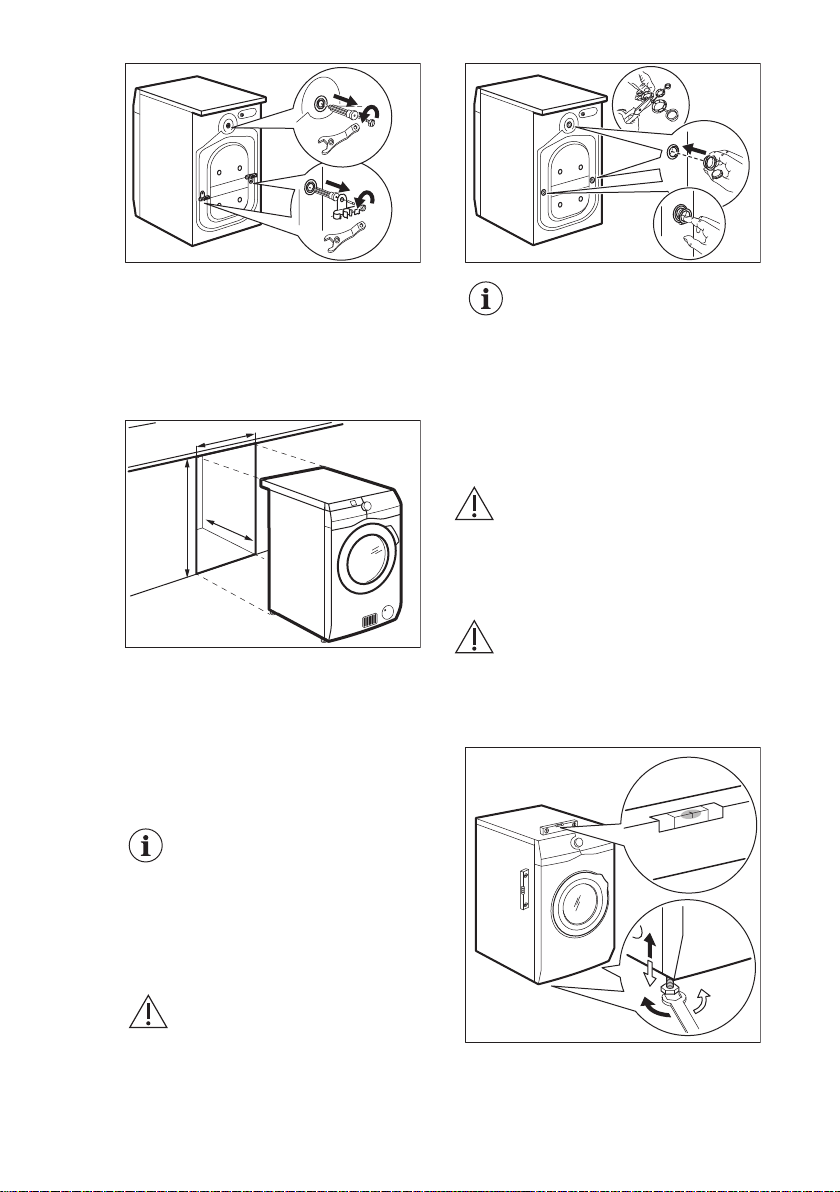

10. Remove the three bolts.

Page 12

630 mm

600 mm

≥ 870 mm

www.electrolux.com12

11. Pull out the plastic spacers.

12. Put the plastic caps, that you find in

the user manual bag, in the holes.

5.2 Installation under a counter

5.3 Positioning and levelling

1. Install the appliance on a flat hard

floor.

Make sure that carpets do not stop the air circulation below the appliance. Make sure that the appliance does not touch the wall or other units.

2. Loosen or tighten the feet to adjust the level.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

We recommend that you keep the packaging and the transit bolts for any movement of the appliance.

The appliance can be installed as freestanding or below the kitchen counter with correct space (see picture).

CAUTION!

Do not install the appliance inside a sealed hollow! Make sure that there is air circulation throw the bottom of the furniture.

CAUTION!

To assure free air circulation under the appliance, do not attach the sound barriers (if available).

The appliance must be level and stable.

Page 13

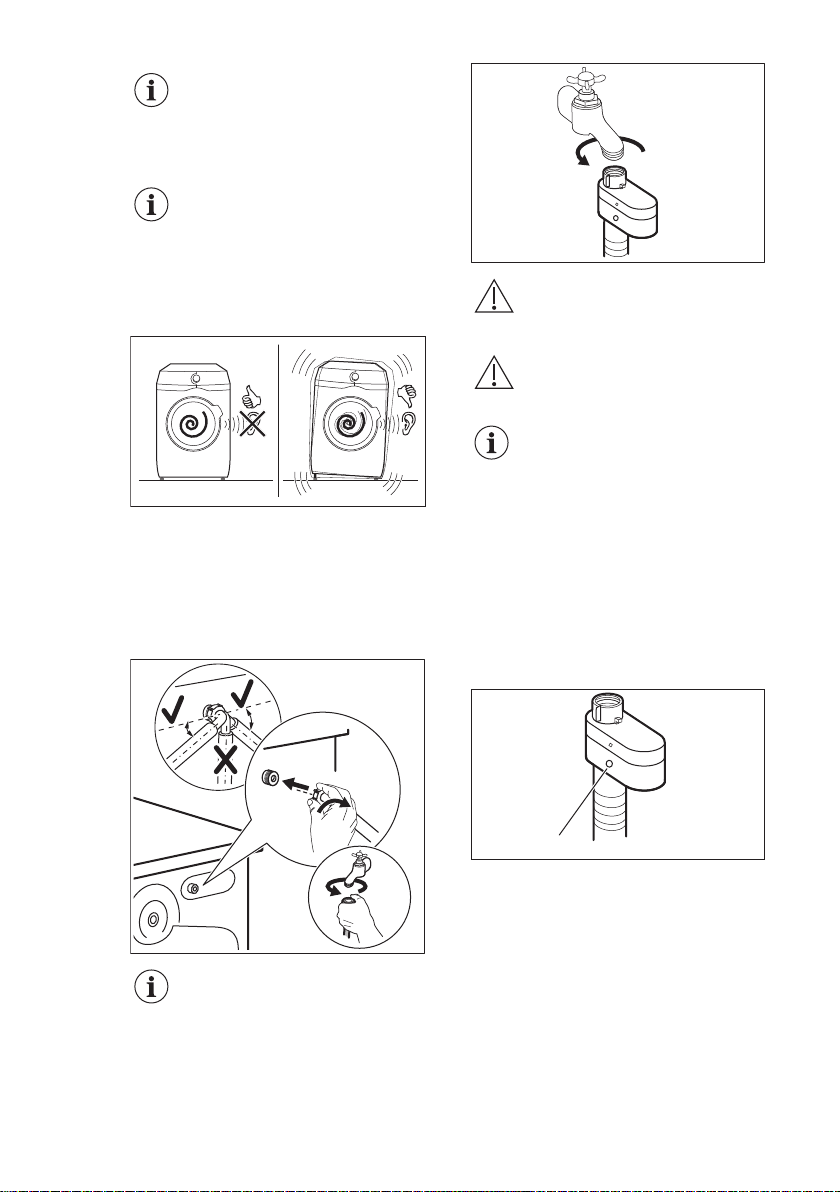

A correct adjustment of the

20º20º

45º45º

appliance level prevents the vibration, noise and the movement of the appliance when in operation.

When the appliance is installed on a plinth, use the accessory described in chapter 'Accessories'. Read carefully the instructions supplied with the appliance and with the accessory.

5.4 The inlet hose

1. Connect the water inlet hose to the

back of the appliance.

2. Position it toward left or right depending on the position of the water tap.

ENGLISH 13

WARNING!

The inlet water shall not exceed 25 °C.

CAUTION!

Make sure that there are no leaks from the couplings.

Do not use an extension hose if the inlet hose is too short. Contact the service centre for the replacement of the inlet hose.

5.5 Water-stop device

The inlet hose has a water stop device. This device prevents water leaks in the hose because of its natural ageing.

The red sector in the window «A» shows this fault.

Make sure that the inlet hose is not in vertical position.

3. If necessary, loose the ring nut to set it in the correct position.

4. Connect the water inlet hose to the cold water tap with 3/4" thread.

If this occurs, close the water tap and contact the authorized service centre to replace the hose.

5.6 Water drainage

The drain hose should be positioned at a height of not less than 60 cm and not more than 100 cm from the floor.

Page 14

www.electrolux.com14

You can extend the drain hose to maximum 400 cm. Contact the authorized service centre for the other drain hose and the extension.

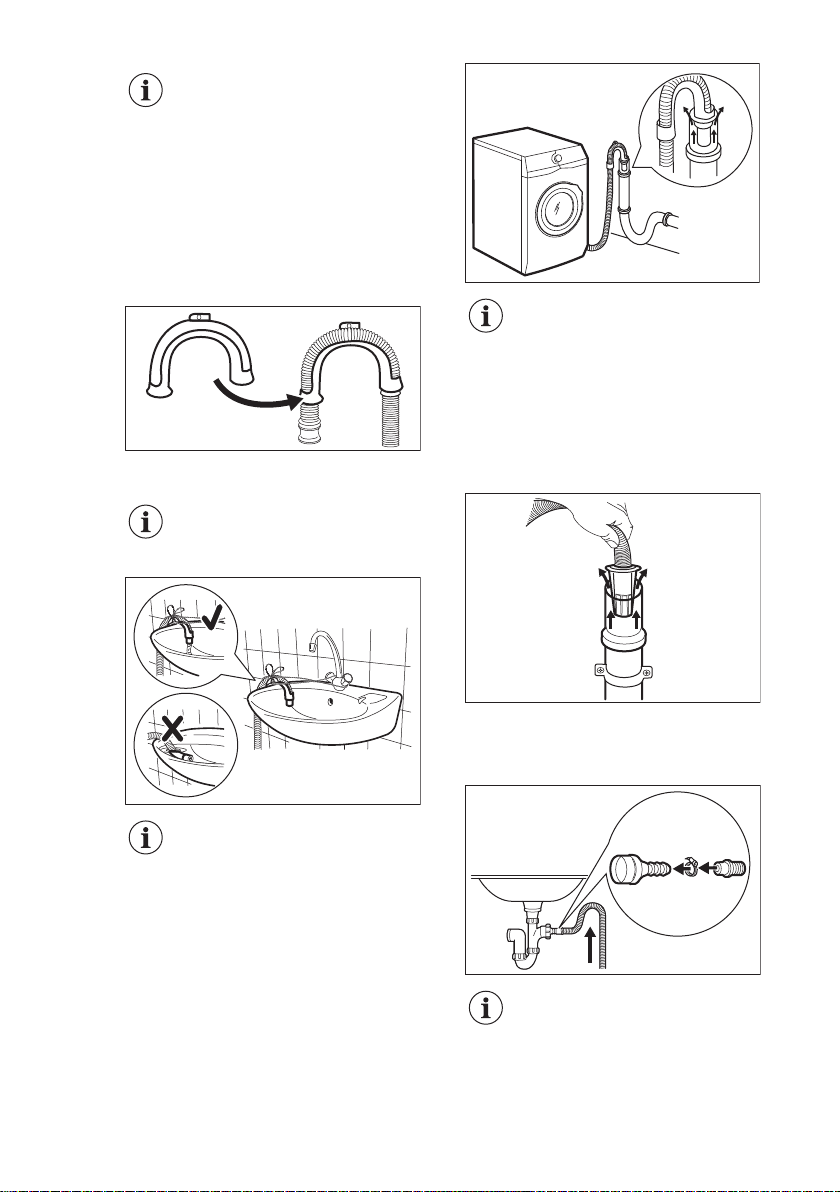

It is possible to connect the drain hose in different ways:

1. Make a U shape with the drain hose and put it around the plastic hose guide.

2. On the edge of a sink - Fasten the guide to the water tap or to the wall.

Make sure that the plastic guide cannot move when the appliance drains.

The end of the drain hose must always be ventilated , i.e. the inner diameter of the drain pipe (min. 38 mm min. 1.5") must be larger than the external diameter of the drain hose.

4. If the end of the drain hose looks like this (see the picture), you can push it directly into the stand pipe.

Make sure that the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance.

3. To a stand pipe with vent-hole Insert the drain hose directly into a drain pipe. Refer to the illustration.

5. Without the plastic hose guide, to a sink spigot - Put the drain hose in

the spigot and tighten it with a clamp. Refer to the illustration.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

6. Position the hose directly to a builtin drain pipe in the room wall and

tighten it with a clamp.

Page 15

5.7 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances in use.

6. ACCESSORIES

ENGLISH 15

Connect the appliance to an earthed socket.

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution.

6.1 Available in www.electrolux.com/shop or from authorised dealer

Read carefully the instructions supplied with the accessory.

Only appropriate accessories approved by ELECTROLUX ensure the safety standards of the appliance. If unapproved parts are used, any claims will be invalidated.

6.2 Fixing plate kit

If you install the appliance on a plinth that is not an accessory supplied by ELECTROLUX, secure the appliance in the fixing plates.

Read carefully the instructions supplied with the accessory.

Page 16

ash

Dry

Program

Eco 40-6 0

ons Synthet ics Delicat

Woo

dwash

Fresh

Scent

One GO

3h 3kg

/Drain

12 11 10 8

MIX

www.electrolux.com16

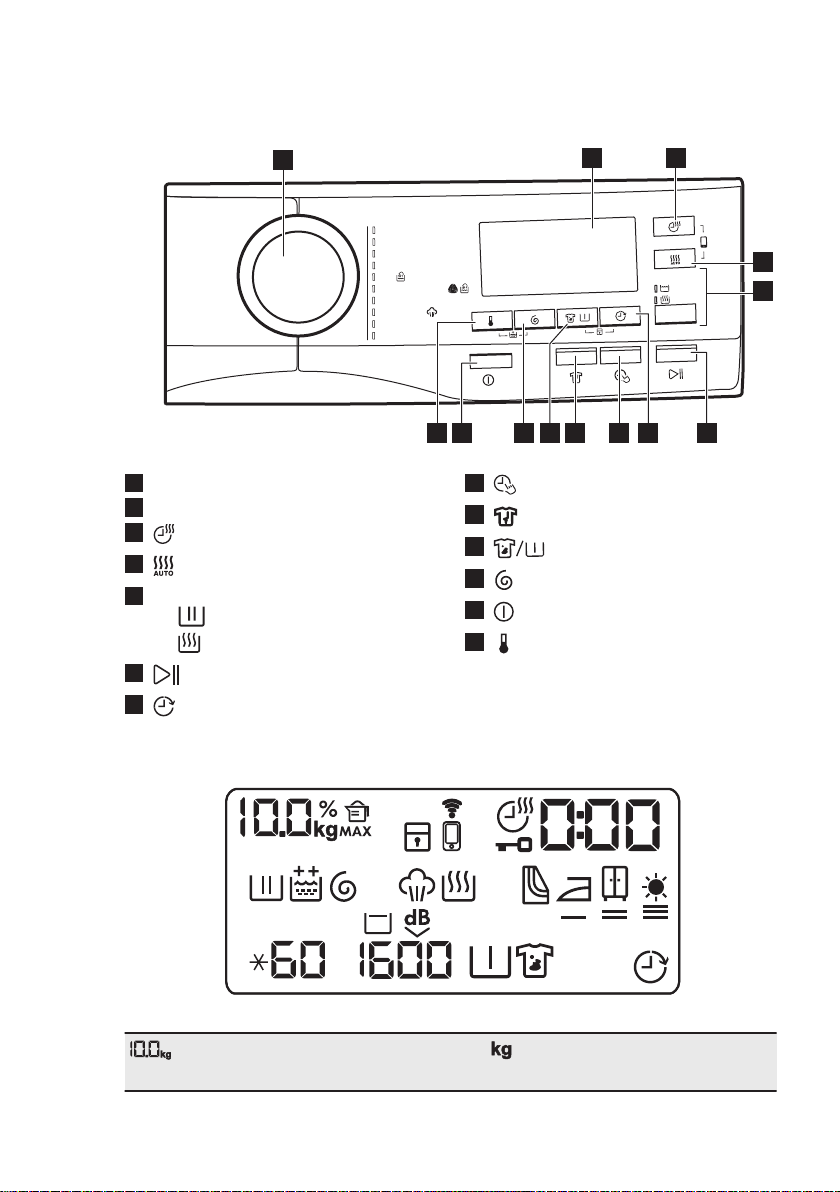

7. CONTROL PANEL

7.1 Control panel description

Programme dial

Display

2 3

Drying time touch button

Drying level touch button

Mode touch button

• Wash

• Dry

Start/Pause touch button

Delay Start touch button

Time Manager touch button

Anti-crease touch button

Stains/Prewash touch button

Spin reduction touch button

On/Off push button

Temperature touch button

7.2 Display

Laundry weight indicator. The icon flashes during laundry load estimation (refer to "SensiCare load detection" paragraph).

Page 17

ENGLISH 17

Maximum laundry indicator. It flashes when the laundry load ex‐

ceeds the maximum declared load of the selected programme.

Detergent quantity indicator: the value shows the percentage of de‐

tergent quantity needed.

Child safety lock indicator.

Wi-Fi connection indicator.

Remote connection indicator.

Drying time indicator.

Door locked indicator.

The digital indicator can show:

• Programme duration (e. g. , washing and/or drying phase).

• Delay time (e. g. or ).

• Cycle end ( ).

• Warning code (e.g.

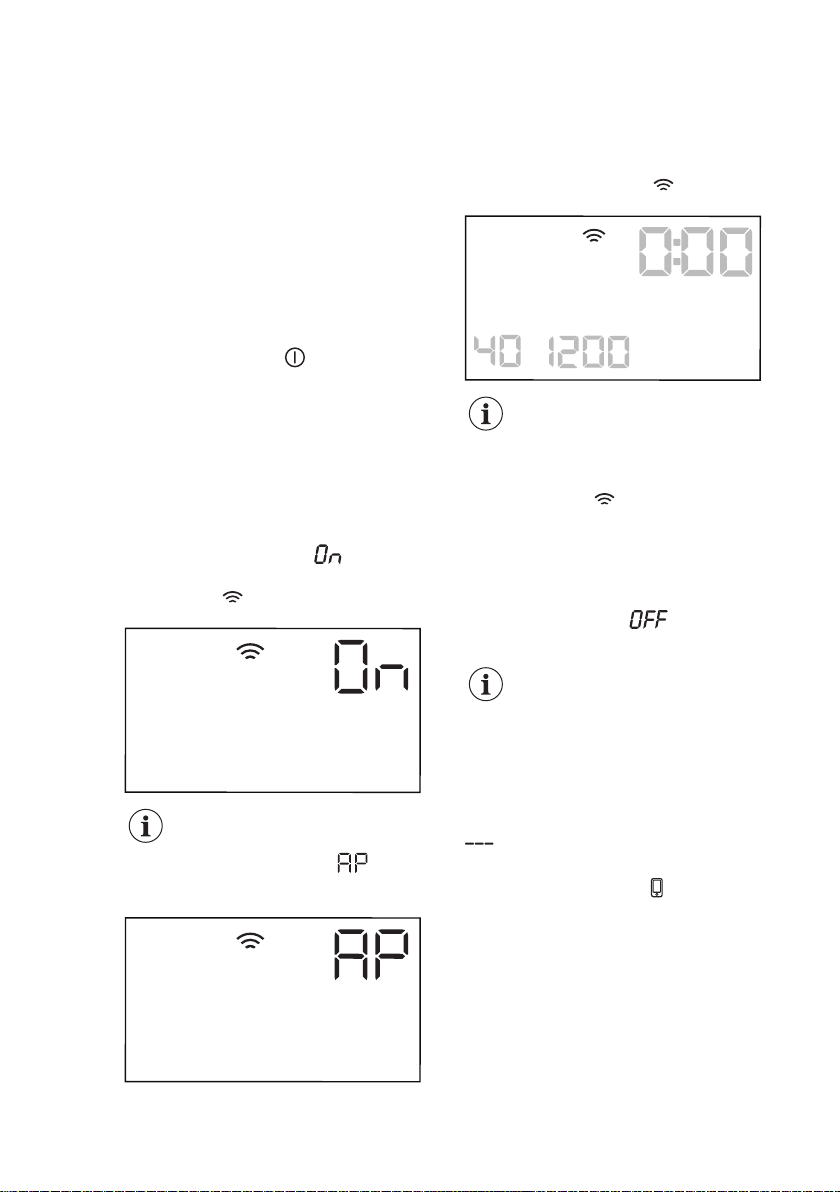

• When working with the APP: , (access point), (update). Please refer to the chapter 'Wi-FI - Connectivity setup'.

Washing phase indicator: it flashes during prewash and wash phase.

Rinsing phase indicator. It flashes during rinse phase.

The permanent Extra Rinse option:

• - one additional rinse.

• - two additional rinses.

Spin and drain phase indicator. It flashes during spin and drain phase.

Steam phase indicator.

Drying phase indicator.

Indicator for the cleaning of air filters.

Iron drying indicator.

Cupboard drying indicator.

Extra drying indicator.

Temperature indicator. The indicator appears when a cold wash is set.

Page 18

www.electrolux.com18

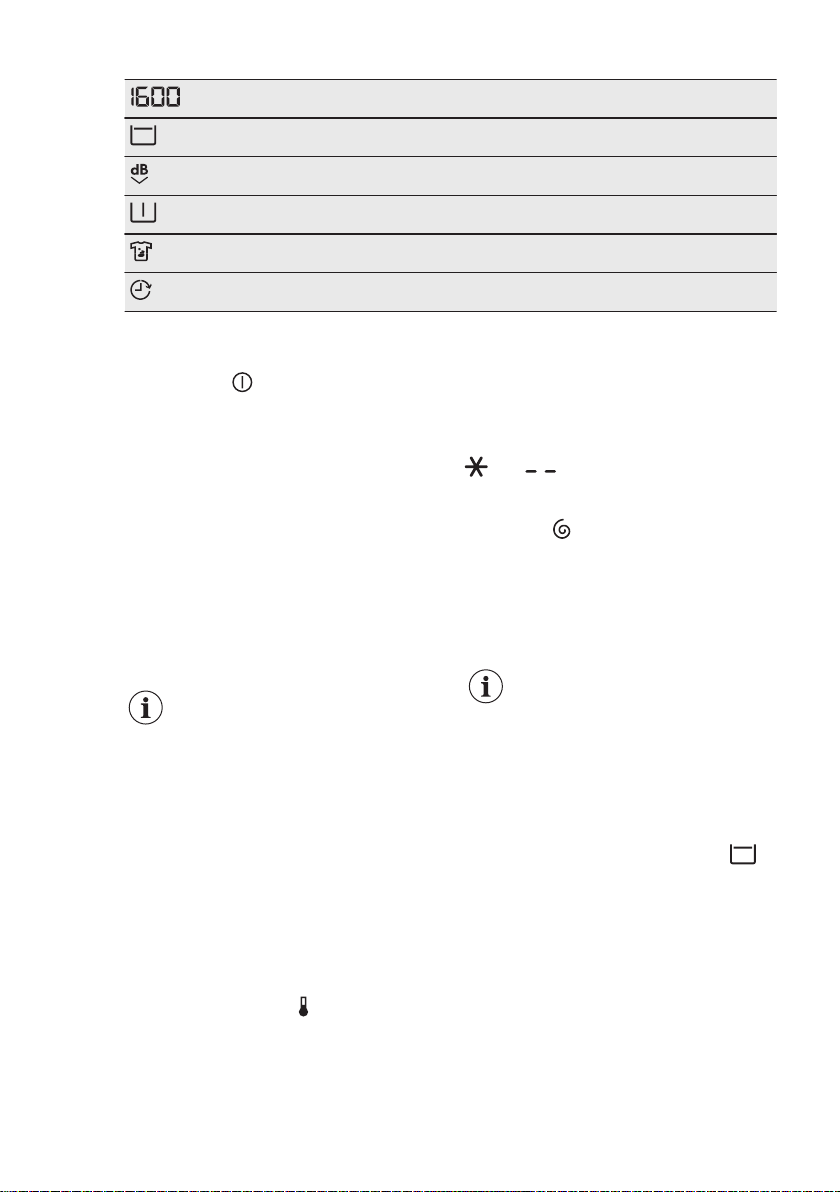

Spin speed indicator.

Rinse hold indicator.

Extra silent indicator.

Pre-wash indicator.

Stain indicator.

Delay start indicator.

8. DIAL AND BUTTONS

8.1 On/Off

Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance to decrease the energy consumption in a few cases, you may need to activate the appliance again.

For more details, refer to Stand-by paragraph in Daily Use chapter.

8.2 Introduction

The options/functions are not selectable with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set the incompatible options/functions together. Make sure the screen and touch buttons are always clean and dry.

8.3 Temperature

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators

and , the appliance does not heat

the water.

8.4 Spin

When you set a programme, the appliance automatically selects the default spin speed.

Touch this button repeatedly to:

• Change the spin speed.

The display shows only the spin speeds available for the set programme.

• Activate the Rinse Hold option . The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum and the final spin phase is not performed.

The display shows the indicator . The drum turns regularly to reduce creasing. The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door. Touch Start/Pause button: the appliance performs the spinning phase and drains the water.

• Activate the Extra silent option. All spinning phases (intermediate spin and final spin) are suppressed and

Page 19

ENGLISH 19

the programme ends with water in the drum. This helps to reduce creasing. As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

The display shows the indicator . The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door. Touch the Start/Pause button: the appliance performs only the draining phase.

The appliance empties the water out automatically after approximately 18 hours.

8.5 Stains/Prewash

Press this button repeatedly to activate one of the two options.

The relevant indicator goes on in the display.

• Stains Select this option to add an anti-stain phase to a programme in order to treat heavily soiled or stained laundry with stain remover. Pour the stain remover into

compartment . The stain remover will be added in the appropriate phase of the washing programme.

This option can increase the programme duration.

This option is not available with a temperature lower than 40 °C.

• Prewash Use this option to add a prewash phase at 30 °C before the washing phase. This option is recommended for heavily soiled laundry, especially if containing sand, dust , mud and other solid particles.

This option can increase the programme duration.

These two options cannot be set together.

8.6 Delay Start

With this option you can delay the start of a programme in a more convenient time.

Tap on the button repeatedly to set the required delay. The time increases by steps of 30 minutes up to 90' and from 2 hours up to 20 h.

After starting the cycle by the means of

the Start/Pause shows the selected delay time and the appliance begins the countdown.

button, the display

8.7 Time Manager

With this option you can decrease the programme duration.

• If your laundry is normally or lightly soiled, it may be advisable to shorten the washing programme. Touch this button once to decrease the duration.

• In case of smaller load, touch this button twice to set an extra quick programme.

On the display the programme duration is adjusted accordingly.

When this button is set, the led above the button is on.

This option can also be used to shorten the steam programme duration.

8.8 Anti-crease

This option adds a short anti-crease phase at the end of the programme.

This phase reduces fabric creasing and facilitates the fabric ironing.

When this option is set, the led above the button is on and then blinks during anticrease phase.

This option can increase the programme duration.

By touching any button the anti-crease movements stop and the door unlocks.

Page 20

www.electrolux.com20

To interrupt the anti-crease phase, you can also:

• Press the On/Off button for a few seconds to activate or the deactivate the appliance.

• Turning the programme dial in another position.

8.9 Time Dry

In the programme where it is selectable, touch this button to set the time that suits the fabrics you have to dry (refer to "Timed drying" table). The display shows the set value.

Each time you touch this button the time value increases by 5 minutes.

You cannot set all time values for different types of fabrics.

8.10 Auto Dry

Touch this button to set one of 3 automatic dryness levels proposed by the appliance.

On the display the relevant dryness indicator goes on:

• Iron dry: laundry to be ironed.

• Cupboard dry: laundry to be put in store.

• Extra dry: laundry to be fully dried.

You can not set all automatic levels for each type of fabrics.

8.11 Mode

Thanks to this button, a cycle can perform:

• Only washing : Wash indicator is on.

• Washing and drying : Wash and Dry indicators are on.

• Only drying

: Dry indicator is on.

8.12 Start/Pause

Touch the Start/Pause button to start, pause the appliance or interrupt a running programme.

9. PROGRAMMES

9.1 Programme Chart

Additional programmes and settings are available downloading the APP.

Page 21

ENGLISH 21

Programme Default tempera‐ ture Temperature range

Eco 40-60 (Wash only mode)

40 °C

Eco 40-60 + Cup‐ board dry level (Wash & Dry mode)

40 °C

Eco 40-60 + Cup‐ board dry level (Dry only mode)

Cottons 40 °C 95 °C - Cold

Synthetics 40 °C 60 °C - Cold

Delicates 30 °C 40 °C - Cold

Silk 30 °C

Wool/Handwash 40 °C 40 °C - Cold

One GO 3h 3kg 30 °C 40 °C - 30 °C

Reference spin speed Spin speed

Maxi‐ mum load

Programme description

range

1600 rpm 1600 rpm - 400

10 kg

rpm

White cotton and fast-coloured cot‐ ton. Normally soiled items.

1600 rpm 1600 rpm -1000

6 kg

rpm

- 6 kg

1600 rpm 1600 rpm - 400 rpm

1200 rpm 1200 rpm - 400

White cotton and fast-coloured cot‐ ton.

White cotton and coloured cotton.

Normally, heavily and lightly soiled

10 kg

items.

Synthetic items or mixed fabric items. Normally soiled items.

4 kg

rpm

1200 rpm 1200 rpm - 400 rpm

1000 rpm 1000 rpm - 400

Delicate fabrics such as acrylics, viscose and mixed fabrics requiring

2 kg

gentler washing. Normally and lightly soiled items.

Special programme for silk and mixed synthetic items.

0.5 kg

rpm

1200 rpm 1200 rpm - 400 rpm

Machine washable wool, hand washable wool and other fabrics

1.5 kg with «hand washing» care symbol3).

1200 rpm 3 kg Mixed fabrics (cotton and synthetic

items). Complete programme to wash and dry laundry loads up to 3 kg in one go. It only lasts 3 hours.

Also, the indicator appears on the display.

Page 22

www.electrolux.com22

Programme Default tempera‐ ture Temperature

Reference spin speed Spin speed range

Maxi‐ mum load

Programme description

range

Steam programme with FreshScent System

Steam programme can be used for reducing wrinkles and odours4) of garments that just need to be refreshed, avoiding washing. The fabric fibres are relaxed and after‐ wards ironing becomes effortless. When the programme is completed, quickly re‐

move the laundry from the drum

. Steam programmes do not perform any hygienic

cycle. Do not set this programme with the following type of items:

• Items that are not suitable for tumble drying.

• Items with label "Dry clean only". ELECTROLUX fragrance. If you use this special gentle fragrance, your laundry will

scent as just washed: pour a single dose bottle in the compartment and simply start a steam programme. Reduce the fragrance dosage when treating smaller load. By means of the Time Manager button, you can reduce the programme duration when treating items labeled to be washed at low temperature. DO NOT:

• Tumble dry the garments treated with fragrance. Its benefit would evaporate.

• Use the fragrance with different purposes than those here described.

• Use the fragrance on new garments. New garments may contain residual finishing compounds which are not compatible with it.

The fragrance dose bottles are available on ELECTROLUX web shop or by authorised dealer.

1 kg Cottons, Synthetics, Delicates.

FreshScent

Short and gentle steam programme to refresh even your very delicate gar‐ ments, including very delicate gar‐ ments with sequins, lace etc. When treating smaller loads, the programme

duration can be further reduced by means of the Time Manager option.

WARNING!

Do not use this pro‐ gramme with wool and garments labelled as dryclean only.

Rinse

1600 rpm 1600 rpm - 400 rpm

To rinse and spin the laundry. All fab‐ rics, except woollens and very deli‐

10 kg

cate fabrics. Reduce the spin speed accordingly to the type of laundry.

Page 23

ENGLISH 23

Programme Default tempera‐ ture Temperature

Reference spin speed Spin speed range

Maxi‐ mum load

Programme description

range

1600 rpm

Spin/Drain

According to Commission Regulation EU 2019/2023. This programme at default tem‐

perature and spin speed, in washing only mode, with rated capacity 10 kg is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

According to Commission Regulation EU 2019/2023. This programme at default tem‐

perature and spin speed, in washing and drying mode, with rated capacity 6 kg and with Cupboard dry level performs the wash and dry cycle able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle and, after drying phase, the laundry can be immediately stored in a cupboard.

During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the

drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

Steam programme doesn't remove particularly intense odour.

After the steam treatment the laundry can be humid. Hang items out for a few minutes.

1600 rpm -

All fabrics, except woollens and delicate fabrics. To spin the laundry

10 kg

and to drain the water in the drum.

Programme options compatibility

Programme

Options

Spin

Rinse Hold

Extra Silent

Cottons

Eco 40-60

Delicates

Synthetics

Silk

Wool/Handwash

One GO 3h 3kg

Rinse

FreshScent

■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■

Spin/Drain

Page 24

www.electrolux.com24

Programme

Options

No Spin

Extra Rinse

Prewash

Stains

Delay Start

Time Manager

Anti-crease

Time Dry

Cottons

Eco 40-60

Delicates

Synthetics

Wool/Handwash

One GO 3h 3kg

■ ■ ■ ■ ■ ■

■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■

Silk

■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■

Rinse

FreshScent

Spin/Drain

■

Auto Dry

If you set No Spin option, the appliance only drains the water.

This option is not available with temperature lower than 40 °C.

If you set the shortest duration, we recommend that you decrease the load size. It is pos‐

sible to fully load the appliance, however the washing results can be less satisfactory.

Iron Dry is not available with this programme.

■

Suitable detergents for each programme

Programme Universal

powder

Liquid Uni‐ versal

Liquid for coloureds

Delicates woollens

Special

Eco 40-60 ▲ ▲ ▲ -- --

Cottons ▲ ▲ ▲ -- --

Page 25

ENGLISH 25

Programme Universal

powder

Synthetics ▲ ▲ ▲ -- --

Delicates -- -- -- ▲ ▲

Silk -- -- -- ▲ ▲

Wool/Hand‐ wash

One GO 3h 3kg

At temperature higher than 60 °C the use of powder detergent is recommended.

▲ = Recommended

-- = Not recommended

-- -- -- ▲ ▲

-- ▲ ▲ -- --

9.2 Woolmark Apparel Care -

Blue

• The wool wash cycle of this machine has been approved by The Woolmark

Liquid Uni‐ versal

Liquid for coloureds

Company for the washing of wool garments labelled as "hand wash" provided that the garments are washed according to the instructions issued by the manufacturer of this washing machine. Follow the garment care label for drying and other laundry instructions. M1230

• The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as "hand wash" provided that the garments are dried according to the instructions issued by the manufacturer of this machine. Follow the garment care label for other laundry instructions. M1399

The Woolmark symbol is a Certification mark in many countries.

Delicates woollens

Special

9.3 Automatic drying

Dryness Level Type of fabric Load

Cottons and Linen

Extra Dry

For towelling materials

Cupboard Dry

For items to be stored

Synthetics and mixed

(bathrobes, bath towels, etc)

Cottons and Linen

(bathrobes, bath towels, etc)

fabrics

(jumpers, blouses, under‐ wear, household and bed linen)

up to 6 kg

up to 4 kg

Page 26

www.electrolux.com26

Dryness Level Type of fabric Load

Delicate fabrics

(acrylics, viscose and deli‐ cate mixed fabrics)

Wool items

Outdoor sporting gar‐

Iron Dry

Suitable for ironing

(woollen jumpers)

ments

(outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets)

Silk

(silk garments and very delicate items)

Cottons and Linen

(sheets, tablecloths, shirts, etc)

9.4 Timed drying

up to 2 kg

up to 1 kg

up to 2 kg

up to 0.5 kg

up to 6 kg

Dryness Level Type of fabric Load

Extra Dry

For towelling materials

Cupboard Dry

For items to be stored

Synthetics and mixed fabrics

Wool

Outdoor sporting garments

Cottons and Linen

(bathrobes, bath towels, etc)

Cottons and Linen

(bathrobes, bath towels, etc)

(jumpers, blouses, underwear, household and bed linen)

Delicates

(acrylics, viscose and delicate mixed fabrics)

(woollen jumpers)

(outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets)

(kg)

6 1600 280 - 300

4 1600 170- 190

2 1600 120 - 130

6 1600 270 - 290

4 1600 160 - 180

2 1600 110 - 120

4 1200 170 - 190

2 1200 100 - 120

2 1200 140 - 160

1 1200 70 - 90

1 1200 90 - 110

2 1200 140 - 160

1 1200 90 - 110

Spin spee d (rpm)

Suggested duration (mins)

Page 27

ENGLISH 27

Dryness Level Type of fabric Load

Silk

(silk garments and very delicate items)

Iron Dry

Suitable for ironing

Cottons and Linen

(sheets, tablecloths, shirts, etc)

10. WI-FI - CONNECTIVITY SETUP

This chapter describes how to connect the smart appliance to the Wi-Fi network and to link it to mobile devices.

By this functionality you can receive notifications, control and monitor your appliance from your mobile devices.

To connect the appliance to enjoy the full range of features and services you need:

• Wireless network at home with internet connection enabled.

• Mobile device connected to wireless network.

Frequency/ Protocol

Max Power Wi-Fi 2.4 GHz: <20

Encryption WPA, WPA2

Wi-Fi: 2.4 GHz / 802.11

bgn

Wi-Fi: 5 GHz / 802.11 an (for indoor use only)

Bluetooth Low Energy

5.0: 2.4 GHz / DSSS

dBm

Wi-Fi 5 GHz: <23 dBm

Bluetooth Low Energy

5.0: < 20 dBm

10.1 Installing and configuring

"My Electrolux"

When connecting the appliance to the application, stand near it with your smart device.

Make sure that your smart device is connected to the wireless network.

1. Go to the App Store on your smart device.

2. Download and install the App "My Electrolux".

3. Make sure you started a Wi-fi connection in the appliance. If not,

Spin spee d (rpm)

Suggested duration (mins)

(kg)

0.5 1000 60 - 80

6 1600 160 - 180

4 1600 100 - 120

2 1600 50 - 60

"My Electrolux" allows you to control your laundry through a mobile device. It contains a large number of programmes, useful features and product information tailored perfectly to the appliance. Through the app you can select the programmes already available from the appliance control panel, plus unlock additional programmes available only from a mobile device Additional programmes can change over the time along with new versions of the app. It's personalized laundry care - all from your mobile device.

Page 28

www.electrolux.com28

read the next paragraph 'Configuring the appliance wireless connection'.

4. Start the application. Select the country and language and login with Your email and password. If you do not have an account, create a new one following the instructions in "My Electrolux".

5. Follow the instructions on the App for the appliance registration and configuration.

10.2 Configuring the appliance

wireless connection

1. Press the On/Off button for a few seconds to activate the appliance. Wait about 10 seconds before proceeding with wireless configuration.

2. Select a programme by turning the programme dial.

3. Press and hold the Auto Dry and the Mode buttons simultaneously for a few seconds until a 'click' sounds.

Release the buttons. appears on the display for 5 seconds and the indicator starts blinking.

The wireless module begins starting up.

5. Configure the "My Electrolux" app on your smart device and follow the instructions to connect the appliance to your Wi-Fi network.

6. If the connectivity is configured, when the programme information screen returns, the indicator is on the display.

Every time you switch the appliance on, the appliance takes about 10 seconds to connect to the network automatically. When the indicator stops blinking the connection is ready.

To switch the wireless connection off, press and hold the Auto Dry and the Mode buttons simultaneously for a few seconds until the first acoustic signal.

Release the buttons. the display for 5 seconds.

If you switch the appliance off and on again, the wireless connection is automatically off.

appears on

Make sure that you APP is ready for connection.

4. After about 10 seconds, (Access Point) appears on the display.

The access point will be open for about 3 minutes.

To remove the wireless credentials, press and hold the Auto Dry and the Mode buttons simultaneously for 10 seconds until the second acoustic signal:

appears on the display.

10.3 Remote Start

The Remote Start enables you to start a cycle in remote control.

Page 29

ENGLISH 29

The Remote Control activates automatically when you press the Start/Pause

button to start the programme, but it is also possible to start a washing programme remotely. This function is deactivates when door is open.

When the App is installed and the wireless connection is complete, you can activate the Remote Start:

Press and hold the Auto Dry and the Time Dry buttons simultaneously for a

few seconds. The indicator the display and the door is locked. Now it is possible to start the programme remotely.

To remove the Remote Start, press and hold the Auto Dry and the Time Dry buttons simultaneously for a few seconds

until the indicator disappears on the display.

appears on

11. BEFORE FIRST USE

During installation or before first use you may observe some water in the appliance. This is a residual water left in the appliance after a full functional test in the factory to ensure the appliance is delivered to customers in perfect working order and is no cause for concern.

1. Make sure that all transit bolts have been removed from the appliance.

2. Make sure that the electrical power is available and the water tap is open.

10.4 Over-the-air update

The App may propose an update for your appliance.

The update is accepted via App only.

If a programme is running, the App notifies that the update will start at the end of the programme.

During the update, the appliance shows

in the display.

Do not switch off or unplug the appliance during update.

The appliance will usable again at the end of the update, without any notification about successful update.

If an error occurs, the appliance shows

in the display: just press any buttons or turn the knob to return to normal use.

3. Pour 2 litres of water into the

detergent compartment marked by

This action activates the drain system.

4. Pour a small quantity of detergent

into the compartment marked by .

5. Set and start a programme for cotton

at the highest temperature without

any laundry in the drum.

This removes all possible dirt from the drum and the tub.

12. SETTINGS

12.1 Child Lock

With this option you can prevent that the children play with the control panel.

• To activate/deactivate this option, touch the Stains/Prewash and the Delay Start buttons simultaneously

until the indicator comes on/goes off on the display.

You can activate this option:

• After you touch the Start/Pause button: all the buttons and the

Page 30

www.electrolux.com30

programme dial are deactivated

(except On/Off button ).

• Before you touch the Start/Pause button: the appliance cannot start.

The appliance keeps the selection of this option after you switch it off.

12.2 Acoustic signals

This appliance is provided with different acoustic signals, that operate when:

• You activate the appliance (special short tune).

• You deactivate the appliance (special short tune).

• You touch the buttons (click sound).

• You make a wrong selection (3 short sounds).

• The programme is completed (sequence of sounds for about 2 minutes).

• The appliance has a malfunction (sequence of short sounds for about 5 minutes).

To deactivate/activate the acoustic signals when the programme is

13. DAILY USE

WARNING!

Refer to Safety chapters.

13.1 Using weight sensors

For a correct use of the weight sensor, the drum must be empty when activating the appliance. Set the programme BEFORE you put the laundry in the drum.

13.2 Before activating the

appliance

1. Make sure that the mains plug is

connected to the mains socket.

2. Make sure that the water tap is open.

13.3 Activating the appliance

and setting a programme

1. Press button On/Off for a few

seconds to activate the appliance.

completed, touch the Delay Start and the Quick buttons simultaneously for about 6 seconds.

If you deactivate the acoustic signals, they continue operate when the appliance has a malfunction.

12.3 Permanent Extra Rinse

With this option you can permanently have one or two extra rinses when you set a new programme.

• Simultaneously touch the Temperature button and the Spin

button once to add one extra rinse. appears on the display.

• Simultaneously touch the Temperature button and the Spin button twice to add two extra rinses.

appears on the display.

• Simultaneously touch the Temperature button and the Spin button three times to remove extra

rinses. The display only shows

The programme dial is automatically set on default programme and only the Wash indicator is on. The indicator of Start/Pause button flashes.

2. Turn the programme knob to the

necessary programme.

The programme indicator comes on. The display shows the maximum load, the default temperature, the maximum spin speed, the indicators of the phases making up the programme and the programme duration.

3. If it is necessary, touch the

Temperature button and the Spin

button to change the water

temperature and the spin speed.

4. If necessary, touch the related

buttons to add some options and/or

to set a delayed start.

The display shows the symbol of the set option and/or the digit shows the delayed time.

Page 31

ENGLISH 31

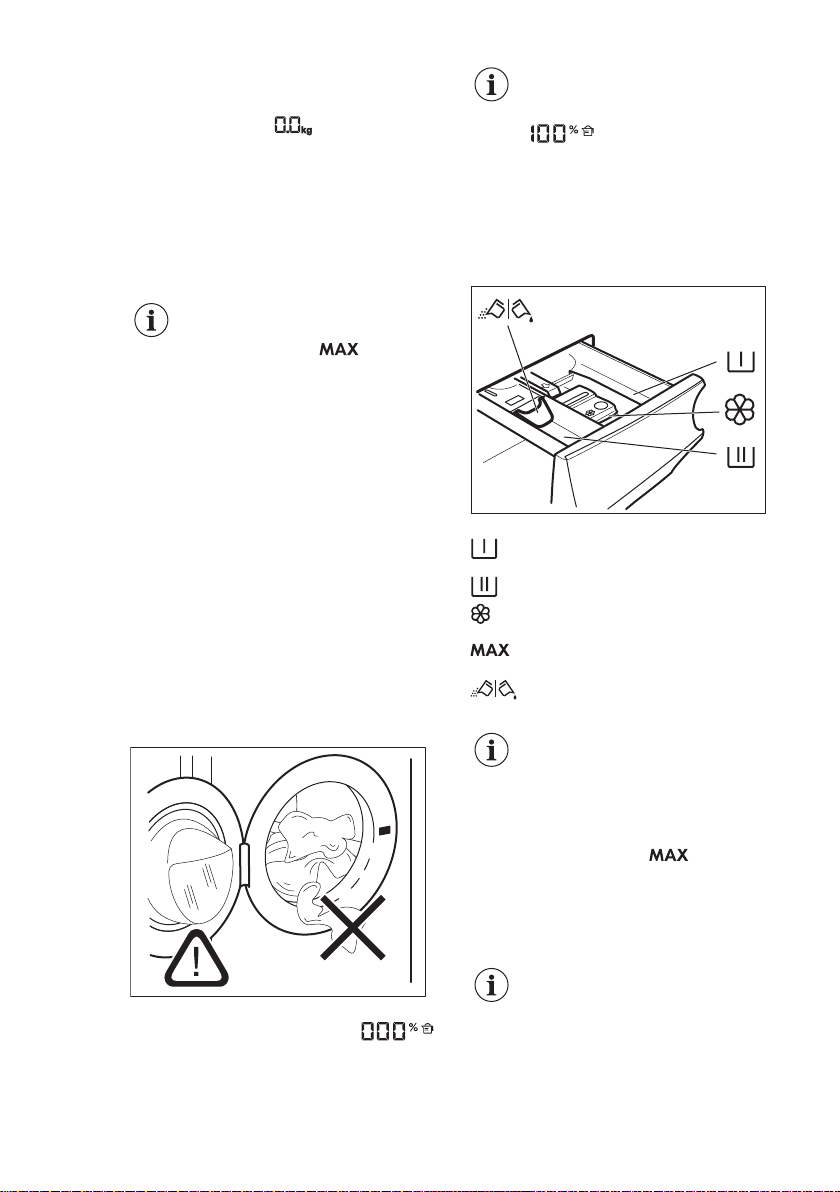

13.4 Loading the laundry

1. Open the appliance door.

The display shows

2. Shake the items before you put them in the drum. Put the laundry in the drum, one item at time.

On the display the weight of the laundry is updated by steps of kg 0.5 and the programme duration is updated accordingly. The weight is indicative and changes with the type of the laundry.

If you put in the drum more laundry than the maximum

load, the symbol flashes for a few seconds and shows the maximum recommended load. You can wash your laundry anyway, but the water and energy consumption increase. To have the best consumption and washing performance remove the exceeding items. The overload indication is shown only in programmes with a maximum load lower than the appliance maximum load.

3. Close the door. Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.

If you change the washing programme after closing the door, the display could show

to indicate a possible overload: open the door and remove a few garments.

13.5 Filling the detergent and additives

Compartment for prewash phase, soak programme or stain remover. Compartment for washing phase.

Compartment for liquid additives (fabric conditioner, starch). Maximum level for quantity of liquid additives. Flap for powder or liquid detergent.

Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum

indicated level ( ). This quantity will however guarantee the best washing results.

4. The display shows the percentage of detergent quantity needed

This data is indicative and refers to the detergent dosage recommended for a maximum load on the detergent package.

After a washing cycle, if necessary, remove any detergent residue from the

detergent dispenser.

Page 32

www.electrolux.com32

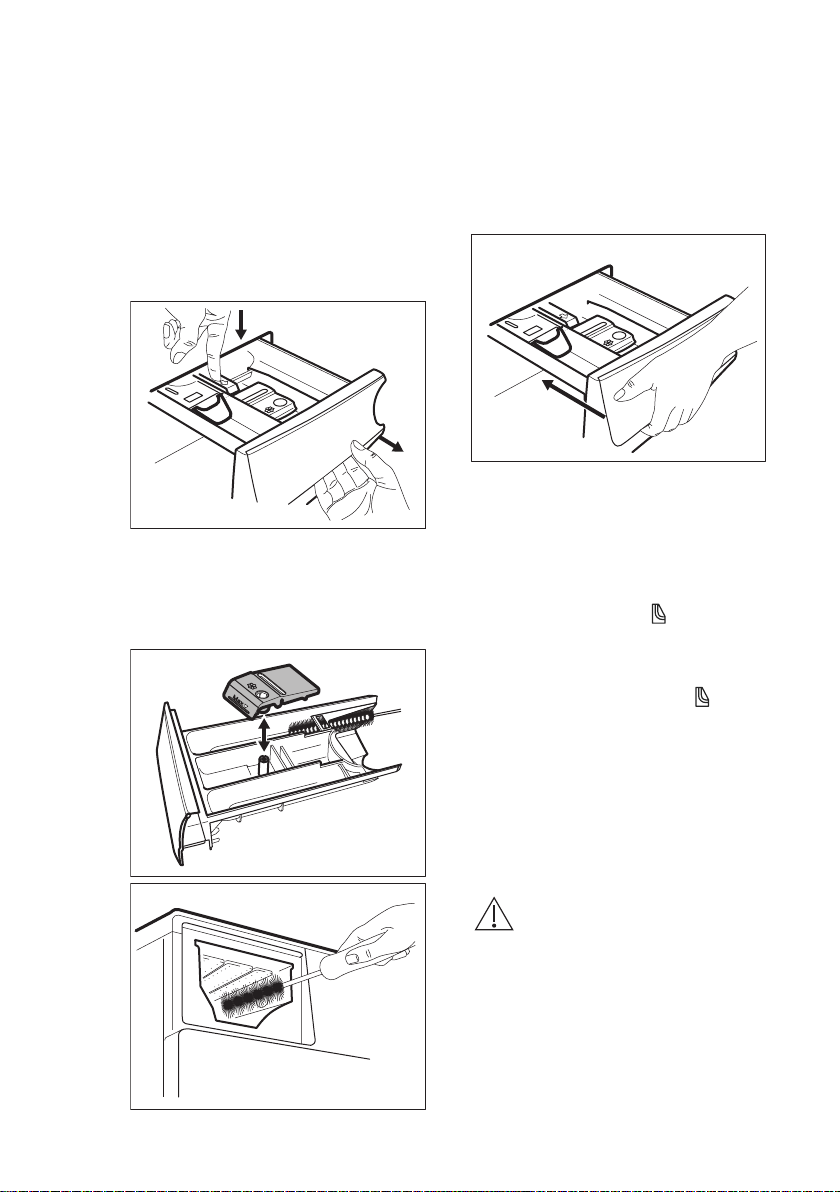

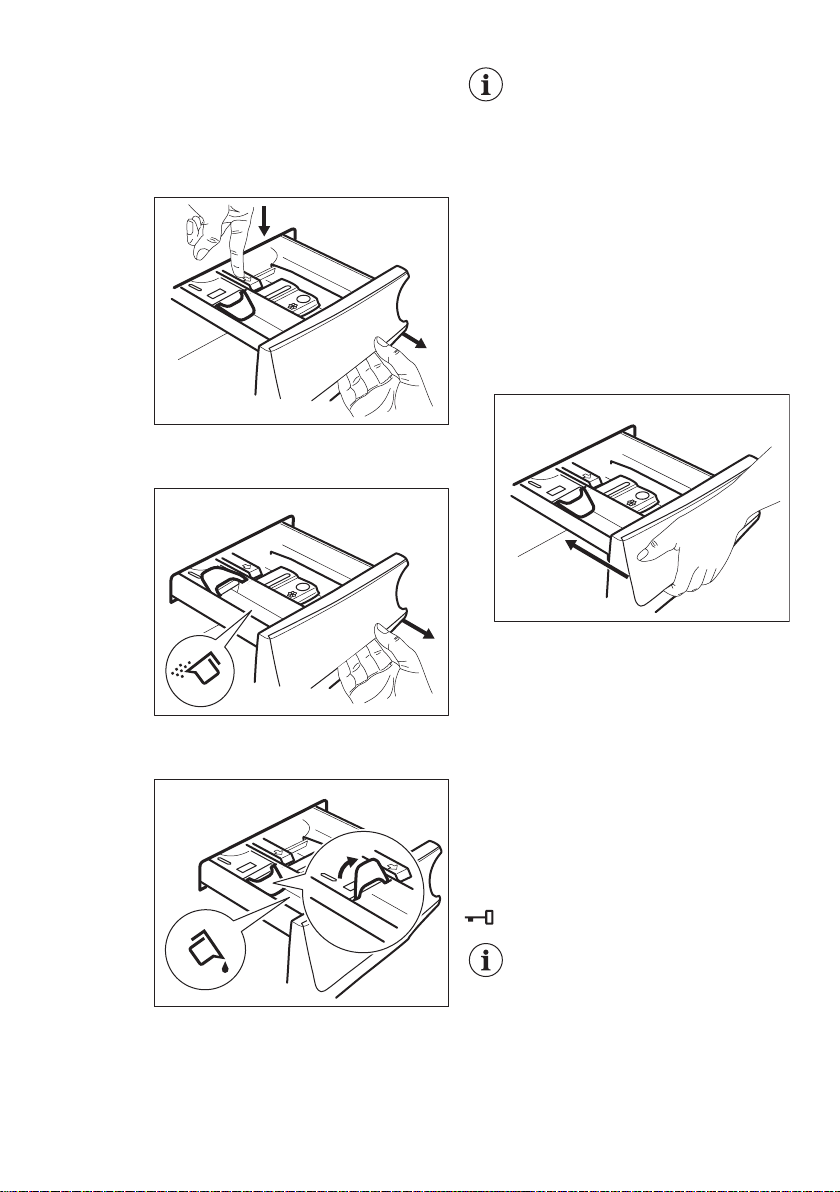

13.6 Check the position of the

flap

1. Pull out the detergent dispenser until it stops.

2. Press the lever down to remove the dispenser.

3. To use powder detergent, turn the flap up.

With the flap in the position DOWN:

• Do not use gelatinous or thick liquid detergents.

• Do not put more liquid detergent than the limit shown on the flap.

• Do not set the prewash phase.

• Do not set the delay start function.

5. Measure out the detergent and the fabric conditioner.

6. Carefully close the detergent dispenser.

4. To use liquid detergent, turn the flap down.

Make sure that the flap does not cause a blockage when you close the drawer.

13.7 Starting a programme

Touch the Start/Pause button to start the programme.

The related indicator stops flashing and stays on. In the display, the indicator of the operating phase starts flashing and the detergent percentage indicator goes off. The programme starts, the door is locked. The display shows the indicator

The drain pump can operate shortly before the appliance fills water.

13.8 Starting a programme with the delay start

1. Touch the Delay Start button repeatedly until the display shows the

Page 33

ENGLISH 33

desired delay time. The indicator comes on.

2. Touch the Start/Pause button.

The appliance starts the countdown of the delay start. When the countdown is completed, the programme starts.

The SensiCare estimation starts at the end of the countdown.

Cancelling the delay start after the countdown has started

To cancel the delay start:

1. Touch the Start/Pause button to pause the appliance. The related indicator flashes.

2. Touch the Delay Start button repeatedly until the display shows .

3. Touch the Start/Pause button again to start the programme immediately.

Changing the delay start after the countdown has started

To change the delay start:

1. Touch the Start/Pause button to pause the appliance. The related indicator flashes.

2. Touch the Delay Start button repeatedly until the display shows the desired delay time.

3. Touch the Start/Pause button again to start the new countdown.

13.9 The SensiCare System

load detection

After touching the Start/Pause button:

1. The detergent percentage indicator

goes off, the indicator

2. The SensiCare starts the laundry load detection to calculate the real

programme duration. The time dots flash.

3. After about 15 minutes the display shows the new programme duration:

the time dots stop flashing. The appliance adjusts automatically the programme duration to the load to achieve perfect washing results in the minimum possible time. The

flashes.

programme duration could increase or decrease.

The SensiCare detection is carried out with complete washing programmes only (no skipping phase selected).

The SensiCare System is not available with some programmes, such as Wool/ Handwash, programme without wash phase and programmes with short cycles.

13.10 Programme phase indicators

When the programme starts the indicator of the running phase flashes and the other phase indicators are steady on.

E.g. the washing or pre wash phase is

running: .

When the phase ends the relevant indicator stops flashing and is steady on. The next phase indicator starts flashing.

E.g. the rinse phase is running: .

If you select the a steam programme, the

steam phase indicator comes on.

13.11 Interrupting a programme and changing the options

When the programme is running, you can change only some options:

1. Touch the Start/Pause button.

The related indicator flashes.

2. Change the options. The given information in the display changes accordingly.

3. Touch the Start/Pause again.

The washing programme continues.

button

Page 34

www.electrolux.com34

13.12 Cancelling a running

programme

1. Press the On/Off button to cancel the programme and to deactivate the appliance.

2. Press the On/Off button again to activate the appliance.

Now, you can set a new washing programme.

If the SensiCare phase is already carried out and the water filling is already started, the new programme starts without repeating the SensiCare phase. The water and the detergent are not drained out in order to avoid waste.

13.13 Opening the door -

Adding garments

While a programme or the delay start operates, the appliance door is locked.

If the temperature and level of the water in the drum are too high and/or the drum still rotates you cannot open the door.

1. Touch the Start/Pause button.

In the display the related door lock indicator goes off.

2. Open the appliance door. If necessary, add or remove the items.

3. Close the door and touch the Start/

Pause

The programme or the delay start continues.

4. The door can be opened when the programme is complete. You may also set a spinning or draining programme/option and than press

Start/Pause button. If the spin and drain programmes are not available in the programme dial, they can be set via App.

button.

13.14 End of the programme

When the programme has finished, the appliance stops automatically. The acoustic signals operate (if they are active).

In the display all washing phase indicators become steady and the time

area shows

The indicator of the Start/Pause button goes off.

The door unlocks and the indicator goes off.

1. Press the On/Off button to deactivate the appliance.

After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

2. Remove the laundry from the appliance.

3. Make sure that the drum is empty.

4. Keep the door and the detergent

dispenser slightly ajar to prevent mildew and odours.

5. Close the water tap.

When you activate the appliance again, the display show the end of the last selected programme. Turn the programme dial to set a new cycle.

13.15 Draining water out after

end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse, the programme is completed, but:

• The display shows the indicator , the

option indicator or and the

door locked indicator . The

indicator of the running phase flashes.

• The drum still turns at regular

intervals to prevent the creases in the laundry.

• The door stays locked.

• You must drain the water to open the

door:

Page 35

ENGLISH 35

1. If necessary, touch the Spin

button to decrease the spin speed proposed by the appliance.

2. Touch the Start/Pause button:

• If you have set , the appliance drains the water and spins.

• If you have set only drains the water.

The option indicator or goes off,

while the indicator flashes and then goes off.

3. When the programme is completed

and the door locked indicator goes off, you can open the door.

4. Press the On/Off seconds to deactivate the appliance.

In any case, the appliance empties the water out automatically after approximately 18 hours.

, the appliance

button a few

13.16 Stand-by option

The Stand-by function automatically deactivates the appliance to decrease the energy consumption when:

• You do not use the appliance for 5 minutes before you touch the Start/ Pause button.

Press the On/Off button to activate the appliance again.

• After 5 minutes from the end of the washing programme

Press the On/Off button to activate the appliance again. The display shows the end of the last set programme. Turn the programme dial to set a new cycle.

If you set a programme or an option that ends with water in the drum, the Stand-by function doesn't deactivate the appliance to remind you to drain the water.

14. DAILY USE - WASHING & DRYING

WARNING!

Refer to Safety chapters.

This appliance is an automatic washer dryer.

14.1 Complete wash&dry programmes

Automatic Non-Stop programme

The appliance is equipped with the One GO programme, an automatic one-go programme where it is not necessary to set the Dry mode.

To run this programme:

1. After loading laundry and detergent, press the On/Off button for some seconds to activate the appliance.

2. Set the One GO programme by means of the programme dial.

The indicator appears on the display

3. Touch the Start/Pause button to start the programme.

Non-automatic wash&dry programmes

In some washing programmes, you can combine Wash and Dry mode for running a complete wash&dry programme.

Proceed as follows:

1. After loading laundry and detergent, press the On/Off button for some seconds to activate the appliance.

2. Turn the programme dial to the desired washing programme. The display shows the default temperature and spin. If necessary, change them according to your

Page 36

www.electrolux.com36

laundry. The display also shows the maximum recommended load for washing phase.

3. Set the desired options, if there are available.

4. Touch the Mode button once to activate also the drying function. The Wash and Dry indicators come on.

The indicators and appear on the display. The display also shows the maximum recommended load for a washing and drying programme (e.g. 6 kg for cottons).

5. Open the door and load the laundry one item at a time. On the display the weight of the laundry is updated by steps of kg 0.5 and the programme duration is updated accordingly.

6. Close the door.

7. Put the detergent and the additives in

the appropriate compartment.

When drying a large laundry load, make sure that the garments are not rolled up and that are uniformly distributed in the drum.

At the beginning of the drying cycle (3 - 5 minutes), a slightly higher noise can be heard. This is caused by the compressor and it is quite normal for compressor powered appliances such as refrigerators, freezers and so on.

14.2 Washing and Drying -

Automatic levels

1. Tap on the Auto Dry button repeatedly until the display shows the required dryness level. The indicators in the display illuminate accordingly:

a. Iron dry: for cotton

items;

b. Cupboard dry: for

cotton and synthetic items;

c. Extra dry: for cotton

items.

The time value on the display is the duration of both cycles washing and drying.

To have a good drying by using less energy and in a shorter time, the appliance does not let you set a too low spin speed for the items to be washed and dried.

2. Touch button Start/Pause to start the programme. The SensiCare estimation starts.

In the display the door locked indicator goes on, the indicator of the running phase starts flashing. The display also shows the remaining programme time.

14.3 Washing and Timed

Drying

1. Tap on the button Time Dry repeatedly to set the desired time value (see the "Timed drying" table the "Programmes" chapter). The drying level indicator goes off and the

indicator comes on.

The minimum timed drying is 10 minutes. Each time you tap on this button the time value increases by 5 minutes. The display shows the set new time value.

2. Touch the Start/Pause to start the programme. The SensiCare estimation starts.

In the display the door locked indicator comes on and the indicator of the running phase starts flashing. The display also shows the remaining programme time.

14.4 At the end of the drying

programme

• The appliance stops automatically.

• The acoustic signals operate (if they

are active).

• In the display comes on.

• The indicator of button Start/Pause

goes off. The door locked goes off

• Press the button On/Off for some

seconds to deactivate the appliance.

Page 37

ENGLISH 37

After some minutes from the end of the programme, the energy saving function deactivates the appliance automatically.

1. Remove the laundry from the appliance.

2. Make sure that the drum is empty.

15. DAILY USE - DRYING ONLY

WARNING!

Refer to Safety chapters.

This appliance is an automatic washer dryer.

15.1 Preparation to drying

1. Press the On/Off button for some

seconds to activate the appliance.

With a drying-only programme the display does not show the laundry weight and the SensiCare estimation is deactivated.

2. Load the laundry one item at a time.

3. Turn the programme dial to the

programme suitable for the items to dry.

4. Tap on the Mode button twice to exclude washing and perform drying only. The Dry indicator is on. The

indicators and appear on the display.

When drying a big amount of laundry, to have good drying performances, make sure that the laundry itself is not rolled up and that is uniformly distributed in the drum.

15.2 Drying - Automatic levels

1. Tap on the Auto Dry button

repeatedly until the display shows the required dryness level. The indicators in the display illuminate accordingly:

a. Iron dry: for cotton

items;

After drying phase, clean the drum, the seal and the inside of the door with a wet cloth.

The indicator appears on the display to remind you to clean the air filter (refer to 'Cleaning the air filters' in 'Care and cleaning' chapter).

b. Cupboard dry: for

cotton and synthetic items;

c. Extra dry: for cotton

items.

The display shows the drying programme duration.

To have a good drying by using less energy and in a shorter time, the appliance does not let you set a too low spin speed for the items to be washed and dried.

2. Touch button Start/Pause to start the programme.

In the display the door locked indicator goes on, the indicator of the running phase starts flashing. The display also shows the remaining programme time.

15.3 Timed Drying

1. Tap on the button Time Dry

repeatedly to set the desired time value (see the "Timed drying" table the "Programmes" chapter). The drying level indicator goes off and the

indicator comes on.

The minimum timed drying is 15 minutes. Each time you tap on this button the time value increases by 5 minutes. The display shows the set new time value.

2. Touch the Start/Pause to start the programme.

In the display the door locked indicator comes on and the indicator of the running phase starts flashing. The display also shows the remaining programme time.

Page 38

www.electrolux.com38

15.4 At the end of the drying

programme

• The appliance stops automatically.

• The acoustic signals operate (if they are active).

• In the display

• The indicator of button Start/Pause

goes off. The door locked goes off

• Press the button On/Off for some seconds to deactivate the appliance.

After some minutes from the end of the programme, the energy saving function deactivates the appliance automatically.

comes on.

16. FLUFF IN THE FABRICS

During the washing and/or drying phase, some types of fabric, (sponge, wool, sweatshirt) could release fluff.

The released fluff could stick to the fabrics during the next cycle.

This inconvenient increases with technical fabrics.

To prevent the fluff in your laundry:

• Do not wash dark fabrics after you washed and dried light coloured fabrics (hand towel, wool, sweatshirt ) and the contrary.

• Dry this type of fabrics at open air when they are washed the first time.

• Clean the drain filter.

• After the drying phase, clean the empty drum, the gasket and the door with a wet cloth.

1. Remove the laundry from the appliance.

2. Make sure that the drum is empty.

After drying phase, clean the drum, the seal and the inside of the door with a wet cloth.

The indicator appears on the display to remind you to clean the air filter (refer to 'Cleaning the air filters' in 'Care and cleaning' chapter).

To remove the fluff inside the drum, proceed as follows:

• Empty the drum.

• Clean the drum, the gasket and the

door with a wet cloth.

• Set the rinse programme.

• Simultaneously press the Stains/

Prewash and the Anti-crease buttons until the display shows CLE to activate the cleaning function.

• Touch the Start/Pause button to start

the programme.

If the appliance is frequently used, carry out the CLE programme regularly.

17. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

17.1 The laundry load

• Divide the laundry into: white, coloured, synthetics, delicates and wool.

• Follow the washing instructions on the laundry care labels.

• Do not wash white and coloured items together.

• Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first couple of times.

• Turn multilayered fabrics, wool and items with printed illustrations inside out.

• Pre-treat stubborn stains.

Page 39

ENGLISH 39

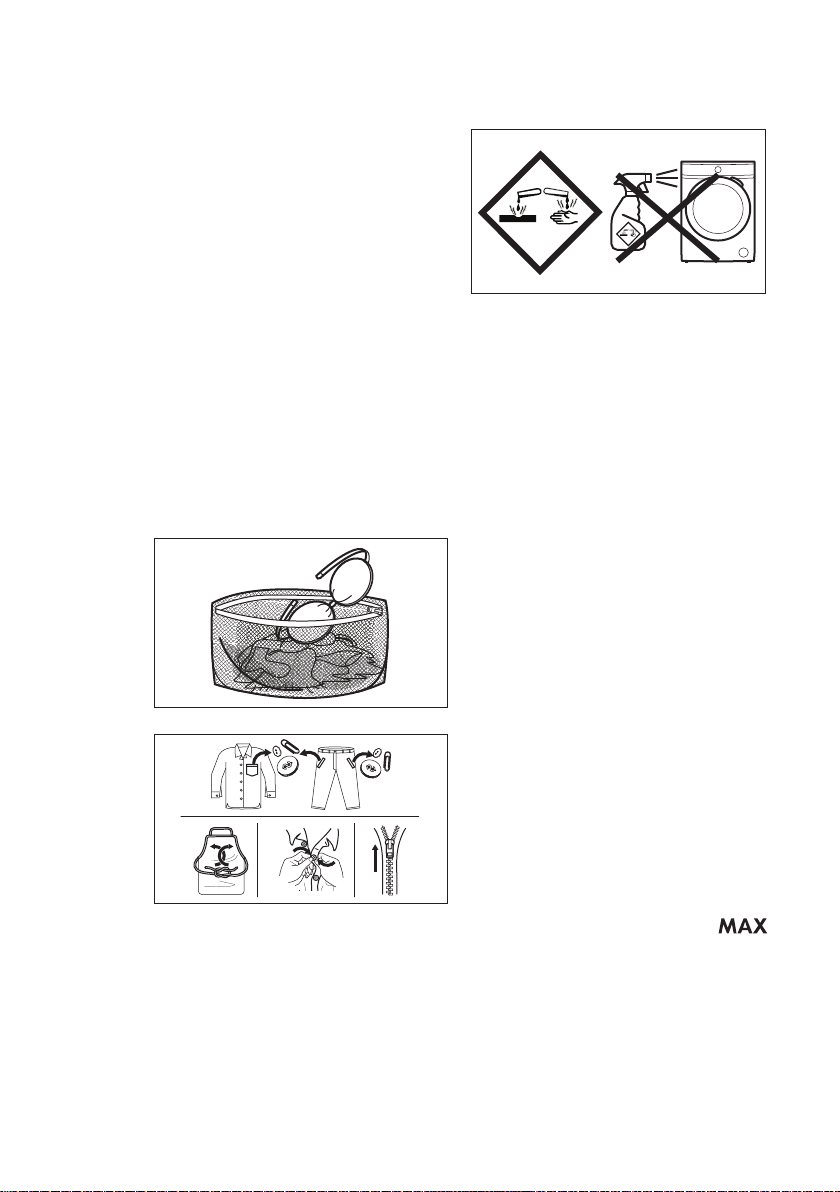

• Wash stubborn stains with a special detergent.

• Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase.

• A very small load can cause balance problems with the spin phase leading to excessive vibration. If this occurs:

a. interrupt the programme and

open the door (refer to "Daily Use" chapter);

b. manually redistribute the load so

that the items are spaced evenly around the tub;

c. press the Start/Pause button.

The spin phase continues.

• Button up pillowcases, close zippers, hooks and poppers. Tie up belts, cords, shoelaces, ribbons and any other loose elements.

• Do not wash laundry without hems or with cuts. Use a washing bag to wash small and/or delicate items (e.g. underwired bras, belts, tights, shoelaces, ribbons, etc. ).

• Empty pockets and unfold the items.

17.2 Stubborn stains

For some stains, water and detergent is not sufficient.

We recommend that you pre-treat these stains before you put the items in the appliance.

Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

Do not spray stain remover on garments near the appliance as it is corrosive to the plastic parts.

17.3 Detergent type and quantity

The choice of detergent and use of correct quantities not only affects your wash performance, but also helps to avoid waste and protect the environment:

• Use only detergents and other treatments specially made for washing machines. First, follow these generic rules:

– powder detergents (also tablets

and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization,

– liquid detergents (also single-dose

detergents) , preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

• The choice and quantity of detergent will depend on: type of fabric (delicates, woollens, cottons, etc), the colour of clothes, size of the load, degree of soiling, wash temperature and hardness of the water used.

• Follow the instructions that you find on packaging of the detergents or other treatments without exceeding

the indicated maximum level ( ).

• Do not mix different types of detergents.

• Use less detergent if:

– you are washing a small load, – the laundry is lightly soiled, – there is large amounts of foam

during washing.

• When using detergent tabs or pods, always put them inside the drum, not in the detergent dispenser and follow

Page 40

www.electrolux.com40

the manufacturer's recommendations .

Insufficient detergent may cause:

• unsatisfactory washing results,

• the wash load to turn grey,

• greasy clothes,

• mould in the appliance.

Excessive detergent may cause:

• sudsing,

• reduced washing effect,

• inadequate rinsing,

• a greater impact for the environment.

17.4 Ecological hints

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewash in order to save detergent, water and time (the environment is protected too!).

• Loading the appliance to the

maximum capacity indicated for each programmes helps to reduce energy and water consumption.

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• To use the correct quantity of detergent, refer to the quantity suggested by the detergent producer and check the water hardness of you domestic system. Refer to 'Water hardness'.

• Set the maximum possible spin speed for the selected programme for saving energy during drying phase!

17.5 Water hardness

If the water hardness in your area is high or moderate, we recommend that you use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a water softener.

To find out the water hardness in your area, contact your local water authority.

Use the correct quantity of water softener. Follow the instructions that you find on the packaging of the product.

17.6 Prepare the drying cycle

• Open the water tap.

• Check if the drain hose is connected properly. Refer to installation chapter for more information.

• For the maximum laundry load of the drying programmes, refer to the drying programmes table.

17.7 Items not suitable for

drying

Do not set a drying programme for this laundry:

• Synthetic curtains.

• Pieces of clothing with metal inserts.

• Nylon stockings.

• Quilts.

• Bed covers.

• Duvets.

• Sleeping bags.

• Fabrics with residue of hair sprays, nail solvents or similar.

• Garments with foam-rubber or materials similar to foam-rubber.

17.8 Garment labels

When you dry the laundry, obey the indications on the labels of the manufacturers:

= The item can be tumble dried

•

• = The drying cycle is at high temperature

• = The drying cycle is at reduced temperature

• = The item can not be tumble dried.

17.9 Drying cycle duration

The drying time can change depending on:

• speed of the last spin

• dryness level

• type of laundry

• weight of the load

17.10 Additional drying

If, at the end of the drying programme, the laundry is still damp, set a short drying cycle again.

Page 41

ENGLISH 41

WARNING! To avoid creasing and shrinkage do not overdry the laundry.

17.11 General Tips

Refer to the «Timed drying» table to find the average drying times. Experience will help you to dry the laundry better. Take note of the duration of the cycles done before.

To avoid the static charge at the end of the drying cycle:

18. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

18.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Remove fluff inside the drum

Clean detergent dispenser

Primary air filter After each cycle

Secondary air filter When the indicator

Clean drain pump filter

Twice a month

Every two months

flashes

Twice a year

1. Use fabric conditioner in the washing cycle.

2. Use special fabric conditioner for tumble dryers.

3. Do not pour any detergent or softener before a drying cycle.

4. Do not dry rough and smooth textiles together, to avoid scorching on smooth garments.

5. Remove all objects from garment pockets, especially melting objects.

When the drying programme is completed remove the laundry in a short time.

Clean the inlet hose and the valve filter

Refer to ''Fluff in the fabrics'' chapter.

The following paragraphs explain how you should clean each part.

Twice a year

18.2 Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle. Refer to 'The laundry load' in 'Hints and tips'.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to 'Door seal with double lip trap', 'Cleaning the drum', 'Cleaning the drain pump' and 'Cleaning the inlet

hose and the valve filter' paragraphs. If necessary, please contact the Authorised Service Centre.

18.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces.

Do not use a scouring pads or any scratching material.

Page 42

www.electrolux.com42

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

18.4 Descaling

If the water hardness in your area is high or moderate, we recommend that you use a water descaling product for washing machines.

Regularly examine the drum to check for limescale.

The regular detergents already contain water softening agents, but we recommend to run a cycle with empty drum and a descaling product occasionally.

Always follow the instructions that you find on the packaging of the product.

18.5 Maintenance wash

The repeated and prolonged use of low temperature programmes can cause detergent deposits, fluff residues, bacterial growth inside the drum and the tub. This could generate bad odours and mildew.

To eliminate these deposits and hygienize the inner part of the appliance, run a maintenance wash regularly (at least once a month):

1. Remove all laundry from the drum.

2. Run a cotton programme with the

highest temperature with a small quantity of powder detergent or, if available, run the Machine Clean programme.

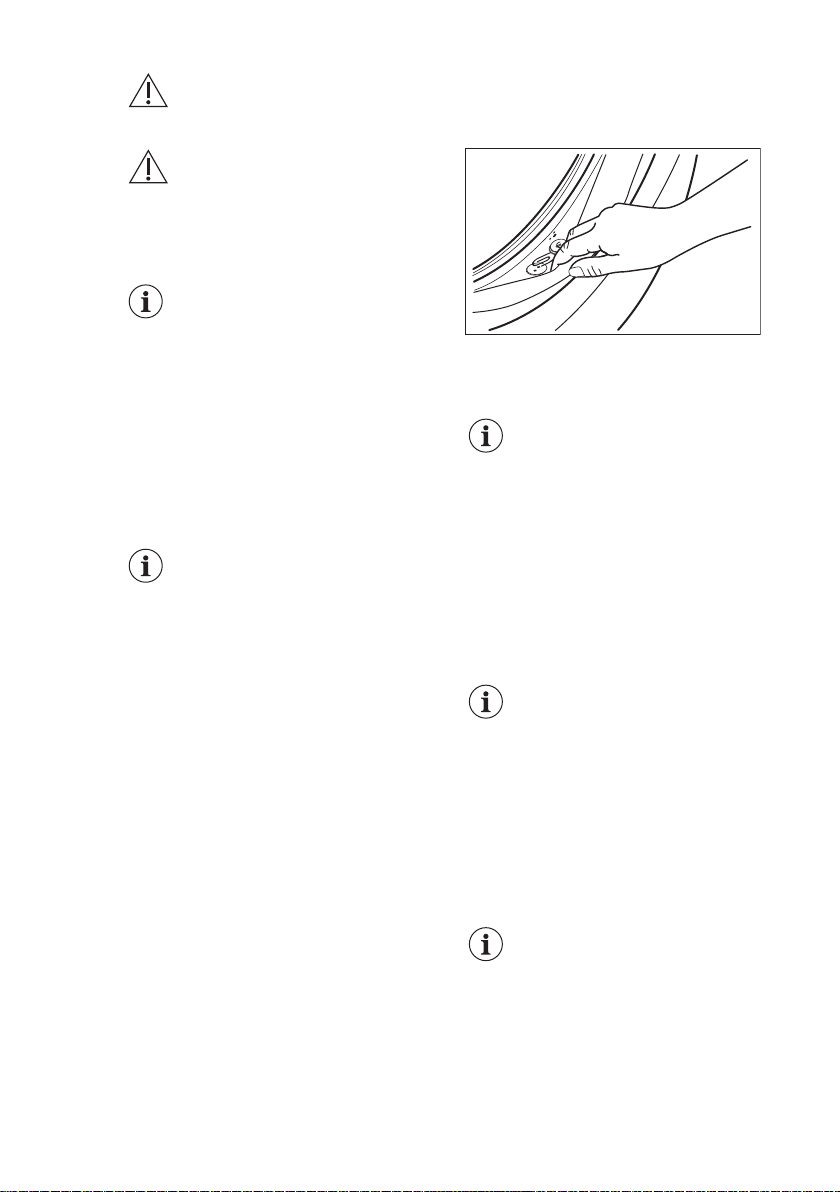

18.6 Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be

drained out with the water. Regularly examine the seal. Coins, buttons, other small items can be recovered at the end of the cycle.

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product.

18.7 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits. Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron.

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel.

For a thorough clean:

1. Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product.

2. Run a short cotton programme at high temperature with empty drum and with a small quantity of powder detergent or, if available, run the Machine Clean programme.

Page 43

ENGLISH 43

18.8 Cleaning the detergent

dispenser

To prevent possible deposits of dried detergent or clotted fabric softener and/or formation of mould in the detergent dispenser drawer, once in a while carry out the following cleaning procedure:

1. Open the drawer. Press the catch downwards as indicated in the picture and pull it out.

2. Remove the top part of the additive compartment to aid cleaning. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

3. Flush the detergent drawer out under running warm water to remove any traces of accumulated detergent. After cleaning, replace the top part in its position.

4. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

18.9 Cleaning the air filters

The air filters collect the fluff. The fluff normally occurs when the clothes are dried in a washer-dryer.

• At the end of each drying cycle in the

display the indicator is on to advise to clean the primary air filter (see pictures from 1 to 5). The acoustic signal operates.

• Occasionally the indicator may

flash to remind you that both air filters should be cleaned: the primary air filter and the secondary air filter (for secondary filter, see pictures from 6 to

8). The acoustic signal operates. To have best drying performances clean the air filters regularly. Clogged filters make cycles longer and increase the energy consumption.

WARNING!

Do not use water to clean the filters to avoid that plastic fibres flow in the water ambient. Throw the lint in a dustbin.

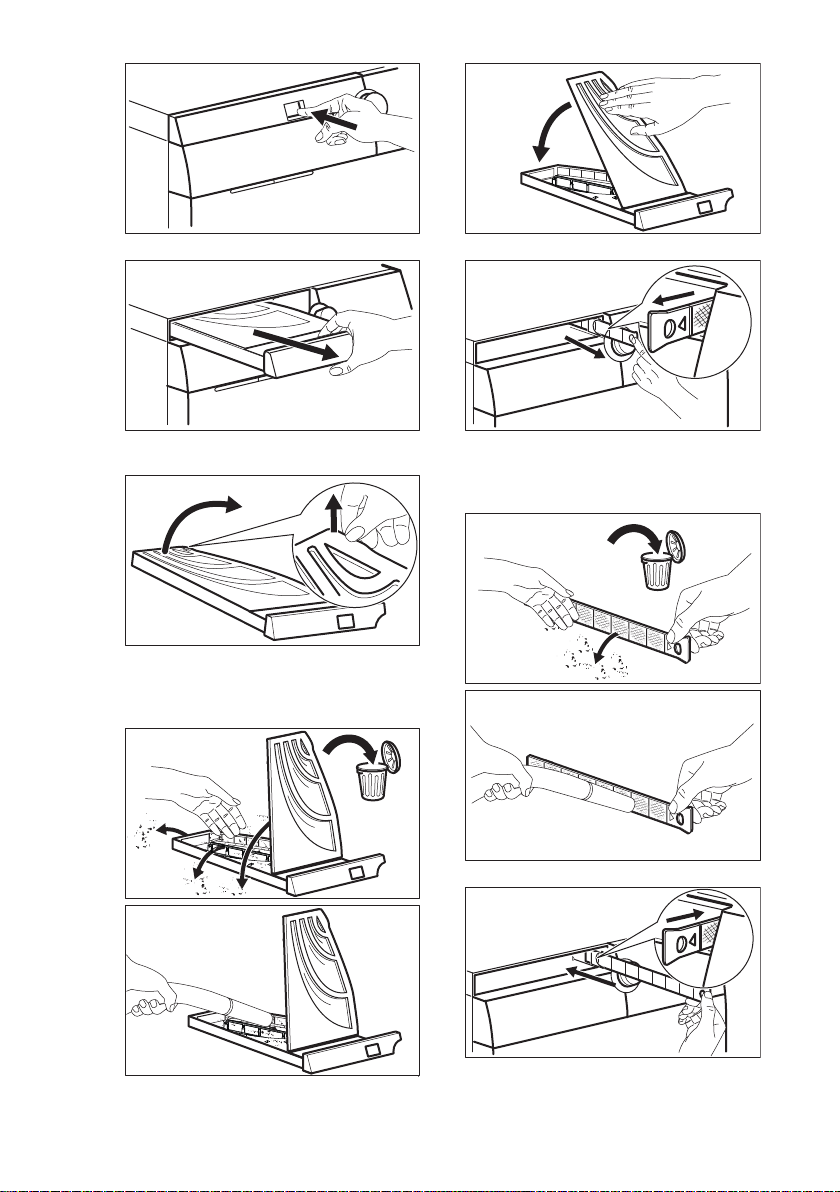

1. Push the hook to open the primary

air filter.

Page 44

ULL

PULL

PUL

www.electrolux.com44

2. Pull the primary air filter out.

3. Open the primary air filter cover by

pulling it upwards.

4. Clean the primary air filter with your hand and, if necessary, with a vacuum cleaner. Throw the lint in a dustbin.

6. Pull the secondary filter out.

7. Clean the secondary air filter with

your hand and, if necessary, with a vacuum cleaner. Throw the lint in a dustbin.

5. Close the primary air filter cover.

8. Reinsert the secondary air filter.

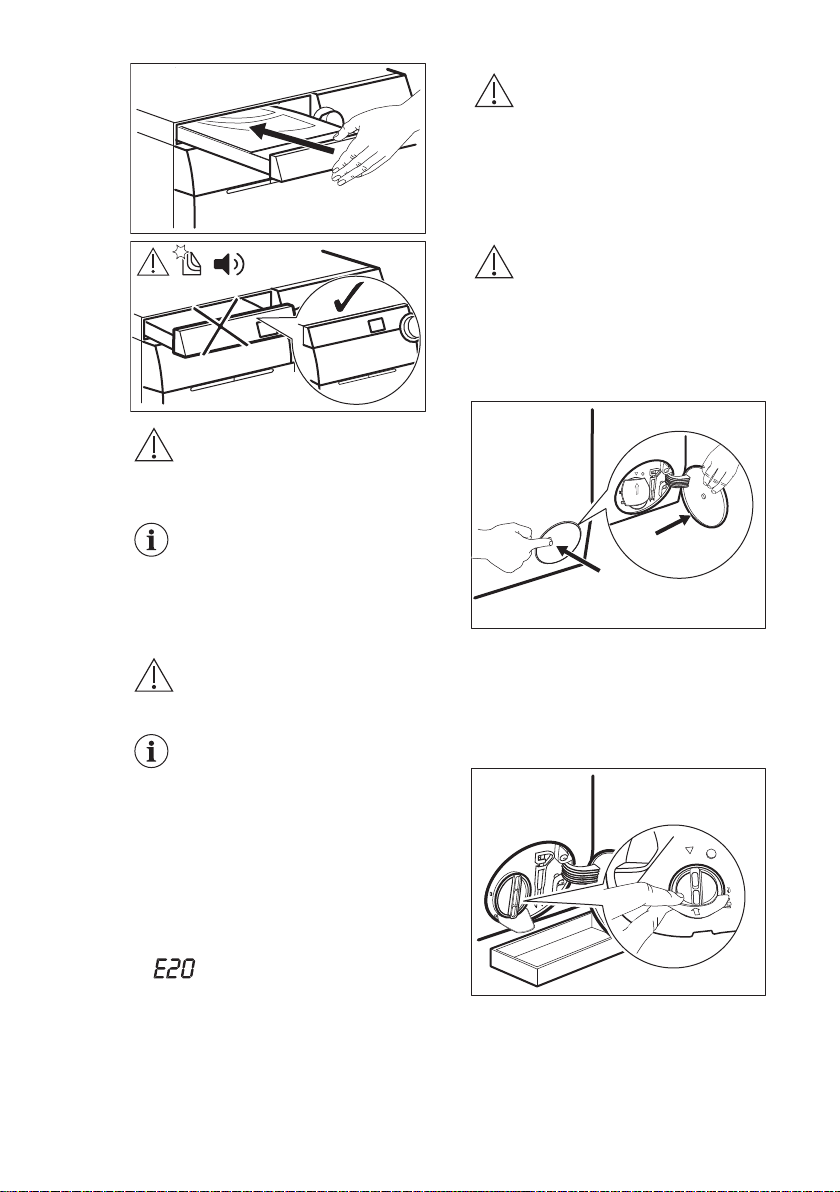

9. Reinsert the primary air filter and

close it firmly.

Page 45

WARNING!

The primary air filter recess must not be blocked by any object.

If you only wash the laundry with your washer-dryer, it is normal to find some humidity in the primary air filter.

ENGLISH 45

WARNING!

• Do not remove the filter while the appliance operates.

• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down

WARNING!

Each time you carry out the special programme CLE to remove fluff, clean the drain filter afterwards.

Proceed as follows to clean the pump:

1. Open the pump cover.

18.10 Cleaning the drain pump

WARNING!

Disconnect the mains plug from the mains socket.

Regularly check the drain pump filter and make sure

2. Place a suitable bowl below the drain pump access to collect the water that flows out.

3. Open the chute downwards. Always keep a rag nearby to dry up any water spillages when removing the filter.

that it is clean.

Clean the drain pump if:

• The appliance does not drain the water.

• The drum does not turn.

• The appliance makes an unusual noise because of the blockage of the drain pump.

• The display shows the alarm code

4. Turn the filter 180 degrees in anticlockwise direction to open it, without removing. Let the water flow out.

Page 46

www.electrolux.com46

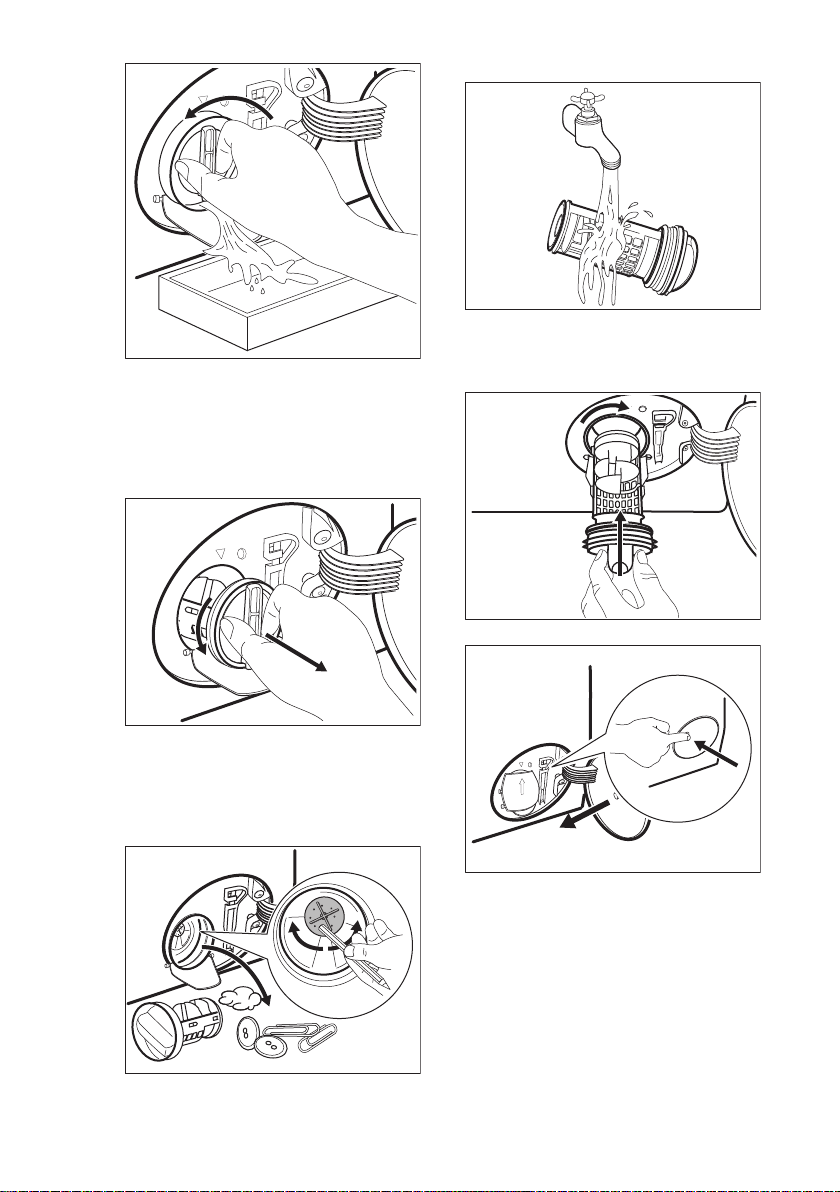

5. When the bowl is full of water, turn

the filter back and empty the container.

6. Repeat the steps 4 and 5 until the water stops to flow out.

7. Turn the filter anti-clockwise to remove it.

10. Clean the filter under the water tap.

11. Put the filter back into the special

guides by turning it clockwise. Make sure that you tighten the filter correctly to prevent leakages.

12. Close the pump cover.

8. If it is necessary, remove fluff and

objects from the filter recess.

9. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

a. Put 2 litres of water in the main

wash compartment of the detergent dispenser.

b. Start the programme to drain the

water.

Page 47

45°

20°

ENGLISH 47

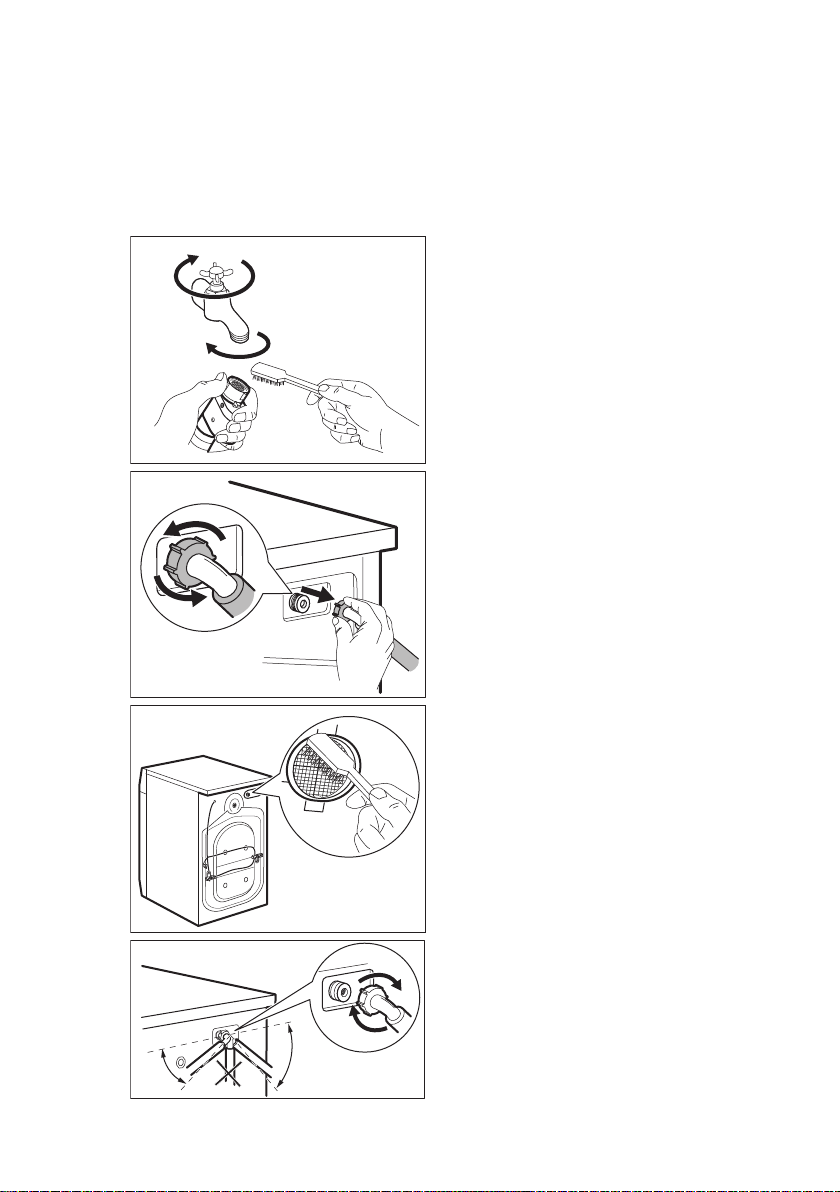

18.11 Cleaning the inlet hose filter and the valve filter

It could be necessary to clean the filters when:

• The appliance does not fill with water.

• The appliance takes long time to fills with water.

• The indicator of the Start/Pause button flashes and the display shows the related alarm. Refer to 'Troubleshooting' chapter.

To clean the water inlet filters:

• Close the water tap.

• Remove the water inlet hose from the water tap.

• Clean the filter in the inlet hose with a stiff brush.

• Remove the inlet hose behind the appliance.

• Clean the filter in the valve with a stiff brush or a towel.

• Install again the inlet hose. Make sure that the couplings are tight to prevent leakages.

• Open the water tap.

Page 48

www.electrolux.com48

18.12 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.

2. Start the programme to drain the water.

18.13 Frost precautions

If the appliance is installed in an area where the temperature can reach the values around 0° C or drop below, remove the remaining water from the inlet hose and the drain pump.

19. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

19.1 Alarm Codes and Possible failures

1. Disconnect the mains plug from the

mains socket.

2. Close the water tap.

3. Put the two ends of the inlet hose in

a container and let the water flow out of the hose.

4. Empty the drain pump. Refer to the emergency drain procedure.

5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 5 °C and the water is flowing from the tap before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures.

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

Page 49

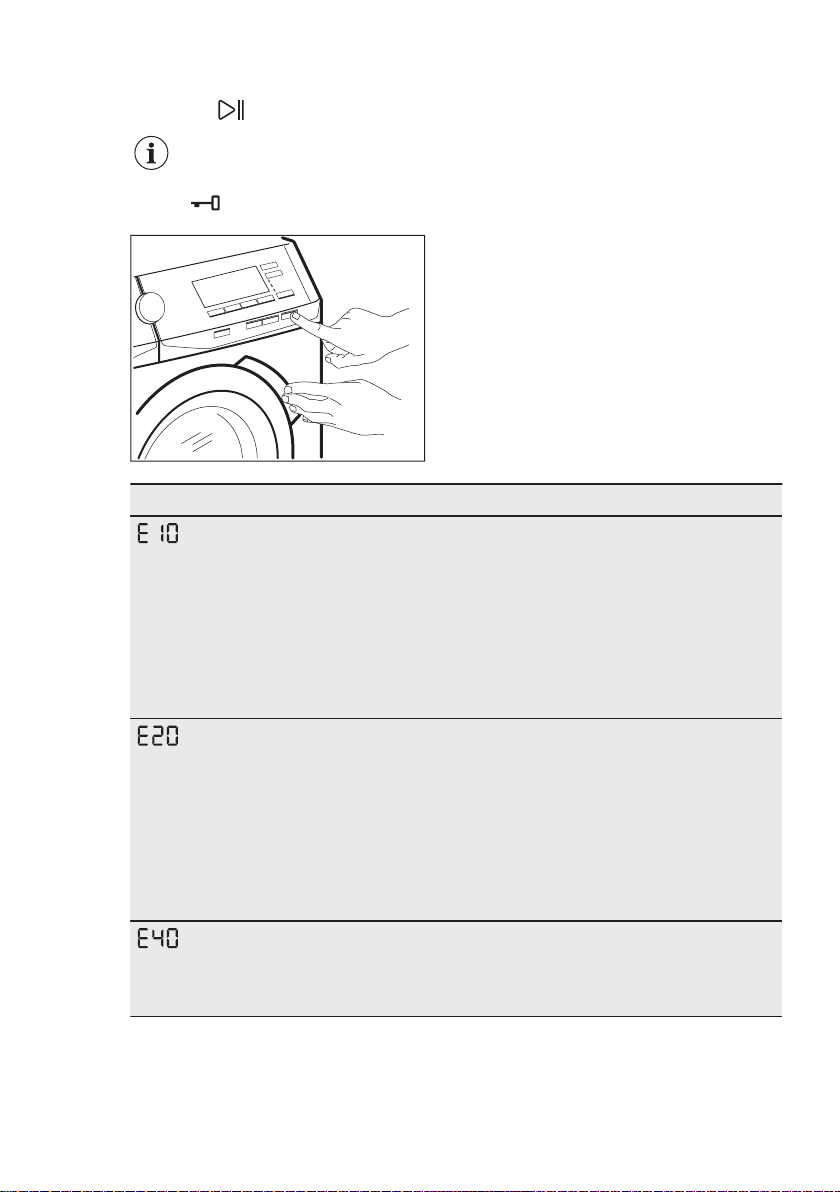

With some problems, the display shows an alarm code and the

Start/Pause button may flash continuously:

If the appliance is overloaded, remove some items from the drum and/or keep pressed the door while touching the Start/Pause button until the indicator

stops flashing (see the picture below).

Problem Possible solution

• Make sure that the water tap is open.

The appliance does not fill with water properly.

• Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.

• Make sure that the water tap is not clogged.

• Make sure that the inlet hose has no kinks, damages or bends.

• Make sure that the connection of the water inlet hose is correct.

• Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to 'Care and cleaning'.

• Make sure that the sink spigot is not clogged.

The appliance does not drain the water.

• Make sure that the drain hose has no kinks or bends.

• Make sure that the drain filter is not clogged. Clean the fil‐ ter, if necessary. Refer to "Care and cleaning".

• Make sure that the connection of the drain hose is correct.

• Set the drain programme if you set a programme without drain phase. If the drain programme is not available in the programme dial, it can be set via App.

• Set the drain programme if you set an option which ends with water in the tub.

• Make sure that the door is properly closed.

The appliance door is open or not closed correctly.

ENGLISH 49

Page 50

www.electrolux.com50

• The programme was not finished properly or the appliance

Internal fail. No com‐ munication between electronic elements

stopped too early. Switch the appliance off and on again.

• If the alarm code appears again, contact the Authorised Service Centre.

of the appliance.

• Wait until mains supply is stable.

The mains supply is unstable.

• Disconnect the appliance and close the water tap. Contact

The anti-flood device

the Authorised Service Centre.

is on.

: check the air fil‐

ter.

If the display shows other alarm codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre. In case of different problem with the washing machine check the table below for possible solutions.

• Make sure that the air filter has been cleaned.

• Make sure that the air filter is correctly inserted.

Problem Possible solution

• Make sure that the mains plug is connected to the mains socket.

• Make sure that the appliance door is closed.

• Make sure that there is no damaged fuse in the fuse box.

The programme does

not start.

• Make sure that the Start/Pause has been touched.

• If the delay start is set, cancel the setting or wait for the end of countdown.

• Deactivate the Child Lock function if it is on.

• Check the position of the knob on the selected pro‐ gramme.

The appliance fills with water and drains immediately.

• Make sure that the drain hose is in the correct position. The hose may be positioned too low. Refer to "Installation instruction".

• Set the spin programme. If the drain programme is not

The spin phase does not operate or the washing cycle lasts longer than usual.

available in the programme dial, it can be set via App’.

• Make sure that the drain filter is not clogged. Clean the fil‐ ter, if necessary. Refer to "Care and cleaning".

• Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.

Page 51

Problem Possible solution

• Make sure that the couplings of the water hoses are tight and there is not water leakages.

There is water on the floor.

• Make sure that the water inlet hose and the drain hose have no damages.

• Make sure you use the correct detergent and the correct quantity of it.

• Make sure that a washing programme that ends with water in tub, has not been selected.

• Make sure that the washing programme is finished.

• Set the drain or the spin programme if there is water in the drum. If the spin and drain programmes are not available

You cannot open the appliance door.

in the programme dial, they can be set via App.

• Make sure that the appliance receives electrical power.

• This problem may be caused by a failure of the appliance. Contact the Authorised Service Centre. If you need to open the door, please read carefully "Emer‐ gency door opening".

• Make sure that the Remote Start Mode is not activated. Deactivate it.

• Check the wireless signal.

• Make sure that the wireless connection is on. Refer to

The display does not show the wireless in‐ dicator .

paragraph "Configuring the washing machine wireless connection" in "Wi-Fi - Connectivity setup" chapter.

• Check your home network and router.

• Restart the router.

• Contact your wireless service provider if there are further problems with the wireless network.

• Check the wireless signal.

• Check if your smart device is connected to the wireless network.

• Check your home network and router.

The App cannot con‐ nect to the appliance.

• Restart the router.

• Contact your wireless service provider if there are prob‐ lems with the wireless network.

• The appliance, the smart device, or both, need to be con‐ figured again because a new router has been installed or the router configuration has been changed.

• Make sure that the wireless signal reaches the appliance. Try to move the home router as near the appliance as

The App cannot fre‐ quently connect to the appliance.

possible or consider purchasing a wireless range extend‐ er.

• Make sure the wireless signal is not disrupted by micro‐ wave. Turn the microwave off. Avoid using the microwave and the remote control at the same time.

The display shows

. All buttons are

inactive, except the

the On/Off .

• The appliance is downloading any available updates. Wait until the update process is complete. If you deactivate the appliance during update, it resumes when you activate the appliance again.

ENGLISH 51

Page 52

www.electrolux.com52

Problem Possible solution

• Make sure the levelling of the appliance is correct. Refer The appliance makes an unusual noise and vibrates.

to "Installation instruction".

• Make sure that the packaging and/or the transit bolts are

removed. Refer to "Installation instruction".

• Add more laundry in the drum. The load may be too small.

The programme du‐ ration increases or decreases during programme execu‐

• The SensiCare System is able to adjust the programme

duration according to the type and the laundry load size. Refer to "The SensiCare System load detection" in "Daily Use" chapter.

tion.

• Increase the detergent quantity or use a different deter‐

gent. The washing results are not satisfactory.

• Use special products to remove the stubborn stains before you wash the laundry.

• Make sure that you set the correct temperature.

• Decrease the laundry load.

Too much foam in the drum during the

• Reduce the quantity of detergent or the number of tablets or single-dose detergents.

washing cycle.

After the washing cy‐ cle, there are some detergent residues in the dispenser drawer.

The drum is empty and the display shows there is some

• Make sure that the flap is in the correct position (UP for powder detergent - DOWN for liquid detergent).

• Make sure you have used the detergent dispenser accord‐ ing the indications given in this user manual.

• Press the On/Off button to deactivate the appliance and activate it again to set a tare.

weight in.

The drum is full but the display shows 0.0 kg.

After a steam pro‐ gramme, garments

• You loaded the laundry before activating the appliance.

Press the On/Off button to deactivate the appliance.

• Empty the drum and follow the necessary steps. (Refer to "Loading the laundry")

Make sure that the appliance is accurately levelled. Adjust the appliance by raising or lowering the feet.

are partially wet.

• Turn the water tap on.

• Make sure the air filters are not clogged. Check primary

The appliance does not dry or does not dry correctly.

and secondary air filters.

• Make sure the drain filter is not clogged.

• Reduce the laundry load.

• Make sure you have set the correct cycle. if necessary, set again a short drying time.

Page 53

Problem Possible solution

The drying cycle is too long.

• Make sure the air filters are properly cleaned.

• Make sure your laundry load does not exceed the de‐ clared load for the set programme.

• Make sure that the room temperature is in the correct range.

The fabrics washed in the previous cycle released fluff of a different colour:

The laundry is full of different colours fluff.

• The drying phase helps to eliminate some fluff.

• Clean the clothes with a fluff remover.

In case of an excessive amount of fluff in the drum run the special programme to clean it (refer to “Fluff in the fabrics" for more details).

After the check, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Authorised Service Centre. The necessary data for the service centre are on the rating plate.

ENGLISH 53

19.2 Emergency door opening

In case of power failure or functioning failure the appliance door remains locked. The washing programme continues when the power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock function.

Before opening the door:

CAUTION! Risk of burns! Make sure that the water temperature is not too high and the laundry is not hot. If necessary, wait until they cool down.

CAUTION! Risk of injury! Make sure that the drum is not rotating. If necessary, wait until the drum stops rotating.

Make sure that the water level inside the drum is not too high. If necessary, proceed with an emergency drain (refer to «Emergency drain» in «Care and cleaning» chapter).

To open the door, proceed as follows:

1. Press the On/Off button to switch the appliance off.

2. Disconnect the mains plug from the mains socket.

3. Open the filter flap.

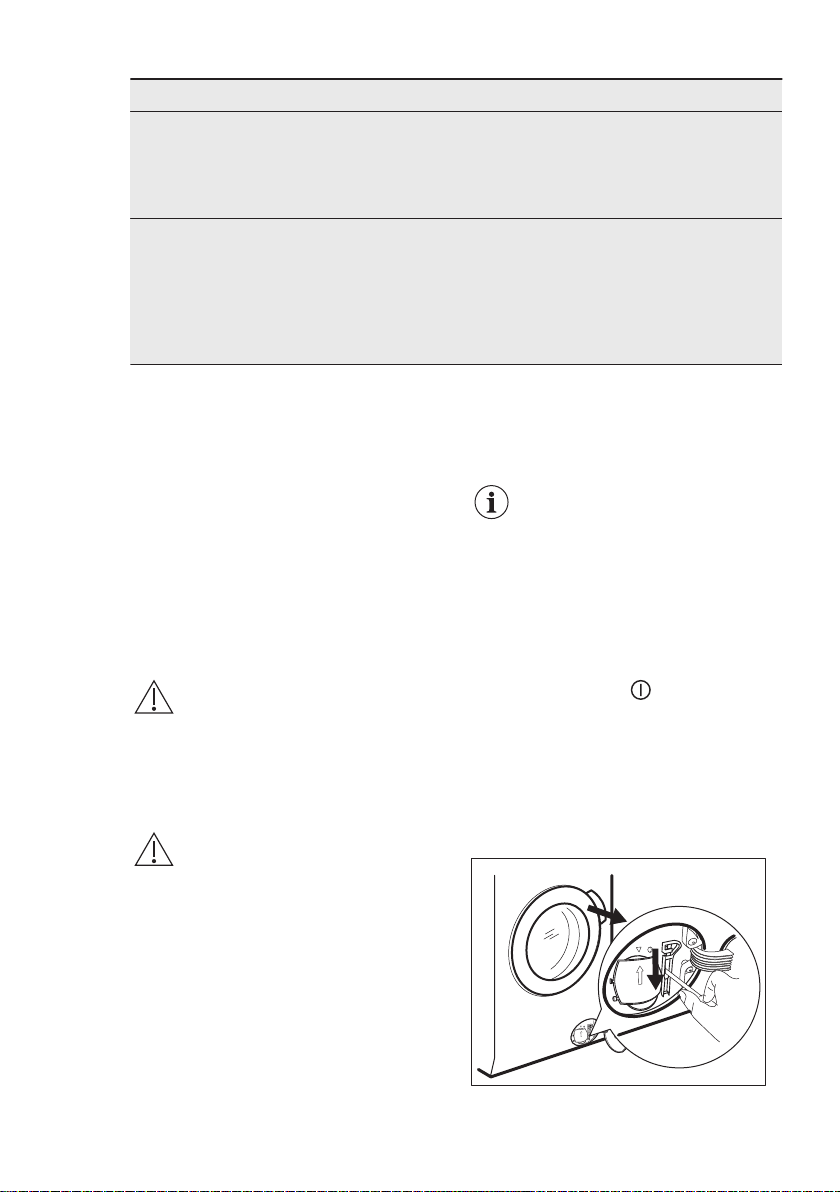

4. Pull the emergency unlock trigger

downward once. Pull it downward once again, keep it tensed and, in the meanwhile, open the appliance door.

5. Take out the laundry and then close the appliance door.

Page 54

www.electrolux.com54

6. Close the filter flap.

20. CONSUMPTION VALUES

20.1 Introduction

See the web link www.theenergylabel.eu for detailed information about Energy Label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance. Refer to 'Product description' chapter for the position of the rating plate.

20.2 Legend

kg Laundry load. h:mm Programme duration.

kWh Energy consumption. °C Temperature in the laundry.

Litres Water consumption. rpm Spin speed.

% Remaining moisture at the end of the cycle. The higher is the spin speed,

the higher is the noise and the lower is the remaining moisture at the end of washing cycle.

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

20.3 According to Commission Regulation Eu 2019/2023

Washing only

Eco 40-60 pro‐ gramme

Full load 10 0.900 61 3:55 52 37 1551

Half load 5 0.605 47 2:50 52 33 1551

kg kWh Litres h:mm % °C

rpm

Page 55

ENGLISH 55

Eco 40-60 pro‐ gramme

kg kWh Litres h:mm % °C

rpm

Quarter load 2.5 0.200 38 2:30 54 23 1551

Maximum spin speed.

Wash and dry cycle

Eco 40-60 pro‐ gramme and Cupboard dry

kg kWh Litres h:mm % °C

rpm

level

Full load 6 3.000 55 9:40 0 39 1551

Half load 3 1.795 43 5:35 0 35 1551

Maximum spin speed.

Power consumption in different modes

Off (W) Stand-by (W)

Delay start

0.50 0.50 4.00

(W)

Networked

standby (W)

2.00

Time to Off/Standby mode is 15 minutes maximum.

The energy consumption of the connected function is approximately 17.5 kWh per year.

To disconnect this function, please refer to the chapter 'Wi-fi - Connectivity setup'.

20.4 Common programmes Washing only

These values are indicative only.

Programme

Cottons 95°C

Cottons 60°C

Cottons 20°C

Synthetics 40°C

Delicates

30°C

kg kWh Litres h:mm % °C

rpm

10 2.90 90 4:05 44 85 1600

10 1.70 85 3:50 44 55 1600

10 0.35 85 3:00 44 20 1600

4 0.80 55 2:15 35 40 1200

2 0.40 60 1:05 35 30 1200

Page 56

www.electrolux.com56

Programme

Wool 30°C

Reference indicator of the spin speed.

Suitable for washing heavily soiled textiles.

Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.

It also performs as quick washing cycle for lightly soiled laundry.

kg kWh Litres h:mm % °C

1.5 0.30 65 1:05 30 30 1200

20.5 Common programmes Wash and dry

These values are indicative only.

Programme

Synthetics 40°C

Reference indicator of the spin speed.

kg kWh Litres h:mm % °C

4 2.05 55 5:50 1 40 1200

21. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

rpm

Page 57

Page 58

Page 59

Page 60

My Electrolux Care app

The software in this product contains components that are based on free and open source software. Electrolux gratefully acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://electrolux.opensoftwarerepository.com (folder NIU5)

www.electrolux.com/shop

157035420-A-472020

Electrolux EW9W8862E9 User guide

CONTENTS

1. SAFETY INFORMATION

1.1 Children and vulnerable people safety

1.2 General Safety

2. SAFETY INSTRUCTIONS

2.1 Installation

2.2 Electrical Connection

2.3 Water Connection

2.4 Use

2.5 Compressor

2.6 Service

2.7 Disposal

3. PRODUCT DESCRIPTION

3.1 Appliance overview

4. TECHNICAL DATA

5. INSTALLATION

5.1 Unpacking

5.2 Installation under a counter

5.3 Positioning and levelling

5.4 The inlet hose

5.5 Water-stop device

5.6 Water drainage

5.7 Electrical connection

6. ACCESSORIES

6.1 Available in www.electrolux.com/shop or from authorised dealer

6.2 Fixing plate kit

7. CONTROL PANEL

7.1 Control panel description

7.2 Display

8. DIAL AND BUTTONS

8.1 On/Off

8.2 Introduction

8.3 Temperature

8.4 Spin

8.5 Stains/Prewash

8.6 Delay Start

8.7 Time Manager

8.8 Anti-crease

8.9 Time Dry

8.10 Auto Dry

8.11 Mode

8.12 Start/Pause

9. PROGRAMMES

9.1 Programme Chart

9.3 Automatic drying

9.4 Timed drying

10. WI-FI - CONNECTIVITY SETUP

10.3 Remote Start

11. BEFORE FIRST USE

10.4 Over-the-air update

12. SETTINGS

12.1 Child Lock

12.2 Acoustic signals

13. DAILY USE

13.1 Using weight sensors

12.3 Permanent Extra Rinse

13.4 Loading the laundry

13.5 Filling the detergent and additives

13.7 Starting a programme

13.8 Starting a programme with the delay start

Cancelling the delay start after the countdown has started

Changing the delay start after the countdown has started

13.10 Programme phase indicators

13.11 Interrupting a programme and changing the options

13.14 End of the programme

13.16 Stand-by option

14. DAILY USE - WASHING & DRYING

14.1 Complete wash&dry programmes

Automatic Non-Stop programme

Non-automatic wash&dry programmes

15. DAILY USE - DRYING ONLY

15.1 Preparation to drying

15.2 Drying - Automatic levels

15.3 Timed Drying

16. FLUFF IN THE FABRICS

17. HINTS AND TIPS

17.1 The laundry load

17.2 Stubborn stains

17.3 Detergent type and quantity
