Page 1
EW8H359S
EN Tumble Dryer User Manual
Page 2
www.electrolux.com2
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. PRODUCT DESCRIPTION................................................................................ 7
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMME TABLE....................................................................................... 9
6. OPTIONS..........................................................................................................10
7. SETTINGS........................................................................................................12
8. BEFORE FIRST USE....................................................................................... 13
9. DAILY USE....................................................................................................... 13
10. HINTS AND TIPS........................................................................................... 14
11. CARE AND CLEANING..................................................................................15
12. TROUBLESHOOTING....................................................................................18
13. TECHNICAL DATA.........................................................................................19

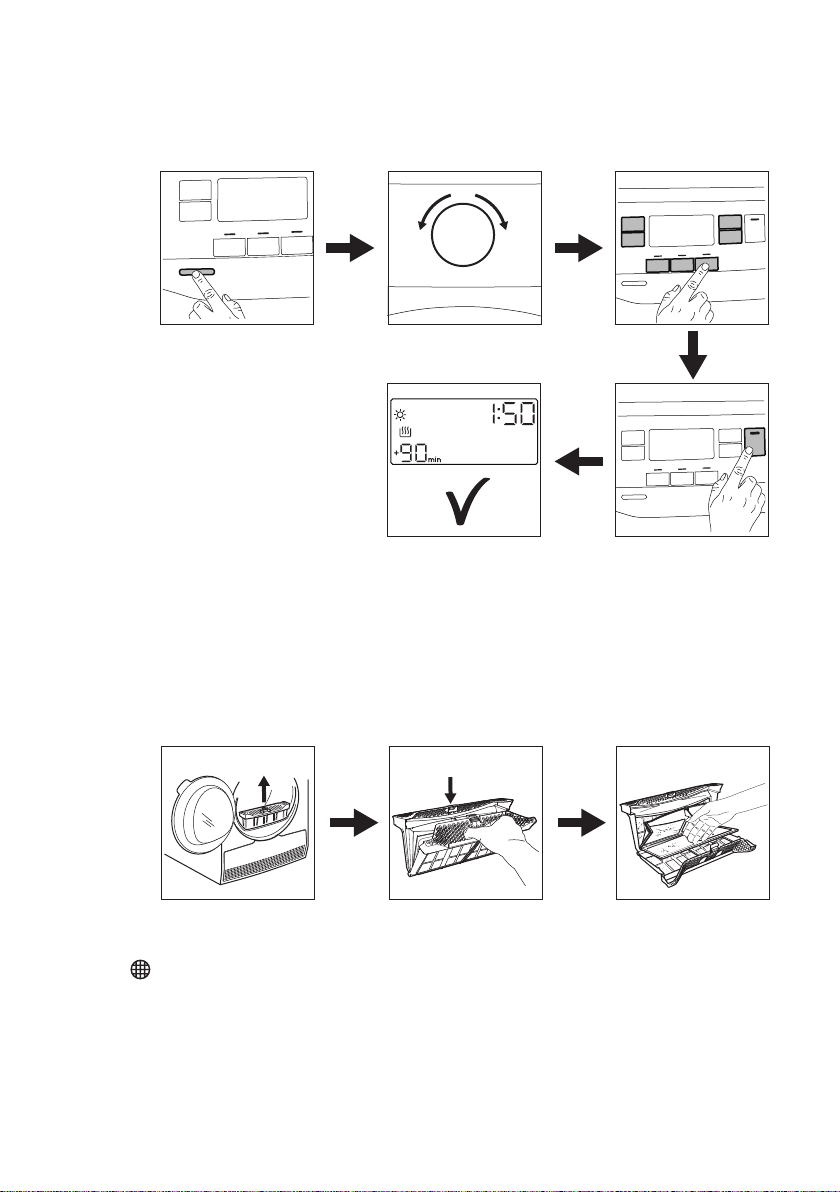

14. QUICK GUIDE................................................................................................21
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
Page 3
1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
• Children of less than 3 years of age should be kept
away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when
the door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH 3
Page 4
www.electrolux.com4
1.2 General Safety
• Do not change the specification of this appliance.
• If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specified in the instructions supplied with
the accessory. Read it carefully before installation
(refer to the Installation leaflet).
• The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
• Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.
• The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
• WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
• Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
• Do not exceed the maximum load of 9 kg (refer to the
"Programme chart" chapter).
• Do not use the appliance if items have been soiled
with industrial chemicals.
• Wipe away lint or packaging debris that has
accumulated around the appliance.
• Do not run the appliance without a filter. Clean the lint
filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
Page 5
ENGLISH 5
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
• Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
• Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
Page 6
www.electrolux.com6
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• To prevent damage to the cooling
system be careful when you clean the
appliance.
2.6 Compressor
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are suitable for
drying in a tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in a
tumble dryer.
2.4 Internal lighting
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• The LED lamp is dedicated to drum
lighting. This lamp cannot be reused
for other lighting purposes.
• To replace the internal lighting,
contact the Authorised Service
Centre.
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chlorohydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
Page 7
3. PRODUCT DESCRIPTION
1 2
6
3
4
5
7
8
9
10
1
1011 9 8
5
7
6
432
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
4. CONTROL PANEL
Water container
1
Control panel
2
Internal light
3
Appliance door
4
Filter
5
Rating plate
6
Airflow slots
7
Heat Exchanger lid
8
Heat Exchanger cover
9
Adjustable feet
10
ENGLISH 7
Programme knob and RESET
1
switch
2
Extra Anticrease touch button
3
Dryness Level touch button
Display
4
5
Time Dry touch button
6
Start/Pause touch button
7
Delay Start touch button
8
End Alert touch button
9
Reverse Plus touch button
10
Extra Silent touch button
On/Off button
11
Page 8
www.electrolux.com8
Press the touch buttons with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate the
control panel. Make sure
that the control panel is
always clean and dry.
4.1 Display
Symbol on the display Symbol description
laundry dryness option: iron dry, cupboard dry,
extra dry
time drying option on
delay start option on
, , ,
-
-
indicator:
indicator:
indicator:
child lock on
wrong selection or knob is in the "Reset" po‐
sition
indicator:
indicator:
indicator:
programme duration
extension of default anti-crease phase:
+30min, +60min, +90min, +2h)
time drying selection (10min-2h)
delay start selection (1h-20h)
check Heat Exchanger
clean filter
drain the water container
drying phase
cooling phase
anti-crease phase
Page 9
5. PROGRAMME TABLE
ENGLISH 9
Programme
3) Cotton Eco
Cotton 9 kg
Synthetics 3,5 kg Synthetic and mixed fabrics.
Delicates 4 kg
Duvet 3 kg
Refresh 1kg Refreshing textiles that were in storage.
Silk
Load
9 kg
1 kg
1)
Cycle to be used to dry cotton
with "cotton cupboard" dryness
level, with maximum energy sav‐
ing.
Cycle defined to dry all types of
cotton ready to store (cupboard
dry).
Delicate fabrics such as viscose,
rayon, acrylic, and their blends.
Single or double duvets and pil‐
lows (with feather, down or syn‐
thetic fillings).
Gentle drying of hand-washable
silks.
Woollen fabrics. Gentle drying for hand-wash‐
able woollens. Remove items immediately
when the programme is completed.
Properties / Fabric type
2)
/
/
/
/
/
/
Wool
1 kg
The wool drying cycle of this machine has
been approved by The Woolmark Company
for the drying of wool garments labelled as
"hand wash" provided that the garments are
dried according to the instructions issued by
the manufacturer of this machine. Follow the
garment care label for other laundry instruc‐
tions. M1717
The Woolmark symbol is a Certification mark
in many countries.
Page 10
www.electrolux.com10
Programme
Outdoor
Denim 4 kg
Bedlinen XL 4,5 kg
Mixed XL 6 kg
1)
The maximum weight refers to dry items.
2)
For fabric mark meaning see chapter
3)
The Cotton Cupboard Dry ECO programme is the “Standard cotton programme” ac‐
cording to Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cot‐
ton laundry and it is the most efficient programme in terms of energy consumption for drying
wet cotton laundry.
6. OPTIONS
6.1 Extra Anticrease
Extends the anti-crease phase by 30,60,
90 or 2 hours at the end of the drying
cycle. This function reduces creases.
The laundry can be removed during the
anti-crease phase.
6.2 Dryness Level
This function helps to increase dryness
of the laundry. There are 3 options:
• Extra Dry
• Cupboard Dry
• Iron Dry
6.3 Time Dry
You can set the programme duration,
from a minimum of 10 minutes to a
maximum of 2 hours. The required
duration is related to the quantity of
laundry in the appliance.
Load
2 kg
1)
Outdoor clothing, technical,
sports fabrics, waterproof and
breathable jackets, shell jackets
with a removable fleece or inner
insulation. Suitable for drying in
tumble dryer.
Leisure clothing such as jeans,
sweat-shirts of different material
thicknesses (e.g. at the neck,
cuffs and seams).
Up to three bed linen sets, one
of which can be double size.
Mix of garments made of cotton,
cotton-synthetic blend and syn‐
thetic fabric.
HINTS AND TIPS: Preparing the laundry.
Properties / Fabric type
We recommend that you set
a short duration for small
quantities of laundry or for
only one item.
6.4 Time Dry on Wool programme
Option suitable for Wool programme to
adjust final dryness level.
6.5 End Alert
The buzzer sounds at the:
• cycle end
• start and end of the anti-crease phase
• cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
You can activate the End
Alert option with all
programmes.
2)
/
/
/
/
Page 11
ENGLISH 11
6.6 Reverse Plus
Increase drum reversing frequency to
reduce items twisting and entanglement.
To increase uniformity of drying result
and help reduce creases. Recommended
for large or long items (e.g. sheets,
trousers, long dresses)"
6.7 Extra Silent
The appliance operates with low noise
without effect on the drying quality. The
appliance operates slowly with longer
cycle time.
6.8 Options table
Ex‐
Programmes
Cotton Eco
Cotton ■ ■ ■ ■ ■ ■ ■
Synthetics ■ ■ ■ ■ ■ ■ ■
Delicates ■ ■
Duvet ■
Refresh ■
Silk
1)
Dryness Level
■ ■
■ ■
tra An‐
ti‐
crease
Ex‐
tra Si‐
lent
Re‐
verse
Plus
Time
Dry
Wool
Outdoor
Denim ■ ■ ■ ■
Bedlinen XL ■ ■ ■ ■ ■
Mixed XL ■ ■ ■ ■ ■
1)
Together with the programme you can set 1 or more options. To activate or deactivate
them, press the related touch button.
2)
See chapter OPTIONS: Time Drying on Wool programme
■
2)
■
Page 12
A B C
DEFGH
www.electrolux.com12
7. SETTINGS
A. Time Dry touch button
B. Start/Pause touch button
C. Delay Start touch button
D. End Alert touch button
Reverse Plus touch button
E.
F.
Extra Silent touch button
G. Extra Anticrease touch button
H. Dryness Level touch button
7.1 Child lock function
This option prevents children playing with
the appliance while a programme is
operating. The touch buttons are locked.
Only the on/off button is unlocked.
7.2 Adjustment of the remaining moisture
To change the default degree of
remaining moisture:
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold buttons (F) and (E) at
the same time.
One of these indicators comes on:
•
•
• standard dry laundry
4. Press and hold buttons (F) and (E)
again until the indicator of the correct
level comes on.
5. After 5 s the display returns to normal
mode.
Dryness level Display symbol
dryness
laundry
maximum dryness
more dry laundry
maximum
more dry
Activating the child lock option:
1. Press the on/off button to activate the
appliance.
2. Press and hold touch button (D) for a
few seconds.
The child lock indicator comes on.
It is possible to deactivate
the child lock option while a
programme operates. Press
and hold the same touch
buttons until the child lock
indicator goes off. The Child
Lock function isn't available
for 8 s after switching on the
appliance.
dry laundry
standard
7.3 Water container indicator
By default, the water container indicator
is on. It comes on when the programme
is completed or when it is necessary to
empty the water container.
If a draining kit is installed
(additional accessory), the
appliance automatically
drains the water from the
water container. In this case
we recommend that you
deactivate the indicator of
the water container.
Page 13
Deactivating the water container indicator:
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (H) and
(G) at the same time.
8. BEFORE FIRST USE
ENGLISH 13
The display shows one of these 2
configurations:
• The display shows "Off". After 5 s
the display returns to normal
mode.
• The display shows "On". After 5 s
the display returns to normal
mode.
Rear drum packaging is
removed automatically when
dryer is activated for the first
time. Possible to hear some
noise.
Before you use the appliance for the first
time:
• Clean the tumble dryer drum with a
moist cloth.
• Start a 1 hour programme with moist
laundry.
9. DAILY USE
9.1 Start a programme without
delay start
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when
you close the door, the
laundry does not get
caught between the
appliance door and the
rubber seal.
2. Press the on/off button to activate the
appliance.
3. Set the correct programme and
options for the type of load.
The display shows the programme
duration.
At the beginning of the
drying cycle (first 3-5 min)
there could be a slightly
higher sound level. This is
due to the compressor
starting up. This is normal
for compressor powered
appliances such as
refrigerators and freezers.
The drying time you see on
the display, when the cotton
programme is selected, is
related to the load of 5 kg
and standard conditions .
Real drying time will depend
on type of the load (quantity
and composition), the room
temperature and the
humidity of your laundry
after spin drying phase.
4. Press the Start/Pause touch button.
The programme starts.
9.2 Starting the programme with delay start
1. Set the correct programme and
options for the type of load.
2. Press the delay start button again
and again until the display shows the
delay time you want to set.
You can delay the start
of a programme from a
minimum of 1 hour to a
maximum of 20 hours.
Page 14
www.electrolux.com14
3. Press the Start/Pause touch button.
The display shows the countdown of the
delay start.
When the countdown is completed, the
programme starts.
9.3 Change a programme
1. Press the on/off button to deactivate
appliance
2. Press the on/off button to activate the
appliance.
3. Set the programme.
Alternatively:
1. Rotate the selector knob to the
"Reset" position.
2. Wait for 1 second. The display shows
3. Set the programme.
.
9.4 At the end of the
programme
When the programme is completed:
• An intermittent acoustic signal
operates.
• The display shows
• The indicator is on.
• The indicators Filter and Tank may
come on.
• The Start/Pause indicator is on.
The appliance continues to operate with
the anti-crease phase for approximately
30 minutes or more if Extra Anticrease
option was set (see chapter
Extra Anticrease
).
Option -
The anti-crease phase reduces creasing.
You can remove the laundry before the
anti-crease phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed.
When the anti-crease phase is
completed:
• The display still shows
• The indicator is off.
• The indicators Filter and Tank remain
on.
• Start/Pause indicator goes off.
1. Press the on/off button to deactivate
the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Always clean the filter and
empty the water container
when a programme is
completed.
9.5 Stand-by function
To reduce energy consumption, this
function automatically deactivates the
appliance:
• After 5 minutes if you do not start the
programme.
• After 5 minutes from the end of the
programme.
The time is reduced to 30
seconds if the selector knob
is pointing to "Reset"
position.
10. HINTS AND TIPS
10.1 Preparing the laundry
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
• Always set the programme suitable
for the type of laundry.
• Do not put light and dark colours
together.
• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programmes chapter or
shown on the display.
Page 15
• Dry only the laundry that is suitable
1
2
1
2
2
1
for tumble drying. Refer to the fabric
label on the items.

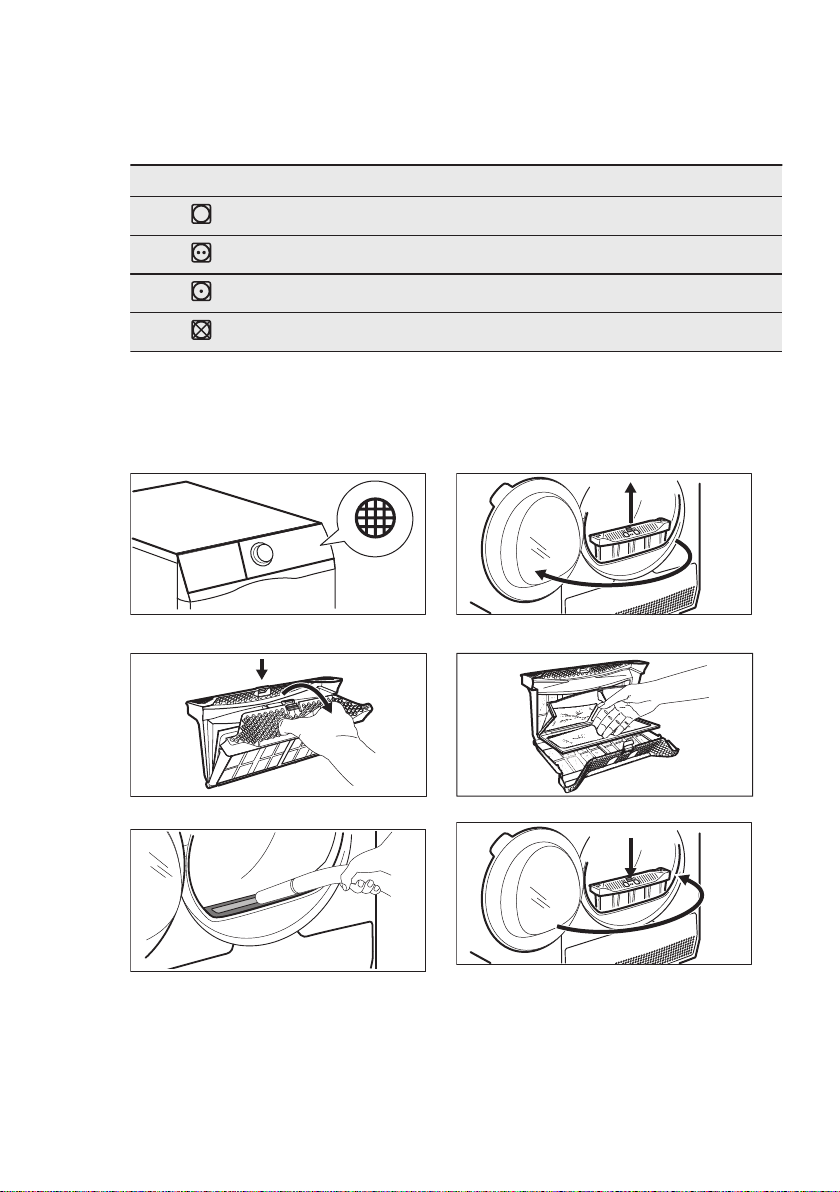

Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
11. CARE AND CLEANING
11.1 Cleaning the filter
1. 2.
ENGLISH 15
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
3.
1)
5.
1)
If necessary remove fluff from the filter socket and gasket. You can use a vacuum
cleaner.
4.
6.
Page 16
1
2
11
22
www.electrolux.com16
11.2 Emptying the water container
1. 2.
3. 4.
You can use the water from
the water container as an
alternative to distilled water
(e.g. for steam ironing).
Before you use the water,
remove dirt residues with a
filter.

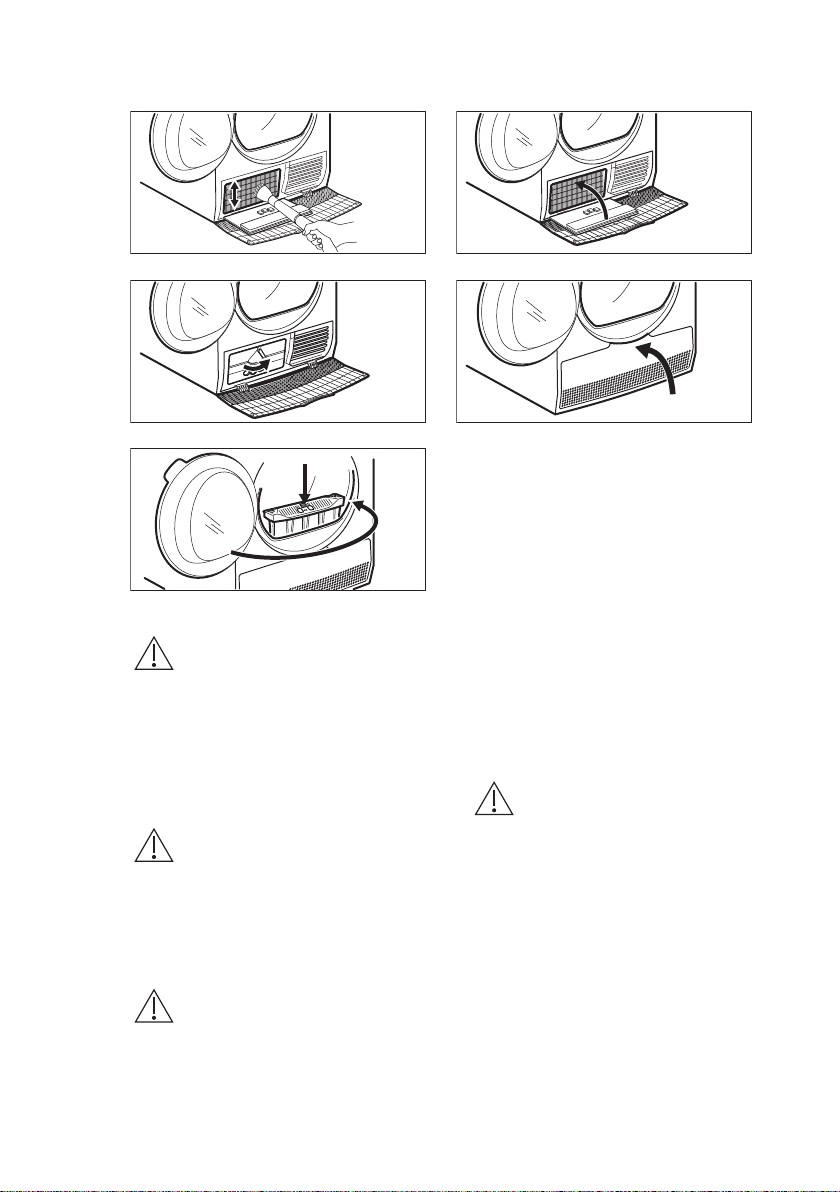

11.3 Cleaning the Heat Exchanger
1. 2.
3. 4.
Page 17
5. 6.
2
1
7. 8.
ENGLISH 17
9.
CAUTION!
Do not touch the metal
surface with bare hands.
Risk of injury. Wear
protective gloves. Clean
carefully to avoid damaging
the metal surface.
11.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
11.5 Cleaning the control panel
and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion.
11.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
Page 18
www.electrolux.com18
12. TROUBLESHOOTING
Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connec‐
Check fuse in fuse box (domestic installa‐
The programme does not start. Press Start/Pause.
Make sure that the appliance door is
The appliance door does not close. Make sure that the installation of the filter
Make sure that the laundry is not caught
The appliance stops during operation. Make sure that the water container is
Load is too small, increase the load or
The cycle time is too long or unsatisfacto‐
ry drying result.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry
Ensure that the room temperature is
Set the Time Drying or the Extra Dry pro‐
The display shows .
Make sure that the options are suitable
The display shows Error code (e.g. E51). Deactivate and activate the appliance.
1)
After maximum 5 hours, the programme ends automatically.
2)
It can happen that some area remains humid when drying big items (e.g. bed sheets ).
1)
ted to the mains socket.
tion).
closed.
is correct.
between the appliance door and the rub‐
ber seal.
empty. Press Start/Pause to start the pro‐
gramme again.
use the Time Drying programme.
Make sure that the weight of the laundry
is suitable for the duration of the pro‐
gramme.
in the washing machine again.
higher than +5°C and lower than +35°C.
Optimal room temperature is 19°C to
24°C.
gramme.
If you want to set a new programme, de‐
activate and activate the appliance.
for the programme.
Start a new programme. If the problem
occurs again, contact the Service centre.
2)
Page 19
12.1 If the drying results are not
satisfactory
• The set programme was incorrect.
• The filter is clogged.
• The Heat Exchanger is clogged.
• There was too much laundry in the
appliance.
• The drum is dirty.
13. TECHNICAL DATA
Height x Width x Depth 850 x 600 x 600 mm (maximal 665 mm)
Max. depth with the appliance door open 1100 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 9 kg
Voltage 230 V
Frequency 50 Hz
Sound power level 65 dB
Total power 900 W
Energy efficiency class A++
Energy consumption on the standard cot‐
ton programme with the full load.
Energy consumption on the standard cot‐
ton programme with the partial load.
Annual energy consumption
Left-on mode power absorption 0,13 W
Off mode power absorption 0,13 W
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against ingress of sol‐
id particles and moisture ensured by the
protective cover, except where the low
voltage equipment has no protection
against moisture
This product contains fluorinated greenhouse gases, hermetically sealed
Gas designation R134a
ENGLISH 19
• Incorrect setting of the conductivity
sensor ( See chapter "
Settings Adjustment of the remaining laundry
moisture degree
• The airflow slots are clogged.
• Room temperature is too low or too
high ( optimal room temperature 19°C
to 24°C )
1)
3)
2,21 kWh
1,16 kWh
2)
258,7 kWh
IPX4
" for better setting).
Page 20
www.electrolux.com20
Weight 0,260 kg
Global-warming potential (GWP) 1430
1)
With reference to EN 61121. 9 kg of cotton centrifuged at 1000 rpm.
2)
With reference to EN 61121. 4,5 kg of cotton centrifuged at 1000 rpm.
3)
Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes. Actual en‐
ergy consumption per cycle will depend on how the appliance is used (REGULATION (EU)
No. 392/2012).
13.1 Consumption data
Energy
consump‐
tion
Programme Spun at / residual humidity
Drying
1)
time
Cotton Eco 9 kg
Cupboard Dry 1400 rpm / 50% 160 min. 1,88 kWh
1000 rpm / 60% 185 min. 2,21 kWh
Iron Dry 1400 rpm / 50% 107 min. 1,27 kWh
1000 rpm / 60% 129 min. 1,57 kWh
Cotton Eco 4,5 kg
Cupboard Dry 1400 rpm / 50% 88 min. 0,97 kWh
1000 rpm / 60% 103 min. 1,16 kWh
Synthetics 3,5 kg
Cupboard Dry 1200 rpm / 40% 56 min. 0,56 kWh
800 rpm / 50% 69 min. 0,78 kWh
1)
For partial loads, the cycle time is shorter and appliance uses less energy.
2)
Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time
and increase the energy consumption.
2)
Page 21
14. QUICK GUIDE
1 2
3
5
4
1 32
14.1 Daily use
ENGLISH 21
1. Push the On/Off button to turn on the
appliance.
2. Use the programme dial to set the
programme.
3. Together with the programme you
can set 1 or more special options. To
14.2 Cleaning the filter
At the end of each cycle the filter symbol
appears on the display and you must
clean the filter.
activate or deactivate an option touch
the relevant button.
4. To start the programme , Touch the
Start/Pause button.
5. The appliance starts.
Page 22
www.electrolux.com22
14.3 Programme table
Programme
Load
1)
Properties / Fabric type
Cycle to be used to dry cotton
2) Cotton Eco
9 kg
with "cotton cupboard" dryness
level, with maximum energy sav‐
/
ing.
Cycle defined to dry all types of
Cotton 9 kg
Synthetics 3,5 kg Synthetic and mixed fabrics.
Delicates 4 kg
cotton ready to store (cupboard
dry).
Delicate fabrics such as viscose,
rayon, acrylic, and their blends.
/
/
/
Single or double duvets and pil‐
Duvet 3 kg
lows (with feather, down or syn‐
thetic fillings).
/
Refresh 1kg Refreshing textiles that were in storage.
Silk
1 kg
Gentle drying of hand-washable
silks.
/
Woollen fabrics. Gentle drying for hand-wash‐
Wool
1 kg
able woollens. Remove items immediately
when the programme is completed.
Outdoor clothing, technical,
sports fabrics, waterproof and
Outdoor
2 kg
breathable jackets, shell jackets
with a removable fleece or inner
/
insulation. Suitable for drying in
tumble dryer.
Leisure clothing such as jeans,
Denim 4 kg
sweat-shirts of different material
thicknesses (e.g. at the neck,
/
cuffs and seams).
Bedlinen XL 4,5 kg
Up to three bed linen sets, one
of which can be double size.
/
Mix of garments made of cotton,
Mixed XL 6 kg
1)
The maximum weight refers to dry items.
2)
The
cording to Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cot‐
ton laundry and it is the most efficient programme in terms of energy consumption for drying
wet cotton laundry.
Cotton Cupboard Dry ECO programme is the “Standard cotton programme” ac‐
cotton-synthetic blend and syn‐
thetic fabric.
/
Page 23
15. ENVIRONMENTAL CONCERNS
ENGLISH 23
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
*
Page 24
www.electrolux.com/shop
136954510-A-202018
Loading...
