Electrolux EW8F8661U1 User guide

EW8F8661U1

EN Washing Machine User Manual

My Electrolux Care app

www.electrolux.com2

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................5

3. PRODUCT DESCRIPTION................................................................................ 7

4. TECHNICAL DATA.............................................................................................8

5. INSTALLATION.................................................................................................. 8

6. CONTROL PANEL........................................................................................... 11

7.

WI-FI - CONNECTIVITY SETUP................................................................. 14

8. DIAL AND BUTTONS....................................................................................... 17

9. PROGRAMMES............................................................................................... 20

10. SETTINGS......................................................................................................27

11. BEFORE FIRST USE..................................................................................... 27

12. DAILY USE..................................................................................................... 27

13. HINTS AND TIPS........................................................................................... 33

14. CARE AND CLEANING..................................................................................34

15. TROUBLESHOOTING....................................................................................40

16. CONSUMPTION VALUES..............................................................................45

17. ACCESSORIES..............................................................................................47

18. QUICK GUIDE................................................................................................48

19. ENVIRONMENTAL CONCERNS................................................................... 50

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

Register your product for better service:

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.

Warning / Caution-Safety information
General information and tips
Environmental information

ENGLISH 3

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

www.electrolux.com4

• Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.

• Children of less than 3 years of age should be kept

away from the appliance unless continuously
supervised.

• Children should be supervised to ensure that they do

not play with the appliance.

• Keep all packaging away from children and dispose of

it appropriately.

• Keep detergents away from children.

• Keep children and pets away from the appliance when

the door is open.

• If the appliance has a child safety device, it should be

activated.

• Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

• Do not change the specification of this appliance.

• This appliance is intended to be used in household

and similar applications such as:

– staff kitchen areas in shops, offices and other

working environments;

– by clients in hotels, motels, bed & breakfast and

other residential type environments;

– areas for communal use in blocks of flats or in

launderettes.

• The appliance maximum load is 10 kg. Do not exceed

the maximum load of each programme (refer to the
“Programmes” chapter).

• The operating water pressure at the water entry point

from the outlet connection must be between 0.5 bar
(0.05 MPa) and 10 bar (1.0 MPa).

• The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

• The appliance must be connected to the water mains

using the new supplied hose sets, or other new hose

sets supplied by the Authorised Service Centre.

• Old hose sets must not be reused.

• If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

• Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

• Do not use high pressure water sprays and/or steam

to clean the appliance.

• Clean the appliance with a moist cloth. Use only

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

ENGLISH 5

2.1 Installation

The installation must comply
with relevant national
regulations.

• Remove all the packaging and the
transit bolts including rubber bush
with plastic spacer.

• Keep the transit bolts in a safe place.
If the appliance is to be moved in the
future they must be reattached to lock
the drum to prevent an internal
damage.

• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.

• Follow the installation instructions
supplied with the appliance.

• Do not install or use a damaged
appliance.

• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.

• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.

• Make sure that there is air circulation
between the appliance and the floor.

• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.

• Do not install the appliance directly
above a floor drain.

• Do not spray water on the appliance
and do not expose it to excessive
humidity.

• Do not install the appliance where the
appliance door cannot be fully
opened.

• Do not put a closed container to
collect possible water leakage under
the appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric
shock.

• WARNING: This appliance is
designed to be installed / connected

www.electrolux.com6

to a grounding connection in the
building.

• Always use a correctly installed
shockproof socket.

• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.

• Do not use multi-plug adapters and
extension cables.

• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.

• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.

• Do not touch the mains cable or the
mains plug with wet hands.

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

2.3 Water connection

• The inlet water shall not exceed
25 °C.

• Do not cause damage to the water
hoses.

• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.

• Ensure that there are no visible water
leaks during and after the first use of
the appliance.

• Do not use an extension hose if the
inlet hose is too short. Contact the
Authorised Service Centre for the
replacement of the inlet hose.

• When unpacking the appliance, It is
possible to see water flowing from the
drain hose. This is due to the testing
of the appliance with the use of water
in the factory.

• You can extend the drain hose to
maximum 400 cm. Contact the
Authorised Service Centre for the
other drain hose and the extension.

• Make sure that there is access to the
tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock,
fire, burns or damage to the
appliance.

• Follow the safety instructions on the
detergent packaging.

• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.

• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.

• Do not touch the glass door while a
programme operates. The glass can
get hot.

• Make sure that all metal objects are
removed from the laundry.

2.5 Service

• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.

• Please note that self-repair or non­professional repair can have safety
consequences and might void the
guarantee.

• The following spare parts will be
available for 10 years after the model
has been discontinued: motor and
motor brushes, transmission between
motor and drum, pumps, shock
absorbers and springs, washing drum,
drum spider and related ball bearings,
heaters and heating elements,
including heat pumps, piping and
related equipment including hoses,
valves, filters and aquastops, printed
circuit boards, electronic displays,
pressure switches, thermostats and
sensors, software and firmware
including reset software, door, door
hinge and seals, other seals, door
locking assembly, plastic peripherals
such as detergent dispensers. Please
note that some of these spare parts
are only available to professional
repairers, and that not all spare parts
are relevant for all models.

1 2 3

9

5

7

4

10

8

11 12

6

ENGLISH 7

• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

3. PRODUCT DESCRIPTION

3.1 Appliance overview

• Disconnect the appliance from the
mains electrical and water supplies.

• Cut off the mains electrical cable
close to the appliance and dispose of
it.

• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.

• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).

Worktop

1

Detergent dispenser

2

Control panel

3

Door handle

4

Rating plate

5

Drain pump filter

6

Feet for levelling the appliance

7

Drain hose

8

Inlet hose connection

9

Mains cable

10

Transit bolts

11

Hose support

12

00000000

00A

Mod.

xxxxxxxxx

000V ~ 00Hz 0000 W

910000000

00

A
B
C

Prod.No.

D

1

2

www.electrolux.com8

4. TECHNICAL DATA

Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /65.8 cm

Electrical connection Voltage

Level of protection against ingress of solid particles
and moisture ensured by the protective cover, except
where the low voltage equipment has no protection
against moisture

Water supply pressure Minimum

Water supply

Maximum Load Cotton 10 kg

Spin Speed Maximum spin speed 1551 rpm

1)

Connect the water inlet hose to a water tap with a 3/4'' thread.

1)

Overall power
Fuse
Frequency

Maximum

The rating plate reports the model name (A) ,
product number (B), electrical ratings (C) and
serial number (D).

230 V
2200 W
10 A
50 Hz

IPX4

0.5 bar (0.05 MPa)
10 bar (1.0 MPa)

Cold water

5. INSTALLATION

5.1 Unpacking

1. Open the door. Remove all the items

from the drum.

WARNING!

Refer to Safety chapters.

Accessories delivered
with the appliance may
vary depending on the
model.

2. Put the packaging element on the
floor behind the appliance and
carefully put it down onto its rear
side. Remove the polystyrene
protection from the bottom.

CAUTION!

Do not lay washing
machine on its front.

3. Put the appliance back into an
upright position. Remove the power

20º20º

45º45º

ENGLISH 9

supply cable and the drain hose from
the hose holders.

It is possible to see
water flowing from the
drain hose. This is
because the washing
machine has been
tested at the factory.

4. Remove the three transit bolts and
pull out the plastic spacers.

Adjust the appliance correctly to prevent
vibration, noise and movement of the
appliance when it operates.

1. Install the appliance on a flat hard
floor. The appliance must be levelled and
stable. Make sure that the appliance
does not touch the wall or other units and
there is air circulation below the
appliance.

2. Loosen or tighten the feet to adjust the
level. All feet must rest firmly on the floor.

WARNING!

Do not put cardboard, wood
or equivalent materials
below the appliance feet to
adjust the level.

The inlet hose

CAUTION!

Make sure there is no
damage to hoses and there
are no leaks from the
couplings. Do not use an
extension hose if the inlet
hose is too short. Contact
the service centre for a
replacement inlet hose.

1. Connect the water inlet hose to the
back of the appliance.

We recommend that
you keep the
packaging and the
transit bolts for any
transport of the
appliance.

5. Put the plastic caps, that you find in

the user manual bag, in the holes.

5.2 Information for installation

Positioning and levelling

2. Position it toward left or right
depending on the positon of the water
tap. Make sure that the inlet hose is not
in vertical position.

3. If necessary, loosen the ring nut to set
it in the correct position.

www.electrolux.com10

4. Connect the water inlet hose to the
cold water tap with 3/4'' thread.

WARNING!

The inlet water shall not
exceed 25 °C.

Water drainage

The drain hose should stay at a height of
no less than 60 cm and not more than
100 cm.

You can extend the drain
hose to maximum 400 cm.
Contact the authorised
service centre for the other
drain hose and the
extension.

It is possible to connect the drain hose in
different ways:

1. Make a U shape with the drain hose
and put it around the plastic hose guide.

3. If the end of the drain hose looks like
this (see the picture), you can push it
directly into the stand pipe.

4. To a stand pipe with vent hole - Insert
the drain hose directly into a drain pipe.
Refer to the illustration.

2. On the edge of a sink - Fasten the
guide to the water tap or to the wall.

Make sure that the plastic
guide cannot move when the
appliance drains and the
drain hose end is not
immersed in the water.
There may be a return of
dirty water into the
appliance.

The end of the drain hose
must always be ventilated ,
i.e. the inner diameter of the
drain pipe (min. 38 mm ­min. 1.5") must be larger
than the external diameter of
the drain hose.

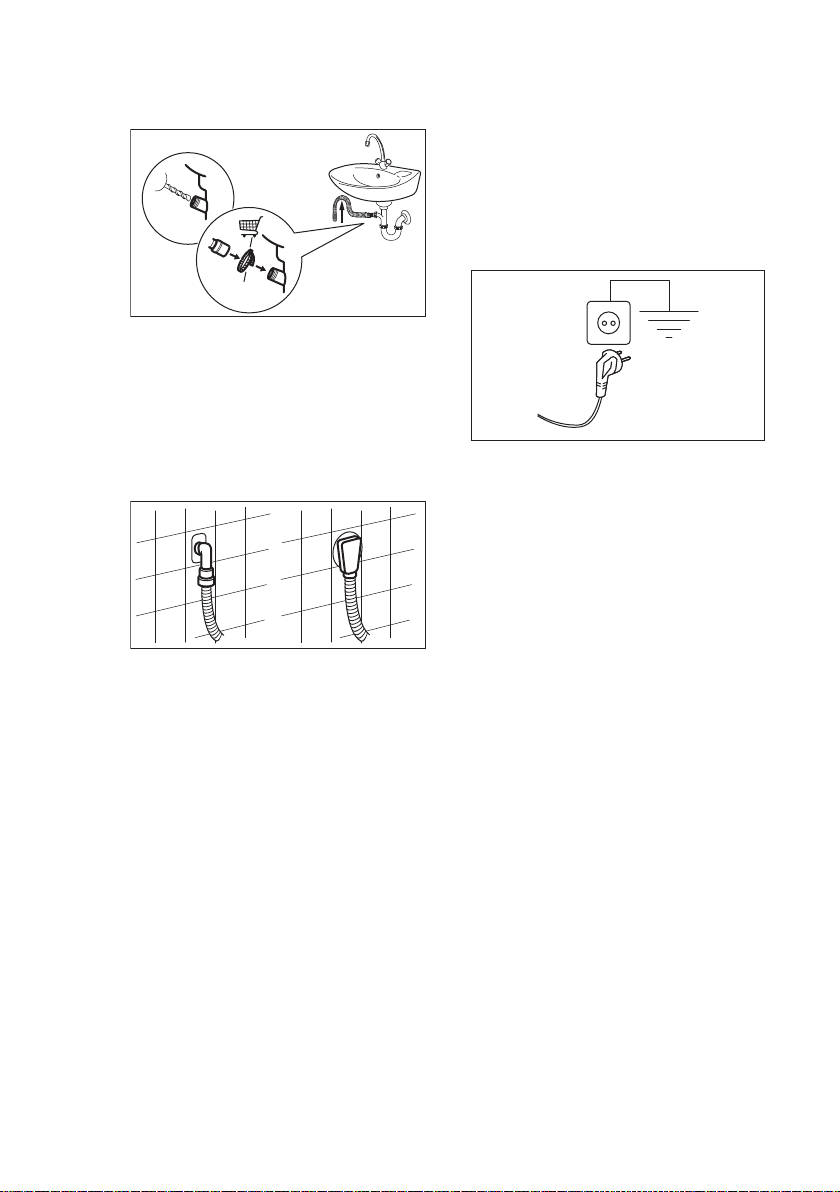

5. Without the plastic hose guide, to a
sink spigot- Put the drain hose in the
spigot and tighten it with a clamp. Refer
to the illustration.

ø16

1

W011

2

ENGLISH 11

Make sure that the drain hose makes a
loop to prevent particles going into the
appliance from the sink.

Connect the drain hose to the spigot and
tighten it with a clamp. Make sure that
the drain hose makes a loop to prevent
particles going into the appliance from
the sink.

6. Position the hose directly to a built-in

drain pipe in the room wall and tighten it
with a clamp.

The rating plate and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are
compatible with the mains power supply.

Check that your domestic electrical
installation can take the maximum load
required, also taking into account any
other appliances in use.

Connect the appliance to an earthed
socket.

The power supply cable must be easily
accessible after installing the appliance.

For any electrical work required to install
this appliance, contact our Authorised
Service Centre.

The manufacturer does not accept any
responsibility for damage or injury
through failure to comply with the above
safety precaution.

5.3 Electrical connection

At the end of installation you can connect
the mains plug to the mains socket.

6. CONTROL PANEL

6.1 Special features

Your new washing machine meets all
modern requirements for an effective
treatment of laundry with low water,
energy and detergent consumption and
proper care of fabric.

• The Wi-Fi connection and Remote

Start enable you to start a cycle, to
interact with your washing machine
and to check the washing cycle status
in remote control.

• The FreshScent System, thanks to

new Cashmere and FreshScent
steam programmes offers the perfect
solution for refreshing even the most
delicate garments without washing.

Use the delicate fragrance exclusively
developed by ELECTROLUX to add a
pleasant feeling of "just-washed"
garment to the removing odours and
wrinkles action.

• The UltraCare technology has been
designed to protect the fabric fibres
thanks to different pre-mixing phases
that dissolves first the detergent and
then fabric softener in the water
before they are distributed in the
laundry. So every fibre is reached and
cared for.

• The UniversalDose drawer with a
compartment dedicated to each type
of detergent, including a compartment
for PODS, equipped with a system

On/Off

Eco 40-60

Synthetics

Delicates

Wool/Silk

FreshScent

Spin/Drain

Rinse

Rapid 20min

Anti-Allergy

Outdoor

Denim

Duvet

Cottons

Temperature

Stain

Extra Rinse

Soft Plus

Plus Steam

Delay

Start

Time

Manager

UltraWash 59min

Prewash

Spin

1 2 3 4 5 6 7

9 81011121314

www.electrolux.com12

able to spread and mixing the
detergent in an optimal way, and to to
dissolve the detergent residues after
each cycle.

• The steam has a quick and easy way
to refresh the clothes. The gentle
steam programmes remove odours
and reduce creases in dry fabrics so
they need little ironing.
The Plus Steam option, finishes
every cycle with gentle steam that
relaxes the fibres and reduces fabric
creasing. Ironing will be easier!

6.2 Control panel description

• Thanks to the Soft Plus option, the
fabric softener is uniformly spread out
in the laundry and deeply penetrates
the fabric fibres favouring a perfect
softness.

• The SensiCare System detects the
laundry load size defining the
programme duration in 30 seconds.
The washing programme is tailored to
the laundry load and the type of fabric
without consuming more time, energy
and water than necessary.

Programme dial

1
2

Spin touch button

3

Temperature touch button
Display

4

Delay Start touch button and Remote

5

start function

6

Time Manager touch button

7

Start/Pause touch button
Pods® touch button and Child Lock

8

option

9

Plus Steam touch button

10

Soft Plus touch button

11

Extra Rinse touch button

12

Stain touch button

13

Prewash touch button

14

On/Off push button

6.3 Display

MIX

MIX

ENGLISH 13

The Temperature area:

Temperature indicator .

Cold water indicator.

Child safety lock indicator.

Wi-Fi connection indicator.

Remote Start indicator.

Door locked indicator.

Delay start indicator.

The digital indicator can show:

• Programme duration (e. g. ).

• Delay time (e. g. ).

• Cycle end ( ).

• Warning code (e.g.

).

• Error indicator ( ).

• When working with the APP: , (access point),

(update). Please refer to the chapter 'Wi-FI - Connec‐

tivity setup'.

Time Manager indicator.

UltraCare indicator.

Steam phase indicator.

Anti-crease phase indicator.

Outdoor

Puuvilla

Puuvilla

Koneen puhdistus

Silkki

Villa

Tyhjennys/Linkous

Huuhtelu

Pika 14 min.

Hienopesu

Synteettiset

Denim

UltraWash

Anti-Allergy

www.electrolux.com14

Drum clean indicator. This is a recommendation to perform the
drum cleaning.

The spin area:
Spin speed indicator

No Spin indicator. Spin phase is off.

Silent indicator.

Rinse Hold indicator.

Add garments indicator. it lights at the beginning of the wash‐
ing phase, when it is still possible to pause the appliance and
add more laundry.

Maximum load indicator (refer to "The SensiCare System load
detection " paragraph).

It flashes when the laundry load exceeds the maximum

declared load of the selected programme.

6.4 Multilingual badges

Adhesive badges in different languages
are supplied with the appliance.

The desired badge can be glued next to
the programme dial.

7. WI-FI - CONNECTIVITY SETUP

This chapter describes how to connect
the smart appliance to the Wi-Fi network
and to link it to mobile devices.

By this functionality you can receive
notifications, control and monitor your
appliance from your mobile devices.

To connect the appliance to enjoy the full
range of features and services you need:

• Wireless network at home with
internet connection enabled.

• Mobile device connected to wireless
network.

Frequency/
Protocol

Max Power Wi-Fi 2.4 GHz: <20

Encryption WPA, WPA2

Wi-Fi: 2.4 GHz / 802.11

bgn

Wi-Fi: 5 GHz / 802.11
an (for indoor use only)

Bluetooth Low Energy

5.0: 2.4 GHz / DSSS

dBm

Wi-Fi 5 GHz: <23 dBm

Bluetooth Low Energy

5.0: < 20 dBm

ENGLISH 15

7.1 Installing and configuring

"My Electrolux"

"My Electrolux" allows you to
control your laundry through
a mobile device.
It contains a large number of
programmes, useful features
and product information
tailored perfectly to the
appliance.
Through the app you can
select the programmes
already available from the
appliance control panel, plus
unlock additional
programmes available only
from a mobile device
Additional programmes can
change over the time along
with new versions of the
app.
It's personalized laundry
care - all from your mobile
device.

When connecting the appliance to the
application, stand near it with your smart
device.

Make sure that your smart device is
connected to the wireless network.

1. Go to the App Store on your smart
device.

2. Download and install the App "My
Electrolux".

3. Make sure you started a Wi-fi
connection in the appliance. If not,
read the next paragraph 'Configuring
the appliance wireless connection'.

4. Start the application. Select the
country and language and login with
Your email and password. If you do
not have an account, create a new
one following the instructions in "My
Electrolux".

5. Follow the instructions on the App for
the appliance registration and
configuration.

7.2 Configuring the washing

machine wireless connection

1. Press the On/Off button for a few
seconds to activate the appliance.
Wait about 10 seconds before

proceeding with wireless
configuration.

2. Select a programme by turning the
programme dial.

3. Press and hold the Time Manager
and the Delay Start buttons
simultaneously for a few seconds
until a 'click' sounds. Release the

buttons. appears on the display
for 5 seconds and the indicator
starts blinking.

The wireless module begins starting up.

Make sure that you APP is
ready for connection.

4. After about 10 seconds,
(Access Point) appears on the
display.

The access point will be open for about 3
minutes.

As long as the appliance is
activated, it will keep trying
to connect with saved
credentials until the Wi-Fi is
deactivated or resets the
credentials.

5. Configure the "My Electrolux" app on
your smart device and follow the
instructions to connect the appliance
to your Wi-Fi network.

6. If the connectivity is configured, when
the programme information screen
returns, the indicator is on the
display.

www.electrolux.com16

Every time you switch the
appliance on, the appliance
takes 10 seconds to connect
to the network automatically.
When the indicator stops
blinking the connection is
ready.

To switch the wireless connection off,
press and hold the Time Manager and
the Delay Start buttons simultaneously
for a few seconds until the first acoustic

signal. Release the buttons.
appears on the display for 5 seconds.

If you switch the appliance
off and on again, the
wireless connection is
automatically off.

To remove the wireless credentials,
press and hold the Time Manager and
the Delay Start buttons simultaneously
for 10 seconds until the second acoustic

signal:

appears on the display.

7.3 Remote Start

The Remote Start enables you to start a
cycle in remote control.

The Remote Control
activates automatically when
you press the Start/Pause

button to start the
programme, but it is also
possible to start a washing
programme remotely.

When the App is installed and the
wireless connection is complete, you can
activate the Remote Start:

1. Touch the Remote Start button

and the indicator appears on
the display for a few seconds.

2. Touch the Start/Pause
activate the Remote Start before the

indicator stops blinking.

The indicators and appear on the
programme summary screen and the
door is locked. Now it is possible to start
the programme remotely.

When touching the Start/

Pause button after the

indicator stops
blinking, the Remote Start is
not activated, but the set
programme starts.

To remove the Remote Start, tap on the

Remote Start button and confirm by

pressing the Start/Pause

The reset position
deactivates the Remote
Start.

button to

button.

7.4 Over-the-air update

The App may propose an update for your
appliance.

The update is accepted via App only.

If a programme is running, the App
notifies that the update will start at the
end of the programme.

During the update, the appliance shows

in the display.

Do not switch off or unplug the appliance
during update.

The appliance will usable again at the
end of the update, without any
notification about successful update.

If an error occurs, the appliance shows

in the display: just press any
buttons or turn the knob to return to
normal use.

8. DIAL AND BUTTONS

ENGLISH 17

8.1 Introduction

The options/functions are
not available with all
washing programmes.
Check the compatibility
between options/functions
and washing programmes in
the "Programme Chart". An
option/function can exclude
another one, in this case the
appliance doesn't allow you
to set incompatible options/
functions.

8.2 On/Off

Press this button for a few seconds to
activate or deactivate the appliance. Two
different tunes sound while switching the
appliance on or off.

As the Stand-by function automatically
deactivates the appliance after several
minutes to reduce the energy
consumption, you may need to activate
the appliance again.

For more details, refer to Stand-by
paragraph in Daily Use chapter.

8.3 Temperature

When you select a washing programme,
the appliance automatically proposes a
default temperature.

Touch this button repeatedly until the
desired temperature value appears on
the display.

When the display shows the indicators

, the appliance does not heat the

water.

8.4 Spin

When you set a programme, the
appliance automatically sets the default
spin speed.

Touch repeatedly this button to:

• Change the spin speed. The display
shows only the spin speeds available
for the set programme.

• Additional spin options No Spin

.
Set this option to deactivate all spin
phases. The appliance performs the
only draining phase of the selected
washing programme. Set this option
for very delicate fabrics. The rinses
phase uses more water for some
washing programmes

• Activate the Rinse Hold option.
The final spin is not performed. The
water of the last rinse is not drained
out to prevent the fabrics from
creasing. The washing programme
ends with water in the drum.

The display show the indicator .
The door stays locked and the drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.

If you touch the Start/Pause
button, the appliance performs the
spinning phase and drains the water.

The appliance empties
the water out
automatically after 18
hours approximately.

• Activate the Silent option.
The intermediate and the final
spinning phases are suppressed and
the programme ends with water in the
drum. This helps to reduce creasing.

The display shows the indicator .
The door stays locked. The drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
As the programme is very quiet, it is
suitable for use at night time when
cheaper electricity tariffs are
available. In some programmes the
rinses are performed with more water.

If you touch the Start/Pause
button, the appliance performs the
only draining phase.

The appliance empties
the water out
automatically after 18
hours approximately.

www.electrolux.com18

8.5 Prewash

With this option you can add a prewash
phase to a washing programme.

The corresponding indicator above the
touch button illuminates.

• Use this option to add a pre-wash
phase at 30 °C before the washing
phase.
This option is recommended for
heavily soiled laundry, especially if
containing sand, dust, mud and other
solid particles.

The options can increase the
programme duration.

8.6 Stain

Touch this button to add the stain phase
to a programme.

The corresponding indicator above the
touch button illuminates.

Use this option for laundry with hard
stains to remove.

When you set this option, put the stain

remover into compartment .

The stain remover is pre-mixed and
heated with detergent in order to improve
its effectiveness.

This option increases the
programme duration.
This option is not available
with a temperature lower
than 40 °C.

8.7 Permanent Extra Rinse

With this option you can add a few rinses
according to the selected washing
programme.

Use this option for people with allergies
to detergent residues and with sensitive
skin.

This option increases the
programme duration.

The corresponding indicator above the
touch button illuminates and also stays
permanently on during next cycles until
this option is deactivated.

8.8 Permanent Soft Plus

Set this option to optimise the fabric
softener distribution and improve fabric
softness.

Recommended when you use fabric
softener.

This option increases the
programme duration.

The corresponding indicator above the
touch button illuminates and also stays
permanently on during next cycles until
this option is deactivated.

8.9 Plus Steam

This option adds a steam phase followed
by a short anti-crease phase at the end
of the washing programme.

The steam phase reduces fabric
creasing and facilitates the fabric ironing.

The corresponding indicator above the
touch button illuminates.

The indicator is steady on during
steam phase.

This option can increase the
programme duration.

When the programme stops the display

shows , the indicator goes off

and the indicator and the Start/Pause

led are steady on. The drum
performs smooth movements for about
30 minutes to keep the steam benefit. By
touching any button the anti-crease
movements stop and the door unlocks,
the appliance proposes again the
previous set programme.

To interrupt the anti-crease phase, you
can also:

• Press the On/Off button for a few

seconds to activate or the deactivate
the appliance.

• Turning the programme dial in

another position.

A small laundry load helps to
reach better results.

ENGLISH 19

8.10 Pods®

Touch this button to activate or
deactivate the Pods® option .

When activated the relevant indicator is
on.

Follow the Pods manufacturer's dosage
and storage recommendations.

Put maximum two tablets or single-dose
detergents in the Pods® compartment in
the detergent dispenser drawer.

The option remains active also for next
cycles until it is deactivated and if it is
selectable with the set programme.

8.11 Delay Start

With this option you can delay the start of
a programme to a more convenient time.

Touch the button repeatedly to set the
required delay. The time increases in
steps of 1 hour up to 20 hours.

The display shows the indicator
the selected delay time. After touching

the Start/Pause button, the appliance
begins the countdown and the door is
locked.

and

8.12 Time Manager

With this option you can reduce the
programme duration depending on the
load size and the degree of soiling.

When you set a washing programme, the
display shows the default duration and

dashes.

Touch Time Manager button to reduce
the programme duration according to
your needs. The display shows the new
programme duration and a number of
dashes will decrease accordingly:

suitable for a full load of normally

soiled garments.

very quick cycle for a smaller lightly
soiled load (max. half load
recommended).

the shortest cycle to freshen up a
small amount of laundry.

The Time Manager is available only with
the programmes in the table.

indicator

Eco 40-60

1)

1)

Default duration for all programmes.

Time Manager with steam

programmes

When setting a steam programme, this
button allows to chose three steam levels
and the programme duration is reduced
accordingly:

• : maximum.

•

• : minimum.

: medium.

■

■ ■ ■

■

■ ■ ■

■ ■ ■

Cottons

■ ■

■ ■

Synthetics

8.13 Start/Pause

Touch the Start/Pause button to
start, pause the appliance or interrupt a
running programme.

a quick cycle for a full load of lightly

soiled garments.

www.electrolux.com20

9. PROGRAMMES

9.1 Programme Chart

Additional programmes and settings are available downloading the APP.

Programme
Default tem‐
perature
Temperature
range

Washing programmes

Eco 40-60

1)

40 °C

Cottons
40 °C
90 °C - Cold

Synthetics
40 °C
60 °C - Cold

Delicates
30 °C
40 °C - Cold

Wool/Silk
40 °C
40 °C - Cold

Reference
spin
speed
Spin
speed
range

1600 rpm
(1600- 400
rpm)

1600 rpm
(1600- 400
rpm)

1200 rpm
(1200 ­400 rpm)

800 rpm
(1200- 400
rpm)

1200 rpm
(1200 ­400 rpm)

Maxi‐

mum

load

10 kg White cotton and fast-coloured cotton.

Normally soiled items. The energy consump‐
tion decreases and the time of the washing
programme is extended, ensuring good wash‐
ing results.

10 kg White cotton and coloured cotton. Normal‐

ly, heavily and lightly soiled items.

4 kg Synthetic items or mixed fabric items. Nor‐

mally soiled items.

2 kg Delicate fabrics such as acrylics, viscose

and mixed fabrics requiring gentler wash‐
ing. Normally and lightly soiled items.

2 kg Machine washable wool, hand washable

wool and other fabrics with «hand washing»

care symbol2).

Programme description

(Type of load and level of soiling)

ENGLISH 21

Programme
Default tem‐
perature
Temperature
range

Reference
spin
speed
Spin
speed

Maxi‐
mum

load

Programme description

(Type of load and level of soiling)

range

Steam programmes with FreshScent System

Steam programmes can be used for reducing wrinkles and odours3) of garments that
just need to be refreshed, avoiding washing. The fabric fibres are relaxed and after‐
wards ironing becomes effortless. When the programme is completed, quickly re‐

4)

move the laundry from the drum

. Steam programme does not perform any hygienic

cycle. Do not set a steam programme with the following type of items:

• Items that are not suitable for tumble drying.

• Items with label "Dry clean only".
ELECTROLUX fragrance. If you use this special gentle fragrance, your laundry will

scent as just washed: pour a single dose bottle in the compartment and simply
start a steam programme. Reduce the fragrance dosage when treating smaller load.
By means of the Time Manager button, you can reduce the programme duration
when treating items labeled to be washed at low temperature.
DO NOT:

• Tumble dry the garments treated with fragrance. Its benefit would evaporate.

• Use the fragrance with different purposes than those here described.

• Use the fragrance on new garments. New garments may contain residual finishing
compounds which are not compatible with it.

The fragrance dose bottles are available on ELECTROLUX web shop or
by authorised dealer.

1 kg Cottons, Synthetics, Delicates. Short and

FreshScent

gentle steam programme to refresh even your
very delicate garments, including very delicate
garments with sequins, lace etc. When treat‐
ing smaller loads, the programme duration

-

can be further reduced by means of the Time
Manager option.

WARNING!

Do not use this programme with
wool and garments labelled as
dry-clean only.

Special programmes

1600 rpm

Spin/Drain

(1600 ­400 rpm)

10 kg All fabrics, except woollens and delicate

fabrics. To spin the laundry and to drain the
water in the drum.

www.electrolux.com22

Programme
Default tem‐
perature
Temperature
range

Reference
spin
speed
Spin
speed

Maxi‐

mum

load

range

Rinse

1600 rpm
(1600- 400
rpm)

10 kg All fabrics, except woollens and very deli‐

Additional washing programmes

Rapid 20min
30 °C

1200 rpm
(1200- 400
rpm)

3 kg Cotton and synthetic items . Lightly soiled

40 °C - 30 °C

Programme description

(Type of load and level of soiling)

cate fabrics. Programme for rinsing and spin‐

ning the laundry. The default spin speed is the
one used for cotton programmes. Reduce the
spin speed according to the type of laundry. If
necessary, set the Extra Rinse option to add
rinses. With a low spin speed, the appliance
performs delicate rinses and a short spin.

or worn only once.

ENGLISH 23

Programme
Default tem‐
perature
Temperature
range

Outdoor
30 °C
40 °C - Cold

Reference
spin
speed
Spin
speed
range

1200 rpm
(1200- 400
rpm)

Maxi‐
mum

load

2.5

5)

kg
1 kg

Programme description

(Type of load and level of soiling)

Do not use fabric softener and
make sure that there is no soften‐

6)

er residue in the detergent dis‐
penser.

Synthetic sport items. This programme is
designed to gently wash modern outdoor
sportswear and is also suitable for gym, cy‐
cling or jogging clothes or similar. The recom‐
mended laundry load is 2.5 kg.

Waterproof, waterproof-breathable and wa‐
ter repellent fabrics. This programme can al‐

so be used as a water repellency restoring cy‐
cle, specifically tailored for treating clothes
with a hydrophobic coating. To perform the
water repellency restoring cycle, proceed as
follows:

• Pour the washing detergent in the compart‐

ment .

• Pour a special water repellency restorer for
fabric into the softener compartment of the

drawer

.

• Reduce the laundry load to 1 kg.

To further improve the water re‐
pellency restoring action, dry the
laundry in a tumble dryer by set‐
ting the Outdoor drying pro‐
gramme (if available and if the
garment care label permits tum‐
ble drying).

Denim
30 °C
40 °C - Cold

Duvet
40 °C
60 °C - Cold

800 rpm
(1200 ­400 rpm)

800 rpm
(800 - 400
rpm)

4 kg Special programme for Denim clothing

with delicate washing phase to minimize
colour fading and marks. For better care a

reduced load size is recommended.

3 kg Single synthetic blanket, padded clothes,

duvets, down jackets and similar items.

www.electrolux.com24

Programme
Default tem‐
perature
Temperature
range

Reference
spin
speed
Spin
speed

Maxi‐

mum

load

Programme description

(Type of load and level of soiling)

range

Anti-Allergy
60 °C

1600 rpm
(1600 ­400 rpm)

10 kg White cotton items. This high-performance

wash program combined with steam vapour,
removes more than 99,99% of bacteria and vi‐

ruses7) keeping the temperature above 60°C
throughout the washing phase; with an addi‐
tional action on the fibers thanks to a vapour
phase, an enhanced rinsing phase ensures a
proper removal of detergent and micro-organ‐
ism residues. This program ensures also a
proper reduction of pollens/allergenic items.

UltraWash
59min

1600 rpm
(1600 ­400 rpm)

5 kg Cotton items. Intensive programme for en‐

suring good washing performances in a short
time.

30 °C
60 °C - 30 °C

1)

According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to
clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in
the same cycle.

For the reached temperature in the laundry, the programme duration and other
data, please refer to 'Consumption Values' chapter.
The most efficient programmes in terms of energy consumption are generally
those that perform at lower temperatures and longer duration.

2)

During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the
drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

3)

Steam programme doesn't remove particularly intense odour.

4)

After the steam treatment the laundry can be humid. Hang items out for a few minutes.

5)

Washing programme.

6)

Washing programme and waterproofing phase.

7)

Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomo‐
nas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testma‐
terialien AG in 2021 (Test Report No. 202120117).

Programme options compatibility

Programme

No Spin

Spin

1)

2)

Stain

Prewash

2)

Soft Plus

Extra Rinse

ENGLISH 25

Pods®

Plus Steam

Delay Start

Time Manager

Eco 40-60

Cottons

Synthetics

Delicates

Wool/Silk

FreshScent

Spin/Drain

Rinse

Rapid 20min

Outdoor

Denim

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■

■ ■

3)

■

■

■

■ ■ ■ ■

■ ■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■

Duvet

Anti-Allergy

■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■

www.electrolux.com26

Programme

Spin

No Spin

1)

2)

Stain

Prewash

2)

Soft Plus

Extra Rinse

Pods®

Plus Steam

Delay Start

Time Manager

UltraWash

■ ■ ■ ■ ■ ■ ■

59min

1)

Prewash and Stain cannot be selected together.

2)

This option is not available with temperature lower than 40 °C.

3)

If you set the No Spin option, the appliance performs draining only.

Suitable detergents for washing programmes

Programme Universal

powder

1)

Liquid Uni‐
versal

Liquid for
coloureds

Delicates
woollens

Special

Eco 40-60 ▲ ▲ ▲ -- --

Cottons ▲ ▲ ▲ -- --

Synthetics ▲ ▲ ▲ -- --

Delicates -- -- -- ▲ ▲

Wool/Silk -- -- -- ▲ ▲

Rapid 20min -- ▲ ▲ -- --

Outdoor -- -- -- ▲ ▲

Denim -- -- ▲ ▲ ▲

Duvet -- -- -- ▲ ▲

Anti-Allergy ▲ ▲ -- -- -- ▲

UltraWash
59min

1)

At temperature higher than 60 °C the use of powder detergent is recommended.

▲ ▲ ▲ -- --

▲ = Recommended -- = Not recommended

9.2 Woolmark Wool Care - Green

10. SETTINGS

ENGLISH 27

The wool wash cycle of this machine has
been approved by The Woolmark Compa‐
ny for the washing of wool garments label‐
led as «hand wash» provided that the
products are washed according to the in‐
structions on the garment label and those
issued by the manufacturer of this washing
machine. M1361
The Woolmark symbol is a Certification
mark in many countries.

10.1 Acoustic signals

This appliance has different acoustic
signals, that operate when:

• You activate the appliance (special
short tune).

• You deactivate the appliance (special
short tune).

• You touch the buttons (click sound).

• You make an invalid selection (3 short
sounds).

• The programme is completed
(sequence of sounds for about 2
minutes).

• The appliance has a malfunction
(sequence of short sounds for about 5
minutes).

To deactivate/activate the acoustic
signals when the programme is

11. BEFORE FIRST USE

1. Make sure that the electrical power is

available and the water tap is open.

2. Pour 2 litres of water into the

detergent compartment marked by

.

This action activates the drain system.

3. Pour a small quantity of detergent

into the compartment marked by .

completed, touch the Prewash and the
Stain buttons simultaneously for about 2
seconds. The display shows On/Off .

If you deactivate the
acoustic signals, they
continue to operate when
the appliance has a
malfunction.

10.2 Child Lock

With this option you can prevent children
from playing with the control panel.

• To activate/deactivate this option,

hold down the Pods® button until

comes on/goes off on the display.
The appliance will default to this option
after you switch it off.

4. Set and start a programme for cotton

at the highest temperature without

any laundry in the drum.

This removes all possible dirt from the
drum and the tub.

12. DAILY USE

WARNING!

Refer to Safety chapters.

12.1 Activating the appliance

1. Connect the mains plug to the mains

socket.

2. Open the water tap.

www.electrolux.com28

3. Press the On/Off button for a few

seconds to activate the appliance.

A short tune sounds.

12.2 Loading the laundry

1. Open the appliance door.

2. Empty the pockets and unfold the

items before you put them in the
appliance.

3. Put the laundry in the drum, one item
at a time.

Do not put too much laundry in the drum.

4. Close the door firmly.

CAUTION!

Make sure that no laundry
gets caught between the
seal and the door to avoid
risk of water leakage and
damage to the laundry.

Washing heavily oiled,
greasy stains could cause
damage to rubber parts of
the washing machine.

12.3 Filling the detergent and

additives

- Compartment for detergent pods
(Max 2 pods). When using detergent
tablets, make sure that the Pods option
is activated.

- Compartment for prewash
phase an soak programme (powder de‐
tergent only).

- Compartment for washing
phase (powder detergent only).

Make sure that the Pods
option is deactivated when
using this compartment.

If using liquid detergent, re‐
member to insert the con‐
tainer for liquid detergent

.

- Compartment for fabric softener
and other liquid treatments (fabric con‐
ditioner, starch).

- Always follow the instructions
that you find on the packaging of the
detergent products, but we recommend
that you do not exceed the maximum

indicated level ( ). This quantity will
however guarantee the best washing
results.

After a washing cycle, if
necessary, remove any
detergent residue from the
detergent dispenser.

Proceed as follows

1. Open the detergent dispenser.

ENGLISH 29

2. If a prewash phase is set, put the

powder detergent in compartment

.

3. For main wash, chose the proper
compartment depending on the type
of detergent:

a) Put the powder detergent in the

compartment .

b) Pour the liquid detergent in the same
compartment after inserting the relevant

container .

c) Put the tablets in the compartment

. Make sure that the Pods option is

activated.

4. Pour fabric softener in the

compartment .

5. Close the detergent dispenser.

12.4 Setting a programme

1. Turn the programme dial to select the

desired washing programme. The
first programme on the top right of
the programme dial is Eco 40-60, the
programme to which the information
of the energy label relates.

The indicator of the Start/Pause
button flashes.
The display shows an indicative
programme duration.

2. To change the temperature and/or
the spin speed, touch the related
buttons.

3. If desired, set one or more options by
touching the related buttons. The
related indicators illuminate on the
display and the given information
changes accordingly.

www.electrolux.com30

If a selection is not possible
an acoustic signal sounds
and the display shows

.

12.5 Starting a programme

Touch the Start/Pause button to start
the programme. It is not possible to start
the programme when the indicator of the
button is off and doesn't flash (e.g.
programme dial on a wrong position).

The related indicator stops flashing and
stays on.
The programme starts, the door is
locked. The display shows the indicator

.

The drain pump can operate
shortly before the appliance
fills water.

12.6 Starting a programme with the delay start

1. Touch the Delay Start button
repeatedly until the display shows the
desired delay time. On the display the

indicator shows

2. Touch the Start/Pause button. The
appliance door locks and starts the
countdown of the delay start. The display

shows the indicator .
When the countdown is completed, the
programme starts automatically.

Cancelling the delay start after the countdown has started

To cancel the delay start:

1. Touch the Delay Start button
repeatedly until the display shows the
desired delay time. On the display

the indicator shows

Touch the Start/Pause button. The
appliance lock the door and starts the
countdown of the delay start. The display

shows the indicator .
When the countdown is completed, the
programme starts automatically.

2. Touch the Start/Pause button to
pause the appliance. The related
indicator flashes.

3. Touch the Delay Start button

repeatedly until the display shows

and the indicator goes off.

4. Touch the Start/Pause button
again to start the programme
immediately.

Changing the delay start after the countdown has started

To change the delay start:

1. Touch the Start/Pause
pause the appliance. The related
indicator flashes.

2. Touch the Delay Start button
repeatedly until the display shows the
desired delay time.

3. Touch the Start/Pause button
again to start the new countdown.

button to

12.7 The SensiCare System

load detection

The programme duration in
the display is referred to a
medium/high load.

After touching the Start/Pause
button, the maximum declared load
indicator goes off, the SensiCare System
starts the laundry load detection:

1. The appliance detects the load in the
first 30 seconds. In the programmes
where Time Manager is available,
during this phase the Time Manager

bars placed below the time
digits play a simple animation. The
drum rotates shortly.

2. The programme duration could be
adjusted accordingly and could
increase or decrease. After further 30
seconds, the water filling starts.

At the end of the load detection, in case

of drum overload, the indicator
flashing in the display:

is

ENGLISH 31

In this case, for 30 seconds, it is possible
to pause the appliance and remove the
exceeding garments.

Once removed the exceeding garments,

touch the Start/Pause button to start
the programme again. The SensiCare
phase can be repeated up to three times
(see point 1).

Important! If the laundry amount will not
be reduced, the washing programme
starts anyway, despite the overload. In
this case, it will be not possible to
guarantee the best washing results.

About 20 minutes after the
programme start, the
programme duration could
be adjusted again depending
on the capacity of water
absorption of the fabrics.

The SensiCare detection is
carried out with complete
washing programmes only
and if the programme
duration has not been
reduced by means of the
Time Manager button.

The SensiCare System is
not available with all
programmes such as :Wool/
Silk, Rinse and programmes
with short cycles.

12.9 Cancelling a running programme

1. Press the button On/Off to cancel the
programme and to deactivate the
appliance.

2. Press the button On/Off again to
activate the appliance.

If the SensiCare System has
completed and the water
filling has already started,
the new programme starts

without repeating the
SensiCare System. The

water and the detergent are
not drained out in order to
avoid waste. The display
shows the maximum
duration of the programme,
updating it about 20 minutes
after the starting of the new
programme.

There is also an alternative way of
cancelling:

1. Rotate the selector knob to the "Reset"

position

2. Wait for 1 second. The display shows

Now, you can set a new washing
programme.

.

.

12.10 Opening the door -

Adding garments

12.8 Interrupting a programme and changing the options

When the programme is running, you
can change only some options:

1. Touch the Start/Pause button.

The related indicator flashes.

2. Change the options. The given
information in the display changes
accordingly.

3. Touch the button Start/Pause
again.

The washing programme continues.

If the temperature and level
of the water in the drum are
too high and/or the drum is
still rotating you should not
open the door.

While a programme or the delay start
operates, the appliance door is locked.

The display shows the indicator .

1. Touch the Start/Pause button.

In the display the related door lock
indicator goes off.

2. Open the appliance door. If
necessary, add or remove the items.
Close the door and touch the Start/

Pause button.

The programme or the delay start
continues.

www.electrolux.com32

12.11 End of the programme

When the programme has finished, the
appliance stops automatically. The
acoustic signals operate (if they are

active). The display shows

The indicator of the Start/Pause
button goes off.

The door unlocks and the indicator
goes off.

1. Press button On/Off to deactivate the
appliance.

After five minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.

When you activate the
appliance again, the display
shows the end of the
previous programme. Turn
the programme dial to set a
new cycle.

2. Remove the laundry from the
appliance.

3. Make sure that the drum is empty.

4. Keep the door and the detergent

dispenser slightly ajar to prevent
mildew and odours.

12.12 Draining water out after

end of cycle

If you have chosen a programme or an
option that does not empty out the water
of the last rinse, the programme is
completed, but:

• The time area shows and the

display shows the door locked .

• The indicator of the Start/Pause

button starts flashing.

• The drum still turns at regular

intervals to prevent creases in the
laundry.

• The door stays locked.

• You must drain the water to open the

door:

1. If necessary, touch the Spin button to
decrease the spin speed proposed
by the appliance.

2. Press the Start/Pause button: the
appliance drains the water and spins.

The option indicator Rinse Hold or

disappears.

If you have set Silent and
the spin speed is not
changed, when you press

the Start/Pause button,
the appliance only drains the
water.

3. When the programme is completed

and the door locked indicator
goes off, you can open the door.

4. Press the On/Off button for a few
seconds to deactivate the appliance.

12.13 Stand-by function

The Stand-by function automatically
deactivates the appliance to reduce the
energy consumption when:

• You do not use the appliance for 5

minutes when no programme is
running.
Press the button On/Off to activate
the appliance again.

• 5 minutes after the end of the washing

programme.
Press the On/Off button to activate
the appliance again.
The display shows the end of the last
programme.
Turn the programme dial to set a new
cycle.

If the dial is rotated to the "Reset"

position , the appliance automatically
turns off in 30 seconds.

If you set a programme or an
option that ends with water
in the drum, the Stand-by
function doesn't deactivate
the appliance to remind you
to drain the water.

The remote control inhibits
the Stand-by option, but
after 15 minutes the
appliance enters in Network
Stand-by mode and the
display shows the indicator

only.

13. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

13.1 The laundry load

• Divide the laundry into: white,
coloured, synthetics, delicates and
wool.

• Follow the washing instructions on the
laundry care labels.

• Do not wash white and coloured items
together.

• Some coloured items can discolour
with the first wash. We recommend
that you wash them separately for the
first couple of times.

• Turn multilayered fabrics, wool and
items with printed illustrations inside
out.

• Pre-treat stubborn stains.

• Wash stubborn stains with a special
detergent.

• Be careful with curtains. Remove the
hooks and put the curtains in a
washing bag or pillowcase.

• A very small load can cause balance
problems with the spin phase leading
to excessive vibration. If this occurs:

a. interrupt the programme and

open the door (refer to "Daily
Use" chapter);

b. manually redistribute the load so

that the items are spaced evenly
around the tub;

c. press the Start/Pause button.

The spin phase continues.

• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts,
cords, shoelaces, ribbons and any
other loose elements.

• Do not wash laundry without hems or
with cuts. Use a washing bag to wash
small and/or delicate items (e.g.
underwired bras, belts, tights,
shoelaces, ribbons, etc. ).

ENGLISH 33

• Empty pockets and unfold the items.

13.2 Stubborn stains

For some stains, water and detergent is
not sufficient.

We recommend that you pre-treat these
stains before you put the items in the
appliance.

Special stain removers are available.
Use the special stain remover that is
applicable to the type of stain and fabric.

Do not spray stain remover on garments
near the appliance as it is corrosive to
the plastic parts.

13.3 Detergent type and quantity

The choice of detergent and use of
correct quantities not only affects your
wash performance, but also helps to
avoid waste and protect the environment:

www.electrolux.com34

• Use only detergents and other
treatments specially made for
washing machines. First, follow these
generic rules:

– powder detergents (also tablets

and single-dose detergents) for all
types of fabric, excluding delicate.
Prefer powder detergents
containing bleach for whites and
laundry sanitization,

– liquid detergents (also single-dose

detergents) , preferably for low
temperature wash programmes
(60 °C max) for all types of fabric,
or special ones for woollens only.

• The choice and quantity of detergent
will depend on: type of fabric
(delicates, woollens, cottons, etc), the
colour of clothes, size of the load,
degree of soiling, wash temperature
and hardness of the water used.

• Follow the instructions that you find
on packaging of the detergents or
other treatments without exceeding

the indicated maximum level (

• Do not mix different types of
detergents.

• Use less detergent if:

– you are washing a small load,
– the laundry is lightly soiled,
– there is large amounts of foam

during washing.

Insufficient detergent may cause:

• unsatisfactory washing results,

• the wash load to turn grey,

• greasy clothes,

• mould in the appliance.

Excessive detergent may cause:

• sudsing,

• reduced washing effect,

• inadequate rinsing,

• a greater impact for the environment.

13.4 Ecological hints

To save water, energy and to help
protect the environment, we recommend
that you follow these tips:

• Normally soiled laundry may be
washed without prewash in order to
save detergent, water and time (the
environment is protected too!).

• Loading the appliance to the

maximum capacity indicated for
each programmes helps to reduce
energy and water consumption.

• With adequate pre-treatment, stains
and limited soiling can be removed;
the laundry can then be washed at a
lower temperature.

• Set the maximum possible spin
speed for the selected washing
programme before drying your
laundry in a tumble dryer. This will

).

save energy during drying!

13.5 Water hardness

If the water hardness in your area is high
or moderate, we recommend that you
use a water softener for washing
machines. In areas where the water
hardness is soft it is not necessary to use
a water softener.

To find out the water hardness in your
area, contact your local water authority.

Use the correct quantity of water
softener. Follow the instructions that you
find on the packaging of the product.

14. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

14.1 Periodic cleaning schedule

Periodic cleaning helps to extend the
life of your appliance.

After each cycle, keep the door and the
detergent dispenser slightly ajar to get air
circulation and dry the humidity inside

the appliance: this will prevent mildew
and odours.

If the appliance is not used for a long
time: close the water tap and unplug the
appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

ENGLISH 35

Clean door seal Every two months

Clean drum Every two months

Clean detergent
dispenser

Clean drain pump
filter

Clean the inlet
hose and the valve
filter

The following paragraphs explain how
you should clean each part.

Every two months

Twice a year

Twice a year

14.2 Removing foreign objects

Make sure that pockets are
empty and all loose
elements are tied up before
running your cycle. Refer to
'The laundry load' in 'Hints
and tips'.

Remove any foreign objects (such as
metal clip, buttons, coins, etc) that you
may find in the door seal, the filters and
the drum. Refer to 'Door seal with double
lip trap', 'Cleaning the drum', 'Cleaning
the drain pump' and 'Cleaning the inlet
hose and the valve filter' paragraphs. If
necessary, please contact the Authorised
Service Centre.

14.3 External cleaning

Clean the appliance with mild soap and
warm water only. Fully dry all the
surfaces. Do not use a scouring pads or
any scratching material.

CAUTION!

Do not use alcohol, solvents
or chemical products.

14.4 Descaling

If the water hardness in your
area is high or moderate, we
recommend that you use a
water descaling product for
washing machines.

Regularly examine the drum to check for
limescale.

Regular detergents already contain water
softening agents, but we recommend to
run a cycle with an empty drum and a
descaling product.

Always follow the
instructions that you find on
the packaging of the
product.

14.5 Maintenance wash

The repeated and prolonged use of low
temperature programmes can cause
detergent deposits, fluff residues,
bacterial growth inside the drum and the
tub. This could generate bad odours and
mildew. To eliminate these deposits and
clean the inner part of the appliance, run
a maintenance wash regularly (at least
once a month).

Refer to "Cleaning the drum"
paragraph.

14.6 Door seal with double lip trap

This appliance is designed with a self
cleaning draining system, allowing light
fluff fibers that fall off the clothes to be
drained out with the water. Regularly
examine the seal. Coins, buttons, other
small items can be recovered at the end
of the cycle.

CAUTION!

Do not clean the metal
surfaces with chlorine-based
detergent.

2

1

www.electrolux.com36

Clean it when needed, using ammonia
cream cleanser agent without scratching
the seal surface.

Always obey the instructions
that you find on the
packaging of the product.

Check and remove objects (if there are
any) that could be trapped in the fold.

Make sure that no laundry remains
between the seal and the door.

Use a moist cloth to wipe off any dirt or
water residue left behind in the door seal
after completion of program cycle.

14.7 Cleaning the drum

Regularly examine the drum to prevent
unwanted deposits.

Rust deposits in the drum may occur due
to rusting foreign body in the washing or
tap water containing iron

Clean the drum with special products for
stainless steel.

Always follow the
instructions that you find on
the packaging of the
product.
Do not clean the drum with
acidic descaling products,
scouring products containing
chlorine or iron or steel wool.

14.8 Cleaning the detergent

dispenser

To prevent possible deposits of dried
detergent, clotted fabric softener,
formation of mould in the detergent
dispenser, once in a while carry out the
following cleaning procedure:

1. Open the detergent dispenser. Press

the catch downwards as indicated in
the picture and pull it out.

2. Remove the container for liquid

detergent, if inserted.

For a thorough clean:

1. Remove all laundry from the drum.

2. Run a Cottons programme with the

highest temperature.

3. Add a small quantity of powder
detergent into the empty drum, in
order to rinse out any left residues.

Occasionally, at the end of a
cycle the display may show

the icon : this is a
recommendation to perform
the “drum cleaning”. Once
the drum cleaning has been
performed, the icon
disappears.

3. Lift up the top cover of the
compartments to remove it.

4. Wash the detergent dispenser and
any insert under running water.

CLICK

ENGLISH 37

5.

CAUTION!
Do not use sharp or
metal brushes and
sponges.

Make sure that all detergent residue
is removed from the upper and lower
part of the recess. Use a small brush
to clean the recess.

6. Turn the dispenser up side down and
open the bottom cover as indicated in
the picture.

7. Make sure that all detergent residue
is removed from the conveyor. Use
only soft damp clothes.

8. Put bottom cover back to its position
by aligning its holes on drawer hooks
as indicated in the picture. Close it till
"click" sound.

CAUTION!
Press the bottom cover as
indicated in the picture.
Make sure that it is closed
properly.

9. Reassembly the drawer as follows:

a. Place the bottom cover and

press till "click" sound.

b. Place the top cover and press till

"click" sound.

c. Insert the container for liquid

detergent, if needed.

10. Insert the detergent dispenser into
the guide rails and close it. Run the
rinsing programme without any
clothes in the drum.

1

2

www.electrolux.com38

.

14.9 Cleaning the drain pump

WARNING!

Disconnect the mains plug
from the mains socket.

Regularly check the drain
pump filter and make sure
that it is clean.

Clean the drain pump if:

• The appliance does not drain the
water.

• The drum does not turn.

• The appliance makes an unusual
noise because of the blockage of the
drain pump.

• The display shows the alarm code

.

WARNING!

• Do not remove the filter
while the appliance
operates.

• Do not clean the pump if
the water in the appliance
is hot. Wait until the water
cools down

Proceed as follows to clean the pump:

1. Open the pump cover.

2. Place a suitable bowl below the drain

pump access to collect the water that
flows out.

3. Open the chute downwards. Always
keep a rag nearby to dry up any
water spillages when removing the
filter.

4. Turn the filter 180 degrees in anti­clockwise direction to open it, without
removing. Let the water flow out.

5. When the bowl is full of water, turn
the filter back and empty the
container.

6. Repeat the steps 4 and 5 until the
water stops to flow out.

1

2

2

1

2

1

ENGLISH 39

7. Turn the filter anti-clockwise to

remove it.

8. If it is necessary, remove fluff and
objects from the filter recess.

9. Make sure that the impeller of the
pump can rotate. If it does not rotate,
contact the Authorised Service
Centre.

10. Clean the filter under the water tap.

11. Put the filter back into the special

guides by turning it clockwise. Make
sure that you tighten the filter
correctly to prevent leakages.

12. Close the pump cover.

When you drain the water with the
emergency drain procedure, you must
activate the drain system again:

a. Put 2 litres of water in the main

wash compartment of the
detergent dispenser.

b. Start the programme to drain the

water.

1

2

3

45°

20°

www.electrolux.com40

14.10 Cleaning the inlet hose and the valve filter

14.11 Emergency drain

If the appliance cannot drain the water,
carry out the same procedure, described
in 'Cleaning the drain pump' paragraph. If
necessary, clean the pump.

When you drain the water with the
emergency drain procedure, you must
activate the drain system again:

1. Put 2 litres of water in the main wash
compartment of the detergent
dispenser.

2. Start the programme to drain the
water.

14.12 Frost precautions

If the appliance is installed in an area
where the temperature can reach values
around 0° C or drop below, remove the
remaining water from the inlet hose and
the drain pump.

15. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

1. Disconnect the mains plug from the
mains socket.

2. Close the water tap.

3. Put the two ends of the inlet hose in

a container and let the water flow out
of the hose.

4. Empty the drain pump. Refer to the
emergency drain procedure.

5. When the drain pump is empty,
install the inlet hose again.

WARNING!

Make sure that the
temperature is higher than
0 °C before you use the
appliance again.
The manufacturer is not
responsible for damages
caused by low temperatures.

ENGLISH 41

15.1 Alarm Codes and Possible failures

The appliance does not start or it stops during operation. First try to find a solution to the
problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

With some problems, the display shows an alarm code and the

Start/Pause button may flash continuously:

If the appliance is overloaded, remove some items
from the drum and/or keep pressed the door while
touching the Start/Pause button until the indicator

stops flashing (see the picture below).

Problem Possible solution

• Make sure that the water tap is open.

The appliance does
not fill with water
properly.

• Make sure that the pressure of the water supply is not too
low. For this information, contact your local water authority.

• Make sure that the water tap is not clogged.

• Make sure that the inlet hose has no kinks, damages or
bends.

• Make sure that the connection of the water inlet hose is
correct.

• Make sure that the filter of the inlet hose and the filter of
the valve are not clogged. Refer to 'Care and cleaning'.

• Make sure that the sink spigot is not clogged.

The appliance does
not drain the water.

• Make sure that the drain hose has no kinks or bends.

• Make sure that the drain filter is not clogged. Clean the fil‐
ter, if necessary. Refer to "Care and cleaning".

• Make sure that the connection of the drain hose is correct.

• Set the drain programme if you set a programme without
drain phase. If the drain programme is not available in the
programme dial, it can be set via App.

• Set the drain programme if you set an option which ends
with water in the tub.

www.electrolux.com42

• Make sure that the door is properly closed.

The appliance door
is open or not closed
correctly.

• The programme was not finished properly or the appliance

Internal fail. No com‐
munication between
electronic elements

stopped too early. Switch the appliance off and on again.

• If the alarm code appears again, contact the Authorised
Service Centre.

of the appliance.

If the display shows other alarm codes, deactivate and activate the
appliance. If the problem continues, contact the Authorised Service
Centre.
In case of different problem with the washing machine check the
table below for possible solutions.

Problem Possible solution

• Make sure that the mains plug is connected to the mains
socket.

• Make sure that the appliance door is closed.

• Make sure that there is no damaged fuse in the fuse box.

The programme does

not start.

• Make sure that the Start/Pause has been touched.

• If the delay start is set, cancel the setting or wait for the
end of countdown.

• Deactivate the Child Lock function if it is on.

• Check the position of the knob on the selected pro‐
gramme.

The appliance fills
with water and drains
immediately.

• Make sure that the drain hose is in the correct position.
The hose may be positioned too low. Refer to "Installation
instruction".

• Set the spin programme. If the drain programme is not

The spin phase does
not operate or the
washing cycle lasts
longer than usual.

available in the programme dial, it can be set via App’.

• Make sure that the drain filter is not clogged. Clean the fil‐
ter, if necessary. Refer to "Care and cleaning".

• Adjust manually the items in the tub and start the spin
phase again. This problem may be caused by balance
problems.

• Make sure that the couplings of the water hoses are tight
and there is not water leakages.

There is water on the
floor.

• Make sure that the water inlet hose and the drain hose
have no damages.

• Make sure you use the correct detergent and the correct
quantity of it.

Problem Possible solution

• Make sure that a washing programme that ends with water
in tub, has not been selected.

• Make sure that the washing programme is finished.

• Set the drain or the spin programme if there is water in the
drum. If the spin and drain programmes are not available

You cannot open the
appliance door.

in the programme dial, they can be set via App.

• Make sure that the appliance receives electrical power.

• This problem may be caused by a failure of the appliance.
Contact the Authorised Service Centre.
If you need to open the door, please read carefully "Emer‐
gency door opening".

• Make sure that the Remote Start is not activated. Deacti‐
vate it.

• Check the wireless signal.

• Make sure that the wireless connection is on. Refer to

The display does not
show the wireless in‐
dicator .

paragraph "Configuring the washing machine wireless
connection" in "Wi-Fi - Connectivity setup" chapter.

• Check your home network and router.

• Restart the router.

• Contact your wireless service provider if there are further
problems with the wireless network.

• Check the wireless signal.

• Check if your smart device is connected to the wireless
network.

• Check your home network and router.

The App cannot con‐
nect to the appliance.

• Restart the router.

• Contact your wireless service provider if there are prob‐
lems with the wireless network.

• The appliance, the smart device, or both, need to be con‐
figured again because a new router has been installed or
the router configuration has been changed.

• Make sure that the wireless signal reaches the appliance.
Try to move the home router as near the appliance as

The App cannot fre‐
quently connect to
the appliance.

possible or consider purchasing a wireless range extend‐
er.

• Make sure the wireless signal is not disrupted by micro‐
wave. Turn the microwave off. Avoid using the microwave
and the remote control at the same time.

The display shows

. All buttons are
inactive, except the
the On/Off .

• The appliance is downloading any available updates. Wait
until the update process is complete. If you deactivate the
appliance during update, it resumes when you activate the
appliance again.

• Make sure the levelling of the appliance is correct. Refer

The appliance makes
an unusual noise and
vibrates.

to "Installation instruction".

• Make sure that the packaging and/or the transit bolts are
removed. Refer to "Installation instruction".

• Add more laundry in the drum. The load may be too small.

ENGLISH 43

www.electrolux.com44

Problem Possible solution

The programme du‐
ration increases or
decreases during
programme execu‐

• The SensiCare System is able to adjust the programme
duration according to the type and the laundry load size.
Refer to "The SensiCare System load detection" in "Daily
Use" chapter.

tion.

• Increase the detergent quantity or use a different deter‐
gent.

The washing results
are not satisfactory.

• Use special products to remove the stubborn stains before
you wash the laundry.

• Make sure that you set the correct temperature.

• Decrease the laundry load.

Too much foam in
the drum during the

• Reduce the quantity of detergent or the number of tablets
or single-dose detergents.

washing cycle.

• Make sure you have used the detergent dispenser accord‐
ing the indications given in this user manual.

After the washing cy‐
cle, there are some
detergent residues in
the dispenser drawer.

• Make sure to use fresh tablets or single-dose detergents.
Store them in their box and close it after use, according to
the manufacturer's recommendations.
Direct exposure to environment can modify their charac‐
teristic and their behaviour in the Pods® compartment,
specially in combination with certain options (e.g. Delay
Start).

After the check, activate the appliance. The programme continues
from the point of interruption.
If the problem occurs again, contact the Authorised Service Centre.
The necessary data for the service centre are on the rating plate.

15.2 Emergency door opening

In case of power failure or functioning
failure the appliance door remains
locked. The washing programme
continues when the power is restored. If
the door remains locked in case of
failure, it is possible to open it using the
emergency unlock function.

Before opening the door:

CAUTION!
Risk of burns! Make sure
that the water temperature
is not too high and the
laundry is not hot. If
necessary, wait until they
cool down.

To open the door, proceed as follows:

CAUTION!
Risk of injury! Make sure
that the drum is not
rotating. If necessary, wait
until the drum stops
rotating.

Make sure that the water
level inside the drum is
not too high. If necessary,
proceed with an
emergency drain (refer to
«Emergency drain» in
«Care and cleaning»
chapter).

1. Press the On/Off button to switch the

appliance off.

2. Disconnect the mains plug from the
mains socket.

ENGLISH 45

3. Open the filter flap.

4. Pull the emergency unlock trigger

downward once. Pull it downward
once again, keep it tensed and, in the
meanwhile, open the appliance door.

16. CONSUMPTION VALUES

16.1 Introduction

See the web link www.theenergylabel.eu for
detailed information about Energy Label.

The QR code on the energy label supplied with the
appliance provides a web link to the information
related to the performance of the appliance in the
EU EPREL database. Keep the energy label for
reference together with the user manual and all
other documents provided with this appliance.
It is also possible to find the same information in
EPREL using the link https://eprel.ec.europa.eu
and the model name and product number that you
find on the rating plate of the appliance. Refer to
'Product description' chapter for the position of the
rating plate.

5. Take out the laundry and then close
the appliance door.

6. Close the filter flap.

16.2 Legend

kg Laundry load. h:mm Programme duration.

kWh Energy consumption. °C Temperature in the laundry.

Litres Water consumption. rpm Spin speed.

% Remaining moisture at the end of spinning phase. The higher is the spin

speed, the higher is the noise and the lower is the remaining moisture.

www.electrolux.com46

Values and programme duration may differ depending on different
conditions (e.g. room temperature, water temperature and pressure, load
size and type of laundry, supply voltage) and also if you change the
default setting of a programme.

16.3 According to Commission Regulation Eu 2019/2023

Eco 40-60 pro‐
gramme

Full load 10 0.980 62 3:50 52 39 1551

Half load 5 0.555 45 2:55 52 33 1551

Quarter load 2.5 0.175 39 2:25 54 23 1551

1)

Maximum spin speed.

Power consumption in different modes

Off (W) Stand-by (W)

0.50 0.50 4.00

Time to Off/Standby mode is 15 minutes maximum.

1)

The energy consumption of the connected function is approximately 17.5 kWh per year.

To disconnect this function, please refer to the chapter 'Wi-fi - Connectivity setup'.

kg kWh Litres h:mm % °C

Delay start

(W)

rpm

Networked

standby (W)

1)

2.00

16.4 Common programmes

These values are indicative only.

Programme

2)

Cottons
90°C

Cottons
60°C

3)

Cottons
20°C

Synthetics
40°C

kg kWh Litres h:mm % °C

10 3.15 90 3:50 44 85 1600

10 2.20 85 3:30 44 55 1600

10 0.45 85 2:55 44 20 1600

4 0.80 50 2:25 35 40 1200

rpm

1)

1)

ENGLISH 47

Programme

Delicates
30°C

Wool
30°C

1)

2)

3)

4)

4)

Reference indicator of the spin speed.
Suitable for washing heavily soiled textiles.
Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
It also performs as quick washing cycle for lightly soiled laundry.

17. ACCESSORIES

17.1 Available in www.electrolux.com/shop or from authorised

dealer

Only appropriate accessories approved by ELECTROLUX ensure the
safety standards of the appliance. If unapproved parts are used, any
claims will be invalidated.

17.2 Fixing plate kit

If you install the appliance on a plinth
that is not an accessory supplied by
ELECTROLUX, secure the appliance in
the fixing plates.

Read carefully the instructions supplied
with the accessory.

17.3 Stacking kit

The tumble dryer can be stacked on the
top of the washing machine only by

using the correct stacking kit.

kg kWh Litres h:mm % °C

2 0.30 45 1:10 35 30 1200

2 0.25 65 1:05 30 30 1200

WARNING!

Do not put the tumble dryer
under the washing machine.
Verify the compatible
stacking kit by checking the
depth of your appliances.

rpm

17.4 Pedestal with the drawer

1)

To raise your appliance and make
loading and unloading laundry easier.
The drawer can be used for laundry
storage e.g.: towels, cleaning products
and more.

1 2

3

5

4

1 32

180˚

2

1

www.electrolux.com48

18. QUICK GUIDE

18.1 Daily use

Connect the mains plug to the mains
socket.

Open the water tap.

Load the laundry.

Pour the detergent and other treatments
in the proper compartment of the
detergent dispenser. If you use tablets or
single-dose detergents, please activate
the Pods® option.

1. Push the On/Off button to switch the
appliance on.

18.2 Cleaning the drain pump filter

Clean the filter regularly and, especially,

if the alarm code appears on the
display.

2. Turn the programme dial to set the
desired programme.

3. Set the desired options by means of
the corresponding touch buttons.

4. To start the programme, touch the

Start/Pause button.

5. The appliance starts.

At the end of the programme, remove the
laundry.

Push the On/Off button to switch the
appliance off.

18.3 Programmes

Programmes Load Product description

White and coloured cottons. Normally
soiled garments.

Eco 40-60

10 kg

ENGLISH 49

Cottons

Synthetics

Delicates

Wool/Silk

FreshScent

10 kg White cotton and coloured cotton.

4 kg Synthetic items or mixed fabric items.

2 kg

2 kg

1 kg

Delicate fabrics such as acrylics, viscose,
polyester items.

Machine washable wool, hand washable
wool and delicates.

Steam programme for cotton, synthetic and
delicate garments.

All fabrics, except woollens and very deli‐

Spin/Drain

10 kg

cate fabrics. Programme for spinning and
draining the water.

All fabrics, except woollens and very deli‐

Rinse

Rapid 20min

Outdoor

Denim

Duvet

10 kg

3 kg

2.5 kg
1 kg

4 kg Denim clothing.

3 kg

cate fabrics. Programme for rinsing and
spinning.

Cotton and synthetic lightly soiled items or
once worn items.

1)

Modern outdoor sporting garments.

2)

Synthetic or feather and down filled blan‐
kets, padded clothes, duvets.

White cotton items. This program removes
more than 99,99% of bacteria and viru‐

ses3). It also ensure a proper reduction of

Anti-Allergy

10 kg

allergens.

UltraWash 59min 5 kg Cotton items. Intensive short programme.

1)

Washing programme.

2)

Washing programme and waterproofing phase.

3)

Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomo‐
nas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testma‐
terialien AG in 2021 (Test Report No. 202120117).

www.electrolux.com50

19. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of

appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.

*

My Electrolux Care app

The software in this product contains components that are based on free and open source software. Electrolux
gratefully acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require
publishing, and to see their full copyright information and applicable license terms, please visit:
http://electrolux.opensoftwarerepository.com (folder NIU5)

www.electrolux.com/shop

157040831-A-392021
