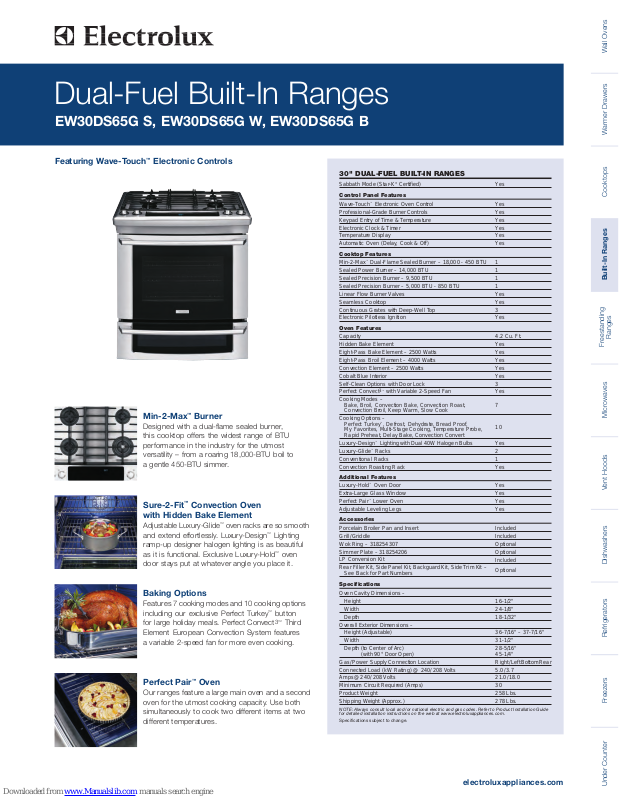

Electrolux EW30DS65G W, EW30DS65G B Specifications
Dual-Fuel Built-In Ranges
EW30DS65G S, EW30DS65G W, EW30DS65G B
Featuring Wave-Touch™Electronic Controls
30" DUAL-FUEL BUILT-IN RANGES
Sabbath Mode (Star-K®Certified)
Control Panel Features
Wave-Touch™Electronic Oven Control
Professional-Grade Burner Controls
Keypad Entry of Time & Temperature
Electronic Clock & Timer
Temperature Display
Automatic Oven (Delay, Cook & Off)
Cooktop Features
Min-2-Max™Dual-Flame Sealed Burner – 18,000 - 450 BTU
Sealed Power Burner – 14,000 BTU
Sealed Precision Burner – 9,500 BTU
Sealed Precision Burner – 5,000 BTU - 850 BTU
Linear Flow Burner Valves
Seamless Cooktop
Continuous Grates with Deep-Well Top
Electronic Pilotless Ignition
Oven Features
Capacity
Hidden Bake Element
Eight-Pass Bake Element – 2500 Watts
Eight-Pass Broil Element – 4000 Watts
Convection Element – 2500 Watts
Cobalt Blue Interior
Min-2-Max™Burner
Designed with a dual-flame sealed burner,
this cooktop offers the widest range of BTU
performance in the industry for the utmost
versatility – from a roaring 18,000-BTU boil to
a gentle 450-BTU simmer.
Sure-2-Fit™Convection Oven
with Hidden Bake Element
Adjustable Luxury-Glide™oven racks are so smooth
and extend effortlessly. Luxury-Design
ramp-up designer halogen lighting is as beautiful
as it is functional. Exclusive Luxury-Hold
door stays put at whatever angle you place it.
™
Lighting
™
oven
Baking Options
Features 7cooking modes and10 cooking options
including our exclusive Perfect Turkey
for large holiday meals. Perfect Convect
Element European Convection System features
a variable 2-speed fan for more even cooking.
™
button
™
3
Third
Perfect Pair™Oven
Our ranges feature a large main oven and a second
oven for the utmost cooking capacity. Use both
simultaneously to cook two different items at two
different temperatures.
Self-Clean Options with Door Lock
Perfect Convect
Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast,
Convection Broil, Keep Warm, Slow Cook
Cooking Options –
Perfect Turkey
My Favorites, Multi-Stage Cooking, Temperature Probe,
Rapid Preheat, Delay Bake, Convection Convert
Luxury-Design™LightingwithDual 40W Halogen Bulbs
Luxury-Glide™Racks
Conventional Racks
Convection Roasting Rack
Additional Features
Luxury-Hold™Oven Door
Extra-Large Glass Window
Perfect Pair™Lower Oven
Adjustable Leveling Legs
Accessories
Porcelain Broiler Pan and Insert
Grill/ Griddle
Wok Ring – 318254307
Simmer Plate – 318254206
LP Conversion Kit
Rear Filler Kit, Side Panel Kit, Backguard Kit, Side Trim Kit –
See Back for Part Numbers
Specifications
Oven Cavity Dimensions –
Height
Width
Depth
Overall Exterior Dimensions –
Height (Adjustable)
Width
Depth (to Center of Arc)
Gas/ Power Supply Connection Location
Connected Load (kW Rating) @ 240/ 208 Volts
Amps@ 240/208 Volts
Minimum Circuit Required (Amps)
Product Weight
Shipping Weight (Approx.)
NOTE: Always consult local and/ or national electric and gas codes. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
3
™
(with 90° Door Open)
™
with Variable 2-Speed Fan
, Defrost, Dehydrate, Bread Proof,
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1
1
1
1
Yes
Yes
3
Yes
4.2 Cu. Ft.
Yes
Yes
Yes
Yes
Yes
3
Yes
7
10
Yes
2
1
Yes
Yes
Yes
Yes
Yes
Included
Included
Optional
Optional
Included
Optional
16-1/2"
24-1/8"
18-1/32"
36-7/16" – 37-7/16"
31-1/2"
28-5/16"
45-1/4"
Right/ LeftBottomRear
5.0/ 3.7
21.0/ 18.0
30
258 Lbs.
278 Lbs.
Wall OvensWarmer DrawersCooktops
Built-In Ranges
Ranges
Freestanding
MicrowavesVent HoodsDishwashersRefrigerators
FreezersUnder Counter
electroluxappliances.com
Dual-Fuel Built-In Ranges
EW30DS65G S, EW30DS65G W, EW30DS65G B
Side
Overall
depth
including
oven door
in 90°open
position –
1
45
Front
285/16"
271/2"
/4"
253/4"
311/2"
Shave raised
edge to clear
space for
31
cooktop rim
WALL
Power supply
location
(left bottom
rear)
Gas
connection
location
(right bottom
rear)
13
/16"
1
/2" wide
5"min. to nearest
combustible
wall (either side
of unit)
Hatched area
should be flat
and leveled
Locate cabinet
doors 1" min.
from cutout
opening
11/2"
max.
1
/2"min.
3
/8"min.
213/4"min.
1
/8"max.
22
**
Approx.
7
1
/8"
1
±
30
/16"*
30"min.
24" min. clearance
with protected cabinet bottom
30" min. for unprotected
1
±
30
/16"*
355/8"
min.
5
/8"
36
max.
311/2"
(critical)
1
/2"min.
25
24"
min.
13 "
min.
18 "
min.
1
/8"
Countertop
227/8"min.
1
23
355/8"
Adjustable
to
365/8"
21
22
/4"max.
3
/4"min.
1
/8"max.
11/8"
**
*Cabinet and countertop
cutout width should match
**24" with optional
backguard installed
Locate grounded
junction box or wall
outlet 8" - 17" from
right cabinet and
2"-4" from floor
Front Face of Cabinet
30"
30" Dual-Fuel Built-In Range Specifications
•
Product Weight – 258 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz,
fused on both sides of line with ground. (If local code permits, range may
be connected by hard-wiring or by means of power supply cord kit.)
•
Connected Load (kW Rating) @ 240/208 Volts = 5.0/3.7 kW
•
Amps @ 240/208 Volts = 21.0/18.0 Amps
•
Recommended Circuit Breaker – 30 Amps
•
Always consult local and/or national electric and gas codes.
•
Range ships with 3/4" factory regulator.
•
Lp conversion kit supplied.
•
Gas supply piping can be routed through side wall of right cabinet.
Right side cabinet is ideal location for main shutoff valve.
•
Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure metal
rangetop flange will fit properly on countertop edge.
•
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than 1/4"
flame-retardant millboard covered with not less than No. 28 MGS sheet
steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper. Allow
30" minimum clearance when cabinet is unprotected.
•
Allow 5" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
Countertop Preparation
For detailed preparation instructions, refer to installation guide on the web.
•
Flat square-finish (flat) countertop requires no preparation since rangetop
flange lays directly on countertop edge.
•
Formed front-edged countertops require front molded edge to be shaved
flat 3/4" from each front corner of opening.
•
Tile countertops may need cut back 3/4" from each front corner of
opening and/or rounded edge flattened.
•
For existing cutout width greater than 30-1/16" reduce the 3/4" overlap
dimension or for cutout width of 29", replace actual side trim panels with
smaller side trim panels, available with optional Side Filler Kit (refer to
detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Wok Ring – (318254307).
•
Simmer Plate – (318254206).
•
Rear Filler Kit: S – (903113-901S), W – (903113-9011), B – (903113-9010).
•
Side PanelKit: S – (903102-901S), W – (903102-9011), B –(903102-9010).
•
Backguard Kit: S – (903111-901S), W – (903111-9011),B –(903111-9010).
•
Side Trim Kit: S – (903110-901S), W – (903110-9011), B – (903110-9010).
•
USA
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
CANADA
EW30DS65G 01/08 © 2008 Electrolux Major Appliances, NA Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
•
electroluxappliances.com
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
