Electrolux EW 1209 I User Manual
WASHER-DRYER
INSTRUCTION BOOKLET
132 993 670
EW 1209 I
GB
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the appliance and the relevant
warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
Installation
●
This appliance is heavy. Care should be taken when
moving it.
●
It is dangerous to alter the specifications or attempt
to modify this product in any way.
●
All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instructions.
●
Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
●
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
●
Care must be taken to ensure that the appliance does
not stand on the electrical supply cable.
●
If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.
Child Safety
●
This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
●
Pets and children have been known to climb into
washer-dryers. Please check your drum before use.
●
The glass door becomes very hot during the washing
and drying cycle. Keep children away from the
vicinity of the appliance whilst it is in operation.
Keep all packaging well away from children.
●
Keep all detergents in a safe place out of children’s
●
reach.
Use
●
Always unplug the appliance and turn off the water
supply after use.
●
Do not overload the appliance. See relevant section
in the instruction book.
●
Only wash and dry fabrics which are designed to be
machine washed and dried. If in doubt, consult the
care label on the clothes.
●
Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras
must NOT be machine washed.
●
Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.
●
Garments which have been in contact with volatile
petroleum products should not be machine washed.
If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the
garment before placing in the machine.
●
Wash small items such as socks, laces, washable
belts etc in a washing bag or pillow case as it is
possible for such items to slip down between the tub
and the inner drum.
●
Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill.
Refer to the manufacturer’s recommendations of
quantities.
●
As some duvets and eiderdowns should be
washed/dried in large commercial machines because
of their bulk, please check with the manufacturer of
the item before washing in a domestic machine.
●
The users should always check that they have not
left their gas lighters (disposable or otherwise) in
their clothing.
●
Never tumble dry items that have had contact with
chemicals such as dry cleaning fluid.These are of a
volatile nature and could cause an explosion.
Only tumble dry items which have been washed in
water or require airing.
●
Plastic detergent dispensers should not remain in the
drum during the drying cycle, as the plastic used is
not designed to withstand the heat. If you wish to
wash-through-to-dry you should use the
conventional detergent dispenser drawer.
●
Leave the porthole door slightly ajar between washes
to preserve the door seal.
●
Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Electrolux
Service Force Centre. Always insist on genuine
Electrolux spare parts.
2
Contents
For the User
Important Safety Information
Your New Washer-Dryer
Description of the Appliance
Detergent dispenser drawer 5
The Control Panel
Functions 9
Programme Information 9-10

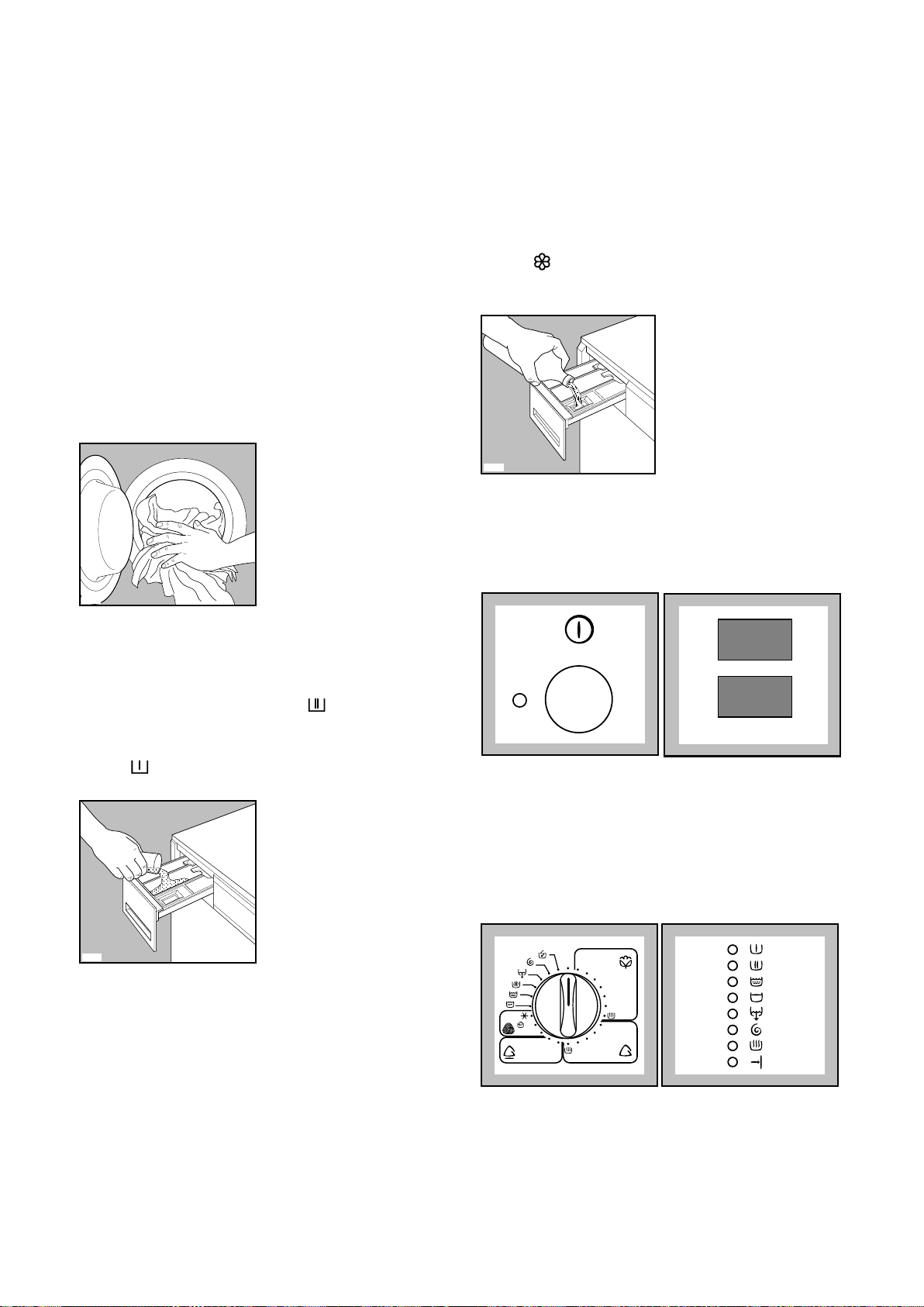

Operating sequence
Washing 11
Load the laundry 11
Measure out the detergent 11
Measure out the fabric softener 11
Switch the machine on 11
Select the required programme 11
Select the spin speed or the option 12
Select the required options 12
Select the delay start 12
Start the machine 12
At the end of the programme 12
Drying only 13
Autodrying (NON STOP Programme) 13
Washing and Drying Hints
Which detergent to use?.... 15
And in which form? 15
Washing and Drying Programmes
6-10
11-12
14
16-18
Maintenance and Cleaning
Descaling 20
After each wash 20
2
Maintenance wash 20
4
External cleaning 20

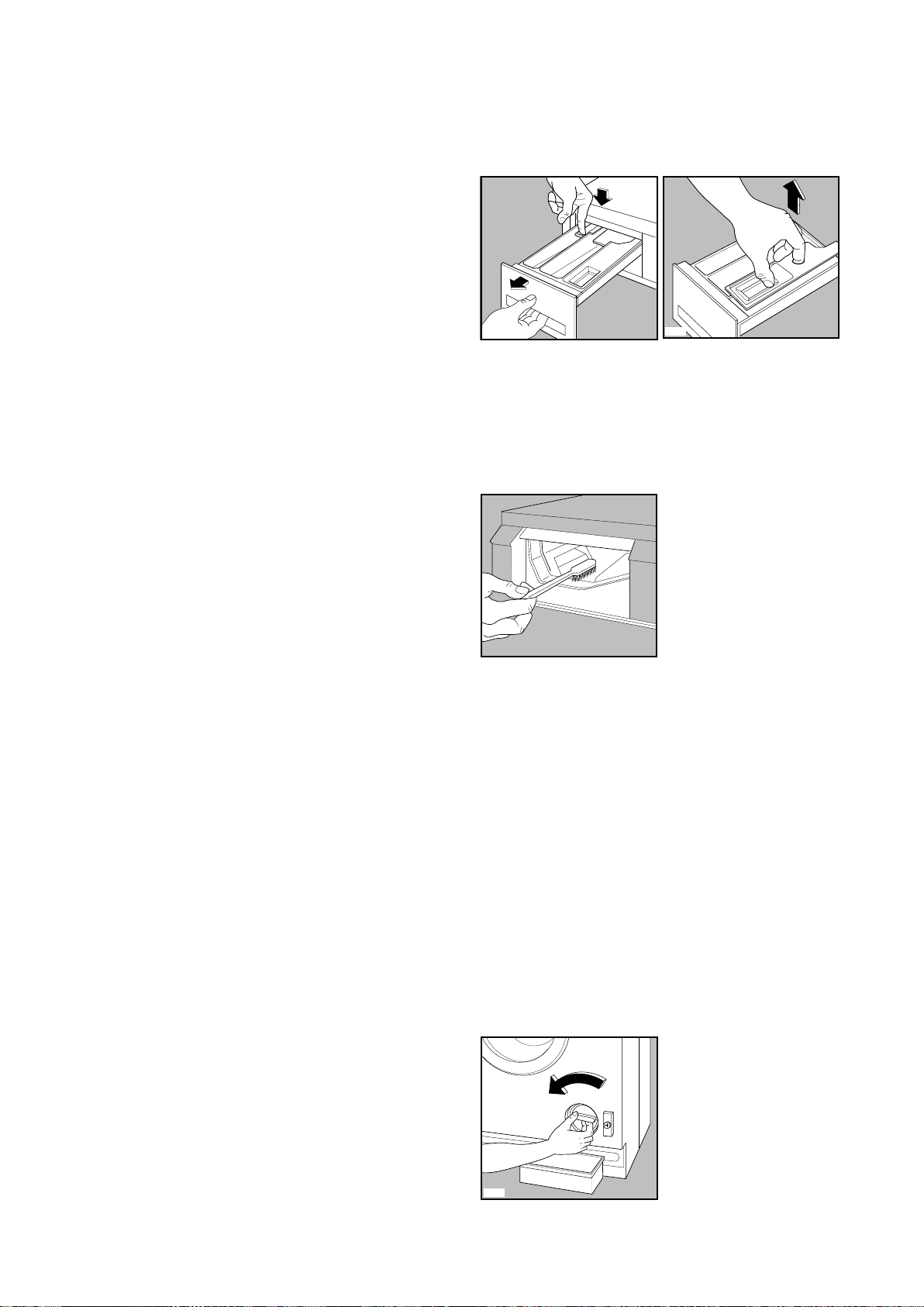

Cleaning the dispenser drawer 20
5
Cleaning the drawer recess 20
Cleaning the filter 20-21
The dangers of freezing 21
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Installation Instructions
Technical Specifications
Unpacking 26
Positioning 26
Installation on a suspended floor 26
Water inlet 27
Water drainage 27-28
Levelling 28
Special conditions 28
In the interest of the environment 28
Electrical connection 29

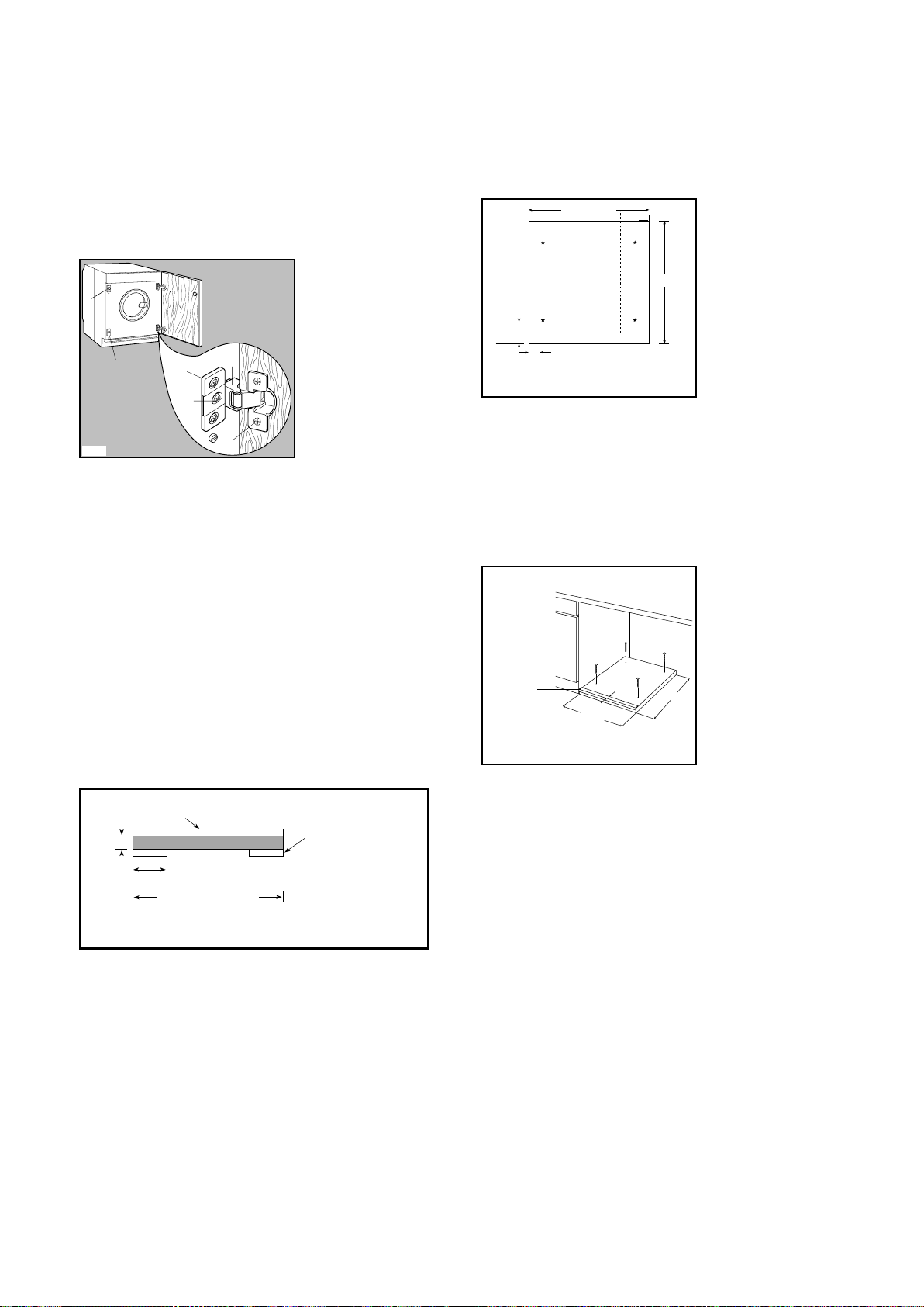

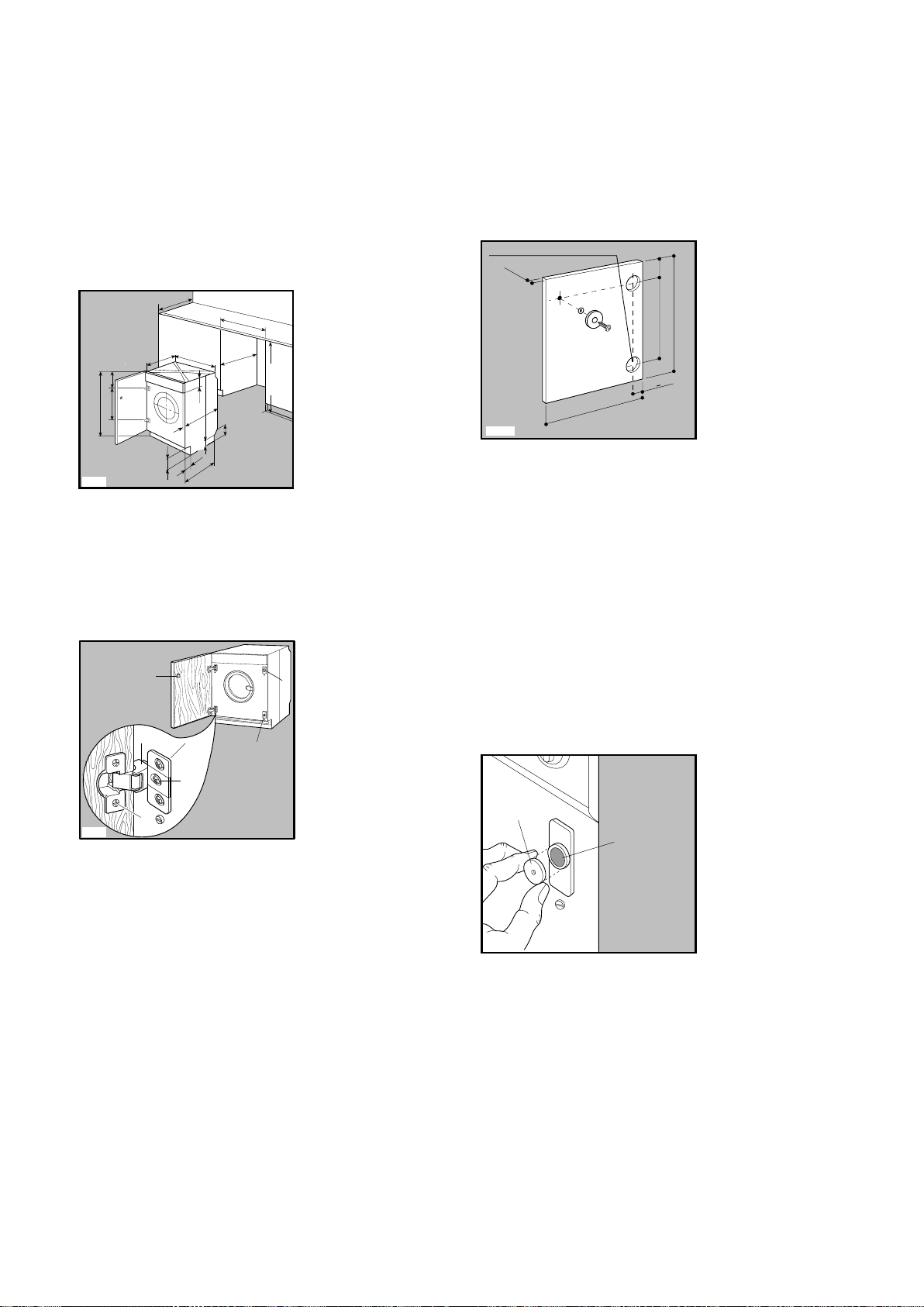

Building-in 30-31
20-21
22-23
23
24
25
25

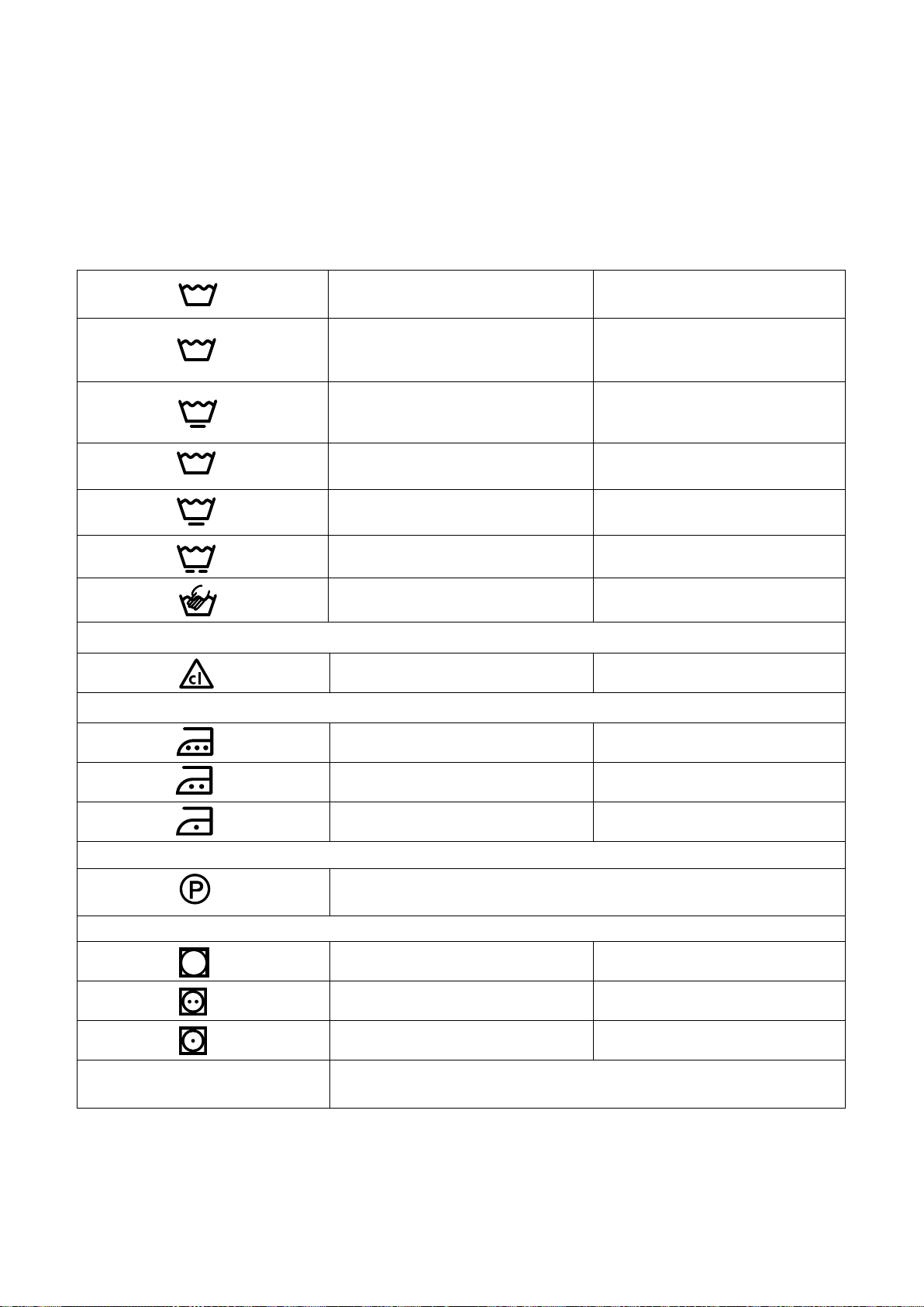

Wash Care Symbols
The following symbols will be found in the text to guide you throughout the instructions:
19
Guide to use the Instruction Book
Safety instructions
Hints and tips
Environmental information
3
Your New Washer-Dryer
Your new washing machine, fitted with the Electrolux “JET SYSTEM”, meets all modern
requirements for effective treatment of laundry with low water, energy and detergent
consumption.
Even small loads are washed “economically” because the amount of water used is regulated
automatically according to the load and type of fabric.
●
The special wool programme with its new delicate
wash system treats your woollens with extreme care.
●
The anti-unbalance device ensures that the
machine remains stable when spinning.
●
Automatic cooling of the wash water to 60°C
before draining, with the 95°C programme. This
reduces thermal shock to fabrics, helping to prevent
creasing.
●
The two drying programmes will give your wash
that soft, relaxed feel whatever the weather.
Ecological hints
To save water and energy and help protect the
environment, we recommend that you follow these
hints:
●
Adjust the quantity of detergent according to the
hardness of your water supply, the amount of
laundry and the degree of soiling.
●
Select a “Quick” programme for lightly soiled
laundry.
●
A programme without prewash is sufficient for
normally soiled laundry.
●
Try to load the maximum drying capacity of the
machine as small loads are uneconomical.
●
Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and the
shorter the drying times.
In the interest
of the environment
●
Materials marked with the symbol are
recyclable.
●
Check with your local Council or Environmental
Health Office to see if there are facilities in your area
for re-cycling this appliance.
●
When the appliance is to be scrapped, cut off the
power supply cable and make the door lock device
unusable to prevent young children from being
trapped inside.
●
Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the environment?
We use recycled paper!
Important
Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.
If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not evenly
distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute the
wash load manually and select a spin programme. For more detailed information see the section headed "Something
Not Working".
4
Description of the Appliance
Programme chart
P0239S
1
3
4
2
5
6
EW 1209 I
95º
E
60º
40º
30º
40º
30º
40º
X
30º
1200
900
700
500
50º
40º
30º
60º
50º
1 Detergent dispenser drawer
2 Programme chart
3 Control panel
4 Door opening handle
5 Drain filter
6 Adjustable feet
Detergent dispenser drawer
Prewash
Main wash
Fabric softener
5
The Control Panel
1 23 4 5678910111314 15
12
EW 1209 I
95º
E
60º
40º
30º
40º
30º
40º
X
30º
1200
900
700
500
50º
40º
30º
60º
50º
1 Detergent dispenser drawer
2 Programme chart
A programme chart in English is in the interior part of
the detergent dispenser drawer.
3 Mains-on Light
This light comes on when the ON/OFF button is
pressed, and goes out when it is pressed again.
4 On/Off Button
Press this button to switch the machine on. Press it
again to switch the machine off.
Programme Option buttons
Depending on the programme, different functions can
be combined. These must be selected after choosing the
desired programme and before depressing the
START/PAUSE button .
When these buttons are pressed, the corresponding pilot
lights come on. When they are pressed again, the pilot
lights go out.
If an incorrect option is selected, the corresponding
pilot light flashes for about 2 seconds and the message
Err is displayed.
• Synthetics, wool / hand wash:
500/700 max 900 r.p.m.
• Delicates:
500 max 700 r.p.m.
By selecting option the last rinse water is not
emptied out, to prevent the fabrics from creasing. When
the programme has finished, the pilot light of the
START/PAUSE button flashes to indicate that the
water must be emptied out.
There are 3 ways to empty out the water:
• Select programme “ ” (draining) and depress
START/PAUSE button :
The water is emptied out without spinning.
Attention! Before selecting programme “ ” the
selector must first be turned to X (cancelling).
• Depress START/PAUSE button : after emptying,
the machine performs the spin cycle corresponding to
the type of fabric previously selected.
• Select the spin speed by means of the relevant button
and then depress the START/PAUSE button.
This option cannot be selected for the automatic
WASHING & DRYING programme.
6 Prewash Button
The machine performs a prewash cycle at 30°C max. The
prewash cycle ends with a short spin at 650 r.p.m. for
Cotton and Synthetics programmes, and with emptying of
the water for Delicates.
This option is not available with the wool programme.
For use when washing heavily soiled laundry.
5 Spin speed Button
Press this button to reduce the maximum speed of the
final spin proposed by the machine for the selected
programme or to select position (rinse hold).
The light corresponding to the selected option
illuminates.
The following speeds are available for the different
fabrics:
• Cotton, linen:
500/700/900 max 1200 r.p.m.
7 Intensive Button
For heavy soiled laundry.
The washing time is prolonged by approximately
10 minutes for cotton and synthetics.
This function cannot be selected together with the
QUICK WASH option and the Energy saving
programme “E”.
6
8 Quick wash button
1.25
2.05
---
By pressing this button the washing time is reduced as
follows:
• 62 minutes for cotton 95°C
• 73 minutes for cotton 60°C
• 68 minutes for cotton 40°C and 30°C
• 42 minutes for synthetics
• 9 minutes for delicates
This option is not available with the wool programme
and the Energy saving programme “E”.
To be used for lightly soiled laundry.
9 Super Rinse button
Can be used with all programmes except the wool
programme. The machine performs 4 rinses instead of
3.
This option is recommended for people who are allergic
to detergents and in areas where the water is very soft.
12 Display
The display shows the following information:
Cancelling - Duration of the programme - Drying
time - Delayed start - Incorrect option selection Alarm code.
Cancelling
If a programme has been cancelled - programme
selector dial on position
on the display.
Now you can select a new programme.
X - three flashing dashes appear
10 Drying Time button
If you wish to carry out a timed programme push the
button until the drying time you want appears in the
display according to the fabrics (cotton or synthetics)
you have to dry.
For COTTON you can select a drying time from 10
minutes to 130 minutes.
For SYNTHETICS you can select a time from 10
minutes to 100 minutes.

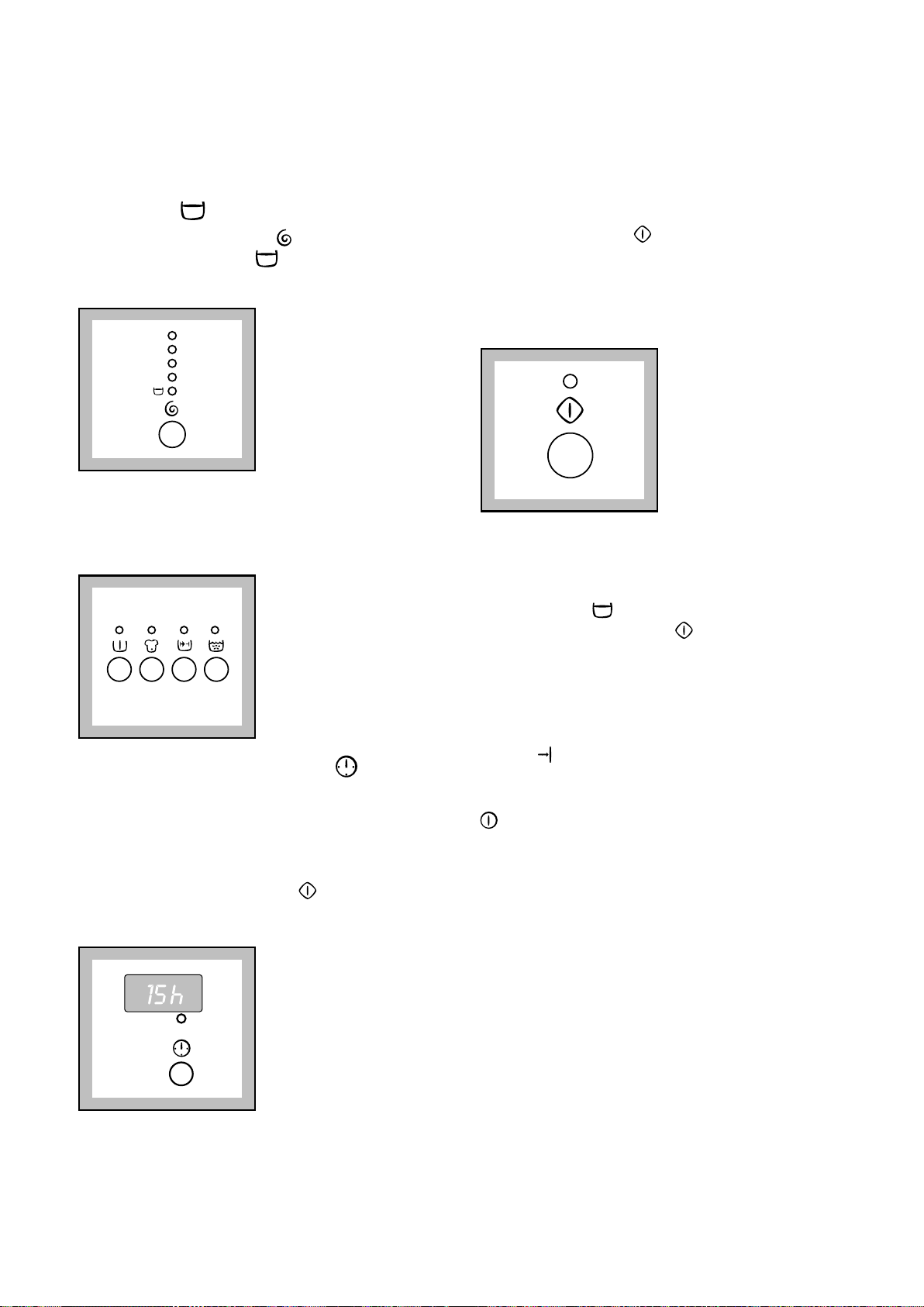

11 Delay Start Button
The wash programme can be delayed from 1 hour up to
a maximum of 24 hours by means of this button.
Selecting the delayed start
• Switch the machine on by depressing the ON/OFF
button .
• Select the programme and the required options.
• Select the delay start by pressing the button once for
each hour of the delay.
• Depress START/PAUSE button : the machine
starts its hourly countdown.
The programme will start after the selected delay has
expired.
Altering the delayed start
Depress START/PAUSE button .
•
• Depress DELAY START button until the required
time is displayed.
If you wish to cancel the delay, depress the button
only once: the symbol
• Depress START/PAUSE button again. The selected
programme will start straight away.
0 h is displayed.
Duration of the selected programme
After selecting a programme, the duration is displayed
in hours and minutes ( for example 2.05).
The duration is calculated automatically on the basis of
the maximum recommended load for each type of
fabric.
After the programme has started, the time remaining is
updated every minute.
When the programme has finished a flashing zero is
displayed.
If you have selected the Rinse hold option , the zero
will not flash.
Drying time
The selected drying time is displayed in minutes or
hours and minutes.
7
After starting the programme, the remaining time is
E20
MAIN WASH
RINSE HOLD
RINSES
END
SPIN
PREWASH
DRYING
DRAIN
updated every minute.
Delayed start
The selected delay (24 hours max) set by means of the
relevant button appears on the display for 3 seconds,
then the duration of the previously selected programme
is displayed.
The countdown is updated every hour.
Incorrect option selection
If an option which is not compatible with the set wash
programme is selected, the message Err is displayed.
13 Start / Pause Button
This button has three functions:
Start - Pause - Draining of water.
Start
After having selected the required programme, press this
button to start the machine; the corresponding pilot light
stops flashing.
If you have selected the delayed start, the machine
begins its countdown. The duration of the programme or
the delay appears on the display.
Pause
To interrupt a programme which is running, depress the
Start/Pause button: the corresponding pilot light starts to
flash.
To restart the programme from the point at which it was
interrupted, press the START/PAUSE button again.
Alarm codes
In the event of operating problems, some alarm codes
can be displayed, for example E20 (see paragraph
“Something not working”).
Draining of water
By depressing the Start/Pause button
• The water of programme is emptied out
• The water of the last rinse on programmes with Rinse
hold option is emptied out and the laundry is
spun.
14 Programme progress display
By selecting the wash programme, the pilot lights
corresponding to the various phases making up the
programme come on.
After the machine has started, only the running phase
pilot light stays on. When the programme has finished,
the End pilot light comes on.
8
15 Programme selector dial
95º
E
60º
40º
30º
40º
30º
40º
X
30º
50º
40º
30º
60º
50º
The selector is divided into 5 sections:
• Cotton, linen
• Synthetics
• Delicates
• Woollens (hand washing)
• Special programmes
• Reset programme X
The selector dial can be turned either clockwise or
anticlockwise.
Position E corresponds to the ENERGY SAVING
programme and position to “cold wash”.
At the end of the programme the selector dial must
be turned to position X (reset).
Interrupting a programme
Depress the START/PAUSE button to interrupt a
programme which is running, the corresponding light
starts to flash.
Cancelling a programme
Turn the selector dial to
X to cancel a programme which
is running: three flashing dashes appear on the display.
Now you can select a new programme.
Opening the door after the programme has started
First set the machine to PAUSE by pressing the
START/PAUSE button .
If the door does not open, this means that the machine is
already heating or drying, that the water level is above
the bottom edge of the door or that the drum is turning.
During drying the door can be opened only the first 10
minutes and at the end of drying (after the cooling
phase).
If you cannot open the door but you need to open it you
have to switch the machine off by depressing the
ON/OFF button . After about 3 minutes the door can
be opened (pay attention to the temperature and level
of the water!). To restart the programme depress
ON/OFF button again after closing the door.
Functions
Pilot lights
Depending on the programme, different functions can
be combined.
When the relevant buttons are pressed, the
corresponding pilot lights come on.
When they are pressed again, the pilot lights go out.
If an incorrect option is selected, the pilot light flashes
for about 2 seconds and the message Err is displayed.
End of programme
The door can be opened when the light (END) on
the programme progress display illuminates.
A flashing zero appears on the display.
Turn the programme selector dial to
Switch the machine off and remove the laundry.
Altering a programme
You can alter the programme before it starts.
When the programme has started, you can only reset it
by turning the programme selector dial to
you can select the new programme.
Start it by depressing the START/PAUSE button .
X.
X and then
Programme information
= Wool / Hand wash
Washing programme for machine washable wool as
well as for hand washable woollens and delicate fabrics
with the “hand washing” care symbol.
= Soak
Select this programme for heavily soiled laundry.
Pour the detergent into the compartment .
This programme is not suitable for wool.
The machine performs a soak at 30°C and stops with
the water in the drum. The water can be emptied out in
2 ways:
• Draining only by depressing the START/PAUSE
button .
• Draining and spin: turn the programme selector dial
to
X, select programme (spin), reduce eventually
the spin speed by means of button and depress
START/PAUSE button.
Important!
• If the water is not emptied out within 18 hours, the
machine empties automatically.
9
• At the end of the soak (after having emptied out the
water) you can select the washing programme. Turn first
the programme selector dial to
X, then select the
programme and depress the START/PAUSE button .
= Rinses
= Drain
For emptying out the water of the last rinse in programmes
with the Rinse hold option.
Turn first the programme selector dial to
X, then select
programme and depress the START/PAUSE button .
With this programme it is possible to rinse and spin
garments which have been washed by hand.
The machine performs 3 rinses, followed by a final spin
at 1200 r.p.m.
The spin speed can be reduced by depressing button .
= Softeners
Hand washed garments can be softened with this
programme.
The machine performs 1 rinse, followed by a final spin
at the max. speed, which can be reduced by depressing
button .
= Spin
Separate spin at the maximum speed for hand washed
garments. You can reduce the speed by means of button
to adapt it to the fabrics to be spun.
= Miniprogramme
This is a complete programme that can be combined
with the following options: spin speed reduction, anticrease and delayed start.
To be used for laundry which is lightly soiled or which
needs freshening up.
Max load 3 kg.
Washing temperature 30°C
Programme duration 30 minutes
Final spin speed 700 r.p.m.
X = Reset
To reset a programme turn the selector dial to
X. Now
can a new programme be selected.
10
Loading...
