Electrolux EFE4227SA, EBE4507SA-L, EBE4507SA-R, ETE4607SA-R, ERE5047SA User Manual

...

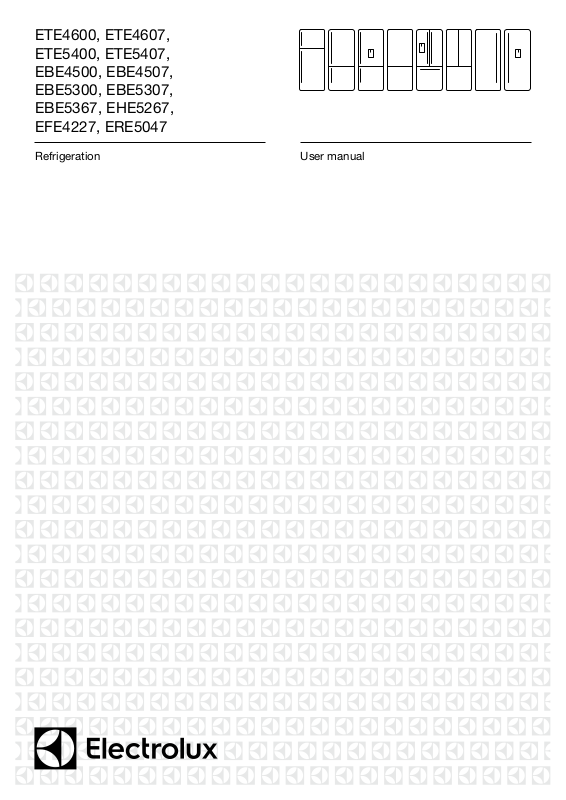

ETE4600, ETE4607, ETE5400, ETE5407, EBE4500, EBE4507, EBE5300, EBE5307, EBE5367, EHE5267, EFE4227, ERE5047
User manualRefrigeration
2 electrolux.com.au
CONGRATULATIONS
Dear customer,
Congratulations and thank you for choosing our refrigerator. We are sure you will find your new refrigerator a pleasure to use. Before you use the refrigerator we recommend that you read through the relevant sections of this manual, which provides a description of your refrigerator and its functions.
To avoid the risks that are always present when you use an electric appliance, it is important that the refrigerator is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
After unpacking the refrigerator, please check it is not damaged. If in doubt, do not use the refrigerator but contact your local customer care centre.
The symbols you will see in this booklet have these meanings:
WARNING
This symbol indicates information concerning your personal safety.
CAUTION
This symbol indicates information on how to avoid damaging the refrigerator.
IMPORTANT
This symbol indicates tips and information about use of the refrigerator.
ENVIRONMENT
This symbol indicates tips and information about economical and ecological use of the refrigerator.
CONDITIONS OF USE
This refrigerator is designed and intended to be used in normal domestic applications only.
Record model and serial number here:
CONTENTS
Warranty Information ..............................................31
Model number: ....................................................................
Serial number: .....................................................................
IMPORTANT SAFETY INSTRUCTIONS
3
NOTE: You must read these warnings carefully before installing or using the refrigerator. If you need assistance, contact your customer care centre. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.
WARNING
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• It is essential the power point is properly earthed to ground. Consult a qualified electrician if you are unsure.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or moving it to avoid electric shock.
• Never unplug the refrigerator by pulling the electrical cord as this may damage it. Grip the plug firmly and pull straight out.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
WARNING
R600a refrigerant warning
This appliance contains flammable R600a refrigerant. Avoid safety hazards by carefully installing, handling, servicing and disposing of this appliance.
• Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation.
• Leaking refrigerant may cause eye injuries or ignite.
• The room for installing appliance must be at least
• If you are unsure of the refrigerant check the rating
• It is hazardous for anyone other than an Authorised
• Keep ventilation openings in the appliance enclosure
• Do not use mechanical devices or other means to
3
1m
per 8g of refrigerant. The amount of refrigerant in the appliance can be found on the rating plate inside the appliance.
plate inside the refrigerator compartment.
Service Person to service this appliance. In Queensland Australia the Authorisation Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.
or in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those recommended by the manufacturer.
• Don’t use a steam cleaner. If live components come into contact with condensing steam, they may short­circuit or cause an electric shock.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. If pressurised aerosol containers bear the word ‘flammable’ and/or a small flame symbol, do not store them inside any refrigerator or freezer. If you do so you may cause an explosion.
• Do not damage the refrigerant circuit.
• This appliance contains insulation formed with flammable blowing gases. Avoid safety hazards by carefully disposing of this appliance.
• If you wish to discard this refrigerator, please contact your local authorities and ask for the correct method of disposal.
• When you dispose of your old refrigerators and freezers, remove any doors. Children can suffocate if they get trapped inside.
• The plug must be accessible when the appliance is in position.
• Never try to repair the refrigerator yourself, only use a qualified or authorised service person for repairs.
4 electrolux.com.au
REFRIGERATOR FEATURES
TOP MOUNT
LED light
FreshSense™ deodoriser
Twist & Serve Ice
Refer to the section “Using your Refrigerator” for details on removing, relocating and using this feature.
LED lighting
Your refrigerator is fitted with LED lighting.
Glass shelves
The glass shelves improve visibility.
FreshSense™ deodoriser
MultiZone™ deli drawer
Use the MultiZone™ deli drawer to store foods like small goods, fresh or cooked meat and cheese, or as an additional crisper. The drawer will prevent strong food odours from impacting the rest of the refrigerator. To remove the deli drawer, pull it forward, then lift it up and pull it further forward.
Wine caddy
FreshZone™ double insulated crisper
Use the crisper to store vegetables, fruit or small goods.
ETE4607 illustrated
Dairy compartments
These compartments can be used to store dairy.
FlexStor™ door bins
Slide the bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door bin mats
Prevent items placed in the bins from sliding around, catch small spills in the door bins and allow small spills to be cleaned up by simply putting the mats in the dishwasher.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Bottle storage bin
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Refrigerator/freezer control panel
From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the Boost function or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
BOTTOM MOUNT
5
LED lighting
Your refrigerator is fitted with LED lighting.
Glass shelves
The glass shelves improve visibility.
MultiZone™ deli drawer
Use the deli drawer to store foods like small goods, fresh or cooked meat and cheese, or as an additional crisper. The drawer will prevent strong food odours from impacting the rest of the refrigerator. To remove the deli drawer, pull it forward, then lift it up and pull it further forward.
Crisper divider
Use the crisper divider to keep vegetables, fruit or small goods separated. (selected models only)
FreshZone™ double insulated crisper
Use the crisper to store vegetables, fruit or small goods.
Twist & Serve ice
Refer to the section “Using your Refrigerator” for details on removing and using this feature.
FreshSense™ deodoriser
Dairy compartments
These compartments can be used to store dairy.
Door bin mats
Prevent items placed in the bins from sliding around, catch small spills in the door bins and allow small spills to be cleaned up by simply putting the mats in the dishwasher.
FlexStor™ door bins
Slide the bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Wine caddy
Bottle storage bin
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Freezer storage bin
Refer to the section “Using your Refrigerator” for details on removing, and using this feature.
Refrigerator/freezer control panel
From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the Boost function or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
EBE5300 illustrated
6 electrolux.com.au
REFRIGERATOR FEATURES
ICE & WATER
LED lighting
Your refrigerator is fitted with LED lighting.
Replaceable water filter
Glass shelves
The glass shelves improve visibility.
MultiZone™ deli drawer
Use the deli drawer to store foods like small goods, fresh or cooked meat and cheese, or as an additional crisper. The drawer will prevent strong food odours from impacting the rest of the refrigerator. To remove the deli drawer, pull it forward, then lift it up and pull it further forward.
Crisper divider
Use the crisper divider to keep vegetables, fruit or small goods separated.
FreshZone™ double insulated crisper
Use the crisper to store vegetables, fruit or small goods.
Automatic ice maker
Refer to the section “Using your Refrigerator” for details on using this feature.
Freezer storage bin
Refer to the section “Using your Refrigerator” for details on removing, and using this feature.
EBE5367 illustrated
FreshSense™ deodoriser
Dairy compartments
These compartments can be used to store dairy.
Door bin mats
Prevent items placed in the bins from sliding around, catch small spills in the door bins and allow small spills to be cleaned up by simply putting the mats in the dishwasher.
FlexStor™ door bins
Slide the bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
LED lighting
Wine caddy
Bottle storage bin
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Refrigerator/freezer control panel
From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the Boost function controlling the Ice Maker or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
FRENCH DOOR ICE & WATER
7
LED lighting
Your refrigerator is fitted with LED lighting.
Replaceable water filter
Glass shelves
The glass shelves improve visibility.
MultiZone™ deli drawer
Use the deli drawer to store foods like small goods, fresh or cooked meat and cheese, or as an additional crisper. The drawer will prevent strong food odours from impacting the rest of the refrigerator. To remove the deli drawer, pull it forward, then lift it up and pull it further forward.
Crisper divider
Use the crisper divider to keep vegetables, fruit or small goods separated.
FreshZone™ double insulated crisper
Use the crisper to store vegetables, fruit or small goods.
Automatic ice maker
Refer to the section “Using your Refrigerator” for details on using this feature.
FreshSense™ deodoriser
Dairy compartments
These compartments can be used to store dairy.
Door bin mats
Prevent items placed in the bins from sliding around, catch small spills in the door bins and allow small spills to be cleaned up by simply putting the mats in the dishwasher.
FlexStor™ door bins
Slide the bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Wine caddy
Bottle storage bin
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Freezer storage bin
Refer to the section “Using your Refrigerator” for details on using this feature.
Refrigerator/freezer control panel
From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the Boost function controlling the Ice Maker or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
EHE5267S illustrated
FEATURES
7
8 electrolux.com.au
REFRIGERATOR FEATURES
SINGLE DOOR
FreshSense™ deodorisor
LED lighting
Your refrigerator is fitted with LED lighting.
Replaceable water filter
Glass shelves
The glass shelves improve visibility.
MultiZone™ Deli drawer
Use the deli drawer to store foods like small goods, fresh or cooked meat and cheese, or as an additional crisper. The drawer will prevent strong food odours from impacting the rest of the refrigerator. To remove the deli drawer, pull it forward, then lift it up and pull it further forward.
Wine caddy
FreshZone™ double insulated crisper
Use the crisper to store vegetables, fruit or small goods.
Dairy compartments
These compartments can be used to store dairy.
Door bin mats
Prevent items placed in the bins from sliding around, catch small spills in the door bins and allow small spills to be cleaned up by simply putting the mats in the dishwasher.
FlexStore™ door bins
Slide the bins to meet different storage needs. To remove, lift and tilt. To replace, tilt the top and push down until locked in place.
Door storage bin
The door bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Bottle storage bin
Use the bottle bin for tall bottle storage. The bottle bin can be removed by lifting it up over the support lugs. To replace, push down over the support lugs to lock in place.
Refrigerator control panel
From this panel you can control the temperature of the refrigerator compartments as well as setting the Boost function or resetting the door alarm.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
ERE5047 illustrated
8 FEATURES
FREEZER FEATURES
SINGLE DOOR
Automatic ice maker
Refer to the section “Using your Refrigerator” for details on using this feature.
9
LED lighting
Your freezer is fitted with LED lighting.
Glass shelves
The glass shelves improve visibility.
EFE4227 illustrated
Freezer control panel
From this panel you can control the temperature of the freezer as well as setting the fast ice function or reset the door alarm.
Storage bins
Refer to the section “Using your Refrigerator” for details on removing, and using this feature.
For further information on how to use this feature refer to the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
FEATURES
9
10 electrolux.com.au
ENVIRONMENTAL TIPS
10 - 15mm
Fixed rear rollers
Height adjusting nut
adjust front feet for uneveness of oor eg. wind this foot down or up.
top of refrigerator is level ie horizontal.
aligned to cupboards ie even gap.
INSTALLING YOUR NEW APPLIANCE
UNPACKING
ENVIRONMENT
Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.
Important – check for any damages or marks. If you find the refrigerator is damaged or marked, you must report it within 7 days should you wish to claim for damage/ marks under the manufacturers warranty. This does not affect your statutory rights.
Clean your refrigerator thoroughly following the instructions in the “Cleaning” section and wipe off any dust that has accumulated during shipping.
LOCATING THE REFRIGERATOR
CAUTION
Automatic aerosol systems (such as insect control) should not be located adjacent to the product as the spray may cause long term damage to the external surfaces of the appliance.
Do not put the refrigerator in a location that is too cold or is unprotected, for example in a garage or on a veranda. The ambient temperature should be above 10°C.
Put the refrigerator in a dry place avoiding areas of high moisture or humidity.
INSTALLING YOUR REFRIGERATOR
1. Roll the refrigerator into place.
The rollers are designed for forward or backward
movement only. They are not castors. Moving the refrigerator sideways may damage your floor and the rollers. Before moving your refrigerator ensure height adjusting nut and the stability foot are fully wound up off the floor.
2. Wind the large height adjusting nut under door hinge down until the refrigerator is tilted back by 10mm (see diagram).
3. Wind the large height adjusting nut on the handle side down until the refrigerator is level and stable. If you have difficulty winding the nut or height adjusting foot down, have someone tilt the refrigerator back so you have better access.
Ensure the refrigerator is located on an even surface.
Adequate ventilation around your refrigerator
The diagram below shows the recommended airspace to allow for ventilation of your refrigerator.
If you have a cupboard above the refrigerator with a rear gap of less than 100 mm (Y), recommended clearance at the top of the refrigerator increases from 50mm to 90mm (X) minimum.
When positioned in a corner area, spacing of at least 350mm (300mm for multi-door models) on the hinge side will allow the doors to open enough to enable the removal of bins and shelves.
NOTE: Doors are designed to sit proud of cabinetry (not flush). The clearances shown above are the recommended minimum clearances.
The clearance at the rear must not exceed 75mm.
50mm
Recommended
airspace
30mm
CABINET
DOOR
30mm
stability foot wound up
350mm
Y
X
4. Check the alignment of the refrigerator to the surrounding cupboards to see if it is level. You can adjust the level as detailed in step 2 and 3.
Loading...
+ 22 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
