CONTENTS

1. SAFETY INFORMATION....................................................................................2

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 7

5. PROGRAMMES................................................................................................. 7

6. SETTINGS..........................................................................................................9

7. OPTIONS..........................................................................................................11

8. BEFORE FIRST USE....................................................................................... 12

9. DAILY USE....................................................................................................... 12

10. HINTS AND TIPS........................................................................................... 15

11. CARE AND CLEANING..................................................................................16

12. TROUBLESHOOTING....................................................................................18

13. TECHNICAL INFORMATION......................................................................... 21

14. INSTALLATION.............................................................................................. 22

15. WARRANTY .................................................................................................. 23

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

Register your product for better service:

www.registerelectrolux.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.

Warning / Caution-Safety information
General information and tips
Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not

ENGLISH 3

responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.

• Do not let children play with the appliance.

• Keep detergents away from children.

• Keep children and pets away from the appliance when

the door is open.

• Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended to be used in household

and similar applications such as:

– farm houses; staff kitchen areas in shops, offices

and other working environments;

– by clients in hotels, motels, bed & breakfast and

other residential type environments.

• Do not change the specification of this appliance.

• The operating water pressure (minimum and

maximum) must be between 0.5 (50) / 8 (800) bar
(kPa)

• Obey the maximum number of 14 place settings.

• If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or a
similarly qualified persons in order to avoid a hazard.

• Put knives and cutlery with sharp points in the cutlery

basket with the points down or in a horizontal position.

www.electrolux.com4

• Do not keep the appliance door open without

supervision to prevent to fall on it.

• Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

• Do not use high pressure water sprays and/or steam

to clean the appliance.

• The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

• The ventilation openings in the base (if applicable)

must not be obstructed by a carpet.

• Some dishwasher detergents are strongly alkaline.

They can be extremely dangerous if swallowed. Avoid

contact with the skin and eyes and keep children away

from the dishwasher when the door is open.

• Check that the detergent receptacle is empty after

completion of the wash cycle.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must
install this appliance.

• Remove all the packaging.

• Do not install or use a damaged
appliance.

• Do not install or use the appliance
where the temperature is less than 0
°C.

• Follow the installation instruction
supplied with the appliance.

• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.

• Make sure that the appliance is
installed below and adjacent to safe
structures.

2.2 Electrical connection

WARNING!

Risk of fire and electrical
shock.

• The appliance must be earthed.

• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.

• Always use a correctly installed
shockproof socket.

• Do not use multi-plug adapters and
extension cables.

• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.

• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

2.3 Water connection

• Do not cause damage to the water
hoses.

• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.

• Ensure that there are no visible water
leaks during and after the first use of
the appliance.

• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.

ENGLISH 5

disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.

• Do not drink and play with the water in
the appliance.

• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.

• The appliance can release hot steam
if you open the door while a
programme operates.

• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,
immediately close the water tap and

• Disconnect the appliance from the
mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent
children and pets to get closed in the
appliance.

5

4

8

6

12

11

10

9

13

2

3

1

7

www.electrolux.com6

3. PRODUCT DESCRIPTION

Top spray arm

1

Upper spray arm

2

Lower spray arm

3

Filters

4

Rating plate

5

Air vent

6

Rinse aid dispenser

7

3.1 Beam-on-Floor

The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.

• When the programme starts, a red
light comes on and stays on for the
duration of the programme.

• When the programme is completed, a
green light comes on.

• When the appliance has a
malfunction, the red light flashes.

Detergent dispenser

8

Comfort Lift basket

9

Release handle

10

Upper basket

11

Cutlery drawer

12

The Beam-on-Floor is off
when the appliance is
deactivated.

When AirDry is activated
during the drying phase, the
projection on the floor may
not be completely visible. To
see if the cycle has ended,
check the control panel.

4. CONTROL PANEL

1

2

3

4

5

6

7

8

9

ENGLISH 7

On/off button

1

Display

2

Program touchpad

3

Delay touchpad

4

MyFavourite touchpad

5

5. PROGRAMMES

Programme Degree of soil

P1

1)

ECO

P2
AutoFlex

P3
FlexiWash

P4
Intensive

P5
Glass Care

Px
Quick Plus

Type of load

• Normal soil

• Crockery and

• All

• Crockery, cut‐

2)

• Mixed soil

• Crockery, cut‐

3)

• Heavy soil

• Crockery, cut‐

• Normal or light

• Delicate crock‐

• Fresh soil

• Crockery and

4)

cutlery

lery, pots and
pans

lery, pots and
pans

lery, pots and
pans

soil

ery and glass‐
ware

cutlery

TimeSaver touchpad

6

XtraDry touchpad

7

ExtraHygiene touchpad

8

Indicators

9

Programme phases Options

• Prewash

• Wash 50 °C

• Rinse

• Dry

• Prewash

• Wash from 45 °C
to 70 °C

• Rinse

• Dry

• Prewash

• Wash 50 °C and
65 °C

• Rinse

• Dry

• Prewash

• Wash 70 °C

• Rinse

• Dry

• Wash 45 °C

• Rinse

• Dry

• Wash 60 °C

• Rinse

• ExtraHygiene

• TimeSaver

• XtraDry

• ExtraHygiene

• XtraDry

• TimeSaver

• XtraDry

• ExtraHygiene

• XtraDry

• TimeSaver

• XtraDry

• ExtraHygiene

• XtraDry

www.electrolux.com8

Programme Degree of soil

Programme phases Options

Type of load

P7
Rinse & Hold

1)

With this programme, you have the most efficient use of water and energy consumption

for crockery and cutlery with normal soil. This is the standard programme for test institutes.

2)

The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐
matically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.

3)

With this programme, you can wash a load with mixed soil. Very heavy soil in the lower
basket, and normal soil in the upper basket. The pressure and the temperature of the water
in the lower basket are higher than in the upper basket.

4)

With this programme, you can wash a half-load dishwasher with fresh soil. It gives good
washing results in a short time.

5)

With this programme, you can quickly rinse dishes to prevent remains of food to bond on
dishes and odours to form in the appliance. Do not use detergent with this programme.

• All • Prewash

5)

5.1 Consumption values

Programme

P1

1)

Water

(l)

12.5 0.78 138

ECO

P2

7.0 - 14.0 0.9 - 1.6 90 - 160

AutoFlex

P3

14 - 16 1.2 - 1.5 160 - 180

FlexiWash

P4

12.5 - 14.5 1.4 - 1.7 170 - 190

Intensive

P5

12 - 14 0.7 - 0.9 82 - 92

Glass Care

Px

10.5 0.7 38

Quick Plus

P7

4 0.01 14

Rinse & Hold

1)

The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.

Energy

(kWh)

Duration

(min)

5.2 Information for test

institutes

For all the necessary information for test
performance, send an email to:

[email protected]

Write down the product number (PNC)
that is on the rating plate.

6. SETTINGS

ENGLISH 9

6.1 Programme selection mode

and user mode

When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.

Settings available in the user mode:

• The activation or deactivation of the
rinse aid empty notification.

• The level of rinse aid according to the
required dosage.

• Activation or deactivation of the
acoustic signal for the end of a
programme.

• The activation or the deactivation of
the option AirDry.

As the appliance stores the saved
settings, there is no need to configure
it before every cycle.

How to set the programme selection mode

The appliance is in programme selection
mode when the display shows the
programme number P1.

After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode
the following way:

Press and hold simultaneously and

until the appliance is in programme

selection mode.

The rinse aid is automatically released
during the hot rinse phase.

When rinse aid chamber is empty, the
rinse aid indicator is turned on notifying
to refill rinse aid. If the drying results are
satisfactory while using multi-tablets only,
it is possible to deactivate the notification
for refilling rinse aid. However, for best
drying performance, always use rinse
aid.

If standard detergent or multi-tablets
without rinse aid are used, activate the
notification to keep the rinse aid refill
indicator active.

How to deactivate the rinse aid empty notification

Make sure the appliance is in user mode.

1. Press .

• The indicators , and go
off.

• The indicator still flashes.

• The display shows the current

setting: = the rinse aid empty
notification is activated (factory
setting).

2. Press to change the setting.

= the rinse aid empty notification is

deactivated.

3. Press the on/off button to confirm the
setting.

How to enter user mode

Make sure the appliance is in
programme selection mode.

To enter user mode, press and hold

simultaneously

indicators , , and flash and
the display is blank.

and until the

6.2 The rinse aid empty notification

The rinse aid helps to dry the dishes
without streaks and stains.

6.3 The rinse aid dispenser

The rinse aid helps to dry the dishes
without streaks and stains.

The rinse aid is automatically released
during the hot rinse phase.

It is possible to set the released quantity
of rinse aid between level 1 (minimum
quantity) and level 6 (maximum quantity).
Level 0 deactivates the rinse aid
dispenser and no rinse aid is released.

Factory setting: level 4.

www.electrolux.com10

How to set the rinse aid level

Make sure the appliance is in user mode.

1. Press .

• The indicators , and go
off.

• The indicator

• The display shows the current

setting: e.g. = level 4.

– The levels of rinse aid are

from 0A to 6A
where level 0A means rinse
aid is not used.

2. Press repeatedly to change the
setting.

3. Press the on/off button to confirm the
setting.

still flashes.

6.4 Acoustic signals

Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.

There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
is deactivated but it is possible to
activate it.

How to activate the acoustic signal for the end of programme

Make sure the appliance is in user mode.

1. Press .

• The indicators

off.

• The indicator

• The display shows the current

setting: = Acoustic signal off.

2. Press

= Acoustic signal on.

3. Press the on/off button to confirm the
setting.

to change the setting.

, and go

still flashes.

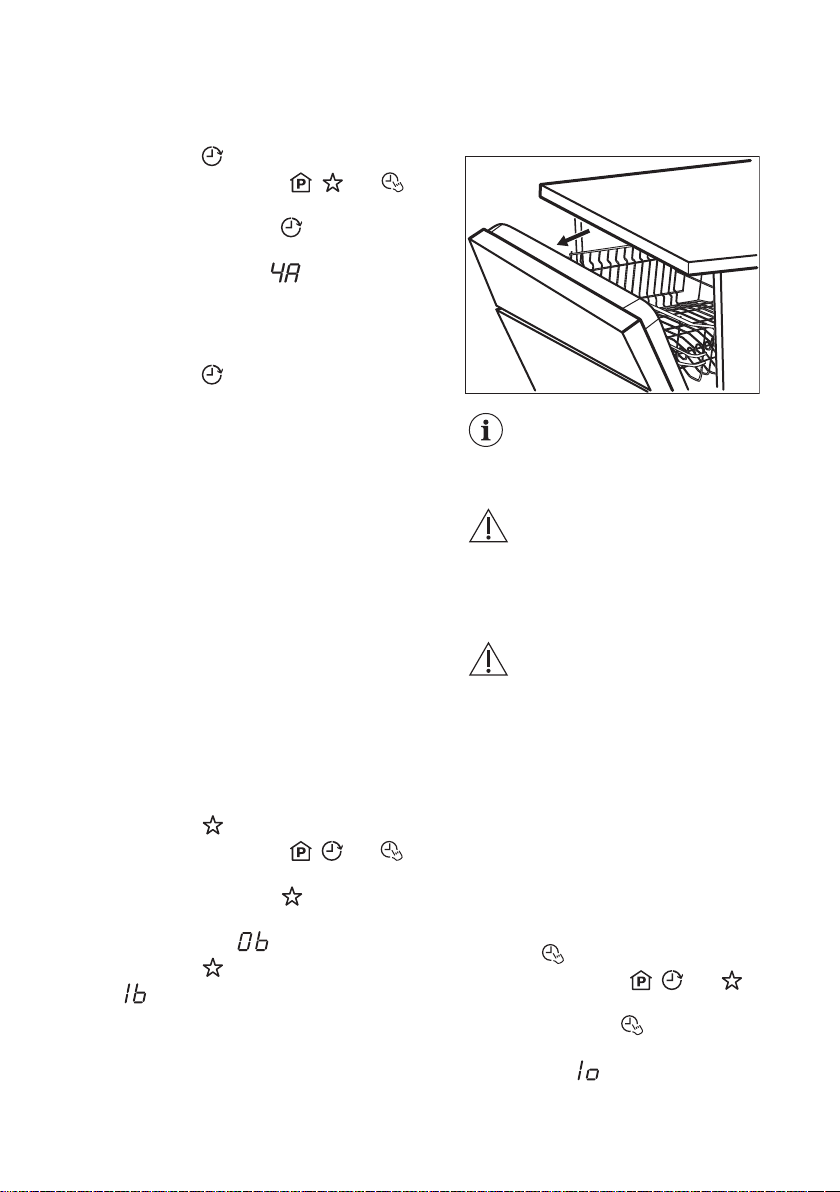

6.5 AirDry

AirDry improves the drying results with
less energy consumption.

While the drying phase
operates, a device opens the
appliance door. The door is
then kept ajar.

CAUTION!

Do not try to close the
appliance door within 2
minutes after automatic
open. This can cause
damage to the appliance.

CAUTION!

In case of presence of
children, the AirDry system
can be deactivated if you
want to keep the door closed
in the end of the cycle.

AirDry is automatically activated with all
programmes excluding Rinse & Hold

To improve the drying performance refer
to the XtraDry option or activate AirDry.

How to deactivate AirDry

Make sure the appliance is in user mode.

1. Press .

• The indicators , and are
off.

• The indicator still flashes.

• The display shows the current

setting:

= AirDry activated.

ENGLISH 11

2. Press to change the setting:

= AirDry deactivated.

3. Press on/off to confirm the setting.

6.6 MyFavourite

This option allows to set and save the
most frequently used programme.

It is possible to save only 1 programme.
A new setting cancels the previous one.

How to save the MyFavourite programme

1. Set the chosen programme.
It is also possible to set applicable
options together with the programme.

7. OPTIONS

Desired options must be
activated every time before
you start a programme.
It is not possible to activate
or deactivate options while a
programme is running.

Not all options are
compatible with each other.
If you select non compatible
options, the appliance
automatically deactivates
one or more of them. Only
the indicators of the still
active options are on.

7.1 XtraDry

Activate this option when you want to
boost the drying performance. With use
of this option, the duration of some
programmes, water consumption and the
last rinse temperature can be affected.

The XtraDry option is a permanent option
for all programmes other than ECO and
need not to be selected at every cycle.

Every time ECO is activated, XtraDry
option is off and needs to be chosen
manually. In other programmes, the
setting of XtraDry is permanent and it is
automatically used in next cycles. This
configuration can be changed at any
time.

2. Press and hold
indicator is on.

until the related

How to set the MyFavourite programme

Press .

• The MyFavourite indicator is on.

• The display shows the number

and the duration of the
programme.

• If options are saved together with

the programme, the indicators
related to the options are on.

Activating XtraDry option deactivates
TimeSaver.

How to activate XtraDry

Press . The related indicator comes
on.
If the option is not applicable to the
programme, the related indicator does
not appear or it flashes quickly for a few
seconds and then goes off.
The display shows the updated
programme duration.

7.2 TimeSaver

The TimeSaver allows to reduce the
duration of a selected programme by
approximately 50%.

The washing results are the same as
with the normal programme duration. The
drying results can decrease.

This option increases the pressure and
the temperature of the water. The
washing and the drying phases are
shorter.

By default, TimeSaver is off, but it is
possible to activate it manually. This
option cannot be combined with XtraDry.

A

B

C

www.electrolux.com12

How to activate TimeSaver

Press , the related indicator comes
on.
If the option is not applicable to the
programme, the related indicator does
not come on or it flashes quickly for a few
seconds and then goes off.
The display shows the updated
programme duration.

7.3 ExtraHygiene

This option provides better hygiene
results by keeping the temperature at 70

8. BEFORE FIRST USE

°C for at least 10 minutes during the last
rinsing phase.

How to activate ExtraHygiene

Press , the related indicator comes on
If the option is not applicable to the
programme, the related indicator does
not come on or it flashes quickly for a few
seconds and then goes out.
The display shows the updated
programme duration.

1. Fill the rinse aid dispenser.

2. Open the water tap.

3. Start a program to remove any

processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the
baskets.

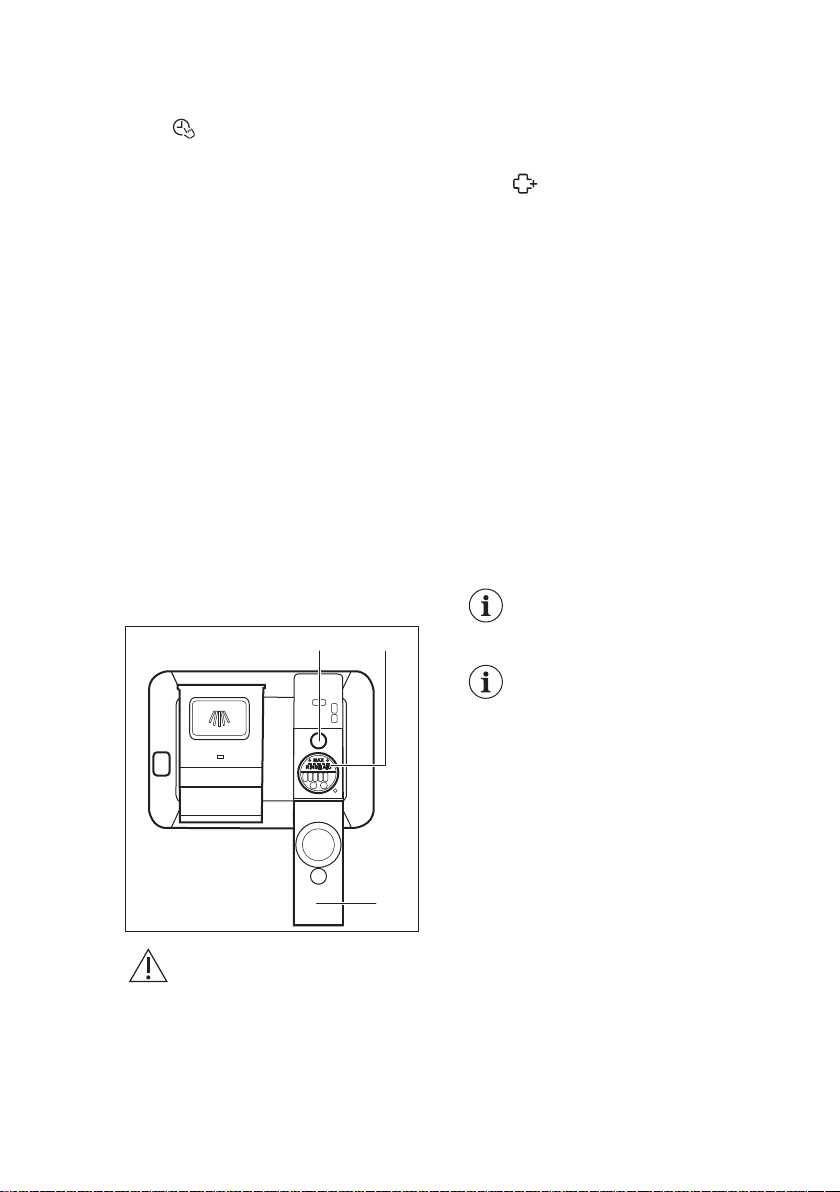

8.1 How to fill the rinse aid dispenser

CAUTION!

Only use rinse aid
specifically designed for
dishwashers.

1. Open the lid (C).

2. Fill the dispenser (B) until the rinse

aid reaches the marking ''MAX''.

3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.

4. Close the lid. Make sure that the lid
locks into position.

Fill the rinse aid dispenser
when the indicator (A)
becomes clear.

If you use multi-tablets and
the drying performance is
satisfactory, the rinse aid
refill indication can be
disabled.
We recommend to always
use rinse aid for better
drying performance, also in
combination with multi­tablets containing rinsing
agent.

9. DAILY USE

1. Open the water tap. 2. Press the on/off button to activate the

appliance.

Make sure that the appliance is in

A

B

C

programme selection mode.

• If the rinse aid empty message is
shown fill the rinse aid dispenser.

3. Load the baskets.

4. Add the detergent.

5. Set and start the correct programme

for the type of load and the degree of
soil.

9.1 Comfort Lift

CAUTION!

Do not sit on the rack. Do
not put excessive pressure
on the locked basket.

ENGLISH 13

The basket is automatically locked on the
upper level. Load or unload the basket
carefully (refer to basket loading leaflet).

2. To lower the basket connect the
release handle with the basket frame
as shown below. Lift the release
handle and the rack up.

CAUTION!

Do not exceed the max load
capacity of 18 kg.

CAUTION!

Use only a detergent
specifically designed for
dishwashers.

To ensure correct unlocking,
lift the release handle
completely and the basket
slightly until the basket is
disengaged on both sides.

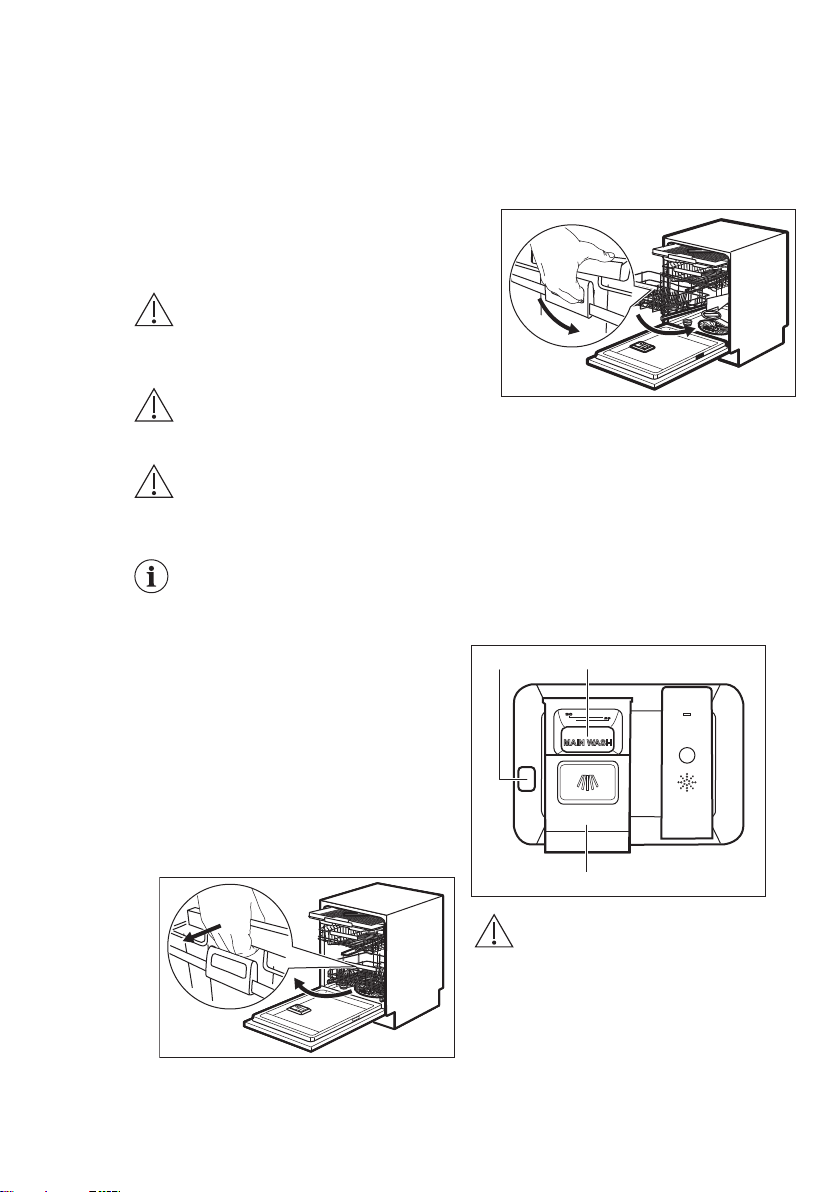

The Comfort Lift mechanism allows to lift
the lower rack up (to the second rack
level) and put it down to load and unload
dishes easily.

To move the lower basket from the lower
position:

1. To lift the basket pull the rack out of
the dishwasher by the rack handle.
The release handle should not be
used.

Once the release handle is lifted,
push the rack down. The mechanism
returns to its basic position on the
lower level.
There are two ways of lowering the
basket depending on the loading:

• If there is a full load of plates
slightly push the basket down.

• If the basket is empty or half­loaded press the basket down.

9.2 Using the detergent

CAUTION!

Only use detergent
specifically designed for
dishwashers.

1. Press the release button (A) to open
the lid (C).

2. Put the detergent, in powder or
tablets, in the compartment (B).

www.electrolux.com14

3. If the programme has a prewash

phase, put a small quantity of
detergent on the inner part of the
appliance door.

4. Close the lid. Make sure that the lid
locks into position.

9.3 Setting and starting a

programme

The Auto Off function

This function decreases energy
consumption by deactivating
automatically the appliance when it is not
operating.

The function comes into operation:

• 5 minutes after the completion of the

programme.

• After 5 minutes if the programme has

not started.

Starting a programme

1. Keep the appliance door ajar.

2. Press the on/off button to activate the

appliance. Make sure that the
appliance is in programme selection
mode.

3. Press repeatedly until the display
shows the number of the programme
you want to start. The display will
show the programme number for
approximately 3 seconds and then
show the programme duration.

• If you want to select the

MyFavourite programme, press

.

• The indicators of the options

related to the MyFavourite
programme come on.

4. Set the applicable options.

5. Close the appliance door to start the

programme.

Starting a programme with delay start

1. Set a programme.

2. Press again and again until the

display shows the delay time you
want to set (from 1 to 24 hours).

The delay indicator comes on.

3. Close the appliance door to start the
countdown.

While a countdown is running it is
possible to increase the delay time but
not to change the selection of the
programme and options.
When the countdown is completed, the
programme starts.

Opening the door while the appliance operates

If you open the door while a programme
is running, the appliance stops. It may
affect the energy consumption and the
programme duration. When you close
the door, the appliance continues from
the point of interruption.

If the door is opened for
more than 30 seconds
during the drying phase, the
running programme will end.
This will not happen if the
door is opened by AirDry.

CAUTION!

Do not try to close the
appliance door within 2
minutes after AirDry
automatically opens it, as
this may cause damage to
the appliance. If, afterwards,
the door is closed for
another 3 minutes, the
running programme ends.

Cancelling the delay start while the countdown operates

When you cancel the delay start you
have to set the programme and options
again.

Press and hold simultaneously and

until the appliance is in programme

selection mode.

ENGLISH 15

Cancelling the programme

Press and hold simultaneously and

until the appliance is in programme
selection mode.
Make sure that there is detergent in the
detergent dispenser before you start a
new programme.

10. HINTS AND TIPS

10.1 General

The following hints will ensure optimal
cleaning and drying results in daily use
and also help to protect the environment.

• Remove larger residues of food from

the dishes into the waste bin.

• Do not pre-rinse dishes by hand.

When needed, use the prewash

programme (if available) or select a

programme with a prewash phase.

• Always use the whole space of the

baskets.

• When loading the appliance, make

sure that the dishes can be

completely reached and washed by

the water released from the spray arm

nozzles. Make sure that items do not

touch or cover each other.

• You can use dishwasher detergent

and rinse aid separately or you can

use the multi-tablets. Follow the

instructions written on the packaging.

• Select the programme according to

the type of load and degree of soil.

With the ECO programme you have

the most efficient use of water and

energy consumption for crockery and

cutlery with normal soil.

10.2 Using rinse aid and detergent

• Only use rinse aid and detergent for

dishwasher. Other products can

cause damage to the appliance.

• Detergent tablets do not fully dissolve

with short programs. To prevent

detergent residues on the tableware,

we recommend that you use the

tablets with long programs.

• Do not use more than the correct

quantity of detergent. Refer to the

End of programme

When the programme is completed and
you open the door, the appliance is
automatically deactivated.

Close the water tap.

instructions on the detergent
packaging.

10.3 Loading the baskets

• Only use the appliance to wash items
that are dishwasher-safe.

• Do not put in the appliance items
made of wood, horn, aluminium,
pewter and copper.

• Do not put in the appliance items that
can absorb water (sponges,
household cloths).

• Remove remaining food from the
items.

• Make soft the remaining burned food
on the items.

• Put hollow items (cups, glasses and
pans) with the opening down.

• Make sure that cutlery and dishes do
not bond together. Mix spoons with
other cutlery.

• Make sure that glasses do not touch
other glasses.

• Put small items in the cutlery basket.

• Put light items in the upper basket.
Make sure that the items do not
move.

• Make sure that the spray arm can
move freely before you start a
programme.

10.4 Before starting a

programme

Make sure that:

• The filters are clean and correctly
installed.

• The spray arms are not clogged.

• There is dishwasher rinse aid (unless
you use multi- tablets).

• The position of the items in the
baskets is correct.

C

B

A

www.electrolux.com16

• The programme is applicable for the
type of load and for the degree of soil.

• The correct quantity of detergent is
used.

10.5 Unloading the baskets

1. For improved drying results with the

most efficient use of energy select
the AirDry option, otherwise open the
door by approximately 10cm at the
end of the program.

11. CARE AND CLEANING

WARNING!

Before maintenance,
deactivate the appliance and
disconnect the mains plug
from the main socket.

Dirty filters and clogged
spray arms decrease the
washing results. Make a
check regularly and, if
necessary, clean them.

11.1 Cleaning the filters

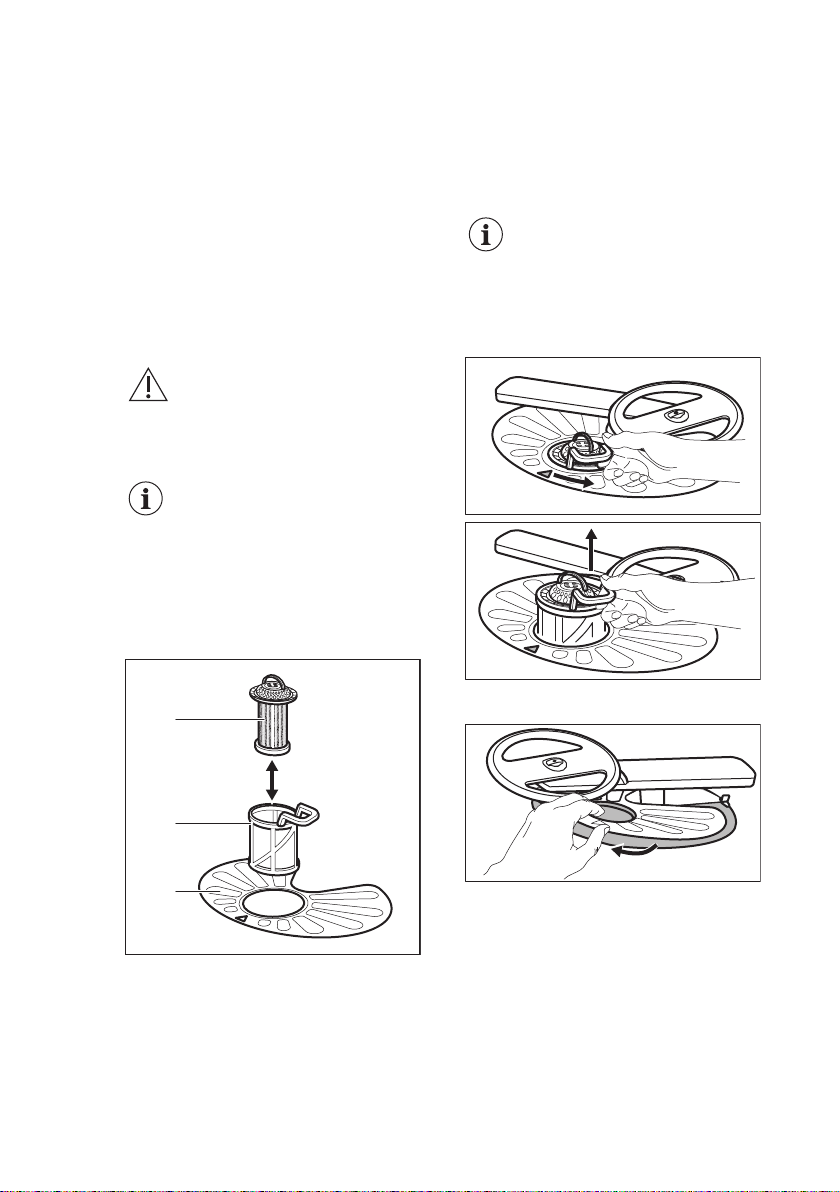

The filter system is made of 3 parts.

2. Allow the tableware to cool for 30 ­40 minutes.

3. Hot items can be easily damaged,
allow them to cool down before
removing from appliance.

4. First remove items from the lower
basket then the upper basket.

At the end of the program
water can still remain on the
sides and on the door of the
appliance.

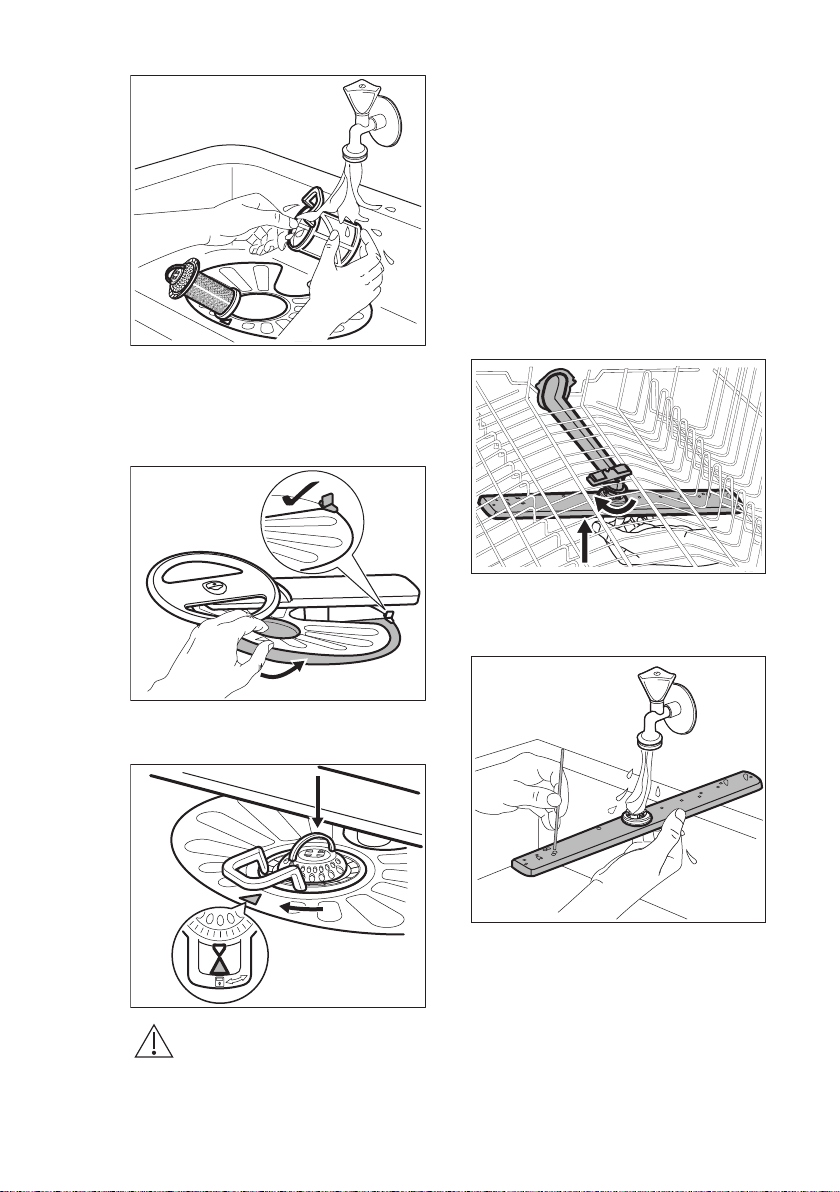

2. Remove the filter (C) out of filter (B).

3. Remove the flat filter (A).

4. Wash the filters.

1. Turn the filter (B) counterclockwise

and remove it.

5. Make sure that there are no residues
of food or soil in or around the edge
of the sump.

6. Put back in place the flat filter (A).
Make sure that it is correctly
positioned under the 2 guides.

ENGLISH 17

11.2 Cleaning the upper spray

arm

We recommend to clean regularly the
upper spray arm to avoid soil to clog the
holes.

Clogged holes can cause unsatisfactory
washing results.

1. Pull out the upper basket.

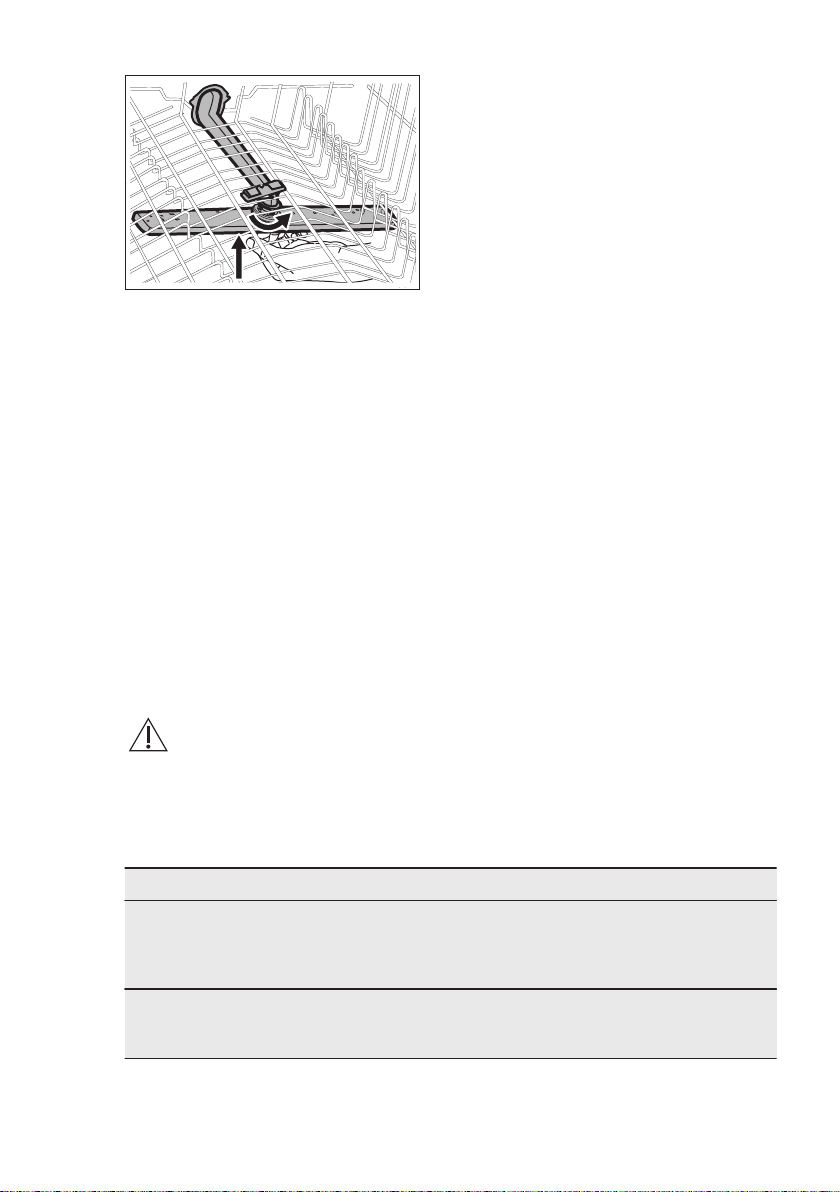

2. To disengage the spray arm from the

basket, press the spray arm upwards
in the direction indicated by the lower
arrow and simultaneously turn it
clockwise.

3. Wash the spray arm under running
water. Use a thin pointed tool, e.g.
toothpick, to remove particles of soil
from the holes.

7. Reassemble the filters (B) and (C).

8. Put back the filter (B) in the flat filter
(A). Turn it clockwise until it locks.

CAUTION!

An incorrect position of the
filters can cause bad
washing results and damage
to the appliance.

4. To engage again the spray arm to
the basket, press the spray arm
upwards in the direction indicated by
the lower arrow and simultaneously
turn it counterclockwise until it locks
into place.

www.electrolux.com18

11.3 External cleaning

• Clean the appliance with a moist soft
cloth.

• Only use neutral detergents.

• Do not use abrasive products,
abrasive cleaning pads or solvents.

11.4 Internal cleaning

• Carefully clean the appliance,
including the rubber gasket of the
door, with a soft damp cloth.

12. TROUBLESHOOTING

• Do not use abrasive products,
abrasive cleaning pads, sharp tools,
strong chemicals, scourer or solvents.

• If you use short duration programmes
regularly, these can leave deposits of
grease and limescale inside the
appliance. To prevent this, we
recommend running long duration
programmes at least twice a month.

• To maintain the performance of your
appliance at its best, we recommend
using a specific cleaning product for
dishwashers (at least once a month).
Follow carefully the instructions on the
packaging of the product.

If the appliance does not start or it stops
during operation. Before you contact an
Authorised Service Centre, check if you
can solve the problem by yourself with
the help of the information in the table.

WARNING!

Repairs not properly done
may result in serious risk to
the safety of the user. Any
repairs must be performed
by qualified personnel.

Problem and alarm code Possible solution

You cannot activate the
appliance.

The programme does not
start.

• Make sure that the mains plug is connected to the
mains socket.

• Make sure that there is no damaged fuse in the fuse
box.

• Make sure that the appliance door is closed.

• If the delay start is set, cancel the setting or wait for
the end of the countdown.

With some problems, the display
shows an alarm code.

The majority of problems that can
occur can be solved without the need
to contact an Authorised Service
Centre.

Problem and alarm code Possible solution

The appliance does not fill
with water.

The display shows or

.

• Make sure that the water tap is open.

• Make sure that the pressure of the water supply is
not too low. For this information, contact your local
water authority.

• Make sure that the water tap is not clogged.

• Make sure that the filter in the inlet hose is not clog‐
ged.

• Make sure that the inlet hose has no kinks or bends.

The appliance does not
drain the water.

• Make sure that the sink spigot is not clogged.

• Make sure that the drain hose has no kinks or bends.

The display shows .

The anti-flood device is on.

The display shows .

The appliance stops and
starts more times during

• Close the water tap and contact an Authorised Serv‐
ice Centre.

• It is normal. It provides optimal cleaning results and
energy savings.

operation.

The program lasts too
long.

• Select the TimeSaver option to shorten the program
time (if applicable).

• If the delayed start option is set, cancel the delay set‐
ting or wait for the end of the countdown.

The remaining time in the
display increases and

• This is not a defect. The appliance is working cor‐
rectly.

skips nearly to the end of
program time.

The options of the program
have to be set again every

• To save your favourite configuration use option My‐
Favourite.

time.

Small leak from the appli‐
ance door.

• The appliance is not levelled. Loosen or tighten the
adjustable feet (if applicable).

• The appliance door is not centred on the tub. Adjust
the rear foot (if applicable).

The appliance door is diffi‐
cult to close.

• The appliance is not levelled. Loosen or tighten the
adjustable feet (if applicable).

• Parts of the tableware are protruding from the bas‐
kets.

Rattling/knocking sounds
from inside the appliance.

• The tableware is not properly arranged in the bas‐
kets. Refer to basket loading leaflet.

• Make sure that the spray arms can rotate freely.

The appliance trips the cir‐
cuit-beaker.

• The amperage is insufficient to supply simultaneous‐
ly all the appliances in use. Check the socket amper‐
age and the capacity of the meter or turn off one of
the appliances in use.

• Internal electrical fault of the appliance. Contact an
Authorised Service Centre.

ENGLISH 19

www.electrolux.com20

Refer to "Before first use",
"Daily use", or "Hints and
tips" for other possible

causes.

Once you have checked the appliance,
deactivate and activate the appliance. If

the problem occurs again, contact an
Authorised Service Centre.

For alarm codes not described in the
table, contact an Authorised Service
Centre.

12.1 The washing and drying results are not satisfactory

Problem Possible cause and solution

Poor washing results. • Refer to "Daily use", "Hints and tips" and basket

Poor drying results. • Tableware has been left for too long inside a

There are whitish streaks or
bluish layers on glasses and
dishes.

There are stains and dry wa‐
ter drops on glasses and
dishes.

The dishes are wet. • For the best drying performance activate the option

The interior of the appliance
is wet.

Unusual foam during wash‐
ing.

loading leaflet.

• Use more intensive washing programmes.

• Clean spray arm jets and filter. Refer to "Care and
Cleaning".

closed appliance.

• There is no rinse aid or the dosage of rinse aid is
not enough. Set the rinse aid dispenser to a higher
level.

• Plastic items may need to be towel dried.

• For the best drying performance activate the option
XtraDry and set AirDry.

• We recommend to always use rinse aid, even in
combination with multi-tablets.

• The release quantity of rinse aid is too much. Ad‐
just the rinse aid level to a lower level.

• The quantity of detergent is too much.

• The released quantity of rinse aid is not sufficient.
Adjust the rinse aid level to a higher level.

• The quality of the rinse aid can be the cause.

XtraDry and set AirDry .

• The programme does not have a drying phase or
has a drying phase with low temperature.

• The rinse aid dispenser is empty.

• The quality of the rinse aid can be the cause.

• The quality of the multi-tablets can be the cause.
Try a different brand or activate the rinse aid dis‐
penser and use rinse aid and multi-tablets together.

• This is not a defect of the appliance. it is caused by
the humidity in the air that condenses on the walls.

• Use the detergent for dishwashers only.

• There is a leak in the rinse aid dispenser. Contact
an Authorised Service Centre.

ENGLISH 21

Problem Possible cause and solution

Traces of rust on cutlery. • Silver and stainless steel cutlery were placed to‐

There are residues of deter‐
gent in the dispenser at the
end of the programme.

Odours inside the appliance. • Refer to "Internal cleaning".

Limescale deposits on the
tub and on the inside of the
door.

Dull, discoloured or chipped
tableware.

Refer to "Before first use",

"Daily use" or "Hints and
tips" for other possible

causes.

gether. Avoid to put silver and stainless steel items
close together.

• The detergent tablet got stuck in the dispenser and
therefore was not completely washed away by wa‐
ter.

• Water cannot wash away the detergent from the
dispenser. Make sure that the spray arm is not
blocked or clogged.

• Make sure that items in the baskets do not impede
the lid of the detergent dispenser from opening.

• Clean the appliance with appliance cleaners which
are particularly suitable for this purpose.

• Try different detergent.

• Contact the detergent manufacturer.

• Make sure that only dishwasher-safe items are
washed in the appliance.

• Load and unload the basket carefully. Refer to bas‐
ket loading leaflet.

• Place delicate items in the upper basket.

13. TECHNICAL INFORMATION

Dimensions Width / height / depth (mm) 596/ 818 - 878 / 570

Electrical connection

Water supply pressure bar (minimum and maximum) 0.5 - 8

Water supply

Capacity Place settings 14

1)

Refer to the rating plate for other values.

2)

If the hot water comes from alternative source of energy, (e.g. solar panels, aeolian ener‐

gy), use the hot water supply to decrease energy consumption.

1)

Voltage (V) 200 - 240

Frequency (Hz) 50 / 60

Wattage (W) 1550-2200

kPa (minimum and maximum) 50 - 800

Cold water or hot water

2)

max 60 °C

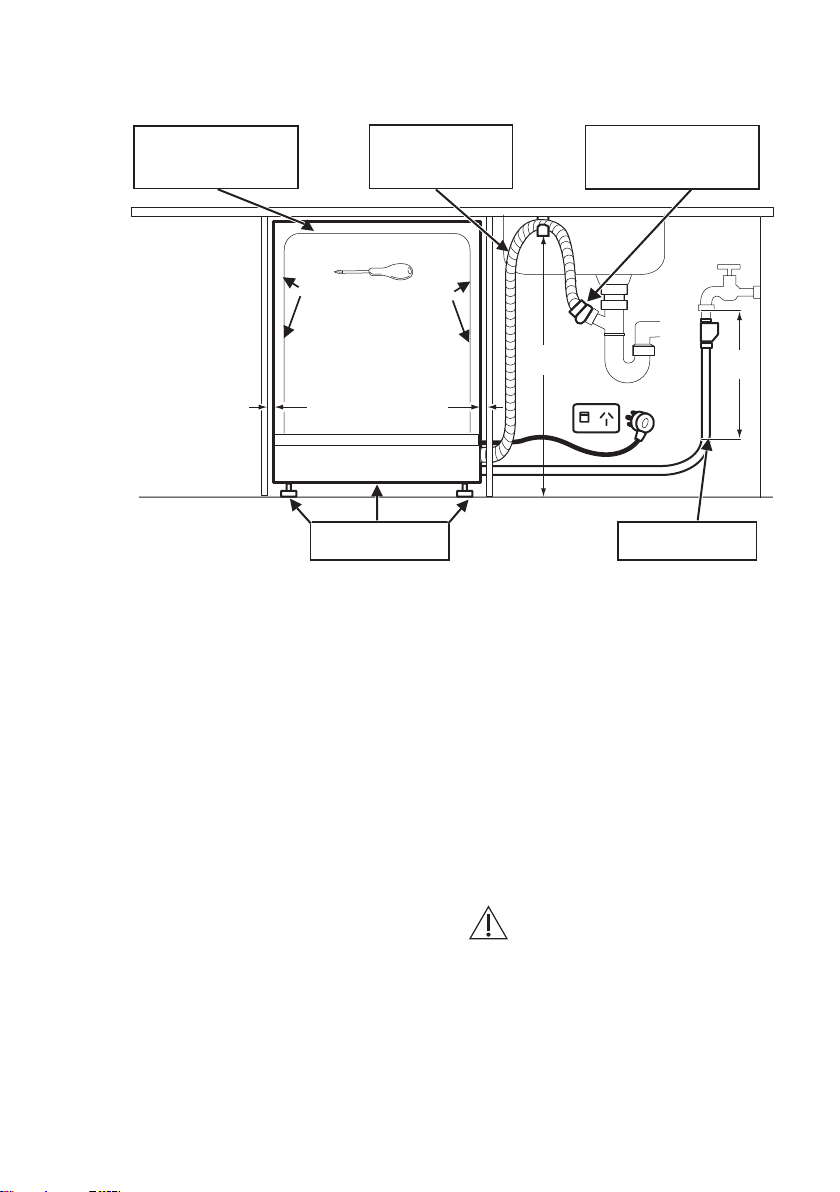

If floor is not level, adjust
levelling legs to suit

The hose should not be
extended by more than
2 metres or water pump­out

problems may occur

Removeentire plastic
membranefrom sink trap
spigot & fit drainhose to spigot
with clamp

Thereshould be a minimum
2mm gap between the top of
the dishwasher and
underside of bench top

Gap on both sides should be

equal, & no greater than

5 mm per side.

Secure dishwasher with
brackets or screws provided

Min. 400 mm straight
section

600mm max
300mm min

400mm
min

DISHWASHER

SINK

POWER OUTLET

www.electrolux.com22

14. INSTALLATION

Install the appliance under a kitchen
counter.

Put the appliance adjacent to a water tap
and a water drain.

For the venting of the appliance only
water hoses and mains cable openings
are necessary.

14.1 Adjusting the level of the appliance

A correct adjustment of the level of the
appliance allows the door to close and
seal correctly.

If the door does not close correctly,
loosen or tighten the adjustable feet to
level the appliance.

14.2 Water inlet hose

Connect the inlet hose to a water tap
with an external BSP thread spout of
3/4''.

For best washing performance it is
recommended to connect the appliance
to a cold water supply.

Energy savings can be made by
connecting the appliance to a Solar
water system and using economy
options, however the water temperature
must not exceed 60° C.

Inlet water supply

• Water pressure: 800 kPa max - 50
kPa min.

• Water flow rate 10 L / minute min.

• If water pressure is in excess of 800
kPa, a pressure reducing valve should
be used. Check for leaks.

• If water temperature is in excess of
60° C, a tempering valve should be
used. Check for leaks.

CAUTION!

Always use new hoses when
you connect the appliance to
the water mains. Old hoses
must not be used. The water
inlet hose must be examined
at an interval of twelve
months for deterioration and
replaced if necessary.

The water pressure must be in the limits

Remove
entire
internal
membrane

indicated in the chapter ''TECHNICAL
INFORMATION''. Make sure that the
local water authority gives you the
average mains pressure in your area.

In order to pass the safety valve through
the kitchen cabinets, an opening of at
least 45 mm x 90 mm is needed.

14.3 Water drain hose

The highest point of the drain hose must
be no more than 600 mm from the floor
and must have a continuous fall to the
plumbing connection.

The drain hose can be lengthened using
additional lengths and connectors. These
must be purchased from Electrolux

ENGLISH 23

Spare Parts. The extension length must
not exceed 2 metres.

The drain hose must be free of
obstructions.

Remove the sink plug when the
appliance drains the water to prevent
that the water goes back into the
appliance.

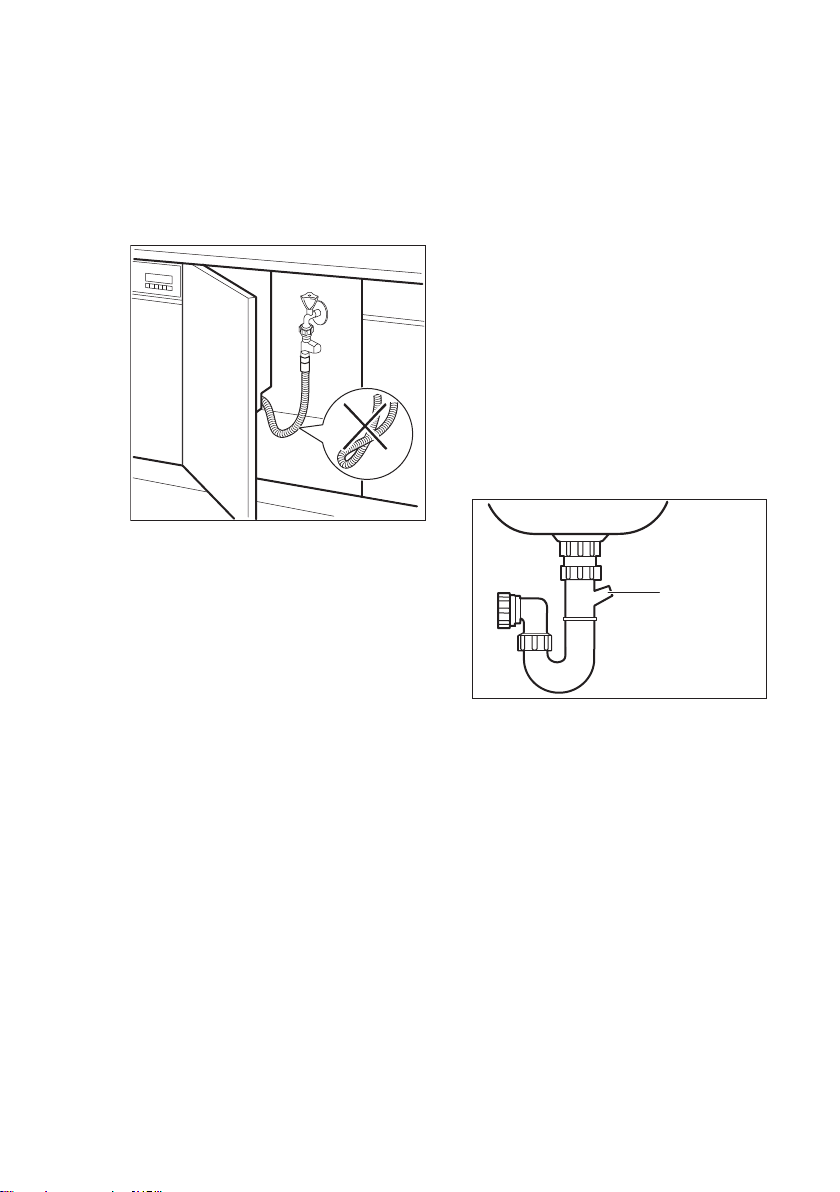

The appliance has a security feature to
prevent dirty water going back into the
appliance. If the spigot of the sink has a
non-return valve, this valve can cause
the appliance to drain incorrectly. remove
the non-return valve.

If you connect the water drain hose to a
trap spigot under the sink, remove the
plastic membrane. If you do not remove
the membrane, remaining food can
cause a blockage in the drain hose
spigot.

15. WARRANTY

FOR SALES IN AUSTRALIA AND NEW
ZEALAND

APPLIANCE: DISHWASHER

This document sets out the terms and
conditions of the product warranties
for Electrolux Appliances. It is an
important document. Please keep it
with your proof of purchase
documents in a safe place for future
reference should you require service
for your Appliance.

1. In this warranty:
a) ‘acceptable quality’ as referred to

in clause 10 of this warranty has
the same meaning referred to in
the ACL;

b) ‘ACL’ means Schedule 2 of the

Competition and Consumer Act
2010;

c) ‘Appliance’ means any Electrolux

product purchased by you and
accompanied by this document;

d) ‘ASC’ means Electrolux

authorised service centres;

e) ‘Electrolux’ means Electrolux

Home Products Pty Ltd of 163
O’Riordan Street, Mascot NSW
2020, ABN 51 004 762 341 in
respect of Appliances purchased
in Australia and Electrolux (NZ)
Limited (collectively ‘Electrolux’)
of 3-5 Niall Burgess Road, Mount
Wellington, in respect of

www.electrolux.com24

Appliances purchased in New
Zealand;

f) ‘major failure’ as referred to in

clause 10 of this warranty has
the same meaning referred to in
the ACL and includes a situation
when an Appliance cannot be
repaired or it is uneconomic for
Electrolux, at its discretion, to
repair an Appliance during the
Warranty Period;

g) ‘Warranty Period’ means the

Appliance is warranted against
manufacturing defects in
Australia for 24 months and in
New Zealand for 24 months,
following the date of original
purchase of the Appliance;

h) ‘you’ means the purchaser of the

Appliance not having purchased
the Appliance for re-sale, and
‘your’ has a corresponding
meaning.

2. This warranty only applies to
Appliances purchased and used in
Australia or New Zealand and used
in normal domestic applications and
is in addition to (and does not
exclude, restrict, or modify in any
way) any non-excludable statutory
warranties in Australia or New
Zealand.

3. During the Warranty Period
Electrolux or its ASC will, at no extra
charge if your Appliance is readily
accessible for service, without
special equipment and subject to
these terms and conditions, repair or
replace any parts which it considers
to be defective. Electrolux or its ASC
may use remanufactured parts to
repair your Appliance. You agree that
any replaced Appliances or parts
become the property of Electrolux.
This warranty does not apply to light
globes, batteries, filters or similar
perishable parts.

4. Parts and Appliances not supplied by
Electrolux are not covered by this
warranty.

5. To the extent permitted by law, you
will bear the cost of transportation,
travel and delivery of the Appliance
to and from Electrolux or its ASC. If

you reside outside of the service
area, you will bear the cost of:
a) travel of an authorised

representative;

b) transportation and delivery of the

Appliance to and from Electrolux

or its ASC.
In all instances, unless the Appliance
is transported by Electrolux or an
Electrolux authorised representative,
the Appliance is transported at the
owner’s cost and risk while in transit
to and from Electrolux or its ASC.

6. Proof of purchase is required before
you can make a claim under this
warranty.

7. You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or
workmanship. Electrolux is not liable
in the following situations (which are
not exhaustive):
a) the Appliance is damaged by:

– accident
– misuse or abuse, including

failure to properly maintain or

service
– normal wear and tear
– power surges, electrical storm

damage or incorrect power

supply
– incomplete or improper

installation
– incorrect, improper or

inappropriate operation
– insect or vermin infestation
– failure to comply with any

additional instructions

supplied with the Appliance;

b) the Appliance is modified without

authority from Electrolux in
writing;

c) the Appliance’s serial number or

warranty seal has been removed
or defaced;

d) the Appliance was serviced or

repaired by anyone other than
Electrolux, an authorised repairer
or ASC.

8. This warranty, the contract to which it
relates and the relationship between
you and Electrolux are governed by
the law applicable where the
Appliance was purchased. Where the
Appliance was purchased in New

Zealand for commercial purposes the
Consumer Guarantee Act does not
apply.

9. To the extent permitted by law and
subject to your non-excludable
statutory rights and warranties,
Electrolux excludes all warranties
and liabilities (other than as
contained in this document) including
liability for any loss or damage
whether direct or indirect arising from
your purchase, use or non use of the
Appliance.

10. For Appliances and services
provided by Electrolux in Australia,
the Appliances come with a
guarantee by Electrolux that cannot
be excluded under the ACL. You are
entitled to a replacement or refund
for a major failure and for
compensation for any other
reasonably foreseeable loss or
damage. You are also entitled to
have the Appliance repaired or
replaced if the Appliance fails to be of
acceptable quality and the failure
does not amount to a major failure.
The benefits to you given by this
warranty are in addition to your other
rights and remedies under a law in
relation to the Appliances or services
to which the warranty relates.

ENGLISH 25

11. At all times during the Warranty

Period, Electrolux shall, at its
discretion, determine whether repair,
replacement or refund will apply if an
Appliance has a valid warranty claim
applicable to it.

12. For Appliances and services
provided by Electrolux in New
Zealand, the Appliances come with a
guarantee by Electrolux pursuant to
the provisions of the Consumer
Guarantees Act, the Sale of Goods
Act and the Fair Trading Act.

13. To enquire about claiming under this
warranty, please follow these steps:
a) carefully check the operating

instructions, user manual and the
terms of this warranty;

b) have the model and serial

number of the Appliance
available;

c) have the proof of purchase (e.g.

an invoice) available;

d) telephone the numbers shown

below.

14. You accept that if you make a
warranty claim, Electrolux and its
ASC may exchange information in
relation to you to enable Electrolux to
meet its obligations under this
warranty.

Important Notice

Before calling for service, please ensure that the steps listed in clause 13 above
have been followed.

FOR SERVICE

or to find the address of
your nearest state service
centre in Australia

Please call 13 13 4 9

For the cost of a local call (Australia

only)

FOR SERVICE

or to find the address of
your nearest authorised
service centre in New Zea‐
land

Free call 0800 10 66 10

(New Zealand only)

SERVICE AUSTRALIA

ELECTROLUX HOME
PRODUCTS

www.electrolux.com.au

SERVICE NEW ZEALAND

ELECTROLUX (NZ) Limi‐
ted

www.electrolux.co.nz

FOR SPARE PARTS

or to find the address of
your nearest state spare
parts centre in Australia

Please call 13 13 50

For the cost of a local call (Australia

only)

FOR SPARE PARTS

or to find the address of
your nearest state spare
parts centre in New Zea‐
land

Free call 0800 10 66 20

(New Zealand only)

www.electrolux.com26

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of

appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.

*

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: ELECTROLUX DISHWASHERS

This document sets out the terms and conditions of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should there be a manufacturing defect in your
Appliance. This warranty is in addition to other rights you may have
under the Australian Consumer Law.

1. In this warranty:

(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the

Competition and Consumer Act 2010;

(b) ‘Appliance’ means any Electrolux product purchased by you and

accompanied by this document;

(c) ‘ASC’ means Electrolux’s authorised serviced centres;

(d) ‘Electrolux’ is the brand controlled by Electrolux Home Products Pty

Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762
341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;

 (e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis

warranty;

(f) ‘you’ means the purchaser of the Appliance not having purchased

the Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. Application: This warranty only applies to new Appliances, purchased

and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non­excludable statutory guarantees in Australia and New Zealand.

3. Warranty Period: Subject to these terms and conditions, this warranty

continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
Appliance.

4. Repair or replace warranty: During the Warranty Period, Electrolux

or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy

oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits

ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.

5. Travel and transportation costs: Subject to clause 7, Electrolux will

bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.

6. Proof of purchase is required before you can make a claim under this

warranty.

7. Exclusions: You may not make a claim under this warranty unless the

defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:

 (a) lightglobes,batteries,ltersorsimilarperishableparts;

(b) parts and Appliances not supplied by Electrolux;

 (c) cosmeticdamagewhichdoesnotaecttheoperationofthe

Appliance;

(d) damage to the Appliance caused by:

(i) negligence or accident;

(ii) misuse or abuse, including failure to properly maintain or service;

(iii) improper, negligent or faulty servicing or repair works done by

anyone other than an Electrolux authorised repairer or ASC;

(iv) normal wear and tear;

(v) power surges, electrical storm damage or incorrect power supply;

(vi) incomplete or improper installation;

(vii) incorrect, improper or inappropriate operation;

(viii) insect or vermin infestation;

(ix) failure to comply with any additional instructions supplied with

the Appliance;

In addition, Electrolux is not liable under this warranty if:

(a) the Appliance has been, or Electrolux reasonably believes that the

Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;

 (b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;

(c) the Appliance’s serial number or warranty seal has been removed

or defaced

8. How to claim under this warranty: To enquire about claiming under

this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms

of this warranty;

(b) have the model and serial number of the Appliance available;

(c) have the proof of purchase (e.g. an invoice) available;

(d) telephone the numbers shown below.

9. Australia: For Appliances and services provided by Electrolux in

Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.

10. New Zealand: For Appliances and services provided by Electrolux

in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.

11.Condentiality: You accept that if you make a warranty claim, Electrolux

and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.

Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

FOR SERVICE

ortondtheaddressofyournearest

authorised service centre in Australia

PLEASE CALL 13 13 49

For the cost of a local call (Australia only)

FOR SERVICE

ortondtheaddressofyournearest

authorised service centre in New Zealand

PLEASE CALL 0800 10 66 10

(New Zealand only)

EDish_Warr_Jul17

Important Notice

AUSTRALIA

ELECTROLUX HOME PRODUCTS

163 O’Riordan Street, Mascot NSW 2020

electrolux.com.au

NEW ZEALAND

ELECTROLUX (NZ) Limited

3-5 Niall Burgess Road, Mount Wellington

electrolux.co.nz

FOR SPARE PARTS

ortondtheaddressofyournearest

spare parts centre in Australia

PLEASE 13 13 50

For the cost of a local call (Australia only)

FOR SPARE PARTS

ortondtheaddressofyournearest

spare parts centre in New Zealand

PLEASE 0800 10 66 20

(New Zealand only)

Electrolux Home Products Australia

telephone: [phone]
fax: [phone]
email: [email protected]
web: electrolux.com.au

Electrolux Home Products New Zealand

telephone: [phone]
fax: [phone]
email: [email protected]
web: electrolux.co.nz

To add a touch of
professional inspiration
to your home, visit
electrolux.com.au
or electrolux.co.nz

shop.electrolux.com.au

1178 8002 0-A-2 8 2017

© 2017 Electrolux Home Products Pty Ltd.

EMAN_ESF8735ROX_Aug17
