EN DISHWASHER USER MANUAL 2
RU ПОСУДОМОЕЧНАЯ

МАШИНА

ИНСТРУКЦИЯ ПО
ЭКСПЛУАТАЦИИ

16

www.electrolux.com

2

CONTENTS

1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4. PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7. HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8.

CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

10.

TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

ENGLISH 3

1.

SAFETY INSTRUCTIONS

Before the installation and use of the ap­pliance, carefully read the supplied in­structions. The manufacturer is not re­sponsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.

1.1 Children and vulnerable
people safety

WARNING!

Risk of suffocation, injury or per­manent disability.

• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a per­son who is responsible for their safety.

• Do not let children play with the appli­ance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the
appliance door when it is open.

1.2 Installation

• Remove all the packaging.

• Do not install or use a damaged appli­ance.

• Do not install or use the appliance
where the temperature is less than 0
°C.

• Obey the installation instruction sup­plied with the appliance.

• Do not use multi-plug adapters and ex­tension cables.

• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the appliance power supply ca­ble need to be replaced, this must be
carried out by our Service Centre.

• Connect the mains plug to the mains
socket only at the end of the installa­tion. Make sure that there is access to
the mains plug after the installation.

• Do not pull the mains cable to discon­nect the appliance. Always pull the
mains plug.

• Do not touch the mains cable or the
mains plug with wet hands.

• This appliance complies with the E.E.C.
Directives.

Water connection

• Make sure not to cause damage to the
water hoses.

• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.

• The first time you use the appliance,
make sure that there is no leakage.

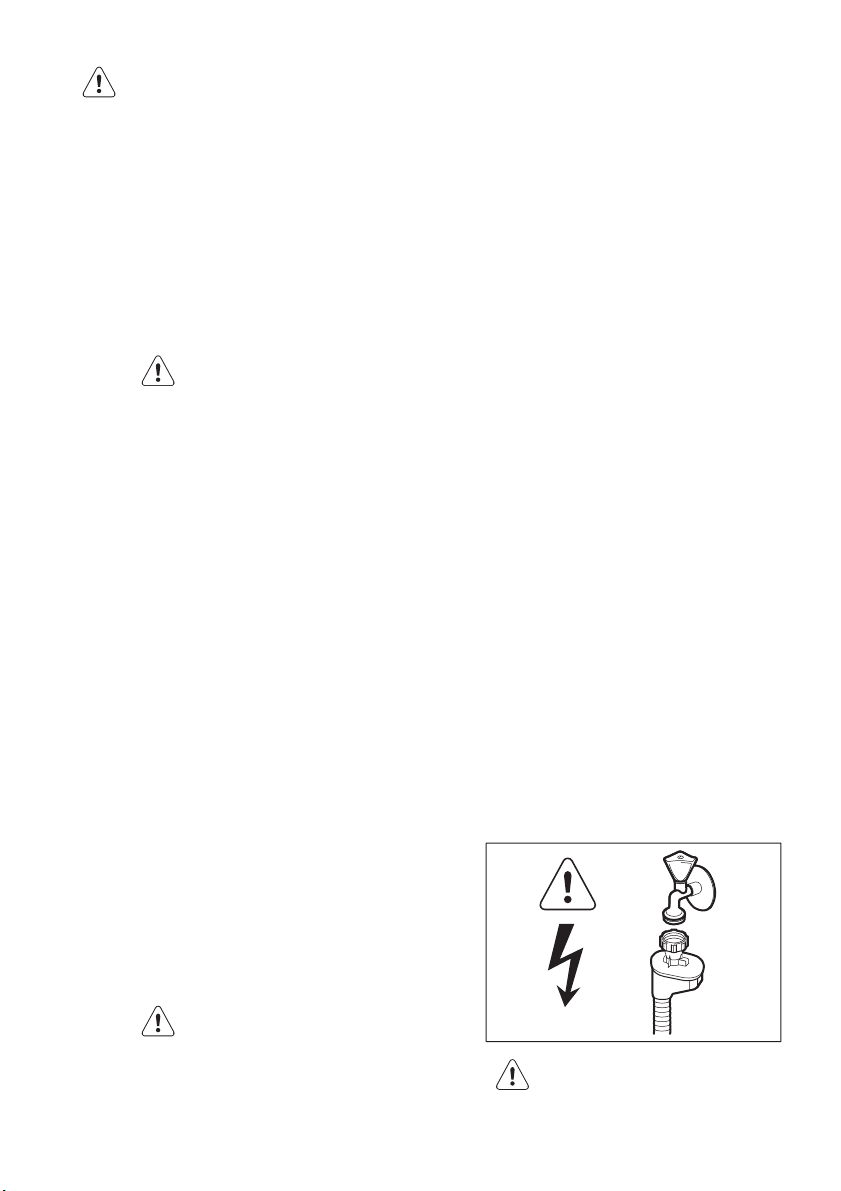

• The water inlet hose has a safety valve
and a sheath with an inner mains cable.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information
on the rating plate agrees with the pow­er supply. If not, contact an electrician.

• Always use a correctly installed shock­proof socket.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged, im­mediately disconnect the mains plug
from the mains socket. Contact the
Service to replace the water inlet hose.

www.electrolux.com

4

1.3 Use

• This appliance is intended to be used in

• Do not change the specification of this

• Put knives and cutlery with sharp points

• Do not keep the appliance door open

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous.

household and similar applications such
as:

– Staff kitchen areas in shops, offices

and other working environments
– Farm houses
– By clients in hotels, motels and other

residential type environments
– Bed and breakfast type environ-

ments.

WARNING!

Risk of injury, burns, electrical
shock or fire.

appliance.

in the cutlery basket with the points
down or in a horizontal position.

without supervision to prevent to fall on
it.

Obey the safety instructions on the de­tergent packaging.

• Do not drink and play with the water in
the appliance.

• Do not remove the dishes from the ap­pliance until the programme is comple­ted. There can be detergent on the
dishes.

• The appliance can release hot steam if
you open the door while a programme
operates.

• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.

• Do not use water spray and steam to
clean the appliance.

1.4 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the
mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent chil­dren and pets to get closed in the ap­pliance.

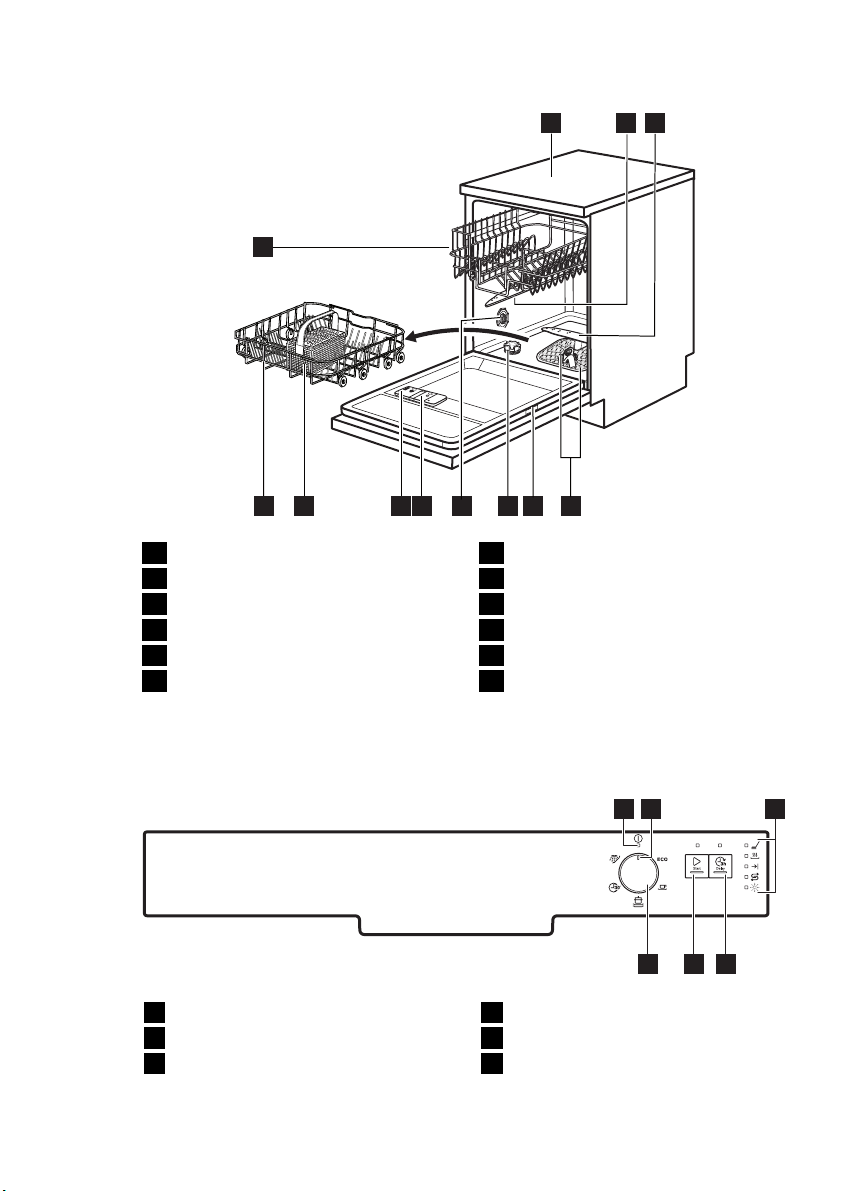

2. PRODUCT DESCRIPTION

12

10

11

ENGLISH 5

3

1

8

9

7

5

6

2

4

Worktop

1

Upper spray arm

2

Lower spray arm

3

Filters

4

Rating plate

5

Salt container

6

3. CONTROL PANEL

On/off indicator

1

Programme marker

2

Indicators

3

Water hardness dial

7

Rinse aid dispenser

8

Detergent dispenser

9

Cutlery basket

10

Lower basket

11

Upper basket

12

Delay button

4

Start button

5

Programme knob

6

1 2 3

6 5 4

www.electrolux.com

6

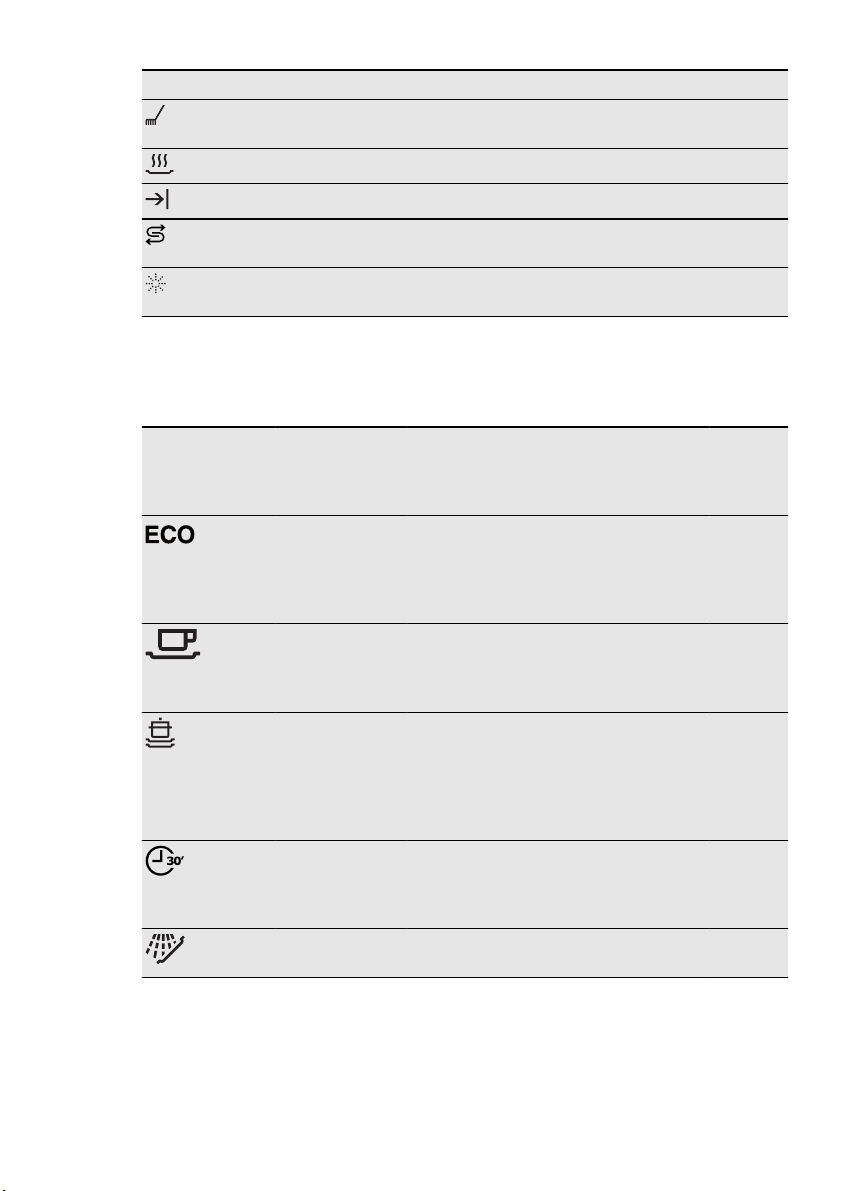

Indicators Description

Washing phase indicator. It comes on when the washing phase
and the rinsing phases operate.

Drying phase indicator. It comes on when the drying phase oper­ates.

End indicator.

Salt indicator. It is always off while the programme operates.

Rinse aid indicator. It is always off while the programme operates.

4. PROGRAMMES

Programme

1)

The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the programme duration and the
consumption values.

2)

With this programme you have the most efficient use of water and energy consumption for
crockery and cutlery with normal soil. (This is the standard programme for test institutes).

3)

With this programme you can wash a load with fresh soil. It gives good washing results in a
short time.

4)

Use this programme to quickly rinse the dishes. This prevents the remaining food to bond
on the dishes and bad odours to come out from the appliance.
Do not use detergent with this programme.

Information for test institutes

For all the necessary information for test performance. send an email to:

[e-mail]

Write down the product number (PNC) that is on the rating plate.

1)

2)

3)

4)

Degree of
soil

Programme
phases

Duration
(min)

Energy
(kWh)

Type of load

Normal soil
Crockery and
cutlery

Prewash
Wash 50 °C
Rinses

130 - 140 1.0 -

1.2

Dry

Normal soil
Crockery and
cutlery

Heavy soil
Crockery, cut­lery, pots and
pans

Fresh soil
Crockery and

Wash 65 °C
Rinses
Dry

Prewash
Wash 70 °C
Rinses
Dry

Wash 65 °C
Rinse

110 - 120 1.5 -

1.6

120 - 130 1.8 -

2.0

30 0.9 9

cutlery

All Prewash 12 0.1 5

Water
(l)

14 - 16

15 - 16

22 - 24

5. BEFORE FIRST USE

ENGLISH 7

1.

Make sure that the set level of the wa­ter softener agrees with the water
hardness in your area. If not, adjust
the water softener. Contact your local
water authority to know the water
hardness in your area.

2. Fill the salt container.

3.

Fill the rinse aid dispenser.

4.

Open the water tap.

5.

Processing residues can stay in the
appliance. Start a programme to re­move them. Do not use detergent and
do not load the baskets.

5.1 Adjusting the water softener

Water hardness

German
degrees

(°dH)

French

degrees

(°fH)

mmol/l Clarke

degrees

51 - 70 91 - 125 9.1 - 12.5 64 - 88

43 - 50 76 - 90 7.6 - 9.0 53 - 63

37 - 42 65 - 75 6.5 - 7.5 46 - 52

29 - 36 51 - 64 5.1 - 6.4 36 - 45

23 - 28 40 - 50 4.0 - 5.0 28 - 35

19 - 22 33 - 39 3.3 - 3.9 23 - 27

15 - 18 26 - 32 2.6 - 3.2 18 - 22 1 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 1 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 1 2

< 4 < 7 < 0.7 < 5

1)

Factory position.

2)

Do not use salt at this level.

You must adjust the water soften­er manually and electronically.

Water softener

adjustment

Manual Elec-

1)

2

1)

2

1)

2

1)

2

1)

2

1)

2

2)

1

tronic

10

9

8

7

6

1)

5

2)

1

Manual adjustment

Turn the water hardness dial to the posi­tion 1 or 2.

www.electrolux.com

8

Electronic adjustment

1. Make sure that the programme marker

2.

3. Release Start when the Start and the

5.2 Filling the salt container

on the knob is aligned with the on/off
indicator.

Press and hold Start. At the same
time turn the knob clockwise until the
programme marker is aligned with the
first programme on the control panel.

on/off indicator start to flash. The end
indicator starts to flash. The intermit­tent flashing of the end indicator refers
to the current set level.

• E.g. 5 flashes + pause + 5 flashes =
level 5.

4. Press Start again and again to

change the setting. Each time you
press Start the level number increa­ses.

5.

To confirm the setting and deactivate
the appliance, turn the knob until the
programme marker is aligned with the
on/off indicator.

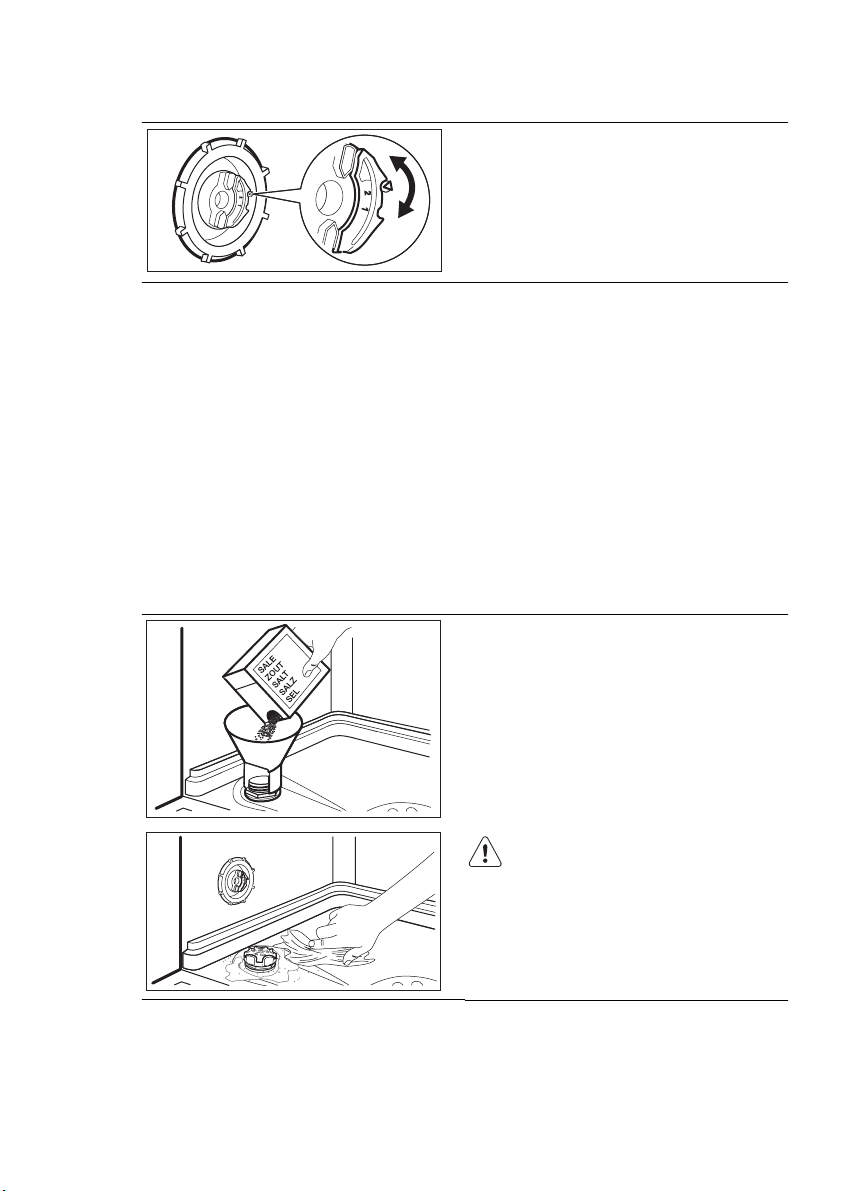

1.

Turn the cap counterclockwise and
open the salt container.

2.

Put 1 litre of water in the salt contain­er (only for the first time).

3.

Fill the salt container with dishwasher
salt.

4.

Remove the salt around the opening
of the salt container.

5.

Turn the cap clockwise to close the
salt container.

CAUTION!

Water and salt can come out from
the salt container when you fill it.
Risk of corrosion. To prevent it,
after you fill the salt container,
start a programme.

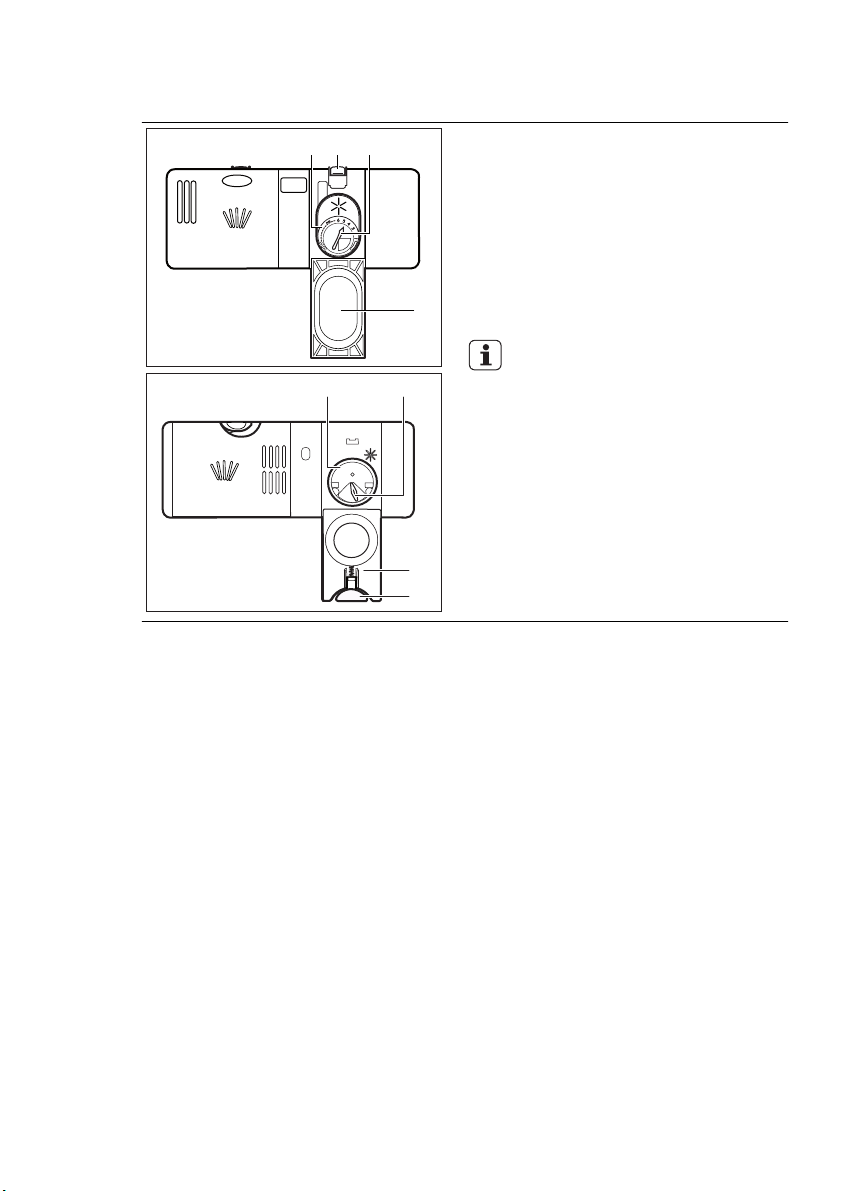

5.3 Filling the rinse aid dispenser

A

B

D

C

A

B

A

X

M

2

1

3

4

+

-

C

D

ENGLISH 9

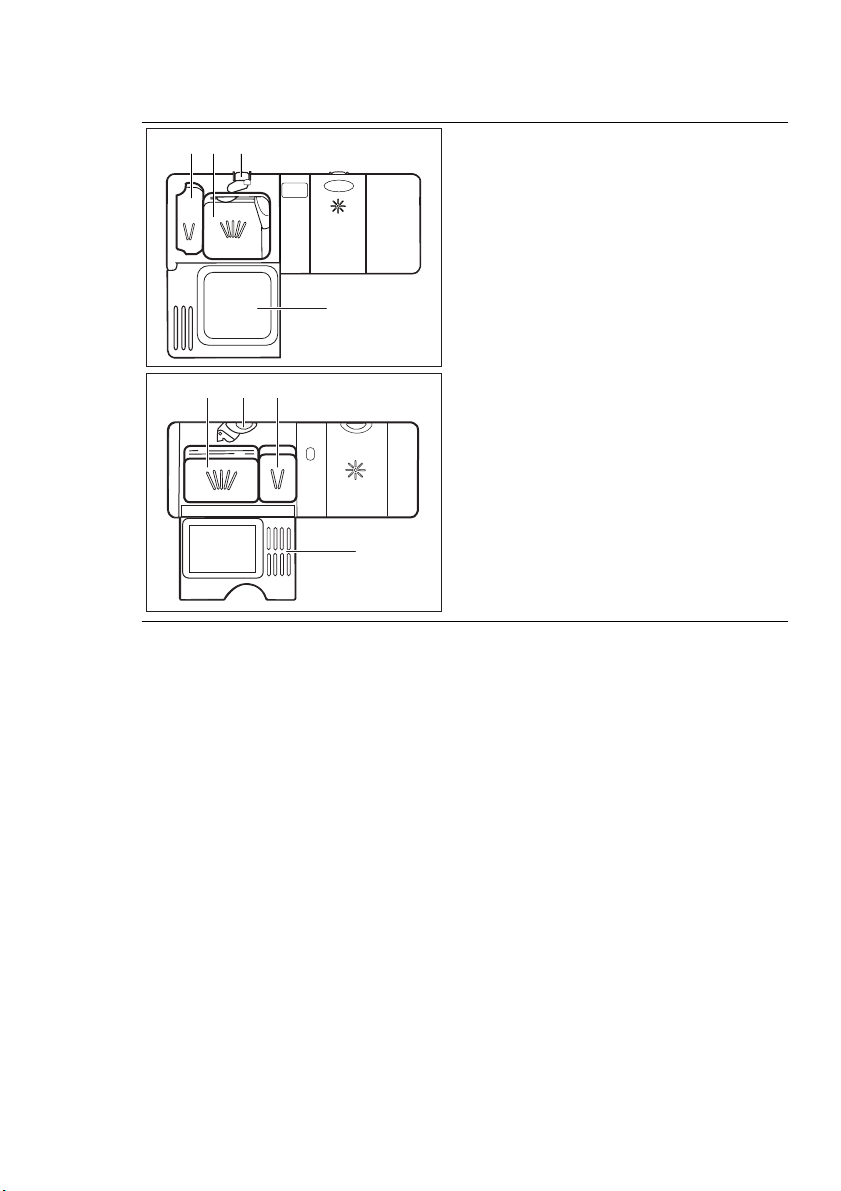

1.

Press the release button (D) to open
the lid (C).

2.

Fill the rinse aid dispenser (A), no
more than the mark 'max'.

3.

Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.

4.

Close the lid. Make sure that the re­lease button locks into position.

You can turn the selector of the
released quantity (B) between po­sition 1 (lowest quantity) and posi­tion 4 or 6 (highest quantity).

6. DAILY USE

1.

Open the water tap.

2.

Turn the knob until the programme
marker is aligned with the programme
you want to set. Set the correct pro­gramme for the type of load and the
degree of soil.

• If the salt indicator is on, fill the salt
container.

• If the rinse aid indicator is on, fill the
rinse aid dispenser.

3.

Load the baskets.

4.

Add the detergent.

5. Start the programme.

30

20

M

A

X

1

2

3

4

+

-

2

0

0

3

www.electrolux.com

10

6.1 Using the detergent

B

A

D

B

A D

1.

Press the release button (B) to open
the lid (C).

2.

Put the detergent in the compartment
(A) .

3.

If the programme has a prewash
phase, put a small quantity of deter­gent in the compartment (D).

4.

If you use detergent tablets, put the

C

tablet in the compartment (A).

5.

Close the lid. Make sure that the re­lease button locks into position.

C

6.2 Using the combi detergent
tablets

When you use tablets, that contain salt
and rinse aid, do not fill the salt container
and the rinse aid dispenser. The rinse aid
indicator always comes on if the rinse aid
dispenser is empty.

1. Adjust the water softener to the lowest

level.

2.

Set the rinse aid dispenser to the low-

4. Start the shortest programme with a

rinsing phase, without detergent and
without dishes.

5. Adjust the water softener to the water

hardness in your area.

6.

Adjust the released quantity of rinse
aid.

6.3 Setting and starting a
programme

est position.

Starting a programme without
If you stop to use the combi
detergent tablets, before you
start to use separately
detergent, rinse aid and
dishwasher salt, do these steps:

1.

Press the on/off button to activate the

2.

appliance.
Set the water softener to the highest

level.

3.

Make sure that the salt container and
the rinse aid dispenser are full.

delay start

1. Open the water tap.

2.

Close the appliance door.

3. Turn the knob until the programme

marker is aligned with the symbol of
the programme you want to set.

• The on/off indicator comes on.

4.

Press Start to start the programme.

• The Start indicator comes on.

• The washing phase indicator comes
on.
