Electrolux ERR627SA User Manual

ERR627SA
ERR927SA

Rangehood
User and Installation Manual

2

WELCOME TO ELECTROLUX

Thank you for purchasing an Electrolux appliance.
You’ve chosen a product that brings with it decades
of professional experience and innovation. Ingenious
and stylish, it has been designed with you in mind. So
whenever you use it, you can be safe in the knowledge
that you’ll get great results every time.

Welcome to Electrolux.

LEGEND

The symbols you will see in this booklet have
these meanings:

WARNING!

This symbol indicates information concerning
your personal safety

CAUTION!
This symbol indicates information on how to avoid
damaging the rangehood

CONTENTS

3 Important safety instructions
4 Installation
6 Operation and maintenance
7 Warranty

IMPORTANT!
This symbol indicates tips and information about
use of the rangehood

ENVIRONMENT!

This symbol indicates tips and information about
economical and ecological use of the rangehood

CONDITIONS OF USE

This appliance is intended to be used in household and
similar applications such as:

• Staff kitchen areas in shops, offices and other

working environments

• Farm houses

• By clients in hotels, motels and other residential

type environments

• Bed and breakfast type environments.

• Catering and similar non-retail applications

RECORD MODEL AND SERIAL
NUMBER HERE:

Model:

Serial No:

SAFETY INSTRUCTIONS

Please read the user manual carefully and store in a
handy place for later reference. Pass the user manual on
to possible new owners of the appliance.

Read the following carefully to avoid damage or injury.

Note: You must read these warnings carefully
before installing or using the accessory. If you need
assistance, contact your Customer Care Department.
The manufacturer will not accept liability, should these
instructions or any other safety instructions incorporated
in this book be ignored.

ENVIRONMENT!

Remove and discard any packaging material before
using this accessory. Most of the packaging materials are
recyclable. Please dispose of those materials through your
local recycling depot or by placing them in the appropriate
collection containers.

3

CAUTION

• Accessible parts may become hot when used with
cooking appliance.

• Regulations concerning the discharge of air have to
be fulfilled.

• Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.

Cleaning

• Wipe the rangehood body and flue with a sponge or
soft cloth soaked in warm soapy water, and dry with a
soft cloth, for stainless steel models apply a stainless
steel protector. Do not use oven cleaners or other
abrasive materials.

• There is a fire risk if cleaning is not carried out in
accordance with the instructions.

WARNING!

• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning the use of the appliance
in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.

• Ensure the rangehood is switched off before carrying
out maintenance, to avoid any possibility of electric
shock.

• Grease filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of fire.

• Do not light a flame under the rangehood.

• This rangehood is not recommended for barbecues.

• The exhaust air from the rangehood must not be
discharged into any heating flue, which may carry
combustion products from other sources.

• Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for the purpose.

• There must be adequate ventilation of the room
when the rangehood is used at the same time as
appliances burning gas or other fuels.

• Always cover lit gas burners with pots or pans when
the rangehood is in use.

• Always switch off gas burners before you remove pots
or pans.

Electrical Connection

• Check that the mains voltage matches with the
voltage on the data plate inside the rangehood.

• Check that the installation complies with standards of
local gas and electricity authorities.

• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.

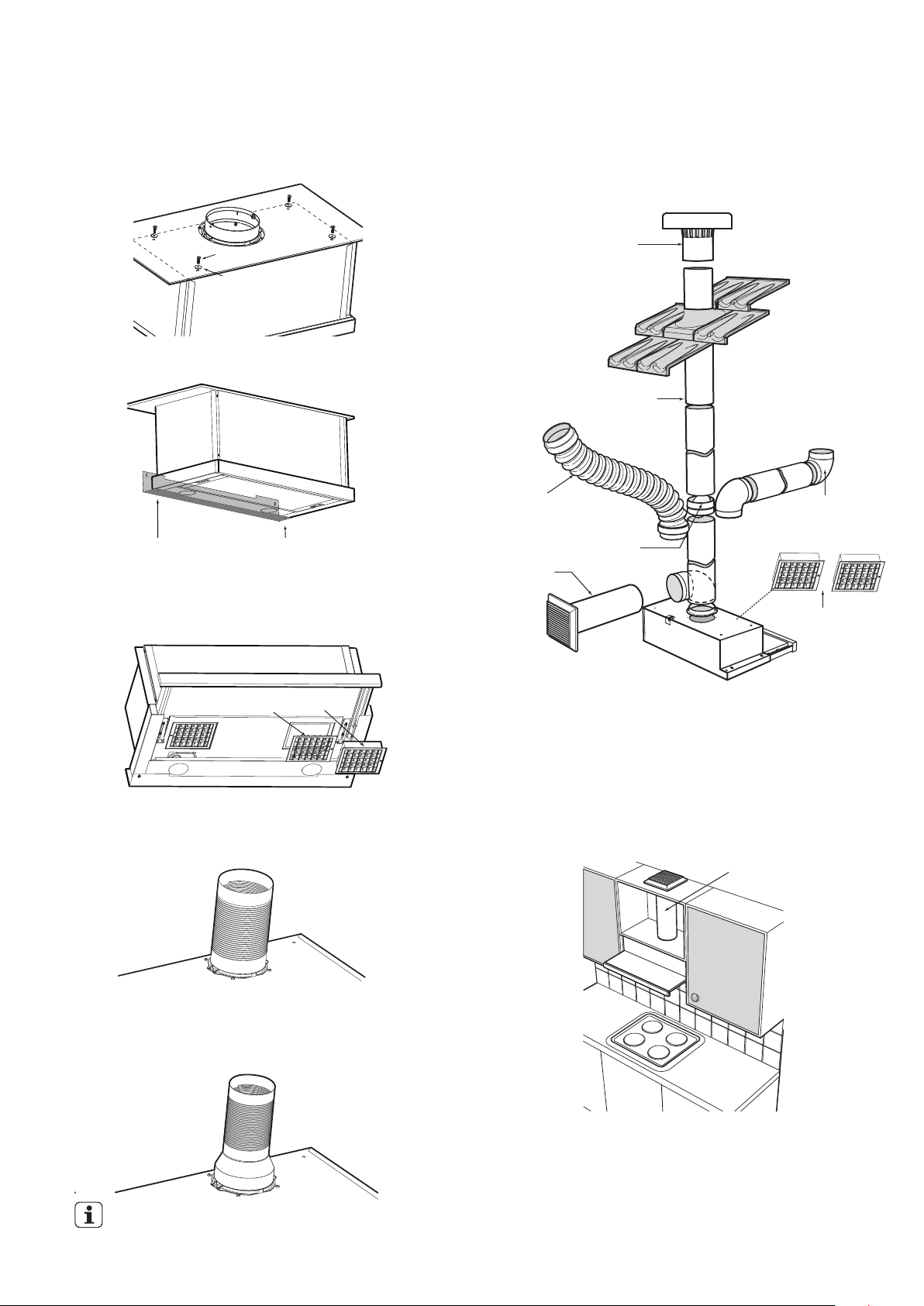

Accessories

• Use 150mm round exhaust ducting for best
performance.

• When using flexible duct always install duct with the
wire helix pulled taut to minimise pressure loss.

• Try to keep exhaust duct short and straight.

• Keep bends in the exhaust duct to a minimum.

• Do not restrict exhaust duct.

• Reducing the size of the exhaust duct will reduce the
airflow of the rangehood. Please read instructions
carefully. Service calls resulting from incorrect
installation will be charged for.

Exhaust air from the rangehood must not be discharged
into any heating flue which may carry combustion
products from other sources. In addition, exhaust air
must not be discharged into a wall cavity, unless the
cavity is designed for the purpose. Adequate ventilation
of the room must be ensured when the rangehood is
operating simultaneously with appliances burning gas or
other fuels. Installation must comply in all respects with
your gas and electrical authorities. This rangehood is an
indoor domestic appliance, and has been manufactured
and tested to comply with Australian and New Zealand
Standard AS/NZS 60335.2.31
