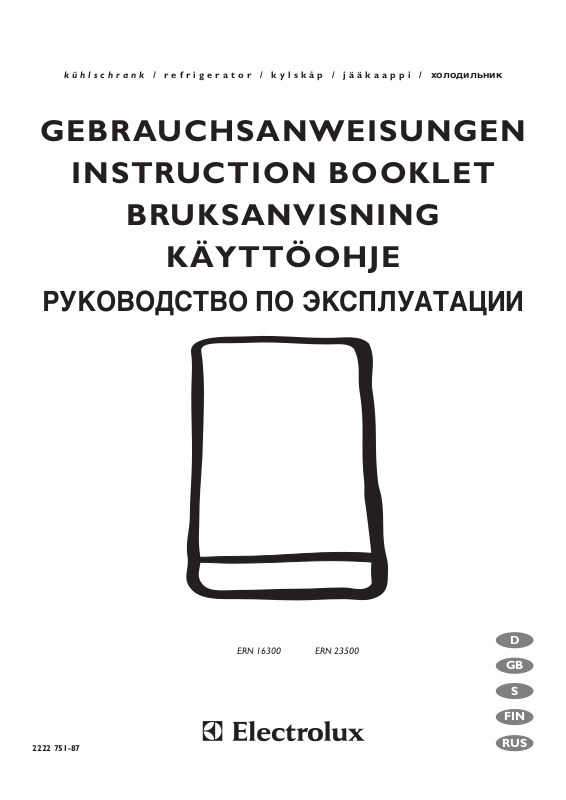

Electrolux ERN 23500, ERN 16300 User Manual

kühlschrank / refrigerator / kylskåp / jääkaappi /

хoлoдильник

GEBRAUCHSANWEISUNGEN

INSTRUCTION BOOKLET

BRUKSANVISNING

KÄYTTÖOHJE

РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

2222 751-87

D

GB

S

FIN

RUS

ERN 16300 ERN 23500

Printed on paper manufactured with environmentally sound processes 11

Child Safety

¥ This appliance is designed to be operated by

adults only. Do not allow the children to tamper

with the controls or play with the products. There is
a risk of suffocation! Keep packaging material
away from children!

Environment Protection

¥ This appliance does not contain gasses which

could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the
urban refuse and rubbish. Avoid damaging the
cooling unit. Information on your local disposal
sites may be obtained from your municipal
authorities.

Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.

Disposal

Appliance Packaging Information

¥ The materials marked with the symbol are

recyclable.
>PE< for polyethylene, e.g. sheet wrapping

material
>PS< for polystyrene, e.g. padding material

(always CFC-free)
>POM< polyoxymethylene, e.g. plastic clips.

All materials are environmentally sound!

Safety Instructions

This information has been provided in the interests of your safety. Please read it before installing or
using the appliance. Please retain the instruction book for future reference. If owner ship is transferred,
please leave the user manual for the new owner.

Domestic Use

¥ The domestic refrigerators and freezers are

designed to be used specifically for the storage of
edible foodstuffs only.

¥ Check the appliance for transport damage. Under

no circumstances should a damaged appliance be
installed. In the event of damage please contact
your retailer.

¥ This appliance is heavy. The edges and projecting

parts of the cabinet may be sharp. Be careful when
moving the cabinet and always use gloves.

¥ Any electrical work required to install this appliance

should be carried out by a qualified electrician or
competent person.

¥ Make sure that the power plug is not squashed or

damaged by the back of the appliance. Make sure
that the cable is not trapped underneath the
appliance, nor touches the motor.

¥ Do not remove the power cord by pulling on its

lead, particularly when the appliance is being
pulled out of its niche. If the power plug socket is
loose, do not insert the power plug. Damage to the
cord may cause a short-circuit, fire and/or electric
shock.

¥ Do not use electrical appliances inside the

appliance.

¥ Do not keep carbonated drinks or bottles in the freezer

compartment. The glass bottles may break.

¥ Ice lollies can cause Ôfrost/freezer burnsÕ if

consumed straight from the freezer.

¥ It is dangerous to try and alter the specifications or

modify this product in any way.

¥ Under no circumstances should you attempt to

repair the appliance yourself. Refer to your local
Service Centre, and always insist on genuine spare
parts.

Instructions for the use of the instructions booklet

Notes which are important for your safety or for the proper functioning of the appliance

Supplementary information regarding operation and practical applications of the appliance.

Tips and notes concerning economical and environmentally sound use of the appliance

t

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Use and Control

Before Use / Starting the appliance / Temperatur control . . . . . . . . . . . . . . . . . . . . . . . . . .12

Internal parts / Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Maintenance Defrosting / Cleaning / Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Something not Working / Customer Service and Spare Parts / Technical Specifications . . . . . . . . . . . .15

Door reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Installation

Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

12

Before Use

Wait two hours before connecting the
appliance to allow the oil to flow back in the
compressor.

¥ Before using the appliance for the first time, wash

the interior and all internal accessories with
lukewarm water and some neutral soap so as to
remove the typical smell of a brand-new product,
then dry thoroughly.

Do not use detergents or abrasive
powders, as these will damage the finish.

¥ Remove safety elements used for transportation.

Use and Control

Contents

Starting the appliance

¥ Insert the plug into the wall socket and turn the

thermostat knob clockwise beyond position ÇOÈ
(OFF).

¥ The thermostat control situated inside the fridge

compartment regulates the temperature of the
appliance.

¥ Turn the thermostat control to the required setting.

Temperature Control

¥ The following effects are of significance in respect

of the interior temperature:
¥ Ambient temperature

¥ Quantity and temperature of the food stored;
¥ Frequency with which the door is opened and

how long it is left open

¥ the location of the appliance.

¥ The temperature inside the appliance is

automatically adjusted.
¥ Setting ã1Ò = hightest temperature, warmest

setting

¥

Setting ã6Ò = lowest temperature, coldest
setting.

¥ Setting ã¥Ò = Off

A medium setting is generally the most suitable.

Disposal of old appliances

The symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop where you purchased
the product.

Internal Parts

Storage shelves

¥ The shelves can be removed for cleaning.
¥ To permit storage of food packages of various

sizes, the shelves can be placed at different
heights.

¥ To remove the internal shelf pull forward until it can

be tipped up or down and removed.

¥ Please do the same in reverse to insert the shelf at

a different height.

¥ For better use of space, the front half-shelves can

lie over the rear ones.

The glass shelf above the vegetable drawers
and the bottle shelf should always remain in
position, to ensure correct air circulation.

Door shelves

¥ To permit storage of food packages of various

sizes, the central door shelf can be adjusted in
height.

¥ Gradually pull the shelf in the direction of the

arrows until it comes free, then reposition as
required.

¥ For more thorough cleaning, the top and bottom

door sheves can be removed by pulling them in the
direction of the arrows, then refitting them in
position.

13

Hints

Saving Energy

¥ Pay careful attention to where the cabinet is

placed. See the section ÒInstallationÓ. When
installed correctly the cabinet will consume less
energy.

¥ Try to avoid keeping the doors open for long

periods or opening the doors too frequently as
warm air will enter the cabinet and cause the
compressor to switch on unnecessarily often.

¥ If the ambient temperature is high, the thermostat

knob is on the coldest setting (higher numbers) and
the appliance is fully loaded, the compressor may
run continuously, causing frost or ice to form on the
evaporator. If this happens, turn the knob to a
warmer setting (lower numbers) to allow automatic
defrosting and so a saving in electricity
consumption.

¥ Do not place warm foods inside the appliance.

Allow warm foods to cool first.

¥ Keep the heat emitting condenser, the metall grille

on the rear wall of your appliance, always clean.

Hints for refrigeration

¥ Do not store warm food or evaporating liquids in

the refrigerator and do cover or wrap up the food,
particularly if it has a strong smell.

To help you use your refrigerator correctly, here are
some useful hints:

¥ Raw meat (beef, pork, lamb & poultry): wrap in

polythene bags and place on top of the salad
compartment, this being the coldest spot in the
refrigerator.

Meat can only be stored safely in this way for
one or two days at the most.

¥ Cooked food, cold cuts, jelly, etc.: these should

be well covered and can be stored on any of the

glass shelves.

¥ Fruit & vegetables: these should be thoroughly

cleaned and placed in the bottom drawer/s.

¥

Butter & cheese: these should be placed in
special airtight containers or wrapped in aluminium
foil or polythene bags to keep out as much air as
possible.

¥ Milk bottles: these should have a top and should

be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.

D338

14

Cleaning

Never use metal objects for cleaning your
appliance as it may get damaged.

NEVER use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as these will
damage the surface and leave a strong
odour.

Clean the inside with warm water and bicarbonate of
soda. Rinse and dry thoroughly.

To guarantee a safe operation of the fridge, once a
year remove the ventilation grill at the base and
clean the air channels with a vacuum cleaner.

When the appliance is not in use

Disconnect the appliance from the electricity supply.
Empty all foods and clean the appliance, leaving the
doors ajar to prevent unpleasant smells.

Changing the light bulb

¥ Should the interior light fail to work, first switch off

the appliance and disconnect from the electricity
supply, then replace the bulb as follows:

1. unscrew the light cover securing screws.

2. unhook the moving part by pressing it as shown
in the figure.

3. Replace the bulb by other with another with the
same charcteristics.

Maintenance

Unplug the appliance before carrying out
any maintenance operation.

Warning

This appliance contains hydrocarbons in its

cooling unit maintenance and recharging must
therefore only be carried out by authorised
technicians.

Defrosting

¥ Defrosting the refrigerator compartment is

automatic. The defrost water drains out through a
trough into a container at the back of the appliance,
above the motor compressor, where it evaporates.

¥ It is important to periodically clean the defrost

water drain hole.

D037

D411

Technical specifications

The technical data is indicated in the rating plate on the left side inside the appliance.

15

This information can be found on the rating plate
inside the cabenit on the left hand wall. We
recommend that you enter this information here, so
that it is handy if needed.

If you cannot find the remedy for a malfunction in
these operating instructions, please contact your
dealer or our customer service department and
consult the Guarantee card.
Selective ordering of replacement parts can save
unnecessary travel and costs.
For this reason always provide the following
appliance information:

¥ Model Name

¥ Model Number (PNC)
¥ Serial Number (S-No.)

Customer service and spare parts

Something not Working

Problems may be due to causes which can easily be solved before calling the Technical Service. Please
follow these instructions:

Level properly the appliances if it is not well levelled.
Weight surpasses the storage limit of the door shelf so spread weight more evenly or
take some products out.

The appliance is not properly installed. Please look in the ÒBuilding-inÓ section.

Set a lower temperature.
Distribute the food products to allow cold air to circulate around them.
Make sure that the door is completely closed and that the insulating strip is complete
and clean.
The temperature where the cabinet is placed is above normal room temperature.

Turn the temperature regulator to a warmer setting temporarily.

Turn the thermostat knob to a lower number.
The temperature where the cabinet is placed is above normal room temperature.
Check that the ventilation is sufficient and that the ventilation openings are
unobstructed.
The cause could be the introduction of large quantities of food and/or frequent
opening/closing of the door.

Sometimes is normal. During automatic defrosting frost thaws on the cooling plate.

Place the drain hose at the back of the cabinet above the drain bowl.

Sometimes this is normal. Temperature control may cause clicking sounds when the
system is connected or disconnected.
The injected cooling gas may produce a gurgling sound while passing through the
tubes.
The motor may cause a humming noise and/or slight bumping.
The insulation material used has a tendency to slighly increase noise levels, how ever it
allows for much better insulation and a lower energy consumption.

Door does not close

It is too warm inside the refrigerator

It is too cold inside the refrigerator.

The compressor works continuously.

There is water inside/outside the refrigerator.

Water comes out on the floor.

Noises

SYMPTOM SOLUTION

Positioning

¥ Unpack the cabinet and check that it is in good

condition and free of any transport damage.

¥

The appliance must not be located close to
radiators or gas cookers.

¥ Avoid prolonged exposure of the appliance to

direct sunlight.

¥ For safety reasons, minimum ventilation must be

as shown in Fig.

Attention: keep ventilation openings clear of
obstruction.

¥ It is necessary that the niche is provided with a

conduct of venti-lation having the following
dimensions:
Depth 50 mm
Width 540 mm

16

Door reversal

The applianceÕs door has been locked in position for
transport by means of pins on both sides. According
to the door opening direction, remove relevant pins
at the top and at the bottom.

Warning!

If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting
of the gasket or accelerate this process by
heating up the part involved with a normal
hairdrier.

Installation

Take utmost care when handling your
appliance so as not to cause any damages to
the cooling unit with consequent possible fluid
leakages.

¥ During normal operation, the condenser and

compressor at the back of the appliance heat up
considerably. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss. See
installation instructions.

¥

Important: if the supply cord is damaged, it must
be replaced by a special cord or assembly availa­ble from the manufacturer or its service agent.

The climate classification can be found on the rating
plate, which is located inside the cabinet on the left
hand wall.

The following table shows which ambient
temperature is correct for each climate classification:

Climate
classification

SN +10 to +32¡C

+16 to +32¡C

+18 to +38¡C

+18 to +43¡C

N

ST

T

for an ambient temperature of

A

B

min.

2

200 cm

D526

50 mm

2

min.

200 cm

Electrical connection

Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power suppl y.
Voltage can vary by ±6% of the rated voltage.
For operation with di fferent voltages, a suitably sized
auto-transformer must be used.

Important
The appliance must be earthed.

The power supply cable plug is provided with a
contact for this purpose.

If the domestic power supply socket is not
earthed. connect the appliance to a separate
earth in compliance with current regulations,
consulting a specialist technician.

The Manufacturer declines all
responsibility if the above safety
precautions are not observed.

Building-in

This appliance complies with the following E.E.C.
Directives:

-87/308 EEC of 2/6/87 relative to radio
interference suppression.

-73/23 EEC of 19.2.73 (Low Voltage
Directive)

and subsequent modifications.

-89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.

Attention!

It must be possible to disconnect the appliance
from the mains power supply; the plug must
therefore be easily accessible after installation.

Dimensions of the recess

ERN 16300 ERN 23500

Height of housing 880 1225 mm
Depth of housing 550 550 mm
Width of housing 560 560 mm

50

540

3

1

2

PR0

It is necessary that the niche is provided with a
conduct of ventilation having the following
dimensions:

Depth 50 mm
Width 540 mm

1

2

D022

1.Fit the appliance in the niche by making sure that
it stands against the interior surface of the unit on
the side where the door hinges of the appliances
are fitted. Insert the appliance until the upper strip
butts up against the unit (1) and make sure that
the lower hinge is in line with the surface of the
unit (2).

D132

2.Apply joint the sealing strip as shown in figure.

17

4. Snap vent grille (B) and hinge cover (E) into

position.
Apply covers (C-D) on joint cover lugs and into
hinge holes.

3. Open the door and push the appliance against the
side of the kitchen unit opposite to that of ap­pliance hinges. Fasten the appliance with 4
screws (I) provided in the kit included with the
appliance.

I

18

5. Separate parts Ha, Hb, Hc, Hd as shown in the
figure.

6. Place guide on the inside part of the furniture door,
up and down as shown in the figure and mark the
position of external holes. After having drilled
holes, fix the guide with the screws supplied.

21 m

m

21 m

m

ca. 50 mm

90°

90°

ca. 50 mm

7. Fix cover (Hc) on guide (Ha) until it clips into
place.

PR33

Hc

Ha

PR167

Ha

Hb

8mm

8. Open the appliance door and the furniture door at
90¡. Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the furniture
door and mark the holes as indicated in the figure.

PR266

Ha

Hb

Hc

Hd

C

D

E

B

19

PR168

Hb

10. Place the small square on the guide again and fix
it with the screws supplied.
Should the lining up of the furniture door be
necessary, use the clearance of slots. At the end
of operations, it is necessary to check if the door
of the furniture closes properly.

11. Fix cover (Hd) on the small square (Hb) until it
clips into place.

PR167

Ha

8mm

K

PR167/1

Hd

Hb

9. Remove the brackets and mark a distance of

8 mm from the outer edge of the door where the
nail must be fitted (K).

ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE

Electrolux HemProdukter AB

S-105 45 Stockholm

www.electrolux.se
