Electrolux ERF 2830 User Manual
f ridge - freezer
INSTRUCTION BOOK
2222 122-47
ERF 2830
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety.You MUST read it carefully before installing
or using the appliance.
Installation
• This appliance is heavy. Care should be taken when
moving it.
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
• Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
• The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
Child Safety
• Do not allow children to tamper with the controls or
play with the product.
• Keep all packaging well away from children.
General Safety
• This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized technicians.
• Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
• The appliance must not be located close to
cookers, radiators or boilers.
• Avoid prolonged exposure of the appliance to
direct sunlight.
• Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating appliances.
During Use
• This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs.
• Frozen food must NOT be re-frozen once it has
thawed out.
• Do not place carbonated or fizzy drinks in the
freezer.
• Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
• Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.
• Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
• The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Maintenance and Cleaning
• Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
Servicing
• This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Service Force Centre and always insist on genuine spare parts.
At the end of the
Appliance Life
• When disposing of your appliance, use an authorised disposal site.
• Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
2
3
CONTENTS
2222 122-47
Instructions for the User
Important Safety Information
2
Operation
4
Before use 4
Setting the temperature 4
The freezer compartment 4
Freezing fresh food 4
Frozen food storage 5
Thawing 5
Making ice cubes 5
Fresh food refrigeration 5
Normal operating sounds 5
Movable shelves 6
Positioning the door shelves 6
Hints and Tips
7

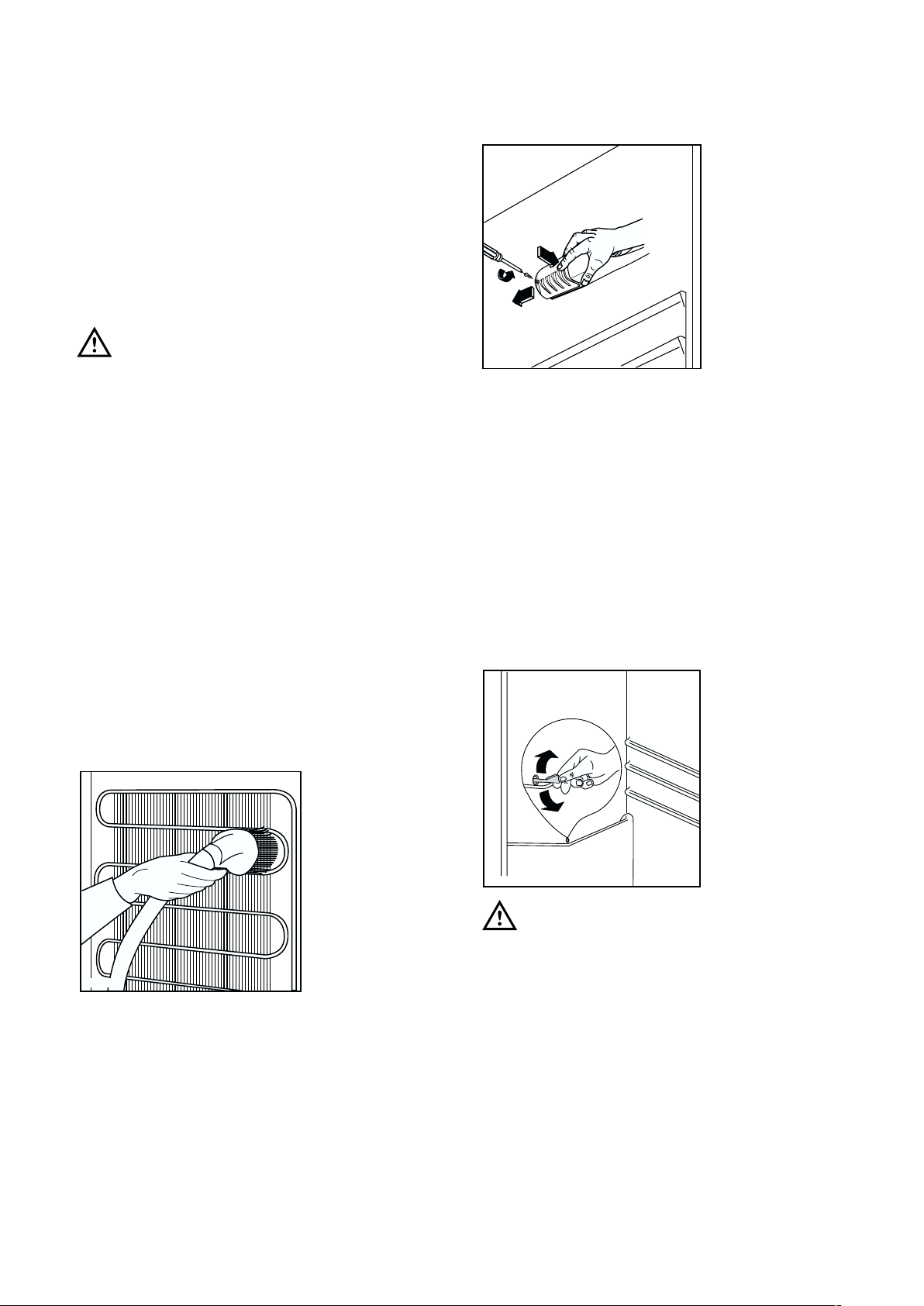

Maintenance and Cleaning
8
Internal cleaning 8
When the appliance is not in use 8
Changing the light bulb 8
External cleaning 8
Defrosting 8
Something Not Working
9
Service and Spare Parts
10
Customer Care
10
Guarantee Conditions
11
Instructions for the
Installer
Technical Specification
12
Installation
13
Positioning 13

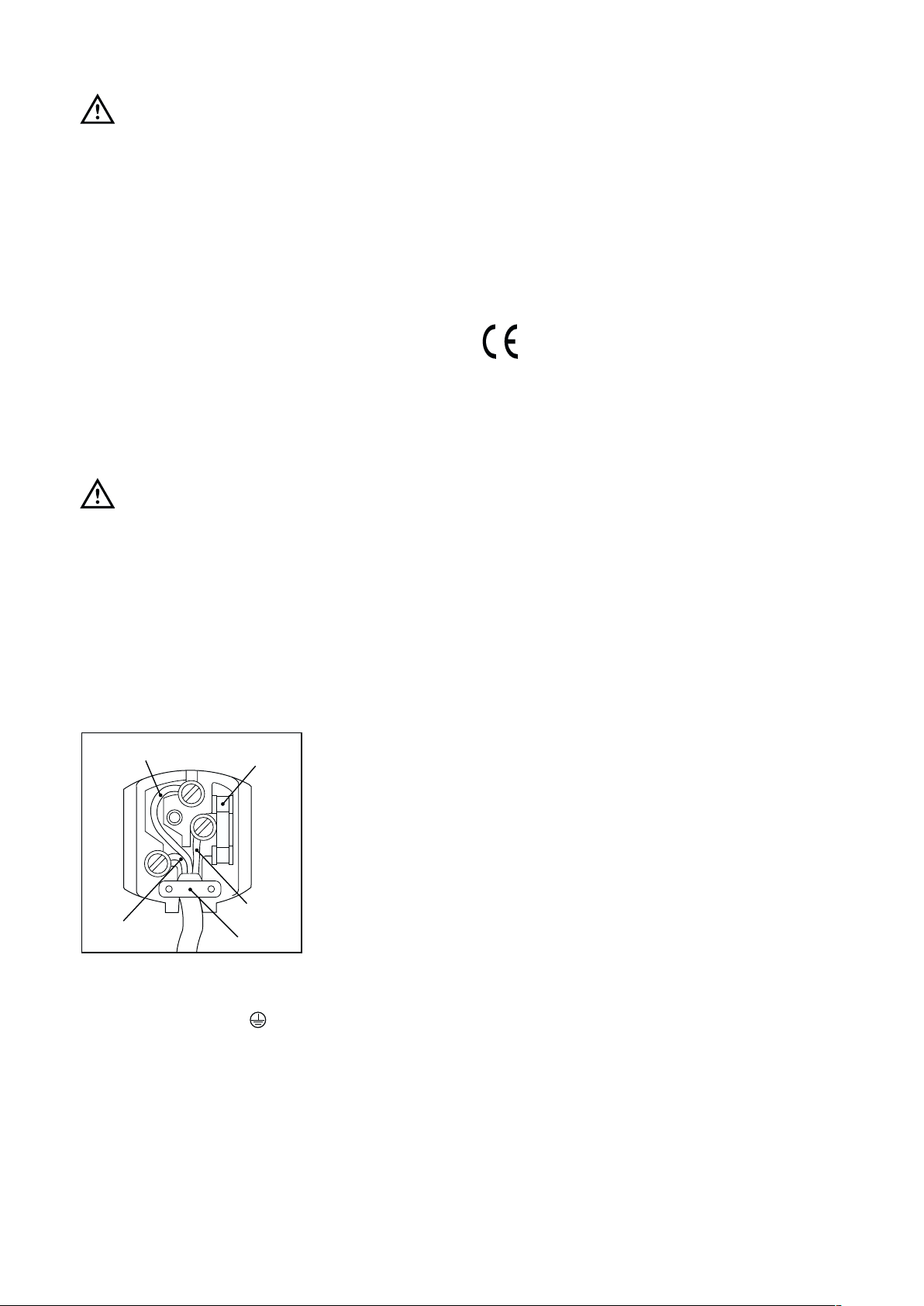

Electrical Connection
14
Door Reversal
15
4
OPERATION
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Setting the temperature
The temperature inside the refrigerator and the
freezer is regulated by a single thermostat with 6
temperature positions and an “OFF” (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable (3-4).
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
– how often the door is opened
– how much food is stored
– position of the appliance
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the knob
to a lower number will cause the automatic
defrosting to resume.
Low Room Temperature Switch
To ensure that the appliance is working efficiently
when the room temperature drops below 16°C, the
switch mounted next to the thermostat control should
be switched on.
No damage can be caused by leaving the switch in
this position for any period of time (see page 9 Low
room temperature operation). However should the
temperature rise above 16°C remember to turn the
switch off again.
The freezer compartment
The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.
Freezing fresh food
When freezing large amount of fresh food turn the
thermostat to maximum approximately 1 hour prior to
freezing. When the food is frozen return thermostat
to normal position .
In any 24 hours you can freeze up to 3.5 kg. of fresh
food.
Place food to be frozen in the upper drawer of the
freezer as this is the coldest part.
To guarantee a good operation of the appliance
during normal use, the drawers should not be
removed.
A - Low Room Temperature Switch
17

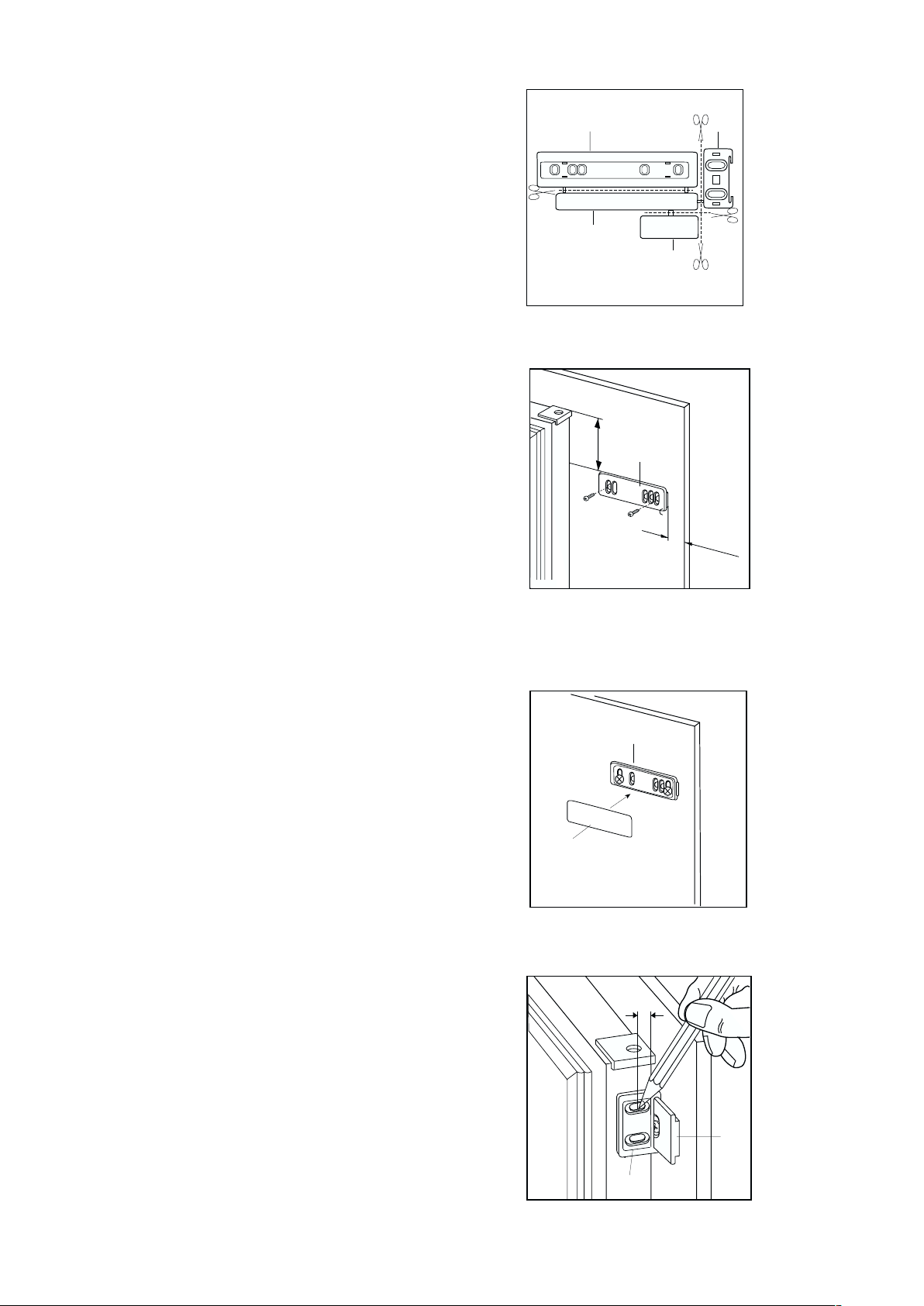

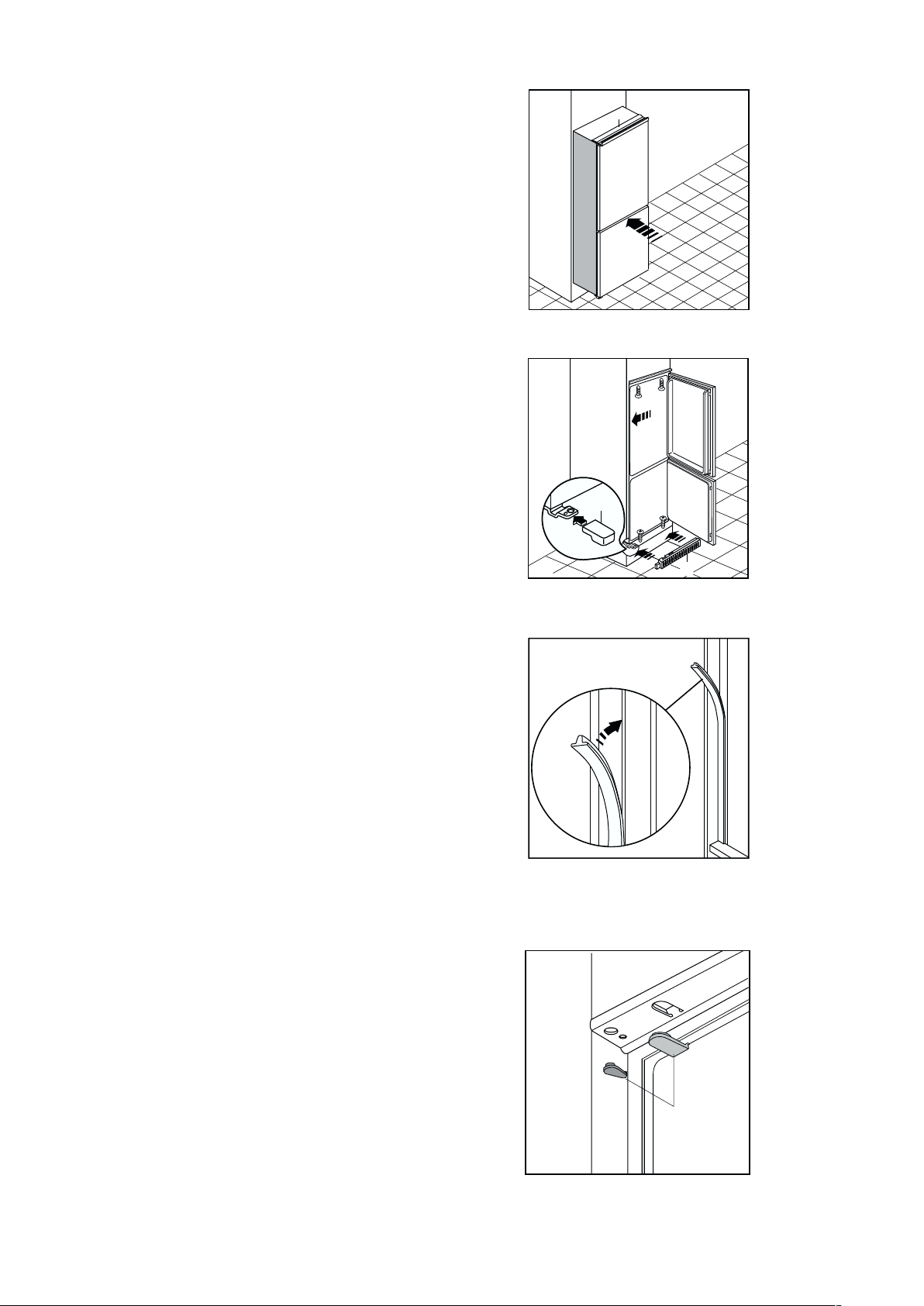

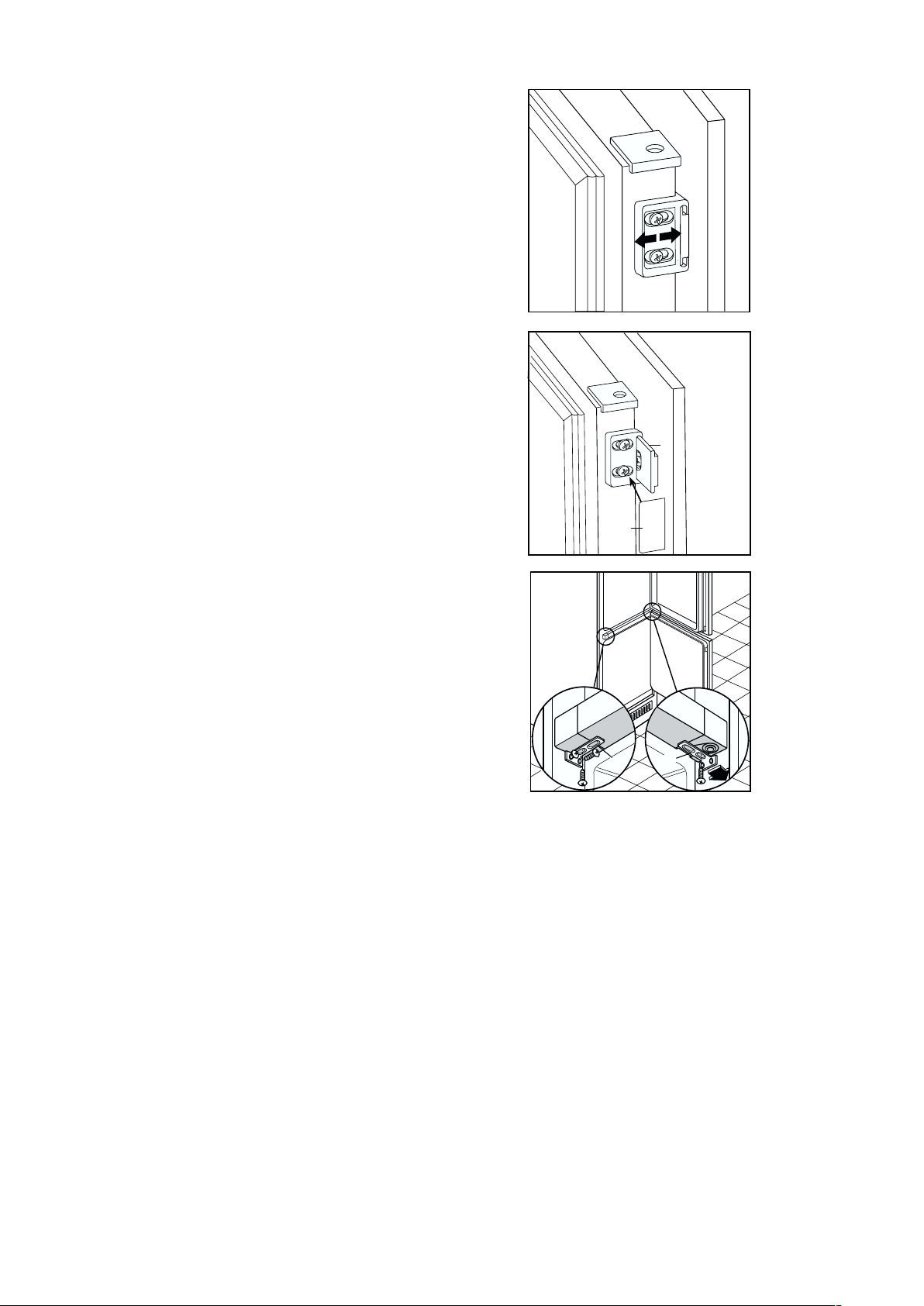

Place guide (A) on the inside part of the furniture
door, up and down as shown in the figure and mark
the position of external holes. After having drilled
holes, fix the guide with the screws supplied.
20 mm
A
50mm
PR166
Separate parts A, B, C, D as shown in the figure
PR266
A
B
C
D
Open the appliance door and the furniture door at
90°. Insert the small square (B) into guide (A). Put
together the appliance door and the furniture door
and mark the holes as indicated in the figure.
Remove the squares and drill holes with ø 2 mm at 8
mm from the outer edge of the door. Place the small
square on the guide again and fix it with the screws
supplied.
8mm
PR167
A
B
PR33
C
A
Fix cover (C) on guide (A) until it clips into place.
A
D710
5
Normal Operating Sounds
• You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
• When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
• A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
Making ice cubes
The appliance is provided with one plastic ice cube
tray.
Fill the tray 3/4 full to allow the ice to expand and
place it in one of the freezer drawers.
To turn out the ice cubes simply give the tray a slight
twist to release the cubes.
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & wild fowl): wrap in
polythene bags and place on top of the salad
crispers.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Thawing
Frozen food, prior to being used, can be thawed in
the fridge or at room temperature depending on the
time available. Small food items may even be cooked
from frozen; in this case cooking will take longer.
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible or thrown
away. Alternatively, if the food is uncooked and has
not been completely defrosted it can be cooked and
then refrozen.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.
Defrosted cooked food must never be refrozen.
Frozen food storage
When you first start the freezer or if the freezer has
been out of use for some time, we advise you to
depress the ambient switch for at least two hours
before storing frozen food.
Do not exceed the storage period indicated by the
manufacturer.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice lollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.
Important
In the event of a power cut the food in the freezer will
not be affected if the power cut is short and if the
freezer is full. Do not open the door. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen .
6
Movable shelves
The walls of the refrigerator have runners so that the
shelves can be positioned as desired .
For better use of space, the front half-shelves can lie
over the rear ones.
Positioning the door shelves
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.To make
these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes off, then reposition as required.
15
Instructions for totally built-in
appliances

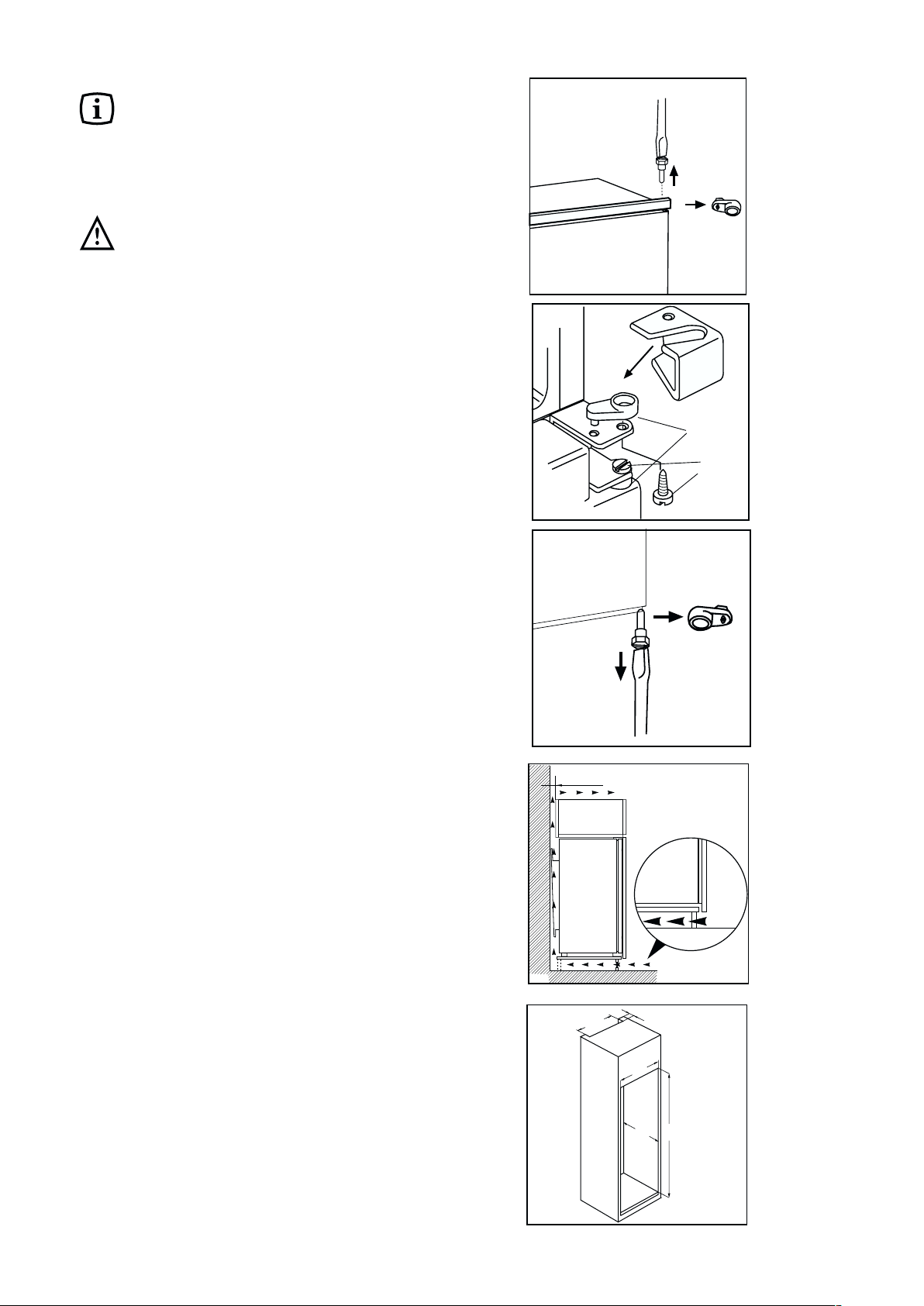

Door reversal
Recess dimensions
Height (1) 1780 mm
Depth (2) 550 mm
Width (3) 560 mm
To ensure adequate ventilation, allow the clearances
shown in figure.
50 mm
min.
200 cm
2
200 cm
2
min.
D567
Furthermore, it is necessary that the cabinet has a
ventilation recess with the following dimensions:
depth 50 mm
width 540 mm
B
C
A
The appliance is supplied with the right
or left door opening. To change the opening
direction of the door proceed as in the
following instructions before installing it.
1. Unscrew the upper pin and remove the spacer
2. Remove the upper door
3. Unscrew the pins (B) and the spacers (C) and
refit them on the middle hinge of the opposite
side. Snap the hinge cover (A).
4. Refit the upper door, the upper pin and the
spacer on the opposite side
5. Unscrew the lower pin and remove the spacer
and refit them on the opposite side
PR01
540
50
3
2
1
D338
Loading...
