Important Safety Instructions
t
r
t
Your new fridge may have other functions compared to your previous one.
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the
meanings or warnings contact the Customer Care Department.
Keep the instruction booklet. It will come in handy if you later sell the appliance or give it to somebody else.
For the User
· The refrigerator is intended for the storage of
foodstuffs and the production of cold water, with
or without carbon dioxide, for normal household
use in accordance with these instructions.
· If the gas cylinder is used for other purposes
than that intended or if it is filled by an
unauthorised person, all guarantees
automatically become null and void . In order
to ensure reliable functioning, only an
Electrolux Cylinder may be used.
· Do not keep explosive gases or liquids in the
refrigerator or freezer compartment. They may
explode and cause injury and material damage.
· Do not let sharp objects come into contact with
the refrigerating system on the back of and inside
the cabinet. If the refrigerating system is
punctured, the cabinet will be damaged and
foodstuff inside may spoil.
· Do not keep carbonised drinks or bottles in the
freezer compartment. The glass bottles may
break.
· The cabinet is heavy. The edges and projecting
parts of the cabinet may be sharp. Be careful
when moving the cabinet and always use gloves.
Child Safety
· Pay attention so that small children do not gain
access to the operating controls or the inside of
the cabinet.
Scrapping old appliances
The symbol on the product or on its packaging indicates that this product m ay not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negativ
consequences for t he environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of this product, please contact your
local ci
y office, yourhousehold waste disposal service o
he shop where you purchasedthe product.
Contents
Important Safety Instructions 2.......
Scrapping old appliances 2.....................
Contents 2..........................
Description of the Appliance 3........
Control Panel (Control panel) 3.................
Control Panel (water dispenser) 4...............
Before use 4.........................
Using the fridge 4....................
To start the fridge and thermostat control 4........
Temperature inside the fridge 5.................
Measuring the temperature 5...................
Alarms and other features 5....................
Switching off 7..............................
Cabinet interior 7............................
Hints and Tips 8.....................
Energy Saving Advice 8.......................
Food Storage 8..............................
Normal Operating Sounds 8....................
Maintenance and Cleaning 9..........
Removing the ventilation grille 9................
Internal Cleaning 9...........................
Servicing and cleaning the water dispenser 9......
Service during operation 10.....................
Defrosting the fridge 10........................
To change the light bulb 10.....................
Installation of carbon filter 10...................
When the appliance is not in use 10...............
Something Not Working 11............
Service and Spare Parts 12............
Customer Care Department 12...................
Standard Guarantee Conditions 12.....
Standard Guarantee Conditions 12................
Technical Specification 13.............
Permissible wa ter pressure (to ensure
reliable function) 13.......................
Installation 13........................
Unpacking 13................................
Removing the transport supports 13..............
Cleaning 14..................................
Connecting the water hose 14....................
Installation of carbon filter 14...................
Electrical cord 15.............................
Installing the appliance 15......................
When the water system is started for the first time 16.
Electrical connection 17........................
Electrolux 8183823-00/7
2
Page 3
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instructions
Safety instructions
1, 2, 3 ...
Step by step instructions for an operation
Hints and tips
Description of the Appliance
1
3
2
4
4
4
5
5
4
6
8
9
9
10
9
11
Modell ERES3500/ERES3500X
1. grid
2. bottle- and can holder
3. quick chill shelf
4. glass shelf
5. wire basket
6. vegetable drawer
7. ventilation grille
8. butter compartment
9. door shelf
10. egg holder
1 1. bottle shelf
7
Control Panel (Control panel)
5
ABCDEFG
A. Refrigerator power switch
Switches the refrigerator on and off.
B. Temperature display
Shows the average temperature inside the
refrigerator.
C. Temperature adjustment buttons/thermostat
Used to set the temperature in the refrigerator.
D. ACTION COOL button
Used to switch the Action Cool feature on and off.
ACTION
COOL
E. Yellow pilot light
Lights when Action Cool is operating.
F. Alarm off button
Used to turn the audible alarm off.
G. Red warning light
Flashes when one of the alarms in the cabinet has
been triggered.
Electrolux 8183823-00/7
3
Page 4
Control Panel (water dispenser)
H
H. Yellow indicator lamp
Lights up when the locking function has been
activated.
I. Button for carbonated water.
- Used for the choice of carbonated water.
- F or the engagement and disengagement of the
locking function.
J. Button for ordinary water.
- Used for the choice of ordinary water.
- S witches the background lighting on and off.
I
M
Before use
·Remove all securing tapes.
·Wash the inside of the appliance with lukewarm
water with a little bicarbonate of soda added (5ml to
0.5 litre of water). Do not use soap or detergent as
the smell may linger. Dry the appliance thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax,
polishes or products containing alcohol.
L
N
- Switches off the indicator lamp for water filter
replacement.
K. Yellow indicator lamp
Lights up when the water filter must be changed.
L. Water out-feed
Activated when a glass or something similar is
pressed upwards against the flap.
M. Flap
N. Lighting
standing upright for about 30 minutes, or for 2 hours
if it was transported horizontally. Otherwise the compressor may sustain damage. This time will allow the
oil sufficient time to return to the compressor.
J
K

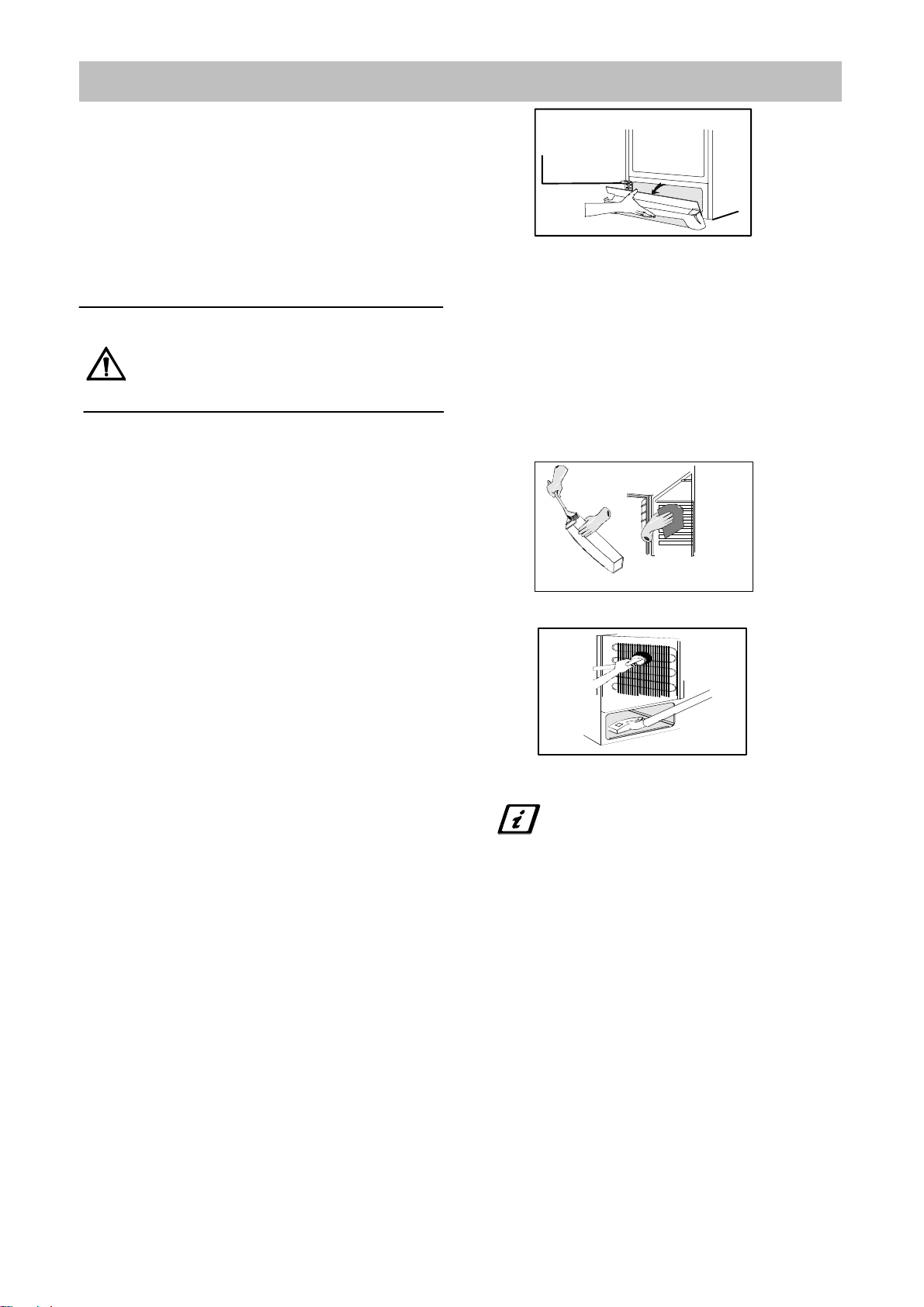

Check that the drain hose is located over the drip
bowl behind the refrigerator . Also ensure that the
drain hose is connected to the box. See the
illustration.
·Before inserting the power plug into the socket and
switching on the appliance for the first time, leave it
Using the fridge
To start the fridge and thermostat control
Switching on:
Switch on the fridge by pressing the power switch.
Setting the temperature
Press the buttons until the desired temperature
flashes in the temperature display (The temperature
can be set between +2°C and +8°C.)
"+" raises the temperature.
"-" lowers the temperature.
Once set, the temperature display shows " -" until the
temperature inside the fridge reaches +9°C or below.
Allow t he appliance to run for a period of 24 hours
whenever the t emperature setting is changed. This
will allow the temperature to stabilise inside the
appliance.
ACTION
5
5
COOL
ACTION
COOL
Electrolux 8183823-00/7
4
Page 5
It is not necessary to reset the temperature when the
cabinet is switched on after it has been out of use.
The thermostat recalls the previously set
temperature.
Temperature inside the fridge
Suitable storage temperature in the fridge is roughly
+5°C. Storage temperature in the cabinet is even on
all of the shelf levels. The vegetable box which is
placed in the bottom has a temperature of 3-4°C
warmer than the intended temperature setting.
Measuring the temperature
If the temperature is measured using a standard,
single thermometer, this should be put in a glass of
water centrally placed inside the appliance. This will
reflect the temperature inside the food products. Do
not place the thermometer hanging or lying directly
on the shelf.
· Distribute foodstuffs to allow cold air to
circulate freely between the products.
· Also never put warm products into the cabinet.
Wait until they have cooled down.
· Cover all foods properly.
Alarms and other features
Door open alarm
If the fridgedoor remains open for more than 5
minutes, the red warning lamp starts flashing and an
audible alarm sounds.
To switch off the alarm:
Press the "alarm shut-off button". The red warning
lamp goes out when the door is closed.
Quick chill (Action cool / quick chill)
This function has two usage areas. One area in
connection with cans / bottles being quickly chilled
on the quick chill shelf, and the other in connection
with large amounts of food at room temperature
being placed on the shelf.
Chilling of cans/bottles:
When groceries are placed on the shelf (see under
section; Action cool / Quick chill shelf) the air
regulator should be turned to it's maximum position,
then press the Quick chill button.
This will be indicated in the symbol window with a
"C" and by the yellow lamp being lit.
Chilling of warm groceries:
This function is used in connection with large
amounts of groceries at room temperature being
placed in the fridge. Pressing the Quick chill button
starts this function.
This will be indicated in the symbol window with a
"C" and by the yellow lamp being lit.
When this function has been activated forced air will
chill the groceries, and the temperature in the cabinet
reset to +2°C. After 6 hours the Quick chill
automatically shuts off and the temperature
gradually goes back to its normal setting.
MAX
C
ACTION
5
COOL
MIN
ACTION
COOL
Electrolux 8183823-00/7
5
Page 6
Carbon filter's function:
The built-in carbon filter means t hat strong smelling
groceries can be placed near other groceries without
affecting their taste or aroma.
The functions of the water
dispenser
The locking function:
The locking function is activated by the production
plant.
For temporary unlocking:
Keep the button (I) or (J) pressed in for about three
seconds until the yellow indicator lamp (H) goes out.
The locking function is re-activated automatically
after about three seconds.
For permanent unlocking:
Keep the buttons (I) and (J) pressed in at the same
time for about three seconds. The button (I) or (J)
lights up t o indicate unlocking.
To activate the locking function:
Keep the buttons (I) and (J) pressed in at the same
time for about three seconds. Activation is indicated
by the yellow indicator lamp (H) lighting up.
HI M
L
N
K
J
Selecting and obtaining water:
Before obtaining water, selection is carried out either
by pressing the button for carbonated water (I) or the
button for ordinary water (J). The actual choice is
indicated by the button concerned lighting up. The
selection of water can be changed while the water is
running.
Water i s obtai ned by pressing a glass or other container against the opening (M). Stop the water flow
by moving the glass or container downwards away
from the opening (M). Any water that drips or is
spilled is collected in the drip bowl below the water
dispenser. When carbonated water is being obtained,
there is a slight afterflow when the glass is removed.
The drip bowl can be detached and emptied when
necessary.
Lighting:
The wat er dispenser lighting (N) goes on automat ically when water is obtained.
For continuous lighting:
1. Make sure that the water dispenser is unlocked.
2. Then hold the button for ordinary water (J)
pressed in for about three seconds until the lighting
goes on.
The lighting then goes on with about 50 % of its full
intensity.
To switch off the lighting:
1. Ensure that the water dispenser is unlocked.
2. Then hold the button for ordinary water (J)
pressed in for about three seconds until the lighting
goes out.
Electrolux 8183823-00/7
6
Page 7
Indicator lamp for the water filter:
The water dispenser is fitted with an indicator lamp
(K) which shows when it is time to change the water
filter. When the indicator lamp stays on, then the
water filter has been utilised to about 80 % of its
expect ed lifetime. In t his situation, it is recommended that you buy a replacement filter. When the
indicator lamp starts flashing, the water filter has
been utilised to 100% of its lifetime. Replace the
filter without delay.
After replacing the filter cartridge, see the section
"Service during operation". The indicator lamp can
be switched off by holding the button for ordinary
water (J) pressed in for about three seconds until the
indicator lamp goes out.
Switching off
Switch off the cabinet by pressing the power switch.
Keep the button pressed for approx. 1 second.
Power to the cabinet is completely
interrupted only when the power plug is
disconnected.
ACTION
5
COOL
Cabinet interior

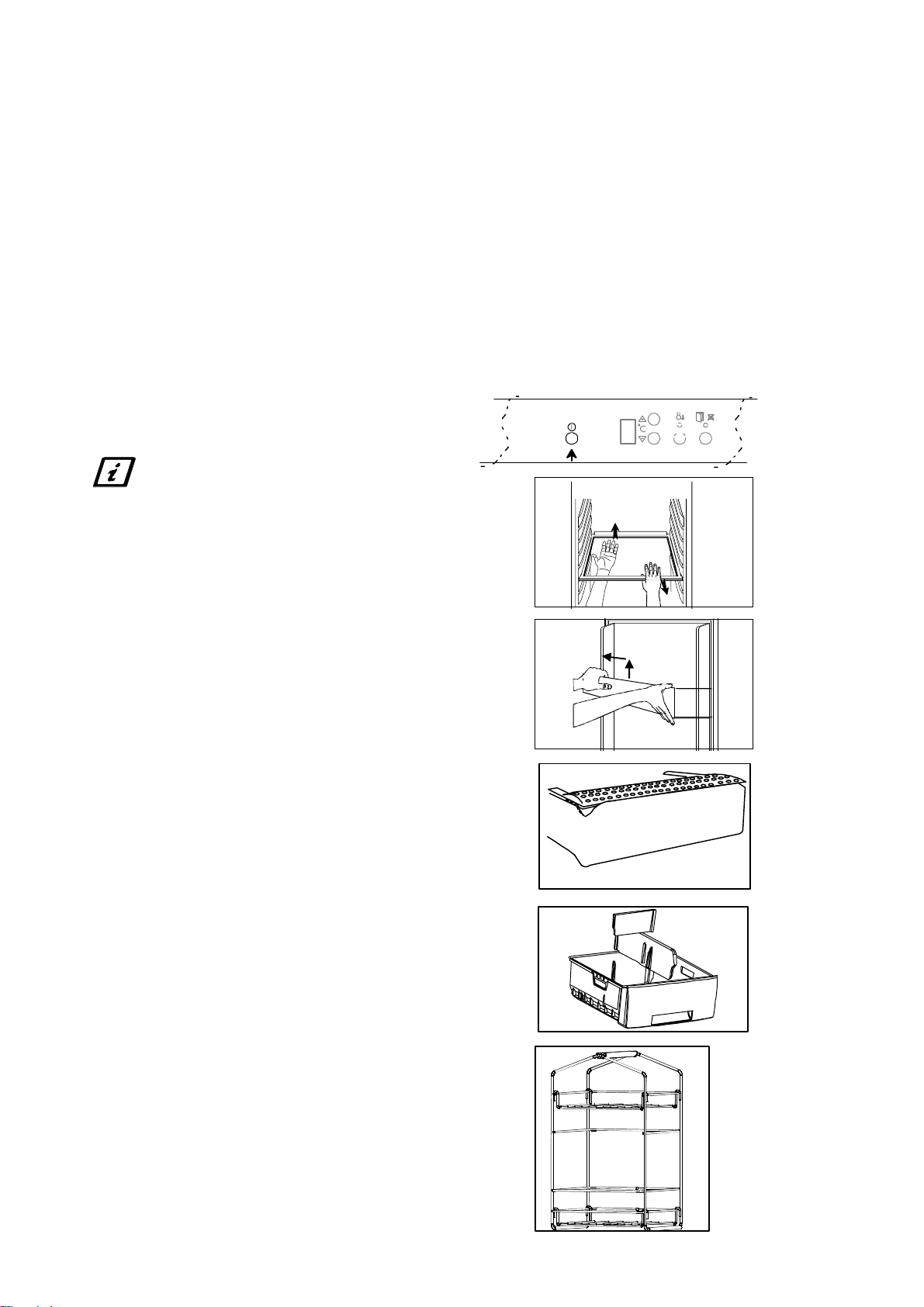

The shelves and door compartments are removable
and can easily be re-arranged.
Certain shelves must be lifted up by the rear edge to
enable them to be removed.
The lower door compartment and the glass shelf
above the salad drawer must not be moved. They are
required for proper air circulation inside the cabinet.
Shelves with a raised edge should be placed with the
raised edge facing the rear wall of the cabinet.
The vegetable box has a ventilation edging to
increase the circulation of air and reduce the risk of
condensation.
The vegetable box has two moveable partitions with
five different choices in order to separate different
vegetables.
Thewirebaskets
The refrigerator is fitted with two wire baskets,
which can be lifted out and provide space in front of
the service cover.
The wire baskets can al so be used for bottles/foodstuffs or as "breakfast baskets".
The upper shelf can be moved.
Electrolux 8183823-00/7
7
Page 8

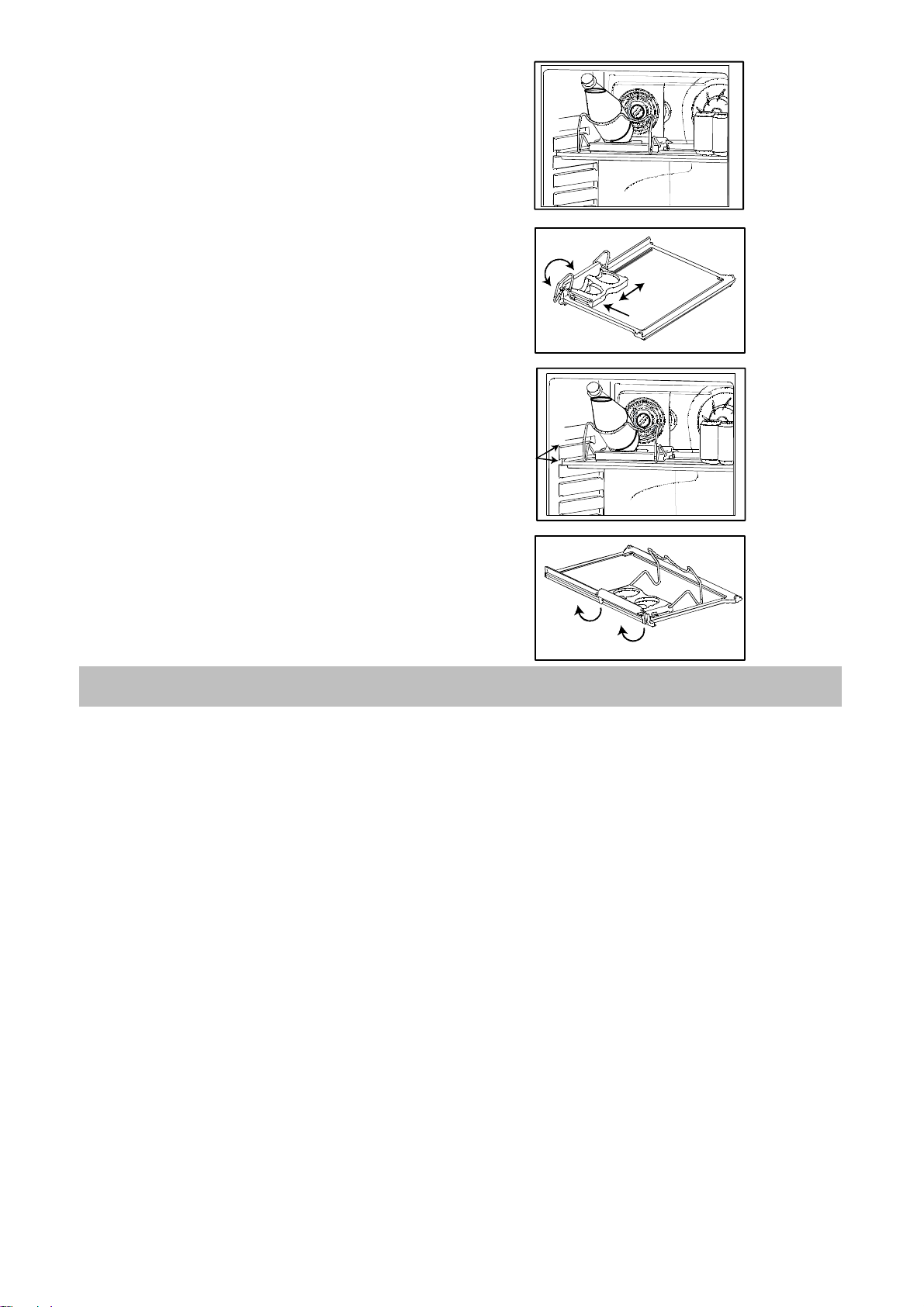

Bottle- and can holder
The side of the bottle and can holder is moveable to
enable a more flexible placement of cans and bottles
in front of the grid. To allow the holder to be moved
easier, when moving sideways, press the shelf
backwards.
During chilling of cans or bottles the article should
be centrally placed in front of the grid to obtain the
best chilling effect.
The bottle support can be pulled out when chilling
larger bottles.
For a description of this functions start and stop, see
under heading Quick Chill.
Quick chill shelf:
The lower Quick chill shelf can be placed in one of
the upper grooves. To maintain the best performance
the shelf should be placed in the second groove from
the top.
Dismantling of the bottle-- and can
holder.
Take out the Quick Chill shelf with holder from the
cabinet.
To loosen the holder from the shelf, bend the
hooks/brackets that surround the backside of the
shelf.
Hints and Tips
Energy Saving Advice
· Pay careful attention to where the cabinet is
placed. See the section "Installation". When
installed correctly, the cabinet will consume less
energy.
· Try to avoid keeping t he door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
· Ensure there are no obstructions preventing the
door from closing properly.
· Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of
the refrigeration unit
· It is advisable to periodically clean the
refrigeration system at the back of the appliance
with a duster or vacuum cleaner.
· Always leave warm food to cool downn to room
temperature before placing in the fridge.
· Make sure the door gasket is complete and
always clean.
Food Storage
· To obtain the best results from your appliance,
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
· Avoid buying frozen food if you can not store it
straight away. The use of an insulated container is
advisable. When you arrive home place the
frozen food in the freezer immediately.
· Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure that food
is consumed at its best.
Remove suspect food from you refrigerator and
clean, refer to cleaning and maintenance.
Normal Operating Sounds
· You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator.
· When the compressor is on, the refrigerant is
being pumped round, and you will hear a
whirring sound or pulsating noise from the
compressor.
· A thermostat controls the compressor and you
will hear a faint " click" when the termostat cuts
in and out.
Electrolux 8183823-00/7
8
Page 9
Maintenance and Cleaning
Removing the ventilation grille
The ventilation grille can be removed, e.g. to wash
the grille.
Make sure the door is open when removing the
ventilation grille. Unsnap the upper edge of the grille
by pulling outward/downward. Then pull the grille
straight out to completely remove it.
Internal Cleaning
Clean the cabinet at regular intervals.
Don't use detergents, abrasive powders,
high perfumed cleaning products, wax
polishes or cleaning products
containing bleach or alcohol when
cleaning the product
Internal Cleaning
Disconnect the appliance from electricity supply.
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0,5 litre water)
Rinse and dry thoroughly.
Regularly check the door seals and wipe clean to
ensure they are clean and free from debris.
External Cleaning
Use water/neutral soap emulsion for cleaning the
surface of stainless steel, anti-finger-print coated.
Absolutely not to use abrasive paste.
Wash the outer cabinet with warm soapy water.
Remove the ventilation grille (see the section
"Removing the ventilation grille") and vacuum-clean
under the cabinet. Once or twice a year dust the
condenser (black grille) and the compressor at the
back of the appliance, with a brush or vacuum
cleaner, as an accumulation of dust will affect the
performance of the appliance and cause excessive
electricity consumption.
Servicing and cleaning the water
dispenser.
Never use cleaning agents with a grinding or
aggressive effect.
When necessary, clean the surfaces of the dispenser
and the water container that are accessible from the
outside, using only a soft cloth and warm water.
The dispenser drip bowl can be cleaned with a tepid
solution of manual dishwashing agent and water.
If the system is not be used for a long period, it is
advisable to remove the filter and empty out the
water. Then place it in a sealed plastic bag. Store the
filter in a freezer. Turn off the water connection to
the refrigerator.
When the refrigerator is to be used again, rinse the
system through thoroughly by draining off at least
three litres (5 pints) of water. Before re-fitting the
filter, all its parts must be thoroughly thawed out.
If necessary, all systems containing water must be
sanitized.
When moving the cabinet, lift it by
the front edge to avoid scratching
the floor.
Electrolux 8183823-00/7
9
Page 10
Service during operation

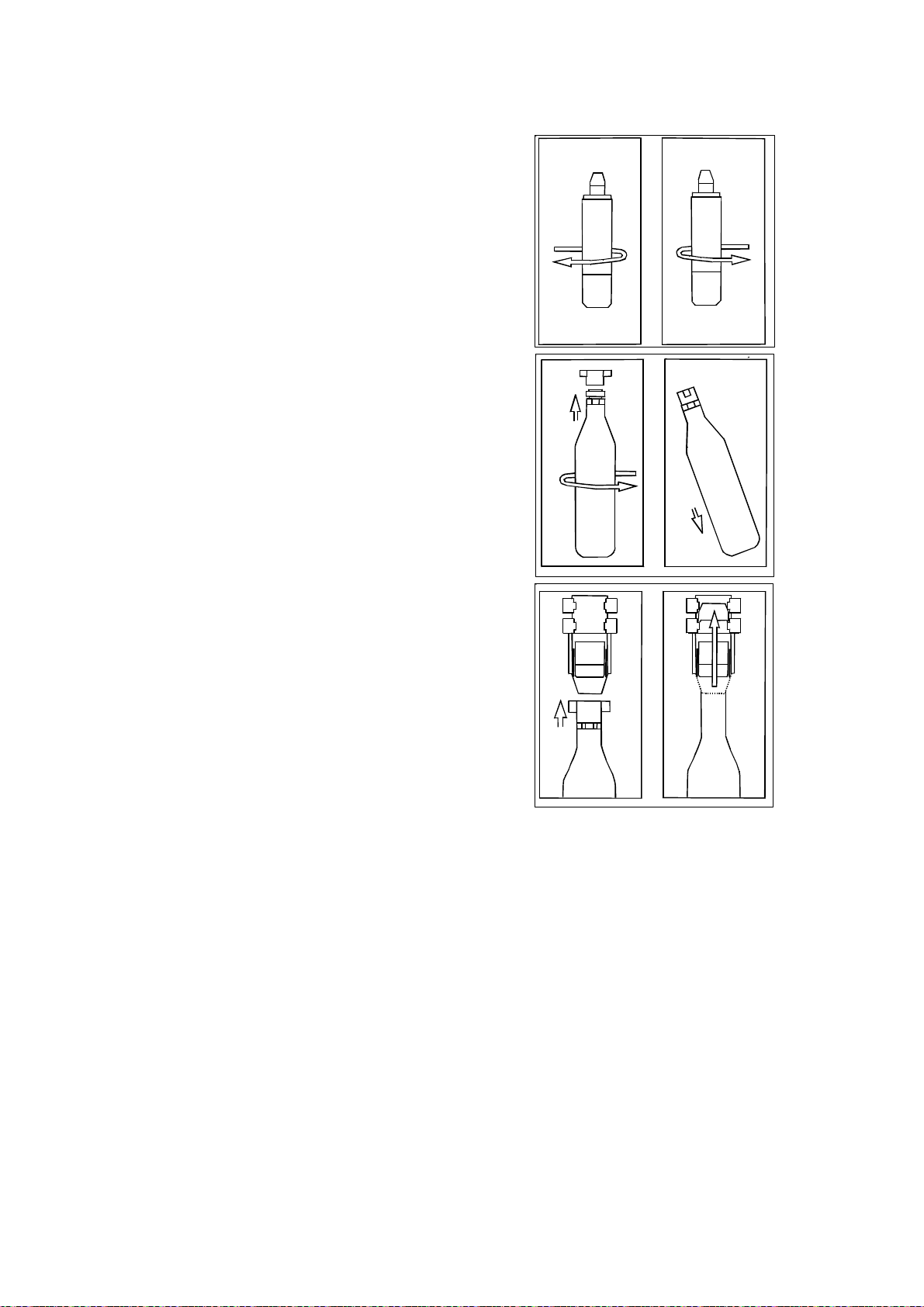

The water filter is replaced as follows:
Place a piece of kitchen tissue or a dishcloth in the space under the filter. Remove the filter by turning it
clockwise. A small amount of water will run out. Dry off and fit the new filter.
See the section " When starting the water system for the first time".
The water connection does not need to be switched off when changing the filter.
Replacement filters can be ordered from Electrolux Service Force Centre. See the section "Service and spare
parts".
The gas cylinder is replaced as follows: remove the gas cylinder and move over the adapter to the new cylinder.
The replacement gas cylinder is obtained through your local dealer.
Defrosting the fridge
The fridge is defrosted automatically every time the
compressor stops. Frost formation can be prevented
by:
· not putting warm foodstuff inside the cabinet.
· avoiding frequently opening the door or keeping
it open too long.
To change the light bulb
The light is switched on automatically when the
door is opened. Before replacing the light bulb,
disconnect the power plug from the outlet.
Cut the packaging around the bulb socket.
Keep the packaging on to hold the bulb when setting
it into the socket. Do not touch the bulb with your
bare fingers. Halogen light bulbs are sensitive to
grease from the skin.
Use a clear, UV-blocked, low-pressure type halogen
light bulb. Socket G4. Voltage 12 V. Power rating
20 W/bulb.

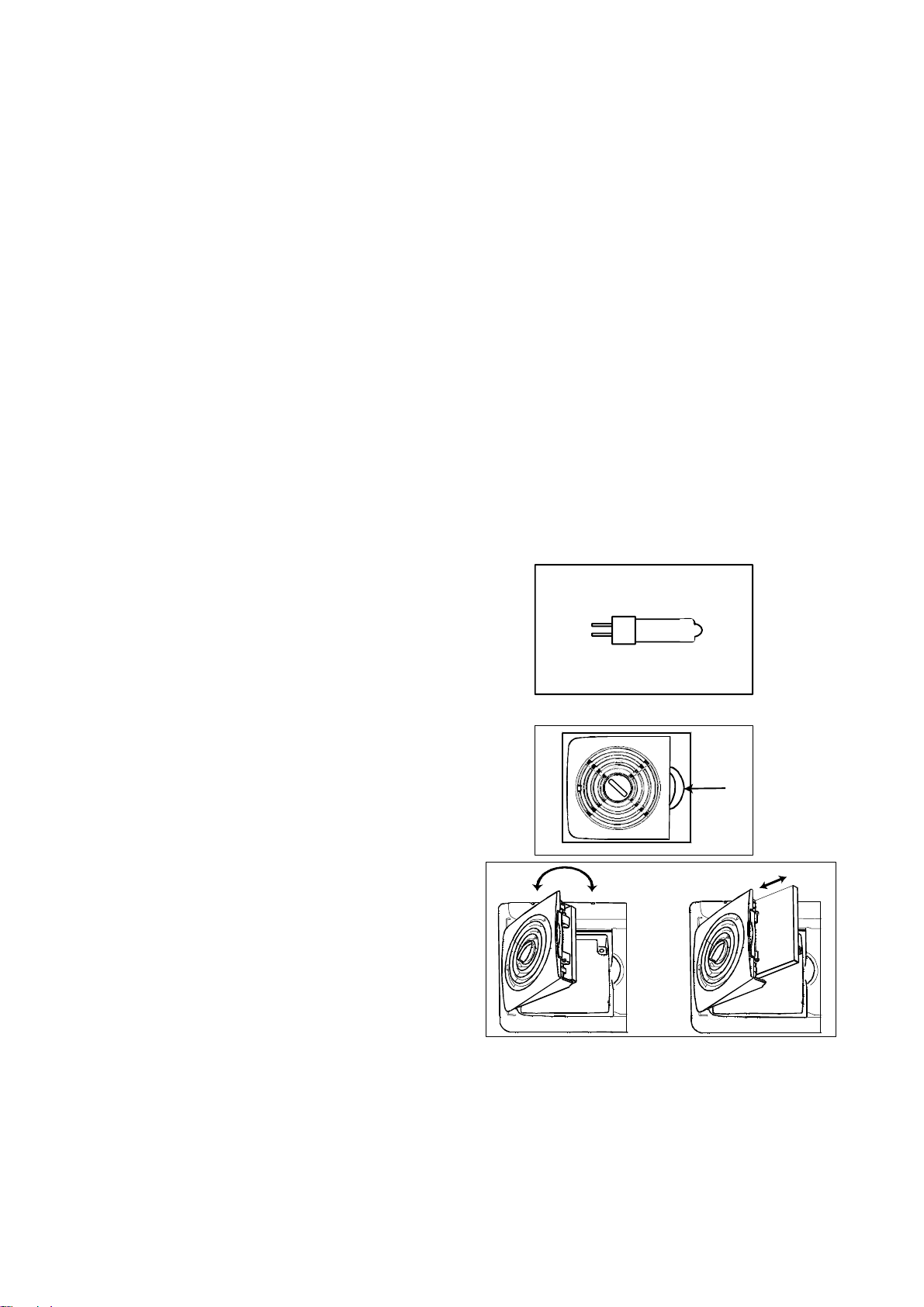

Installation of carbon filter
To maintain the best performance the carbon filter
should be changed once a year with normal usage.
New carbon filters can be purchased from your local
dealer. The filter is placed behind the grill and can be
reached by opening the cover. The cover can be
opened by simultaneously pressing the lever on the
right of grill (1) and turning the cover outward (2).
The carbon filter is then pulled out of its slot (3).
The new carbon filter is placed in the existing slot The filter should be handled carefully so fragments
don't loosen from the surface.
G4
1
2
UV-blocked
Low pressure20W/12V
3
When the appliance is not in use
Disconnect the appliance from electricity supply.
Empty all foods and clean the appliance, leaving the
doors ajar to prevent unpleasant smells.
If the appliance is l eft on, e.g. while on holiday, ask
somebody to check it once in a while to prevent t he
food inside from spoiling in case of a power failure.
Electrolux 8183823-00/7
10
Page 11
Something Not Working
Before contacting your local Service Force Centre check the following points:
Symptom Solution
"" is displayed in the temperature
display.
The temperature is too high inside the
refrigerator.
It is too cold inside the refrigerator. Set a warmer temperature.
Water comes out on the floor. Pl ace the drain hose at the back of the appliance above the
The compressor operates continuously. Set a warmer temperature.
The cabinet does not operate at all.
Cooling or interior light does not
operate. No indicator lamps light.
An error has occurred in measuring the temperature. Call your
service representative. (The cooling system will continue to
keep food products cold, but temperature adjustment will not
be possible.)
Set a lower temperature.
Put food products in the right place inside the refrigerator. See
the chapter "Temperature inside the refrigerator".
Distribute the food products to allow cold air to circulate
around them.
Make sure that the door is completely closed and that the
rubber door seal is complete and clean.
drain bowl. See the chapter "B efore use"
Make sure that the door is completely closed and that the
rubber door seal is complete and clean.
Power does not reach the appliance. (Try connecting another
electrical device to the power outlet.)
The appliance is not switched on.
The fuse has blown.
The power plug is not properly connected.
Noise The refrigerating system will always produce some sounds. A
pulsing sound is heard when coolant is pumped inside the
cooling pipes. A ticking sound from the thermostat can be
heard when the compressor switches on and off. The sound
level varies depending on the operation of the cabinet.
If you feel the sound level i s incorrect:
Make sure the pipes at the back of the cabinet not touch each
other. Carefully bend them if they do.
If the cushion spacers (between the cabinet wall and pipes)
come loose, put them back in place again.
Carefully follow the instructions in the chapter "Installing the
cabinet".
Not enough carbon dioxide in the water Incoming water pressure too low.
Drain off a large amount of carbonated water (about 1 litre)
The carbon dioxide is running out. Replace the gas cylinder.
Storage temperature too high. Lower the temperature in the
refrigerator.
Too much carbon dioxide in the water Dilute with ordinary water. (See the section "The water
dispenser functions")
No carbon dioxide. The gas cylinder is empty. Replace the gas cylinder.
Drain off a large amount of carbonated water (about 1 litre)
Incoming water pressure too low.
11
Electrolux 8183823-00/7
Page 12
Water flow very low Remove and clean the strainer in the connecting valve.
Sediment in the water. Replace the filter or install a pre-filter.
Only gas comes out when opening Incoming water pressure too high. Install a pressure-limiting
device.
Capacity temporarily exceeded. W ait for ten minutes.
The water dispenser lamp flashes Leakage at the water connection. Remedy the leakage and
empty the box by pulling out the red plug.
See the illustration in "Connecting the water hose".
Theindicatorlampflashes. The filter has been totally utilised. Replace the filter.
The indicator lamp stays on and shows
yellow
Delivery is interrupted after a short time The maximum time of two minutes is attained. Continue with
80 % of the filter capacity expended. Buy a new filter.
delivery.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase s pare parts please contact your
local Service Force Centre by telephoning:
08705 929929
Your tephone call be automatically routed the Service Force Centre covering your post code area.
For t he address of your local Service Force Centre and further information about S ervice Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading "Something Not
Working".
When you contact the S ervice Forse Centre you will need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date.......................................................
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
Customer Care Department
For general enquiries concerning your Electrolux appliance or further information on Electrolux products, you
are invited to contact our Customer Care Department by letter or phone as follows or visit our website at
www .electrolux.co.uk
Customer Care Department
Major Appliances
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel: 08705 950950*
* calls to this number may be recorded for t raining purposes.
Standard Guarantee Conditions
Standard Guarantee Conditions
See Guarantee Conditions on the Registration Card.
12
Electrolux 8183823-00/7
Page 13

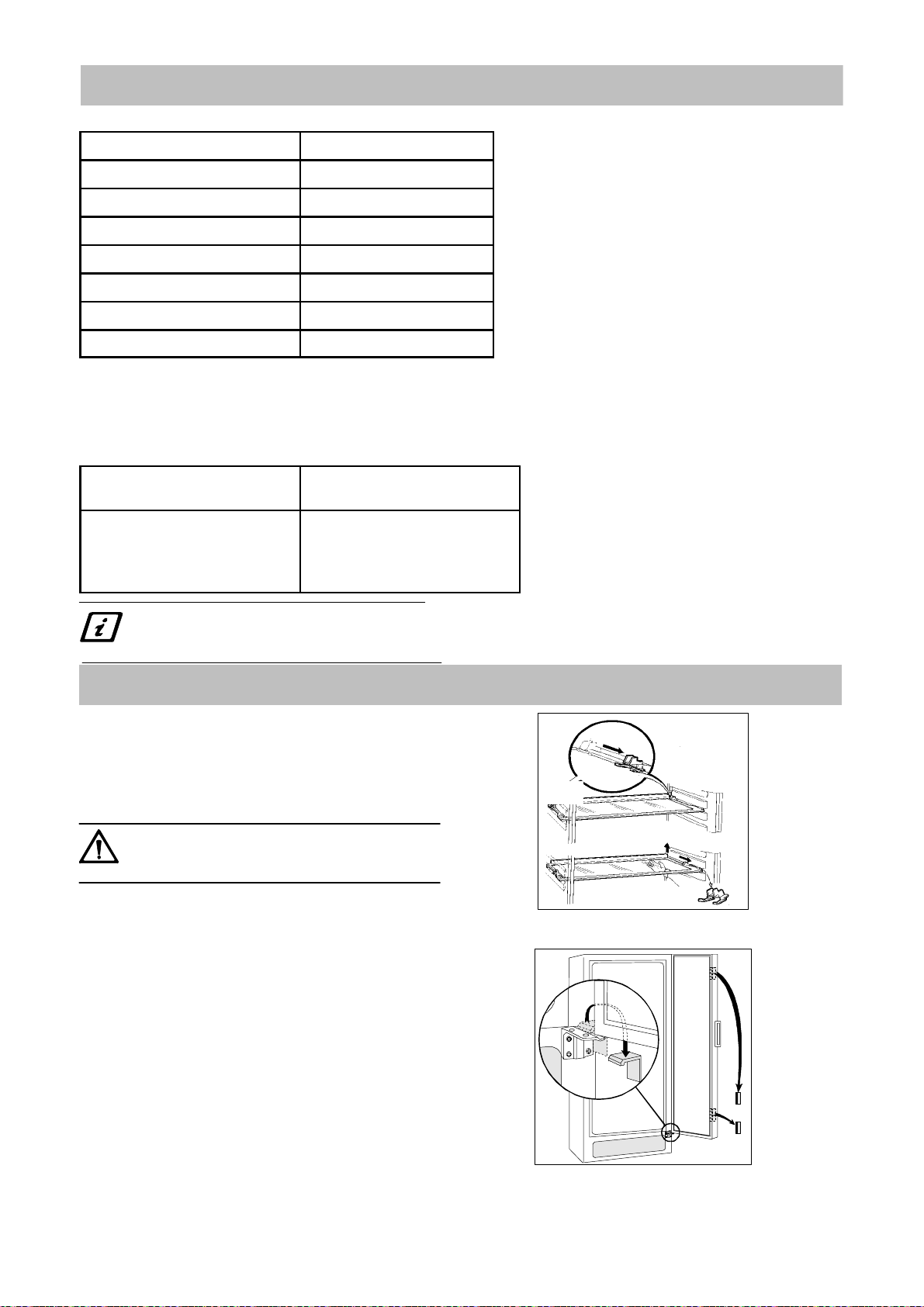

Technical Specification
Model ERES3500/ERES3500X
Volume Refrigerator 311 l
Width 595 mm
Height 1800 mm
Depth 650 mm
Energy consumption 175 kWh/år
Energy class A
Rated power 70 W
Permissible water pressure (to
ensure reliable function)
The total flow in the system can vary, depending on
local water conditions and/or water pressure.
Lowest permissible water
pressure. 2,5 bar (250kPa)
Highest permissible water
pressure. 5 bar (500kPa)
In case of extreme humidity, please open
the slots totally.
.
Consult your installer if water
pressure is less than 2,5 bar.
If water pressure exceeds 5
bar, than a reduction valve
must be fitted (available from
your specialist shop).
Installation
Unpacking
Unpack the appliance and check that it is in good
condition and free of any transport damage. Notify
the dealer immediately of any damage. Hand the
packaging over for recycling.
Do not allow children t o play with the
packaging. The plastic film can cause
suffocation.
Removing the transport supports
Remove the tape and the t ransport supports from
· the door sides
· inside the door hinges
· the shelves
Remove the transport support on the glass shelf by
pushing the support forward along the edge of the
shelf until it stops. Take hold of the rear edge of the
glass shelf and pull the shelf and transport support
forward until the shelf tilts and the transport support
can be removed. Some models are fitted with a
silencing pad under the appliance. Do not remove
this pad.
Electrolux 8183823-00/7
13
Page 14

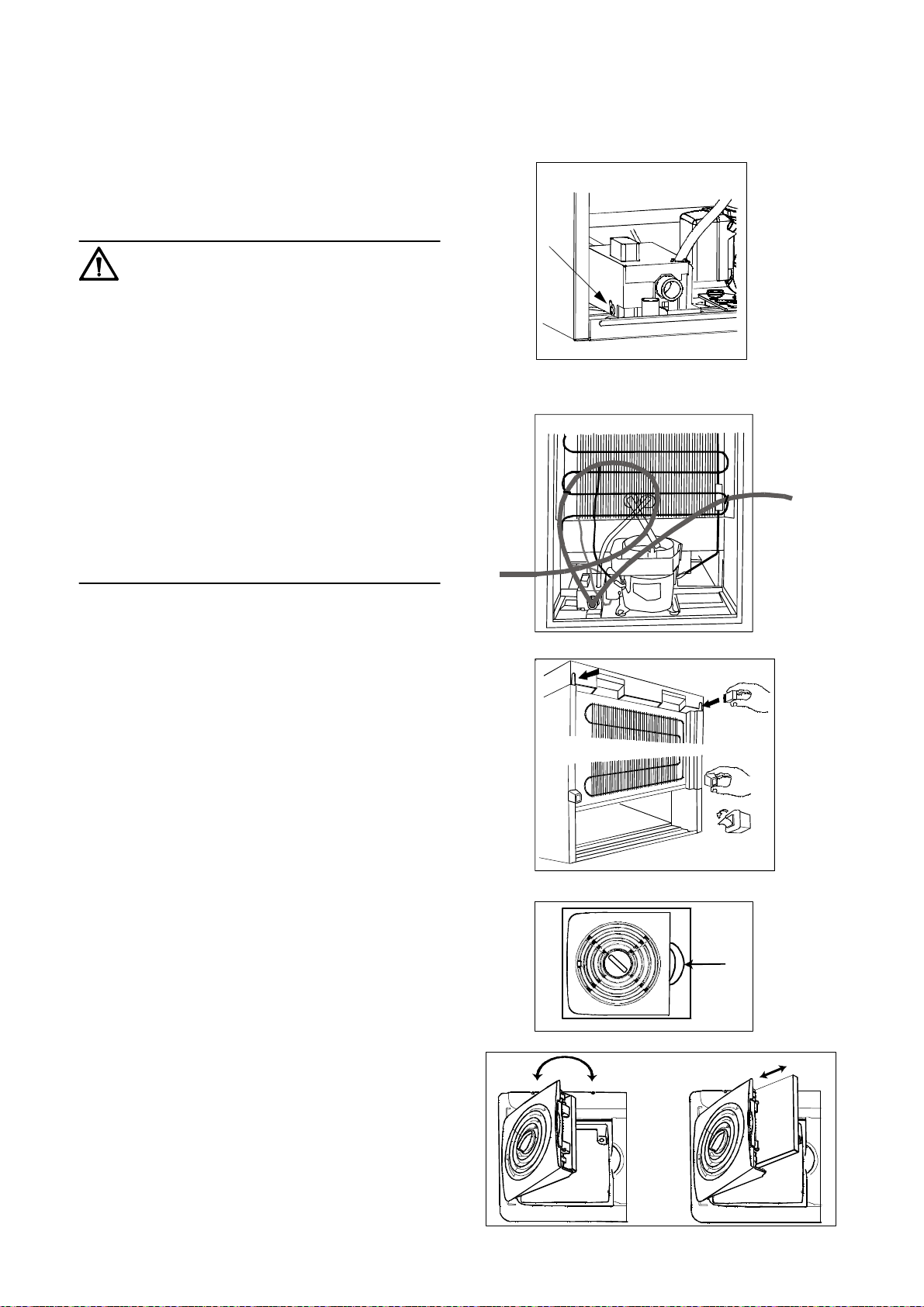

Cleaning
Wash the inside of the appliance using lukewarm
water and bicarbonate of soda (5 ml to 0,5 litre of
water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Connecting the water hose.
Remove the transport protector from the
valve connector, see the illustration.
Connect the water hose supplied with the
hose fitting to the refrigerator water valve,
which is located in a box behind the refrigerator.
Place the hose in the desired direction and then
tighten the connecting nut properly to prevent
leakage. The nut is only to be tightened by hand.
The water hose must not be cracked, squeezed
or be in tight bends. The hose is finally to be
fixed with the aid of the securing strip supplied.
The water coupling is then connected to a water
tap with an external 3/4 inch thread. This work
is to be carried out by a skilled plumbing
installation technician. The refrigerator is to be
connected with a shut-off cock. There are
different type-approved taps and tap assemblies
on the market.
If you require a longer water hose than that s upplied,
then a VDE-approved 150 38 85-02/0 supply hose
should be used.
Before the refrigerator is taken into use in its final
location, ensure that the water connection has been
correctly carried out, that there is no leakage at the
connection to the refrigerator water valve or to the
water tap, and that the four spacers are properly in
position, see the illustration.
Installation of carbon filter
On delivery the carbon filter is placed in a plastic
bag to secure the length of life of t he carbon filter.
The filter should be placed behind the grill before
the appliance is turned on.
Open the grill and mount the carbon filter.
The cover can be opened by simultaneously pressing
the lever on the right of grill (1) and turning the
cover outward (2). The carbon filter is t hen mounted
in the slot found in the back of the cover.
The filter should be handled carefully so fragments
don't loosen from the surface.
1
2
3
14
Electrolux 8183823-00/7
Page 15

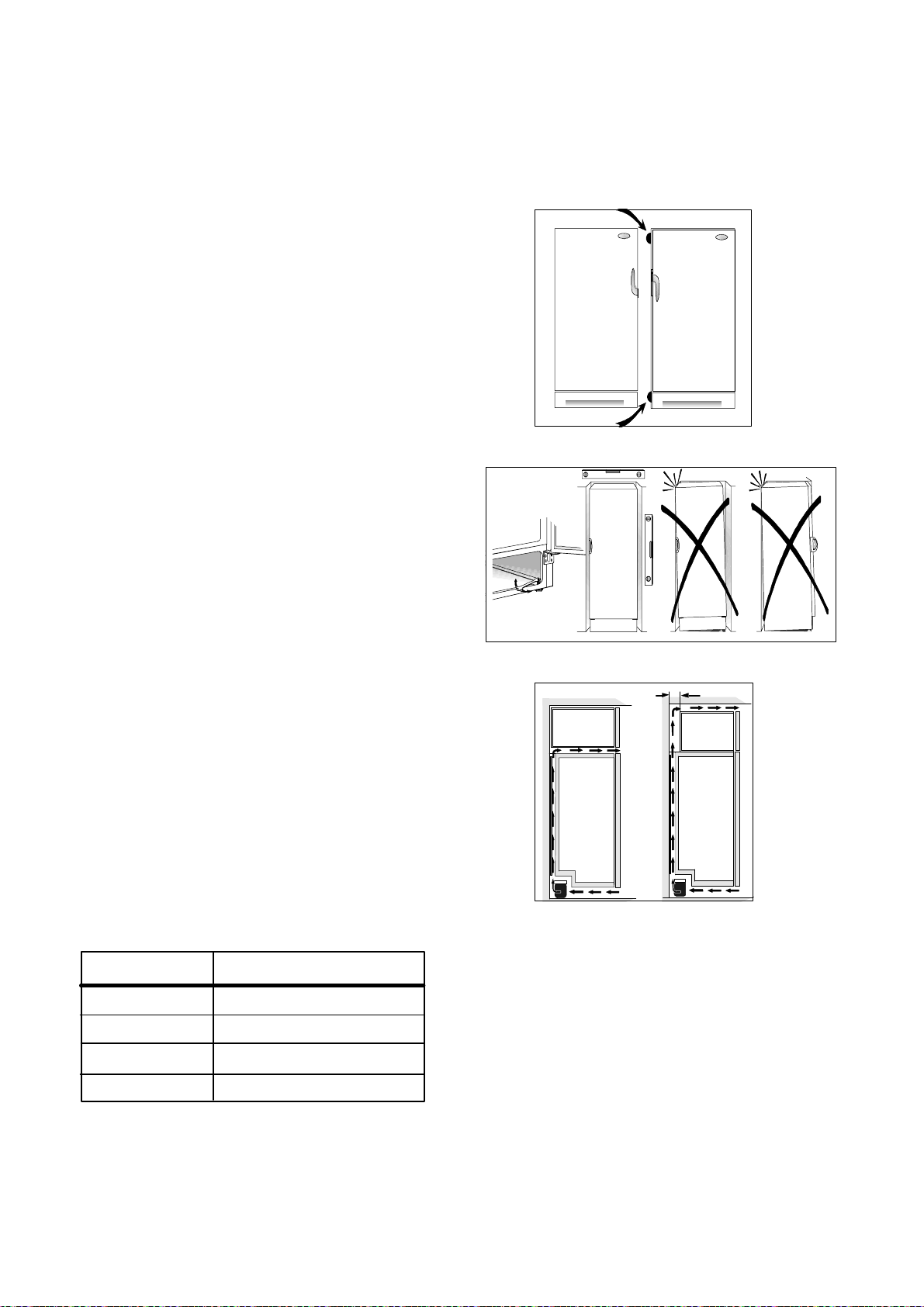

Electrical cord
)b)
Do not remove the power cord by pulling on its
lead, particulary when the product is being
pulled out of its niche.
· Damage to the cord may cause a short-circuit, fire
and/or electric shock.
· In the event of damage to the appliance's main
cable, only an authorised service company
recommended by the manufacturer or a similarly
qualified person may adjust it in order to avoid
shock hazard for the user.
Installing the appliance
When two appliances are placed beside each other,
the spacers enclosed in the plastic wrapping should
be glued between the appliances. As shown in the
illustration.
To obtain the best performance from the appliance,
ensure :
· the appliance is placed in a dry, cool place and
is not exposed to direct sunlight.
· the appliance is not placed close to a source of
heat, e.g. a cooker or dishwasher.
· the appliance is level. The appliance should not
lean against any wall. If necessary adjust the
feet using the adjustment spanner supplied.
· there is good air circulation around the appliance
and that the air channels below and behind
the appliance are not blocked. The ventilation
space above the appliance must be at least 4 cm.
The ventilation space can either be
a) directly above the appliance, or
b) behind and above the top cupboard. In this case,
the space behind the cupboard must be at least
50 mm deep.
The appliance must be placed at a location whose
ambient temperature corresponds to the climate
classification*, for which the appliance is designed.
* See on the rating plate on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate classification.
Climate
classification
SN
N
ST
T
for an ambient temperature of
+10°C to +32°C
+16°C to +32°C
+18°C to +38°C
+18°C to +43°C
a
50mm
If the appliance is placed in a corner and the side
with the hinges facing the wall, the distance between
the wall and the appliance must be at least 230 mm
to allow the door to open enough so that the shelves
can be removed.
Check that the drain hose at the rear of the appliance
discharges into the drip tray.
The power plug must be accessible after installation
of the appliance.
Electrolux 8183823-00/7
15
Page 16
When the water system is started
for the first time.
The following should be carried out when the
refrigerator is correctly connected to the water
supply in the building:
Open the tap on the water connection and start up
the refrigerator. The water system main valve opens
and the system starts to fill up. Wait for five
minutes.
Unpack the filter provided and connect it as
follows:
- Remove the filter protective cap and insert the filter
connector into the filter seat and turn as shown in the
illustration (1) until the filter engages and the
projection on the filter cartridge is opposite the mark
on the plastic cover. See also the illustration and the
instructions on the inside of the service hatch.
- Unlock the water dispenser. See the section "The
water dispenser functions" Select carbonated water
and drain off about 1.5 litres (2.5 pints) of water.
There may be some air to start with.
Connect the gas cylinder provided as follows:
- Take out the gas cylinder from plastic bag and
screw the gas cylinder into the adapter (3) for this
purpose, which is located in the valve, doing this by
hand without tools.
- Place the gas cylinder with adapter in the valve and
ensure that the valve bracket hooks are under the
counterhold on the adapter (5). Then turn up the
bracket lever (6) in one continuous movement. See
the illustration and the instructions on the inside of
the service hatch.
- Unlock the water dispenser and drain off a further
1.5 litres (2.5 pints) of water or until there are signs
that the carbonated water in the water dispenser is
startingtorun.
- The system is now ready for use. In order to obtain
the best possible performance from the refrigerator,
wait until the set temperature is reached. A low
temperature provides more carbon dioxide, a high
temperature less carbon dioxide.
1
3
56
2
4
Re-hanging the door.
It is not possible to re-hang the door. The water
supply goes through the hinge to the water dispenser.
Contact your dealer for more information.
Electrolux 8183823-00/7
16
Page 17

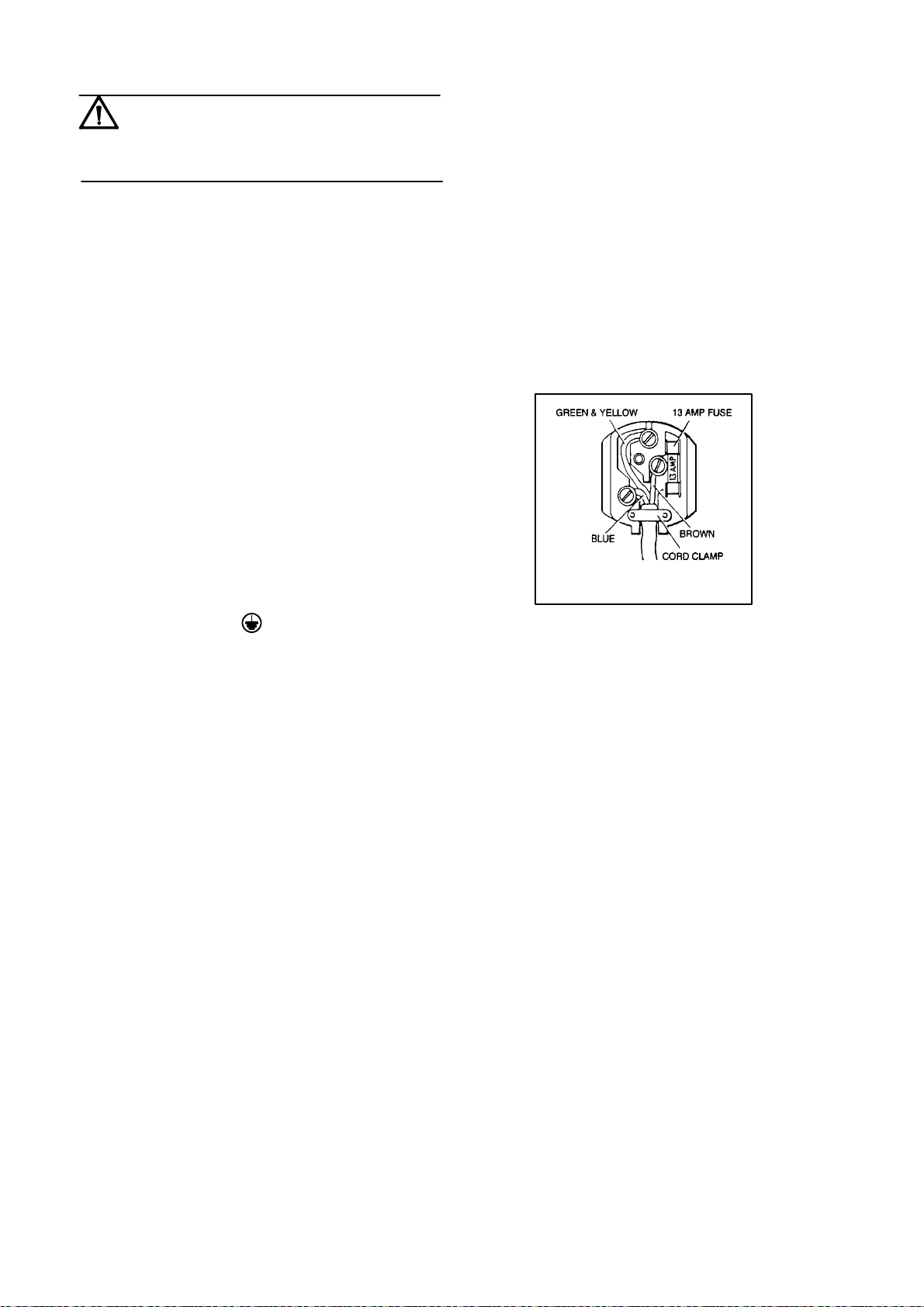

Electrical connection
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should
these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity
supply voltage is the same as t hat indicated on the
appliance rating plate.
The appliance i s supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1362) fuse
must be used.
Should the plug need to be replaced for any reason.
The wires in the mains lead are coloured in
accordance with the following code:
Green and yellow -Earth
Blue -Neutral
Brown -Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter "E"
or by the earth symbol
yellow.
The wire coloured blue must be connected to the
terminal marked "N" or coloured black
The wire coloured brown must be connected to the
terminal marked "L" or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
or coloured green and
17
Electrolux 8183823-00/7
Page 18
18
Electrolux 8183823-00/7
Page 19
19
Electrolux 8183823-00/7
Page 20
www.electrolux.com
MARIESTAD DT-AV
Loading...
