Electrolux ER7627B User Manual
fridge - freezers
INSTRUCTION BOOK
2222 039-28
ER 7626 B
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before
installing or using the appliance.
Installation
• This appliance is heavy. Care should be taken
when moving it.
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
• Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
• The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
Child Safety
• Do not allow children to tamper with the controls or
play with the product.
• Keep all packaging well away from children.
During Use
• This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
• Frozen food must NOT be re-frozen once it has
thawed out.
• Do not place carbonated or fizzy drinks in the freezer.
• Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions
or frost/freezer burns.
• Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.
• Manufacturers’ storage recommendations should be
strictly adhered to. Refer to relevant instructions.
• The cooling plate or refrigerated freezer shelves in
this appliance contain channels through which the
refrigerant passes. If these are punctured this will
cause substantial damage to the appliance and
result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Maintenance and Cleaning
• Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
Servicing
• This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always
insist on genuine spare parts.
At the end of the
Appliance Life
• When disposing of your appliance, use an authorised disposal site.
• Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
2
3
CONTENTS
2222 039-28
Instructions for the User
Important Safety Information
2
Description of the Appliance
4
Operation
5
Before use 5
To start the Appliance 5
Setting the temperature 5
Use of an air circulation slider control 5
Fresh food refrigeration 5
Movable shelves 6
The freezer compartment 7
Freezing fresh food 7
Frozen food storage 7
Thawing 7
Making ice cubes 7

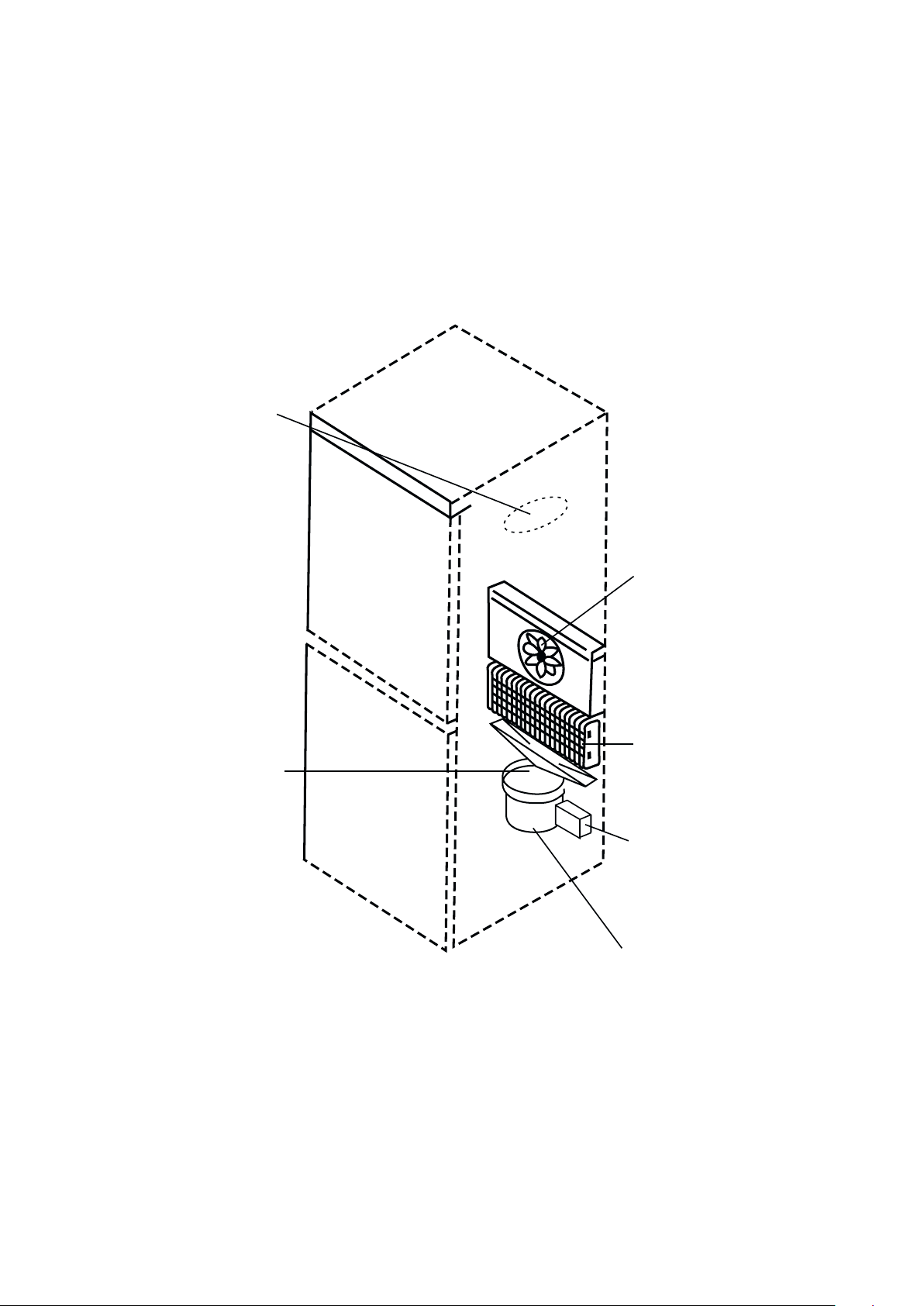

Normal operating sounds 8
Health and Safety Guidelines
9
Maintenance and Cleaning
10
Internal cleaning 10
External cleaning 10
When the appliance is not in use 10
Changing the light bulb 10
Defrosting 10
Something Not Working
11
Service and Spare Parts
12
Customer Care
12
Guarantee Conditions
13
Instructions for the
Installer
Technical Specification
14
Installation
15
Positioning 15
Rear Spacers 15
Electrical Connection
16
Door Reversal
17
DESCRIPTION OF THE APPLIANCE
4
A
B
C
D
J
I
H
G
F
E
10-
10-10-10-3-
3-3-3-
3-41-
MAXMIN
COOL FLOW CONTROL
A- Thermostat control for fridge and freezer compartments
B- Dairy compartment
C- Movable shelf
D- Bottle storage shelf
E- Air circulation slider control
F- Wire shelves
G- Glass shelf
H- Salad drawers
I - Compartment for freezing fresh foods
J- Compartments for frozen food storage
17

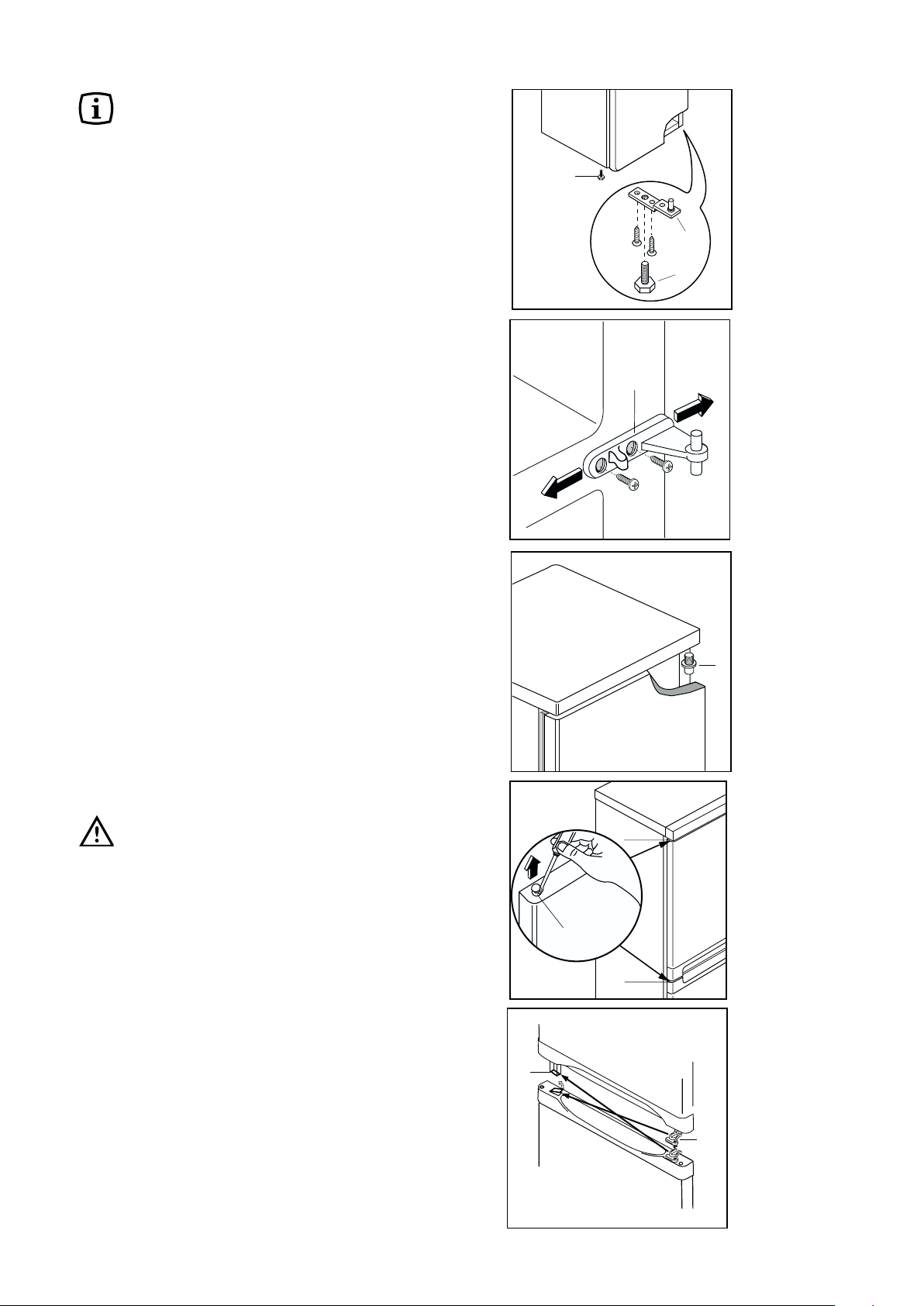

Door reversal directions
1. Disconnect from the electricity supply.
2. Remove all loose items, including food, store food
in a cool place.
3. Gently lay the fridge/freezer on its back with the
top held away from the floor by 5-8 cm (2-3
inches) of packing.
4. Remove the feet (B).
5. Remove bottom hinge (A).
6. Remove the freezer door by releasing it from the
middle hinge (C).
7. Unscrew the middle hinge.
8. Slide out the fridge door from pin (D), unscrew pin
(D) and then screw it down into the hinge
provided on the opposite side, after having
removed the small plugs (I) which should then be
fitted on the opposite side.
9. Remove blanking plug (E).
10.Remove door closure device (F) from the upper
door and refit it on the opposite side of the bottom
door.
11.Remove door closure device (F) from the bottom
door and refit it on the opposite side of the upper
door.
12.Refit the blanking plug (E) on the opposite side.
13.Refit the fridge door and replace the middle hinge
to the left hand side.
14.Replace the door and bottom hinge (A) on the
opposite side.
15.Refit the feet (B).
Attention
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a low setting.
D752
E
F
D715 PIED/M
A
B
B
I
I
I
D
D590
PR24/2
C
Door closure device
The appliance is provided with a door closure device
which guarantees correct closing of the doors.
Remove blanking plugs E and transfer the closure
device F to the opposite door position and refit the
blanking plugs into the vacant holes.
5
OPERATION
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Setting the temperature
The temperature inside the appliance is regulated by
a thermostat with 6 temperature positions and an
“OFF” (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable (3-4).
The thermostat control regulates the temperature
both within the fridge and the freezer compartment.
The thermostat setting can vary as the temperature
inside the appliance depends on the following
factors:
– room temperature
– how often the door is opened
– how much food is stored
– position of the appliance
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; cover
or wrap the food, particularly if it has a strong flavour.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & chicken or poultry):
wrap in polythene bags and place on the glass shelf
above the salad drawers.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the salad drawers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
To Start the Appliance
Allow the appliance to stand for 2 hours after
installation.
Plug in the appliance and switch on at the mains
supply. Open the fridge door. Turn the thermostat
control to a midway setting (3-4) and adjust the slider
control, situated on the back wall of the fridge
section, to a midway position between “MIN” and
“MAX”. Leave the appliance for approximately 4
hours for the correct temperature to be reached
before placing food inside.
To switch off the appliance turn the thermostat
control to position “O”
Use of an air circulation slider
control - COOL FLOW CONTROL
Your appliance has an air circulation slider control
situated at the rear of the fridge compartment, which
controls the amount of cold air circulated through the
fridge compartment.
When the ambient temperature is between 10°C and
16°C, the slider control should be in the “MIN”
position.
When the ambient temperature is above 16°C the
slider control should be midway between “MIN” and
“MAX”.
When the ambient temperature is very high (i.e. hot
summer days) position the slider control to “MAX”.
D757/1
MIN
MAX
COOL FLOW CONTROL
MIN MAX
COOL FLOW CONTROL
D756
6
Warning
If using the appliance with the salad drawer
removed, please ensure the vent in the back wall of
the appliance is not obstructed.
Movable shelves
The walls of the refrigerator have runners so that
shelves can be positioned as desired.
The door shelves can be easily removed for
cleaning. Gently ease the shelf in the directions
shown.
Adjustment of the door shelves can be made to
accommodate varying heights of bottles and other
containers. Store light items such as small cartons
and jars on the door shelves.
The bottle shelf can be used for the storage of
heavier bottles.
D040
PR189/1
15
INSTALLATION

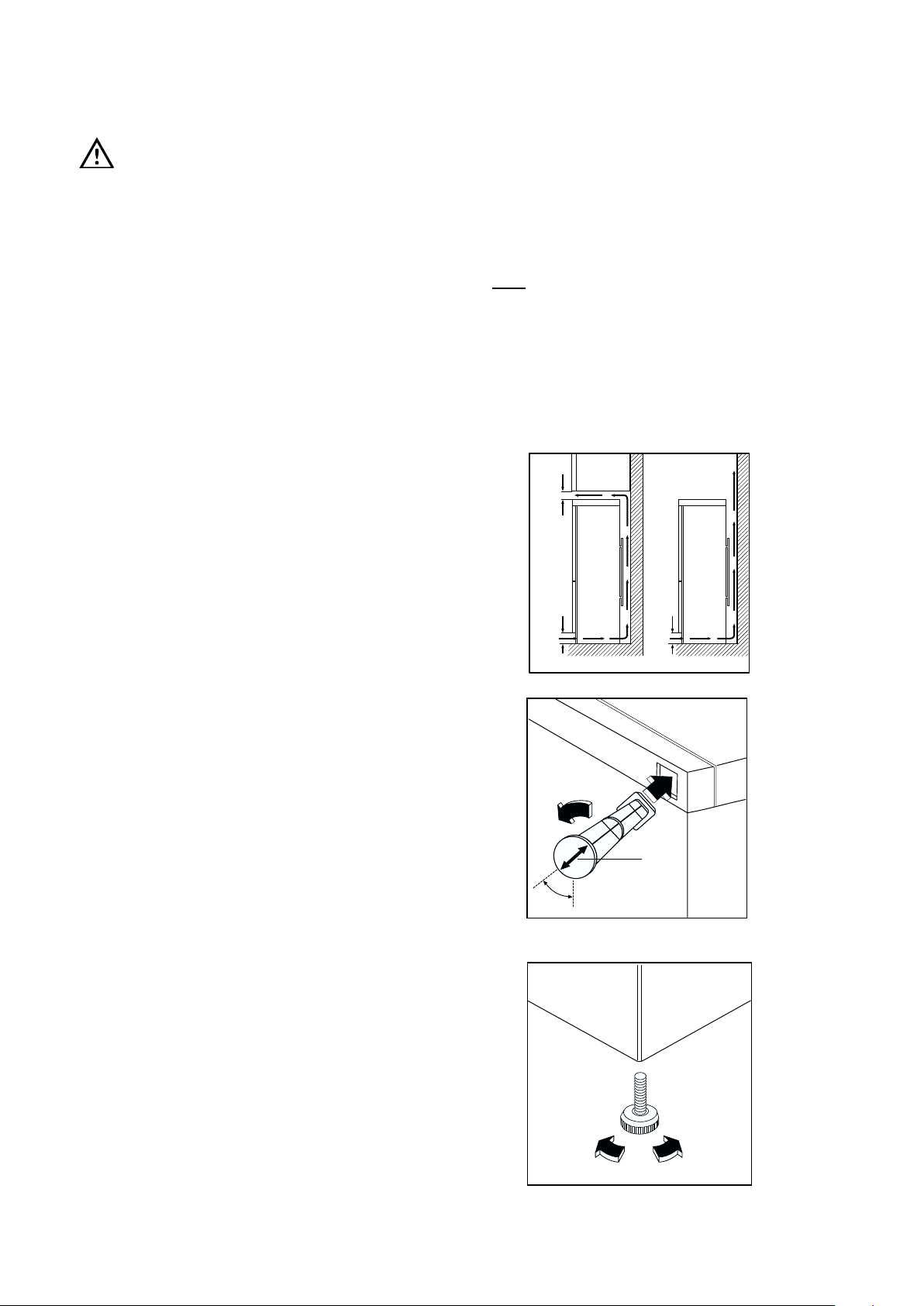

Positioning
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located at the left on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate classification:
SN +10°C to + 32°C
N +16°C to + 32°C
ST +18°C to + 38°C
T +18°C to + 43°C
It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse, where the temperatures may
fall below 10°C (50°F). If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4”) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).
There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space
underneath.
Rear spacers
The plastic bag containing all relevant
documentation also contains two spacers to be fitted
into special holes in the back of the appliance.
Fit the spacers into the holes, taking care to ensure
that the arrow (A) is positioned as shown in the
diagram. Then turn them through 45° (arrow (A)
vertical) until they lock into place.
DO NOT install in places with restricted ventilation.
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet.
D200
NP002
100 mm10 mm
10 mm
A
B
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Important
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
PR60
A
45°
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions” paragraph.
7
Making ice cubes
The appliance is provided with one or more trays for
ice-cubes trays.
Fill the tray(s) 3/4 full to give the ice space to expand
and place them in the freezer compartment.
To release the ice cubes simply give the tray a slight
twist.
Do not use sharp or metallic instruments to remove
the trays from the freezer.
The freezer compartment
The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.
Freezing fresh food
When freezing fresh foods set the slider control to
the “cold” position and turn the thermostat control to
a higher setting.
In any 24 hours you can freeze up to 6 kg.
Place food to be frozen in the upper drawer of the
freezer as this is the coldest part.
After 24 hours reposition the slider control and
thermostat control to previous setting.
Important
To ensure correct operation of the appliance do not
use the appliance with the basket or drawers
removed.
Thawing
Frozen food can be thawed in the fridge or at room
temperature depending on the time available. Small
food items may even be cooked from frozen; in this
case cooking will take longer.
Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible or thrown away. Alternatively, if the food is
uncooked and has not been completely defrosted it
can be cooked and then refrozen.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
A microwave oven is particularly suitable for thawing
frozen food: follow the oven instructions, particularly
regarding the placement of aluminium wrapping or
containers in the oven.
Defrosted cooked food must never be refrozen.
Important!
In the event of a power failure - DO NOT OPEN
THE DOOR, the food in the freezer will not be
affected if the power cut is short and the freezer
is full.
If the temperature in the freezer rises, and the
food begins to thaw, do not re-freeze the food
without checking its conditions.
The following guidelines should assist you.
Ice-cream: once thawed should be discarded.
Fruits & Vegetables: if soft should be cooked and
used up.
Breads & Cakes: can be re-frozen without danger.
Shellfish: should be refrigerated and used up
quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: can be re-frozen providing
there are still ice crystals remaining within them.
Small Joints: should be cooked and can then be refrozen as cooked dishes.
Chicken: should also be cooked and re-frozen as a
cooked dish.
Frozen food storage
Frozen food can be stored in any basket or drawer of
the freezer compartment, including the fast freeze
compartment.
Do not exceed the storage period indicated by the
manufacturer.
Do not open the door frequently or leave it open
longer than is absolutely necessary.
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice lollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.
Loading...
