Electrolux ER 7620 C User Manual
fridge
INSTRUCTION BOOK
2222 186-25
ER 7620 C
2
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before
installing or using the appliance.
Installation
• This appliance is heavy. Care should be taken
when moving it.
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from the
manufacturer or its service agent.
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
• Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
• The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
Child Safety
• Do not allow children to tamper with the controls or
play with the product.
• Keep all packaging well away from children.
General Safety
• Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
• The appliance must not be located close to radiators or boilers.
• Avoid prolonged exposure of the appliance to
direct sunlight.
• Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
During Use
• This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
• Frozen food must NOT be re-frozen once it has
thawed out.
• Do not place carbonated or fizzy drinks in the
freezer.
• Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
• Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.
• Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
• The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Maintenance and Cleaning
• Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
Servicing
• This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always
insist on genuine spare parts.
At the end of the
Appliance Life
• When disposing of your appliance, use an authorised disposal site.
• Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
3
CONTENTS
2222 186-25
Instructions for the User
Important Safety Information
2
Description of the Appliance
4
Operation
5
Before use 5
Setting the temperature 5
Fresh food refrigeration 5
Normal operating sounds 5
Positioning the inner shelves 6
Positioning the door shelves 6
Health and Safety Guidelines
6
Maintenance and Cleaning
7
Internal cleaning 7
External cleaning 7
When the appliance is not in use 7
Changing the light bulb 7
Defrosting 7
Something not working
8
Service and Spare Parts
9
Customer Care
9
Guarantee Conditions
10
Instructions for the
Installer
Technical Specification
11
Installation
12
Positioning 12
Rear Spacers 12
Electrical Connection
13
Door Reversal
14
4
DESCRIPTION OF THE APPLIANCE
E
F
G
H
A
C
D
B
A - Thermostat control
B - Dairy Compartment
C - Movable shelf
D - Can storage shelves
E - Bottle storage shelf
F - Salad crisper
G - Glass shelf
H - Storage shelves
13

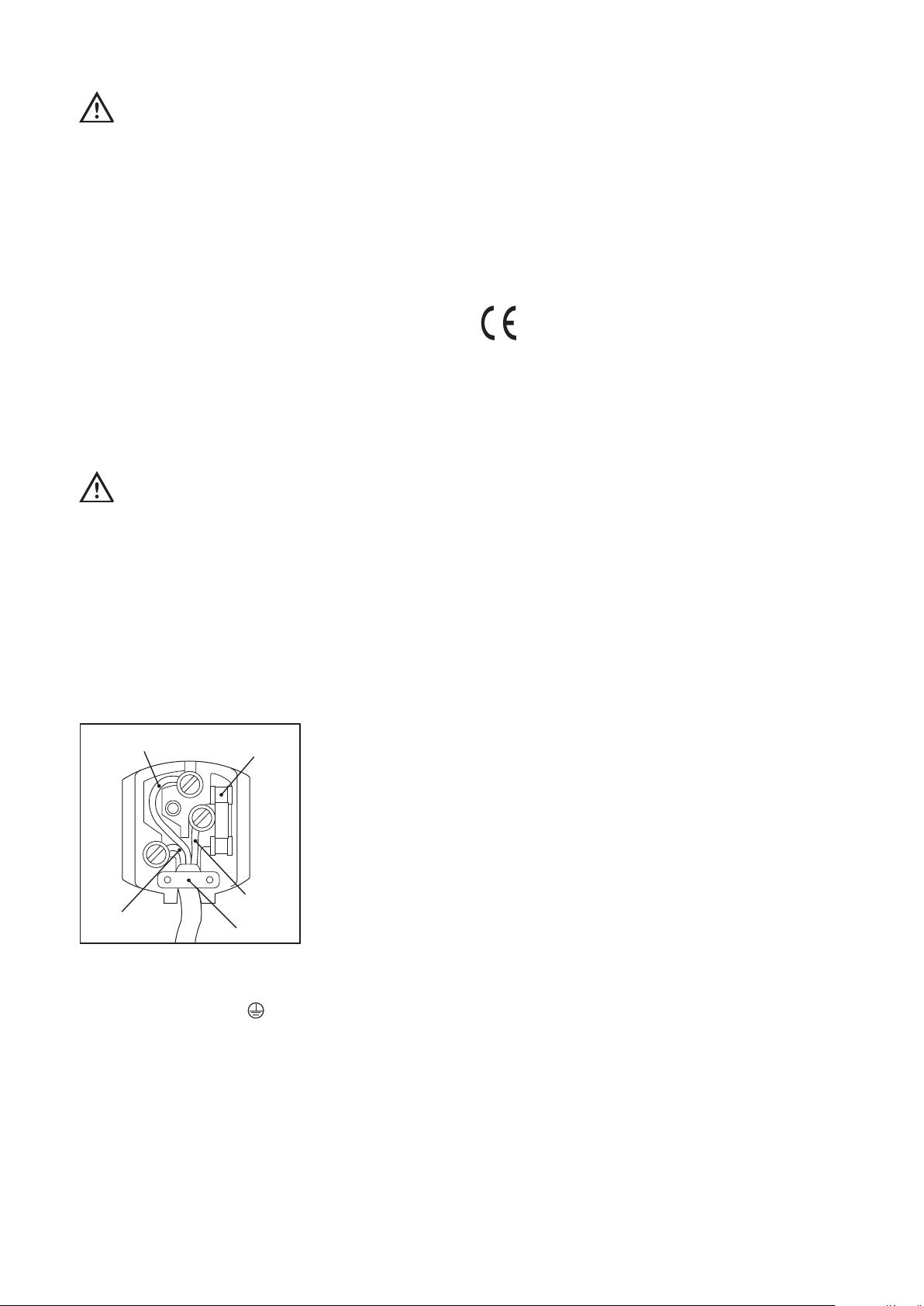

Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol or coloured green and
yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
D207
GREEN & YELLOW
13 AMP. FUSE
BROWN
CORD CLAMP
BLUE
13 AMP
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Electrolux Service Force Centre .
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
This appliance complies with the following
E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
5
OPERATION
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Setting the temperature
The temperature inside the refrigerator is regulated
by a thermostat with 6 temperature positions and an
«OFF» (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable (3-4).
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
– how often the door is opened
– how much food is stored
– position of the appliance
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the
knob to a lower number will cause the automatic
defrosting to resume.
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & wild fowl): wrap in
polythene bags and place on top of the salad
crispers.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Normal Operating Sounds
• You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
• When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
• A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
