Electrolux EQBM100ASLPG User Manual
user manual
Electrolux En:V barbecue
EQBM100AS
side burner
EQMW40AS
electrolux en:v barbecue contents i
environmental tip
Congratulations
Congratulations and thank you for choosing our Electrolux
En:V barbecue. We are sure you will nd your new
barbecue a pleasure to use. Before you use the barbecue,
we recommend that you read through the entire user
manual, which provides the description of the barbecue and
its functions.
To avoid the risks that are always present when you use
a gas appliance, it is important that it is installed correctly
and that you read the safety instructions carefully to avoid
misuse and hazards.
We recommend that you keep this instruction booklet for
future reference and pass it on to any future owners.
After unpacking the barbecue please check it is not
damaged. If in doubt, do not use the appliance but contact
your local Electrolux Customer Care Centre.
Contents
• Electrolux En:V barbecue product description ii
• Side burner product description iii
• Dimensions iii
• Parts 1
• Important safety instructions 2
• Assembling the barbecue 3
• Mounting optional side burner 4
• Gas specications 5
• Gas bottle safety information 6
• Installing the gas cylinder 6
• Leak test procedure (Universal LPG) 7
• Conversion to Natural Gas 7
• Leak test procedure (Natural Gas) 8
• Choosing a location 9
• Installation warnings 10
• Activating the wheel brake 10
• Options for conguration of hotplates and grills 11
• Operating instructions 11
• Using the side table 12
• Using the warmer drawer 12
• Using the roasting hood 13
• The waste bin 13
• Side burner operation 13
• Cleaning and care 14
• Maintenance 15
• Troubleshooting 15
• Warranty 16
Information on disposal for users
• Most of the packing materials are recyclable. Please
dispose of those materials through your local recycling
depot or by placing them in appropriate collection
containers.
• If you wish to discard this product, please contact your
local authorities and ask for the correct method of disposal.
ii product description electrolux en:v barbecue
Electrolux En:V barbecue
1
2
3
4
5
6
7
8
9
9
10
11
12
13
1 Retractable roasting hood
2 Battery cover
3 Burner controls
4 Mounting screws for side burner (not visible)
5 Temperature indicator
6 Wheel brakes
7 Wheels
14
15
8 Warming racks
9 Fold down side table
10 Grill assembly
11 Hotplate
12 Warmer drawer
13 Gas connection point (under drawer, not visible)

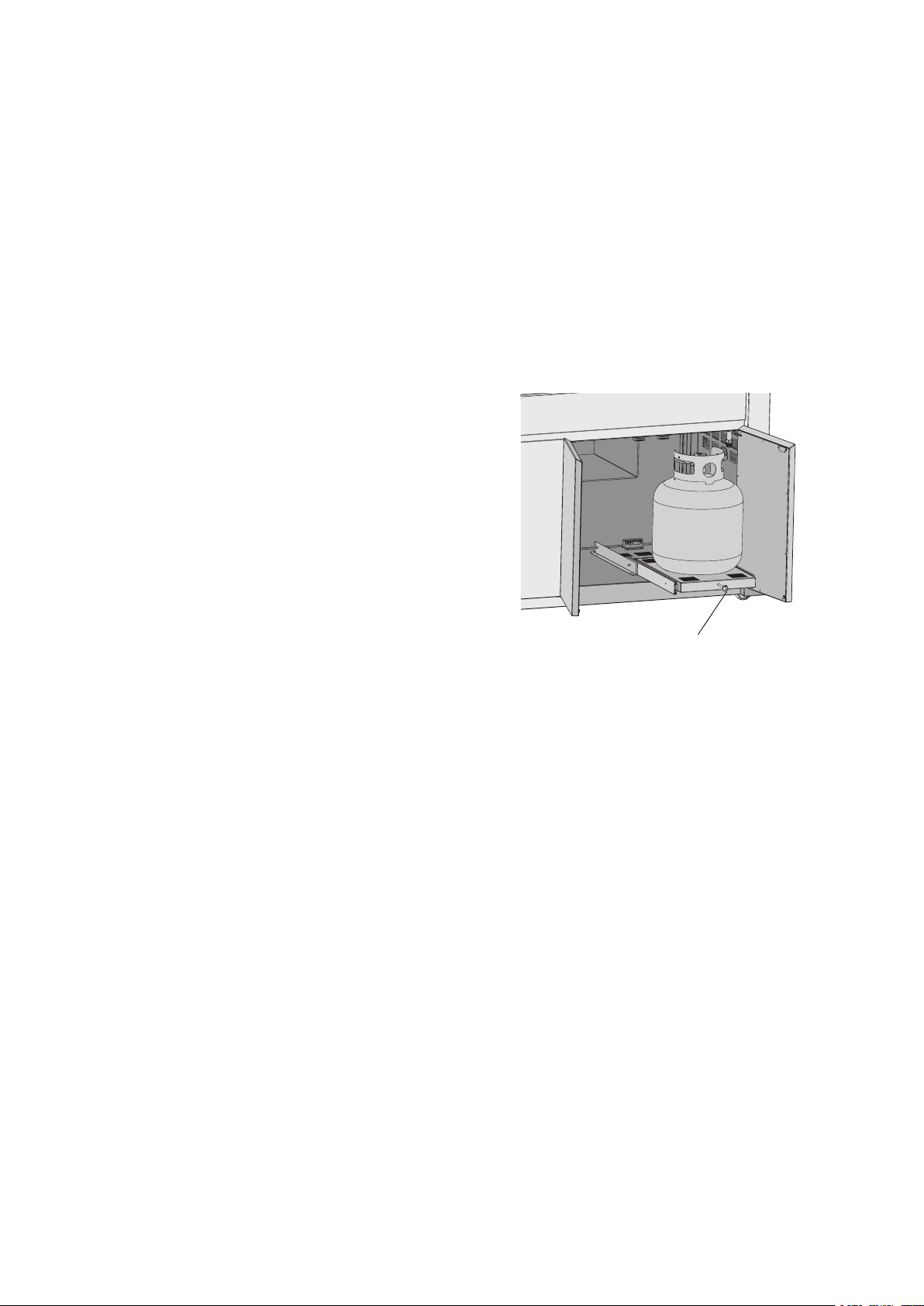

14 Slide-out gas bottle tray
15 Slide-out waste bin
Optional side burner
603mm
1191mm
1582mm
942mm
30mm
135mm
1184mm 395mm 596mm
900mm 204mm
582mm
525mm
440mm 51mm
1141mm
125mm
electrolux en:v barbecue product description iii
1
2
3
4
Dimensions
1 Side burner weatherproof lid
2 Reversible trivet
3 Burner crown
4 Burner control
Side burner tted to barbecue
Weight without side burner 116kg
Weight with side burner 125kg
electrolux en:v barbecue parts 1
Optional side burner partsElectrolux En:V barbecue parts
Contents of your barbecue pack: Contents of your optional side burner pack:
description qty
Electrolux
En:V
barbecue
Flame tamers 2
Solid hot plate 1
1
description qty
Lid 1
Trivet 1
Burner
components
1 set
Grill
assemblies
Warming
racks
1 plastic bag containing this instruction book
2
2
1 Plastic bag containing this instruction book, 8 M6
screws, 1 1.8mm NG injector, 1 small screw driver
Tools you will need for assembly:
– Spanner for gas inlet connection
– Phillips head screwdriver
Mounting
brackets
Burner box
assembly
2
1
2 important safety instructions electrolux en:v barbecue
warning
caution
tips and information
environmental tip
warning
warning
warning
caution
Important safety instructions
Please read the user manual carefully and store in a handy
place for later reference.
Meanings of the symbols used in this manual are shown
below:
This symbol indicates information concerning your
personal safety
This symbol indicates information on how to avoid
damaging the appliance
This symbol indicates tips and information about use
of the appliance
This symbol indicates tips and information about
economical and ecological use of the appliance
This symbol indicates never to do this
For your safety please read this book before
operating your barbecue.
IF YOU SMELL GAS, do not attempt to light the
barbecue. Locate the leak and re-tighten the leaking
joint. Carry out the Leak Test procedure as described in
this manual. If the leak persists, turn off the gas supply
and call Electrolux Service or a Licensed Gas Fitter.
Do not lean over barbecue when lighting.
Do not leave the barbecue unattended when alight.
Do not delay lighting once the gas has been turned
on.
Do not store or use aerosol cans in the vicinity of the
barbecue.
Do not store flammable liquids in the vicinity of the
barbecue.
Do not use caustic or abrasive based cleaners on the
barbecue.
Do not operate the barbecue with the cover on.
Do not attempt to dismantle or adjust the control
valves.
Do not attempt to dismantle or adjust the regulator.
Do not test for leaks with a naked flame.
Do not modify the construction of this appliance or
modify the injector orifice size.
Do not obstruct any ventilation of the barbecue.
Do not allow children to operate or play near the
barbecue.
Improper installation, adjustment, alteration or
maintenance can cause injury or property damage.
Please contact your nearest Electrolux Service
Department for additional information or assistance
for an approved installer.
NOTE TO THE INSTALLER
THIS MANUAL MUST REMAIN WITH THE OWNER FOR
FUTURE REFERENCE
This barbecue is supplied set up for Universal LPG
and is labelled accordingly. A Natural Gas conversion
kit is available for purchase from Electrolux Service
or Spare Parts. Conversion of this unit to Natural Gas
must be carried out by a qualified licensed person
and a Certificate of Compliance must be issued
to the owner on completion of the installation and
conversion.
Assembling the barbecue
electrolux en:v barbecue assembling the barbecue 3

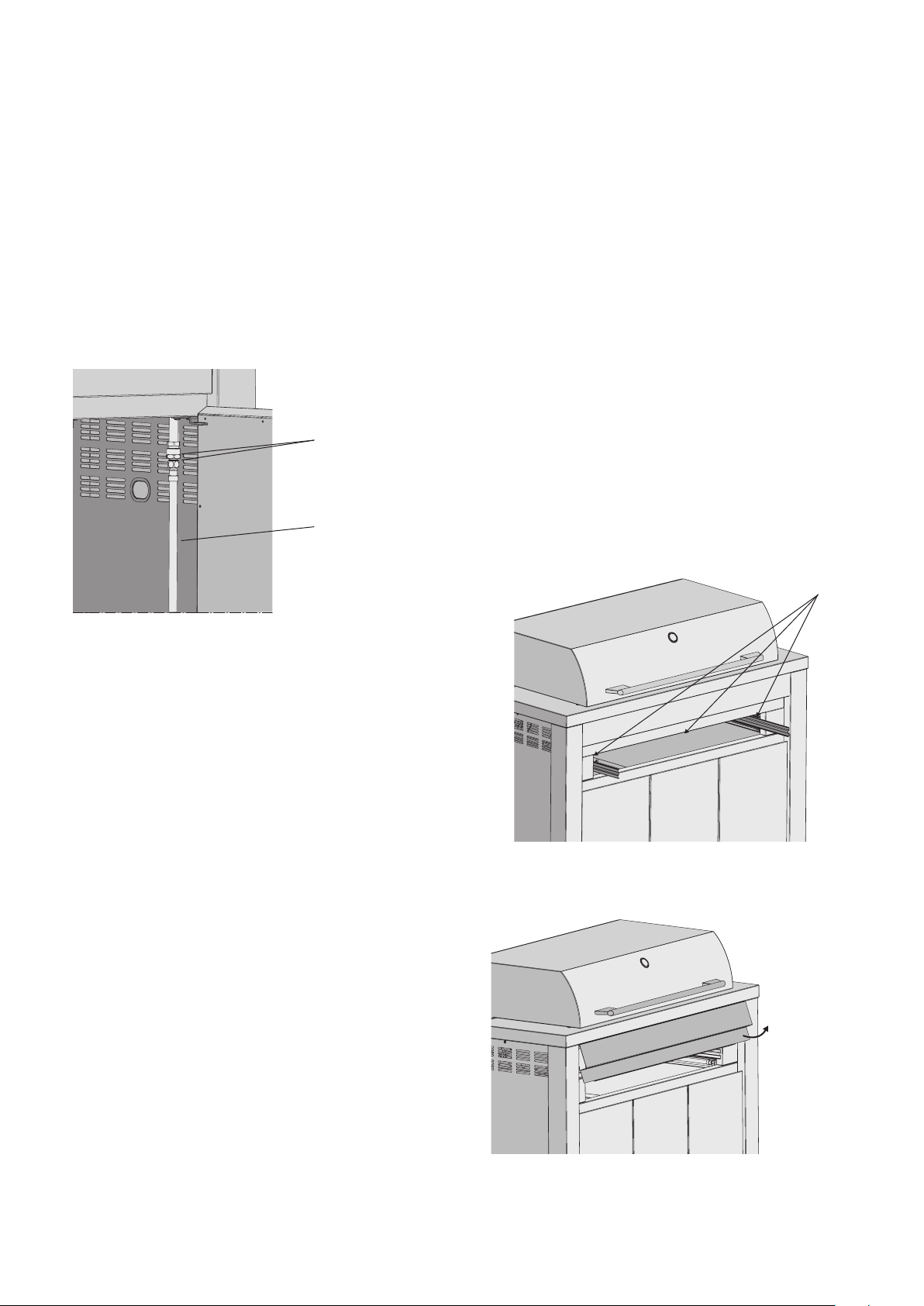

1. Remove packaging & remove all components from inside
cabinet.
2. Unfasten bolts securing unit to the pallet base and
remove unit from base.
bolt
base
bolt
3. Position flame tamers into desired locations (under
where grill sections will be fitted) and fix back edge of
the flame tamer into rear of barbecue body.
4. Place hotplate and grill sections into desired positions
ensuring that the flame tamers are under grill sections
NOTE ensure that grill assemblies are orientated
correctly so that the surface of the grill is sloping
forward to allow oil to drain into oil reservoirs.
assembled grill
5. Fit warming racks to splashguard at rear
grill orientation
front
