Page 1
electrolux barbecues
electrolux en:v
electrolux e:volution
electrolux integrated
Page 2
table of contents
3. the latest in outdoor entertaining
6. electrolux en:v barbecue
8. electrolux e:volution barbecue
10. electrolux integrated barbecue
14. barbecuing the perfect prawn
14. prawns with mango salsa recipe
15. sirloin steak with mediterranean vegetables recipe
16. dimensions
19. top service
Page 3
electrolux barbecues 3
the latest in premium outdoor entertaining
With our warm summers and mild winters, we have the ideal climate for a lifestyle of outdoor
entertaining. Now more than ever, we demand contemporary, innovative designs to enhance
our experience of cooking outdoors.
the outdoor room
Our outdoor living areas are a true
extension of our home and how we
live life. It’s where guests, friends and
family enjoy our company, our lifestyle
and our cooking.
That’s why we want our barbecues to
share the same premium qualities as
our kitchen appliances. They need to
be contemporary, functional and of
stunning design.
Sharing their own expertise in cooking
surfaces with the visions of some of
the world’s best designers, Electrolux
redefines ‘alfresco dining’.
electrolux barbecues
With absolute commitment to
excellence in design and technical
innovation, Electrolux creates a
range of barbecues to transform your
outdoor entertainment area.
From the modern clean lines of the
Electrolux Integrated barbecue,
available in three different sizes paired
with the Integrated side burner; the
stylish, streamlined design of the new
Electrolux E:Volution; to the very latest
in socialising – the Electrolux En:V,
there are no limits to outdoor cooking.
Page 4
4
Electr olux En:V barbecue and side burner
Page 5
Page 6
6

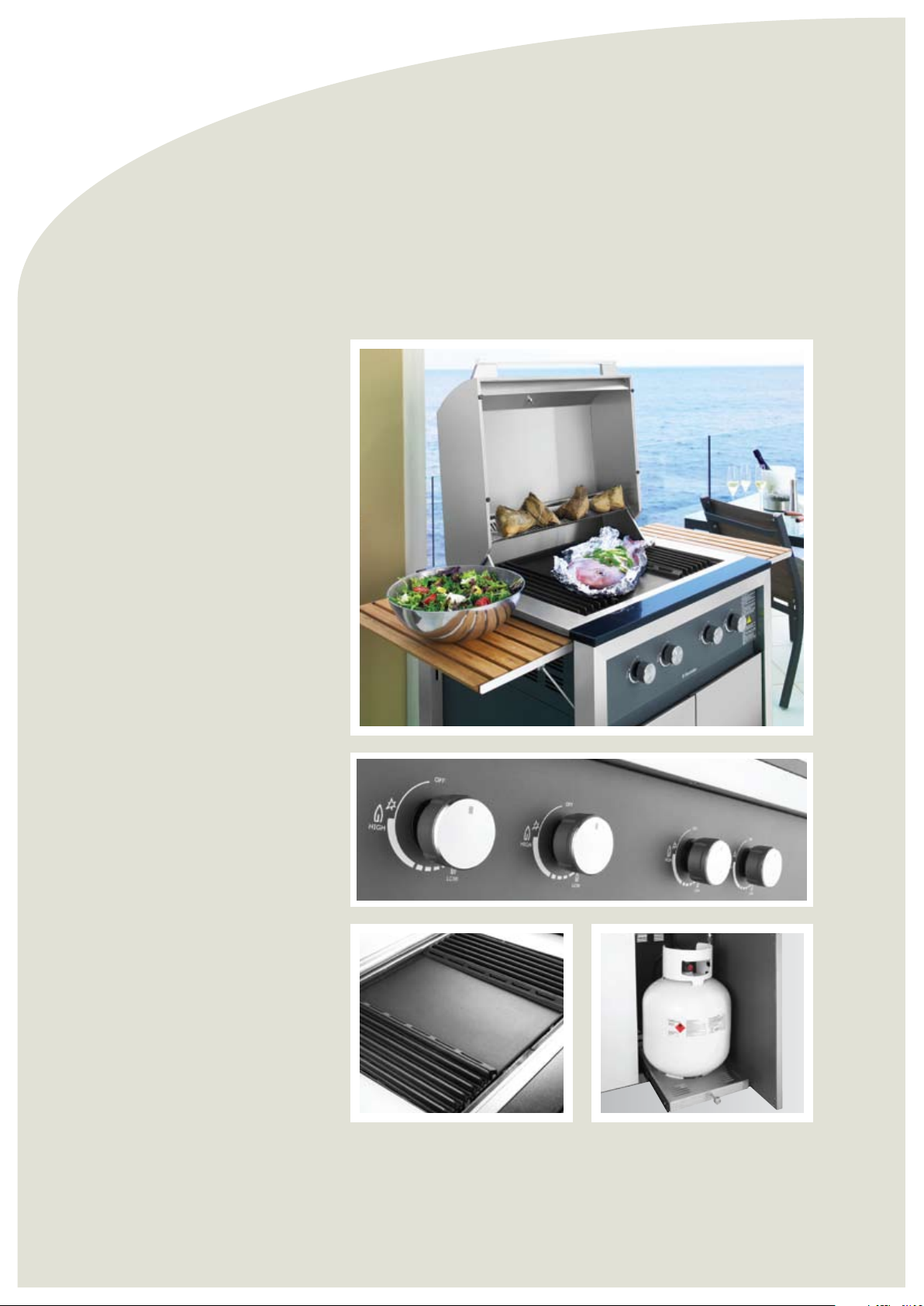

electrolux en:v barbecue social and refined
Designed especially to complement the look and feel of today’s modern outdoor spaces, the
Electrolux En:V is unique in style and features, while still staying true to the classic barbecue.
The Electrolux En:V is a premium barbecue that is durable, easy to clean and maintain. Its impressive stainless steel
design features ever ything you’d expect from a barbecue, with the addition of brilliant Electrolux innovation – to impress
your entourage of friends.
the social barbecue
Nothing should interfere with making
a barbecue an enjoyable social event.
That’s why the Electrolux En:V has a
retractable hood – so everyone can
join in the conversation while you are
cooking.
practical
Sturdy wheels are cleverly integrated
into the Elec tro lux E n:V, as a re t he s l ideout gas bottle tray and a convenient bin
for waste. Both are neatly hidden inside
the cupboards and stylishly slide out
for ease and convenience. The extra
stor age c upbo ard means the re’s a
pl ace for eve rythi ng – to help kee p the
ba rbecu e ar ea fr ee of cl u t te r.
thoughtful extras
The Electrolux En:V has a unique plate
warming drawer built into the front, while
fold o ut s hel ves give ex tra ben ch spac e
and complement your outdoor furniture.
A stylish slate grey weatherproof cover
is inc lude d so th e ba rbe cue is protected
from the elements.
cooking flexibility
The optional side burner offers you
endless possibilities when cooking
outdoors. The cast iron reversible trivet
gives you the choice of cooking with a
flat-bottom pan or wok, allowing you to
prepare an endless variety of dishes.
unique war mer drawer optional side bu rner
thoughtful accessories
To keep your En:V barbecue and
side burner looking as new, we have
included a weatherproof cover to
protect it from the elements.
Spare stainless steel hot plates and
split grill systems are available for
purchase from spare parts if you wish
to replace them.
Page 7
electrolux barbecues 7
electrolux
en:v barbecue
features
model EQBM100AS EQBM10 0AS + EQM W40AS
finish stainl ess steel and powder coated galvanised steel stainl ess steel and powder coated galvanised steel
retractable du al-laye red stainles s steel ro asting h ood
features
stainl ess steel control knob c aps
2 x easy clean interlock ing sta inles s steel split grill syste m
stainl ess steel solid hot plate
warmin g rack
unique oil and grease collection system
with oil reser voirs that remove from the top
four stainles s steel burner s – total rati ng 50MJ/ h
flame tamers
electronic ig nition through control knobs
side mount controls
perma nently engraved control mark ings
built-in c abine ts
slide-out waste bin
shelf
slide-out gas bottle tray
warmer drawer
hardwood fold-down side tables
temperature gauge
swivel wheels w ith brake
gas connection LPG LPG
accessories
weatherproof cover
natural gas conversion kit included kit included
spare stainle ss steel solid hot plate available from s pare parts available from s pare parts
spare stainle ss steel split grill system available from s pare parts available from s pare parts
opti onal s ide b urner EQMW4 0AS
finish stainl ess steel and powder coated galvanised steel
stainl ess steel lid
stainl ess steel control knob c ap
seale d Europe an trip le ring wok burner (11.5 MJ/h – LPG, 13MJ/h – NG)
piezo ignition through c ontrol k nob
cast iro n reversible trivet for us e with wok o r flat bottom pan
gas connection through En:V barbecue
prod uct dimen sion s
†
refer pag e 16 refer pag e 16
Weight without side burner 116kg
Weight with side burner 125kg
IMPORTANT! Please make sure that the access to your outdoor area (including driveways, gateways, corridors, and passageways etc) allows
sufficient clearance to move your barbecue into position.
Due to the weight of these barbecues, it is advised that consideration be taken prior to purchase if stairs need to be ascended or descended.
If the barbecue is to be placed on a balcony, please check the soundness and load bearing capacity of the structure.
For more information please contact:
Australia 1300 363 640 www.electrolux.com.au New Zealand 09 573 2230 www.electrolux.co.nz
†
Refer to product information details on page 19.
Page 8
8
electrolux e:volution barbecue a progression in style
Architecturally designed to harmonise with its environment, the streamlined Electrolux E:Volution
range of barbecues offer you a choice of sizes and hood or lid options to suit individual styles.
The new Electrolux E:Volution comes
with thoughtful features, stylish durable
finishes and a choice of sizes.
Choose between a roasting hood
with temperature gauge and warming
rack, or a slimline lid to retain its sleek
appearance.
superior style
Premium in materials, the Electrolux
E:Volution is designed with a stainless
steel frame and cast iron cooking
surface. Simple clean lines, hardwood
fold-down tables and stone finish add
to its urbanity.
thoughtful features
The Electrolux E:Volution comes with
a host of features including fold-down
side tables for extra bench space.
Built-in cabinets allow you to have
your barbecue necessities on hand
and the slide-out tray helps keep the
gas bottle in place.
cooking flexibility
The large Electrolux E:Volution gives
you all the space you need to entertain
a crowd with an additional 300mm
cooking surface. This allows you to
cook your food separately, while the
hooded model gives you the ability to
continue barbecuing while a roast is
cooking.
thoughtful accessories
To keep your E:Volution barbecue
looking as new, we have included a
weatherproof cover to protect it from
the elements.
(EQBM120HAS or EQBM120LAS only)
cast iro n cooki ng sur faces w ith spl it gril l system slide- out gas bottle tray
Page 9
electrolux barbecues 9
electrolux
e:volution barbecue
features
model EQB M120 HAS EQB M120 LA S EQBM75 HAS EQBM75 LAS
finish stainl ess steel and
dual-l ayered stainless stee l roasting hood
pivoting stainless steel lid
features
stainl ess steel control knob c aps
2 x easy clean cas t iron split grill system
cast iro n solid hot plate
cast iro n ribbe d hot plate
warmin g rack
unique oil and grease collection system
with oil reser voirs that remove from the top
stainl ess steel burn ers 5 5 4 4
welded stainless steel tube frame
gas rating (LPG / natural gas) MJ/h 50 / 57.5 50 / 57.5 40 / 46 40 / 46
flame tamers for grill system
piezo ignition through c ontrol k nobs
front mount controls
built-in c abine ts
slide-out gas bottle tray
two hard wood fol d-down side tables
stone sur face
temperature gauge
swivel wheels w ith brake
gas connection LPG LPG LPG LPG
accessories
weatherproof cover
natural gas conversion kit available f rom spare parts kit available f rom spare parts kit available f rom spare parts kit available f rom spare parts
prod uct dimen sion s
†
powder coated stee l
refer pag e 16 refer pag e 16 refer pag e 16 refer pag e 16
stainl ess steel and
powder coated stee l
stainl ess steel and
powder coated stee l
stainl ess steel and
powder coated stee l
Weights
EQBM120HAS 114kg
EQBM120LAS 109kg
EQBM75HAS 80kg
EQBM75LAS 75kg
IMPORTANT! Please make sure that the access to your outdoor area (including driveways, gateways, corridors, and passageways etc) allows
sufficient clearance to move your barbecue into position.
Due to the weight of these barbecues, it is advised that consideration be taken prior to purchase if stairs need to be ascended or descended.
If the barbecue is to be placed on a balcony, please check the soundness and load bearing capacity of the structure.
For more information please contact:
Australia 1300 363 640 www.electrolux.com.au New Zealand 09 573 2230 www.electrolux.co.nz
†
Refer to product information details on page 19.
Page 10
10
electrolux integrated barbecue the finishing touch
Discreet and sophisticated, the Electrolux Integrated is the first truly integrated barbecue
in the Australasian market.
With its smooth linear form, the
Electrolux Integrated barbecue range
seamlessly translates the sophistication
of your interior design to your outdoor
entertaining area. All share discreet
design and attention to functional
detail, offering the finishing touch to
complement your outdoor vision.
The addition of three new integrated
barbecues gives you a flexible range of
sizes and a choice of stainless steel or
cast iron hot plates.
streamlined
Ergonomically designed controls on
the side of the Electrolux Integrated
barbecue ensure it drops seamlessly
into any bench or working surface.
The Electrolux Integrated is available
with a roasting hood or discreet lid –
depending on your design or cooking
preference.
thoughtful accessories
To keep your Integrated barbecue
roasting hood looking as new, a
weatherproof cover is available for
purchase from spare parts.
Spare stainless steel hot plates and
split grill systems are available for
purchase from spare parts if you wish
to replace them.
unique innovation
A superior oil management system
drains oil and waste into containers
that are easily removed from the top of
the barbecue, while the unique angled
surface drains oil away from the food
for healthier cooking.
cooking flexibility
The Electrolux Integrated side burner
offers you endless possibilities when
cooking outdoors. The cast iron
reversible trivet gives you the choice of
cooking with a flat-bottom pan or wok
allowing you to prepare an endless
variety of dishes.
superior protection
Outer surfaces are engineered from
316 marine grade stainless steel
which is suitable for coastal areas.
(EQBL100AS, EQBH100AS and EQBW40AS only)
All other components are commercial
grade stainless steel, ensuring your
Electrolux Integrated barbecue will
retain its appeal.
Page 11

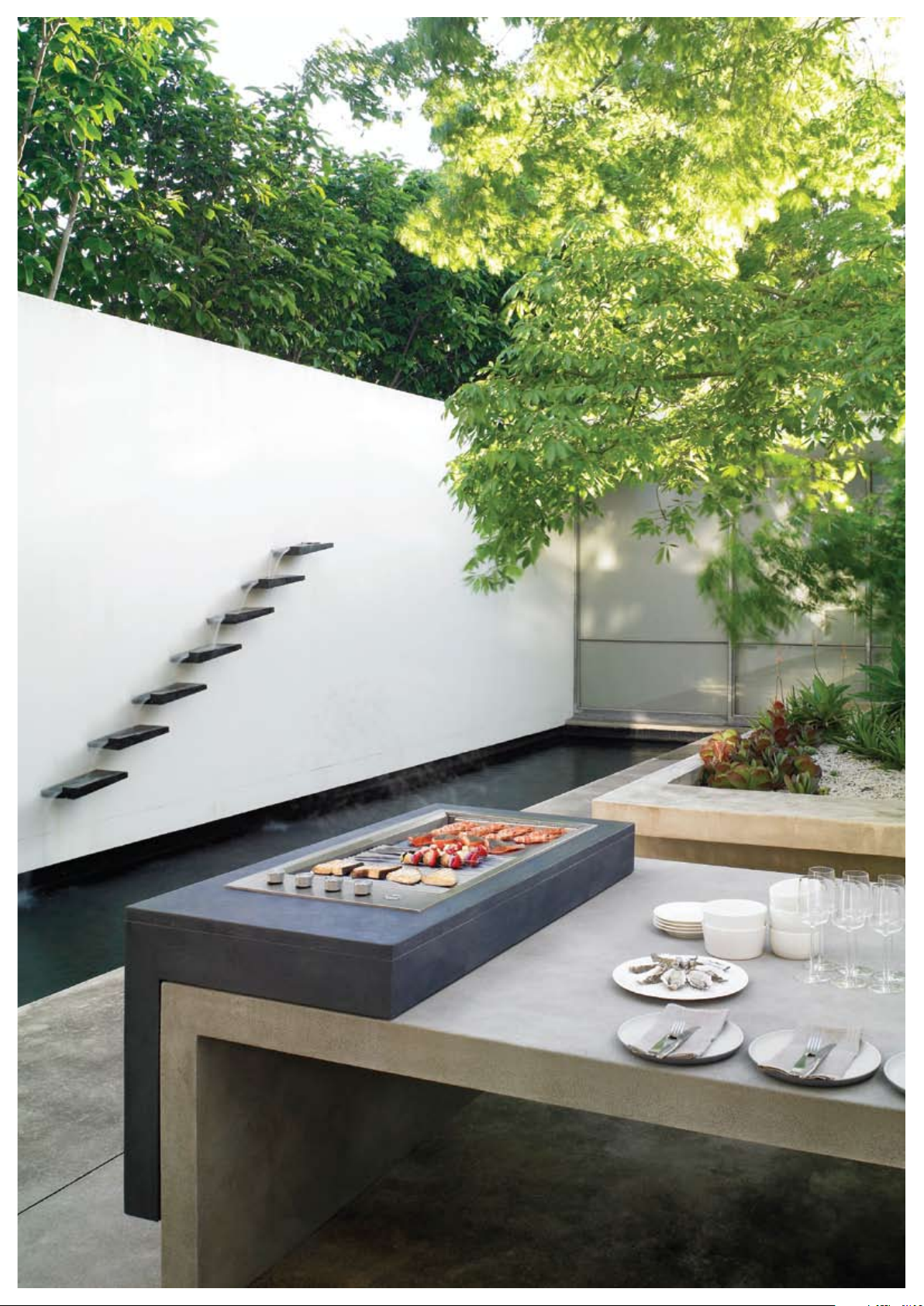

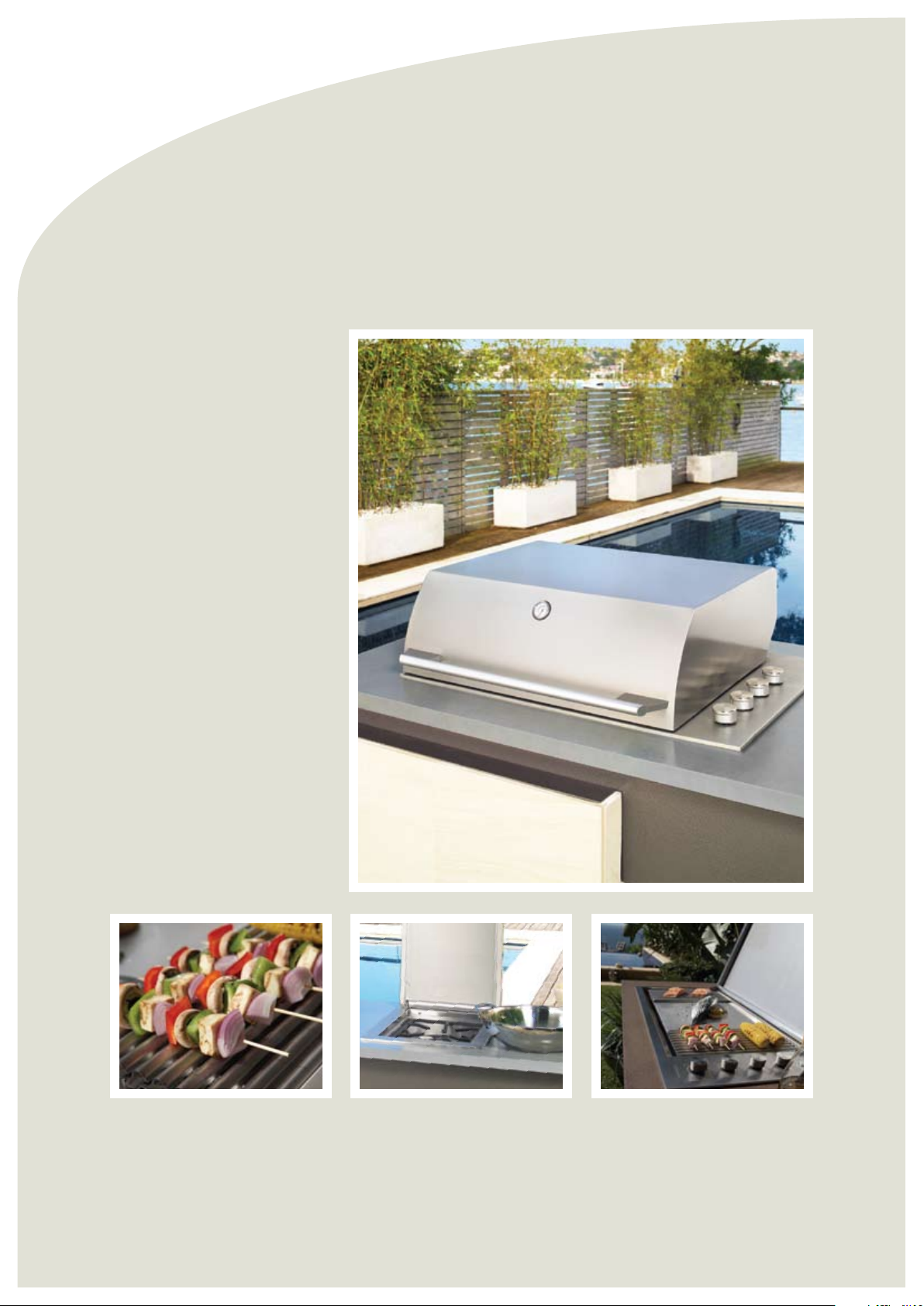

Electrolux Integrated barbecue
Page 12
12
electrolux 900mm
integrated barbecue
features
model EQ BL1 00 AS EQBH100AS
cooki ng sur face wi dth (mm) 900 900
prem ium 316 ma rin e grade sta inless st eel on :
all exte rnal su rfac es
trim surround
control knob ca ps
removab le slim line lid
dual-l ayered ro asting hood
commerci al grade st ainless s teel on:
barbe cue solid hot plate
all sheet metal c omponents
split grill system
four burners
flame tamers
warmin g rack
burner box
features
2 x easy clean interlock ing sta inles s steel split grill syste m
unique oil and grease collection system
with oil reser voirs that remove from the top
warmin g rack
four stainles s steel burner s – with total rating of 50 MJ/h
electronic ig nition through control knobs
side mount controls
temperature gauge
perma nently engraved control mark ings
available for NG and LPG connection
accessories
optional fabric weatherproof cover (sold separately) n/a EQACBH
spare stainle ss steel solid hot plate available from s pare parts available from s pare parts
spare stainle ss steel split grill system available from s pare parts available from s pare parts
prod uct dimen sion s
†
refer pag e 17 refer pag e 17
electrolux 300mm
integrated wok burner
features
model EQBW40AS
cooki ng sur face wi dth (mm) 300
prem ium 316 ma rin e grade sta inless st eel on :
all exte rnal su rfac es
trim surround
control knob ca p
removab le slim line lid
commerci al grade st ainless s teel on:
burner box
features
seale d Europe an wok burner (13MJ/h - NG, 11.5MJ/h - LPG)
piezo ignition through c ontrol k nob
cast iro n reversible trivet
available for NG and LPG connection
prod uct dimen sion s
For more information please contact:
Australia 1300 363 640 www.electrolux.com.au New Zealand 09 573 2230 www.electrolux.co.nz
†
Refer to product information details on page 19.
†
refer pag e 17
Page 13
electrolux barbecues 13
electrolux 600mm
integrated barbecue
features
model EQBL60AS EQBH60AS
cooki ng sur face wi dth (mm) 600 600
stai nless ste el on:
all exte rnal su rfac es
trim surround
control knob ca ps
removab le slim line lid
dual-l ayered ro asting hood
burners
flame tamers
burner box
features
2 x easy clean cas t iron grill system
cast iro n solid f lat hot pl ate
unique oil and grease collection system
with oil reser voirs that remove from the top
warmin g rack
burner rating (natural gas) MJ/h 46 46
piezo ignition through c ontrol k nobs
side mount controls
temperature gauge
perma nently engraved control mark ings
gas connection NG NG
LPG conve rsion kit available f rom spare parts kit available f rom spare parts
accessories
optional fabric weather proof cover (sold s eparately) P/No. 0028025461
prod uct dimen sion s
†
refer pag e 18 refer pag e 18
electrolux 300mm
integrated barbecue
features
model EQBL30AS
cooki ng sur face wi dth (mm) 300
stai nless ste el on:
all exte rnal su rfac es
trim surround
control knob ca ps
removab le slim line lid
burners
burner box
features
cast iro n ribbe d hot plate
unique oil and grease collection system
with oil reser voirs that remove from the top
burner rating (natural gas) MJ/h 11. 5
piezo ignition through c ontrol k nobs
side mount controls
perma nently engraved control mark ings
gas connection NG
accessories
LPG conve rsion kit available from spare p arts
prod uct dimen sion s
†
refer pag e 18
For more information please contact:
Australia 1300 363 640 www.electrolux.com.au New Zealand 09 573 2230 www.electrolux.co.nz
†
Refer to product information details on page 19.
Page 14
14
barbecuing the perfect prawn
The best way to buy fresh, flavoursome prawns is buy them
raw (green) and in their shell. Look out for prawns that are
intact and bright in colour.
The best prawns for barbecuing are medium sized ones.
Although larger ones may look impressive, the meat can
be a little tough.
To barbecue, toss the prawns in olive oil, salt flakes and
chopped fresh chilli on a medium heat. The prawns are
cooked when the meat behind the head is white, firm and
no longer opaque.
Prawns complement many dishes and are a great entrée
to enjoy around the barbecue. Simply include in a summer
salad or serve on their own with chilli and lime juice.
prawns with mango salsa
24 prawns, raw, green and peeled
3 mangoes
2 small chillies
1 small onion
2 cloves garlic
2 tablespoons chopped coriander
1 tablespoon finely grated ginger
For the salsa, cut the cheeks and top off the mangoes.
Make 1cm wide criss-cross incisions in the flesh down to
the skin and then scoop out all the flesh. De-seed chillies
and finely dice them. Peel and finely dice onion. Peel and
crush garlic. Mix chilli, onion and garlic through the mango
with coriander and grated ginger.
Toss the prawns in olive oil and barbecue on a medium
heat until the meat behind the head is white, firm and
no longer opaque. Transfer the prawns to a plate and
top with mango salsa.
Recipe courtesy of Luke Mangan
Page 15
sirloin steak with mediterranean vegetables
serves 4
preparation time 10 minutes
cooking time 2 minutes
8 x 100g thick slices sirloin steak
1 fennel bulb, sliced
½ cup olives
200g assorted salad leaves
150g semi sundried tomatoes (no-oil)
2 tablespoons creamed horseradish
½ cup low-fat natural yoghurt
1 tablespoon white wine vinegar
1 tablespoon chives, chopped
Brush sliced fennel and steaks with olive oil then place
them on a hot Electrolux barbecue to cook for one minute on
each side. Set aside while making salad.
To make the salad, toss together salad leaves, olives,
tomatoes and barbecued fennel.
dressing
Mix horseradish, yoghurt, vinegar and chives together
in a bowl.
tip
Zucchini, mushrooms or capsicum can be used in
place of fennel.
serving suggestion
To serve, place steak on the plate and top with salad
and dressing, then repeat to create a stacking effect
(2 x 100g steak = one dinner serve)
Beef recipe courtesy of www.themainmeal.com.au
Page 16
16
603
1191
1582
596
900 204
582
525
440 51
1141
942
30
135
1184 395
125
525
363
637
1200
1126
683
922
203
35
532
363653
1200
957
683
922
35
525
637
750
1126
684
922
203
532
653
750
957
684
922
35
dimensions and installation guide
electrolux en:v (including optional side burner)
EQBM100AS + EQMW40AS
electrolux e:volution
EQBM120HAS
EQBM120LAS
EQBM75HAS
EQBM75LAS
All measurements are in millimetres (mm)
IMPORTANT! Refer to page 19 for important information on weight of the barbecues.
Page 17
bench
547
73 min.
from cut-out
wall
bench width 600 min.
177
42
25
539
464
bench
bench
wall
56
73 min.
from cut-out
453 601
bench
211
589
538
177
25
464
539
42
78
162
127
540
547
7
390
363
78
dimensions and installation guide
600mm min
135mm
25mm
700mm
502mm
cut-out
73mm min.
1025mm
325mm
100mm min.
480mm
73mm min. to splashback
80mm min.
1025mm x 502
cut-out
325mm x 480
cut-out
538mm
1058mm
390mm
532mm
526mm
925mm
363mm
540mm
532mm
532mm
943mm
363mm
electrolux integrated barbecue
electrolux barbecues 17
EQB L10 0AS
minimu m clearance to back wall
electrolux integrated side burner
EQBW40AS
bench and cut-out requirements
EQBH100AS
minimu m clearance to back wall
All measurements are in millimetres (mm)
Page 18
18
600
300
25
135
600
300
25
65
603
73 min to
bench cut-out
590
538
464
212
202
bench width 600 min
539
42
202
464
73 min to
bench cut-out
547
637
651
770
538
600 min.
502
735
440
502
80 min.
73 min.
to splashback
480
538
532
362
532
dimensions and installation guide
electrolux integrated 600/300
EQBL60AS, EQBL30AS EQBH60AS
bench and cut-out requirements
Front vent option
– to be located centrally to burner box
All measurements are in millimetres (mm)
Base vent option (enclosure front removed for clarity)
– to be located centrally to burner box
Page 19
electrolux top service
Electrolux Top Service encompasses the after sales service including Delivery,
Home Service and Spare Parts
electrolux barbecues 19
delivery (not available in New Zealand)
Deliver y* is available in Adelaide, Brisbane, Melbourne,
Perth and Sydney metro areas. In these areas, this service
is included in the purchase price for the Electrolux En:V
barbecue and is available at an additional charge for the
Integrated barbecue.
Please note, delivery in regional areas should be arranged
with your retailer at time of purchase.
*Terms and conditions apply. Ask your retailer for more information.
home service
Home Service is provided for repairs to appliances by trained
technicians. For repairs to appliances that are outside the
manufacturer’s warranty period and not required as a result
of a manufacturing defect, a service fee is payable. Home
Service is available throughout Australia and New Zealand.
spare parts
Home Service and Spare Parts can be contacted by
phone using our toll free national numbers.
Australia
Service 13 13 49
Spare Parts 13 13 50
www.electrolux.com.au
New Zealand
Service 0800 10 66 10
Spare Parts 0800 10 66 20
www.electrolux.co.nz
customer care
For more information on Electrolux products, please call
our Customer Care team or visit our website.
Australia
1300 363 640
New Zealand
09 573 2230
warranty
Electrolux Home Products warrants that for domestic
applications the Electrolux barbecue products featured
in this brochure are free from defects in materials
and workmanship for 2 years (3 months warranty for
commercial applications). All warranties are subject to the
conditions set out in the warranty card accompanying the
product when purchased.
installation
Only use outdoors! Refer to user manual for suitable outdoor
environments.
IMPORTANT! Please make sure that the access to
your outdoor area (including driveways, gateways, corridors,
and passageways etc) allows sufficient clearance to move
your barbecue into position.
Due to the weight of the Electrolux En:V and E:Volution
barbecues (75kg - 125kg), it is advised that consideration
be taken prior to purchase if stairs need to be ascended or
descended.
If the barbecue is to be placed on a balcony, please check
the soundness and load bearing capacity of the structure.
The user manual is available for download at
www.electrolux.com.au or www.electrolux.co.nz
or by phoning (AUS) 1300 363 640 or (NZ) 09 573 2384.
†product information
The descriptors and illustrations in this publication apply
to the specific products and models described as at the
date of issue. Under our policy of continuous product
development, product specifications may change without
notice. Prospective purchasers should therefore check with
their retailer to ensure this publication correctly describes
the products that are being offered for sale.
All information supplied is to be used for general reference
purposes only and is on the understanding that Electrolux
Home Products Pty Ltd will not be liable for any loss,
liability or damage of whatever kind arising as a result of
reliance on such information. Colours of products illustrated
are as close as printing limitations allow.
Printed on Monza Satin Recycled Art stock containing
55% recycled material & 45% from sustainable forests.
Page 20
Electrolux Home Products
Australia
New Zealand
The Thoughtful Design Innovator.
Do you remember the last time you opened a gift that made you say “Oh! How did you know?
That’s exactly what I wanted!” That’s the kind of feeling that the designers at Electrolux seek to
evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and
a great deal of thought to anticipating and creating the kind of appliances that our customers
really need and want.
This kind of thoughtful care means innovating with insight. Not design for design’s sake, but
design for the user’s sake. For us, thoughtful design means making appliances easier to use and
tasks more enjoyable to perform, freeing our customers to experience that ultimate 21st century
luxury, ease of mind. Our aim is to make this ease of mind more available to more people in more
parts of their everyday lives, all over the world. So when we say we’re thinking of you, you know
we mean just that.
The “Thinking of you” promise from Electrolux goes beyond meeting the needs of today’s
consumers. It also means we’re committed to making appliances safe for the environment—now
and for future generations.
Electrolux. Thinking of you.
Share more of our thinking at
www.electrolux.com.au or www.electrolux.co.nz
© Copyright 2010 Electrolux Home Products Pty Ltd
ABN 51 004 762 341
Print code: EBBQ_Sep10
Loading...
