Page 1

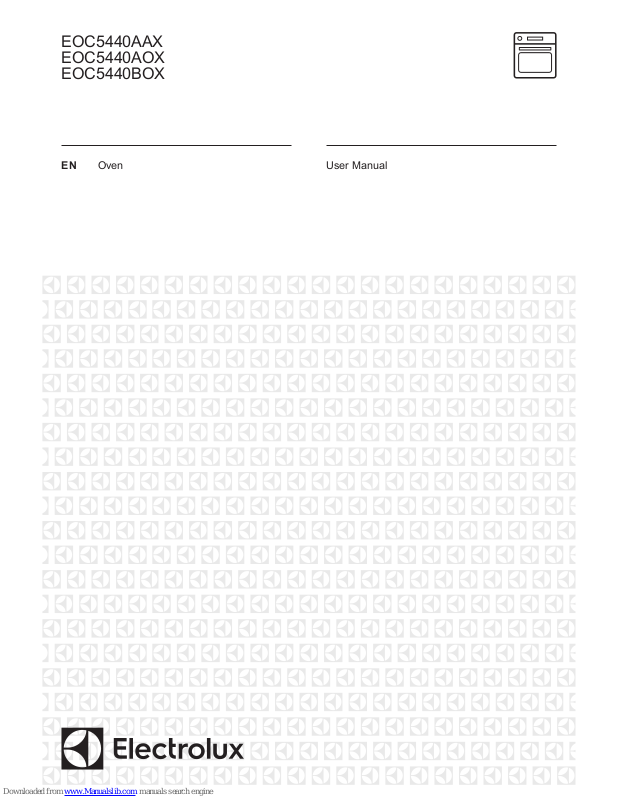

EOC5440AAX
EOC5440AOX
EOC5440BOX
EN
Oven User Manual
Page 2
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 7
4. BEFORE FIRST USE......................................................................................... 7
5. DAILY USE......................................................................................................... 8
6. CLOCK FUNCTIONS....................................................................................... 10
7. USING THE ACCESSORIES........................................................................... 11
8. ADDITIONAL FUNCTIONS.............................................................................. 12
9. HINTS AND TIPS............................................................................................. 13
10. CARE AND CLEANING..................................................................................21
11. TROUBLESHOOTING....................................................................................24
12. INSTALLATION.............................................................................................. 27
13. ENERGY EFFICIENCY.................................................................................. 28
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, this should
be activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
ENGLISH 3
Page 4
• Always use oven gloves to remove or put in
accessories or ovenware.
• Before maintenance cut the power supply.
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
• Excessive spillage must be removed before the
pyrolytic cleaning. Remove all parts from the oven.
• The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
www.electrolux.com4
Page 5
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• Fully close the appliance door, before
you connect the mains plug to the
mains socket.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance is in operation. Heat
and moisture can build up behind a
ENGLISH 5
Page 6
closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Pyrolytic cleaning
Risk of Injury / Fires /
Chemical Emissions
(Fumes) in Pyrolitic Mode.
• Before carrying out a Pyrolitic selfcleaning function or the First Use
please remove from the oven cavity:
– any excess food residues, oil or
grease spills / deposits.
– any removable objects (including
shelves, side rails etc., provided
with the product) particularly any
non-stick pots, pans, trays,
utensils etc.
• Read carefully all the instructions for
Pyrolytic cleaning.
• Keep children away from the
appliance while the Pyrolytic cleaning
is in operation.
The appliance becomes very hot and
hot air is released from the front
cooling vents.
• Pyrolytic cleaning is a high
temperature operation that can
release fumes from cooking residues
and construction materials, as such
consumers are strongly advised to:
– provide good ventilation during
and after each Pyrolytic cleaning.
– provide good ventilation during
and after the first use at maximum
temperature operation.
• Unlike all humans, some birds and
reptiles can be extremely sensitive to
potential fumes emitted during the
cleaning process of all Pyrolytic
Ovens.
– Remove any pets (especially
birds) from the vicinity of the
appliance location during and
after the Pyrolytic cleaning and
first use maximum temperature
operation to a well ventilated
area.
• Small pets can also be highly
sensitive to the localized temperature
changes in the vicinity of all Pyrolytic
Ovens when the Pyrolytic self
cleaning program is in operation.
• Non-stick surfaces on pots, pans,
trays, utensils etc., can be damaged
by the high temperature Pyrolytic
cleaning operation of all Pyrolytic
Ovens and can be also a source for
low level harmful fumes.
• Fumes released from all Pyrolytic
Ovens / Cooking Residues as
described are not harmful to humans,
including infants or persons with
medical conditions.
2.6 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it
for house lighting.
www.electrolux.com6
Page 7
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
2.8 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
3. PRODUCT DESCRIPTION

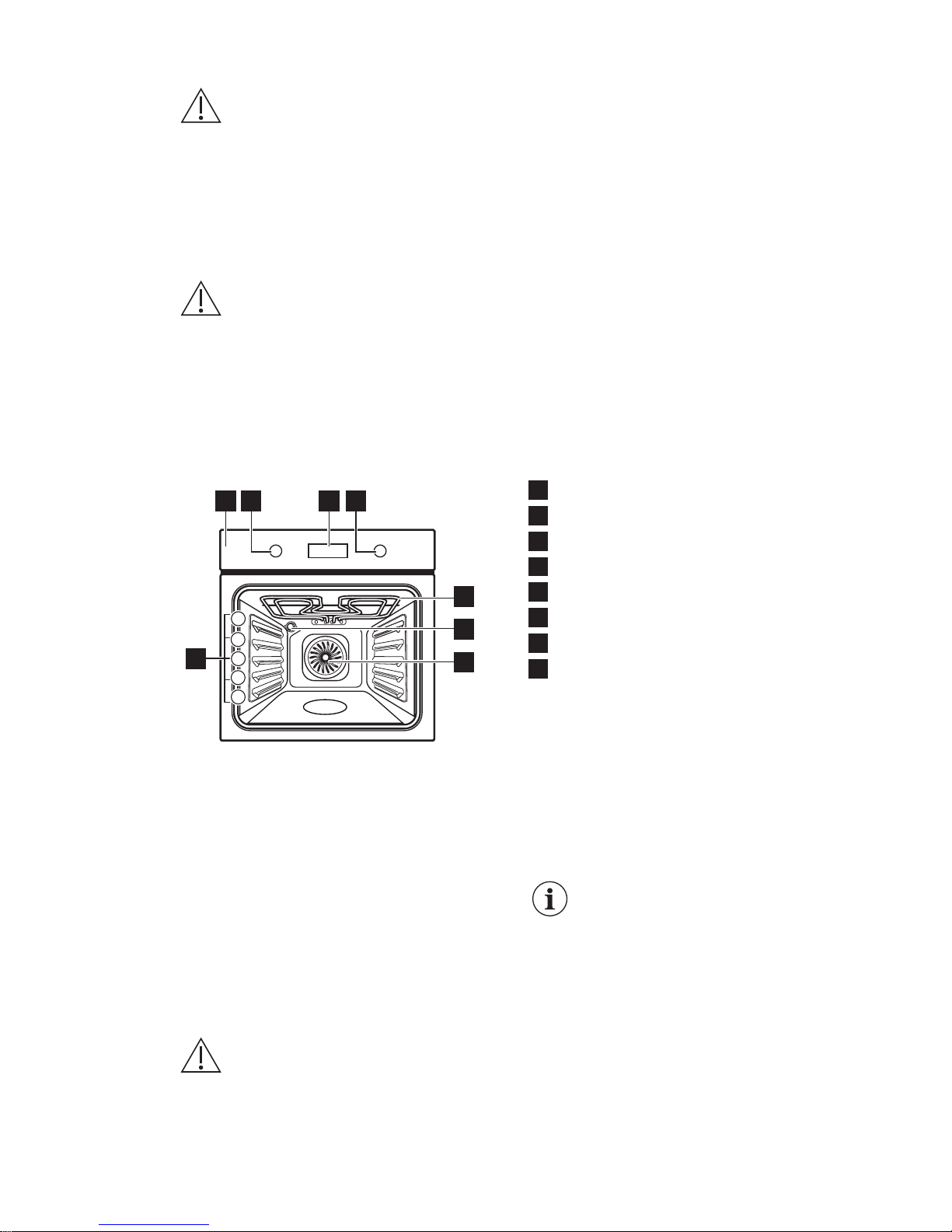

3.1 General overview
6
5
8
7
5
4
1
2
3
31 42
1
Control panel
2
Knob for the oven functions
3
Electronic programmer
4
Knob for the temperature
5
Heating element
6
Lamp
7
Fan
8
Shelf positions
3.2 Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
• Trivet
For roasting and grilling.
Use the trivet only with
the Grill- / roasting pan.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories from the
appliance.
ENGLISH 7
Page 8
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories back to their initial
position.
4.2 Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few
seconds the display shows the software
version.
After the software version goes off, the
display shows
and "12:00". "12"
flashes.
1. Press or to set the current
hour.
2. Press to confirm or the set hour
will be saved automatically after 5
seconds.
The display shows
and the set
hour. "00" flashes.
3. Press
or to set the current
minutes.
4. Press
to confirm or the set
minutes will be saved automatically
after 5 seconds.
The display shows the new time.
4.3 Changing the time
You can change the time of day only if
the oven is off.
Press again and again until the
indicator for the time of day
flashes in
the display.
To set a new time, refer to "Setting the
time".
4.4 Preheating
Preheat the empty appliance to burn off
the remaining grease.
1. Set the function
and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function and set the
maximum temperature.
4. Let the appliance operate for 15
minutes.
Accessories can become hotter than
usual. The appliance can emit an odour
and smoke. This is normal. Make sure
that the airflow in the room is sufficient.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
5.2 Activating and deactivating
the appliance
It depends on the model if
your appliance has lamps,
knob symbols or
indicators:
• The lamp comes on when
the appliance operates.
• The symbol shows
whether the knob controls
the oven functions or the
temperature.
• The indicator comes on
when the oven heats up.
www.electrolux.com8
Page 9
1. Turn the knob for the oven functions
to select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance turn the
knobs for the oven functions and
temperature to the off position.

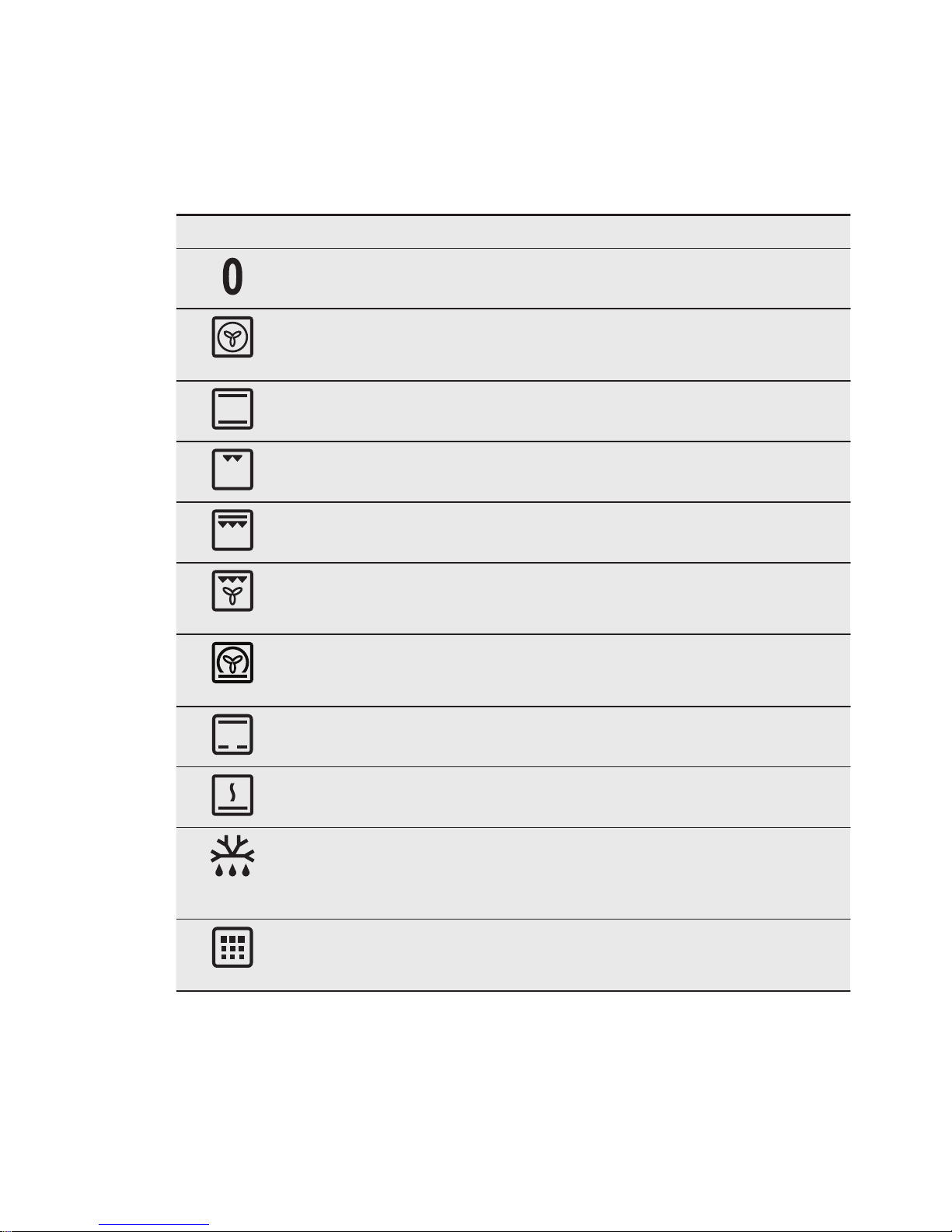

5.3 Oven functions
Oven function Application
Off position The appliance is off.
True Fan Cook‐
ing
To bake on up to three shelf positions at the same
time and to dry food. Set the temperature 20 - 40 °C
lower than for Top / Bottom Heat.
Top / Bottom
Heat
To bake and roast food on one shelf position.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast
bread.
Turbo Grilling To roast larger meat joints or poultry with bones on
one shelf position. Also to make gratins and to
brown.
Pizza Setting To bake food on one shelf position for a more inten‐
sive browning and a crispy bottom. Set the tempera‐
ture 20 - 40 °C lower than for Top / Bottom Heat.
Meat To prepare very tender and juicy roasts.
Keep Warm To keep food warm.
Defrost This function can be used for defrosting frozen
foods, such as vegetables and fruits. The defrosting
time depends on the amount and size of the frozen
food.
Pyrolysis To activate the automatic pyrolytic cleaning of the
oven. This function burns off residual dirt in the
oven.
ENGLISH 9
Page 10

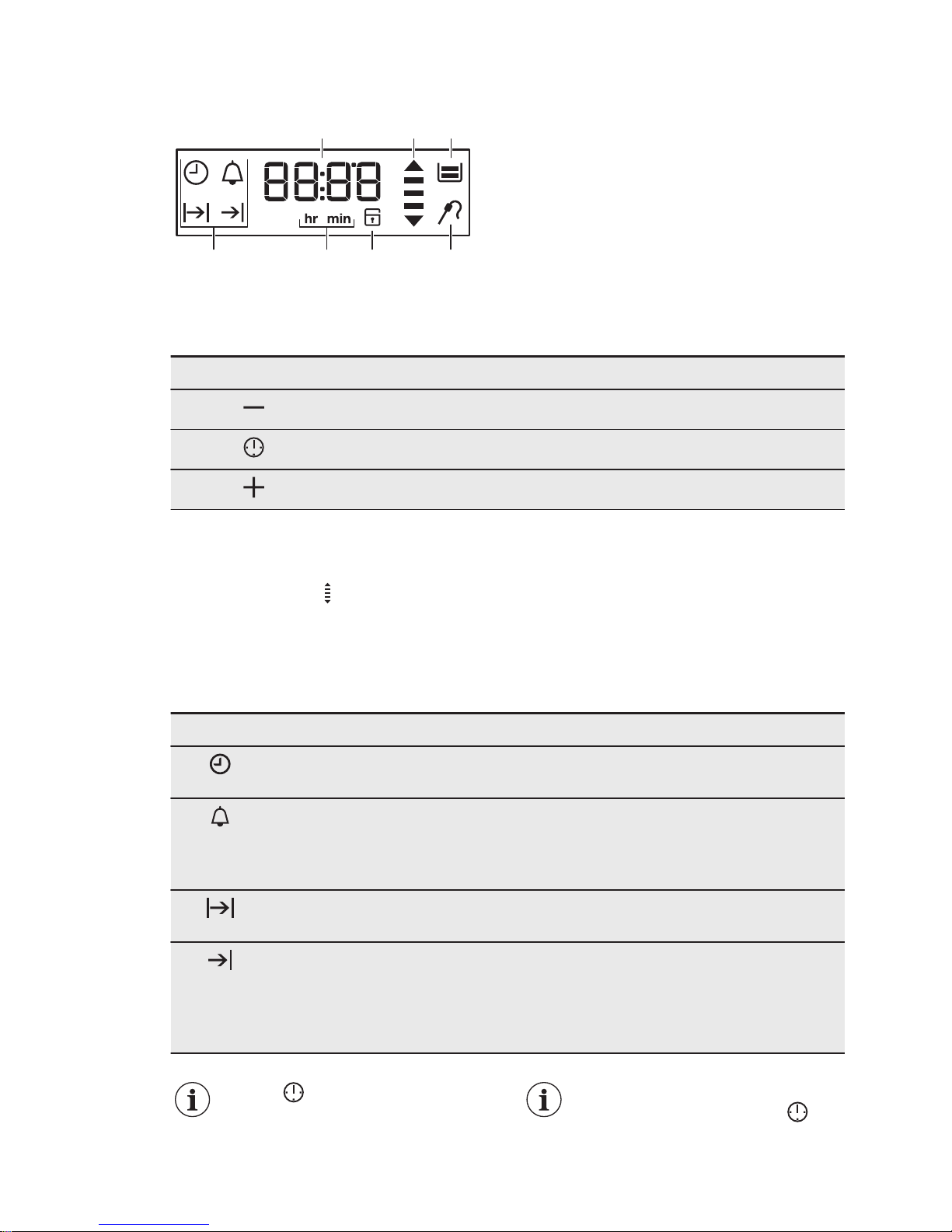

5.4 Display
A B C
D
EFG
A. Timer
B. Heat-up and residual heat indicator
C. Water drawer (selected models only)
D. Core temperature sensor (selected
models only)
E. Door lock (selected models only)
F. Hours / minutes
G. Clock functions
5.5 Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
5.6 Heat-up indicator
When you activate an oven function, the
bars in the display
come on one by
one. The bars show that the oven
temperature increases or decreases.
6. CLOCK FUNCTIONS
6.1 Clock functions table
Clock function Application
TIME OF DAY To set, change or check the time of day. Refer to
"Setting the time".
MINUTE MINDER Use to set a countdown time (maximum 23 h 59
min). This function has no effect on the operation of
the appliance. You can set the MINUTE MINDER at
any time, also if the appliance is off.
DURATION To set how long the appliance operates. Use only
when an oven function is set.
END To set when the appliance must deactivate. Use on‐
ly when an oven function is set. You can use Dura‐
tion and End at the same time (time delay), if the ap‐
pliance is to be activate and deactivate automatical‐
ly later.
Press again and again to
switch between the clock
functions.
To confirm the settings of
the clock functions, press
or wait 5 seconds for an
automatic confirmation.
www.electrolux.com10
Page 11
6.2 Setting the DURATION or
END
1. Set an oven function.
2. Press
again and again until the
display shows or .
or flashes in the display.
3. Press
or to the set the values
and press to confirm.
For Duration first you set the minutes
and then the hours, for End first you
set the hours and then the minutes.
An acoustic signal sounds for 2 minutes
after the time ends. or symbol
and time setting flash in the display. The
oven stops.
4. Press any button to stop the acoustic
signal.
5. Turn the knob for the oven functions
to the off position.
If you press when you set
the hours for DURATION
, the appliance goes to
setting of the END
function.
6.3 Setting the MINUTE
MINDER
1. Press again and again until
and "00" flash in the display.
2. Press or to set the MINUTE
MINDER.
First you set the seconds, then the
minutes and then the hours.
At first, the time is calculated in
minutes and seconds. When the time
you set is longer than 60 minutes, the
symbol comes on in the display.
The appliance now calculates the time in
hours and minutes.
3. The MINUTE MINDER starts
automatically after five seconds.
After 90% of the set time, an acoustic
signal sounds.
4. When the set time ends, an acoustic
signal sounds for two minutes.
"00:00" and flash in the display.
Press any button to stop the acoustic
signal.
If you set the MINUTE
MINDER when the
DURATION or END
function operates, the
symbol comes on in the
display.
6.4 Count Up Timer
Use the Count Up Timer to monitor how
long the oven operates. It is on
immediately when the oven starts to
heat.
To reset the Count Up Timer, press and
hold and . The timer starts to count
up again.
The Count Up Timer cannot
be used with the functions:
Duration , End .
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
7.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
ENGLISH 11
Page 12

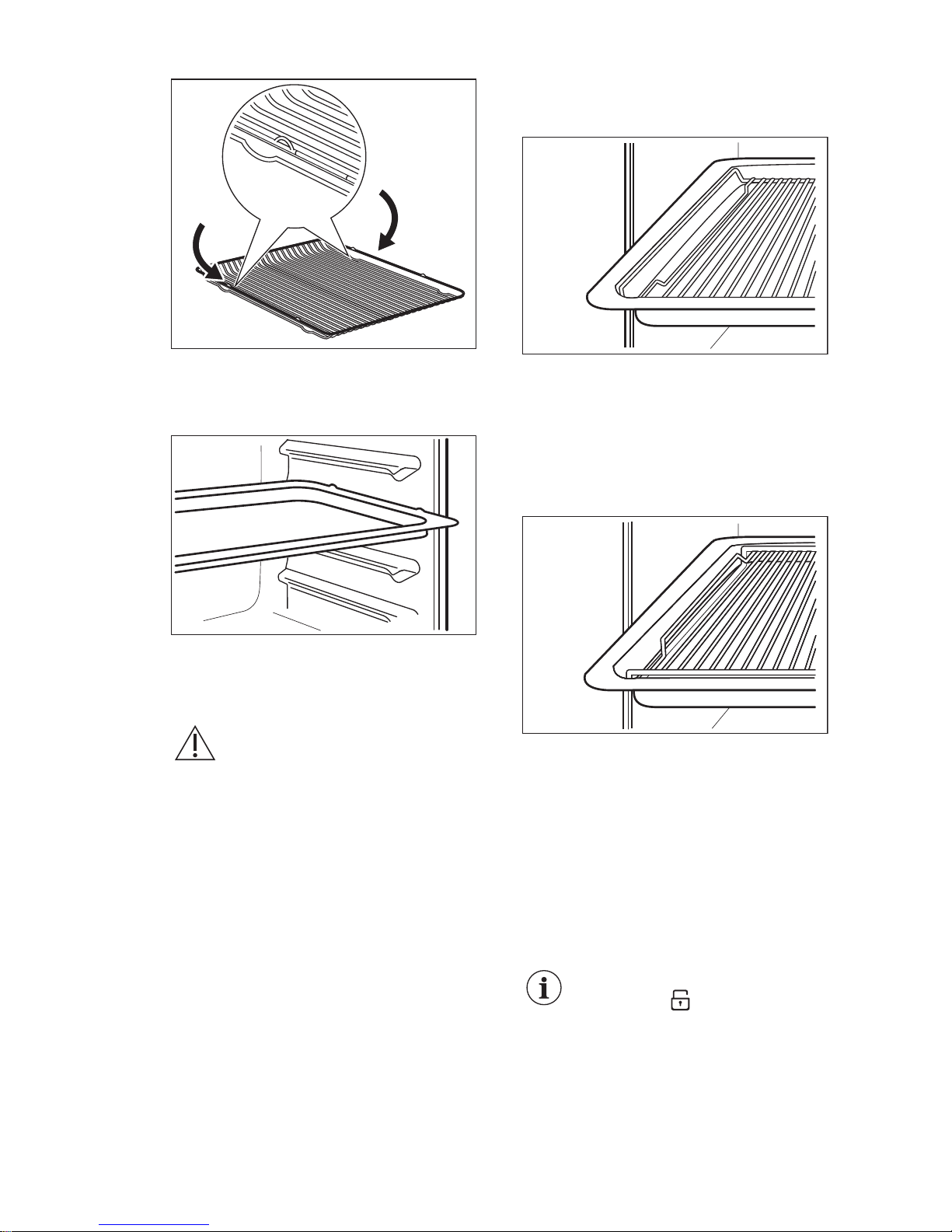

Deep pan:
Push the deep pan between the guide
bars of the shelf support.
7.2 Trivet and Grill- / Roasting
pan
WARNING!
Be careful when you remove
the accessories from a hot
appliance. There is a risk of
burns.
You can use the trivet to roast larger
pieces of meat or poultry on one shelf
position.
1. Put the trivet into the deep pan so
that the supports of the wire shelf
point up.
2. Put the deep pan into the oven on
the necessary shelf position.
You can use the trivet to grill flat dishes
in large quantities and to toast.
1. Put the trivet into the deep pan so
that the supports of the wire shelf
point down.
2. Put the deep pan into the oven on
the necessary shelf position.
8. ADDITIONAL FUNCTIONS
8.1 Using the Child Lock
When the Child Lock is on, the appliance
cannot be activated accidentally.
The door is locked , symbols
SAFE and come on the
display also when Pyrolysis
function operates. It can be
checked on the knob.
1. Ensure the knob for the oven
functions is in the off position.
www.electrolux.com12
Page 13
2. Press and hold and at the
same time for 2 seconds.
An acoustic signal sounds. SAFE and
comes on in the display.
To deactivate the Child Lock, repeat step
2.
8.2 Residual heat indicator
When you deactivate the appliance, the
display shows the residual heat indicator
if the temperature in the oven is more
than 40 °C. Turn the knob for the
temperature left or right to show the oven
temperature.
8.3 Automatic Switch-off
For safety reasons the appliance
deactivates automatically after some time
if an oven function operates and you do
not change any settings.
Temperature (°C) Switch-off time
(h)
30 - 115 12.5
120 - 195 8.5
Temperature (°C) Switch-off time
(h)
200 - 245 5.5
250 - maximum 1.5
After an automatic switch-off, press any
button to operate the appliance again.
The Automatic switch-off
does not work with the
functions: Light, Duration,
End.
8.4 Cooling fan
When the appliance operates, the
cooling fan activates automatically to
keep the surfaces of the appliance cool.
If you deactivate the appliance, the
cooling fan can continue to operate until
the appliance cools down.
8.5 Safety thermostat
Incorrect operation of the appliance or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
activates again automatically when the
temperature drops.
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
9.1 General information
• The appliance has five shelf positions.
Count the shelf positions from the
bottom of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system
you can cook in a steamy
environment and keep the food soft
inside and crusty outside. It
decreases the cooking time and
energy consumption to a minimum.
• Moisture can condense in the
appliance or on the door glass panels.
This is normal. Always stand back
from the appliance when you open the
appliance door while cooking. To
decrease the condensation, operate
the appliance for 10 minutes before
cooking.
• Clean the moisture after each use of
the appliance.
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components
when you cook. This can change the
ENGLISH 13
Page 14
baking results and cause damage to
the enamel.
9.2 Baking cakes
• Do not open the oven door before 3/4
of the set cooking time is up.
• If you use two baking trays at the
same time, keep one empty level
between them.
9.3 Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can
be permanent.
• Leave the meat for approximately 15
minutes before carving so that the
juice does not seep out.
• To prevent too much smoke in the
oven during roasting, add some water
into the deep pan. To prevent the
smoke condensation, add water each
time after it dries up.
9.4 Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
9.5 Baking and roasting table
Cakes
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Whisked
recipes
170 2 160 3 (2 and
4)
45 - 60 In a cake
mould
Short‐
bread
dough
170 2 160 3 (2 and
4)
20 - 30 In a cake
mould
Buttermilk
cheese‐
cake
170 1 165 2 80 - 100 In a 26 cm
cake
mould
Apple
cake (Ap‐
ple pie)
1)
170 2 160 2 (left and
right)
80 - 100 In two 20
cm cake
moulds on
a wire
shelf
Strudel 175 3 150 2 60 - 80 In a bak‐
ing tray
Jam-tart 170 2 165 2 (left and
right)
30 - 40 In a 26 cm
cake
mould
Sponge
cake
170 2 150 2 40 - 50 In a 26 cm
cake
mould
www.electrolux.com14
Page 15
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Christmas
cake /
Rich fruit
cake
1)
160 2 150 2 90 - 120 In a 20 cm
cake
mould
Plum
cake
1)
175 1 160 2 50 - 60 In a bread
tin
Small
cakes one lev‐
el
1)
170 3 150 - 160 3 20 - 30 In a bak‐
ing tray
Small
cakes two lev‐
els
1)
- - 140 - 150 2 and 4 25 - 35 In a bak‐
ing tray
Small
cakes three lev‐
els
1)
- - 140 - 150 1, 3 and 5 30 - 45 In a bak‐
ing tray
Biscuits /
pastry
stripes one level
140 3 140 - 150 3 25 - 45 In a bak‐
ing tray
Biscuits /
pastry
stripes two levels
- - 140 - 150 2 and 4 35 - 40 In a bak‐
ing tray
Biscuits /
pastry
stripes three lev‐
els
- - 140 - 150 1, 3 and 5 35 - 45 In a bak‐
ing tray
Meringues
- one level
120 3 120 3 80 - 100 In a bak‐
ing tray
Meringues
- two lev‐
els
1)
- - 120 2 and 4 80 - 100 In a bak‐
ing tray
Buns
1)
190 3 190 3 12 - 20 In a bak‐
ing tray
ENGLISH 15
Page 16
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Eclairs one level
190 3 170 3 25 - 35 In a bak‐
ing tray
Eclairs two levels
- - 170 2 and 4 35 - 45 In a bak‐
ing tray
Plate tarts 180 2 170 2 45 - 70 In a 20 cm
cake
mould
Rich fruit
cake
160 1 150 2 110 - 120 In a 24 cm
cake
mould
Victoria
sand‐
wich
1)
170 1 160 2 (left and
right)
30 - 50 In a 20 cm
cake
mould
1)
Preheat the oven for 10 minutes.
Bread and pizza
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
White
bread
1)
190 1 190 1 60 - 70 1 - 2
pieces,
500 gr per
piece
Rye bread 190 1 180 1 30 - 45 In a bread
tin
Bread
rolls
1)
190 2 180 2 (2 and
4)
25 - 40 6 - 8 rolls
in a bak‐
ing tray
Pizza
1)
230 - 250 1 230 - 250 1 10 - 20 In a bak‐
ing tray or
a deep
pan
Scones
1)
200 3 190 3 10 - 20 In a bak‐
ing tray
1)
Preheat the oven for 10 minutes.
www.electrolux.com16
Page 17
Flans
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Pasta flan 200 2 180 2 40 - 50 In a mould
Vegetable
flan
200 2 175 2 45 - 60 In a mould
Quiches
1)
180 1 180 1 50 - 60 In a mould
Lasagne
1)
180 - 190 2 180 - 190 2 25 - 40 In a mould
Cannello‐
ni
1)
180 - 190 2 180 - 190 2 25 - 40 In a mould
1)
Preheat the oven for 10 minutes.
Meat
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Beef 200 2 190 2 50 - 70 On a wire
shelf
Pork 180 2 180 2 90 - 120 On a wire
shelf
Veal 190 2 175 2 90 - 120 On a wire
shelf
English
roast beef,
rare
210 2 200 2 50 - 60 On a wire
shelf
English
roast beef,
medium
210 2 200 2 60 - 70 On a wire
shelf
English
roast beef,
well done
210 2 200 2 70 - 75 On a wire
shelf
Shoulder
of pork
180 2 170 2 120 - 150 With rind
Shin of
pork
180 2 160 2 100 - 120 2 pieces
Lamb 190 2 175 2 110 - 130 Leg
Chicken 220 2 200 2 70 - 85 Whole
Turkey 180 2 160 2 210 - 240 Whole
ENGLISH 17
Page 18
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Duck 175 2 220 2 120 - 150 Whole
Goose 175 2 160 1 150 - 200 Whole
Rabbit 190 2 175 2 60 - 80 Cut in
pieces
Hare 190 2 175 2 150 - 200 Cut in
pieces
Pheasant 190 2 175 2 90 - 120 Whole
Fish
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Trout /
Sea
bream
190 2 175 2 40 - 55 3 - 4 fish
Tuna fish /
Salmon
190 2 175 2 35 - 60 4 - 6 fillets
9.6 Grilling
Preheat the empty oven for
3 minutes before cooking.
Food Quantity Tempera‐
ture (°C)
Time (min) Shelf po‐
sition
Pieces (g) 1st side 2nd side
Fillet
steaks
4 800 max. 12 - 15 12 - 14 4
Beef
steaks
4 600 max. 10 - 12 6 - 8 4
Sausages 8 - max. 12 - 15 10 - 12 4
Pork
chops
4 600 max. 12 - 16 12 - 14 4
Chicken
(cut in 2)
2 1000 max. 30 - 35 25 - 30 4
Kebabs 4 - max. 10 - 15 10 - 12 4
www.electrolux.com18
Page 19
Food Quantity Tempera‐
ture (°C)
Time (min) Shelf po‐
sition
Pieces (g) 1st side 2nd side
Breast of
chicken
4 400 max. 12 - 15 12 - 14 4
Hambur‐
ger
6 600 max. 20 - 30 - 4
Fish fillet 4 400 max. 12 - 14 10 - 12 4
Toasted
sandwich‐
es
4 - 6 - max. 5 - 7 - 4
Toast 4 - 6 - max. 2 - 4 2 - 3 4
9.7 Turbo Grilling
Beef
Food Quantity Temperature
(°C)
Time (min) Shelf position
Roast beef or fillet,
rare
1)
per cm of
thickness
190 - 200 5 - 6 1 or 2
Roast beef or fillet,
medium
1)
per cm of
thickness
180 - 190 6 - 8 1 or 2
Roast beef or fillet,
well done
1)
per cm of
thickness
170 - 180 8 - 10 1 or 2
1)
Preheat the oven.
Pork
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf posi‐
tion
Shoulder, neck,
ham joint
1 - 1.5 160 - 180 90 - 120 1 or 2
Chop, spare rib 1 - 1.5 170 - 180 60 - 90 1 or 2
Meat loaf 0.75 - 1 160 - 170 50 - 60 1 or 2
Pork knuckle (pre‐
cooked)
0.75 - 1 150 - 170 90 - 120 1 or 2
Veal
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Roast veal 1 160 - 180 90 - 120 1 or 2
Knuckle of veal 1.5 - 2 160 - 180 120 - 150 1 or 2
ENGLISH 19
Page 20
Lamb
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Leg of lamb,
roast lamb
1 - 1.5 150 - 170 100 - 120 1 or 2
Saddle of lamb 1 - 1.5 160 - 180 40 - 60 1 or 2
Poultry
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Poultry portions 0.2 - 0.25 each 200 - 220 30 - 50 1 or 2
Chicken, half 0.4 - 0.5 each 190 - 210 35 - 50 1 or 2
Chicken, pou‐
lard
1 - 1.5 190 - 210 50 - 70 1 or 2
Duck 1.5 - 2 180 - 200 80 - 100 1 or 2
Goose 3.5 - 5 160 - 180 120 - 180 1 or 2
Turkey 2.5 - 3.5 160 - 180 120 - 150 1 or 2
Turkey 4 - 6 140 - 160 150 - 240 1 or 2
Fish (steamed)
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Whole fish 1 - 1.5 210 - 220 40 - 60 1 or 2
9.8 Defrost
Food Quantity
(g)
Defrosting
time (min)
Further defrost‐
ing time (min)
Comments
Chicken 1000 100 - 140 20 - 30 Place the chicken on an
upturned saucer placed
on a large plate. Turn
halfway through.
Meat 1000 100 - 140 20 - 30 Turn halfway through.
Meat 500 90 - 120 20 - 30 Turn halfway through.
Trout 150 25 - 35 10 - 15 -
Strawberries 300 30 - 40 10 - 20 -
Butter 250 30 - 40 10 - 15 -
Cream 2 x 200 80 - 100 10 - 15 Cream can also be
whipped when still
slightly frozen in places.
Gateau 1400 60 60 -
www.electrolux.com20
Page 21
9.9 Drying - True Fan Cooking
• Cover trays with grease proof paper
or baking parchment.
• For a better result, stop the oven
halfway through the drying time, open
the door and let it cool down for one
night to complete the drying.
Vegetables
Food Temperature
(°C)
Time (h) Shelf position
1 position 2 positions
Beans 60 - 70 6 - 8 3 1 / 4
Peppers 60 - 70 5 - 6 3 1 / 4
Vegetables for
sour
60 - 70 5 - 6 3 1 / 4
Mushrooms 50 - 60 6 - 8 3 1 / 4
Herbs 40 - 50 2 - 3 3 1 / 4
Fruit
Food Temperature
(°C)
Time (h) Shelf position
1 position 2 positions
Plums 60 - 70 8 - 10 3 1 / 4
Apricots 60 - 70 8 - 10 3 1 / 4
Apple slices 60 - 70 6 - 8 3 1 / 4
Pears 60 - 70 6 - 9 3 1 / 4
10. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
10.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a
dedicated cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk
is higher for the grill pan.
• Clean stubborn dirt with a special
oven cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
10.2 Stainless steel or
aluminium appliances
Clean the oven door with a
damp cloth or sponge only.
Dry it with a soft cloth.
Do not use steel wool, acids
or abrasive materials as they
can damage the oven
surface. Clean the oven
control panel with the same
precautions.
ENGLISH 21
Page 22
10.3 Pyrolysis
CAUTION!
Remove all accessories.
Do not start the Pyrolysis if
you did not fully close the
oven door. In some models,
the display shows "C3" when
this error occurs.
WARNING!
The appliance becomes very
hot. There is a risk of burns.
CAUTION!
If there are other appliances
installed in the same
cabinet, do not use them
when the Pyrolysis function
operates. It can cause
damage to the appliance.
1. Remove the worst dirt manually.
2. Clean the inner side of the door with
hot water, so that the residues do not
burn from the hot air.
3. Set the Pyrolysis function. Refer to
"Oven functions".
4. When
flashes, press or to
set the necessary procedure:
Option Description
P1 If the oven is
not very
dirty. Time of
the proce‐
dure: 1 h.
P2 If you cannot
easily re‐
move the
dirt. Time of
the proce‐
dure: 1 h 30
min.
Press or turn the knob for the
temperature to start the procedure.
You can use the End function to delay
the start of the cleaning procedure.
During the Pyrolysis the oven lamp is off.
5. When the oven is at its set
temperature, the door locks. The
display shows the symbol and the
bars of the heat indicator until the
door unlocks.
To stop Pyrolysis before it is
completed, turn the knob for the oven
functions to the off position.
6. When Pyrolysis is completed, the
display shows the time of day. The
oven door stays locked.
7. When the appliance is cool again, an
acoustic signal sounds and the door
unlocks.
10.4 Cleaning reminder
To remind you that the Pyrolysis is
necessary, PYR flashes in the display for
10 seconds after each activation and
deactivation of the appliance.
The cleaning reminder
goes out:
• after the end of the
Pyrolysis function.
• if you press and at
the same time while PYR
flashes in the display.
10.5 Cleaning the oven door
The oven door has four glass panels.
You can remove the oven door and the
internal glass panels to clean them.
The oven door can close if
you try to remove the glass
panels before you remove
the oven door.
CAUTION!
Do not use the appliance
without the glass panels.

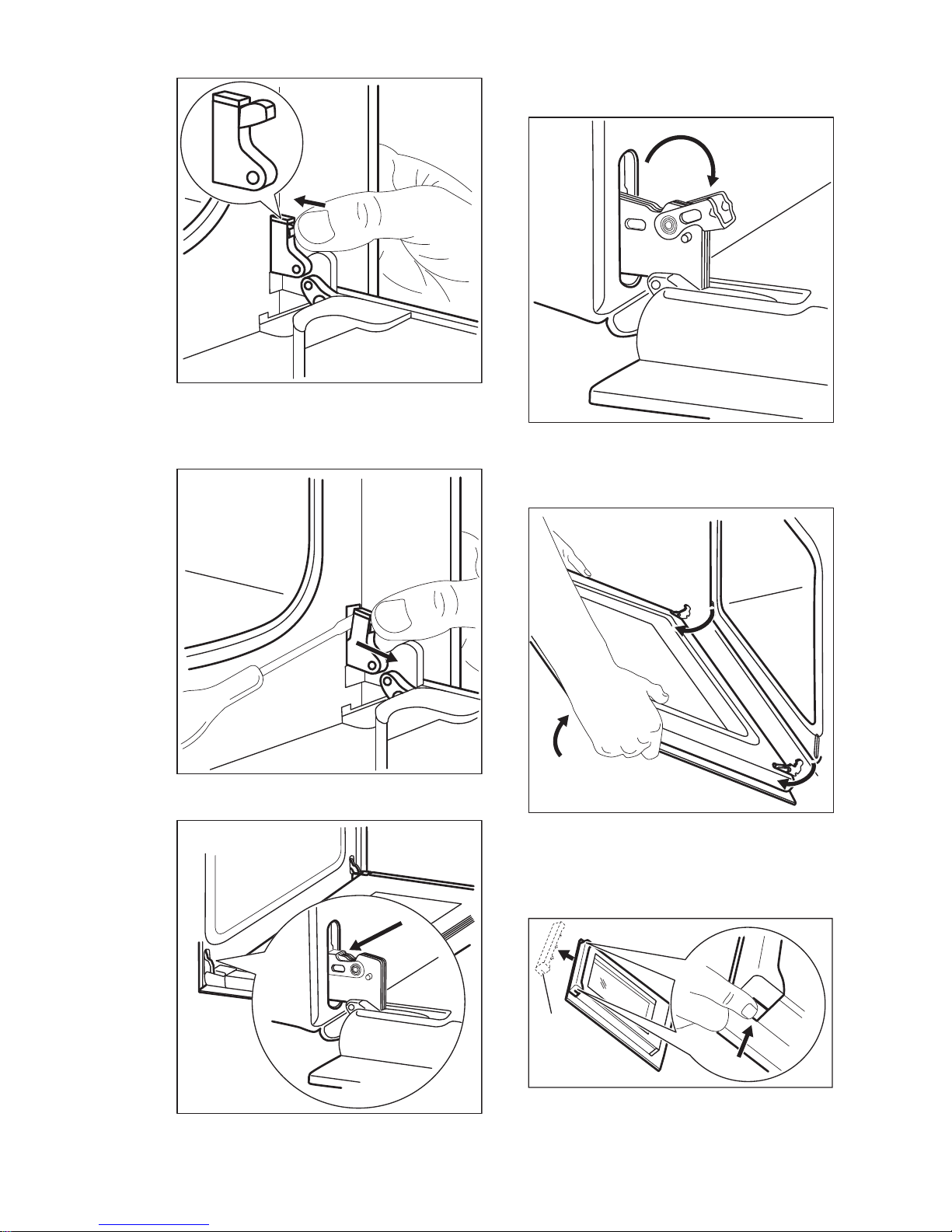

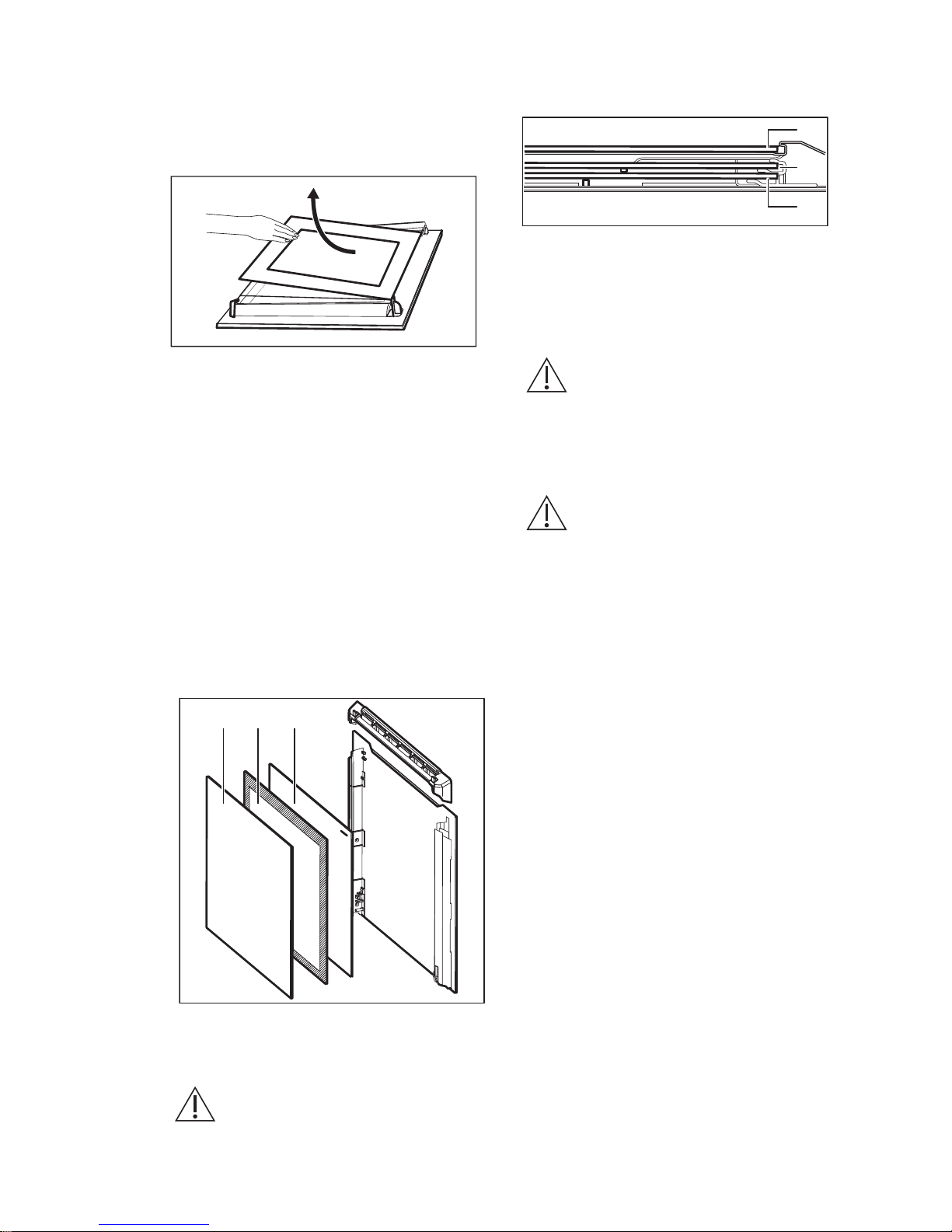

1. Fully open the door and identify the
hinge to the right side of the door.
2. Push the tightening component until
it pulls back.
www.electrolux.com22
Page 23
3. Hold the pushed component with one
hand. Use a screwdriver with the
other hand to lift and turn the right
side hinge lever.
4. Identify the hinge to the left side of
the door.
5. Lift and turn the lever on the left
hinge.
6. Close the oven door halfway to the
first opening position. Then pull
forward and remove the door from its
seat.
7. Put the door on a soft cloth on a
stable surface.
8. Hold the door trim (B) on the top
edge of the door at the two sides and
push inwards to release the clip seal.
1
2
B
9. Pull the door trim to the front to
remove it.
ENGLISH 23
Page 24
10. Hold the door glass panels by their
top edge and carefully pull them out
one by one. Start from the top panel.
Make sure the glass slides out of the
supports completely.
11. Clean the glass panels with water
and soap. Dry the glass panels
carefully.
When the cleaning is completed, install
the glass panels and the oven door. Do
the above steps in the opposite
sequence.
Make sure that you put the glass panels
(A, B and C) back in the correct
sequence. The middle panel (B) has a
decorative frame. The screen-printing
zone must face the inner side of the
door. Make sure that after the installation
the surface of the glass panel frame (B)
on the screen-printing zones is not rough
when you touch it.
A B C
Make sure that you install the middle
panel of glass in the seats correctly.
A
B
C
10.6 Replacing the lamp
Put a cloth on the bottom of the interior
of the appliance. It prevents damage to
the lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
CAUTION!
Always hold the halogen
lamp with a cloth to prevent
grease residue from burning
on the lamp.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The back lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300
°C heat-resistant lamp.
4. Install the glass cover.
11. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
www.electrolux.com24
Page 25
11.1 What to do if...
Problem Possible cause Remedy
You cannot activate or op‐
erate the oven.
The oven is not connected
to an electrical supply or it
is connected incorrectly.
Check if the oven is cor‐
rectly connected to the
electrical supply (refer to
the connection diagram if
available).
The oven does not heat
up.
The oven is deactivated. Activate the oven.
The oven does not heat
up.
The clock is not set. Set the clock.
The oven does not heat
up.
The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat
up.
The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The oven does not heat
up.
The Child Lock is on. Refer to "Using the Child
Lock".
The oven does not heat
up.
The fuse is blown. Make sure that the fuse is
the cause of the malfunc‐
tion. If the fuse is blown
again and again, contact a
qualified electrician.
The lamp does not oper‐
ate.
The lamp is defective. Replace the lamp.
It takes too long to cook
the dishes or they cook too
quickly.
The temperature is too low
or too high.
Adjust the temperature if
necessary. Follow the ad‐
vice in the user manual.
Steam and condensation
settle on the food and in
the cavity of the oven.
You left the dish in the
oven for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the
cooking process ends.
The display shows "C3". The cleaning function does
not operate. You did not
fully close the door, or the
door lock is defective.
Fully close the door.
ENGLISH 25
Page 26
Problem Possible cause Remedy
The display shows "F102". • You did not fully close
the door.
• The door lock is defec‐
tive.
• Fully close the door.
• Deactivate the oven
with the house fuse or
the safety switch in the
fuse box and activate it
again.
• If the display shows
"F102" again, contact
the Customer Care De‐
partment.
The display shows an error
code that is not in this ta‐
ble.
There is an electrical fault. • Deactivate the oven
with the house fuse or
the safety switch in the
fuse box and activate it
again.
• If the display shows the
error code again, con‐
tact the Customer Care
Department.
The appliance is activated
and does not heat up. The
fan does not operate. The
display shows "Demo".
The demo mode is activa‐
ted.
1. Deactivate the oven.
2. Press and hold the but‐
ton .
3. When an acoustic sig‐
nal sounds, turn the
knob for the oven func‐
tions clockwise to the
first function. "Demo"
flashes in the display.
4. Turn the knob for the
oven functions to the
off position.
5. Release the button .
6. Turn the knob for the
temperature clockwise
and hold it for three
seconds. The acoustic
signal sounds three
times. The demo mode
is deactivated.
11.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service
centre is on the rating plate. The rating
plate is on the front frame of the
appliance cavity. Do not remove the
rating plate from the appliance cavity.
www.electrolux.com26
Page 27
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
12. INSTALLATION
WARNING!
Refer to Safety chapters.

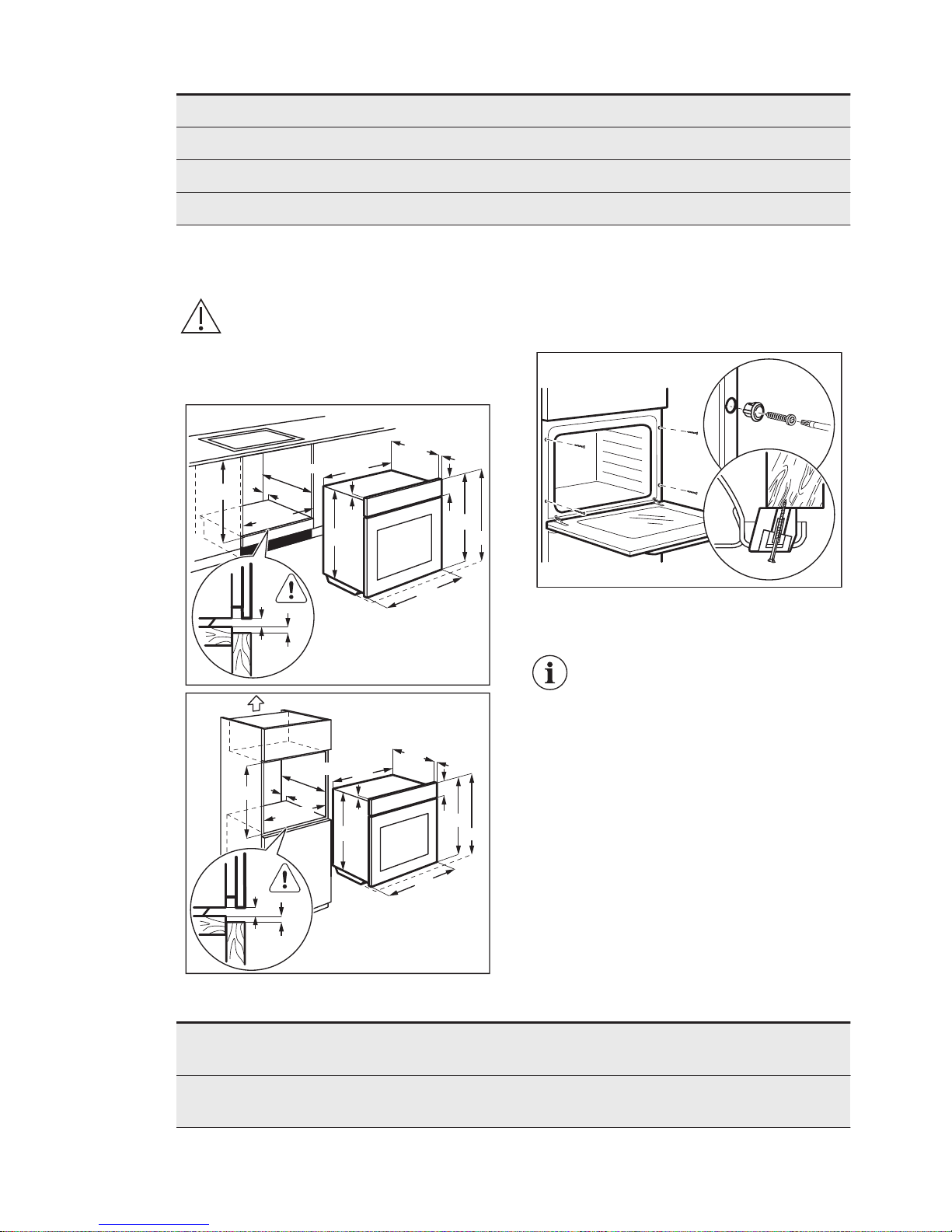

12.1 Building In
594
16
573
21548
min. 550
20
600
min. 560
558
589
114
594
3
5
558
21548
min. 550
20
589
594
114
16
573
590
min. 560
594
3
5
12.2 Securing the appliance to
the cabinet
A
B
12.3 Electrical installation
The manufacturer is not
responsible if you do not
follow the safety precautions
from the Safety chapters.
This appliance is supplied without a main
plug and a main cable.
Applicable types of cables for Europe:
• Minimum size Cable / flex: 1,5 mm²
• Cable / flex type: H07 RN-F, H05 RNF, H05 RRF, H05 VV-F, H05 V2V2-F
(T90), H05 BB-F
Applicable types of cables for UK only
Connection via Min. size cable /
flex
Cable / flex type Fuse
Oven Control Cir‐
cuit
2,5 mm² PVC / PVC twin and earth 15 A min.
20 A max.
ENGLISH 27
Page 28
13. ENERGY EFFICIENCY
13.1 Product Fiche and information according to EU 65-66/2014
Supplier's name Electrolux
Model identification
EOC5440AAX
EOC5440AOX
EOC5440BOX
Energy Efficiency Index 101.2
Energy efficiency class A
Energy consumption with a standard load, con‐
ventional mode
0.93 kWh/cycle
Energy consumption with a standard load, fanforced mode
0.85 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 68 l
Type of oven Built-In Oven
Mass
EOC5440AAX 35.7 kg
EOC5440AOX 35.7 kg
EOC5440BOX 35.3 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens,
steam ovens and grills - Methods for
measuring performance.
13.2 Energy saving
The appliance contains
features which help you
save energy during everyday
cooking.
General hints
Make sure that the oven door is closed
properly when the appliance operates
and keep it closed as much as possible
during the cooking.
Use metal dishes to improve energy
saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature
to minimum 3 - 10 minutes before the
end of the cooking time, depending on
the duration of the cooking. The residual
heat inside the oven will continue to
cook.
Use the residual heat to warm up other
dishes.
Cooking with fan
When possible, use the cooking
functions with fan to save energy.
Residual heat
If a programme with the Duration or End
Time selection is activated and the
cooking time is longer than 30 minutes,
the heating elements deactivate
automatically 10% faster in some oven
functions.
The fan and lamp continue to operate.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
www.electrolux.com28
Page 29
meal warm. The display shows the
residual heat indicator or temperature.
14. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
*
ENGLISH 29
Page 30
www.electrolux.com30
Page 31
ENGLISH 31
Page 32
www.electrolux.com/shop
867324374-A-262016
Loading...
