1.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
www.electrolux.com2
Page 3
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we
recommend you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Children of less than 3 years should be kept away
unless continuously supervised.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• Internally the appliance becomes hot when in operation.
Do not touch the heating elements that are in the
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
• Before maintenance cut the power supply.
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
• Do not use a steam cleaner to clean the appliance.
ENGLISH
3
Page 4
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
• Excess spillage must be removed before the pyrolytic
cleaning. Remove all parts from the oven.
• The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
www.electrolux.com4
Page 5
• Fully close the appliance door, before
you connect the mains plug to the
mains socket.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance. It is not a defect in the
sense of the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Pyrolytic cleaning
Risk of Injury / Fires /
Chemical Emissions (Fumes)
in Pyrolitic Mode.
ENGLISH
5
Page 6
• Before carrying out a Pyrolitic selfcleaning function or the First Use
please remove from the oven cavity:
– any excess food residues, oil or
grease spills / deposits.
– any removable objects (including
shelves, side rails etc., provided
with the product) particularly any
non-stick pots, pans, trays,
utensils etc.
• Read carefully all the instructions for
Pyrolytic cleaning.
• Keep children away from the appliance
while the Pyrolytic cleaning is in
operation.
The appliance becomes very hot and
hot air is released from the front
cooling vents.
• Pyrolytic cleaning is a high temperature
operation that can release fumes from
cooking residues and construction
materials, as such consumers are
strongly advised to:
– provide good ventilation during and
after each Pyrolytic cleaning.
– provide good ventilation during and
after the first use at maximum
temperature operation.
• Unlike all humans, some birds and
reptiles can be extremely sensitive to
potential fumes emitted during the
cleaning process of all Pyrolytic Ovens.
– Remove any pets (especially birds)
from the vicinity of the appliance
location during and after the
Pyrolytic cleaning and first use
maximum temperature operation to
a well ventilated area.
• Small pets can also be highly sensitive
to the localized temperature changes in
the vicinity of all Pyrolytic Ovens when
the Pyrolytic self cleaning program is in
operation.
• Non-stick surfaces on pots, pans,
trays, utensils etc., can be damaged by
the high temperature Pyrolytic cleaning
operation of all Pyrolytic Ovens and
can be also a source for low level
harmful fumes.
• Fumes released from all Pyrolytic
Ovens / Cooking Residues as
described are not harmful to humans,
including infants or persons with
medical conditions.
2.6 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
www.electrolux.com6
Page 7

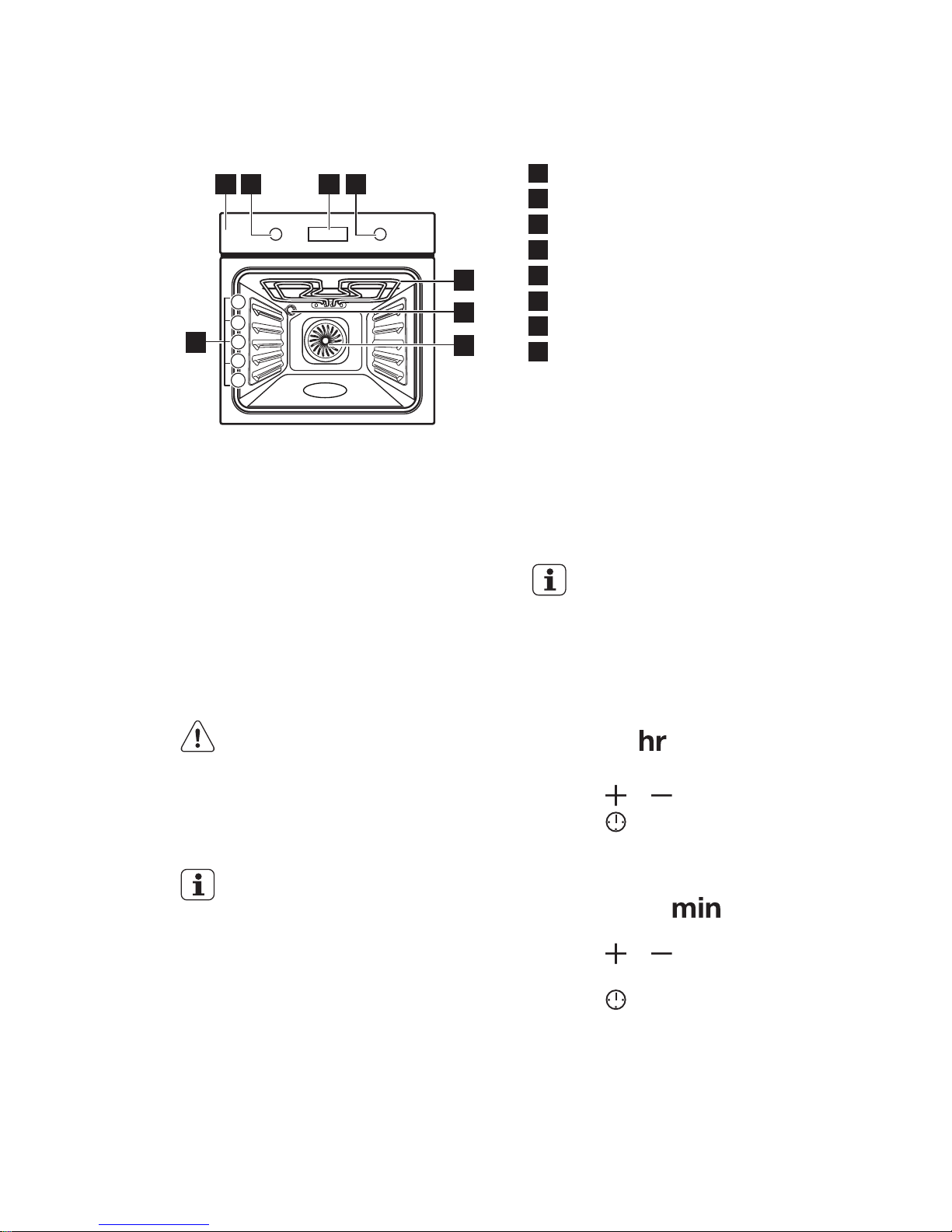

3. PRODUCT DESCRIPTION
3.1 General overview
6
5
8
7
5
4
1
2
3
31 42
1
Control panel
2
Knob for the oven functions
3
Electronic programmer
4
Knob for the temperature
5
Heating element
6
Lamp
7
Fan
8
Shelf positions
3.2 Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
• Trivet
For roasting and grilling.
Use the trivet only with the
Grill- / roasting pan.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories from the
appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories back to their initial
position.
4.2 Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few seconds
the display shows the software version.
After the software version goes off, the
display shows and "12:00". "12"
flashes.
1. Press or to set the current hour.
2. Press to confirm. This is necessary
only when you set the time for the first
time. Later the new time will be saved
automatically after 5 seconds.
The display shows and the set
hour. "00" flashes.
3. Press or to set the current
minutes.
4. Press to confirm. This is necessary
only when you set the time for the first
time. Later the new time will be saved
automatically after 5 seconds.
The display shows the new time.
ENGLISH
7
Page 8
4.3 Changing the time
You can change the time of day only if the
oven is off.
Press .
The set time and symbol flash in the
display.
To set a new time, refer to "Setting the
time".
4.4 Preheating
Preheat the empty appliance to burn off
the remaining grease.
1. Set the function and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function and the maximum
temperature.
4. Let the appliance operate for 15
minutes.
Accessories can become hotter than
usual. The appliance can emit an odour
and smoke. This is normal. Make sure that
the airflow in the room is sufficient.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
5.2 Activating and deactivating
the appliance
It depends on the model if
your appliance has knob
symbols, indicators or
lamps:
• The indicator comes on
when the oven heats up.
• The lamp comes on when
the appliance operates.
• The symbol shows
whether the knob controls
the oven functions or the
temperature.
1. Turn the knob for the oven functions
to select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance turn the
knobs for the oven functions and
temperature to the off position.
5.3 Oven functions
Oven function Application
Off position The appliance is off.
True Fan Cooking
To bake on up to 3 shelf positions at the same time
and to dry food. Set the temperature 20 - 40 °C lower
than for Conventional Cooking.
www.electrolux.com8
Page 9

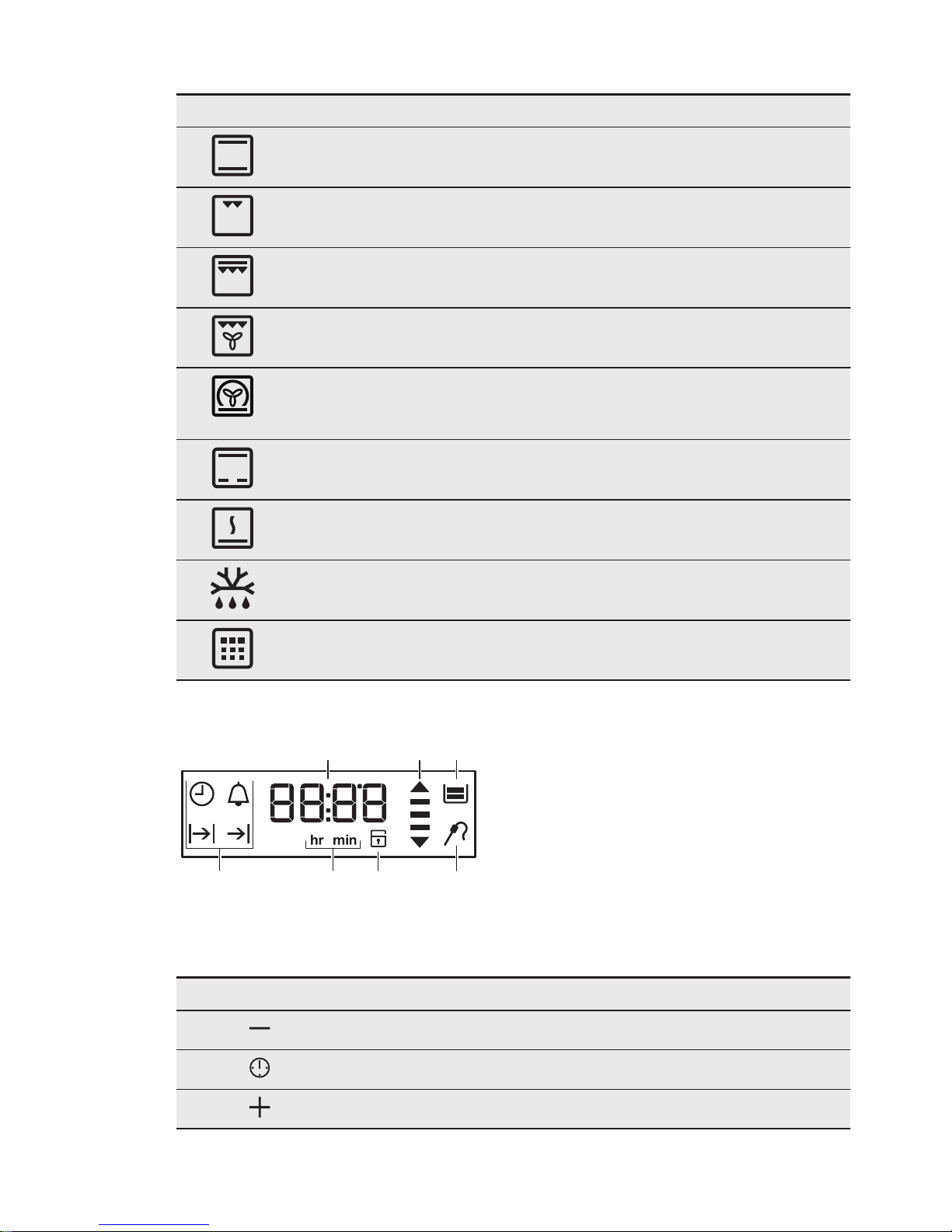

Oven function Application
Conventional
Cooking
To bake and roast food on 1 shelf position.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on 1
shelf position. Also to make gratins and to brown.
Pizza Setting To bake food on 1 shelf position for a more intensive
browning and a crispy bottom. Set the temperature
20 - 40 °C lower than for Conventional Cooking.
Meat To prepare very tender and juicy roasts.
Keep Warm To keep food warm.
Defrost To defrost frozen food.
Pyrolysis To activate the automatic pyrolytic cleaning of the
oven. This function burns off residual dirt in the oven.
5.4 Display
A B C
D
EFG
A) Timer
B) Heat-up and residual heat indicator
C) Water drawer (selected models only)
D) Core temperature sensor (selected
models only)
E) Door lock (selected models only)
F) Hours / minutes
G) Clock functions
5.5 Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
ENGLISH
9
Page 10
5.6 Heat-up indicator
When you activate an oven function, the
bars in the display come on one by
one. The bars show that the oven
temperature increases or decreases.
6. CLOCK FUNCTIONS
6.1 Clock functions table
Clock function Application
TIME OF DAY To set, change or check the time of day. Refer to
"Setting the time".
MINUTE MINDER Use to set a countdown time (maximum 23 h 59 min).
This function has no effect on the operation of the appliance. You can set the MINUTE MINDER at any
time, also if the appliance is off.
DURATION To set how long the appliance operates. Use only
when an oven function is set.
END To set when the appliance must deactivate. Use only
when an oven function is set. You can use Duration
and End at the same time (time delay), if the appliance
is to be activate and deactivate automatically later.
Press again and again to
switch between the clock
functions.
To confirm the settings of the
clock functions, press or
wait 5 seconds for an
automatic confirmation.
6.2 Setting the DURATION or
END
1. Press again and again until the
display shows or .
or flashes in the display.
2. Press or to the set the values
and press to confirm.
For Duration
first you set the minutes
and then the hours, for End first you
set the hours and then the minutes.
An acoustic signal sounds for 2 minutes
after the time ends. or symbol and
time setting flash in the display. The oven
stops.
3. Turn the knob for the oven functions
to the off position.
4. Press any button or open the oven
door to stop the acoustic signal.
If you press when you set
the hours for DURATION ,
the appliance goes to setting
of the END function.
6.3 Setting the MINUTE MINDER
1. Press again and again until and
"00" flash in the display.
2. Press
or to set the MINUTE
MINDER.
First you set the seconds, then the
minutes and then the hours.
At first, the time is calculated in
minutes and seconds. When the time
you set is longer than 60 minutes, the
symbol comes on in the display.
The appliance now calculates the time in
hours and minutes.
3. The MINUTE MINDER starts
automatically after five seconds.
www.electrolux.com10
Page 11
After 90% of the set time, an acoustic
signal sounds.
4. When the set time ends, an acoustic
signal sounds for two minutes.
"00:00" and flash in the display.
Press any button or open the oven
door to stop the acoustic signal.
If you set the MINUTE
MINDER when the
DURATION or END
function operates, the symbol
comes on in the display.
6.4 Count Up Timer
Use the Count Up Timer to monitor how
long the oven operates. It is on
immediately when the oven starts to heat.
To reset the Count Up Timer, press and
hold and . The timer starts to count
up again.
The Count Up Timer cannot
be used with the functions:
Duration , End .
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.

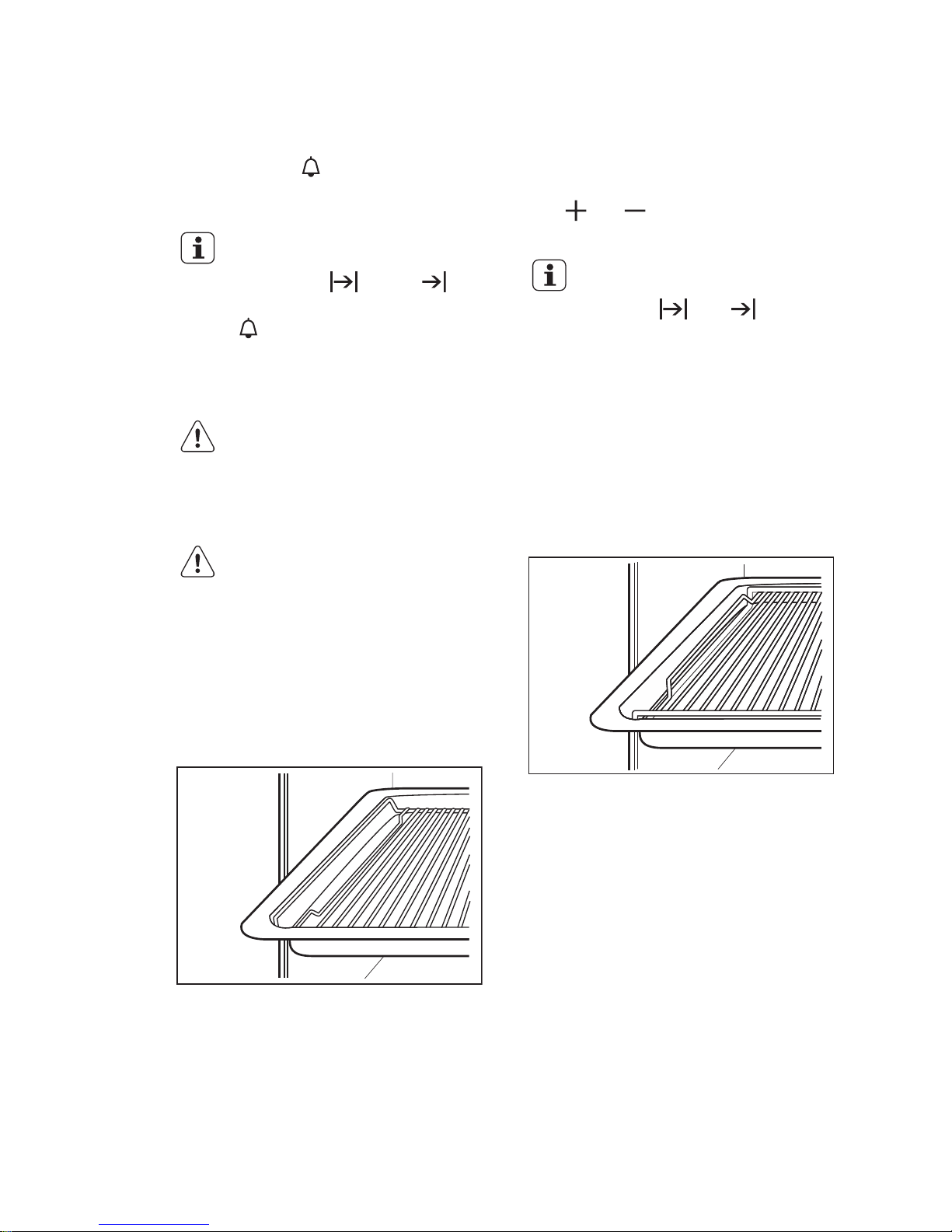

7.1 Trivet and Grill- / Roasting
pan
WARNING!
Be careful when you remove
the accessories from a hot
appliance. There is a risk of
burns.
You can use the trivet to roast larger
pieces of meat or poultry on one shelf
position.
1. Put the trivet into the deep pan so that
the supports of the wire shelf point up.
2. Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat dishes in
large quantities and to toast.
1. Put the trivet into the deep pan so that
the supports of the wire shelf point
down.
2. Put the deep pan into the oven on the
necessary shelf position.
8. ADDITIONAL FUNCTIONS
8.1 Using the Child Lock
The Child Lock prevents an accidental
operation of the appliance.
ENGLISH
11
Page 12
If the Pyrolysis function
operates, the door is locked.
SAFE comes on in the display
when you turn a knob or
press a button.
1. Do not set an oven function.
2. Press and hold
and at the same
time for 2 seconds.
An acoustic signal sounds. SAFE comes
on in the display.
To deactivate the Child Lock, repeat step
2.
8.2 Residual heat indicator
When you deactivate the appliance, the
display shows the residual heat indicator
if the temperature in the oven is more
than 40 °C. Turn the knob for the
temperature left or right to show the oven
temperature.
8.3 Automatic Switch-off
For safety reasons the appliance
deactivates automatically after some time
if an oven function operates and you do
not change any settings.
Temperature (°C) Switch-off time
(h)
30 - 115 12.5
Temperature (°C) Switch-off time
(h)
120 - 195 8.5
200 - 245 5.5
250 - maximum 3
After an automatic switch-off, press a any
button to operate the appliance again.
The Automatic switch-off
does not work with the
functions: Light, Duration,
End.
8.4 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
8.5 Safety thermostat
Incorrect operation of the appliance or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
activates again automatically when the
temperature drops.
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They depend
on the recipes and the quality
and quantity of the
ingredients used.
9.1 General information
• The appliance has five shelf positions.
Count the shelf positions from the
bottom of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system
you can cook in a steamy environment
and keep the food soft inside and
crusty outside. It decreases the
cooking time and energy consumption
to a minimum.
• Moisture can condense in the
appliance or on the door glass panels.
This is normal. Always stand back from
the appliance when you open the
appliance door while cooking. To
decrease the condensation, operate
the appliance for 10 minutes before
cooking.
• Clean the moisture after each use of
the appliance.
www.electrolux.com12
Page 13
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components
when you cook. This can change the
baking results and cause damage to
the enamel.
9.2 Baking cakes
• Do not open the oven door before 3/4
of the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
9.3 Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can
be permanent.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the
oven during roasting, add some water
into the deep pan. To prevent the
smoke condensation, add water each
time after it dries up.
9.4 Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
9.5 Baking and roasting table
Cakes
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Comments
Temperature (°C)
Shelf position
Temperature (°C)
Shelf position
Whisked
recipes
170 2 160 3 (2 and 4) 45 - 60 In a cake
mould
Shortbread
dough
170 2 160 3 (2 and 4) 20 - 30 In a cake
mould
Buttermilk
cheesecake
170 1 165 2 80 - 100 In a 26 cm
cake
mould
Apple
cake (Ap-
ple pie)
1)
170 2 160 2 (left and
right)
80 - 100 In two 20
cm cake
moulds on
a wire
shelf
Strudel 175 3 150 2 60 - 80 In a baking
tray
Jam-tart 170 2 165 2 (left and
right)
30 - 40 In a 26 cm
cake
mould
Sponge
cake
170 2 150 2 40 - 50 In a 26 cm
cake
mould
ENGLISH
13
Page 14
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Comments
Temperature (°C)
Shelf position
Temperature (°C)
Shelf position
Christmas
cake /
Rich fruit
cake
1)
160 2 150 2 90 - 120 In a 20 cm
cake
mould
Plum
cake
1)
175 1 160 2 50 - 60 In a bread
tin
Small
cakes -
one level
1)
170 3 150 - 160 3 20 - 30 In a baking
tray
Small
cakes two lev-
els
1)
- - 140 - 150 2 and 4 25 - 35 In a baking
tray
Small
cakes three lev-
els
1)
- - 140 - 150 1, 3 and 5 30 - 45 In a baking
tray
Biscuits /
pastry
stripes one level
140 3 140 - 150 3 25 - 45 In a baking
tray
Biscuits /
pastry
stripes two levels
- - 140 - 150 2 and 4 35 - 40 In a baking
tray
Biscuits /
pastry
stripes three levels
- - 140 - 150 1, 3 and 5 35 - 45 In a baking
tray
Meringues
- one level
120 3 120 3 80 - 100 In a baking
tray
Meringues
- two lev-
els
1)
- - 120 2 and 4 80 - 100 In a baking
tray
Buns
1)
190 3 190 3 12 - 20 In a baking
tray
www.electrolux.com14
Page 15
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Comments
Temperature (°C)
Shelf position
Temperature (°C)
Shelf position
Eclairs one level
190 3 170 3 25 - 35 In a baking
tray
Eclairs two levels
- - 170 2 and 4 35 - 45 In a baking
tray
Plate tarts 180 2 170 2 45 - 70 In a 20 cm
cake
mould
Rich fruit
cake
160 1 150 2 110 - 120 In a 24 cm
cake
mould
Victoria
sand-
wich
1)
170 1 160 2 (left and
right)
30 - 50 In a 20 cm
cake
mould
1)
Preheat the oven for 10 minutes.
Bread and pizza
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Comments
Temperature (°C)
Shelf position
Temperature (°C)
Shelf position
White
bread
1)
190 1 190 1 60 - 70 1 - 2
pieces,
500 gr per
piece
Rye bread 190 1 180 1 30 - 45 In a bread
tin
Bread
rolls
1)
190 2 180 2 (2 and 4) 25 - 40 6 - 8 rolls
in a baking
tray
Pizza
1)
230 - 250 1 230 - 250 1 10 - 20 In a baking
tray or a
deep pan
Scones
1)
200 3 190 3 10 - 20 In a baking
tray
1)
Preheat the oven for 10 minutes.
ENGLISH
15
Page 16
Flans
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Comments
Temperature (°C)
Shelf position
Temperature (°C)
Shelf position
Pasta flan 200 2 180 2 40 - 50 In a mould
Vegetable
flan
200 2 175 2 45 - 60 In a mould
Quiches
1)
180 1 180 1 50 - 60 In a mould
Lasagne
1)
180 - 190 2 180 - 190 2 25 - 40 In a mould
Cannello-
ni
1)
180 - 190 2 180 - 190 2 25 - 40 In a mould
1)
Preheat the oven for 10 minutes.
Meat
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Comments
Temperature (°C)
Shelf position
Temperature (°C)
Shelf position
Beef 200 2 190 2 50 - 70 On a wire
shelf
Pork 180 2 180 2 90 - 120 On a wire
shelf
Veal 190 2 175 2 90 - 120 On a wire
shelf
English
roast beef,
rare
210 2 200 2 50 - 60 On a wire
shelf
English
roast beef,
medium
210 2 200 2 60 - 70 On a wire
shelf
English
roast beef,
well done
210 2 200 2 70 - 75 On a wire
shelf
Shoulder
of pork
180 2 170 2 120 - 150 With rind
Shin of
pork
180 2 160 2 100 - 120 2 pieces
Lamb 190 2 175 2 110 - 130 Leg
Chicken 220 2 200 2 70 - 85 Whole
www.electrolux.com16
Page 17
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Comments
Temperature (°C)
Shelf position
Temperature (°C)
Shelf position
Turkey 180 2 160 2 210 - 240 Whole
Duck 175 2 220 2 120 - 150 Whole
Goose 175 2 160 1 150 - 200 Whole
Rabbit 190 2 175 2 60 - 80 Cut in
pieces
Hare 190 2 175 2 150 - 200 Cut in
pieces
Pheasant 190 2 175 2 90 - 120 Whole
Fish
Food Conventional Cook-
ing
True Fan Cooking Time
(min)
Comments
Temperature (°C)
Shelf position
Temperature (°C)
Shelf position
Trout /
Sea bream
190 2 175 2 40 - 55 3 - 4 fish
Tuna fish /
Salmon
190 2 175 2 35 - 60 4 - 6 fillets
9.6 Grilling
Preheat the empty oven for 3
minutes before cooking.
Food Quantity Tempera-
ture (°C)
Time (min) Shelf po-
sition
Pieces (g) 1st side 2nd side
Fillet
steaks
4 800 max. 12 - 15 12 - 14 4
Beef
steaks
4 600 max. 10 - 12 6 - 8 4
Sausages 8 - max. 12 - 15 10 - 12 4
Pork
chops
4 600 max. 12 - 16 12 - 14 4
Chicken
(cut in 2)
2 1000 max. 30 - 35 25 - 30 4
ENGLISH
17
Page 18
Food Quantity Tempera-
ture (°C)
Time (min) Shelf po-
sition
Pieces (g) 1st side 2nd side
Kebabs 4 - max. 10 - 15 10 - 12 4
Breast of
chicken
4 400 max. 12 - 15 12 - 14 4
Hamburger
6 600 max. 20 - 30 - 4
Fish fillet 4 400 max. 12 - 14 10 - 12 4
Toasted
sandwiches
4 - 6 - max. 5 - 7 - 4
Toast 4 - 6 - max. 2 - 4 2 - 3 4
9.7 Turbo Grilling
Beef
Food Quantity Temperature
(°C)
Time (min) Shelf position
Roast beef or fillet,
rare
1)
per cm of
thickness
190 - 200 5 - 6 1 or 2
Roast beef or fillet,
medium
1)
per cm of
thickness
180 - 190 6 - 8 1 or 2
Roast beef or fillet,
well done
1)
per cm of
thickness
170 - 180 8 - 10 1 or 2
1)
Preheat the oven.
Pork
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Shoulder, neck,
ham joint
1 - 1.5 160 - 180 90 - 120 1 or 2
Chop, spare rib 1 - 1.5 170 - 180 60 - 90 1 or 2
Meat loaf 0.75 - 1 160 - 170 50 - 60 1 or 2
Pork knuckle (precooked)
0.75 - 1 150 - 170 90 - 120 1 or 2
Veal
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Roast veal 1 160 - 180 90 - 120 1 or 2
www.electrolux.com18
Page 19
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Knuckle of veal 1.5 - 2 160 - 180 120 - 150 1 or 2
Lamb
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Leg of lamb,
roast lamb
1 - 1.5 150 - 170 100 - 120 1 or 2
Saddle of lamb 1 - 1.5 160 - 180 40 - 60 1 or 2
Poultry
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Poultry portions 0.2 - 0.25 each 200 - 220 30 - 50 1 or 2
Chicken, half 0.4 - 0.5 each 190 - 210 35 - 50 1 or 2
Chicken, poulard
1 - 1.5 190 - 210 50 - 70 1 or 2
Duck 1.5 - 2 180 - 200 80 - 100 1 or 2
Goose 3.5 - 5 160 - 180 120 - 180 1 or 2
Turkey 2.5 - 3.5 160 - 180 120 - 150 1 or 2
Turkey 4 - 6 140 - 160 150 - 240 1 or 2
Fish (steamed)
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Whole fish 1 - 1.5 210 - 220 40 - 60 1 or 2
9.8 Defrost
Food Quantity
(g)
Defrosting
time (min)
Further defrosting time (min)
Comments
Chicken 1000 100 - 140 20 - 30 Place the chicken on an
upturned saucer placed
on a large plate. Turn
halfway through.
Meat 1000 100 - 140 20 - 30 Turn halfway through.
Meat 500 90 - 120 20 - 30 Turn halfway through.
Trout 150 25 - 35 10 - 15 -
Strawberries 300 30 - 40 10 - 20 -
ENGLISH
19
Page 20
Food Quantity
(g)
Defrosting
time (min)
Further defrosting time (min)
Comments
Butter 250 30 - 40 10 - 15 -
Cream 2 x 200 80 - 100 10 - 15 Cream can also be
whipped when still
slightly frozen in places.
Gateau 1400 60 60 -
9.9 Drying - True Fan Cooking
• Cover trays with grease proof paper or
baking parchment.
• For a better result, stop the oven
halfway through the drying time, open
the door and let it cool down for one
night to complete the drying.
Vegetables
Food Temperature
(°C)
Time (h) Shelf position
1 position 2 positions
Beans 60 - 70 6 - 8 3 1 / 4
Peppers 60 - 70 5 - 6 3 1 / 4
Vegetables for
sour
60 - 70 5 - 6 3 1 / 4
Mushrooms 50 - 60 6 - 8 3 1 / 4
Herbs 40 - 50 2 - 3 3 1 / 4
Fruit
Food Temperature
(°C)
Time (h) Shelf position
1 position 2 positions
Plums 60 - 70 8 - 10 3 1 / 4
Apricots 60 - 70 8 - 10 3 1 / 4
Apple slices 60 - 70 6 - 8 3 1 / 4
Pears 60 - 70 6 - 9 3 1 / 4
10. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
10.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
www.electrolux.com20
Page 21
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
10.2 Stainless steel or aluminium
appliances
Clean the oven door with a
wet sponge only. Dry it with a
soft cloth.
Do not use steel wool, acids
or abrasive materials as they
can damage the oven
surface. Clean the oven
control panel with the same
precautions.
10.3 Pyrolysis
CAUTION!
Remove all accessories.
Do not start the Pyrolysis if
you did not fully close the
oven door. In some models,
the display shows "C3" when
this error occurs.
WARNING!
The appliance becomes very
hot. There is a risk of burns.
CAUTION!
If there are other appliances
installed in the same cabinet,
do not use them at the same
time as the Pyrolysis function.
It can cause damage to the
appliance.
1. Remove the worst dirt manually.
2. Clean the inner side of the door with
hot water, so that the residues do not
burn from the hot air.
3. Set the Pyrolysis function. Refer to
"Oven functions".
4. When flashes, press or to
set the necessary procedure:
Option Description
P1 If the oven is
not very dirty.
Time of the
procedure: 1
h.
P2 If you cannot
easily remove
the dirt. Time
of the procedure: 1 h 30
min.
After 2 seconds the procedure starts.
You can use the End function to delay the
start of the cleaning procedure.
During the Pyrolysis the oven lamp is off.
5. When the oven is at its set
temperature, the door locks. The
display shows the symbol and the
bars of the heat indicator until the
door unlocks.
To stop Pyrolysis before it is
completed, turn the knob for the oven
functions to the off position.
6. When Pyrolysis is completed, the
display shows the time of day. The
oven door stays locked.
7. When the appliance is cool again, an
acoustic signal sounds and the door
unlocks.
10.4 Cleaning reminder
To remind you that the Pyrolysis is
necessary, PYR flashes in the display for
10 seconds after each activation and
deactivation of the appliance.
The cleaning reminder
goes out:
• after the end of the
Pyrolysis function.
• if you press and at
the same time while PYR
flashes in the display.
10.5 Cleaning the oven door
The oven door has four glass panels. You
can remove the oven door and the internal
glass panels to clean them.
ENGLISH
21
Page 22
The oven door can close if
you try to remove the glass
panels before you remove the
oven door.
CAUTION!
Do not use the appliance
without the glass panels.

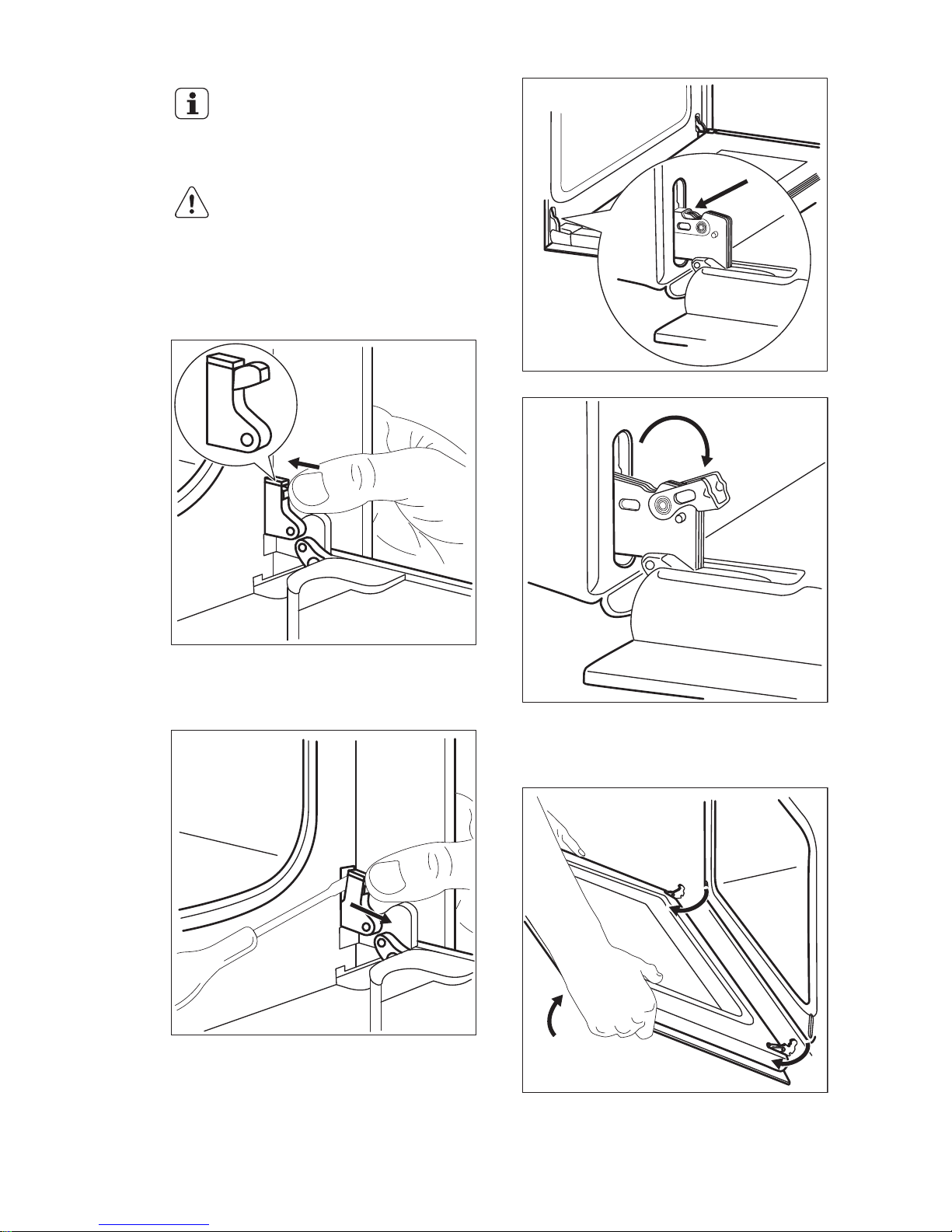

1. Fully open the door and identify the
hinge to the right side of the door.
2. Push the tightening component until it
pulls back.
3. Hold the pushed component with one
hand. Use a screwdriver with the other
hand to lift and turn the right side
hinge lever.
4. Identify the hinge to the left side of the
door.
5.
Lift and turn the lever on the left hinge.
6. Close the oven door halfway to the
first opening position. Then pull
forward and remove the door from its
seat.
7. Put the door on a soft cloth on a
stable surface.
www.electrolux.com22
Page 23

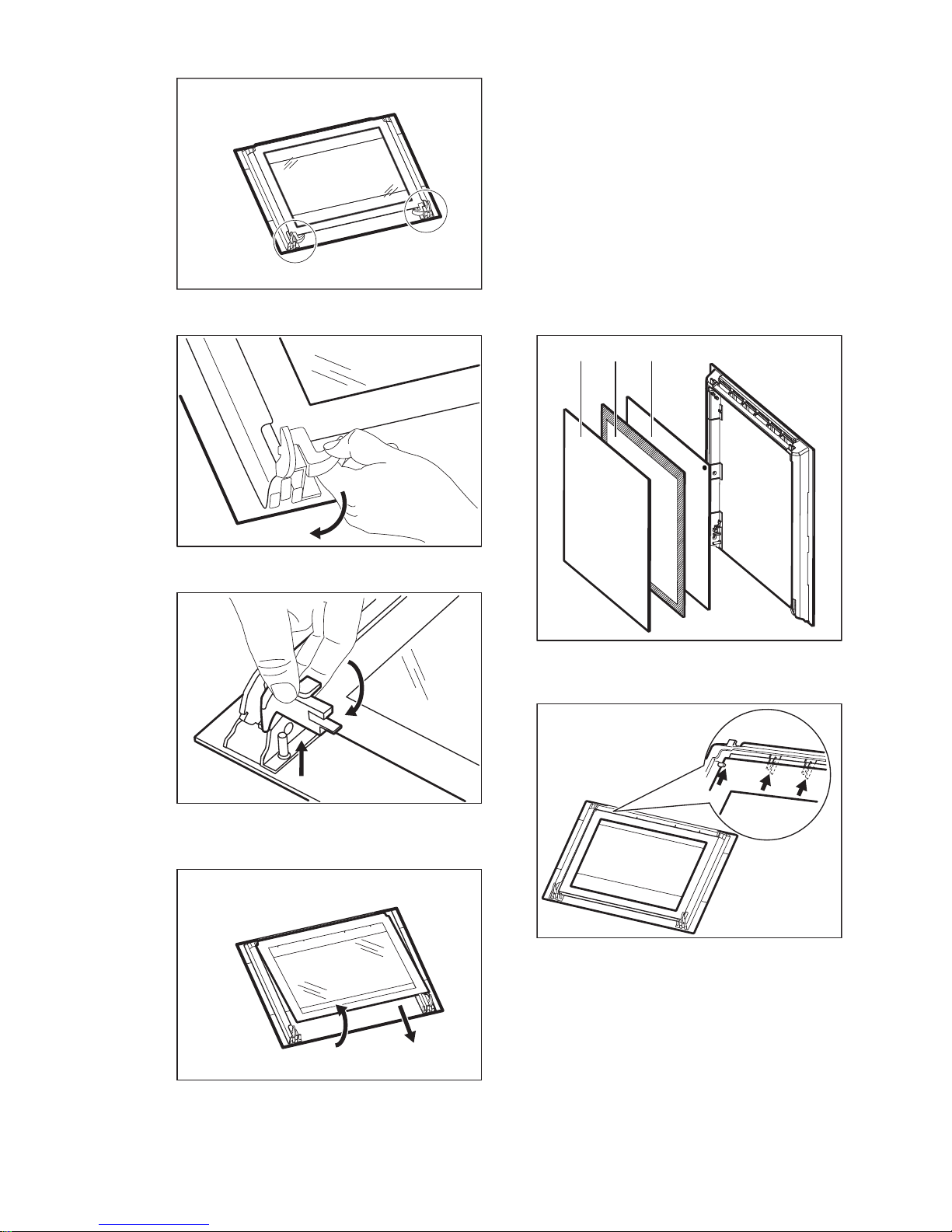

8. Release the locking system to remove
the glass panels.
9. Turn the two fasteners by 90° and
remove them from their seats.
90°
10. First lift carefully and then remove the
glass panels one by one. Start from
the top panel.
1
2
11. Clean the glass panels with water and
soap. Dry the glass panels carefully.
When the cleaning is completed, install the
glass panels and the oven door. Do the
above steps in the opposite sequence.
Make sure that you put the glass panels
(A, B and C) back in the correct sequence.
The middle panel (B) has a decorative
frame. The screen-printing zone must face
the inner side of the door. Make sure that
after the installation the surface of the
glass panel frame (B) on the screenprinting zones is not rough when you
touch it.
A B C
Make sure that you install the middle panel
of glass in the seats correctly.
10.6 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
ENGLISH
23
Page 24
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
CAUTION!
Always hold the halogen lamp
with a cloth to prevent grease
residue from burning on the
lamp.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The back lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300
°C heat-resistant lamp.
4. Install the glass cover.
11. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
11.1 What to do if...
Problem Possible cause Remedy
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The oven does not heat up. The Child Lock is on. Refer to "Using the Child
Lock".
The oven does not heat up. The fuse is released. Make sure that the fuse is
the cause of the malfunction. If the fuse releases
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
It takes too long to cook the
dishes or they cook too
quickly.
The temperature is too low
or too high.
Adjust the temperature if
necessary. Follow the advice in the user manual.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the cooking process ends.
www.electrolux.com24
Page 25
Problem Possible cause Remedy
The display shows "C3". The cleaning function does
not operate. You did not
fully close the door, or the
door lock is defective.
Fully close the door.
The display shows "F102". • You did not fully close
the door.
• The door lock is defective.
• Fully close the door.
• Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows
"F102" again, contact
the Customer Care Department.
The display shows an error
code that is not in this table.
There is an electrical fault. • Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows the
error code again, contact the Customer Care
Department.
The appliance is activated
and does not heat up. The
fan does not operate. The
display shows "Demo".
The demo mode is activated.
1. Deactivate the oven.
2. Press and hold the but-
ton .
3. When an acoustic sig-
nal sounds, turn the
knob for the oven functions clockwise to the
first function. "Demo"
flashes in the display.
4. Turn the knob for the
oven functions to the off
position.
5. Release the button .
6. Turn the knob for the
temperature clockwise
and hold it for three
seconds. The acoustic
signal sounds three
times. The demo mode
is deactivated.
11.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
ENGLISH
25
Page 26
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
12. INSTALLATION
WARNING!
Refer to Safety chapters.

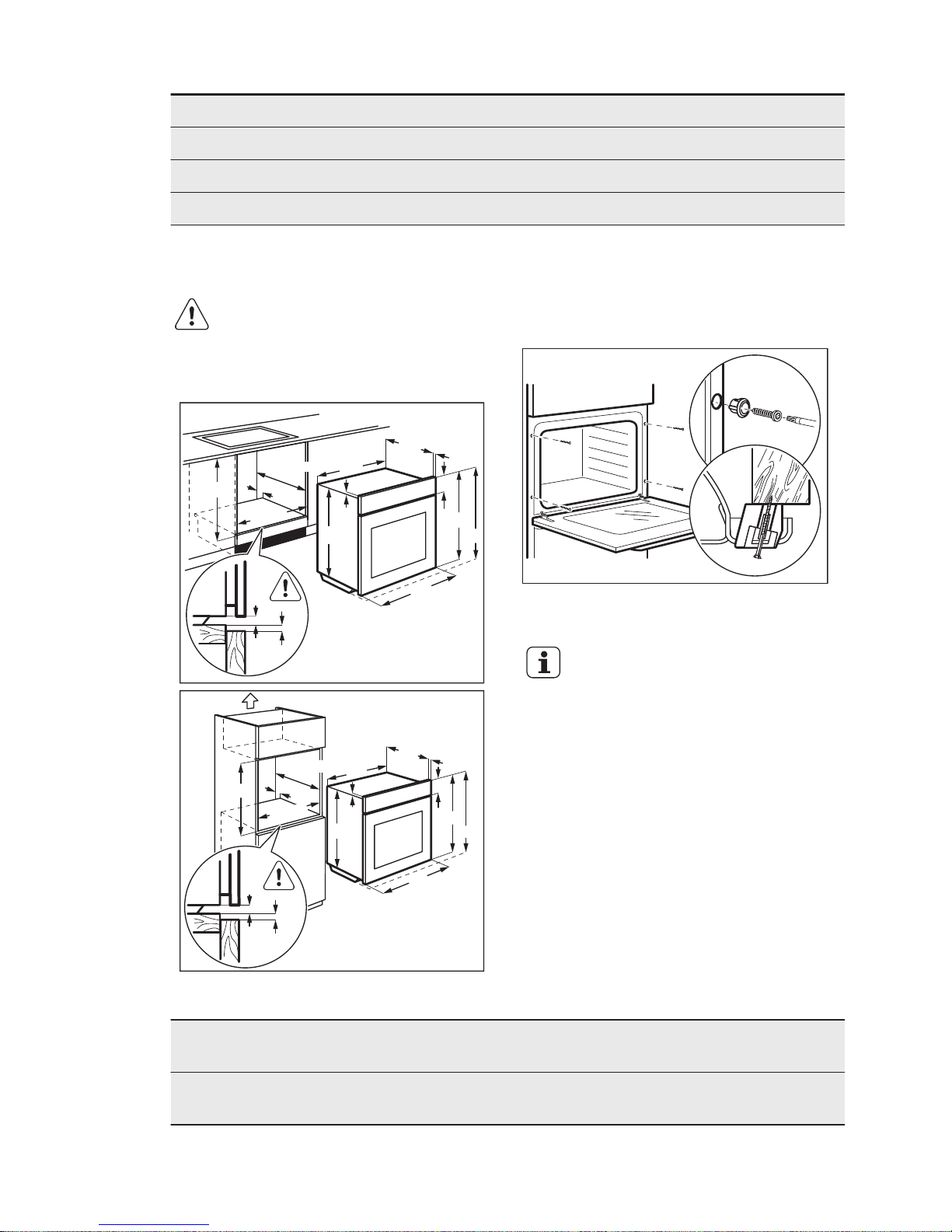

12.1 Building In
594
16
573
21548
min. 550
20
600
min. 560
558
589
114
594
3
5
558
21548
min. 550
20
589
594
114
16
573
590
min. 560
594
3
5
12.2 Securing the appliance to
the cabinet
A
B
12.3 Electrical installation
The manufacturer is not
responsible if you do not
follow the safety precautions
from the Safety chapters.
This appliance is supplied without a main
plug and a main cable.
Applicable types of cables for Europe:
• Minimum size Cable / flex: 1,5 mm²
• Cable / flex type: H07 RN-F, H05 RNF, H05 RRF, H05 VV-F, H05 V2V2-F
(T90), H05 BB-F
Applicable types of cables for UK only
Connection via Min. size cable /
flex
Cable / flex type Fuse
Oven Control Circuit 2,5 mm² PVC / PVC twin and earth 15 A min.
20 A min.
www.electrolux.com26
Page 27
13. ENERGY EFFICIENCY
13.1 Product Fiche and information according to EU 65-66/2014
Supplier's name Electrolux
Model identification EOC5440AAX
EOC5440AOX
EOC5440BOX
Energy Efficiency Index 101.2
Energy efficiency class A
Energy consumption with a standard load, conventional mode
0.93 kWh/cycle
Energy consumption with a standard load, fanforced mode
0.85 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 68 l
Type of oven Built-In Oven
Mass EOC5440AAX
EOC5440AOX
EOC5440BOX
36.4 kg
36.4 kg
36.0 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
13.2 Energy saving
The appliance contains features which
help you save energy during everyday
cooking.
• General hints
– Make sure that the oven door is
closed properly when the
appliance operates and keep it
closed as much as possible during
the cooking.
– Use metal dishes to improve the
energy saving.
– When possible, put the food inside
the oven without heating it up.
– When the cooking duration is
longer than 30 minutes, reduce the
oven temperature to minimum, 3 10 minutes before the end of the
cooking time, depending on the
duration of the cooking. The
residual heat inside the oven will
continue to cook.
– Use the residual heat to warm up
other foods.
• Cooking with fan - when possible,
use the cooking functions with fan to
save energy.
• Residual heat
– In some oven functions if a
programme with time selection
(Duration, End) is activated and the
cooking time is longer than 30
minutes, the heating elements
deactivate automatically 10%
earlier. The fan and lamp continue
to operate.
• Keep food warm - if you want to use
the residual heat to keep the meal
warm, choose the lowest possible
temperature setting. The display shows
the residual heat temperature.
ENGLISH
27
Page 28
14. ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
*
www.electrolux.com28
Page 29
ENGLISH
29
Page 30
www.electrolux.com30
Page 31
ENGLISH
31
Page 32
www.electrolux.com/shop
867304582-D-422014
Loading...
