User Manual
8221914 - 12 - 01
Model EMM2005
English
Page 2
Page 3
EMM2005 t
Contents
Before using your microwave oven 4
Technical data 4
Safety instructions 5
– Utensil safety 5
– Testing suitability of cookware 5
– Food safety 6
Installation 8
– Connecting to the mains 8
Oven utensils and accessori es guide 9
– Unpacking 7
How to operate your microwave oven 10
– Name and function of parts 10
– Turntable Installation 10
– Control panel 11
– Microwave Cooking 12
– Microwave Power Setting Guide 12
– Defrosting instructions using
– Microwave Hints 14
– Care and cleaning 15
– Cleaning the accessories (turntable a nd support) 15
– Cleaning the interior 15
– Cleaning the exterior 15
(180W) 13
English
Guarantee conditions 16
3
Page 4
EMM2005 t
English
Congratulations on the purchase of your new Microwave Oven
Thank you for having chosen a Electrolux product. We are convinced that you will find your new microwave
oven very useful and that it will be of great help to you. As with all new kitchen appliances, it will take some
time to learn all the new functions and features, but with time, this oven will become indispensable to you.
Before using your Microwave Oven
Read through the instruction manual caref ully and ensure that you follow the recommendations given, these
instructions have been prepared so that you get the best from your new Electrolux Microwave Oven.
It is important that this instruction book is ret ained with the appliance for future reference. Should the appliance
be sold or transferred to another owner, or if you move house and leave the appliance, always ensure that the
book is supplied with the appliance so that the new owner can be acquainted wit h the functioning of the
appliance and the relevant warnings.
Technical data
Overall dimension Weight 13.5 kg
Width 484 mm
Depth 376 mm
Height 285 mm
Cavity dimension Fuse 10 A
Width 323 mm
Depth 304 mm
Height 223 mm
Volume 20 Litre
Power source 220V, 60 Hz
Power consumption 1300W
Power output 800W
4
Page 5
EMM2005 t
Important Safety instructions.
READ CAREFULLY AND KEEP FOR FUTURE REF ERENCE
Do not store this appliance outdoors. Do not use
• The built-in safety interlock switches prevent the
microwave oven from operating when the door is
open.
• Do not tamper with them, or attempt to operat e
the oven with the door open as open door
operation can result in exposure to microwave
energy.
• Do not allow food spills or cleaner residue to
accumulate on door sealing surfaces. See the
Cleaning and Care section for cleaning
instructions.
• It is particularly important that the oven door
closes properly and that there is no damage to
the: (1) door (warped), (2) hinges and latches
(broken or insecure), (3) door seals and sealing
surface.
WARNING : If the door,
hinges/latches or doo r seals are damaged,
the microwave must not be operated until
it has been repaired by a authorized
service person.
•
this product near water.
Do not attempt to dry clothing or newspap ers in
•
the microwave oven. These items can ignite.
Do not use the cavity for storage purposes. Do
•
not leave paper products, cooking utensils, or
food in the cavity when not in use.
The temperature of accessible surfaces may be
•
high when the appliance is operating.
WARNING : If smoke is observed,
switch off or unplug the appliance an d
keep the door closed in order to stifle any
flames. Never use water.
WARNING : Only allow children or
infirm persons to use the microwave,
without supervision, when adequate
instructions have been given so that the
child or infirm person is able to use the
microwave in a safe way and understand
the hazards of improper use.
English
WARNING : It is hazardous for
anyone except factory trained service
personnel to service or make adjustments
to this oven. Contact your nearest
authorised service agent if service should
be required.
• Do not remove the outer case, door or control
panel at any time. Doing so may cause exposure
to extremely high voltage.
• Install or locate this oven only in accordance with
‘installation instructions’ f ound in this manual.
Use the appliance for its intended us e as
•
described in this manual. Do not use corrosive
chemicals in this appliance. This type of oven is
specifically designed to heat, cook, or def rost
food. It is not designed for industrial or laboratory
use neither for commercial use as this will
invalidate the guarantee.
Do not operate the oven empty. If food or water is
•
not present to absorb the microwave energy, t he
magnetron tube can be damaged.
Utensil safety
Only use utensils that are suitable for use in a
•
microwave oven.
Most glass, glass ceramic and heat-resistant
•
glass-ware utensils are excellent for use in the
micro-wave oven. Although microwave energy wi ll
not heat most glass and ceramic items, these
utensils can become hot as heat transfers fr om
the food to the container. The use of oven gl oves
to remove dishes is recommended.
Testing suitabi lity of cookware
Utensils should be checked to ensure they are
•
suitable for use in Microwave Ovens.
Place the cookware in the microwave along wit h a
•
glass half full of water. Heat on (800W) (100 %) for
one minute. If the cookware feels hot, you sh ould
not use it. If it is just slightly warm, you can use it
for reheating but not for cooking. If the dish is
room temperature, it is suitable for microwave
cooking.
5
Page 6
EMM2005 t
English
• Paper napkins, wax paper, paper towels, plat es,
cups, cartons, freezer wrap and cardboard are
great convenience utensils. Always be sure
containers are filled with food to absorb energy
and thus avoid the possibility of overheat ing or
ignition.
• Many plastic dishes, cups, freezer containers an d
plastic wraps may be used in the microwave
oven. Follow manufacturer’s instructions when
using plastics in the oven. Avoid using plastic
utensils with foods that have high fat or sugar
content since these foods reach high
temperatures and could melt some plastics.
Do not leave oven unattended, and look at it from
•
time to time when heating or cooking food in
plastic, paper or other combustible containers.
Metal utensils and utensils with metallic trim
•
should not be used in the microwave oven, unl ess
specifically recommended for microwave use.
Containers with restricted openings, such as
•
bottles, should not be used for microwave
cooking.
Use caution when removing a lid or cover from a
•
dish to avoid steam burns.
Foil container s
Shallow foil containers may safely be used to reh eat
foods in your microwave oven providing the f ollowing
rules are observed:
1. Foil containers should not be more than 3 cms
(1 1/4”) deep.
2. Foil lids must not be used.
3. The foil containers must be at least two-thirds f ull
of food. Empty containers must never be used.
4. Foil containers should be used singly in the
microwave oven and should not be allow ed to
touch the sides. If your oven has a metal turntable
or cooking rack, the foil container should be
placed on an upturned oven-proof plate.
5. Foil containers should never be re-used in t he
microwave oven.
6. If the microwave oven has been in use for 15
minutes or more, allow it to cool before using it
again.
7. The container and turntable may become hot
during use, take great care when removing eith er
from the oven. It is advisable to use an oven cloth
or glove when doing so.
8. Remember when using an aluminium foi l
container that the reheating or cookin g times may
be longer than you are used to, always ensure
that the food is piping hot before serving.
Food safety
Do not heat food in a can in the microwave oven.
•
Always remove the food to a suitable container.
Deep fat frying should not be done in the
•
microwave oven, because the fat temperature
cannot be controlled, hazardous situat ions can
result.
Popcorn may be prepared in the microwave oven,
•
but only in special packages or utensils designed
specifically for this purpose. This cooking
operation should never be unattended.
Pierce foods with non-porous skins or
•
membranes to prevent steam build-up and
bursting. Apples, potatoes, chicken livers, and
egg yolks are examples of items that should be
pierced.
The contents of feeding bottles and baby f ood jars
•
are to be stirred or shaken and the temperature is
to be checked before consumption, in order t o
avoid burns.
WARNING : Liquids or other foods
must not be heated in sealed containers
since they are liable to explode.
WARNING : Microwave heating of
beverages can result in delayed eruptive
boiling, therefore care must be taken w hen
handling the container.
WARNING : When heating liquids,
e.g. soups, sauces and beverages in your
microwave oven, overheating the liquid
beyond boiling point can occur without
evidence of bubbling. This could result in a
sudden boil over of the hot liquid. To
prevent this possibility th e fol low ing steps
should be taken:
6
Page 7
EMM2005 t
English
1. Avoid using straight-sided containers with narrow
necks.
2. Do not overheat.
3. Stir the liquid before placing the cont ainer in the
oven and again halfway through the he at ing time.
4. After heating, allow to stand in the oven f or a
short time, stirring again before carefully removing
the container.
WARNING : Some products such as
whole eggs and sealed containers – for
example, closed glass jars – may explode
and should not be heated in this oven.
Occasionally, poach ed eggs may explode
during cooking. Always pierce the yolk,
then cover and allow the standi ng ti me of
one minute before removing cover.
It is quite normal for steam to be emitted
around the door, or for misting to occur on the
door, or even for water droplets to appear
below the door during the cooking cycle. This
is merely condensation from the heat of t he
food and does not affect the safety of your
oven. The door is not intended to seal
the oven cavity completely.
• Do not force the turntable to rotate by hand. This
may cause malfunctioning.
• Arcing in the oven during microwave operation
usually occurs from use of metallic ut ensils.
Continuous arcing, however, can damage the
unit. Stop the programme and check the utens il.
• Care should be taken not to obstruct any air vents
located on the top, rear, side and bottom of t he
oven.
m WARNING : Do not use this oven for
commercial purpo ses.This oven is made
for domestic use only.
7
Page 8
EMM2005 t English
Installation.
1. Remove any promotion label from t he door.
Connecting to the mains
2. The oven should be installed on a flat , level
surface. The surface must be strong enough to
safely bear the weight (13.5 kg) of the oven, and
the contents. To avoid the possibility of causing
vibration or noise the oven must be in a stable
position.
3. Keep the oven away from heat and water.
Exposure to heat and water can lower oven
efficiency and lead to malfunctioning, so be sure t o
install the oven away from heat and water sources.
4. Do not block air vents on the top and the sides of
the cabinet and also do not place any articles on
the top of the oven. If air vents are blocked during
operation, the oven may overheat, and this may
lead to malfunctioning. Hot air escapes from the
vents, so be sure not to obstruct it or let curtains
come between the oven and the rear wall.
5. Place the oven as far away from radios and TV’s
as possible. This oven does conform to EEC
requirements of radio interference suppression, but
some interference may occur if it is placed too
close to a radio or TV, so keep them as far apart
as possible.
6. If positioned in a corner, leave a gap of at least
15 cm from the walls and 15 cm above the
microwave.
IMPORTANT! The oven can be placed almost
anywhere in the kitchen. Make sure the oven is
placed on a flat, level surface and that vent s as
well as the surface underneath the oven are not
blocked (for sufficient ventilation).
The oven is delivered with the power cord and a plug
for 220V, 60Hz, earthed socket outlet.
Earth protection minimises the risks should a short
circuit occur. Check to ensure the voltage of the oven
matches the supply.
N.B. If the oven is connected to the socket via an
extension cord, make sure the cord is earthed.
This appliance must not be used on a non-
earth protected power supply. Contact an
electrician if you are un certain regarding
electrical connection of the oven or
provision of earth protection of the
supply.
This appliance must be earthed. If this
appliance is fitted with a non-rewireable
plug for which your socket is un su itable, it
must be replaced by the manufacturer, its
service agent or similarly q u alified persons
in order to avoid a hazard.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
8
Page 9
EMM2005 t
English
Oven utensils and accessories guide
A variety of Utensils and Materials may be used for cooki ng in your microwave oven. For your safety and to
prevent damaging utensils and your oven choose appropriate utensils and materials for each cooking method.
The list below is a general guide.
Material Utensils Microwave
Corning ware YES
Heat resistant glass
Ceramic &
Glass
China
Pottery*2 YES
Plastic
Metal Baking pan NO
Paper
Wood NO
Accessories
Glass ware with metal
ware
decoration
Lead crystal glass NO
Without metal
decoration
Microwave oven
heat-proof wear
Plastic wrap YES
Aluminium foil*3 YES
Cups, plates, towels YES
Waxed paper YES
Grill rack NO
Turntable YES
Turntable support YES
YES*1
NO
YES
YES
YES: Utensils and accessories to use NO: Utensils and accessories to avoid
*1 Only if there is no metal trim.
*2 Only if it does not have a glaze containing metal.
*3 NOTE: Use aluminium foil only for shiel ding purposes, over use may cause arcing.
Unpacking
N.B. When you unpack the oven, check that the produc t is free from damage. Damage or any missing parts must be
reported immediately to the retailer. The ove n, parts of the oven or the accessories may be wrapped by a pr otection foil. If
so, you must remove this foil before using the oven. Do not leave packing material so that small children c an play with it.
This can be hazardous.
9
Page 10
EMM2005 t
How to operate your microwave oven
1
2
3
5
English
6
4
7
8
4

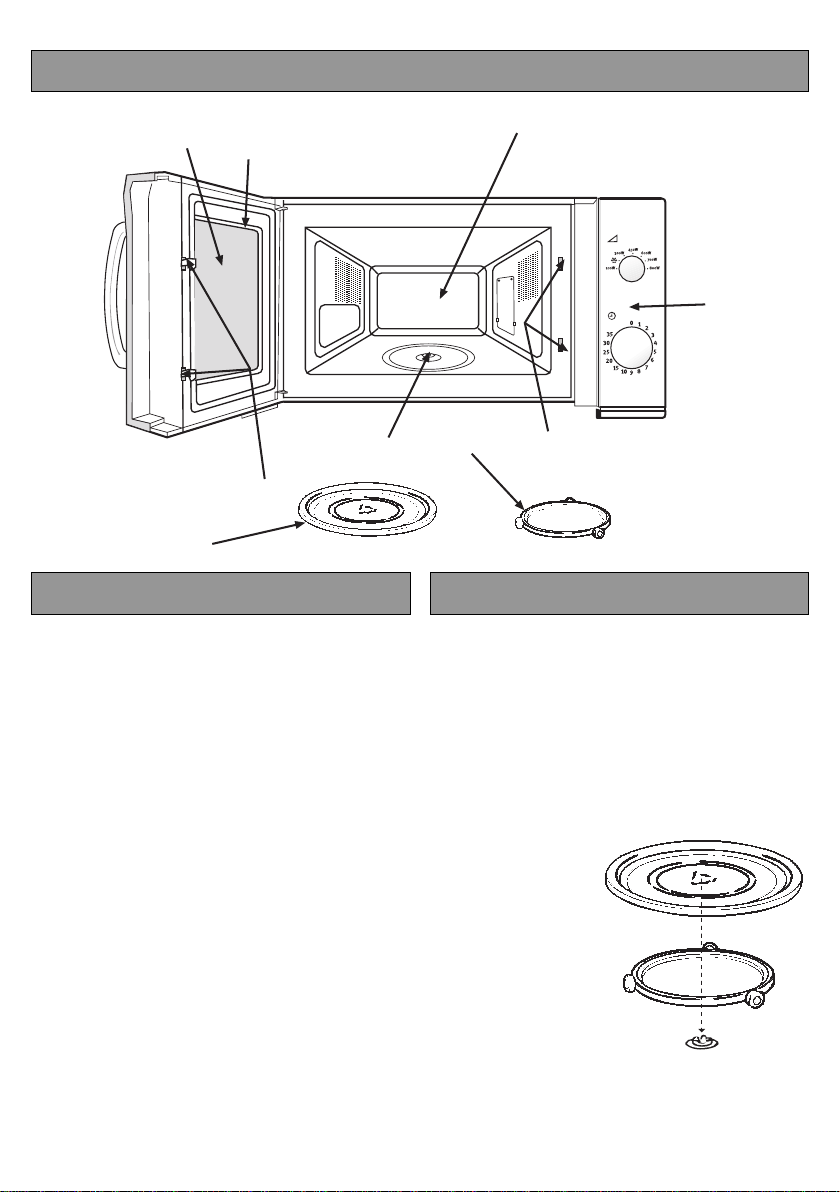

Name and function of parts Turntable Installation
1. Cooking compartment. Wipe the compartm ent
clean after using the oven.
2. Viewing window. Food can be checked whil e the
microwave oven is in operation.
3. Oven door. The door must always be firmly
closed while cooking.
4. Latch hook and safety interlock system.
5. Control panel.
6. Drive shaft for turntable
7. Turntable. Made of special heat-resist ant glass.
Food in a suitable container is placed o n t his tray
for cooking. Do not use the oven without the
turntable.
8. Turntable support. Place the support on the floor
of the cooking chamber to support the turntable.
1. Place the turntable support on the cavity Bot tom.
2. Place the turntable on top of the t urnt able support
as shown in the diagram. Make sure that turntable
hub is securely locked in the turntable shaft. Never
place the turntable upside dow n .
• Both turntable and turntable support must always be
used during cooking.
• All food and containers of food are always placed on
this turntable for cooking.
• This turntable rotates clockwise and anticlockwise;
this is normal.
Turntable
Roller rest
Turntable Shaft
10
Page 11
EMM2005 t

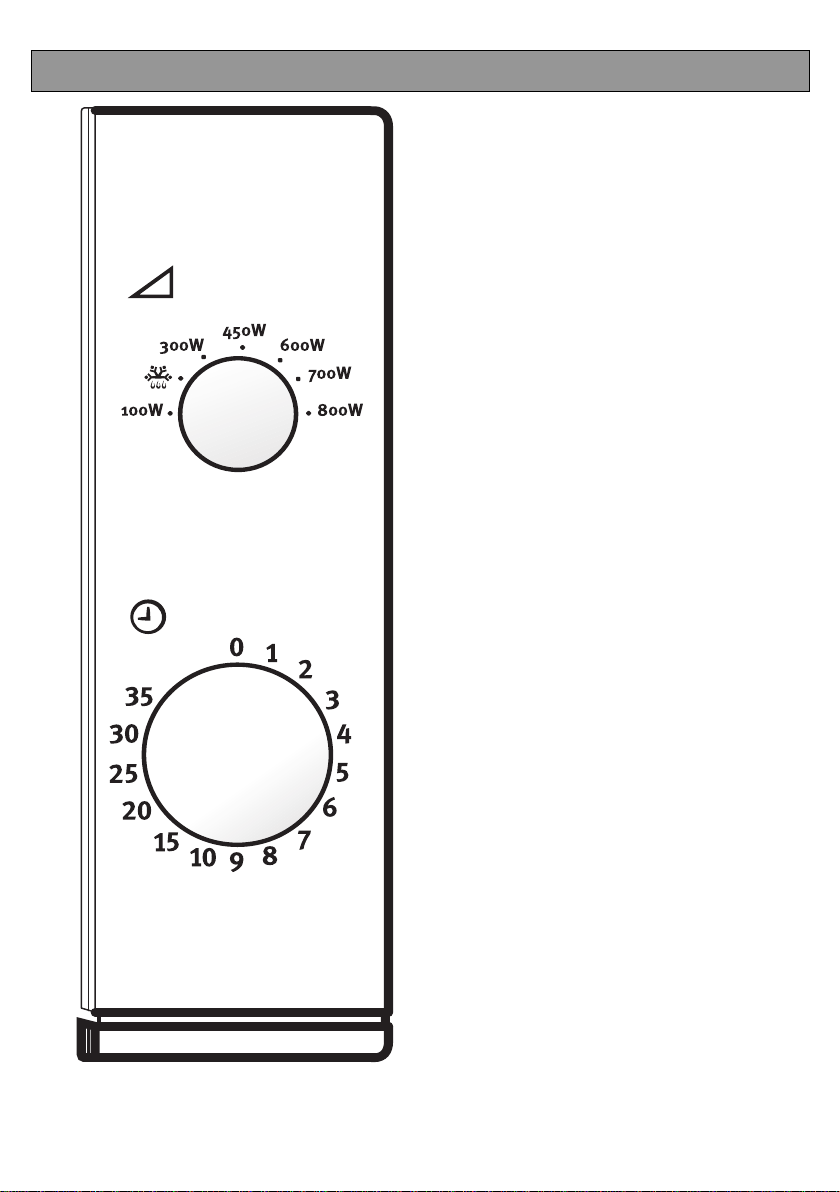

CONTROL PANEL
1. Power Selector
Adjust this knob to select the correct power
level for your food.
English
2. Timer
Set for desired cooking time. Cooking
will start. All clockwork timers will operate
more accurately if wound past the desired
time first, and then back.
11
Page 12
EMM2005 t
MICROWAVE COOKING
English
1. Open the door, place the food on the turntable.
Close the door.
2. Set the Power Selector to the desired power
level.(See table below.)
3. Set the Timer to the desired time.
The oven begins cooking.
Example: To cook at 450W for 15 minutes
1. Turn the power selector to 450W.
2. Turn the timer to 15
3. The Oven will automatically start cooking for 15 minutes at 450W
When cooking for less than 2 minutes, turn the timer
for a longer period and than return to the desired
time.
To turn off the oven during cooking, simply turn the
Timer to 0.
Note: After use, be sure to return the Ti mer to 0,
or the oven will continue to operate.
Microwave Power setting Guide
Power Setting Suggested use
100W
(180W)
300W
450W
600W
700W
800W
Keeping warm; Keeping foods warm
Defrost; Thawing frozen foods.
Simmer; Completing the cooking cycle of some pot roasts.
Casseroles and stews.
Baked custards or cheesecakes.
Medium; Faster defrosting and reheating f or casseroles and
stews.
Medium; Baking cakes and sponge puddings
Reheat; Reheating pre-cooked f oods.
Roasting joints of meat and poultry.
Boiling or reheating liquids.
Cooking vegetables.
Preheating a browning dish.
12
Page 13
EMM2005 t
Recommendations for Defrosting using (180W)
Some foods such as bread and fruit, can successfully be t hawed manually by using the power setting.
English
FOOD PREPARATION
Bread
Small loaf
Sliced large loaf
2 slices Place on kitchen paper. 45–60 sec. 5 min.
1 bread roll Place on kitchen paper. 45–60 sec. 5 min.
2 bread rolls Place on kitchen paper. 1–11/2 min. 5 min.
Cakes and Pastry
Gateau 450g/1 lb Remove from packaging, place on plate. 9–11 min. 15–30 min.
Cheesecake
450g/1 lb
Pie (cooked)
450g/1 lb
Pastry 450g/1 lb Remove from packaging, place on plate. 7– 9 min. 15–30 min.
Butter
250g/8.8 oz
(1 packet)
Fruit
225g/8 oz
Soft berry fruits
450g/1 lb
Soft berry fruits
Plated meal
400g/14 oz
Vegetables
Place on microwave-proof rack or kitchen paper.
Turn over halfway through defrosting time.
Place on microwave-proof rack or kitchen paper.
Turn over halfway through defrosting time.
Remove from packaging, place on plate. 9–11 min. 15–30 min.
Remove from packaging, place on plate. 7– 9 min. 15–30 min.
If foil wrapped, remove from wrapper and place on a
plate
Place in a single layer in a shallow dis h. 5– 6 min. 5–10 min.
Place in a single layer in a shallow dis h.
Cover with a plate or non P.V.C. cling film.
To reheat, microwave on 100% (800W)for 3–4 minutes.
It is not necessary to defrost vegetables befor e cooking.
All vegetables can be thawed and cooked on
100% (800W)
8–10 min. 10–15 min.
10–13 min. 10 min
3– 4 min. 5–10 min.
7– 8 min. 5–10 min.
7– 8 min 5–10 min.
STANDING
TIME
13
Page 14
EMM2005 t
Microwave Tips
Microwave Hints
English
Always keep the oven clean – avoid spill-overs
•
and do not forget to clean under the glass tray
and the inside of the door.
Preferably use round or oval casseroles with a lid
•
when cooking in your microwave oven.
Do not use metal or metal decorated casseroles.
•
Certain plastic materials can melt and be warp ed
by hot food.
Cover the food when cooking. Use a glass lid, a
•
plate or grease proof paper.
Pastry, bread and the like can be defrosted
•
directly in a bread basket or on a paper towel.
If frozen food is heated in its packaging, t he
•
packaging should be opened. Packaging
containing metal or metal decoration must not be
used unless specifically recommended for use in
the microwave. Remove metal clips and wire ties.
Smaller pieces of aluminium foil can be used t o
•
cover parts that easily over cook such as chicken
legs.
Food with peel or skin should be pierced wit h a
•
fork – e.g. potatoes and sausages. Do not boil
eggs in the microwave oven as they can explode.
Put large, thick pieces close to the edge of the
•
casserole and try to cut the food in to even sized
pieces. Always place the food in the centre of t he
oven.
The food will be evenly cooked if you stir or turn it
•
a few times.
Always set a shorter cooking time than indicated
•
in your recipe to avoid over cooking. The larger
the amount of food the longer it takes.
Use little or no water for vegetables.
•
Use less salt and spices than for ‘normal’ cookin g.
•
Season afterwards.
•
Allow a few minutes ‘standing’ time after the oven
•
has switched off to ensure complete and even
cooking results.
Always ensure food is piping hot throughout
•
before serving.
Use pot holders or gloves when taking dishes and
•
food from the oven.
Softening Honey
•
If you have a jar of honey which has
crystallised, remove lid and pl ac e the jar in the
oven, microwave on medium power for 2
minutes.
Melting Chocolate
•
Break 100g of chocolate into squares, place in
a bowl and heat on high power for 1-2
minutes and stir well.
Softening or Melting Butter
•
Melting takes a few seconds on high power.
Softening is best done more gently on low
power.
Freshen or Warm Bread
•
Use medium power for few seconds.
Peeling Garlic easily
•
Heat 3 or 4 cloves of garlic on high power for
15 seconds. Squeeze at one end until the
clove pops out.
Fruit Juice
•
Citrus fruits will yield more juic e if they are
heated on high power for 15 seconds before
squeezing.
Cooking Porridge
•
Porridge is easily cooked in the serving dish
with no sticky pan to wash. Follow food
manufacturers’ recommendations.
14
Page 15
EMM2005 t
g
English
Care and cleanin
The oven must always be clean. Residue of f ood f r om spillovers or spatters will attract microwave energy
causing it to burn on. This could reduce the eff iciency of the oven and may cause bad odours. Do not att empt
to tamper with or make any adjustments or repairs to any part of the oven. Repairs should only be done by a
qualified service technician.
Be sure the oven is disconnected from the electricity supply before cleaning.
Cleaning the accessories (turntable and support)
Clean them with mild detergent after removing them from the cavity. The turntable support should be carefully
handled.
CAUTION: The inside of the oven and t urnt able get very hot, so do not touch them immediately af t er use.
Cleaning the interior
Always keep the inside of the oven clean. Wipe up spill-overs and food spatters immediately. Deposits that are
allowed to remain on the oven walls, door seal and door surface will absorb microwave energy, reduce the
efficiency of the oven, and possibly damag e the oven interior. Use mild, liquid deterg ent, warm water and a
soft, clean cloth to remove deposits.
NEVER USE ABRASIVE CLEANERS, COMMERCIAL OVEN CLEANERS OR STEEL WOOL PADS ON
ANY PART OF THE MICROWAVE OVE N.
To loosen difficult deposits, boil a cup of water in the microwave oven for 2 or 3 minutes.
NEVER USE A KNIFE OR ANY UTENSIL TO REMOVE DEPOSITS FROM OVEN SURFACES.
To remove odours from the oven interior, boil a cup of water plus 2 tablespoons of lemon juice for 5 minutes.
Cleaning the exterior
Open the oven door when cleaning the control panel. This will prevent the oven f rom being turned on
accidentally. You should clean outside surfaces of the oven with mild liquid deterg ent and water followed by a
wiping with clear water to remove any excess deterg ent. Dry with a soft cloth.
Spray-on window cleaners or all purpose spray-on kitchen cleaners can also be used. Never use abrasive
cleaners, scouring pads or harsh chemicals on outside surf aces of your oven. To prevent damage to the
working parts, do not allow water to seep into ventilation openings.
15
Page 16
EMM2005 t
English
GUARANTEE CONDITIONS
Electrolux offer the following guarantee to the first purchaser of this appliance:
1. The guarantee is valid for 24 months commencing when the appliance is handed over to t he first retail
purchaser, which must be verified by purchase invoice or similar documentation. The guarantee does not
cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty workmanship or f aulty material. The
guarantee does not cover appliances where d efects or poor performance are due to misuse, accident al
damage, neglect, faulty install at ion, unauthorised modification or at tempted repair, commercial use or
failure to observe requirements and recomme ndations set out in the instruction book. T his guarantee does
not cover such parts as light bulbs, removable glassw are, or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the nearest customer service office
(ELECTROLUX’s service or authoris ed agent). ELECTROLUX reserves the right to st ipulate the place of
repair (i.e. the customer’s home, place of installation or ELECTROLUX workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed
during guarantee repairs become the property of ELECTROLUX.
6. The Purchaser’s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe t hen your guarantee moves with you to your new home
subject to the following qualifications:
• The guarantee starts from the date you first purchased your product
• The guarantee is for the same period and to the same ext ent for labour and parts as exists in the new
country of use for this brand or range of products
• This guarantee relates to you and cannot be transferred to another user
• Your new home is within the European Community (EC) or European Free Trade Area
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household
• The product is installed taking into account regulations in your new country
16
Page 17
Page 18
Page 19
Page 20
Loading...
