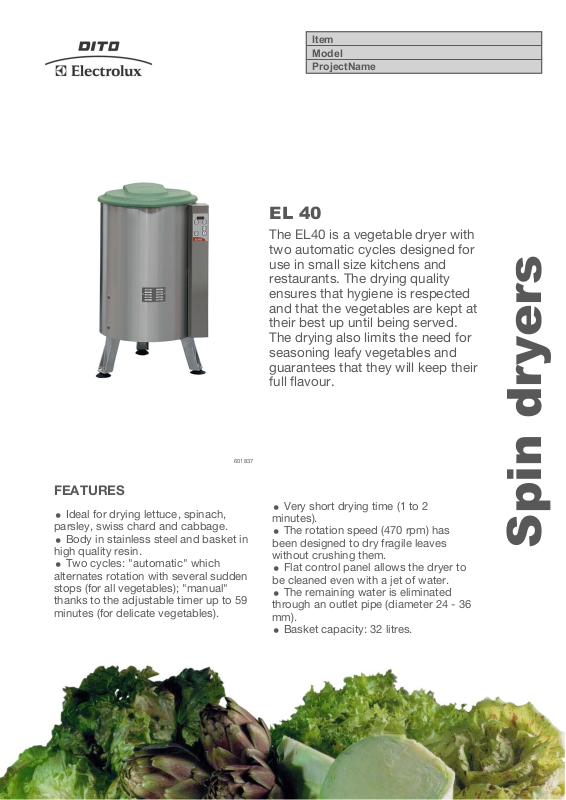

Electrolux EL40F, 601837 User Manual

Item
Model
ProjectName

EL 40

The EL40 is a vegetable dryer with
two automatic cycles designed for
use in small size kitchens and
restaurants. The drying quality
ensures that hygiene is respected
and that the vegetables are kept at
their best up until being served.
The drying also limits the need for
seasoning leafy vegetables and
guarantees that they will keep their
full flavour.

601837

FEATURES

V Ideal for drying lettuce, spinach,

parsley, swiss chard and cabbage.

V Body in stainless steel and basket in

high quality resin.

V Two cycles: "automatic" which

alternates rotation with several sudden
stops (for all vegetables); "manual"
thanks to the adjustable timer up to 59
minutes (for delicate vegetables).

V Very short drying time (1 to 2

minutes).

V The rotation speed (470 rpm) has

been designed to dry fragile leaves
without crushing them.

V Flat control panel allows the dryer to

be cleaned even with a jet of water.

V The remaining water is eliminated

through an outlet pipe (diameter 24 - 36
mm).

V Basket capacity: 32 litres.

Spin dryers

Specifications

EL40F

MODEL

Well capacity - lt. 40
External dimensions - mm
width 460
depth 540
height 800
Load per cycle - unit
light vegetables (ex lettuce) 6/7 UNITS
Load per cycle - kg.
heavy vegetables 5 KG VEGETABLES
Power - kW
installed-electric 0.37
Net weight - kg. 30
Supply voltage 230...240 V, 1N, 50/60

601837

Included accessories

CODE DESCRIPTION

653131 BASKET FOR 5KG VEGETABLE DRYER 1

Optional accessories

CODE DESCRIPTION

653131 BASKET FOR 5KG VEGETABLE DRYER ✓
