Page 1

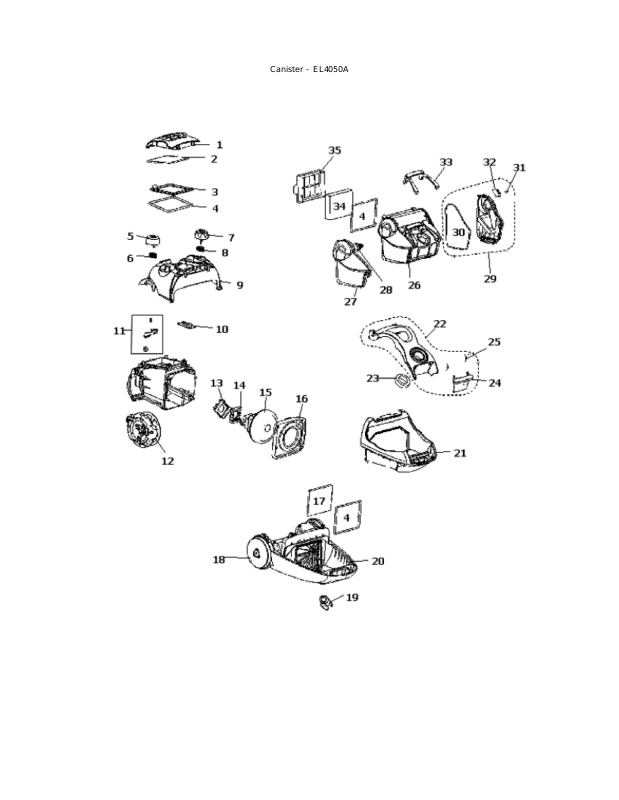

Canister - EL4050A
Page 2
Canister - EL4050A
Ref # Part Description Comments
1 2193231-02 FILTER GRILL & GRAPHICS A
2 1180215-01 EXHAUST FOAM FILTER
3 1130939-01 FILTER - HEPA H12 NONWASH
4 2192645-02 GASKET - FILTER
5 2193284-65 PEDAL CORD REEL
6 2190496-01 SPRING
7 1180223-75 POWER REGULATOR
8 2190488-01 SPRING - ARM
9 2193617-02 COVER - REAR
10 1180154-11 PC CONTROL BOARD
11 2192177-01 BRAKE ARM COMPLETE
12 2198345-35 CORD REEL ASSEMBLY
13 1180235-02 ADAPTER
14 1096540-01 SUSPENSION - MOTOR
15 63160-3 MOTOR ASSY - PACKAGED
16 1180233-01 RING - SUSPENSION
17 1180217-01 PRE MOTOR FILTER
18 1130506-04 WHEEL - REAR
19 2190118-10 FRONT WHEEL & HOLDER ASSY
20 2193717-02 BOTTOM ASSEMBLY
21 1180211-08 COVER - FRONT
22 2193216-03 DUST CUP HOLDER
23 1180244-02 GASKET - CYCLONE
24 2192212-02 CATCH - DUST BAG COVER
25 1180243-01 SPRING
26 2192182-48 CYCLONE & GRAPHICS ASSEMB
27 2193080-11 CYCLONE ASSEMBLY
28 1128556-01 CONICAL CYCLONE GRILL
29 2193079-11 DUST CUP COVER ASSEMBLY
30 1180234-01 SEAL - DUST CUP LID
31 1180239-01 DUST CUP COVER LATCH SPRI
32 1180229-12 LATCH - DUST CUP
33 1180227-66 HANDLE - DUST CUP
34 2193416-01 FILTER - HEPA CYCLONE
35 1180224-01 DUST CUP FILTER COVER
1180241 -01
SPRING
Qty
Page 3
Powerhead - 75922-6 - EL4050A
Page 4
Powerhead - 75922-6 - EL4050A
Ref # Part Description Comments
1 75614 BELT - COGGED
2 63153 WASHER PACKAGE
3 61682 LIGHT BULB
4 61727 LIGHT SOCKET
5 61740-1 MOTOR ASSEMBLY - CARTONED
6 63155 SCREW PACKAGE
7 58313 WIRE SPLICE 5
8 75810A-3 WAND RELEASE ASSEMBLY
9 61730-5 HOOD ASSEMBLY - PACKAGED
10 61728-2 PEDAL ASSEMBLY
11 63155 SCREW PACKAGE
12 58430 CLAMP CABLE
13 74594 CIRCUIT PROTECTOR
14 63154 C-CLAMP PACKAGE
15 39973-4 T-JOINT ASSEMBLY
16 61699-1 BRUSHROLL ASSY - CARTONED
17 61753-2 SOLE PLATE ASSEMBLY
18 76136 INSERT - FRONT WHEEL
19 61750 FRONT WHEEL
20 63153 WASHER PACKAGE
21 61752 E-RING PACKAGE
22 61749 FRONT AXLE
23 61747 CAM BEARING
24 61746-5 BASE ASSEMBLY - PACKAGED
25 61748 SPRING
26 61734 AIR DUCT COVER ASSEMBLY
27 61743-453N FOOT PEDAL
28 75922-6 POWERHEAD ASSY (BETA-SUMO
Qty
Page 5
Accessories - EL4050A
Ref # Part Description Comments
1 16103-4 HOSE ASSEMBLY - CARTONED
2 75973-1 FLOOR & WALL BRUSH ASSEMB
3 75985 NOZZLE - FURNITURE
4 76250 NOZZLE - CREVICE
5 75986 NOZZLE - DUSTING BRUSH
6 75979B-1 TLSCPC WAND ASSY (SUMO 12
76161-366N CADDY - TOOL Not Pictured
81782 OWNERS GUIDE
Qty
