Electrolux EKC5044, EKC5045 User Manual

user manual

Cooker

EKC5044

EKC5045

We were thinking of you

when we made this product

electrolux

welcome

3

Welcome to the world of Electrolux

You’ve chosen a first class product
from Electrolux, which hopefully will
provide you with lots of pleasure in the
future. Electrolux ambition is to offer a
wide variety of quality products that
would make your life even more
comfortable. You can look at some
examples on the cover in this manual.
But now it’s time to study this manual
and start using and enjoying the
benefits from your new machine. We
promise that it’ll make your life a little
easier. Good luck!

4

electrolux

contents

Contents

Safety information 5
Product description 7
Before using the appliance 8
Operation 10

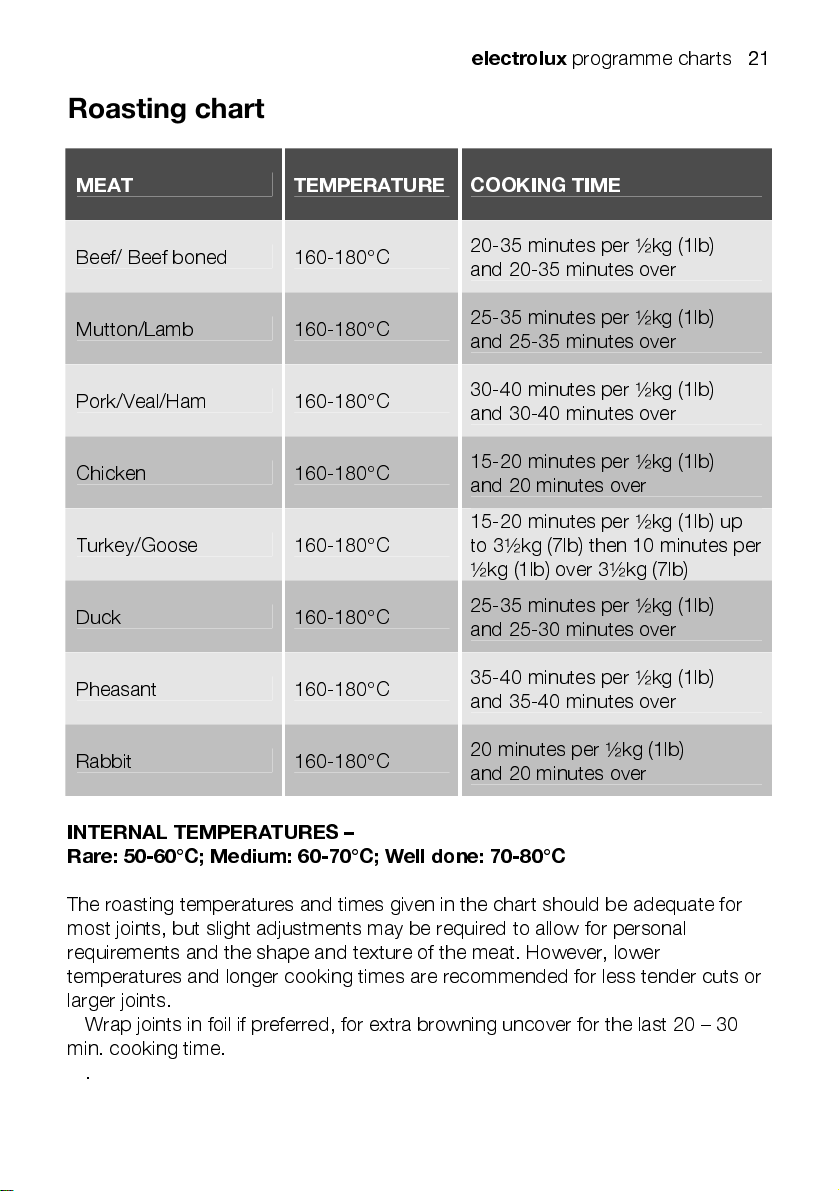

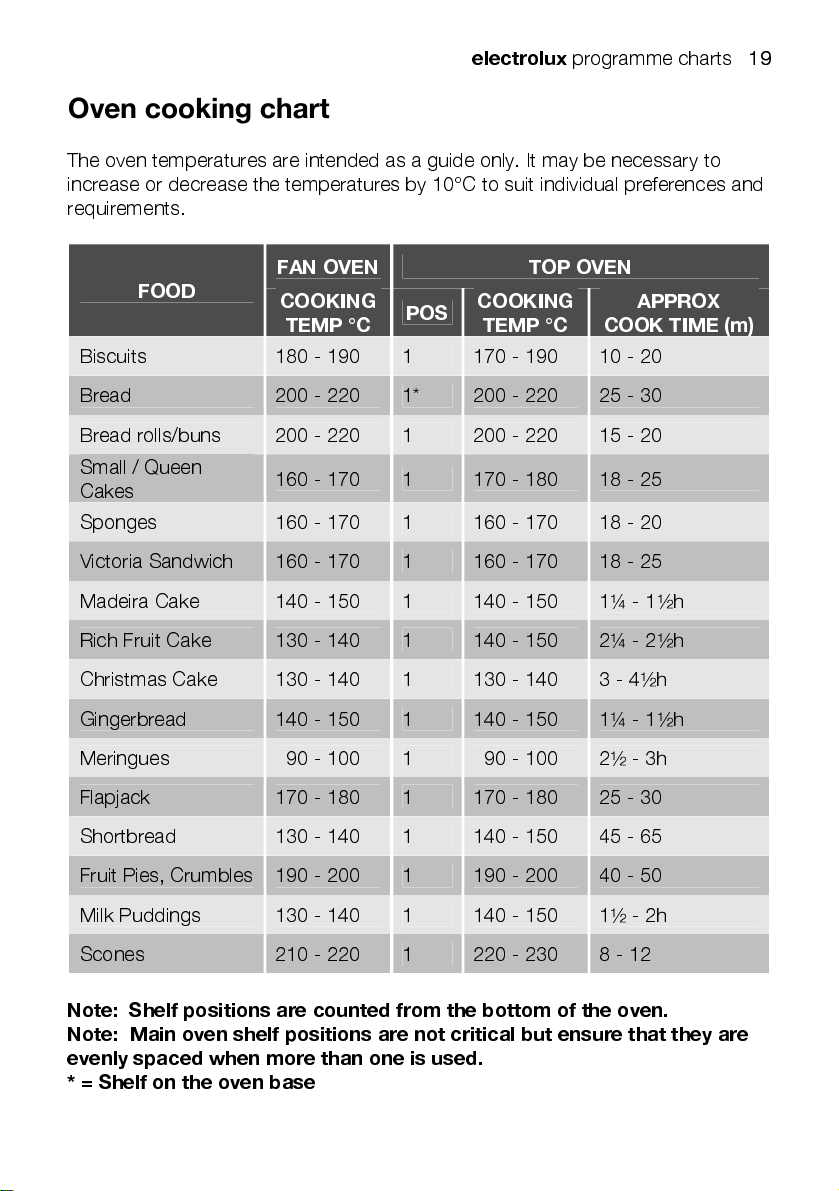

Programme charts 17
Hints and tips 21

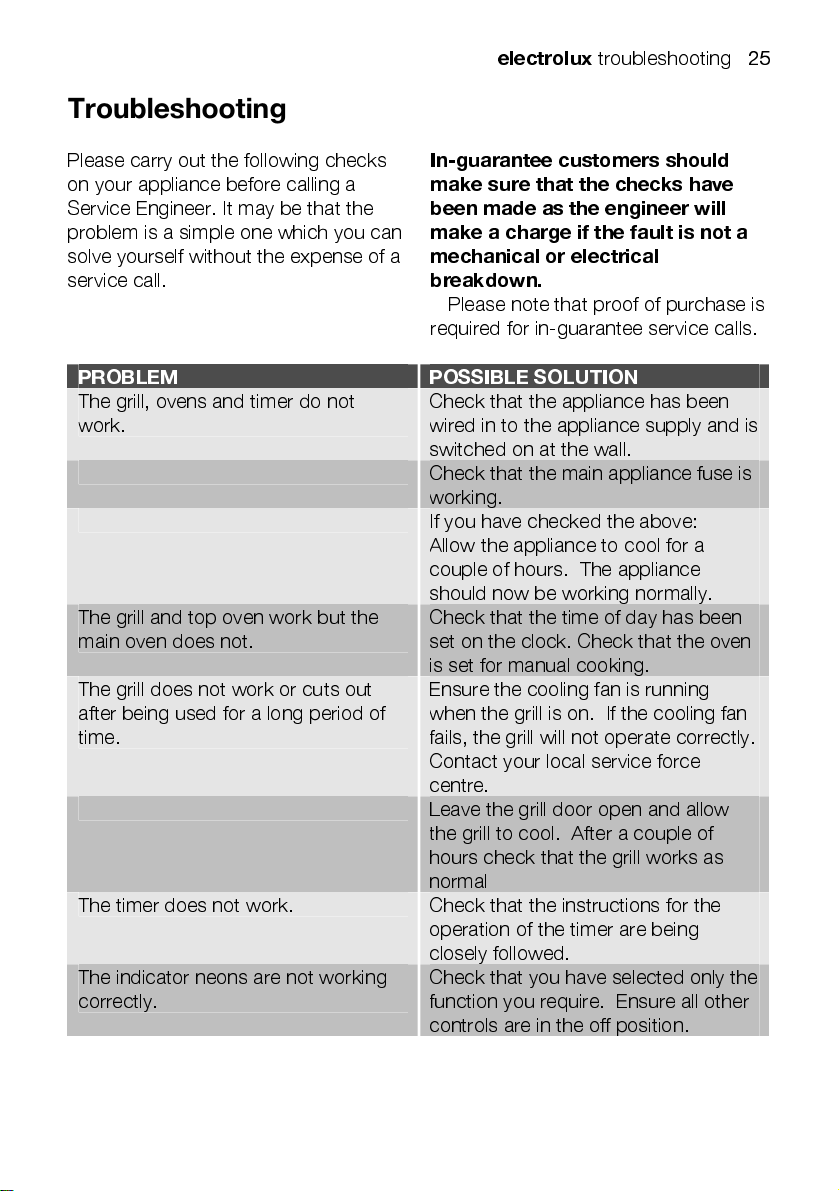

Troubleshooting 24

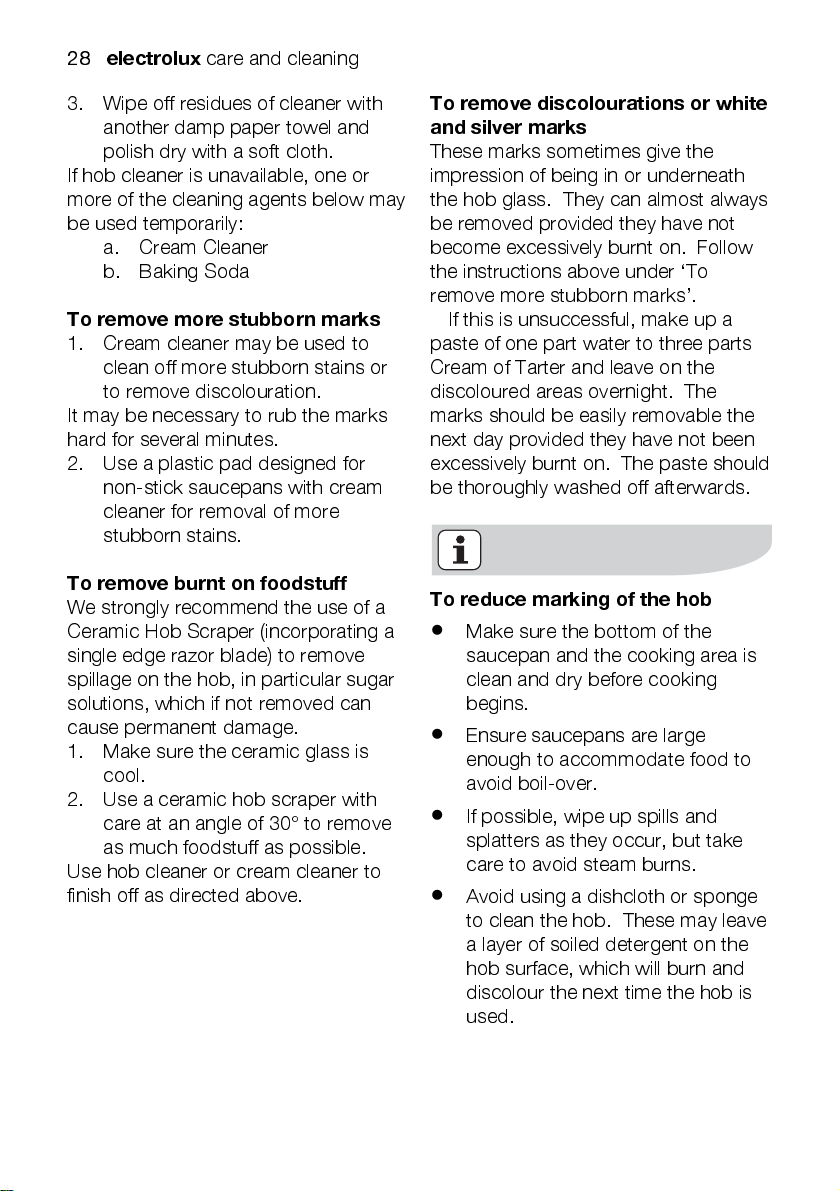

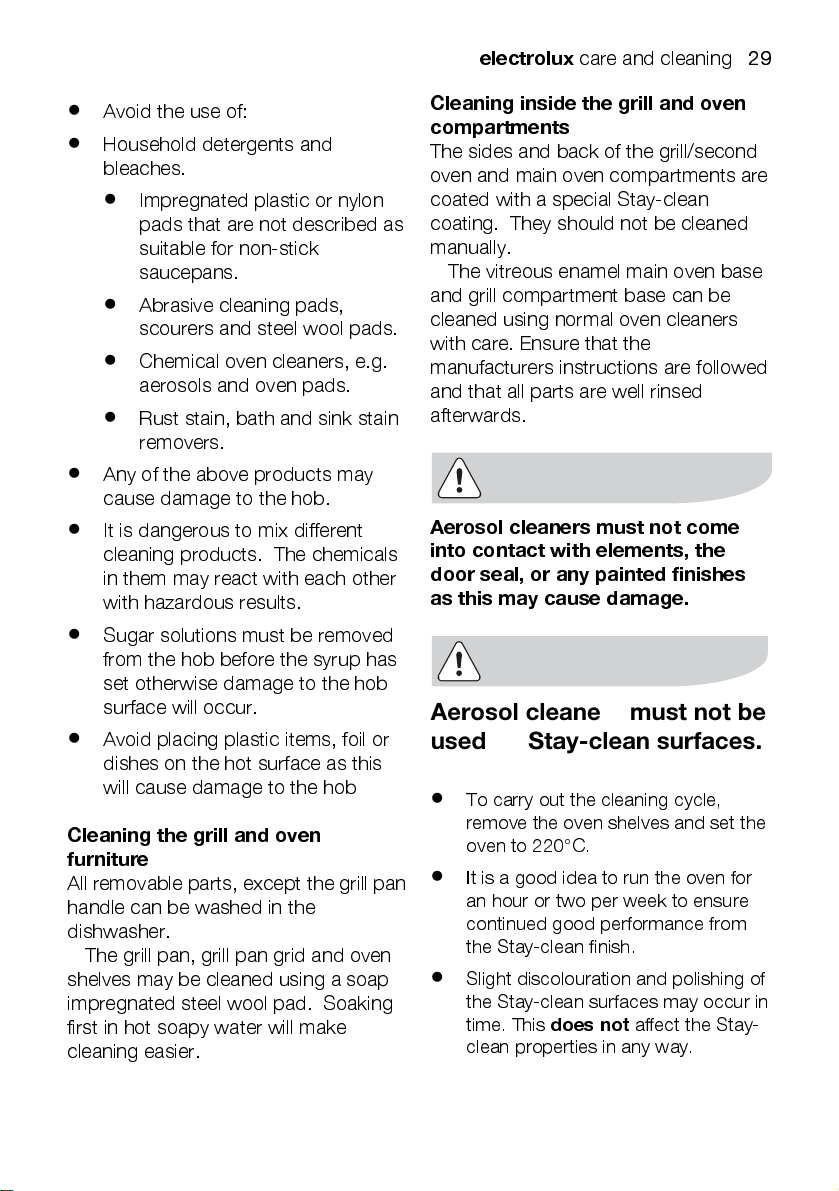

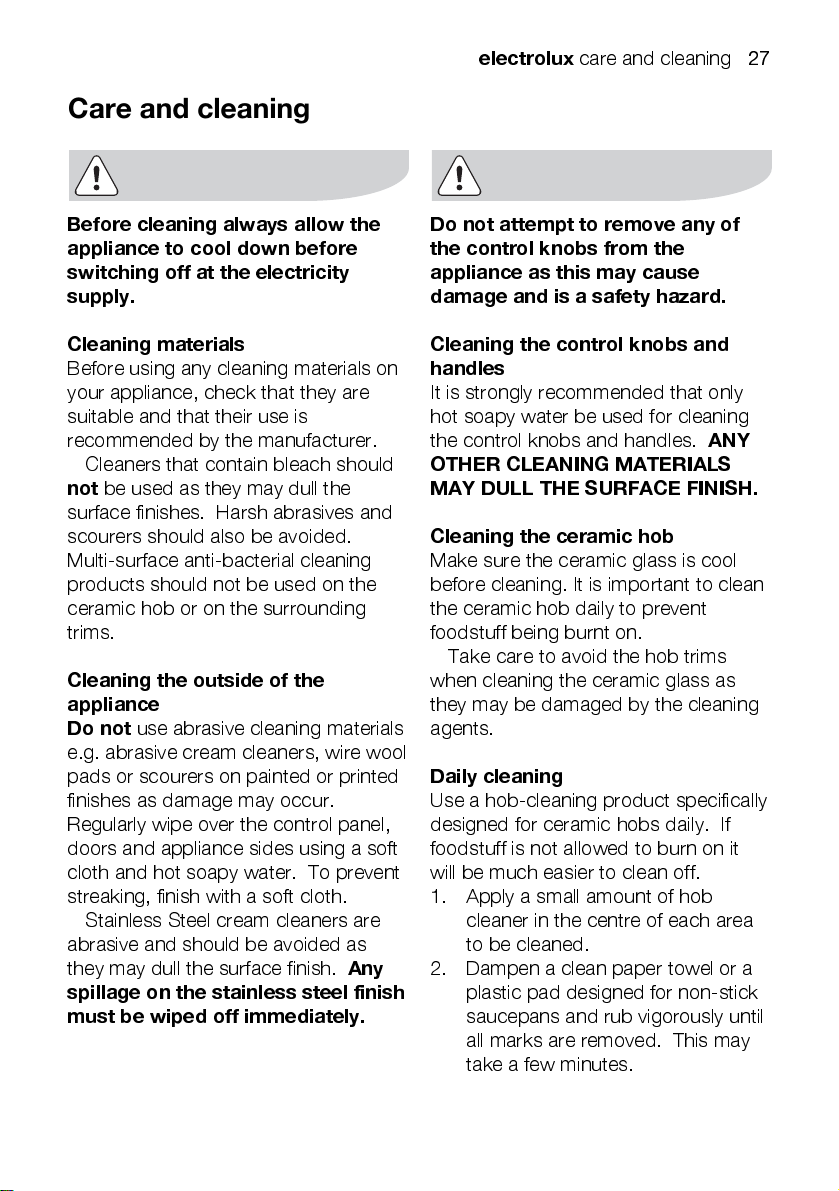

Care and cleaning 26

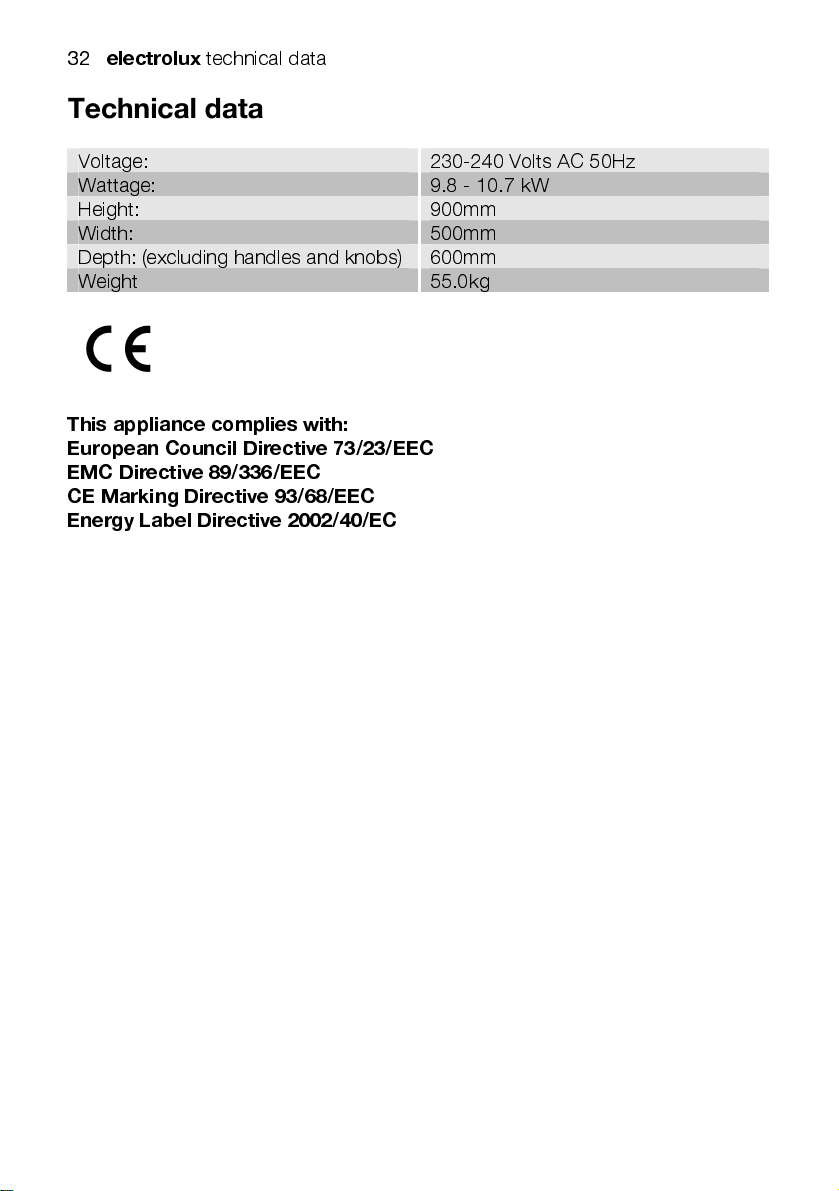

Technical data 31

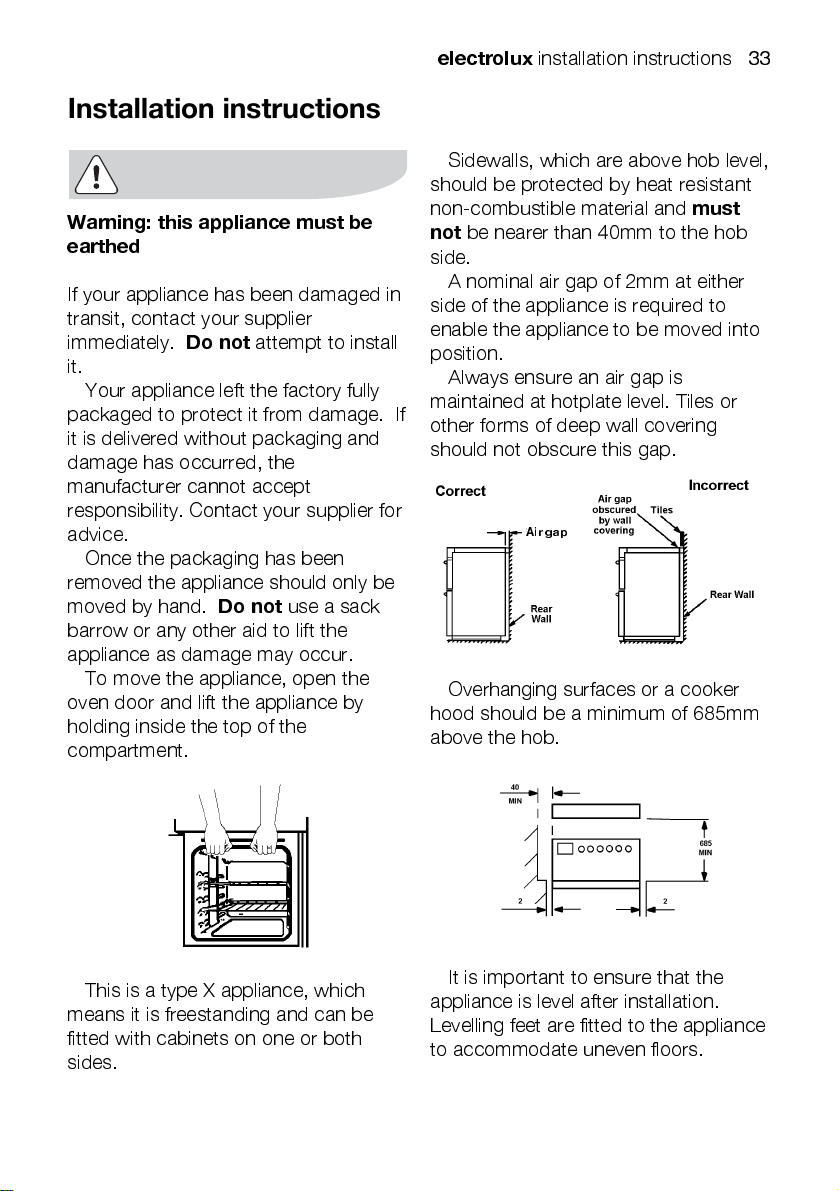

Installation instructions 32
Connecting to the electricity supply 33

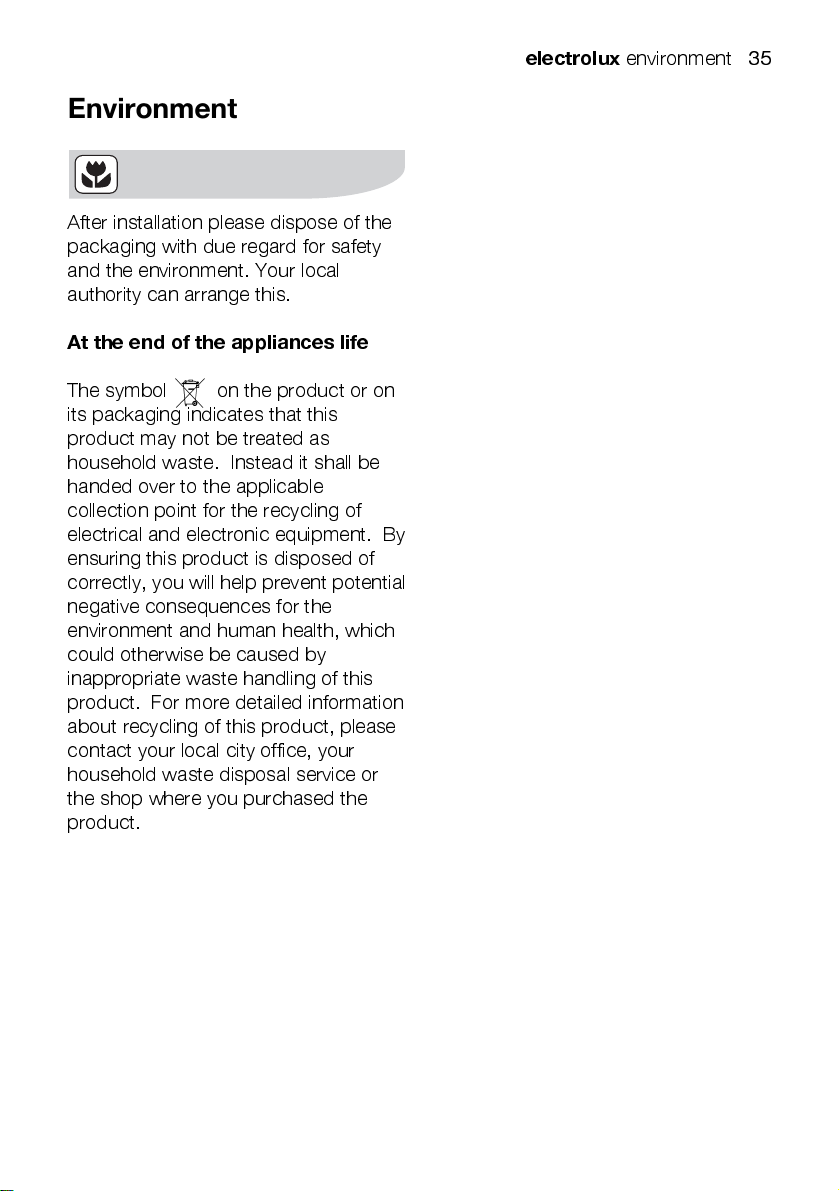

Environment 34

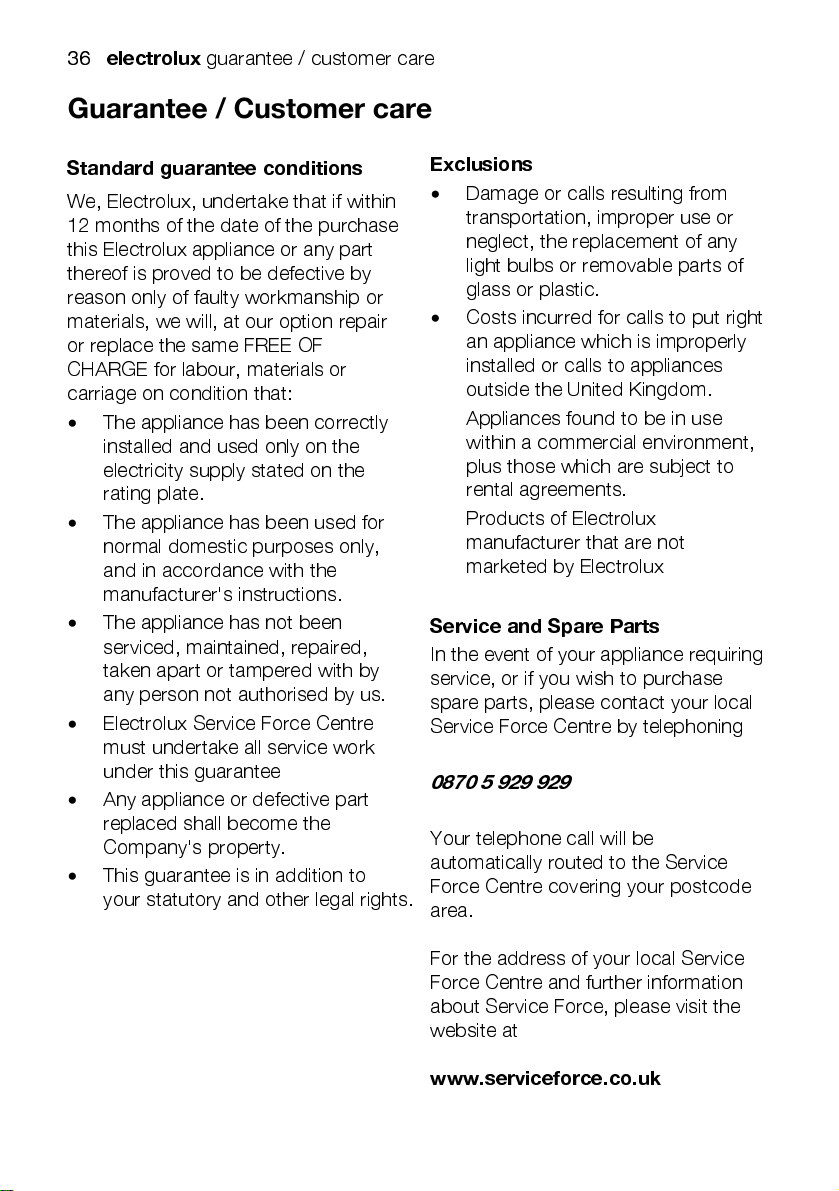

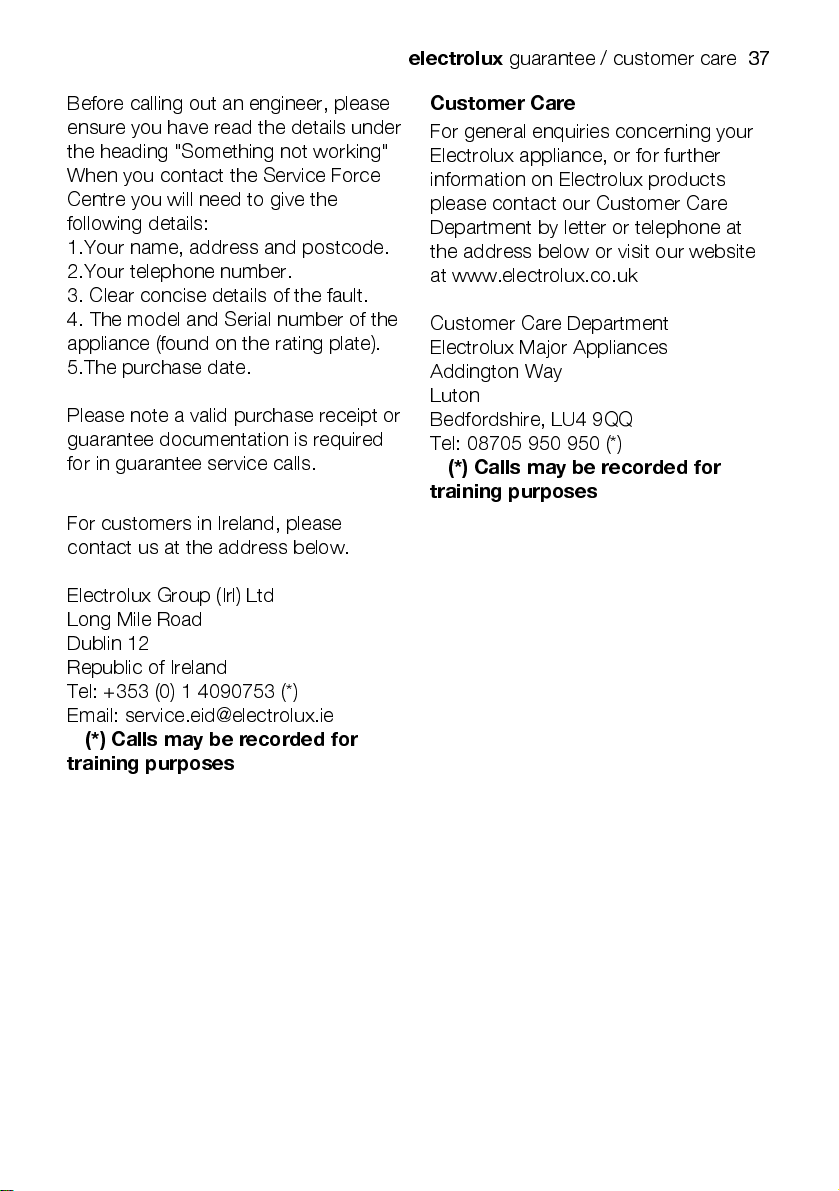

Guarantee conditions 36
European guarantee 37

The following symbols are used in
this user manual:

Important information concerning

your personal safety and
information on how to avoid

damaging the appliance.
General information and tips
Environmental information

electrolux

safety information

5

Important safety information

These warnings are provided in the
interests of your safety. Ensure that
you understand them all before
installing or using the appliance.

Your safety is of paramount
importance. If you are unsure about
any of the meanings of these warnings
please contact customer care.

Installation

The appliance

must

be installed

according to the instructions supplied.

The installation work must be
undertaken by a qualified electrician or
competent person.

The appliance should be serviced by
an authorised service engineer and
only genuine approved spare parts
should be used.

The appliance

must

be installed in

an adequately ventilated room.

If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance from slipping.

This appliance is heavy and care

must

be taken when moving it.

Do not

attempt to lift or move this

appliance by the handles.

All packaging, both inside and
outside the appliance

must

be

removed before the appliance is used.

It is dangerous to alter the
specifications or modify the appliance
in any way.

Child safety
Do not

part of the packaging.

on the drop down doors.

by children and other persons whose
physical, sensory or mental capabilities
or lack of experience and knowledge
prevents them from using the
appliance safely without supervision or
instruction by a responsible person to
ensure that they can use the appliance
safely.

ensure that they do not play with the
appliance.

Accessible parts may be hot when
the grill is in use. Young children
should be kept away.

During use

This appliance is not intended to be
operated by means of an external timer
or separate remote control system.

domestic use to cook edible foodstuffs
only and
other purposes.

and oils, as they will ignite if they
become too

allow children to play with any

Do not

allow children to sit or climb

This appliance is not intended for use

Children should be supervised to

This appliance has been designed for

must not

be used for any

Take great care when heating fats

hot

.

6

electrolux

safety information

Never place plastic or any other
material, which may melt in or on the
oven.

Do not leave the grill pan handle in
position when grilling, as it will become
hot.

Always support the grill pan when it
is in the withdrawn or partially
withdrawn position.

Always use oven gloves to remove
and replace the grill pan handle when
grilling.

Always use oven gloves to remove
and place food in the oven.

Ensure cooking utensils are large

enough to contain foods to prevent
spillage and boil over.

The handles of saucepans, which are
smaller than the heated area on the
hob, will become hot.

Ensure

your hand is protected

before handling the pan.

Do not use the appliance if the

ceramic glass is damaged. If a fault or
crack becomes visible, disconnect the
appliance immediately from the
electricity supply and contact your local
service force centre.

During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside the
oven.

Ensure that all vents are not
obstructed to ensure ventilation of the
oven cavity.

Never line any part of the appliance
with foil.

Always

stand back from the
appliance when opening the doors to
allow any build up of steam or heat to
release.

Never leave the appliance
unattended when the oven door is
open.

Do not

inside the oven. They may explode if
they are heated.

off position when not in use.

the open oven doors.

clothes from the appliance or its handles.

contact with water.

Never

place sealed cans or aerosols

Ensure that all control knobs are in the

Do not

Do not

Do not

stand on the appliance or on

hang towels, dishcloths or

use this appliance if it is in

operate it with wet hands.

Cleaning and maintenance

For hygiene and safety reasons this
appliance should be kept clean at
all times. A build-up of fat or other
foodstuff could result in a fire
especially in the grill pan.

Do not

foodstuff, e.g. fat or oil in the appliance in
case it is inadvertently switched on.

using a ceramic hob scraper.

before switching off at the wall prior to
carrying out any cleaning/maintenance
work.

accordance with the instructions given in
this book.

steam cleaners to clean the appliance.

leave the cookware containing

Extreme care must be taken when

Always allow the appliance to cool

Only clean this appliance in

Never use steam or high-pressure

Product description

Control Panel
Top Oven/Grill
Main Oven

electrolux

product description

7

Electronic Timer
Main Oven Temperature Control
Top Oven/Grill Function Selector Control
Hob Control
Main Oven Indicator Neon
Top Oven/ Grill Indicator Neon

8

electrolux

before using the appliance

Before using the appliance

Rating plate

This is situated on the lower front frame
of the appliance and can be seen upon
opening the door. Alternatively the
rating plate may also be found on the
back or top of some models (where
applicable).

The appliance must be protected by

a suitably rated fuse or circuit breaker.

The rating of the appliance is given

on the rating plate.

Do not remove the rating plate
from the appliance as this may
invalidate the guarantee.

Preparing to use your appliance

Wipe over the base of the oven(s) with
a soft cloth using hot soapy water.
Wash the furniture before use.

We suggest that you run the oven(s)
and grill for 10 – 15 minutes at
maximum temperature, to burn off any
residue from their surfaces. Accessible
parts may become hotter than in
normal use. Children should be kept
away. During this period an odour may
be emitted, it is therefore advisable to
open a window for ventilation.

The cooling fan for the controls

The cooling fan comes on immediately
when the grill/top oven is switched on
and after a short time when the main
oven is in use. It may run on after the
controls are switched off until the
appliance has cooled.

During the initial period the cooling
fan may turn on and off, this is quite
normal.

Always allow the cooling fan to
cool the appliance down before
switching off at the wall prior to
carrying out any cleaning or
maintenance work.

Control panel indicator neon(s)

The indicator neon will operate when
the grill (where applicable) or oven(s) is
switched on. The indicator neon will
glow. It may turn on and off during use
to show that the setting is being
maintained. If the neon does not
operate as the instructions indicate the
controls have been incorrectly set.
Return all controls to zero and reset
following the instructions for the
required setting.

Condensation and steam

When food is heated it produces steam
similar to a boiling kettle. The vents
allow some of this steam to escape.
However, always stand back from the
appliance when opening the door(s) to
allow any build up of steam or heat to
release.

If the steam comes into contact with
a cool surface on the outside of the
appliance, e.g. a trim, it will condense
and produce water droplets. This is
quite normal and is not caused by a
fault on the appliance.

To prevent discolouration, regularly
wipe away condensation and foodstuff
from surfaces.

electrolux

before using the appliance

9

For your safety wall coverings at the
rear of the appliance should be
securely fixed to the wall.

Cookware

Baking trays, dishes etc., should not be
placed directly against the grid
covering the fan at the back of the
oven.

Do not

30cm x 35cm (12” x 14”) as they will
restrict the circulation of heat and may
affect performance.

Grill and oven furniture

The following items of grill and oven
furniture have been supplied with the
appliance. If you require replacements
of any of the items listed below please
contact your local service force centre,
quoting the relevant part number.

1 grill pan

1 grill pan handle

use baking trays larger than

1 grill pan grid

1 straight shelf
(For grilling and top oven cooking)

2 straight shelves
(For main oven cooking)

10

electrolux

The timer

operation

02:35

Key

1. Cook time indicator neon

2. End time indicator neon

3. Countdown indicator neon

4. Time indicator neon

5. Decrease control

6. Selector control

7. Increase control

The time of day must be set before
the main oven will operate
manually.

To set the time of day

The oven has a 24 hour clock.
When the electricity supply is first
switched on, the display will show

and the 'Time' indicator neon
flash.

To set the correct time press the
increase control button
necessary, the decrease control button

until the correct time on the 24 hour

clock is reached. The 'Time' indicator
neon
then go out.

will flash for 5 seconds and

and if

12:00

will

The increase and decrease control
buttons operate slowly at first, and
then more rapidly. They should be
pressed separately.

To set the countdown

The 'Countdown' gives an audible
reminder at the end of any period of
cooking.

This cooking period may be up to 2
hrs 30 mins. It is not part of the
automatic control.

To set, press the Selector Control
button

indicator neon
the display reads

To set the required time duration,
press the increase control
display indicates the interval to be
timed. If necessary press the decrease
control
interval.

This must be completed within 5
seconds of first pressing the
Selector Control button.

During the operation of the
'Countdown', the remaining time
period will be shown in the display.
The 'Countdown' will sound
intermittently for up to 2 minutes at the
end of the timed period. The sound
can be stopped by pressing any button.

until the 'Countdown'

is illuminated and

0:00.

until the

to achieve the correct time

electrolux

operation

11

To cancel the countdown

If you change your mind and want to
cancel the 'Countdown', press the
Selector Control button

'Countdown' indicator neon

until the

flashes then depress the decrease
control

until

0:00

shows in the
display. The 'Countdown' indicator
neon

will continue to flash for a
few seconds and then return to the
time of day.

To set the oven timer control

Only the main oven can be automatically
timed.

When using the timer control for the
very first time, it is advisable to let it
operate while you are at home. The
display can be checked to show that it
is operating correctly and you will feel
confident to leave a meal to cook
automatically in the future.

To set the timer to switch on and
off automatically

1. Ensure the electricity supply is

switched on and that the correct

time of day is displayed.

2. Place food in oven.

5. Release the buttons. The 'Cook
Time' indicator neon

will be

illuminated.

Remember, this must be
completed within 5 seconds of first
pressing the Selector Control
button.

6. To set the 'End Time'. Press the
Selector Control button

'End Time' indicator neon

until the

flashes. Press the increase control
button

until the required stop time
is displayed. If necessary press the
decrease control

until the required

time interval is achieved.

7. Release the buttons. The time of day
will be displayed after 5 seconds.
The 'Cook Time'

Time'

indicator neons will be

and 'End

illuminated.

8. Set the main oven control to the
required temperature. The oven
indicator neon should be off.

3. To set the length of cooking time.
Press the Selector Control button
until the 'Cook Time' indicator neon

is illuminated.

4. Press the increase control

until
the required length of cooking time is
displayed. If necessary press the
decrease control

until the correct
time interval is achieved. The
maximum cooking time is 10 hours.

When the automatic timed period
starts, the oven indicator neon will
turn on and off periodically during
cooking, showing that the
temperature is being maintained.

12

electrolux

operation

To set the timer to switch off only

1. Ensure the electricity supply is
switched on and that the correct
time of day is displayed.

2. Place food in the oven.

3. To set the length of cooking time,
press the Selector Control button
until the 'Cook Time' indicator neon

is illuminated. Press the
increase control
length of cooking time is displayed.
Press the decrease control
necessary.

4. Release the buttons. The 'Cook
Time' indicator neon

illuminate and the time of day will be
displayed after 5 seconds.

5. Set the oven temperature. The oven
indicator neon should be on.

6. To check the 'End Time' during the
cooking period, simply press the
Selector Control button
the remaining time will be displayed.

To cancel an automatic
programme

1. To cancel an automatic programme
press the Selector Control button
until the 'Cook Time' indicator neon

flashes. Press the decrease

control

2. Release the buttons. The 'Cook
Time' indicator neon

and after 5 seconds return to the
time of day.

3. Turn off the oven controls.

until the display reads

until the required

will

once and

will flash

if

0:00

To return the appliance to manual

At the end of a timed cooking period,
the 'End Time' indicator neon

flash and an alarm will sound for up to
2 minutes.

1. To stop the sound, press any of the
three buttons.

2. The display will return to the time of
day.

3. Turn off the oven controls.

Things to note

In the event of an interruption of the
electricity supply, the timer will reset it self
and all programming will be cancelled.

Your timer has an energy save mode

which allows you to switch the display off.
For setting details please refer to the
environmental chapter of this manual.

Automatic cooking

It is advisable to leave food in the oven
for as short a time as possible before
automatic cooking. Always ensure
commercially prepared food is well within
its use by date and that home prepared
food is fresh and of good quality.

When cooking is complete, do not

leave food to stand in the oven, but
remove and cool it quickly if the food is
not to be consumed immediately.

Always ensure food in the oven has

.

been covered before cooking if it is not
possible to remove food immediately
after cooking.

will

The ceramic hob

electrolux operation

13

Do not use the appliance if the
ceramic glass is damaged. If a
fault or crack becomes visible,
disconnect the appliance
immediately from the electricity
supply and contact your local
Service Force Centre.

Using the hob

•

To operate the hotplates, turn the
control knob in either direction to
vary the heat setting.

•

The highest number represents the
hottest setting and the lowest
number represents the coolest
setting. Choose a setting
appropriate to the quantity and
type of food to be cooked.

Recommended saucepans

Only saucepans with flat bases and
close fitting lids are recommended.
The saucepan base should be
approximately the same size as the
cooking area.

Ensure that new saucepans are well
scrubbed to remove edges and take off
any deposits left from manufacture.

Traditional round-bottomed Woks

must not be used even with a stand.

Woks with flat-bottomed bases are
available and do comply with the above
recommendations.

Occasionally the heated areas may
be seen to switch on and off when
higher heat settings are being used.
This is due to a safety device,
which prevents the glass from
overheating.

Some switching on and off when
cooking at high temperatures, e.g.
deep fat frying is quite normal, causes
no damage to the hob and little delay in
cooking times.

Excessive switching may however
be caused by the use of an unsuitable
saucepan or a saucepan which is
smaller than the heated area. If
excessive switching occurs,
discontinue use of the saucepan.

14

electrolux

operation

The grill

CAUTION: Accessible parts may be hot
when the grill is in use. Young children
should be kept away.

There is a switch in the top door which
automatically switches between Grill
and Top Oven cooking.

The grill will only work with the door

open.

Using the grill

•

Open the top door and turn the ‘Top
Oven/Grill’ control to the required

setting.

Things to note

•

The cooling fan for the controls may
operate after a time.

•

Some smoke from fat splashes may be
evident as the grill cleans itself.

•

The Top oven cannot be operated
when the grill is in use.

•

To ensure optimal cooking
performance the elements have
been carefully designed, so that
only the inner element glows red.
The outer element is hot, but will
remain dark in colour. This gives
you the best possible cooking
results.

•

At lower settings the grill may turn on
and off over time and you may prefer
to use these settings for keeping food
warm. The food will however continue
to cook gently if the grill is used for this
purpose.

•

The indicator neon will glow. It may
turn on and off during use to show that
the setting is being maintained.

To fit the grill pan handle

Press the button on the handle and insert
the lip into the widest part of the bracket.
Slide the handle towards the left and
release the button.

Ensure the handle is correctly located
when lifting the grill pan.

To remove the handle, press the button on
the handle and slide the handle towards the
right. Release the button.

Always remove the grill pan handle
during grilling.
Protect your hands when removing
the grill pan handle.

Place the grill pan on the shelf so that the
pan is positioned centrally beneath the grill.
Ensure that the cut out on the underside of
the handle bracket locates between the
bars of the shelf.

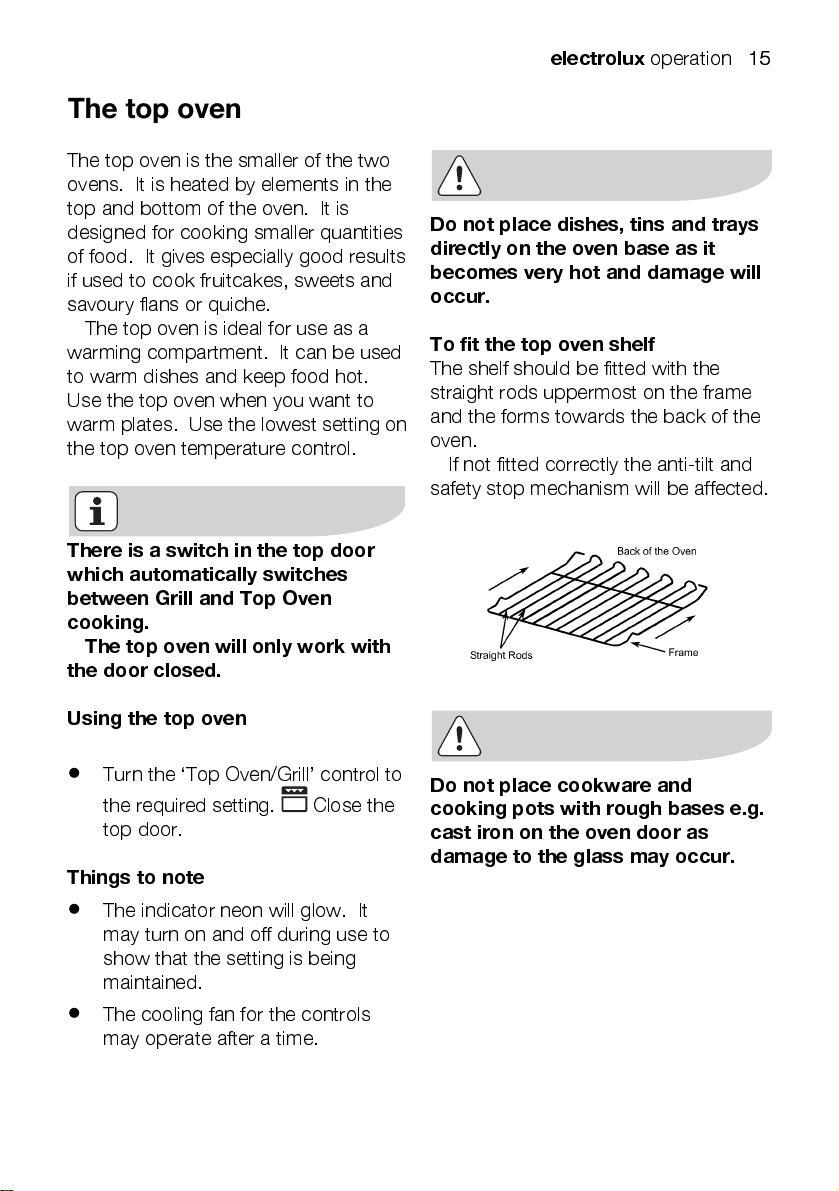

The top oven

The top oven is the smaller of the two
ovens. It is heated by elements in the
top and bottom of the oven. It is
designed for cooking smaller quantities
of food. It gives especially good results
if used to cook fruitcakes, sweets and
savoury flans or quiche.

The top oven is ideal for use as a
warming compartment. It can be used
to warm dishes and keep food hot.
Use the top oven when you want to
warm plates. Use the lowest setting on
the top oven temperature control.

There is a switch in the top door
which automatically switches
between Grill and Top Oven
cooking.

The top oven will only work with
the door closed.

Using the top oven

•

Turn the ‘Top Oven/Grill’ control to
the required setting.

top door.

Things to note

•

The indicator neon will glow. It
may turn on and off during use to
show that the setting is being
maintained.

•

The cooling fan for the controls
may operate after a time.

Close the

electrolux operation

Do not place dishes, tins and trays
directly on the oven base as it
becomes very hot and damage will
occur.

To fit the top oven shelf

The shelf should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven.

If not fitted correctly the anti-tilt and

safety stop mechanism will be affected.

Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.

15

16

electrolux

operation

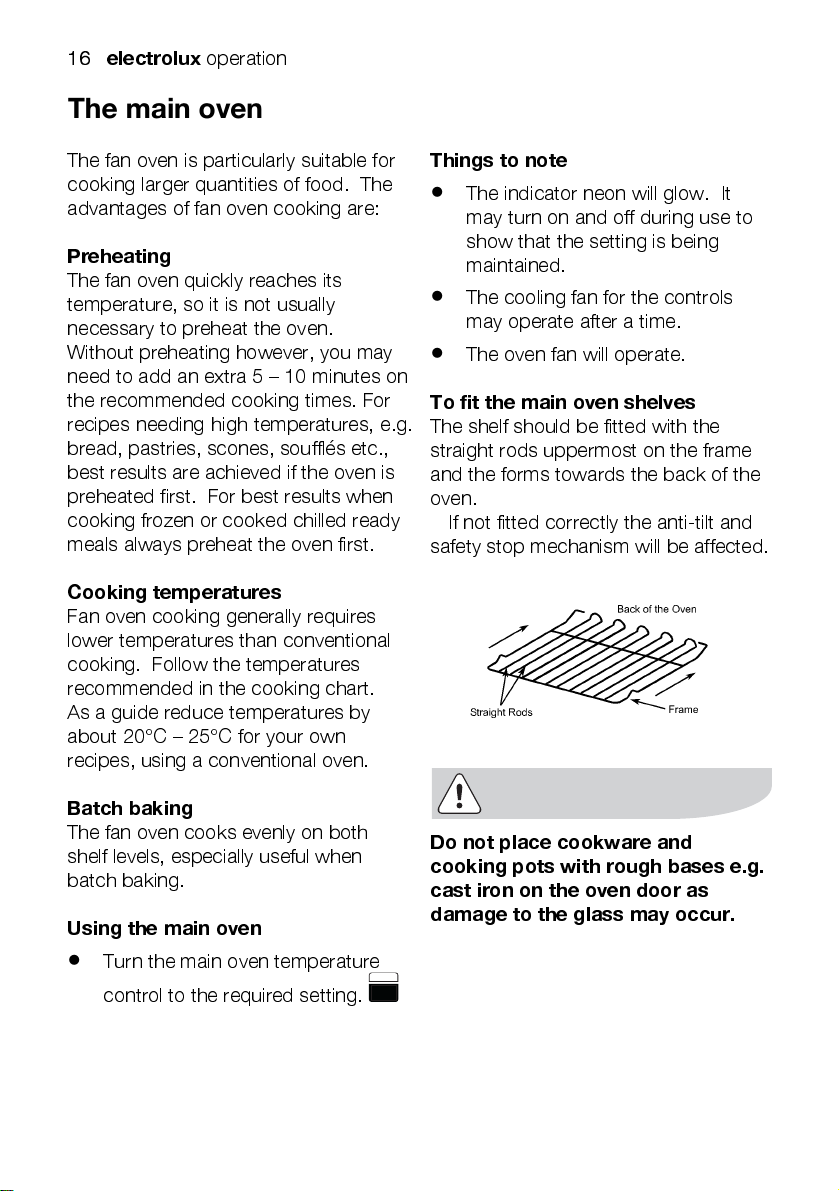

The main oven

The fan oven is particularly suitable for
cooking larger quantities of food. The
advantages of fan oven cooking are:

Preheating

The fan oven quickly reaches its
temperature, so it is not usually
necessary to preheat the oven.
Without preheating however, you may
need to add an extra 5 – 10 minutes on
the recommended cooking times. For
recipes needing high temperatures, e.g.

bread, pastries, scones, soufflés etc.,
best results are achieved if the oven is
preheated first. For best results when
cooking frozen or cooked chilled ready
meals always preheat the oven first.

Cooking temperatures

Fan oven cooking generally requires
lower temperatures than conventional
cooking. Follow the temperatures
recommended in the cooking chart.
As a guide reduce temperatures by
about 20°C – 25°C for your own
recipes, using a conventional oven.

Batch baking

The fan oven cooks evenly on both
shelf levels, especially useful when
batch baking.

Using the main oven

•

Turn the main oven temperature
control to the required setting.

Things to note

•

The indicator neon will glow. It
may turn on and off during use to
show that the setting is being
maintained.

•

The cooling fan for the controls
may operate after a time.

•

The oven fan will operate.

To fit the main oven shelves

The shelf should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven.

If not fitted correctly the anti-tilt and

safety stop mechanism will be affected.

Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.

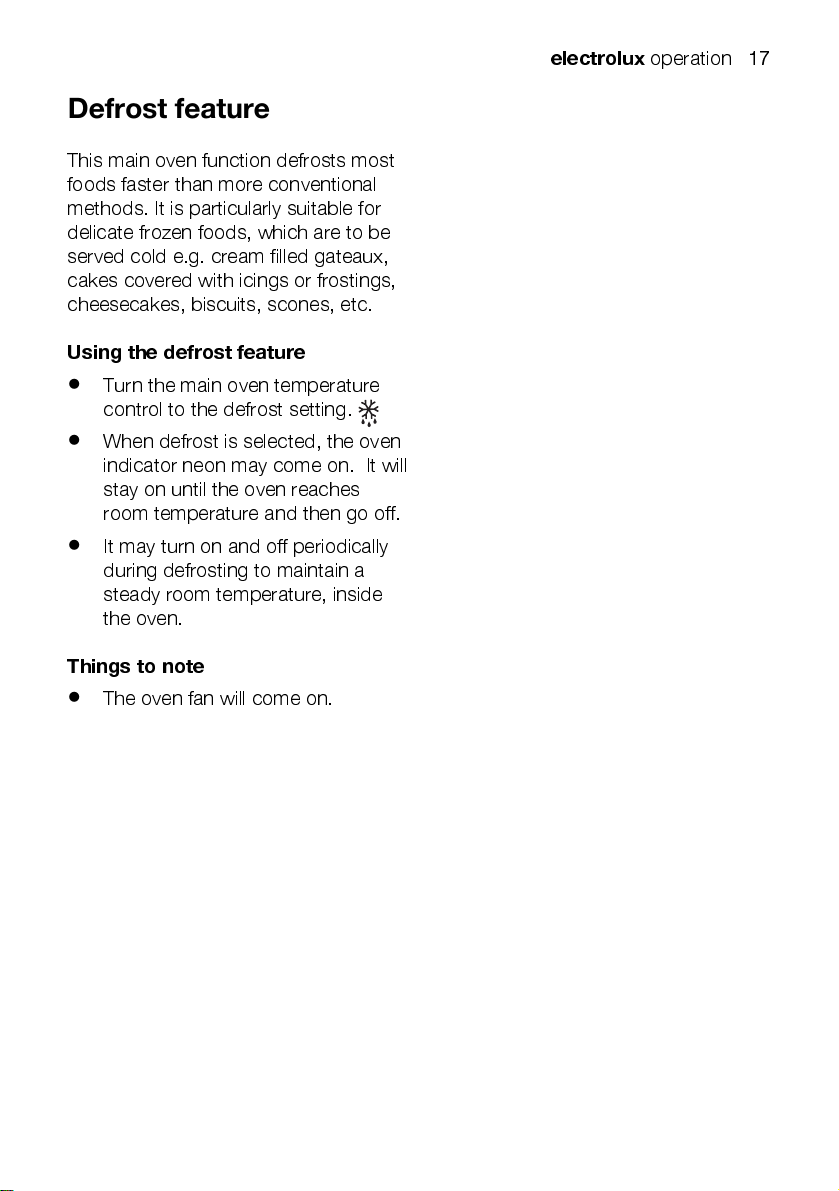

Defrost feature

This main oven function defrosts most
foods faster than more conventional
methods. It is particularly suitable for
delicate frozen foods, which are to be
served cold e.g. cream filled gateaux,
cakes covered with icings or frostings,
cheesecakes, biscuits, scones, etc.

Using the defrost feature

•

Turn the main oven temperature
control to the defrost setting.

•

When defrost is selected, the oven
indicator neon may come on. It will
stay on until the oven reaches
room temperature and then go off.

•

It may turn on and off periodically
during defrosting to maintain a
steady room temperature, inside
the oven.

Things to note

•

The oven fan will come on.

electrolux

operation

17

18

electrolux

programme charts

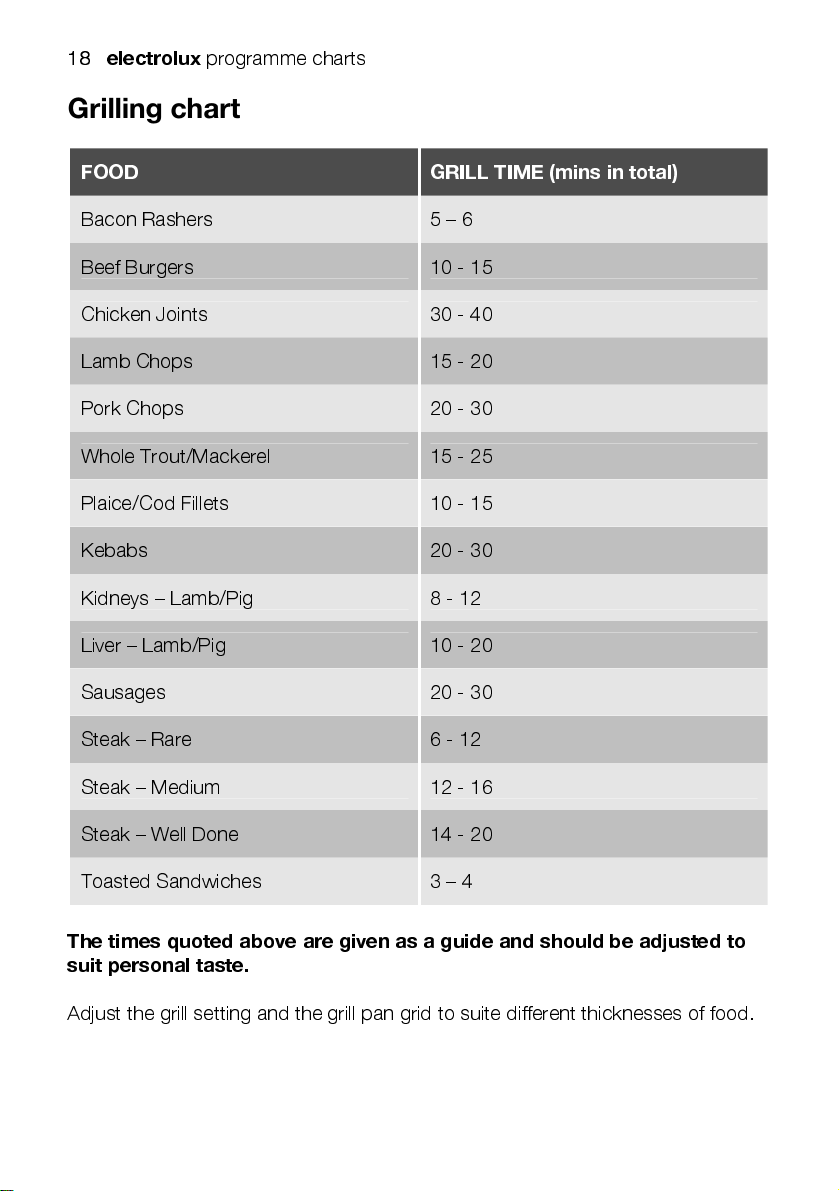

Grilling chart

FOOD GRILL TIME (mins in total)

Bacon Rashers 5 – 6

Beef Burgers 10 - 15

Chicken Joints 30 - 40

Lamb Chops 15 - 20

Pork Chops 20 - 30

Whole Trout/Mackerel 15 - 25

Plaice/Cod Fillets 10 - 15

Kebabs 20 - 30

Kidneys – Lamb/Pig 8 - 12

Liver – Lamb/Pig 10 - 20

Sausages 20 - 30

Steak – Rare 6 - 12

Steak – Medium 12 - 16

Steak – Well Done 14 - 20

Toasted Sandwiches 3 – 4

The times quoted above are given as a guide and should be adjusted to
suit personal taste.

Adjust the grill setting and the grill pan grid to suite different thicknesses of food.

electrolux

programme charts

19

Oven cooking chart

The oven temperatures are intended as a guide only. It may be necessary to
increase or decrease the temperatures by 10°C to suit individual preferences and
requirements.

FAN OVEN TOP OVEN

FOOD

Biscuits 180 - 190 1 170 - 190 10 - 20

Bread 200 - 220 1* 200 - 220 25 - 30

Bread rolls/buns 200 - 220 1 200 - 220 15 - 20
Small / Queen

Cakes
Sponges 160 - 170 1 160 - 170 18 - 20

Victoria Sandwich 160 - 170 1 160 - 170 18 - 25

Madeira Cake 140 - 150 1 140 - 150 1¼ - 1½h

COOKING

TEMP °C

160 - 170 1 170 - 180 18 - 25

POS

COOKING

TEMP °C

APPROX

COOK TIME (m)

Rich Fruit Cake 130 - 140 1 140 - 150 2¼ - 2½h

Christmas Cake 130 - 140 1 130 - 140 3 - 4½h

Gingerbread 140 - 150 1 140 - 150 1¼ - 1½h

Meringues 90 - 100 1 90 - 100 2½ - 3h

Flapjack 170 - 180 1 170 - 180 25 - 30

Shortbread 130 - 140 1 140 - 150 45 - 65

Fruit Pies, Crumbles 190 - 200 1 190 - 200 40 - 50

Milk Puddings 130 - 140 1 140 - 150 1½ - 2h

Scones 210 - 220 1 220 - 230 8 - 12

Note: Shelf positions are counted from the bottom of the oven.
Note: Main oven shelf positions are not critical but ensure that they are
evenly spaced when more than one is used.
* = Shelf on the oven base

20

electrolux

programme charts

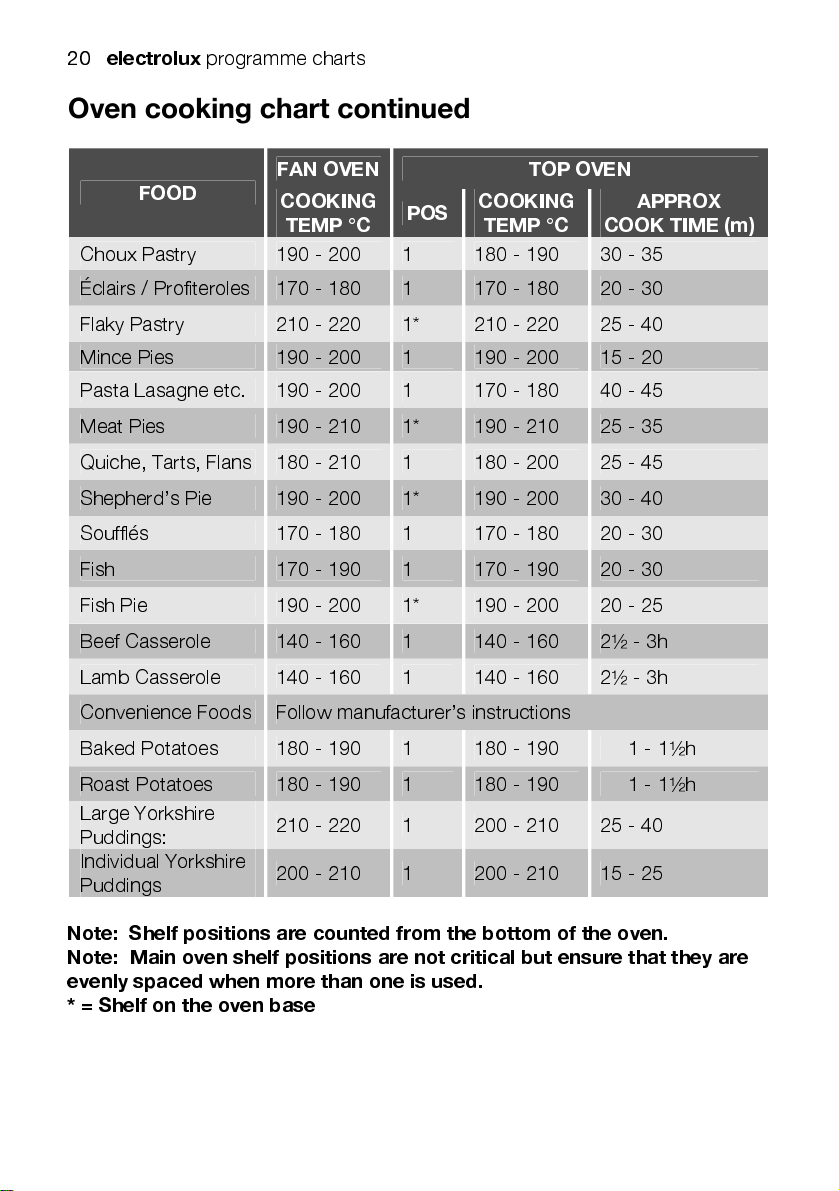

Oven cooking chart continued

FAN OVEN

FOOD

Choux Pastry 190 - 200 1 180 - 190 30 - 35
Éclairs / Profiteroles 170 - 180 1 170 - 180 20 - 30
Flaky Pastry 210 - 220 1* 210 - 220 25 - 40
Mince Pies 190 - 200 1 190 - 200 15 - 20
Pasta Lasagne etc. 190 - 200 1 170 - 180 40 - 45
Meat Pies 190 - 210 1* 190 - 210 25 - 35
Quiche, Tarts, Flans 180 - 210 1 180 - 200 25 - 45

Shepherd’s Pie 190 - 200 1* 190 - 200 30 - 40
Soufflés 170 - 180 1 170 - 180 20 - 30
Fish 170 - 190 1 170 - 190 20 - 30
Fish Pie 190 - 200 1* 190 - 200 20 - 25

COOKING

TEMP °C

POS

TOP OVEN

COOKING

TEMP °C

COOK TIME (m)

APPROX

Beef Casserole 140 - 160 1 140 - 160 2½ - 3h
Lamb Casserole 140 - 160 1 140 - 160 2½ - 3h
Convenience Foods Follow manufacturer’s instructions
Baked Potatoes 180 - 190 1 180 - 190 1 - 1½h
Roast Potatoes 180 - 190 1 180 - 190 1 - 1½h

Large Yorkshire
Puddings:
Individual Yorkshire
Puddings

Note: Shelf positions are counted from the bottom of the oven.
Note: Main oven shelf positions are not critical but ensure that they are
evenly spaced when more than one is used.
* = Shelf on the oven base

210 - 220 1 200 - 210 25 - 40

200 - 210 1 200 - 210 15 - 25

electrolux

programme charts

Roasting chart

MEAT TEMPERATURE COOKING TIME

21

Beef/ Beef boned 160-180°C

Mutton/Lamb 160-180°C

Pork/Veal/Ham 160-180°C

Chicken 160-180°C

Turkey/Goose 160-180°C

Duck 160-180°C

Pheasant 160-180°C

Rabbit 160-180°C

INTERNAL TEMPERATURES –
Rare: 50-60°C; Medium: 60-70°C; Well done: 70-80°C

The roasting temperatures and times given in the chart should be adequate for
most joints, but slight adjustments may be required to allow for personal
requirements and the shape and texture of the meat. However, lower
temperatures and longer cooking times are recommended for less tender cuts or
larger joints.

Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30
min. cooking time.

.

20-35 minutes per ½kg (1lb)
and 20-35 minutes over

25-35 minutes per ½kg (1lb)
and 25-35 minutes over

30-40 minutes per ½kg (1lb)
and 30-40 minutes over

15-20 minutes per ½kg (1lb)
and 20 minutes over

15-20 minutes per ½kg (1lb) up
to 3½kg (7lb) then 10 minutes per
½kg (1lb) over 3½kg (7lb)

25-35 minutes per ½kg (1lb)
and 25-30 minutes over

35-40 minutes per ½kg (1lb)
and 35-40 minutes over

20 minutes per ½kg (1lb)
and 20 minutes over

22

electrolux

hints and tips

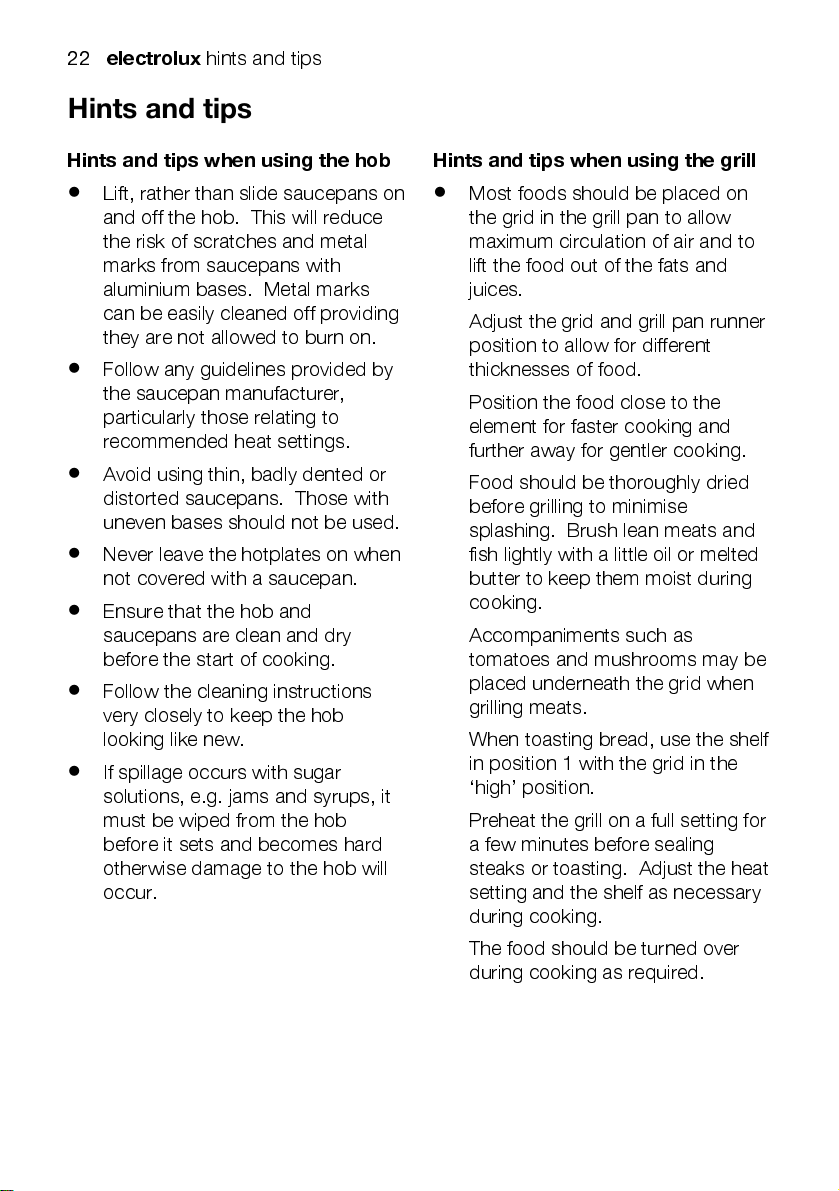

Hints and tips

Hints and tips when using the hob

•

Lift, rather than slide saucepans on
and off the hob. This will reduce
the risk of scratches and metal
marks from saucepans with
aluminium bases. Metal marks
can be easily cleaned off providing
they are not allowed to burn on.

•

Follow any guidelines provided by
the saucepan manufacturer,
particularly those relating to
recommended heat settings.

•

Avoid using thin, badly dented or
distorted saucepans. Those with
uneven bases should not be used.

•

Never leave the hotplates on when
not covered with a saucepan.

•

Ensure that the hob and
saucepans are clean and dry
before the start of cooking.

•

Follow the cleaning instructions
very closely to keep the hob
looking like new.

•

If spillage occurs with sugar
solutions, e.g. jams and syrups, it
must be wiped from the hob
before it sets and becomes hard
otherwise damage to the hob will
occur.

Hints and tips when using the grill

•

Most foods should be placed on
the grid in the grill pan to allow
maximum circulation of air and to
lift the food out of the fats and
juices.

•

Adjust the grid and grill pan runner
position to allow for different
thicknesses of food.

•

Position the food close to the
element for faster cooking and
further away for gentler cooking.

•

Food should be thoroughly dried
before grilling to minimise
splashing. Brush lean meats and
fish lightly with a little oil or melted
butter to keep them moist during
cooking.

•

Accompaniments such as
tomatoes and mushrooms may be
placed underneath the grid when
grilling meats.

•

When toasting bread, use the shelf
in position 1 with the grid in the
‘high’ position.

•

Preheat the grill on a full setting for
a few minutes before sealing
steaks or toasting. Adjust the heat
setting and the shelf as necessary
during cooking.

•

The food should be turned over
during cooking as required.

electrolux

hints and tips

23

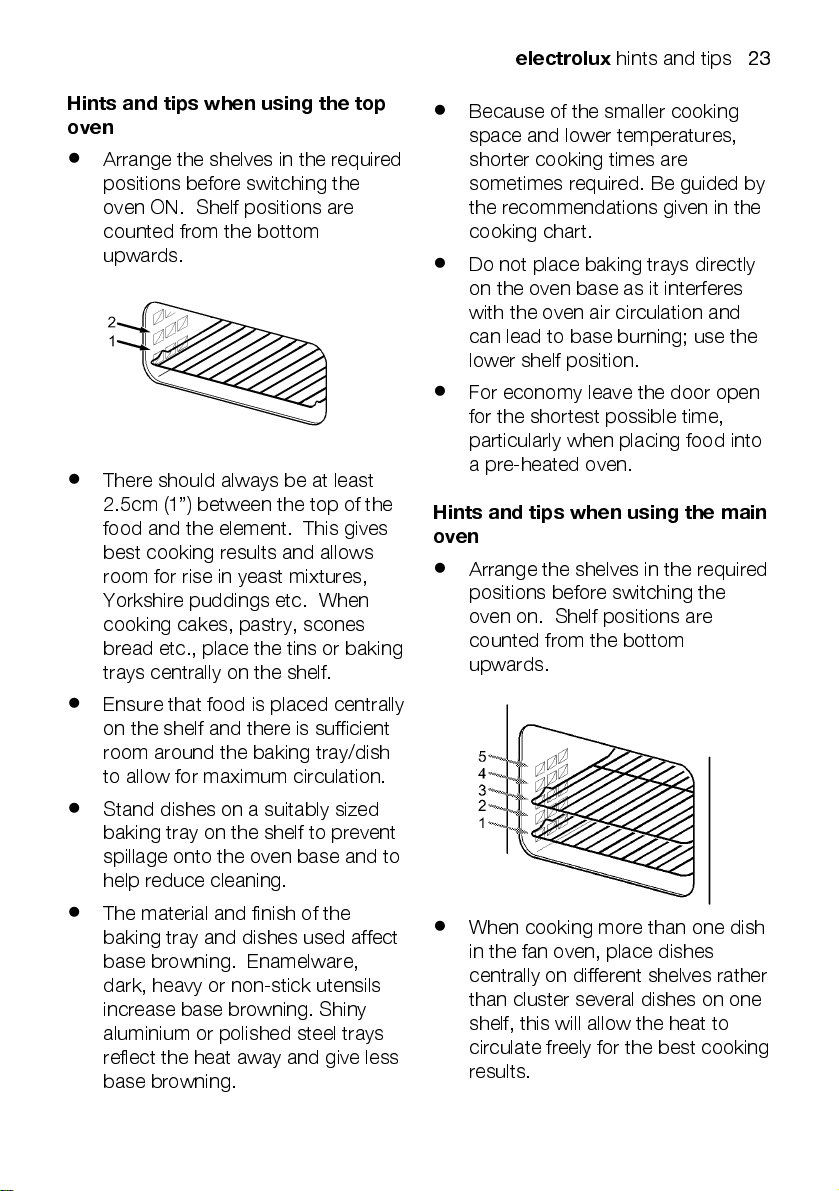

Hints and tips when using the top
oven

•

Arrange the shelves in the required
positions before switching the
oven ON. Shelf positions are
counted from the bottom
upwards.

•

There should always be at least

2.5cm (1”) between the top of the
food and the element. This gives
best cooking results and allows
room for rise in yeast mixtures,
Yorkshire puddings etc. When
cooking cakes, pastry, scones
bread etc., place the tins or baking
trays centrally on the shelf.

•

Ensure that food is placed centrally
on the shelf and there is sufficient
room around the baking tray/dish
to allow for maximum circulation.

•

Stand dishes on a suitably sized
baking tray on the shelf to prevent
spillage onto the oven base and to
help reduce cleaning.

•

The material and finish of the
baking tray and dishes used affect
base browning. Enamelware,
dark, heavy or non-stick utensils
increase base browning. Shiny
aluminium or polished steel trays
reflect the heat away and give less
base browning.

•

Because of the smaller cooking
space and lower temperatures,
shorter cooking times are
sometimes required. Be guided by
the recommendations given in the
cooking chart.

•

Do not place baking trays directly
on the oven base as it interferes
with the oven air circulation and
can lead to base burning; use the
lower shelf position.

•

For economy leave the door open
for the shortest possible time,
particularly when placing food into
a pre-heated oven.

Hints and tips when using the main
oven

•

Arrange the shelves in the required
positions before switching the
oven on. Shelf positions are
counted from the bottom
upwards.

•

When cooking more than one dish
in the fan oven, place dishes
centrally on different shelves rather
than cluster several dishes on one
shelf, this will allow the heat to
circulate freely for the best cooking
results.

24

electrolux

•

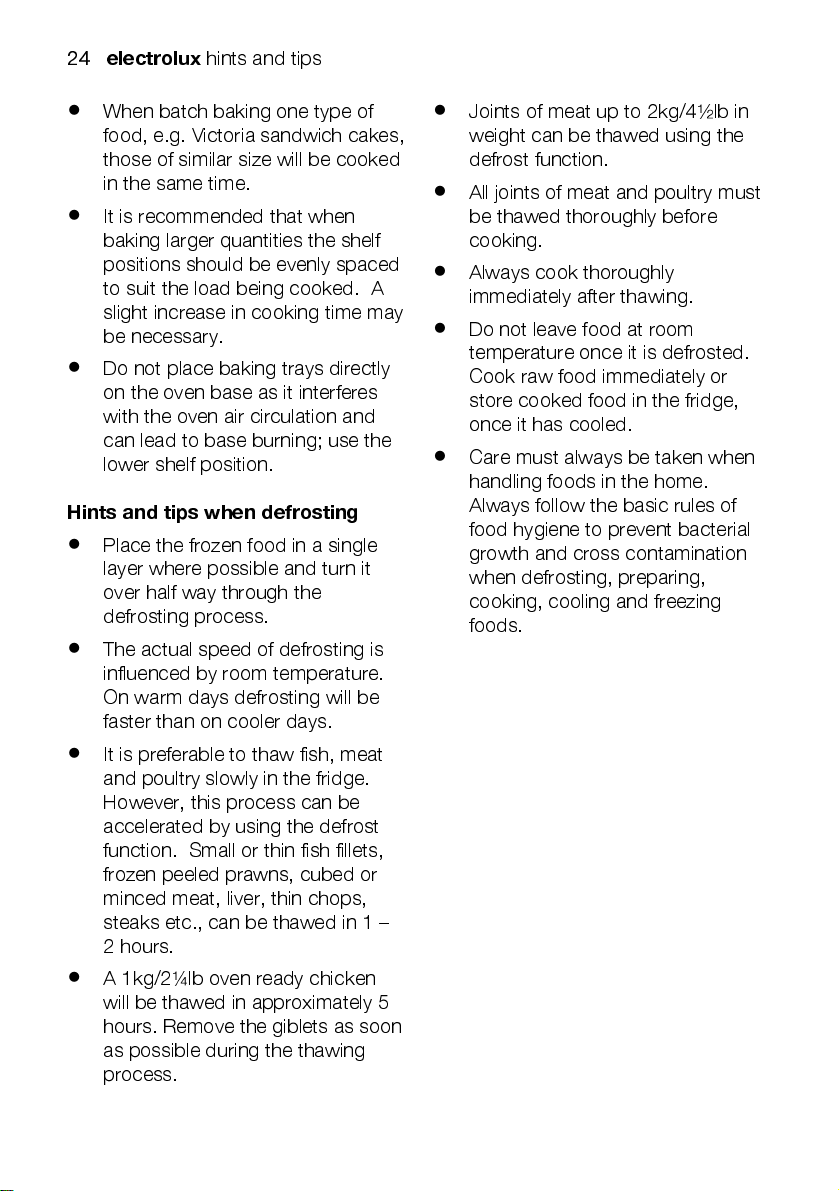

When batch baking one type of
food, e.g. Victoria sandwich cakes,
those of similar size will be cooked
in the same time.

•

It is recommended that when
baking larger quantities the shelf
positions should be evenly spaced
to suit the load being cooked. A
slight increase in cooking time may
be necessary.

•

Do not place baking trays directly
on the oven base as it interferes
with the oven air circulation and
can lead to base burning; use the
lower shelf position.

Hints and tips when defrosting

•

Place the frozen food in a single
layer where possible and turn it
over half way through the
defrosting process.

•

The actual speed of defrosting is
influenced by room temperature.
On warm days defrosting will be
faster than on cooler days.

•

It is preferable to thaw fish, meat
and poultry slowly in the fridge.
However, this process can be
accelerated by using the defrost
function. Small or thin fish fillets,
frozen peeled prawns, cubed or
minced meat, liver, thin chops,
steaks etc., can be thawed in 1 –
2 hours.

•

A 1kg/2¼lb oven ready chicken
will be thawed in approximately 5
hours. Remove the giblets as soon
as possible during the thawing
process.

hints and tips

•

Joints of meat up to 2kg/4½lb in
weight can be thawed using the
defrost function.

•

All joints of meat and poultry must
be thawed thoroughly before
cooking.

•

Always cook thoroughly
immediately after thawing.

•

Do not leave food at room
temperature once it is defrosted.
Cook raw food immediately or
store cooked food in the fridge,
once it has cooled.

•

Care must always be taken when
handling foods in the home.
Always follow the basic rules of
food hygiene to prevent bacterial
growth and cross contamination
when defrosting, preparing,
cooking, cooling and freezing
foods.

electrolux

troubleshooting

Troubleshooting

Please carry out the following checks
on your appliance before calling a
Service Engineer. It may be that the
problem is a simple one which you can
solve yourself without the expense of a
service call.

PROBLEM POSSIBLE SOLUTION

The grill, ovens and timer do not
work.

Check that the main appliance fuse is

If you have checked the above:

The grill and top oven work but the
main oven does not.

The grill does not work or cuts out
after being used for a long period of
time.

Leave the grill door open and allow

The timer does not work. Check that the instructions for the

The indicator neons are not working
correctly.

In-guarantee customers should
make sure that the checks have
been made as the engineer will
make a charge if the fault is not a
mechanical or electrical
breakdown.

Please note that proof of purchase is

required for in-guarantee service calls.

Check that the appliance has been
wired in to the appliance supply and is
switched on at the wall.

working.

Allow the appliance to cool for a
couple of hours. The appliance
should now be working normally.
Check that the time of day has been
set on the clock. Check that the oven
is set for manual cooking.
Ensure the cooling fan is running
when the grill is on. If the cooling fan
fails, the grill will not operate correctly.
Contact your local service force
centre.

the grill to cool. After a couple of
hours check that the grill works as
normal

operation of the timer are being
closely followed.
Check that you have selected only the
function you require. Ensure all other
controls are in the off position.

25

26

electrolux

troubleshooting

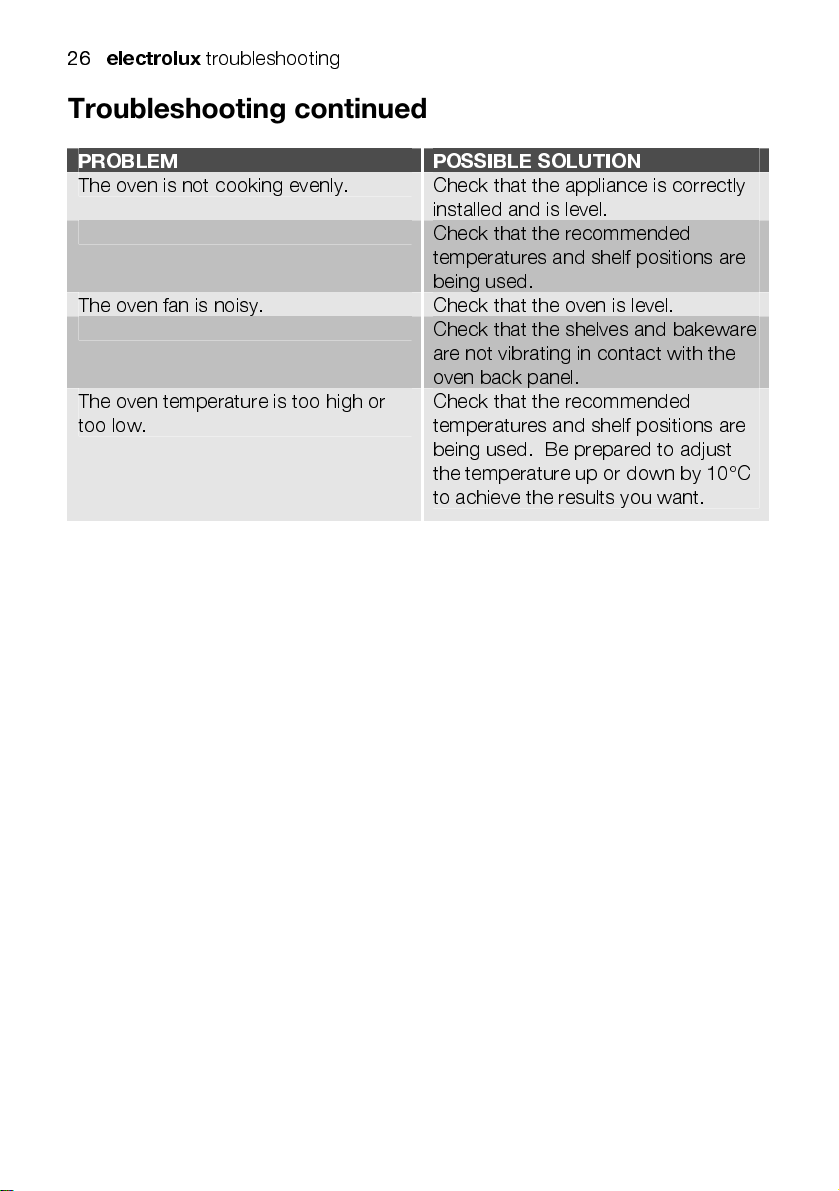

Troubleshooting continued

PROBLEM POSSIBLE SOLUTION

The oven is not cooking evenly. Check that the appliance is correctly

installed and is level.

Check that the recommended

temperatures and shelf positions are

being used.
The oven fan is noisy. Check that the oven is level.
Check that the shelves and bakeware

are not vibrating in contact with the

oven back panel.
The oven temperature is too high or
too low.

Check that the recommended

temperatures and shelf positions are

being used. Be prepared to adjust

the temperature up or down by 10°C

to achieve the results you want.

Care and cleaning

electrolux

care and cleaning

27

Before cleaning always allow the
appliance to cool down before
switching off at the electricity
supply.

Cleaning materials

Before using any cleaning materials on
your appliance, check that they are
suitable and that their use is
recommended by the manufacturer.

Cleaners that contain bleach should

not

be used as they may dull the
surface finishes. Harsh abrasives and
scourers should also be avoided.
Multi-surface anti-bacterial cleaning
products should not be used on the
ceramic hob or on the surrounding
trims.

Cleaning the outside of the
appliance
Do not

use abrasive cleaning materials
e.g. abrasive cream cleaners, wire wool
pads or scourers on painted or printed
finishes as damage may occur.
Regularly wipe over the control panel,
doors and appliance sides using a soft
cloth and hot soapy water. To prevent
streaking, finish with a soft cloth.

Stainless Steel cream cleaners are
abrasive and should be avoided as
they may dull the surface finish.

Any
spillage on the stainless steel finish
must be wiped off immediately.

Do not attempt to remove any of
the control knobs from the
appliance as this may cause
damage and is a safety hazard.

Cleaning the control knobs and
handles

It is strongly recommended that only
hot soapy water be used for cleaning
the control knobs and handles.

ANY
OTHER CLEANING MATERIALS
MAY DULL THE SURFACE FINISH.

Cleaning the ceramic hob

Make sure the ceramic glass is cool
before cleaning. It is important to clean
the ceramic hob daily to prevent
foodstuff being burnt on.

Take care to avoid the hob trims
when cleaning the ceramic glass as
they may be damaged by the cleaning
agents.

Daily cleaning

Use a hob-cleaning product specifically
designed for ceramic hobs daily. If
foodstuff is not allowed to burn on it
will be much easier to clean off.

1. Apply a small amount of hob

cleaner in the centre of each area
to be cleaned.

2. Dampen a clean paper towel or a

plastic pad designed for non-stick
saucepans and rub vigorously until
all marks are removed. This may
take a few minutes.

28

electrolux

care and cleaning

3. Wipe off residues of cleaner with
another damp paper towel and
polish dry with a soft cloth.

If hob cleaner is unavailable, one or
more of the cleaning agents below may
be used temporarily:

a. Cream Cleaner
b. Baking Soda

To remove more stubborn marks

1. Cream cleaner may be used to
clean off more stubborn stains or
to remove discolouration.

It may be necessary to rub the marks
hard for several minutes.

2. Use a plastic pad designed for
non-stick saucepans with cream
cleaner for removal of more
stubborn stains.

To remove burnt on foodstuff

We strongly recommend the use of a
Ceramic Hob Scraper (incorporating a
single edge razor blade) to remove
spillage on the hob, in particular sugar
solutions, which if not removed can
cause permanent damage.

1. Make sure the ceramic glass is
cool.

2. Use a ceramic hob scraper with
care at an angle of 30° to remove
as much foodstuff as possible.

Use hob cleaner or cream cleaner to
finish off as directed above.

To remove discolourations or white
and silver marks

These marks sometimes give the
impression of being in or underneath
the hob glass. They can almost always
be removed provided they have not
become excessively burnt on. Follow
the instructions above under ‘To
remove more stubborn marks’.

If this is unsuccessful, make up a
paste of one part water to three parts
Cream of Tarter and leave on the
discoloured areas overnight. The
marks should be easily removable the
next day provided they have not been
excessively burnt on. The paste should
be thoroughly washed off afterwards.

To reduce marking of the hob

•

Make sure the bottom of the
saucepan and the cooking area is
clean and dry before cooking
begins.

•

Ensure saucepans are large
enough to accommodate food to
avoid boil-over.

•

If possible, wipe up spills and
splatters as they occur, but take
care to avoid steam burns.

•

Avoid using a dishcloth or sponge
to clean the hob. These may leave
a layer of soiled detergent on the
hob surface, which will burn and
discolour the next time the hob is
used.

electrolux

care and cleaning

29

•

Avoid the use of:

•

Household detergents and
bleaches.

•

Impregnated plastic or nylon
pads that are not described as
suitable for non-stick
saucepans.

•

Abrasive cleaning pads,
scourers and steel wool pads.

•

Chemical oven cleaners, e.g.
aerosols and oven pads.

•

Rust stain, bath and sink stain
removers.

•

Any of the above products may
cause damage to the hob.

•

It is dangerous to mix different
cleaning products. The chemicals
in them may react with each other
with hazardous results.

•

Sugar solutions must be removed
from the hob before the syrup has
set otherwise damage to the hob
surface will occur.

•

Avoid placing plastic items, foil or
dishes on the hot surface as this
will cause damage to the hob

Cleaning the grill and oven
furniture

All removable parts, except the grill pan
handle can be washed in the
dishwasher.

The grill pan, grill pan grid and oven
shelves may be cleaned using a soap
impregnated steel wool pad. Soaking
first in hot soapy water will make
cleaning easier.

Cleaning inside the grill and oven
compartments

The sides and back of the grill/second
oven and main oven compartments are
coated with a special Stay-clean
coating. They should not be cleaned
manually.

The vitreous enamel main oven base
and grill compartment base can be
cleaned using normal oven cleaners
with care. Ensure that the
manufacturers instructions are followed
and that all parts are well rinsed
afterwards.

Aerosol cleaners must not come
into contact with elements, the
door seal, or any painted finishes
as this may cause damage.

Aerosol cleaners must not be
used on Stay-clean surfaces.

•

To carry out the cleaning cycle,
remove the oven shelves and set the
oven to 220°C.

•

It is a good idea to run the oven for
an hour or two per week to ensure
continued good performance from
the Stay-clean finish.

•

Slight discolouration and polishing of
the Stay-clean surfaces may occur in
time. This
clean properties in any way.

does not

affect the Stay-

30

electrolux care and cleaning

•

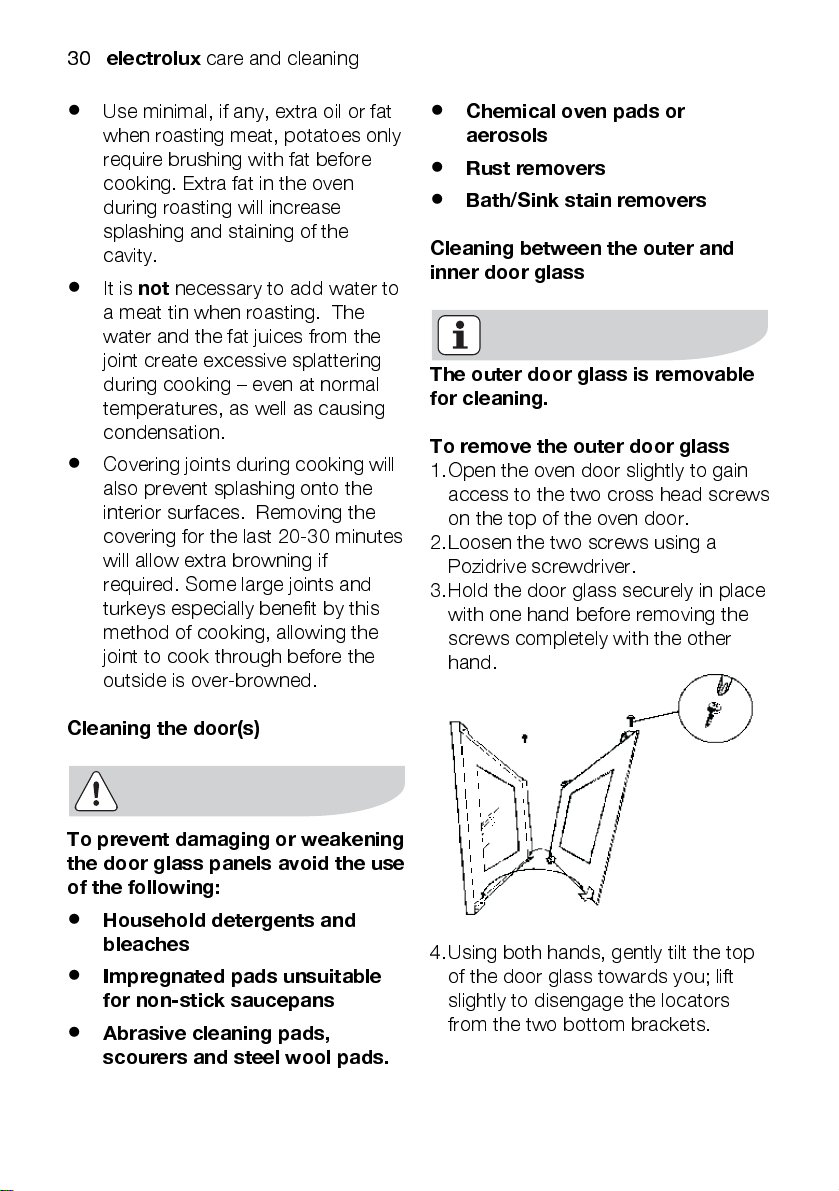

Use minimal, if any, extra oil or fat
when roasting meat, potatoes only
require brushing with fat before
cooking. Extra fat in the oven
during roasting will increase
splashing and staining of the
cavity.

•

It is

not

necessary to add water to
a meat tin when roasting. The
water and the fat juices from the
joint create excessive splattering
during cooking – even at normal
temperatures, as well as causing
condensation.

•

Covering joints during cooking will
also prevent splashing onto the
interior surfaces. Removing the
covering for the last 20-30 minutes
will allow extra browning if
required. Some large joints and
turkeys especially benefit by this
method of cooking, allowing the
joint to cook through before the
outside is over-browned.

Cleaning the door(s)

•

Chemical oven pads or
aerosols

•

Rust removers

•

Bath/Sink stain removers

Cleaning between the outer and
inner door glass

The outer door glass is removable
for cleaning.

To remove the outer door glass

1. Open the oven door slightly to gain
access to the two cross head screws
on the top of the oven door.

2. Loosen the two screws using a
Pozidrive screwdriver.

3. Hold the door glass securely in place
with one hand before removing the
screws completely with the other
hand.

To prevent damaging or weakening
the door glass panels avoid the use
of the following:

•

Household detergents and
bleaches

•

Impregnated pads unsuitable
for non-stick saucepans

•

Abrasive cleaning pads,
scourers and steel wool pads.

4. Using both hands, gently tilt the top
of the door glass towards you; lift
slightly to disengage the locators
from the two bottom brackets.

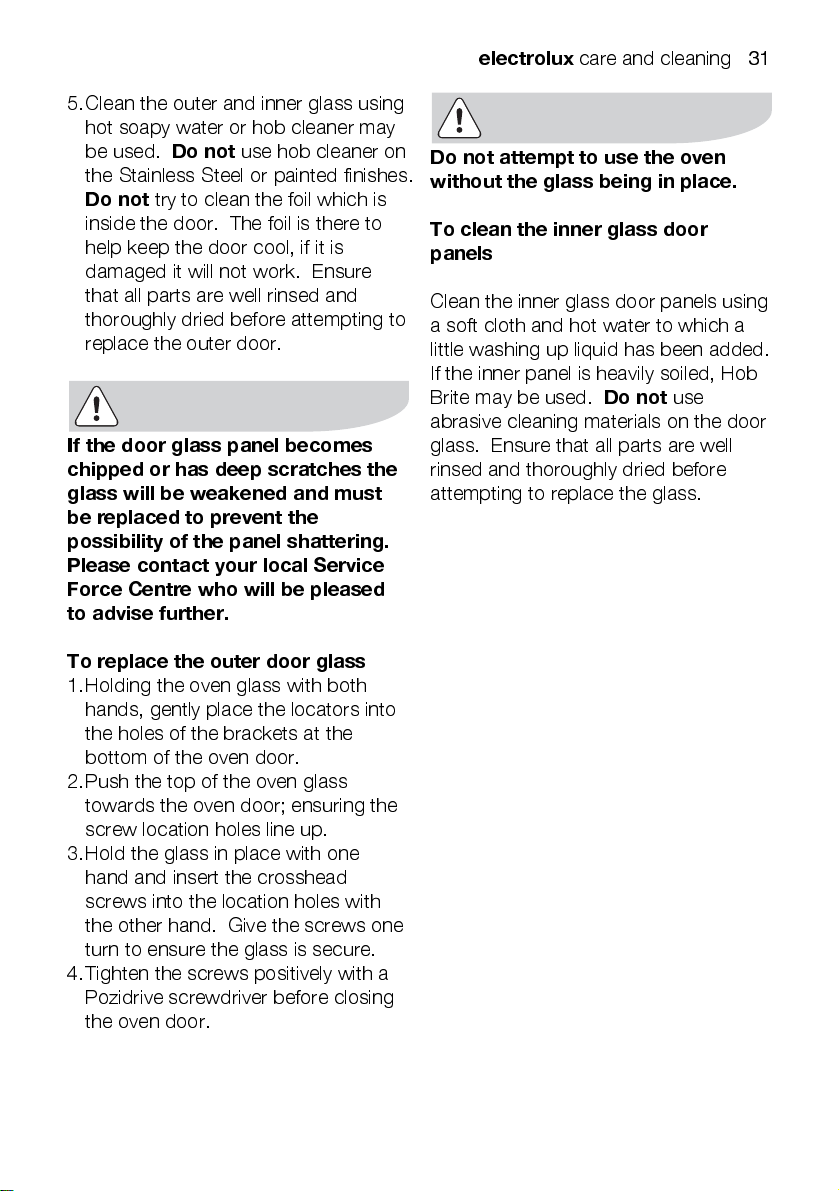

5. Clean the outer and inner glass using
hot soapy water or hob cleaner may
be used.
the Stainless Steel or painted finishes.

Do not

inside the door. The foil is there to
help keep the door cool, if it is
damaged it will not work. Ensure
that all parts are well rinsed and
thoroughly dried before attempting to
replace the outer door.

If the door glass panel becomes
chipped or has deep scratches the
glass will be weakened and must
be replaced to prevent the
possibility of the panel shattering.
Please contact your local Service
Force Centre who will be pleased
to advise further.

To replace the outer door glass

1. Holding the oven glass with both
hands, gently place the locators into
the holes of the brackets at the
bottom of the oven door.

2. Push the top of the oven glass
towards the oven door; ensuring the
screw location holes line up.

3. Hold the glass in place with one
hand and insert the crosshead
screws into the location holes with
the other hand. Give the screws one
turn to ensure the glass is secure.

4. Tighten the screws positively with a
Pozidrive screwdriver before closing
the oven door.

Do not use hob cleaner on

try to clean the foil which is

electrolux

Do not attempt to use the oven
without the glass being in place.

To clean the inner glass door
panels

Clean the inner glass door panels using
a soft cloth and hot water to which a
little washing up liquid has been added.
If the inner panel is heavily soiled, Hob
Brite may be used.
abrasive cleaning materials on the door
glass. Ensure that all parts are well
rinsed and thoroughly dried before
attempting to replace the glass.

care and cleaning

Do not

use

31

32

electrolux

technical data

Technical data

Voltage: 230-240 Volts AC 50Hz
Wattage: 9.8 - 10.7 kW
Height: 900mm
Width: 500mm
Depth: (excluding handles and knobs) 600mm
Weight 55.0kg

This appliance complies with:
European Council Directive 73/23/EEC
EMC Directive 89/336/EEC
CE Marking Directive 93/68/EEC
Energy Label Directive 2002/40/EC

Installation instructions

Warning: this appliance must be
earthed

If your appliance has been damaged in
transit, contact your supplier
immediately.
it.

Your appliance left the factory fully

packaged to protect it from damage. If
it is delivered without packaging and
damage has occurred, the
manufacturer cannot accept
responsibility. Contact your supplier for
advice.

Once the packaging has been

removed the appliance should only be
moved by hand.
barrow or any other aid to lift the
appliance as damage may occur.

To move the appliance, open the

oven door and lift the appliance by
holding inside the top of the
compartment.

This is a type X appliance, which

means it is freestanding and can be
fitted with cabinets on one or both
sides.

Do not

attempt to install

Do not use a sack

electrolux

installation instructions

Sidewalls, which are above hob level,
should be protected by heat resistant
non-combustible material and

not

be nearer than 40mm to the hob

must

side.

A nominal air gap of 2mm at either
side of the appliance is required to
enable the appliance to be moved into
position.

Always ensure an air gap is
maintained at hotplate level. Tiles or
other forms of deep wall covering
should not obscure this gap.

Air gap

Overhanging surfaces or a cooker
hood should be a minimum of 685mm
above the hob.

It is important to ensure that the
appliance is level after installation.
Levelling feet are fitted to the appliance
to accommodate uneven floors.

33

34

electrolux connecting to the electricity supply

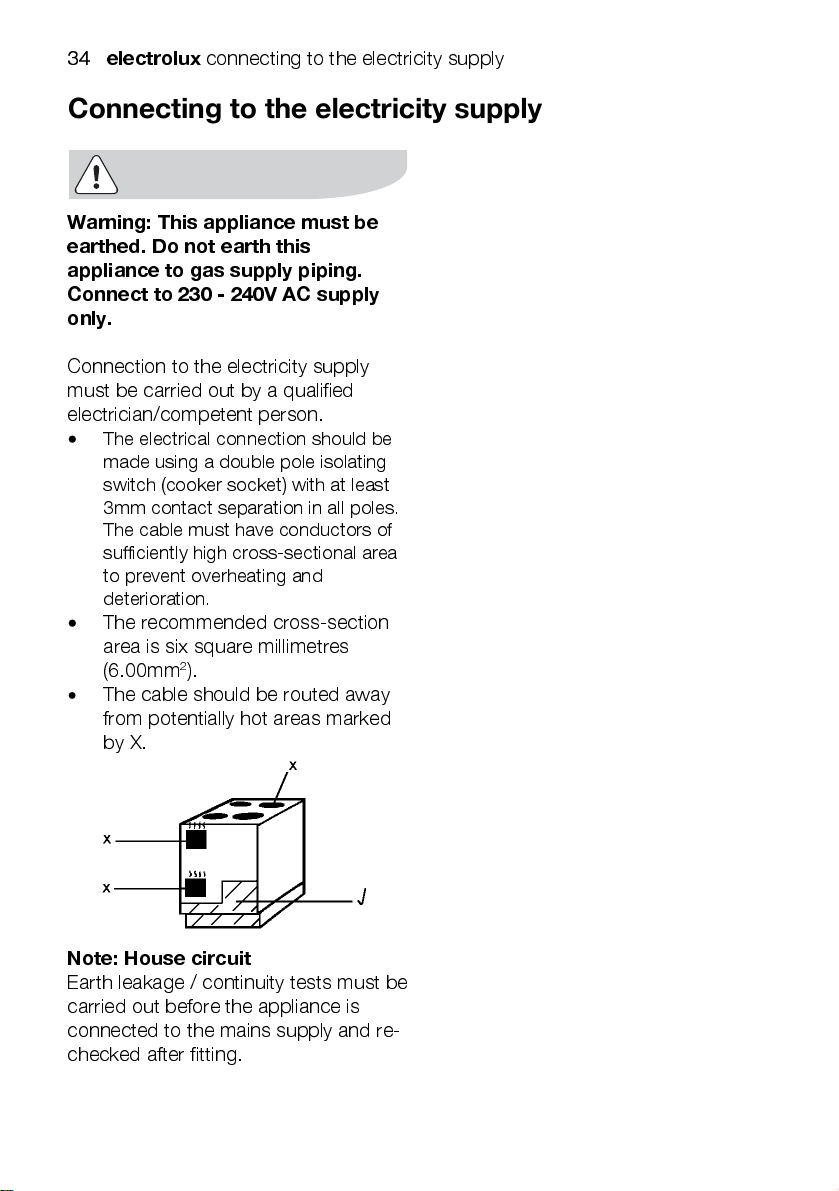

Connecting to the electricity supply

Warning: This appliance must be
earthed. Do not earth this
appliance to gas supply piping.
Connect to 230 - 240V AC supply
only.

Connection to the electricity supply
must be carried out by a qualified
electrician/competent person.

•

The electrical connection should be
made using a double pole isolating
switch (cooker socket) with at least
3mm contact separation in all poles.
The cable must have conductors of
sufficiently high cross-sectional area
to prevent overheating and
deterioration.

•

The recommended cross-section
area is six square millimetres
(6.00mm

•

The cable should be routed away
from potentially hot areas marked
by X.

Note: House circuit

Earth leakage / continuity tests must be
carried out before the appliance is
connected to the mains supply and re-
checked after fitting.

2

).

Environment

After installation please dispose of the
packaging with due regard for safety
and the environment. Your local
authority can arrange this.

At the end of the appliances life

The symbol on the product or on
its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable
collection point for the recycling of
electrical and electronic equipment. By
ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or
the shop where you purchased the
product.

electrolux

environment

35

36

electrolux

guarantee / customer care

Guarantee / Customer care

Standard guarantee conditions

We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part
thereof is proved to be defective by
reason only of faulty workmanship or
materials, we will, at our option repair
or replace the same FREE OF

CHARGE for labour, materials or
carriage on condition that:

•

The appliance has been correctly
installed and used only on the
electricity supply stated on the
rating plate.

•

The appliance has been used for
normal domestic purposes only,
and in accordance with the
manufacturer's instructions.

•

The appliance has not been
serviced, maintained, repaired,
taken apart or tampered with by
any person not authorised by us.

•

Electrolux Service Force Centre
must undertake all service work
under this guarantee

•

Any appliance or defective part
replaced shall become the
Company's property.

•

This guarantee is in addition to
your statutory and other legal rights.

Exclusions

•

Damage or calls resulting from
transportation, improper use or
neglect, the replacement of any
light bulbs or removable parts of
glass or plastic.

•

Costs incurred for calls to put right
an appliance which is improperly
installed or calls to appliances
outside the United Kingdom.

•

Appliances found to be in use
within a commercial environment,
plus those which are subject to
rental agreements.

•

Products of Electrolux
manufacturer that are not
marketed by Electrolux

Service and Spare Parts

In the event of your appliance requiring
service, or if you wish to purchase
spare parts, please contact your local
Service Force Centre by telephoning

0870 5 929 929

Your telephone call will be
automatically routed to the Service
Force Centre covering your postcode
area.

For the address of your local Service
Force Centre and further information
about Service Force, please visit the
website at

www.serviceforce.co.uk

electrolux

guarantee / customer care

37

Before calling out an engineer, please
ensure you have read the details under
the heading "Something not working"
When you contact the Service Force
Centre you will need to give the
following details:

1.Your name, address and postcode.

2.Your telephone number.

3. Clear concise details of the fault.

4. The model and Serial number of the
appliance (found on the rating plate).

5.The purchase date.

Please note a valid purchase receipt or
guarantee documentation is required
for in guarantee service calls.

For customers in Ireland, please
contact us at the address below.

Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: [phone] (*)
Email: [e-mail]

(*) Calls may be recorded for

training purposes

Customer Care

For general enquiries concerning your
Electrolux appliance, or for further
information on Electrolux products
please contact our Customer Care
Department by letter or telephone at
the address below or visit our website
at www.electrolux.co.uk

Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)

(*) Calls may be recorded for
training purposes

38

electrolux

european guarantee

European guarantee

This appliance is guaranteed by
Electrolux in each of the countries
listed be lo w fo r t h e p e ri o d s p ec if ie d i n
the appliance guarantee or otherwise
by law. If you move from one of these
countries to another of the countries
listed below the appliance guarantee
will move with you subject to the
following qualifications: -

•

The appliance guarantee starts
from the date you first
purchased the appliance which
will be evidenced by production
of a valid purchase document
issued by the seller of the
appliance.

•

The appliance guarantee is for
the same period and to the
same extent for labour and parts
as exists in your new country of
residence for this particular
model or range of appliances.

www.electrolux.com

•

The appliance guarantee is
personal to the original
purchaser of the appliance and
cannot be transferred to another
user.

•

The appliance is installed and
used in accordance with
instructions issued by Electrolux
and is only used within the home,
i.e. is not used for commercial
purposes.

•

The appliance is installed in
accordance with all relevant
regulations in force within your
new country of residence.

The provisions of this European
Guarantee do not affect any of the
rights granted to you by law.



Albania [phone]

Belgique / België /
Belgien

Česká republika [phone] Budějovická 3, Praha 4, 140 21
Danmark [phone] Sjællandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn

España [phone]

France www.electrolux.fr

[phone] Bergensesteenweg 719, 1502 Lembeek

 

Rr. Pjeter Bogdani Nr. 7 Tirane

Carretera M-300, Km. 29,900 Alcalá de
Henares Madrid

electrolux european guarantee

39



Great Britain [phone] Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas [phone], Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road, Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga
Lituania [phone] Verkiu 29, 09108 Vilnius, Lithuania
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm
Magyarország [phone] H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland [phone] Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warsaw

Portugal [phone]

Romania [phone] B-dul Timisoara 90, S6, Bucharest
Schweiz - Suisse -

Svizzera
Slovenija [phone] Tržaška 132, 1000 Ljubljana

Slovensko [phone]

Suomi [phone] Konepajanranta 4, 28100 Pori

Sverige

Türkiye [phone] Tarlabaşı caddesi no: 35 Taksim İstanbul

Россия

[phone]

[phone] Industriestrasse 10, CH-5506 Mägenwil

[phone]
76

 

Quinta da Fonte - Edificio Gonçalves Zarco -
Q 35 -2774-518 Paço de Arcos

Electrolux Slovakia s.r.o., Electrolux Domáce
spotrebiče SK, Seberíniho 1, 821 03 Bratislava

Electrolux Service, St Göransgatan 143,
S-105 45 Stockholm

129090

Москва, Олимпийский проспект

"

Олимпик

"

, 16, БЦ

40

electrolux

notes

electrolux

notes

41

42

electrolux

notes

www.electrolux.com

www.electrolux.co.uk

311779401
