Electrolux EIMED60JIW0, EIMED60JMB0, EIMED60JRR0, EIMGD60JIW0, EIMGD60JMB0 Installation Guide

...

Installation Instructions

Electro_ux Front_Load Gas _ E_ectric Dryer

Instructions d'installation

S_cheuse _ gaz et _ P4Jectridt4 _ chargement fTontal E]ectrolux

lnstrucciones de |nstalaci6n

Secadora d4ctr_ca y _ gas de carga frontaJ EJec_'oJux

137396000A(lolo)

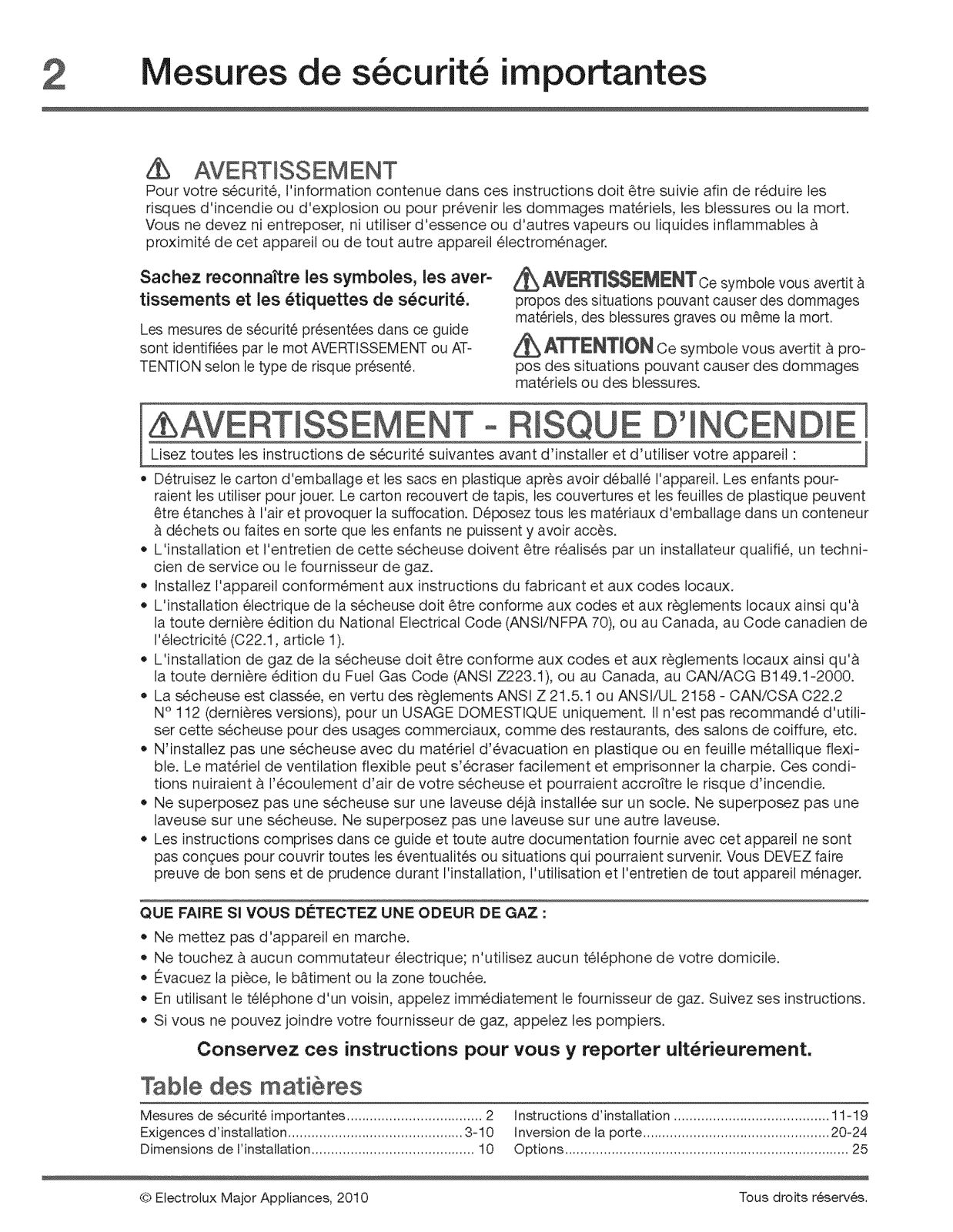

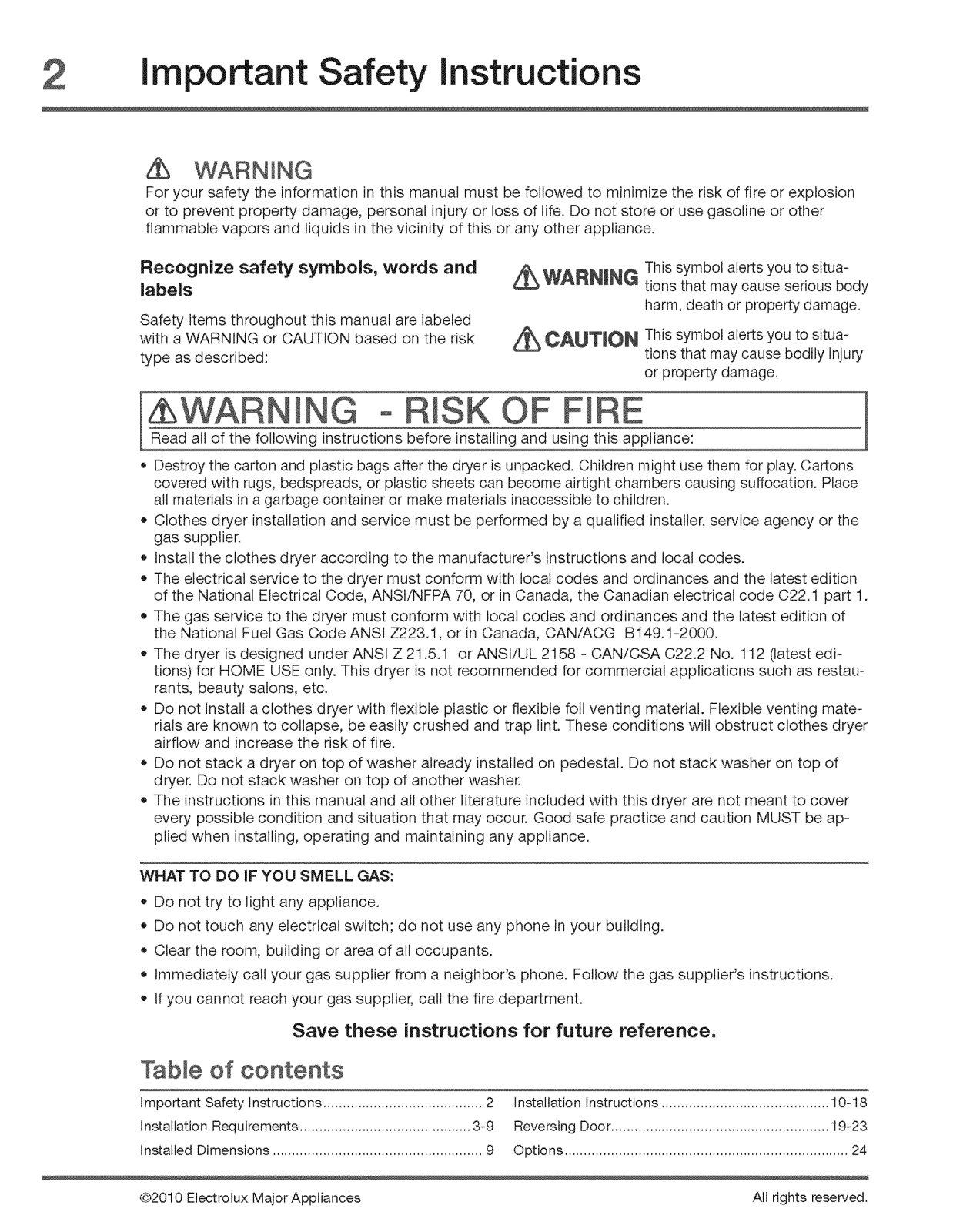

2 important Safety Instructions

For your safety the information in this manual must be followed to minimize the risk of fire or explosion

or to prevent property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Recognize safety symbols, words and labels

Safety items throughout this manual are labeled

with a WARNING or CAUTION based on the risk

type as described:

_VA_N|NG tions that may cause serious body

CAUTION This symbol alerts you to situa-

This symbol alerts you to situa-

harm death or property damage.

tions that may cause bodily injury or property damage.

I G - IS OF F!

Read all of the following instructions before installing and using this appliance:

• Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in agarbage container or make materials inaccessible to children.

o Clothes dryer installation and service must be performed by a qualified installer, service agency or the

gas supplier.

• Install the clothes dryer according to the manufacturer's instructions and local codes.

• The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part t.

• The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000.

• The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest edi- tions) for HOME USE only. This dryer is not recommended for commercial applications such as restau-

rants, beauty salons, etc.

o Do not install a clothes dryer with flexible plastic or flexible foil venting material. Flexible venting mate-

rials are known to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.

Do not stack a dryer on top of washer already installed on pedestal. Do not stack washer on top of dryer. Do not stack washer on top of another washer.

The instructions in this manual and all other literature included with this dryer are not meant to cover

every possible condition and situation that may occur. Good safe practice and caution MUST be ap= plied when installing, operating and maintaining any appliance.

WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.

,, Do not touch any electrical switch; do not use any phone in your building. ,, Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

If you cannot reach your gas supplier, call the fire department.

Save these instructions for future reference.

Table of contents

Important Safety Instructions ......................................... 2

Installation Requirements ............................................ 3-9

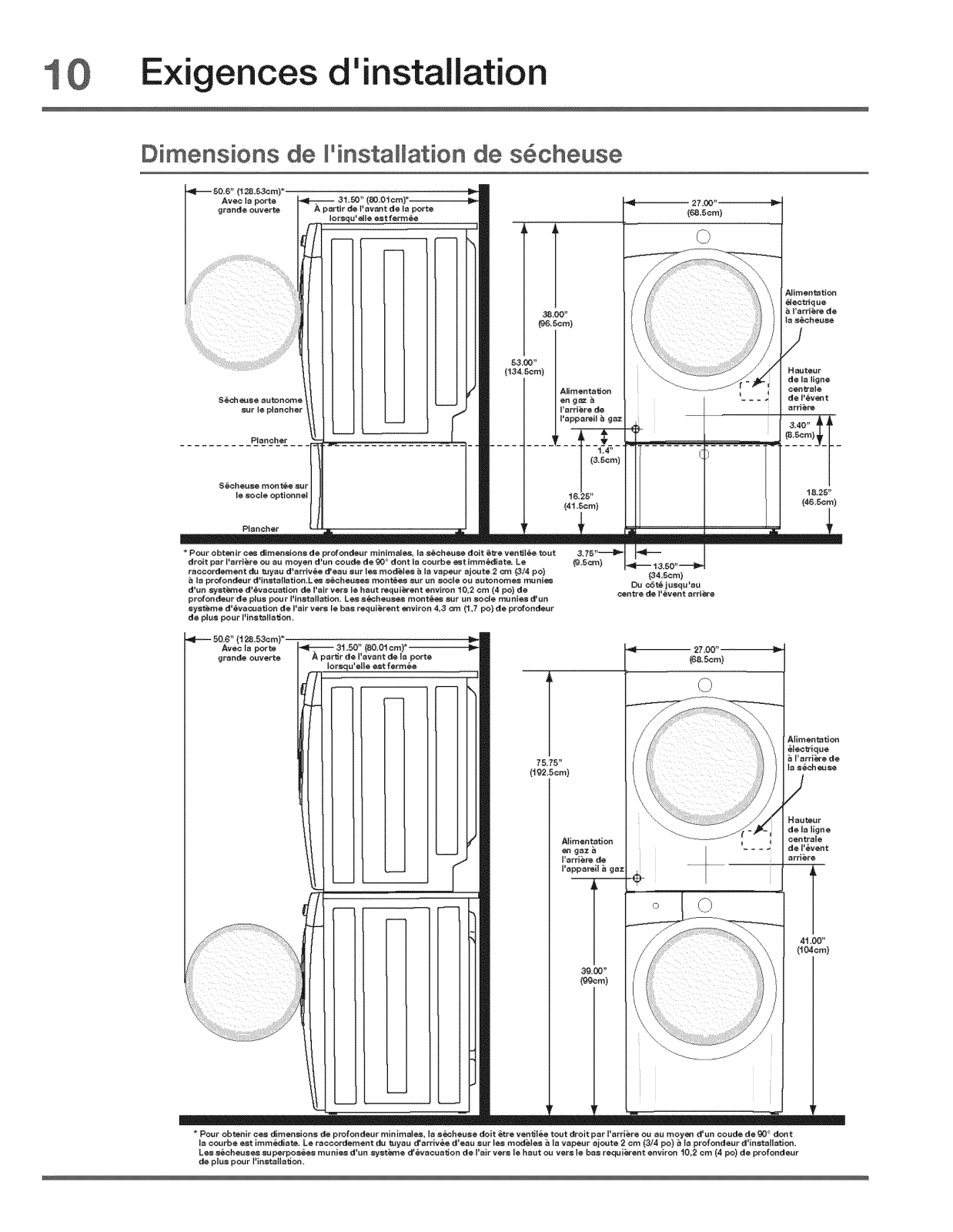

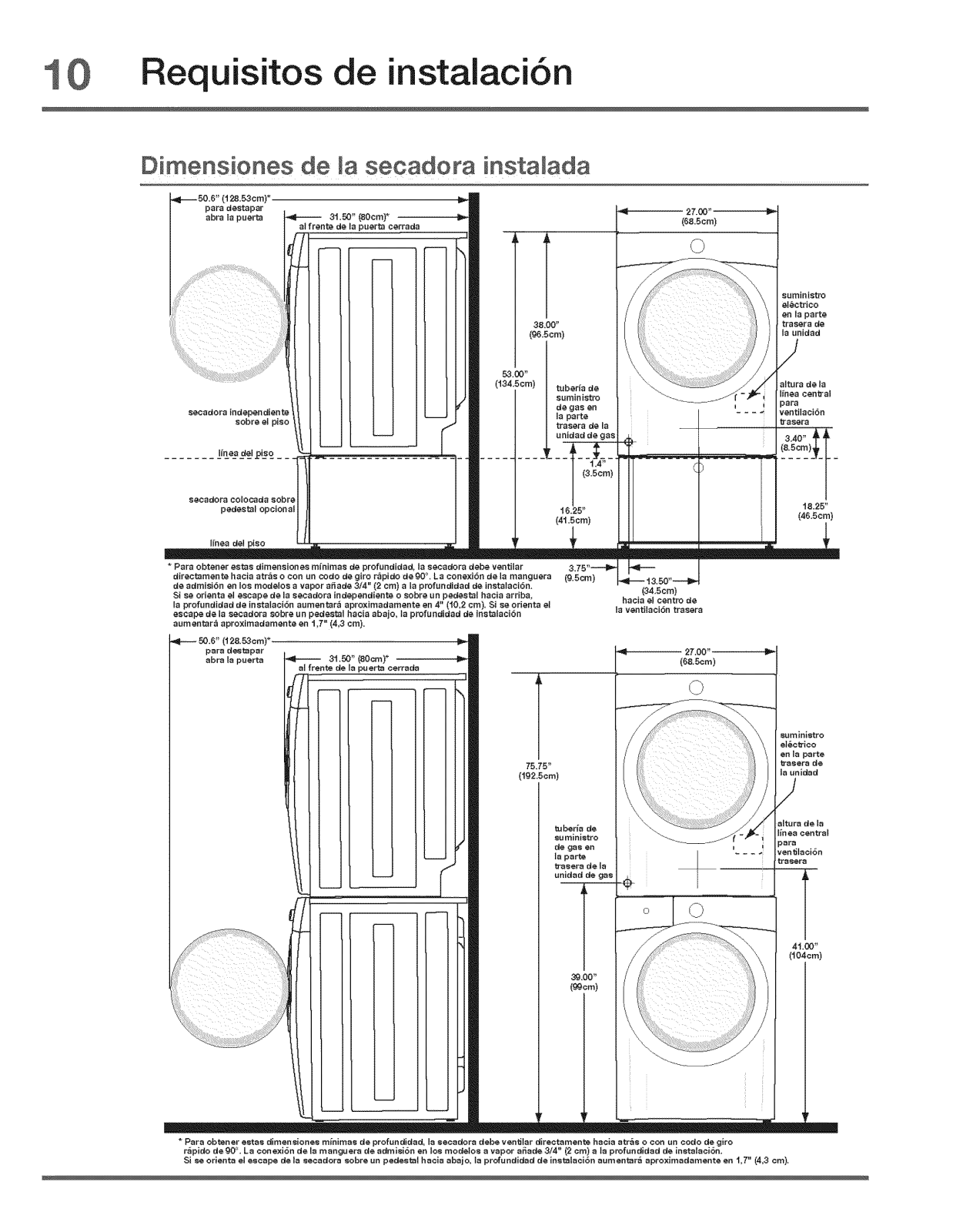

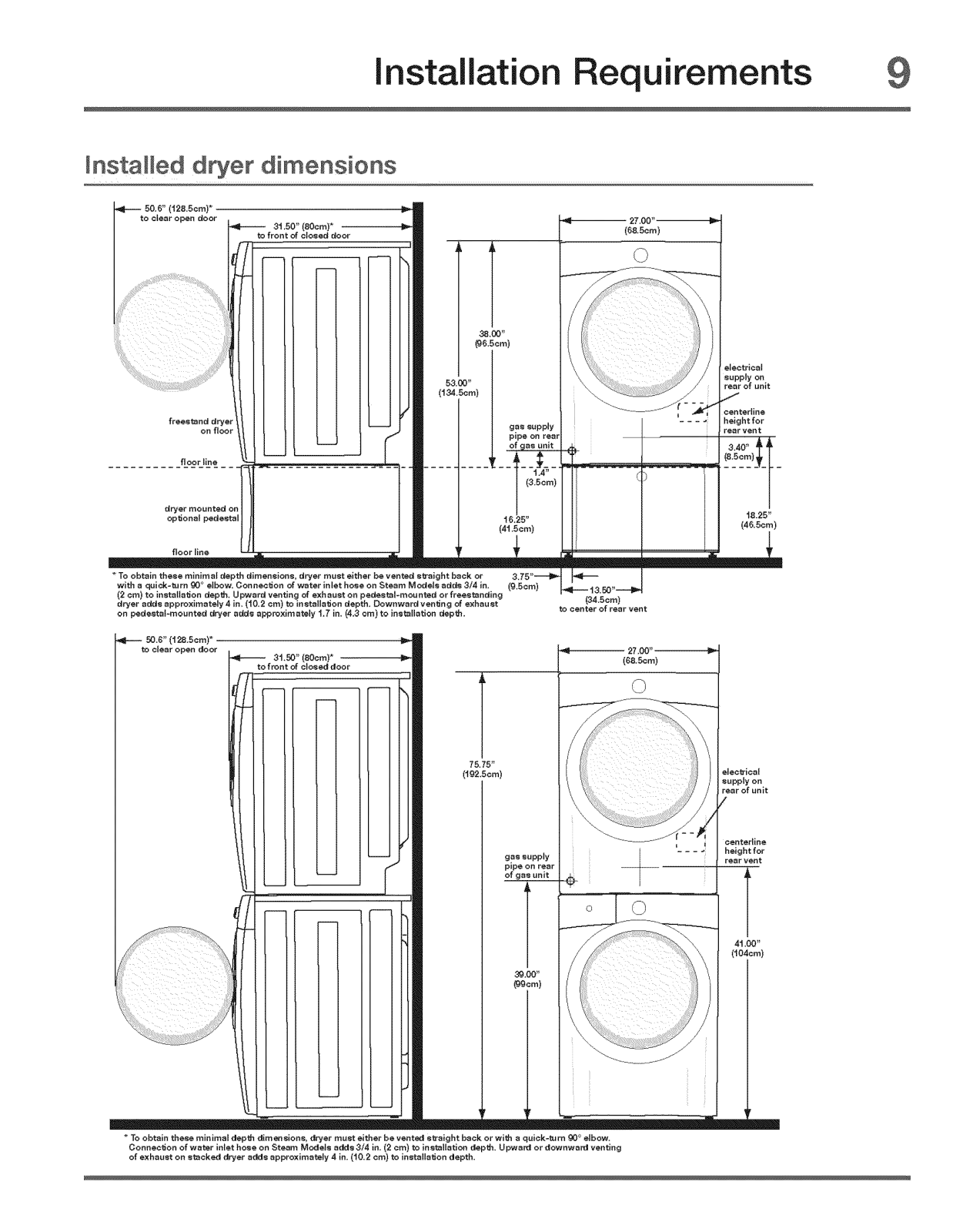

Installed Dimensions ...................................................... 9

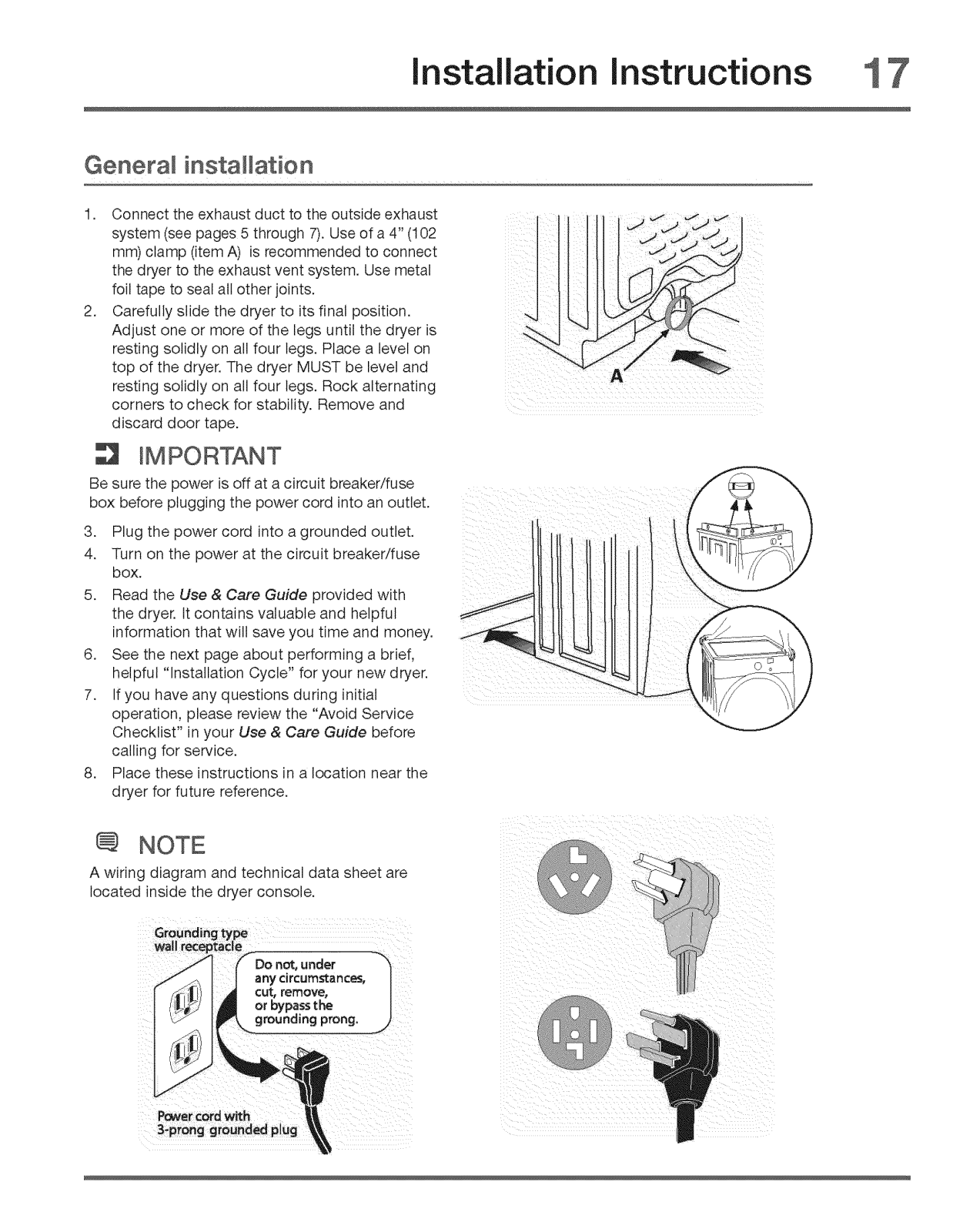

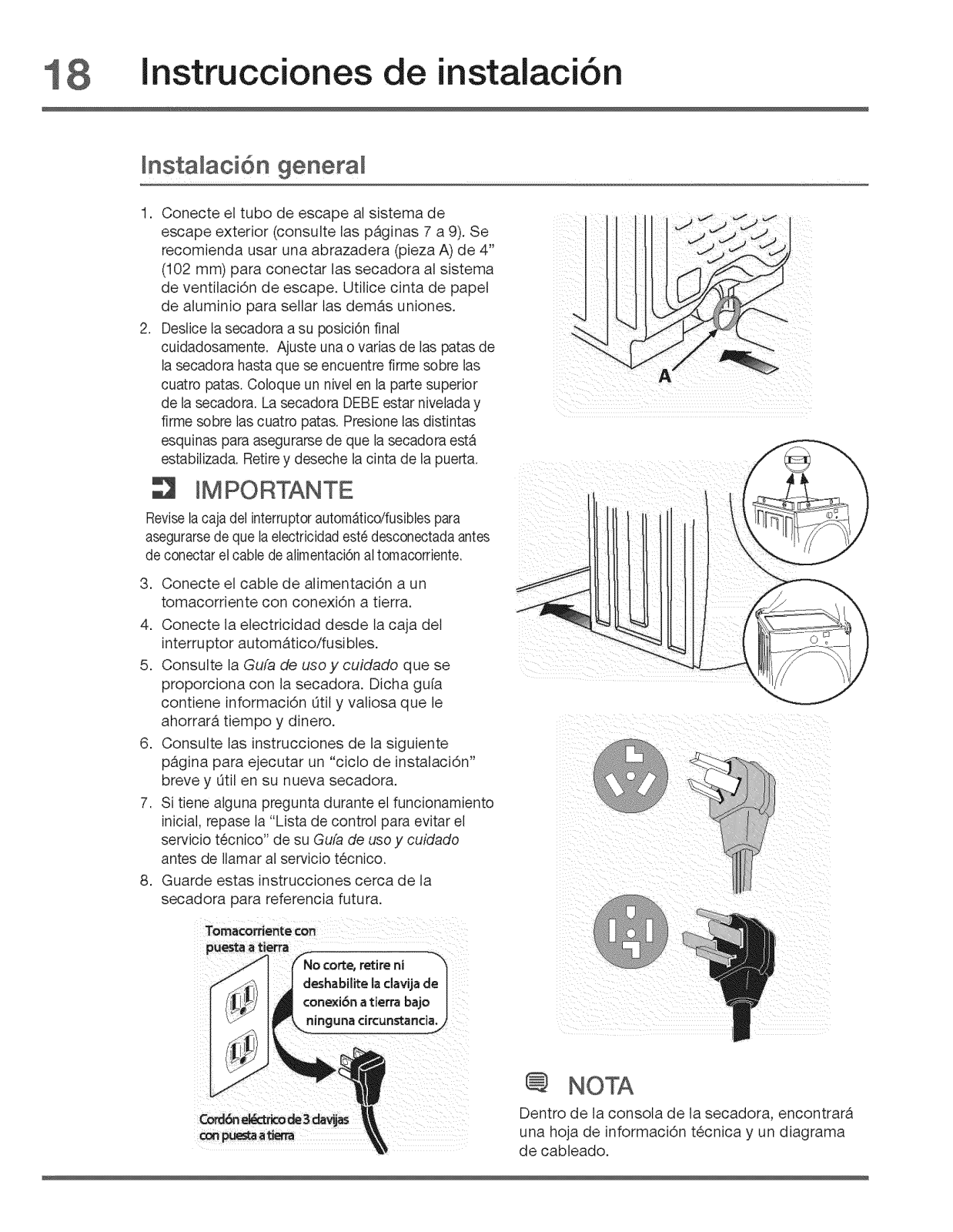

Installation Instructions ........................................... 10-18

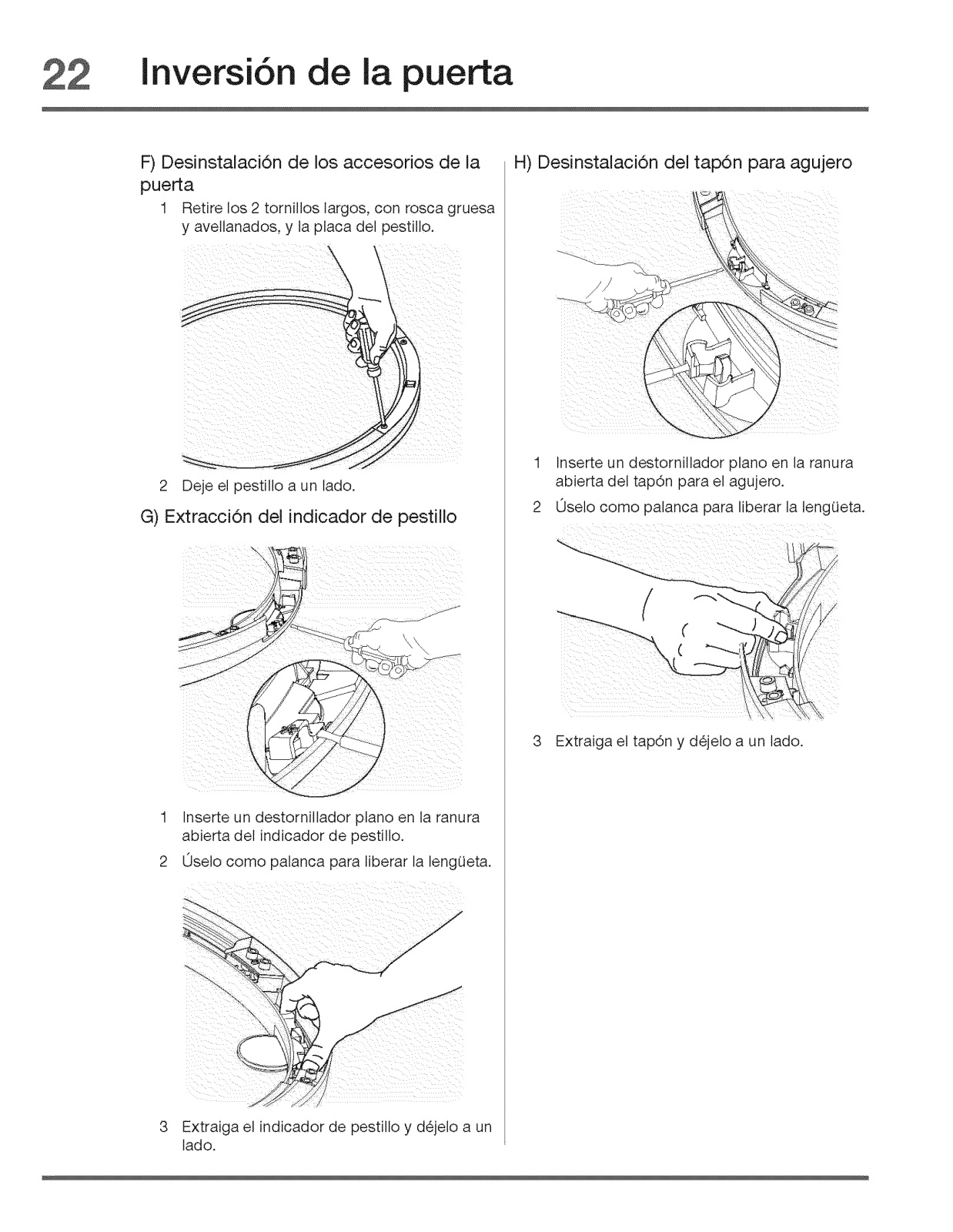

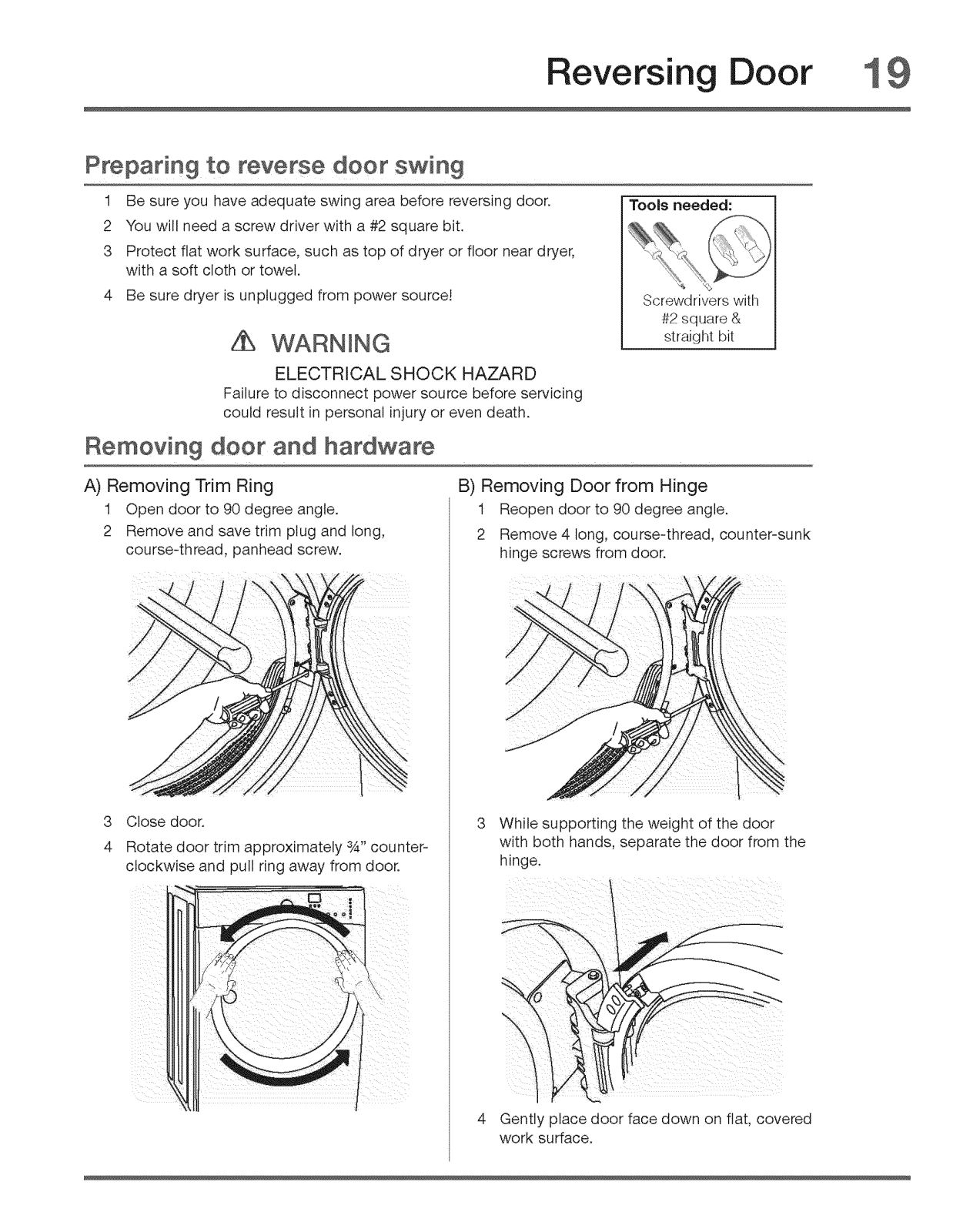

Reversing Door ........................................................ 19-23

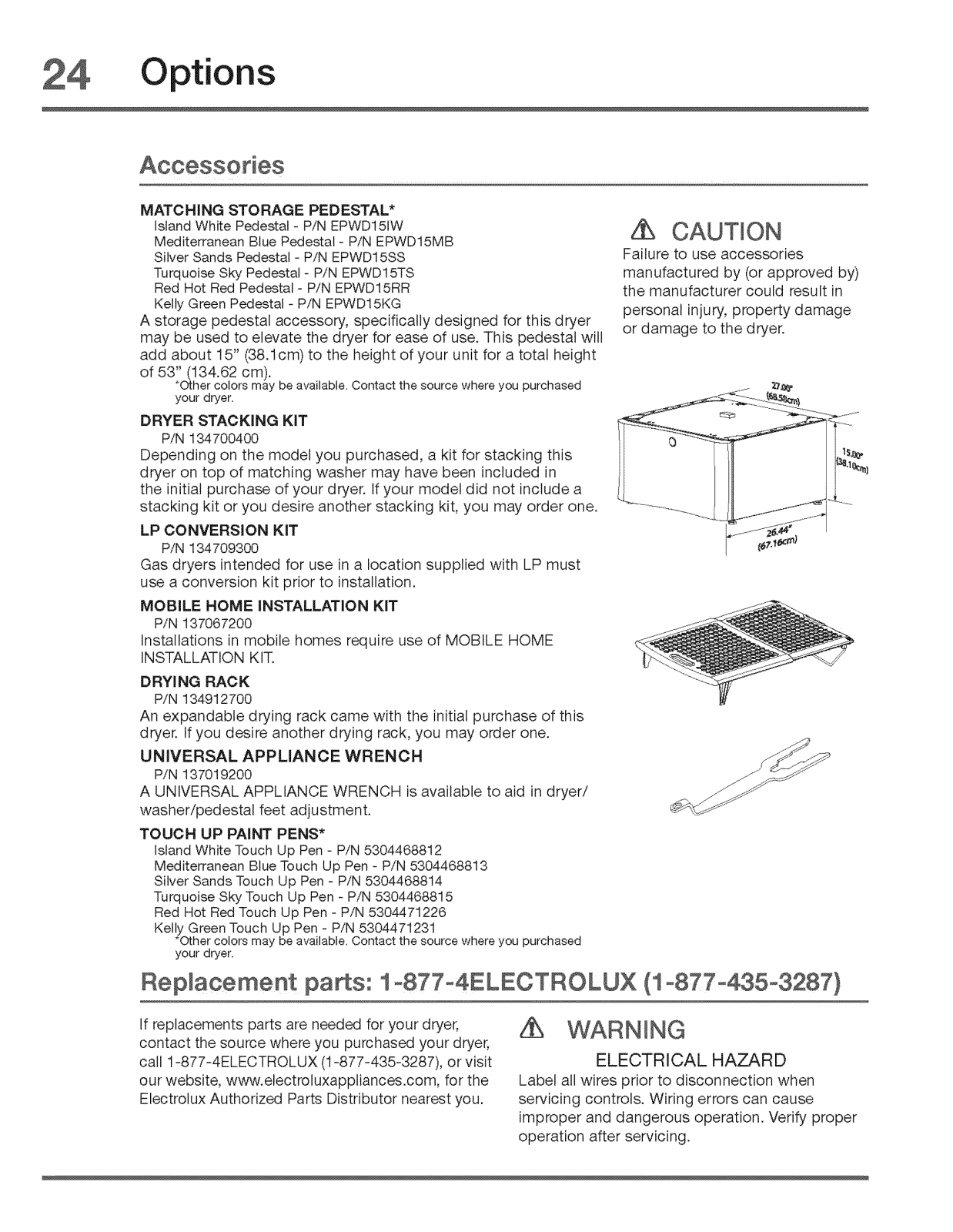

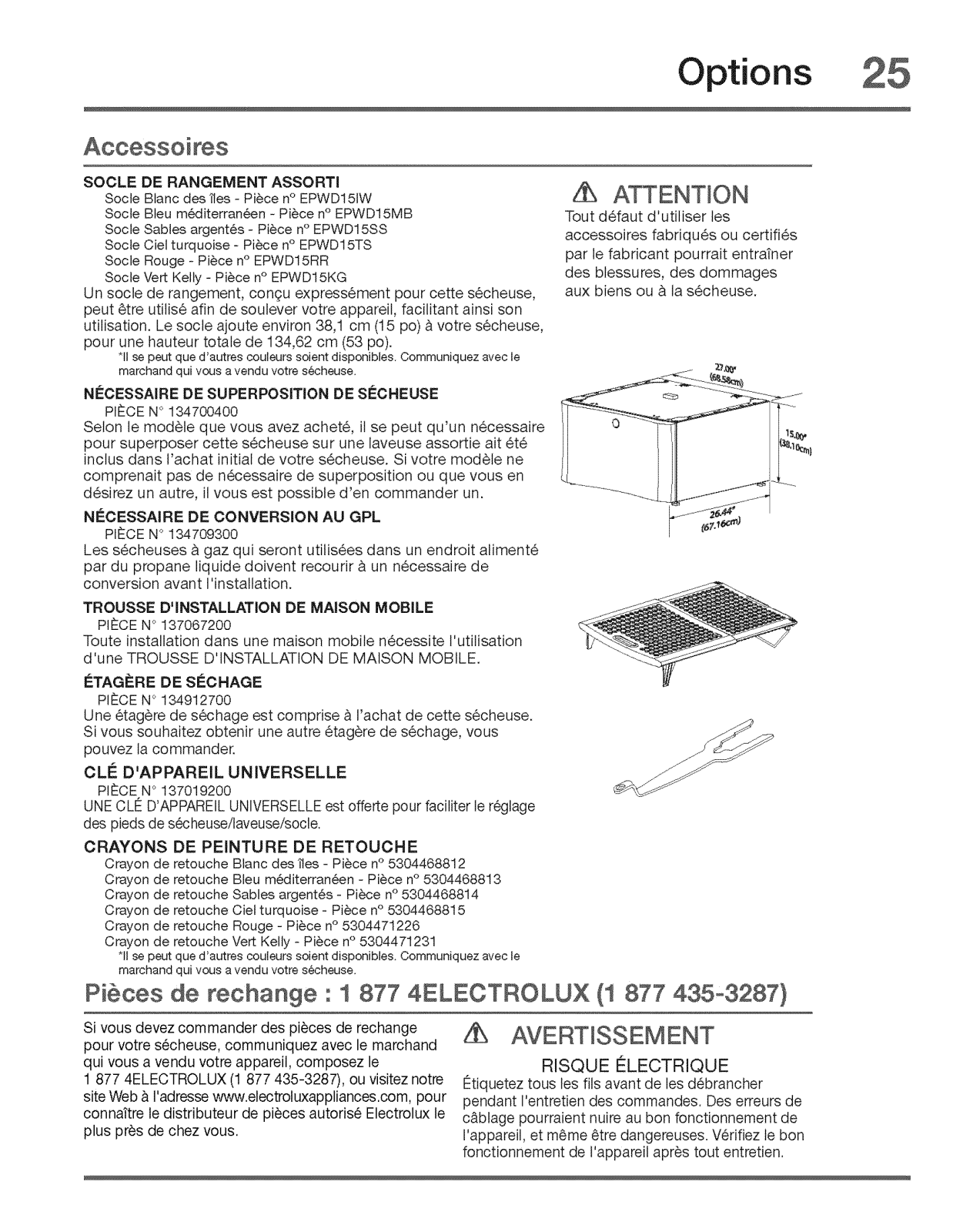

Options ......................................................................... 24

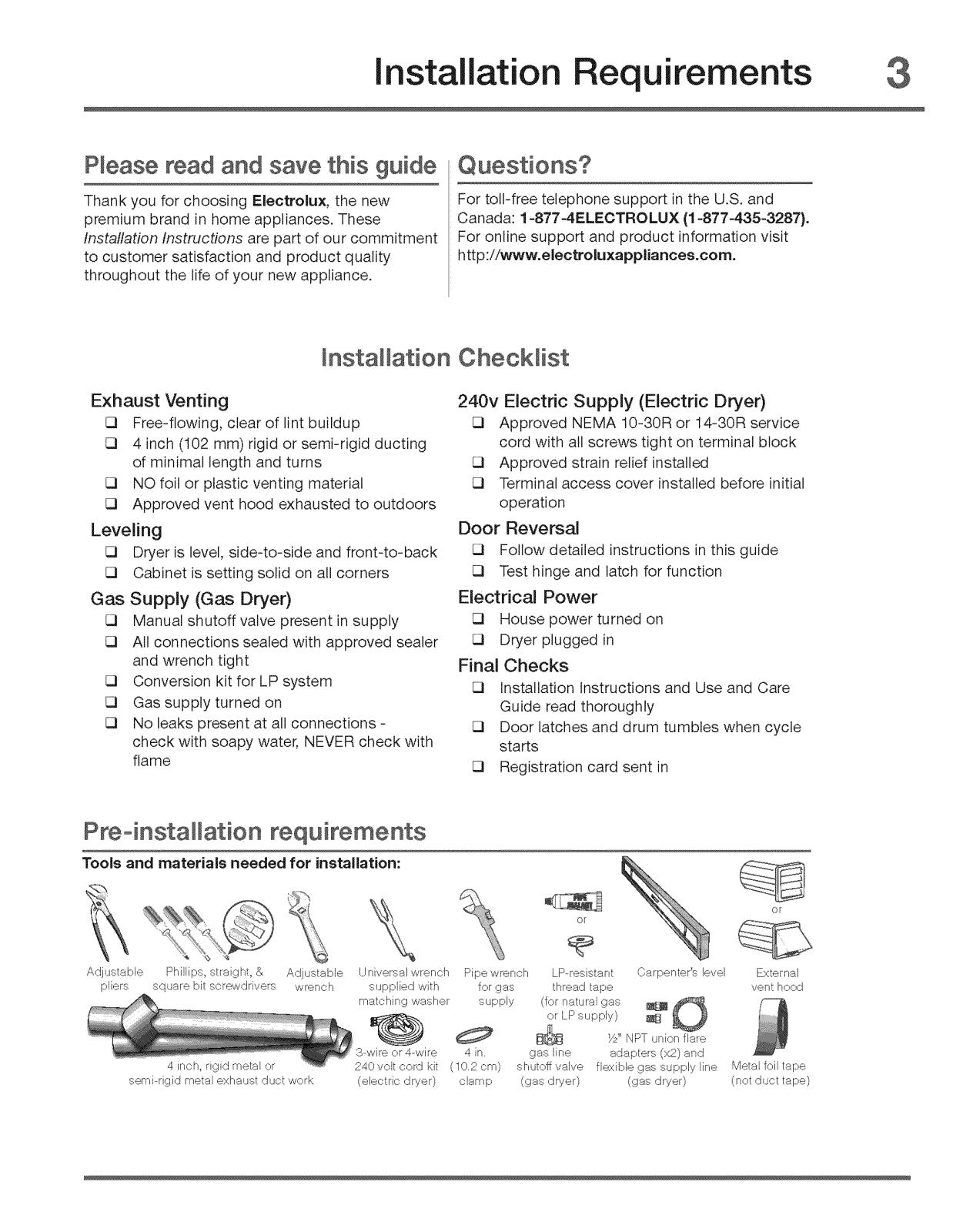

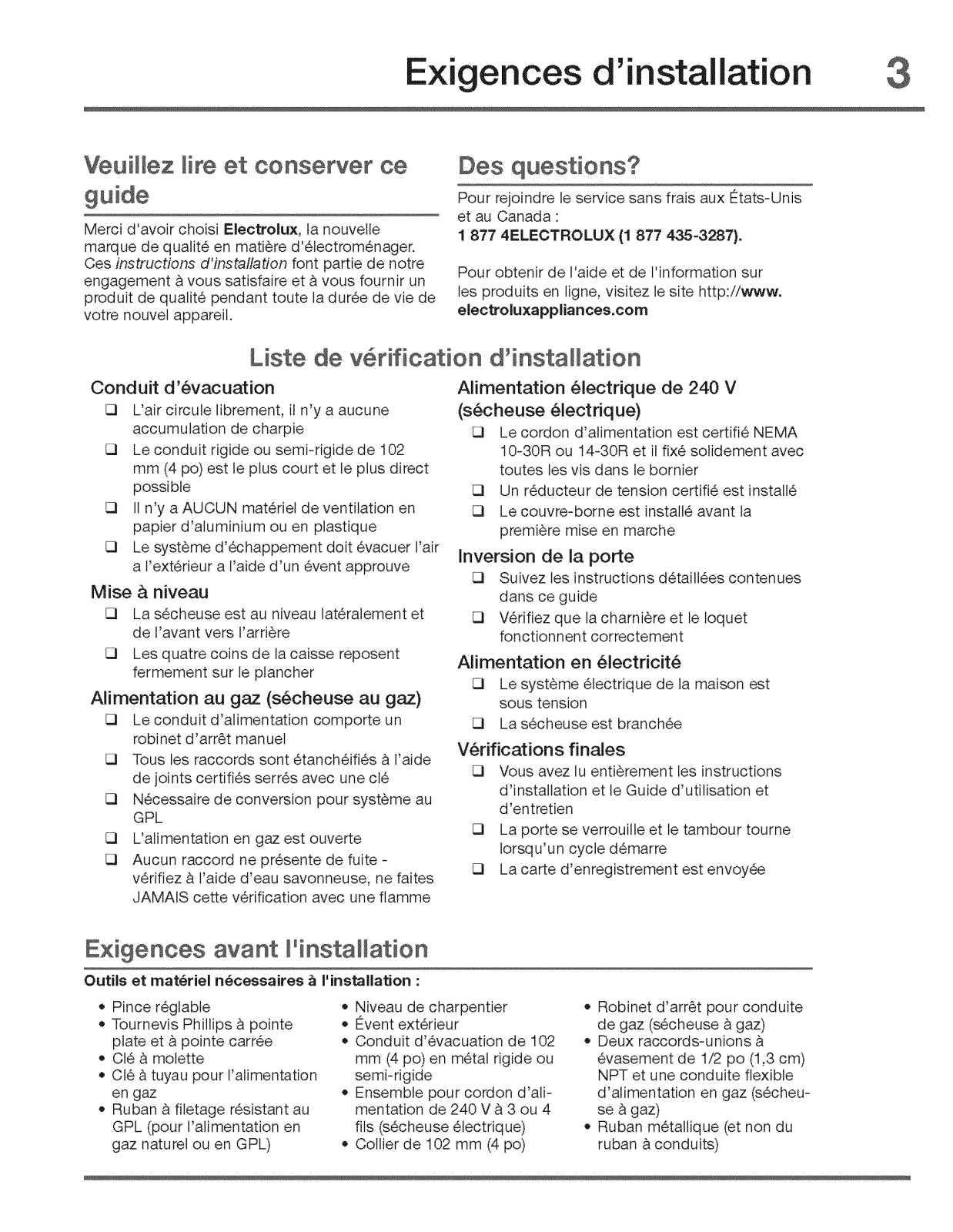

Installation Requirements 3

Please read and save this guide

Thank you for choosing Eiectrolux, the new

premium brand in home appliances. These Installation Instructions are part of our commitment to customer satisfaction and product quality throughout the life of your new appliance.

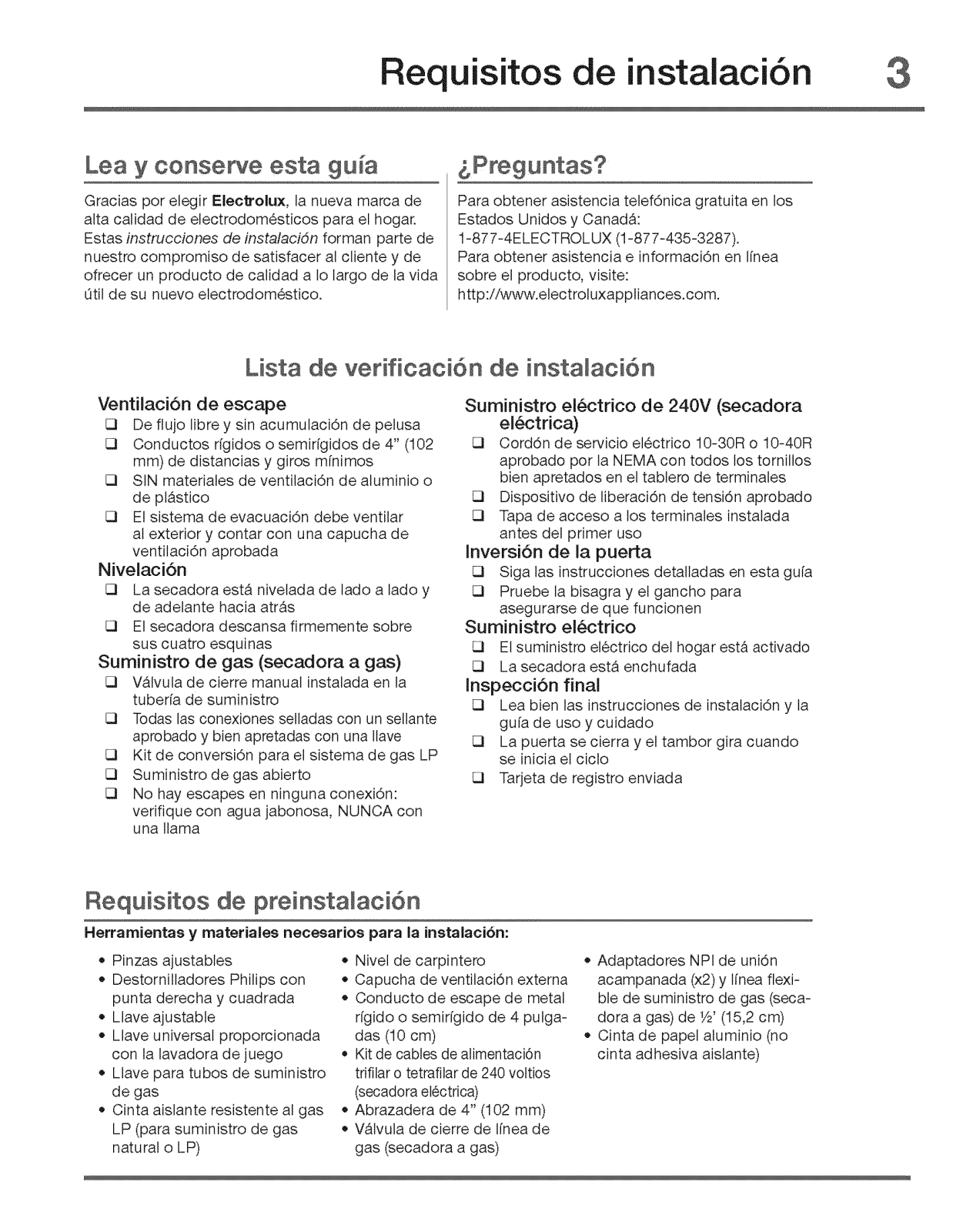

lnstaJmation Checklist

Exhaust Venting

[] Free-flowing, clear of lint buildup [] 4 inch (102 mm) rigid or semi=rigid ducting

of minimal length and turns

[] NO foil or plastic venting material [] Approved vent hood exhausted to outdoors

Leveling

r] Dryer is level, side-to-side and front-to-back [] Cabinet is setting solid on all corners

Gas Supply (Gas Dryer)

I_1 Manual shutoff valve present in supply [] All connections sealed with approved sealer

and wrench tight

[] Conversion kit for LP system r] Gas supply turned on

[] No leaks present at all connections -

check with soapy water, NEVER check with flame

For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287).

For online support and product information visit http:/iwww.electroluxappliances.com.

240v Electric Supply (Electric Dryer)

[] Approved NEMA 10-30R or 14-30R service

cord with all screws tight on terminal block

[] Approved strain relief installed [] Terminal access cover installed before initial

operation

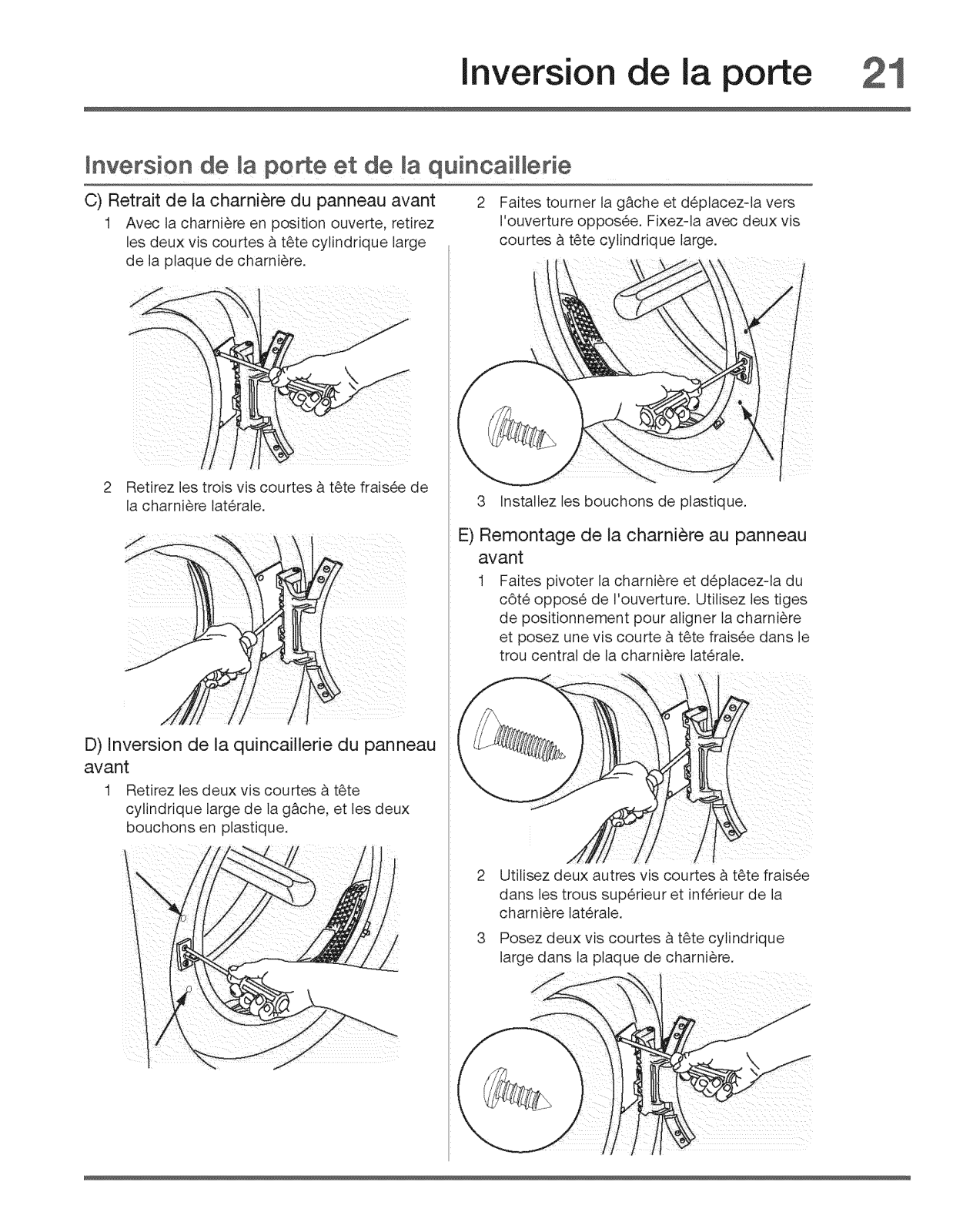

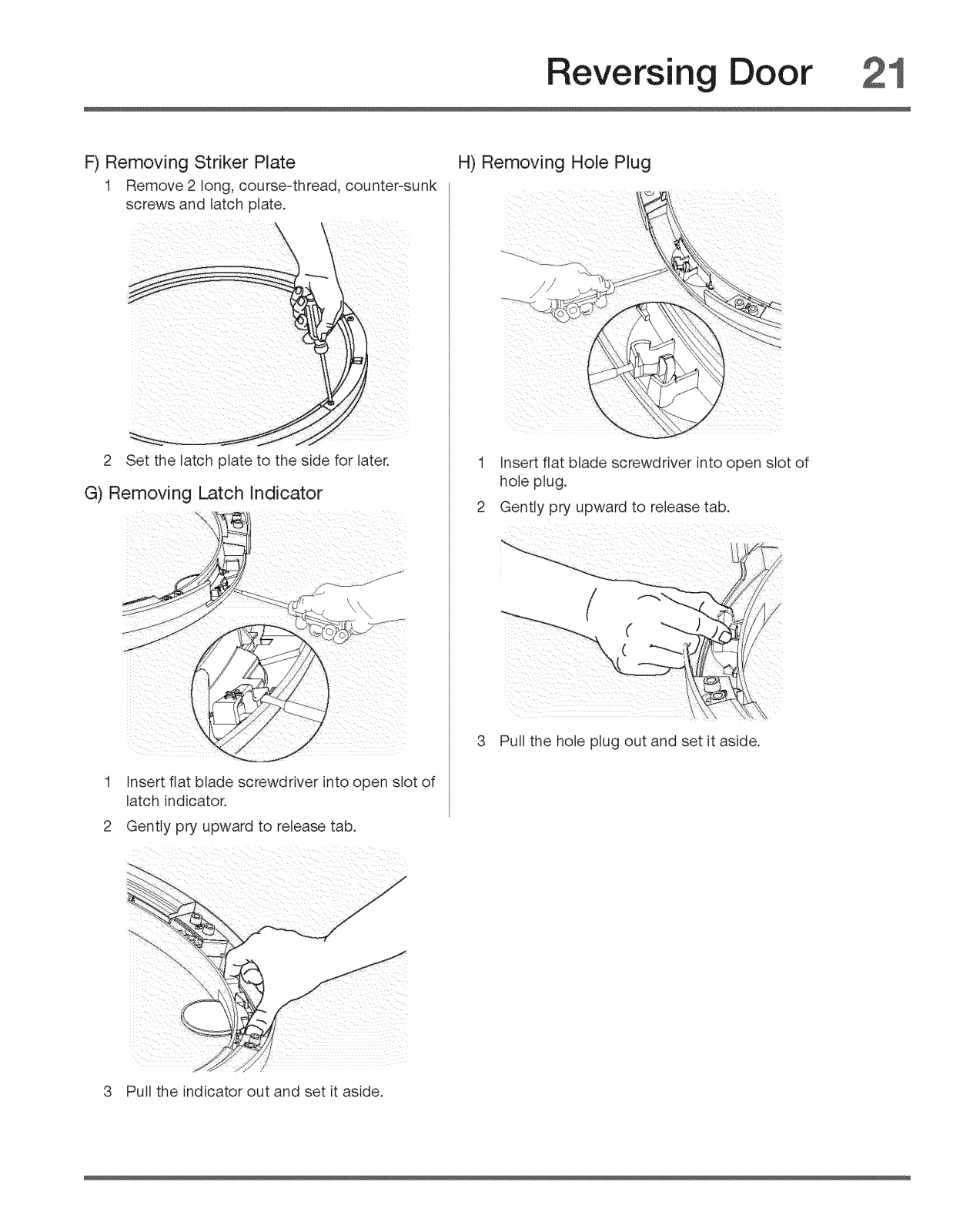

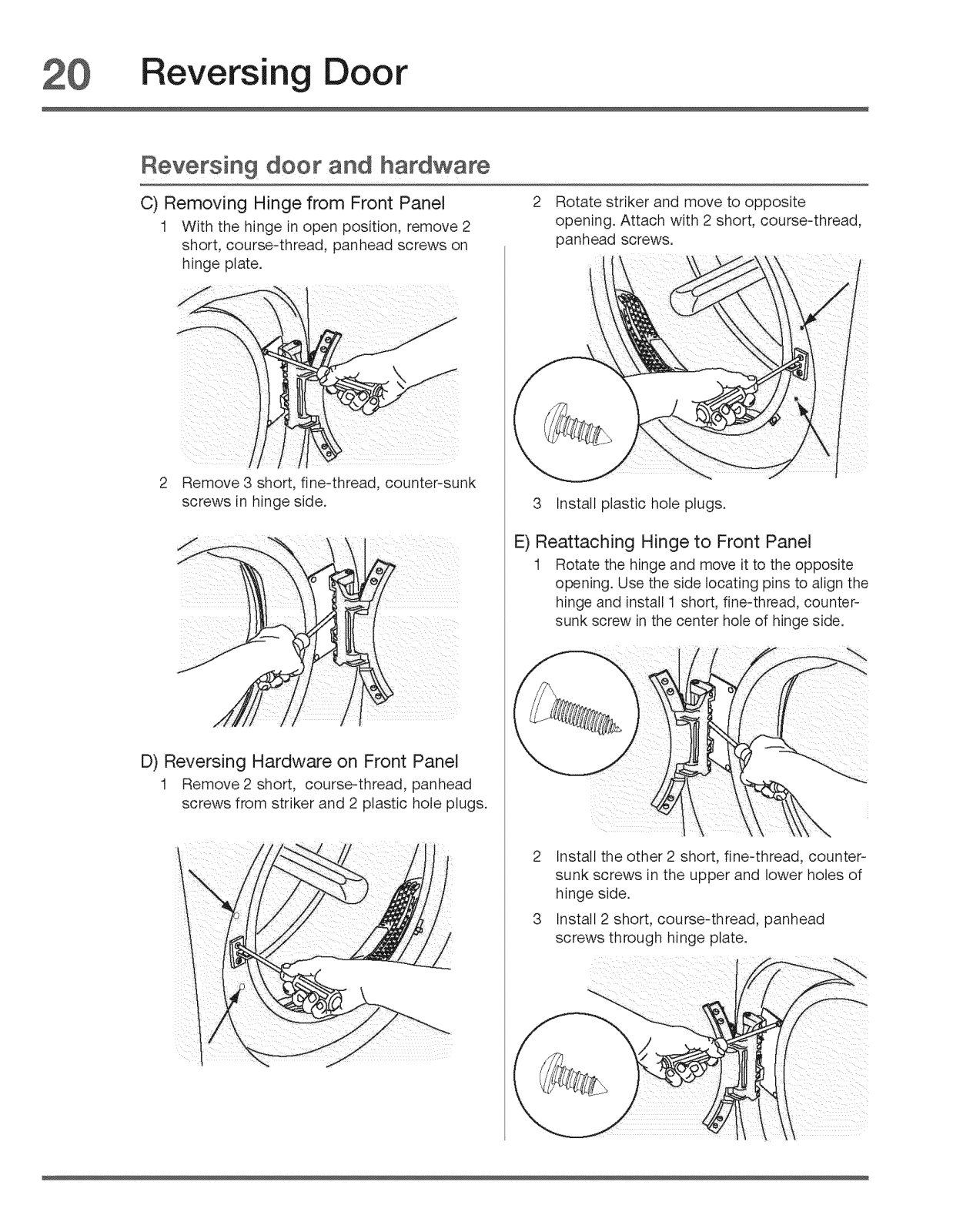

Door Reversal

[] Follow detailed instructions in this guide Cl Test hinge and latch for function

Electrical Power

[] House power turned on [] Dryer plugged in

Final Checks

[] Installation Instructions and Use and Care

Guide read thoroughly

[] Door latches and drum tumbles when cycle

starts

[] Registration card sent in

Pre4nstaHation requirements

Tools and materials needed for installation:

tt_5_ "

,¢ ,% -¢

Adjustak le Phillips, straight, & Adjustable

pliers square bit screwdrivers wrenc, h

4 inch, rigid metal or

semi-rigid metal exhaust duct work

Universal wrench Pipewrench LP-resJstant Carpenter's bvel

supplied with for gas thread tape

matching washer supply (for natural gas _

240volt cord kit (10.2 ore) shutoff valve flexible gas supply line

(electric dryer) clamp (gas dryer) (gas dryer)

External

vent hood

or LP supply) _Et

_ Y/' NPT union flare

or 4-wire 4 in. gas line adapters (x2) and

Metal foil tape

(net duct tape)

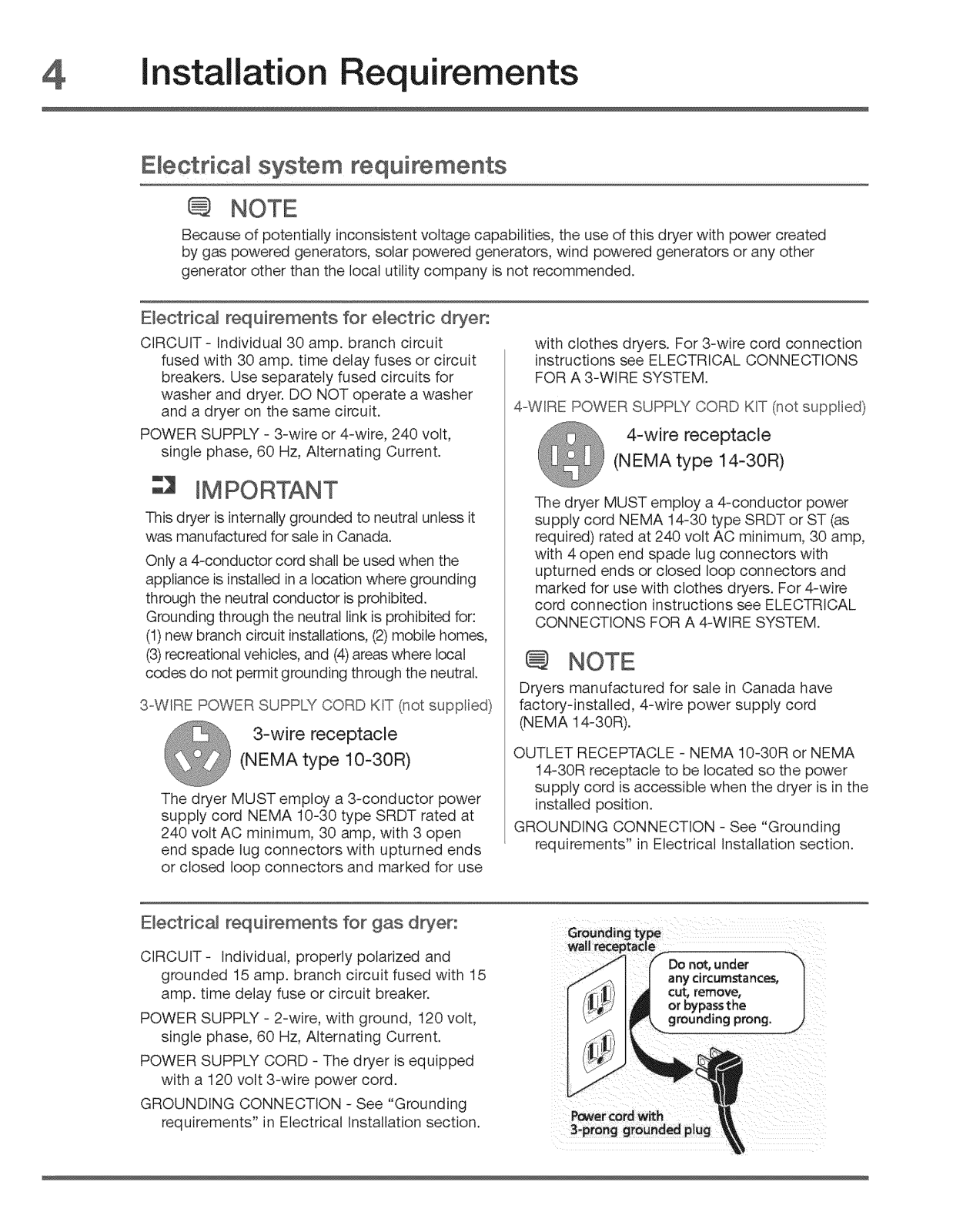

4 Installation Requirements

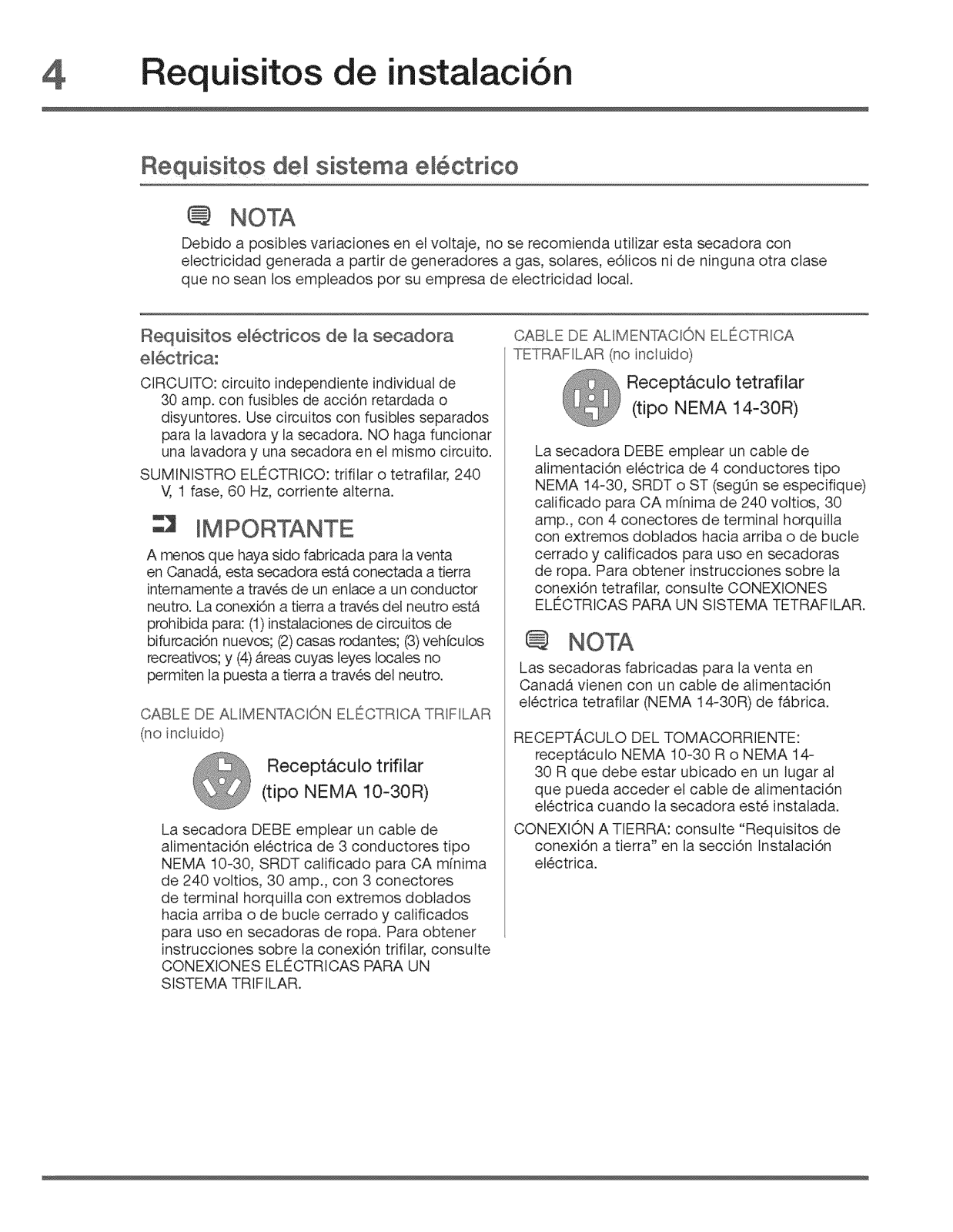

Electrical system requirements

NOTE

Because of potentially inconsistent voltage capabilities, the use of this dryer with power created by gas powered generators, solar powered generators, wind powered generators or any other

generator other than the local utility company is not recommended.

Electrical requirements for electric d_er:

CIRCUIT- Individual 30 amp. branch circuit

fused with 30 amp. time delay fuses or circuit

breakers. Use separately fused circuits for washer and dryer. DO NOT operate a washer and a dryer on the same circuit.

POWER SUPPLY - 3-wire or 4-wire, 240 volt,

single phase, 60 Hz, Alternating Current.

4-WIRE POWER SUPPLY CORD KIT (not supplied)

with clothes dryers. For 3-wire cord connection instructions see ELECTRICAL CONNECTIONS

FOR A 3-WIRE SYSTEM.

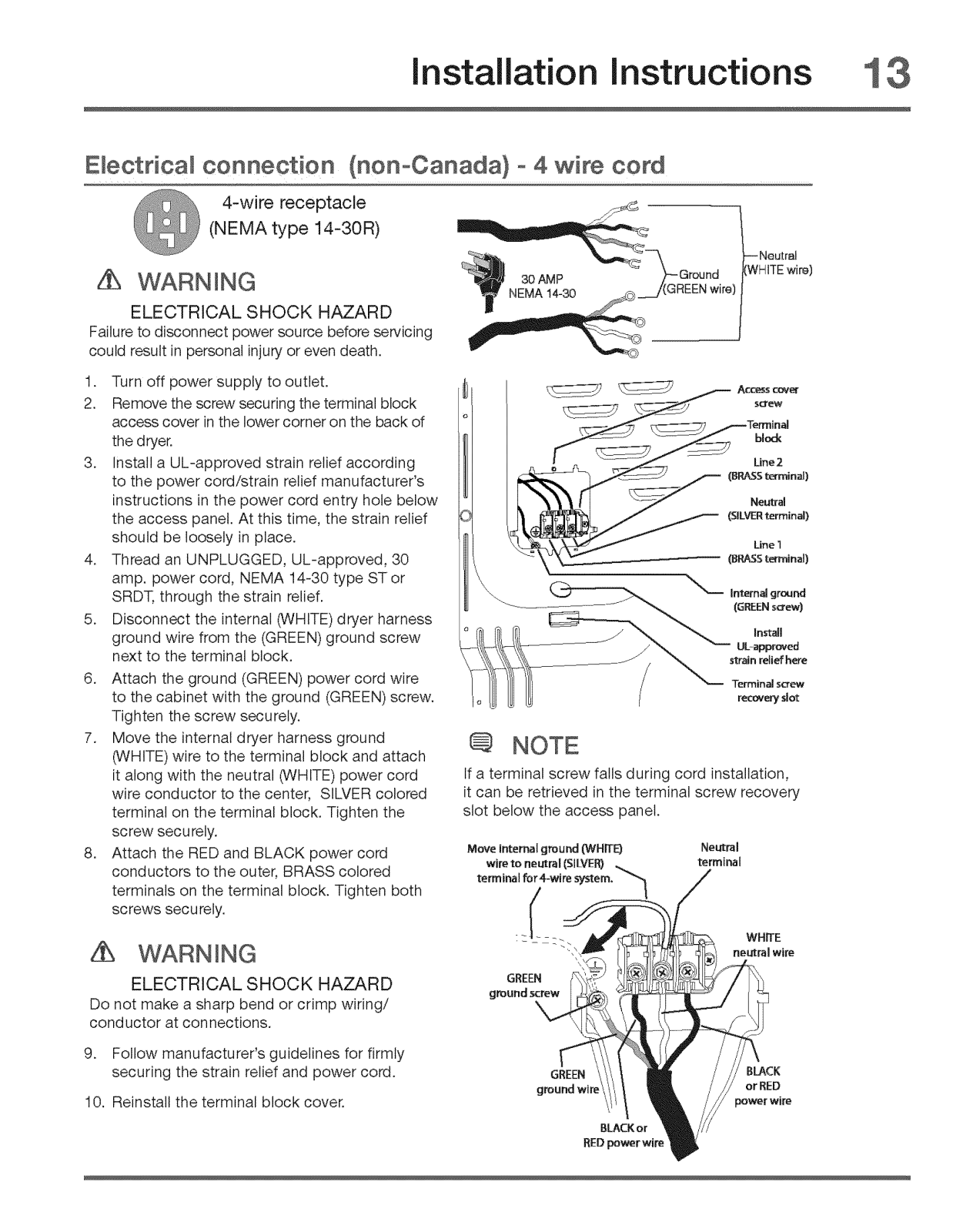

4-wire receptacle

(NEMA type 14-30R)

iMPORTANT

This dryer is internally grounded to neutral unless it was manufactured for sale in Canada.

Only a 4-conductor cord shall be used when the appliance is installed in a location where grounding through the neutral conductor is prohibited.

Grounding through the neutral link is prohibited for: (1)new branch circuit installations, (2) mobile homes,

(3)recreational vehicles, and (4)areas where local

codes do not permit grounding through the neutral.

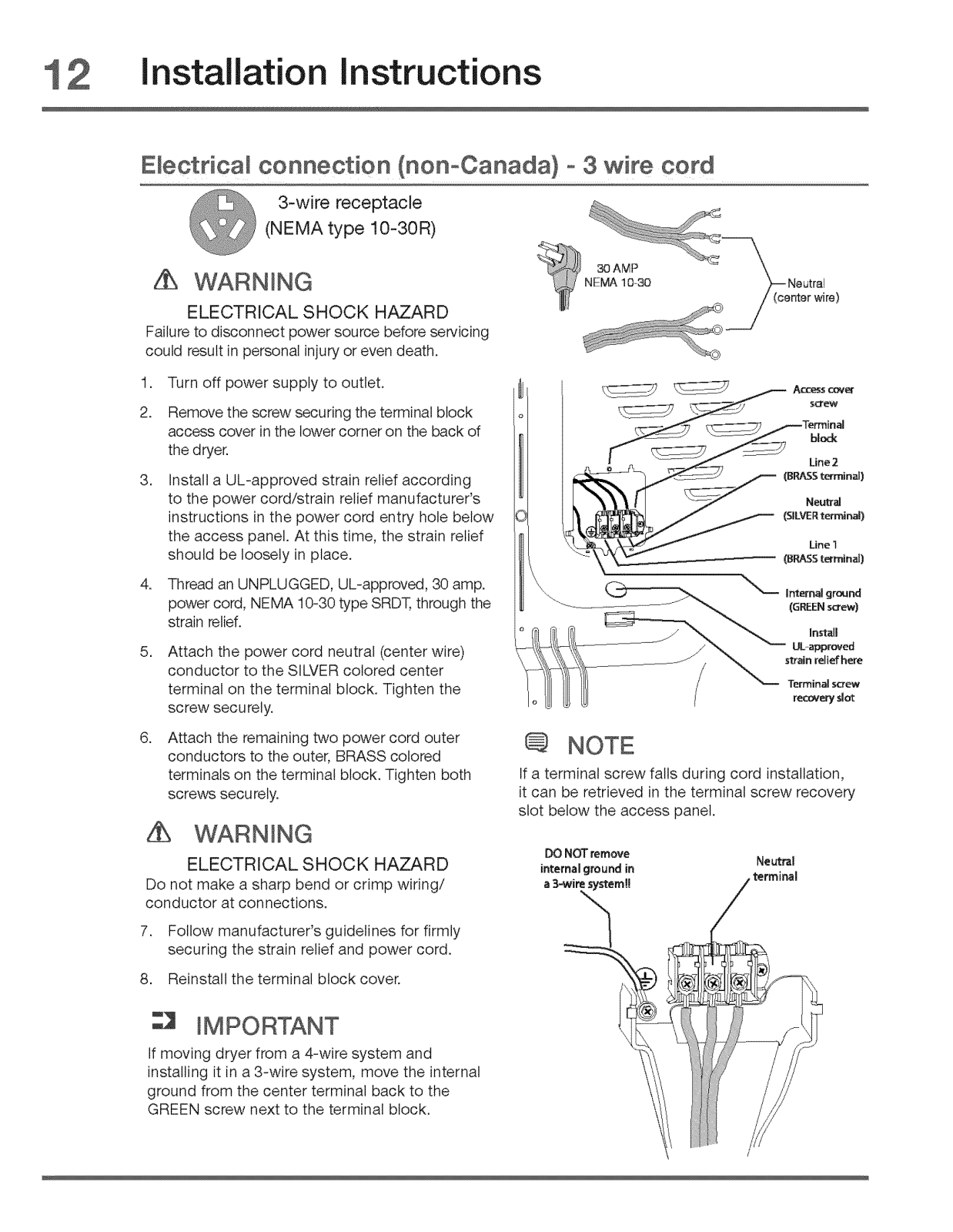

3-WIRE POWER SUPPLY CORD KiT (not supplied)

3-wire receptacle

(NEMA type 10-30R)

The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 type SRDT rated at

240 volt AC minimum, 30 amp, with 3 open end spade tug connectors with upturned ends

or closed loop connectors and marked for use

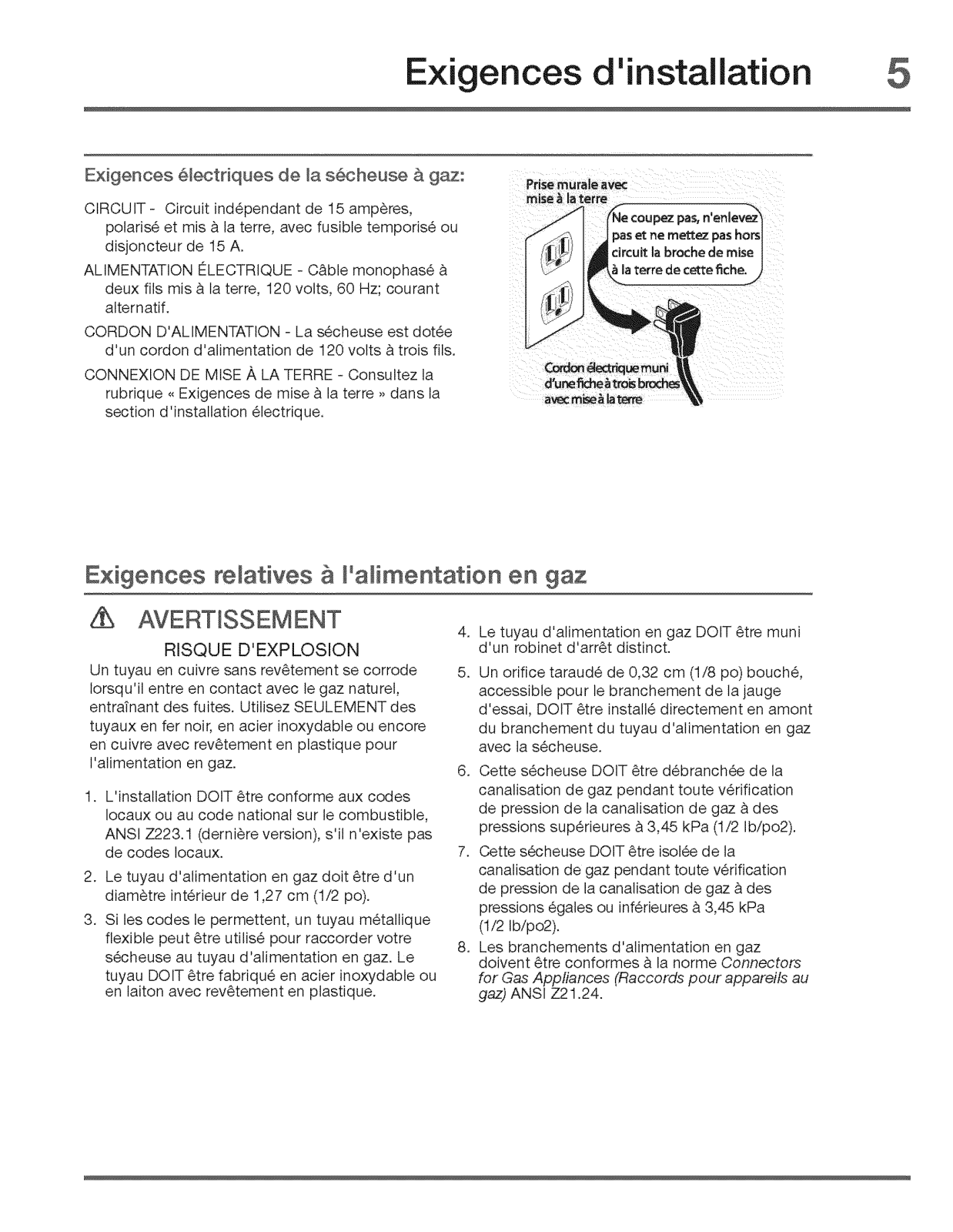

Electrical requirements for gas dryer:

The dryer MUST employ a 4-conductor power supply cord NEMA 14-30 type SRDT or ST (as required) rated at 240 volt AC minimum, 30 amp, with 4 open end spade lug connectors with upturned ends or closed loop connectors and

marked for use with clothes dryers. For 4-wire cord connection instructions see ELECTRICAL

CONNECTIONS FOR A 4-WIRE SYSTEM.

NOTE

Dryers manufactured for sale in Canada have factory-installed, 4-wire power supply cord

(NEMA 14-30R).

OUTLET RECEPTACLE - NEMA 10-30R or NEMA

14-30R receptacle to be located so the power supply cord is accessible when the dryer is in the installed position.

GROUNDING CONNECTION - See "Grounding

requirements" in Electrical Installation section.

CIRCUIT- Individual, properly polarized and

grounded 15 amp. branch circuit fused with 15 amp. time delay fuse or circuit breaker.

POWER SUPPLY - 2-wire, with ground, 120 volt,

single phase, 60 Hz, Alternating Current.

POWER SUPPLY CORD - The dryer isequipped

with a 120 volt 3-wire power cord.

GROUNDING CONNECTION - See "Grounding

requirements" in Electrical Installation section.

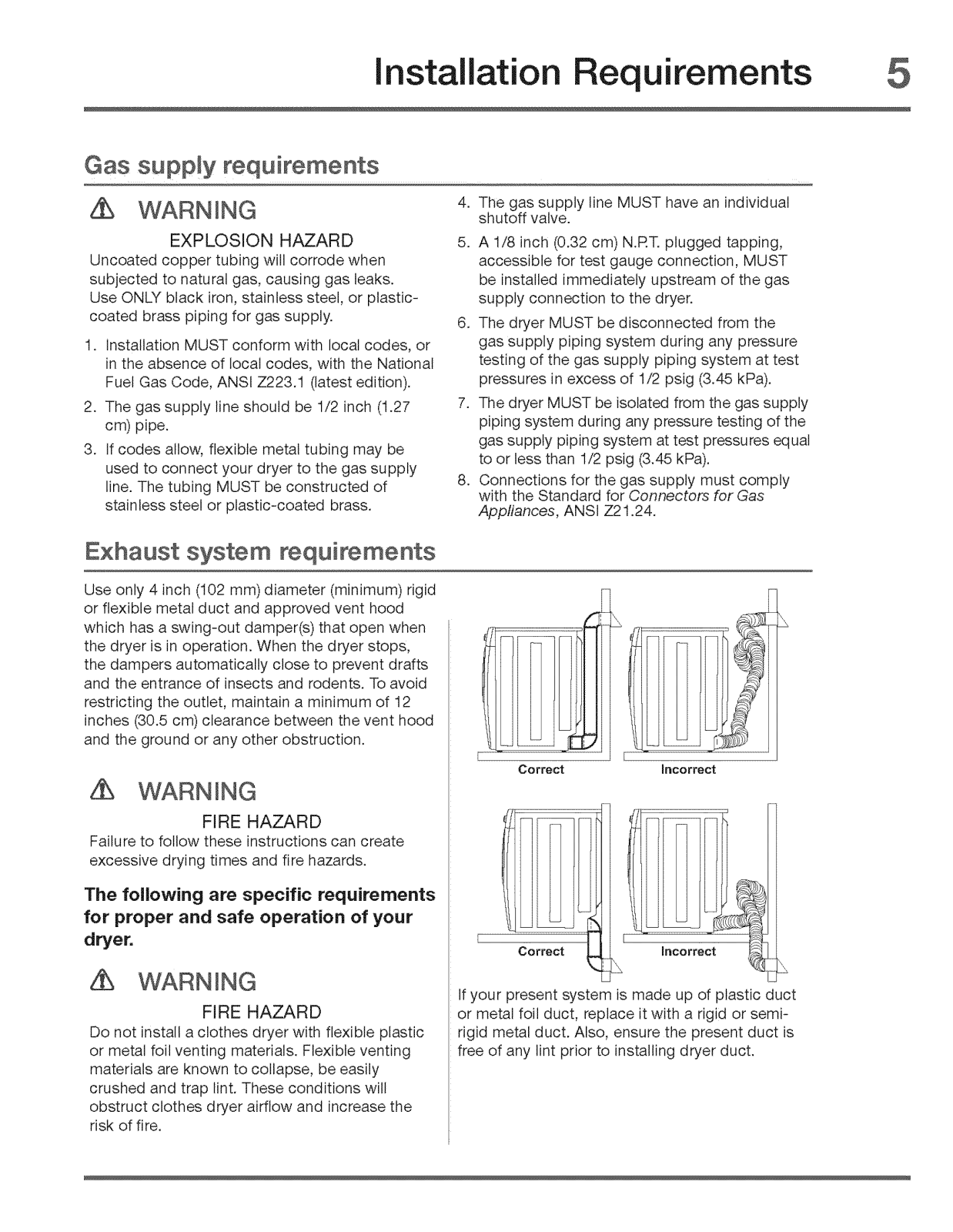

Gas suppJy requirements

Installation Requirements 5

WARNING 4.

EXPLOSION HAZARD 5.

Uncoated copper tubing will corrode when subjected to natural gas, causing gas leaks. Use ONLY black iron, stainless steel, or plastic- coated brass piping for gas supply.

1. installation MUST conform with local codes, or in the absence of Iocai codes, with the National

Fuel Gas Code, ANSI Z223.1 (latest edition).

2. The gas supply line should be 1/2 inch (1.27 cm) pipe.

3. If codes allow, flexible metal tubing may be used to connect your dryer to the gas supply line. The tubing MUST be constructed of stain less steel or plastic-coated brass.

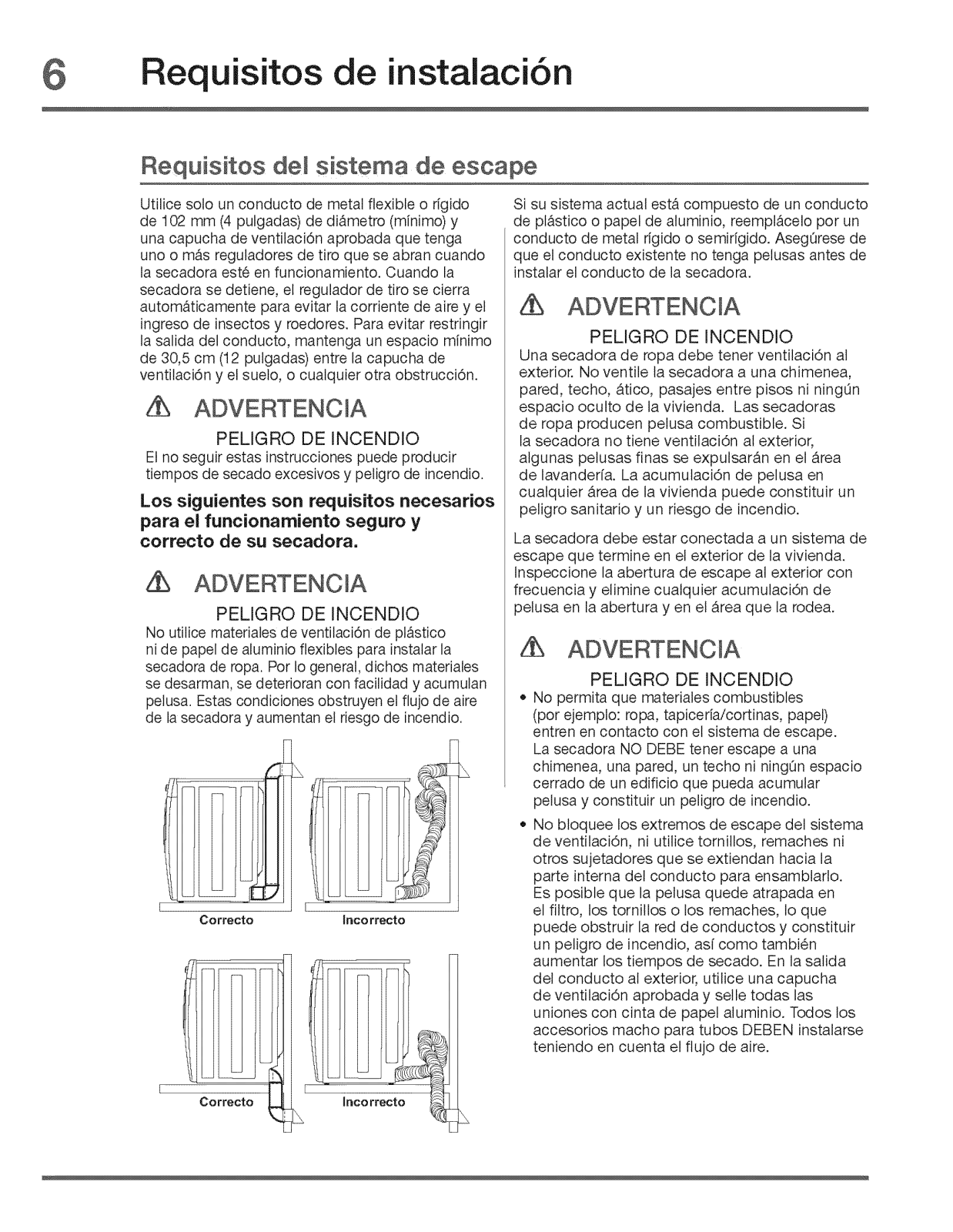

Exhaust system requirements

Use only 4 inch (102 mm) diameter (minimum) rigid or flexible metal duct and approved vent hood which has a swing-out damper(s) that open when the dryer is in operation. When the dryer stops, the dampers automatically close to prevent drafts

and the entrance of insects and rodents. To avoid

restricting the outlet, maintain a minimum of 12

inches (30.5 cm) clearance between the vent hood and the ground or any other obstruction.

WARNING

The gas supply line MUST have an individual

shutoff valve.

A 1/8 inch (0.32 cm) N.RT. plugged tapping,

accessible for test gauge connection, MUST be installed immediately upstream of the gas supply connection to the dryer.

6. The dryer MUST be disconnected from the gas supply piping system during any pressure

testing of the gas supply piping system at test pressures in excess of 1/2 psig (3.45 kPa).

7. The dryer MUST be isolated from the gas supply piping system during any pressure testing of the

gas supply piping system at test pressures equal to or less than 1/2 psig (3.45 kPa).

8. Connections for the gas supply must comply

with the Standard for Connectors for Gas Appliances, ANSI Z21.24.

Correct Incorrect

FIRE HAZARD

Failure to follow these instructions can create excessive drying times and fire hazards.

The following are specific requirements for proper and safe operation of your

dryer.

WARNING

FIRE HAZARD

Do not install a clothes dryer with flexible plastic or metal foil venting materials. Flexible venting materials are known to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer airflow and increase the

risk of fire.

Ill

Correct

If your present system is made up of plastic duct or metal foil duct, replace it with a rigid or semi- rigid metal duct. Also, ensure the present duct is free of any tint prior to installing dryer duct.

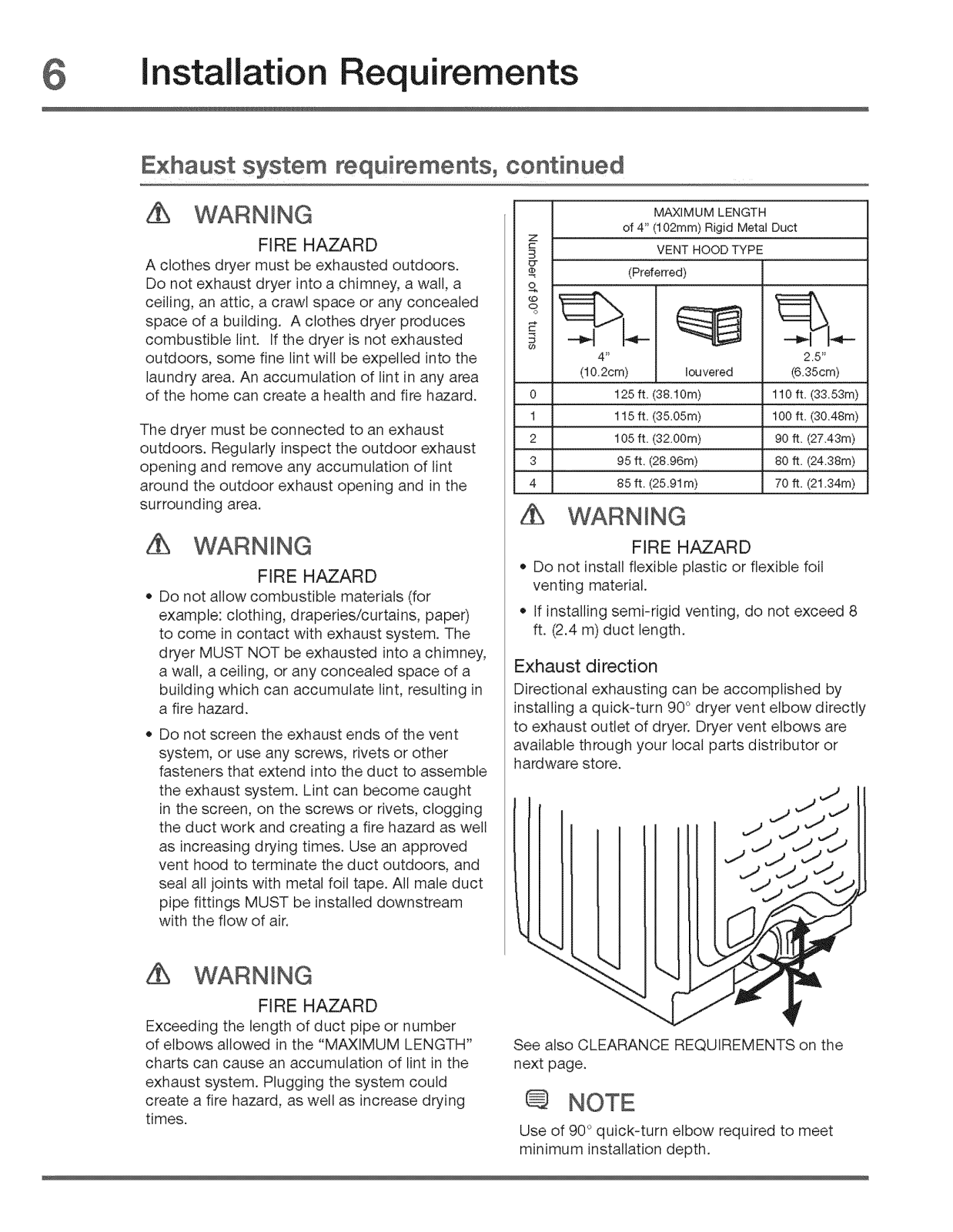

6 Installation Requirements

Exhaust system requirements, continued

WARNING

FIRE HAZARD

A clothes dryer must be exhausted outdoors.

Do not exhaust dryer into a chimney, a wall, a ceiling, an attic, a crawl space or any concealed space of a building. A clothes dryer produces combustible tint. If the dryer is not exhausted outdoors, some fine lint will be expelled into the

laundry area. An accumulation of lint in any area of the home can create a health and fire hazard.

The dryer must be connected to an exhaust

outdoors. Regularly inspect the outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding area.

FIRE HAZARD

Do not allow combustible materials (for example: clothing, draperies!curtains, paper) to come in contact with exhaust system. The

dryer MUST NOT be exhausted into a chimney, a wall, a ceiling, or any concealed space of a building which can accumulate tint, resulting in

a fire hazard. Do not screen the exhaust ends of the vent

system, or use any screws, rivets or other fasteners that extend into the duct to assemble

the exhaust system. Lint can become caught in the screen, on the screws or rivets, clogging the duct work and creating a fire hazard as well as increasing drying times. Use an approved vent hood to terminate the duct outdoors, and seal all joints with metal foil tape. All male duct

pipe fittings MUST be installed downstream with the flow of air.

MAXIMUM LENGTH

of 4" (102mm) Rigid Metal Duct

VENT HOOD TYPE

(Preferred)

(10,2cm) 0 125 ft. (38.10m) 1 115 ft. (35.05m)

2 105 ft. (32.00m) 90 ft, (27A3m) 3 95 ft. (28.96m) 80 ft, (24.38m)

4 85 ft. (25.91 m) 70 ft. (21.34m)

Iouvered

2,5"

(6.35cm) 110 ft. (33.53m) 100 ft. (30.48m)

WARNING

FIRE HAZARD

Do not install flexible plastic or flexible foil venting material.

• if installing semi-rigid venting, do not exceed 8 ft. (2.4 m) duct length.

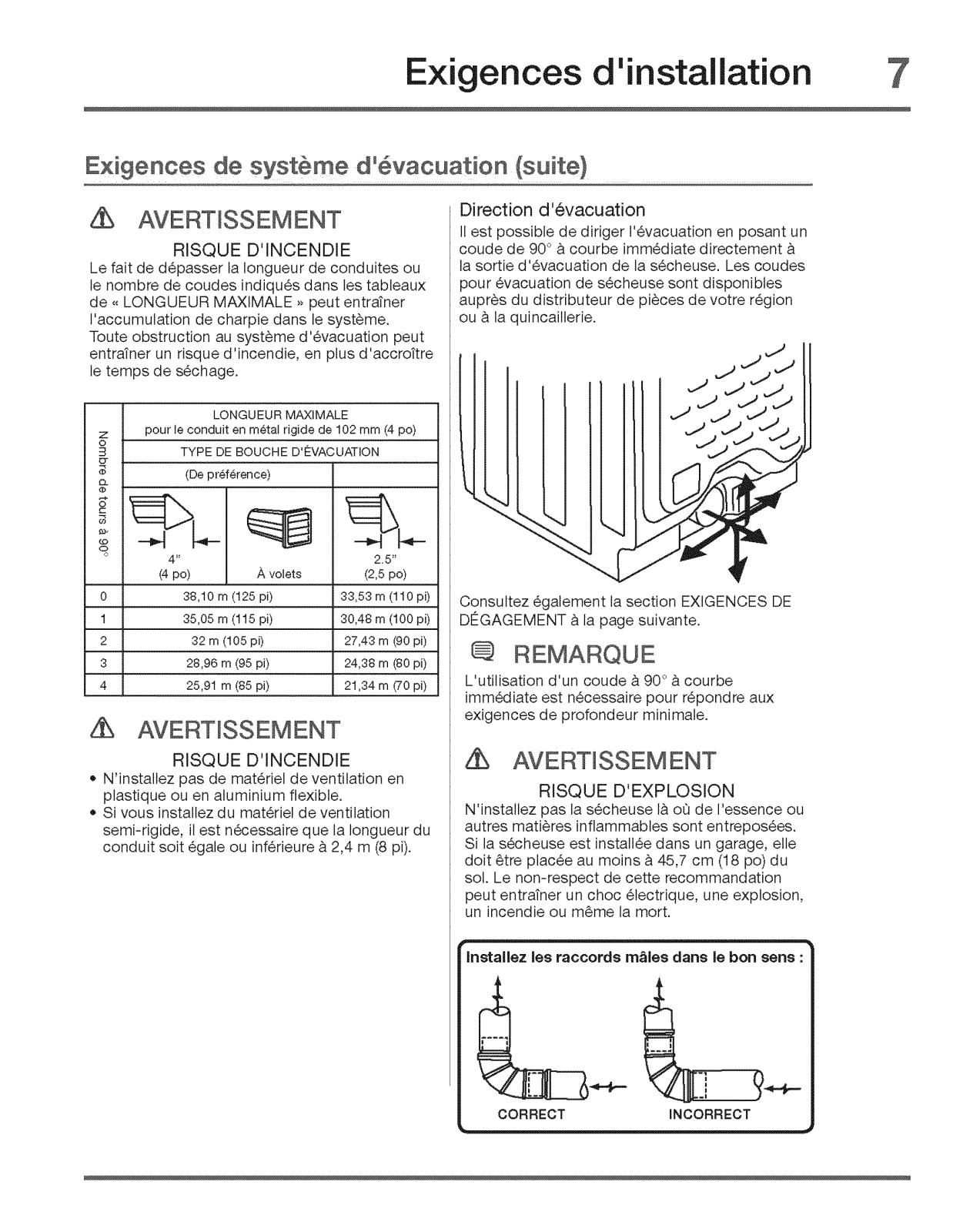

Exhaust direction

Directional exhausting can be accomplished by installing a quick-turn 90 ° dryer vent elbow directly

to exhaust outlet of dryer. Dryer vent elbow's are available through your local parts distributor or

hardware store.

FIRE HAZARD

Exceeding the length of duct pipe or number

of elbows allowed in the "MAXIMUM LENGTH" charts can cause an accumulation of lint in the

exhaust system. Plugging the system could create a fire hazard, as well as increase drying

times.

See also CLEARANCE REQUIREMENTS on the next page.

NOTE

Use of 90 ° quick-turn elbow required to meet minimum installation depth.

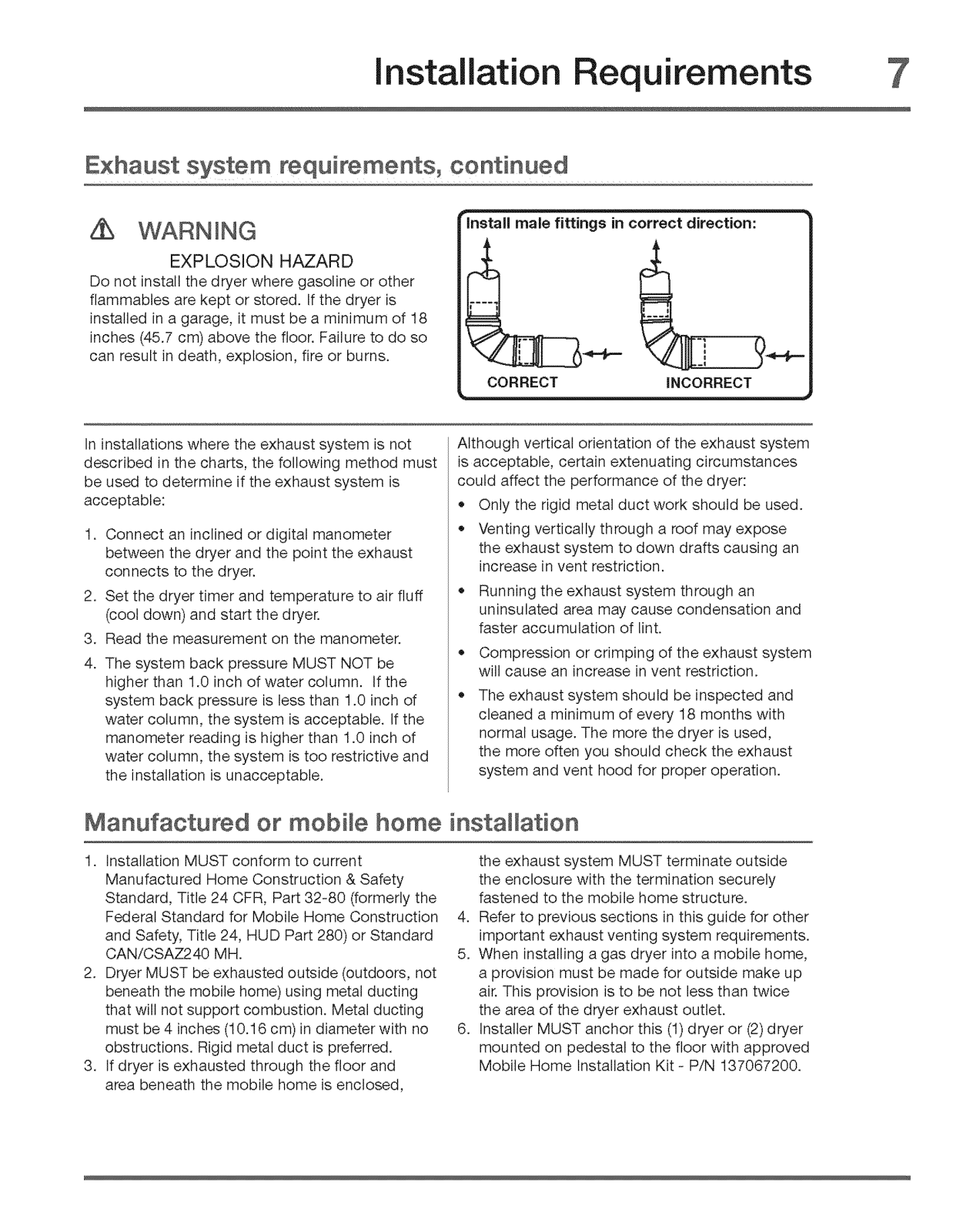

Installation Requirements 7

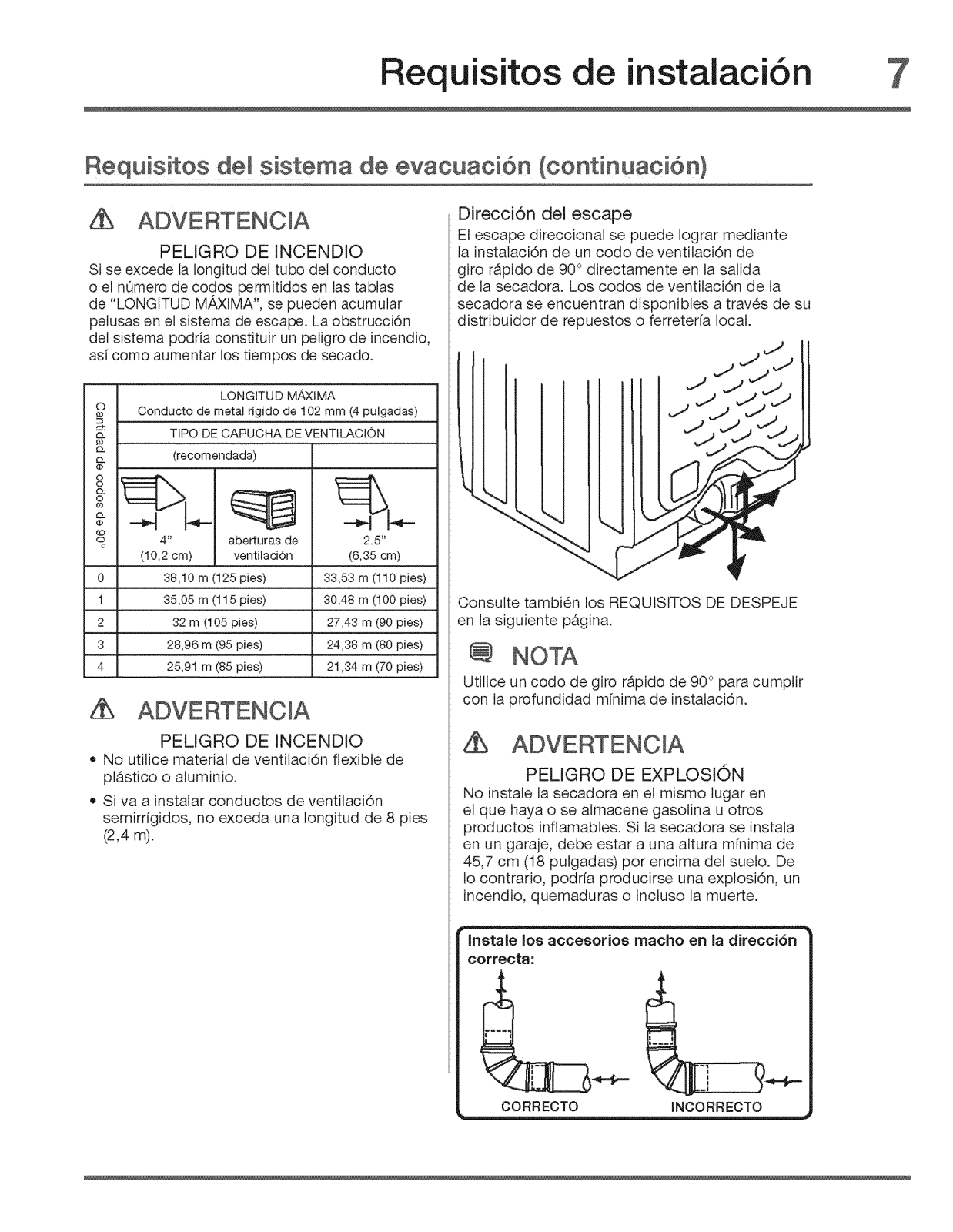

Exhaust system requirements, continued

WARNING

EXPLOSION HAZARD

Do not install the dryer where gasoline or other flammables are kept or stored. If the dryer is installed in a garage, it must be a minimum of 18 inches (45.7 cm) above the floor. Failure to do so can result in death, explosion, fire or burns.

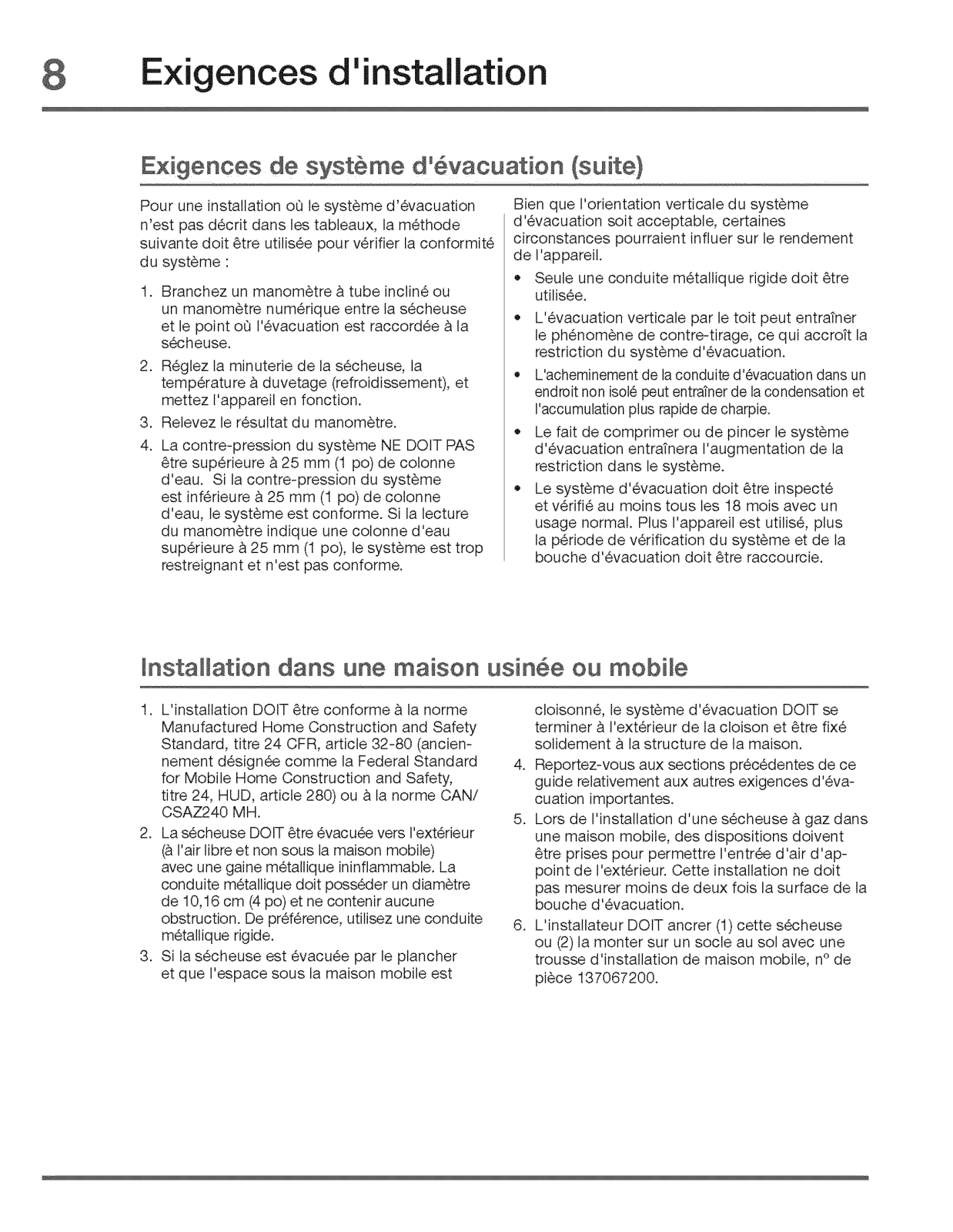

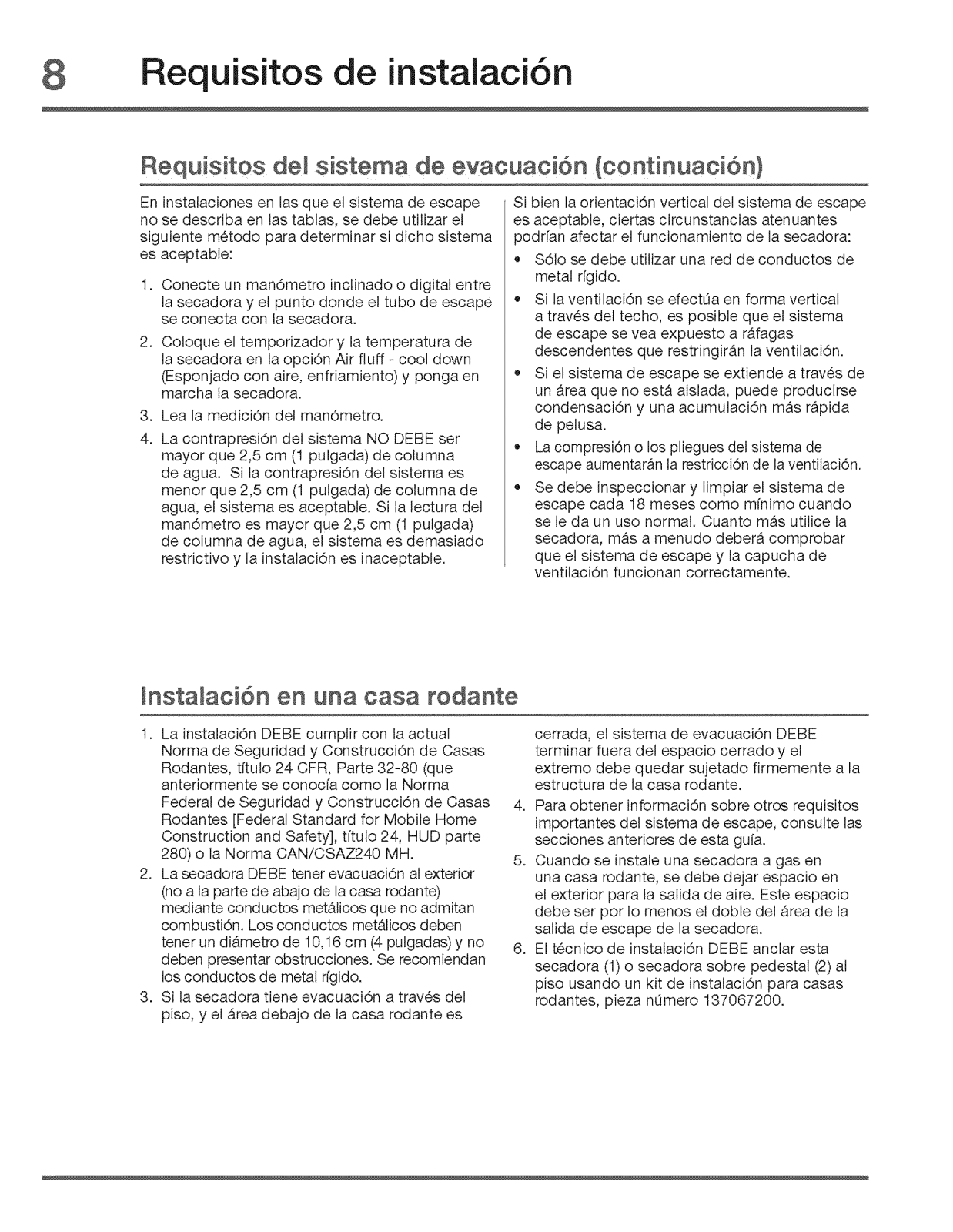

In installations where the exhaust system is not

described in the charts, the following method must

be used to determine if the exhaust system is

acceptable:

1. Connect an inclined or digital manometer between the dryer and the point the exhaust connects to the dryer.

2. Set the dryer timer and temperature to air fluff (coot down) and start the dryer.

3. Read the measurement on the manometer.

4. The system back pressure MUST NOT be

higher than 1.0 inch of water column. If the system back pressure is less than 1.0 inch of

water column, the system is acceptable. If the

manometer reading is higher than 1.0 inch of

water column, the system is too restrictive and the installation is unacceptable.

Install male fittings in correct direction:

CORRECT INCORRECT

Although vertical orientation of the exhaust system

is acceptable, certain extenuating circumstances could affect the performance of the dryer:

Only the rigid metal duct work should be used.

,, Venting vertically through a roof may expose

the exhaust system to down drafts causing an increase in vent restriction.

Running the exhaust system through an uninsulated area may cause condensation and

faster accumulation of lint.

o Compression or crimping of the exhaust system

will cause an increase in vent restriction. The exhaust system should be inspected and

cleaned a minimum of every 18 months with normal usage. The more the dryer is used, the more often you should check the exhaust system and vent hood for proper operation.

Manufactured or mobile home installation

1. Installation MUST conform to current Manufactured Home Construction & Safety

Standard, Title 24 CFR, Part 32-80 (formerly the Federal Standard for Mobile Home Construction

and Safety, Title 24, HUD Part 280) or Standard CAN/CSAZ240 MH.

2. Dryer MUST be exhausted outside (outdoors, not beneath the mobile home) using metal ducting

that will not support combustion. Metal ducting must be 4 inches (10.16 cm)in diameter with no

obstructions. Rigid metal duct is preferred.

3. If dryer is exhausted through the floor and

area beneath the mobile home is enclosed,

the exhaust system MUST terminate outside the enclosure with the termination securely

fastened to the mobile home structure.

4. Refer to previous sections in this guide for other important exhaust venting system requirements.

5. When installing a gas dryer into a mobile home, a provision must be made for outside make up

air. This provision is to be not less than twice the area of the dryer exhaust outlet.

6. Installer MUST anchor this (1) dryer or (2) dryer mounted on pedestal to the floor with approved

Mobile Home Installation Kit - P/N 137067200.

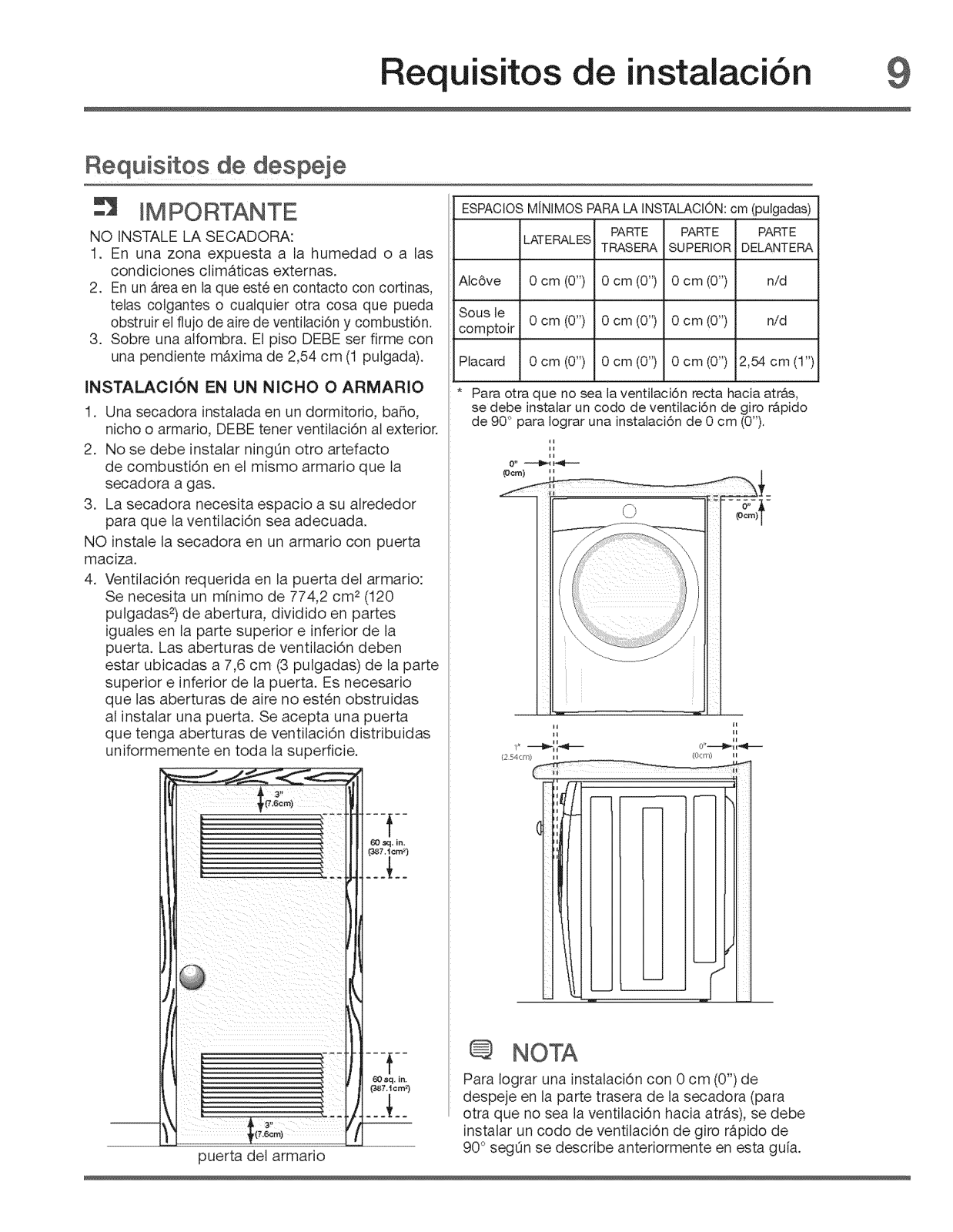

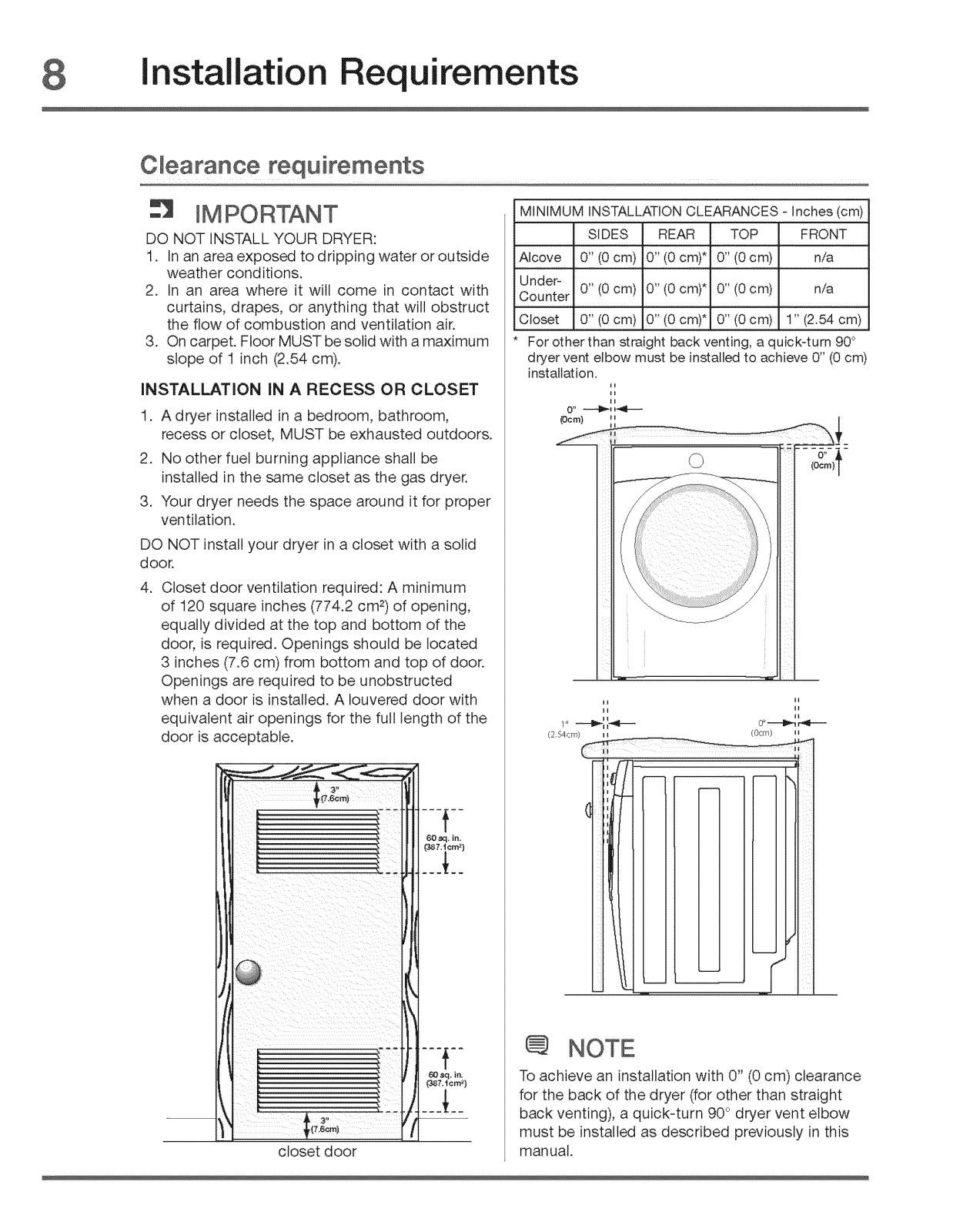

Installation Requirements

iMPORTANT

DO NOT INSTALL YOUR DRYER:

1. In an area exposed to dripping water or outside weather conditions.

2. In an area where it will come in contact with curtains, drapes, or anything that wilt obstruct

the flow of combustion and ventilation air.

3. On carpet. Floor MUST be solid with a maximum slope of 1 inch (2.54 cm).

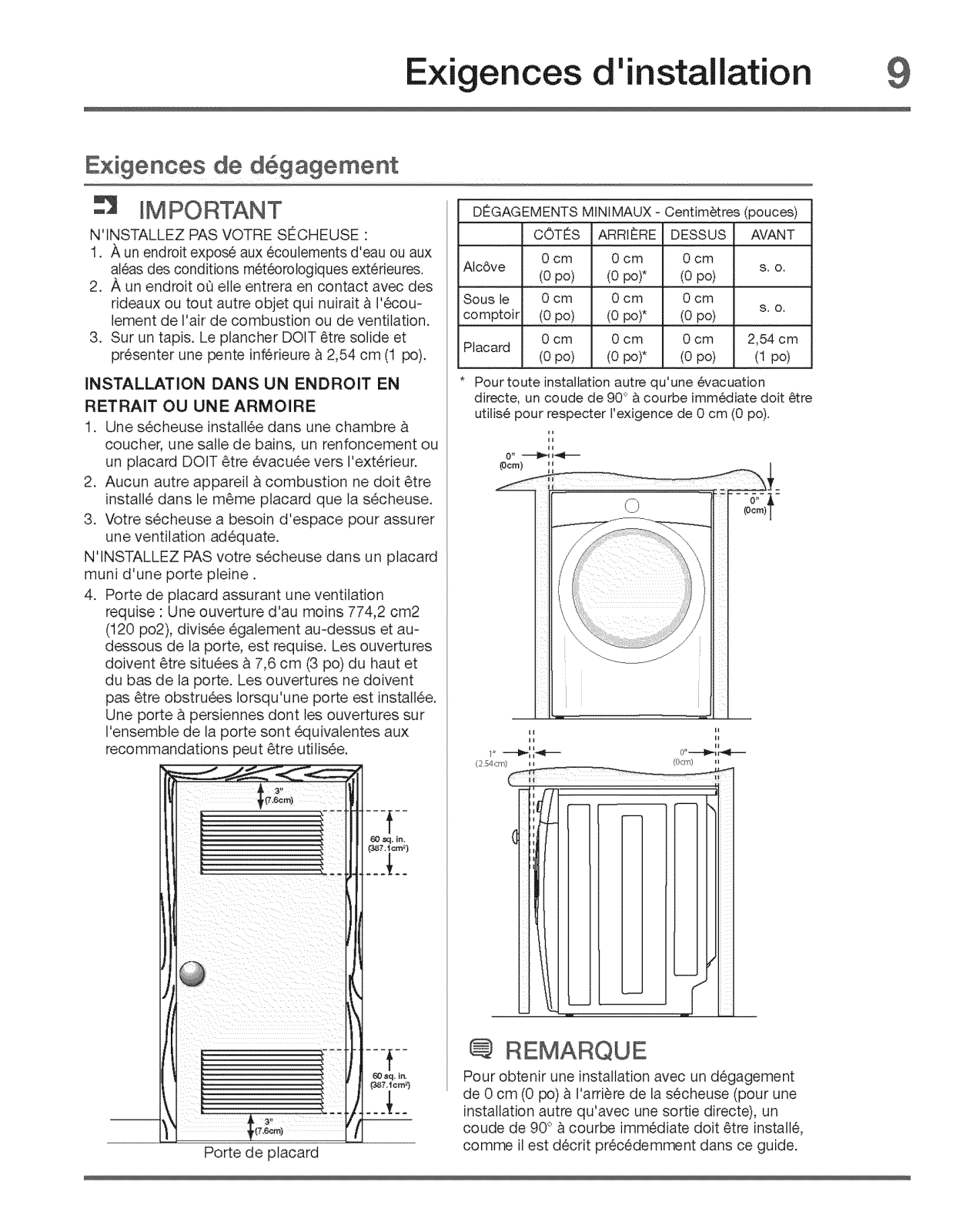

INSTALLATION IN A RECESS OR CLOSET

1. A dryer installed in a bedroom, bathroom, recess or closet, MUST be exhausted outdoors.

2. No other fuel burning appliance shall be installed in the same closet as the gas dryer.

3. Your dryer needs the space around it for proper

ventilation.

DO NOT install your dryer in a closet with a solid door.

Closet door ventilation required: A minimum

of 120 square inches (774.2 cm 2)of opening, equally divided at the top and bottom of the

door, is required. Openings should be located 3 inches (7.6 cm) from bottom and top of door. Openings are required to be unobstructed

when a door is installed. A Iouvered door with equivalent air openings for the full length of the

door is acceptable.

MINIMUM INSTALLATIONCLEARANCES - Inches (cm)

SIDES REAR TOP FRONT

Alcove 0" (0 cm) 0" (0 cm)* 0" (0cm) nia

Under- Counter

0" (0 cm) 0" (0 cm)* 0" (0 cm) nia

Closet 0" (0 cm) 0" (0 cm)* 0" (0cm) 1" (2.54cm)

* For other than straight back venting, a quick-turn 90°

dryer vent elbow must be installed to achieve 0" (0 cm) installation.

,,,,

k 3_!

closet door

NOTE

To achieve an installation with 0" (0 cm) clearance for the back of the dryer (for other than straight

back venting), a quick-turn 90° dryer vent elbow must be installed as described previously in this

man ual.

Installed dryer dimensions

50.6" (t28,50m) *

to clear open door

fl oar line

3t .50" (80am)*

to front of closed dear

Installation Requirements

(6&5era)

53.00"

(t34.5cm)

centerline

gag aupply pipe on rear

height for

dryer mounted on

optional pedestal

floor line

* Toobtain these minimal depth dimensions, dryer must either be vented ab'aight back or

with a quick-taro _)° elbow, Connection of water inlet hoae on Steam Modela adda 3/4 in, (2 ore) to h_atMlation depth, Upward venting of exh auat on pedestal=mounted or freestanding

dryer adds approximately 4 in, (t0.2 am) to inateltation depth. Downward ven6ng of exhauat on pedestal-mounted dryer adds approximately 1,7 in. (4.3 am) to installation depth.

50.6" (128.5cm)*

to clear open door

75. 75"

(tg2.5cm)

t 6.25"

(4t .5era)

(g.5em)

gas supply pipe on rear of gag unit

(34.5am)

to center of rear vent

27,0C

(6&5am)

18.25"

(46.5cm)

centerline height for

rear vent

41.00"

(104am)

To obtain theae minimal depth dimensions, dryer must either be vented a_aight back or with a quick-t_rn 90 _ elbow,

Connection of water inlet hoee on Steam Mo_ela a_a.314 in (2 era) to inatallation depth, Upward or downward venting

of exhaust on etacked dr_'er a_ls approximately 4 in. (10.2 am) to installation depth.

Installation instructions

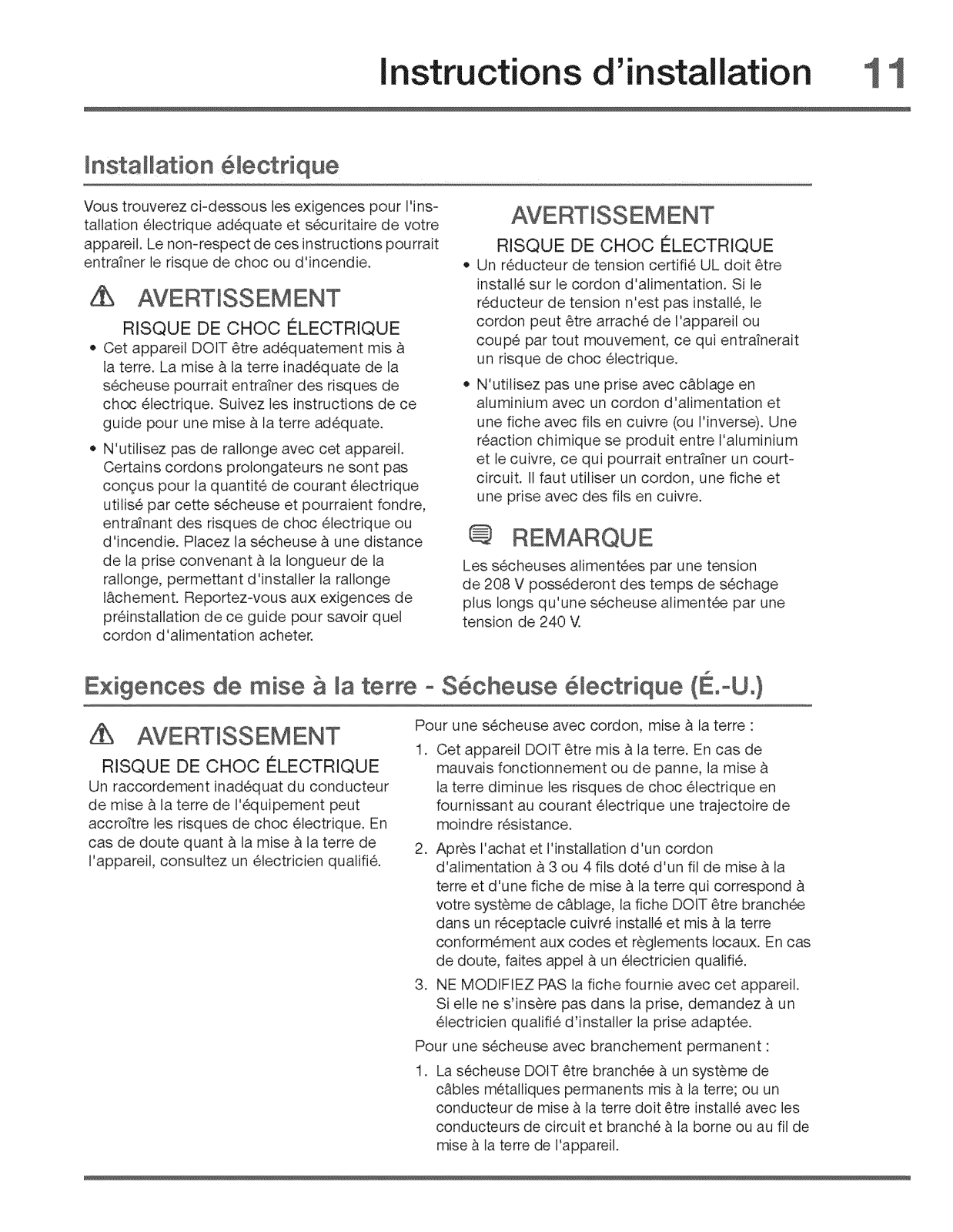

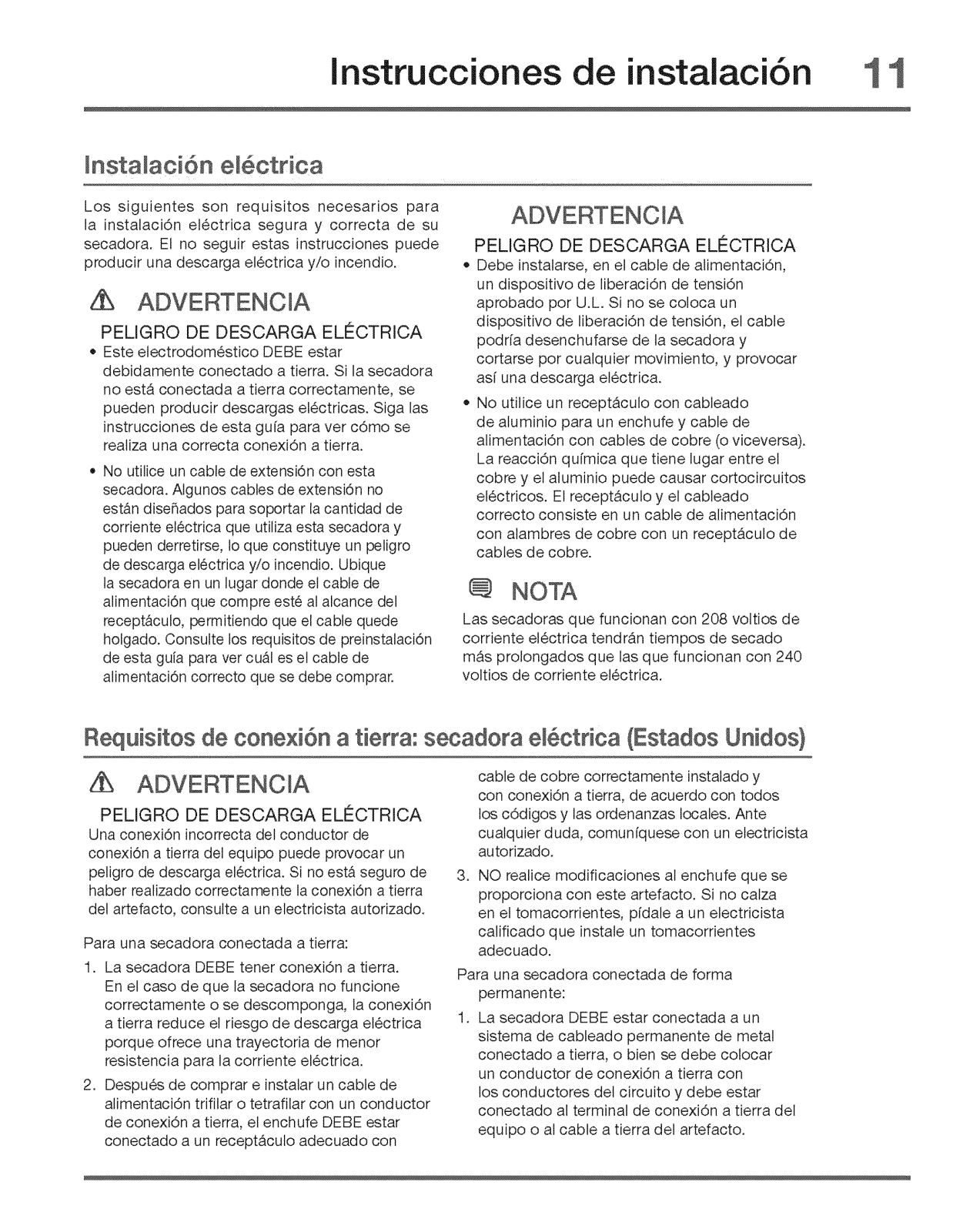

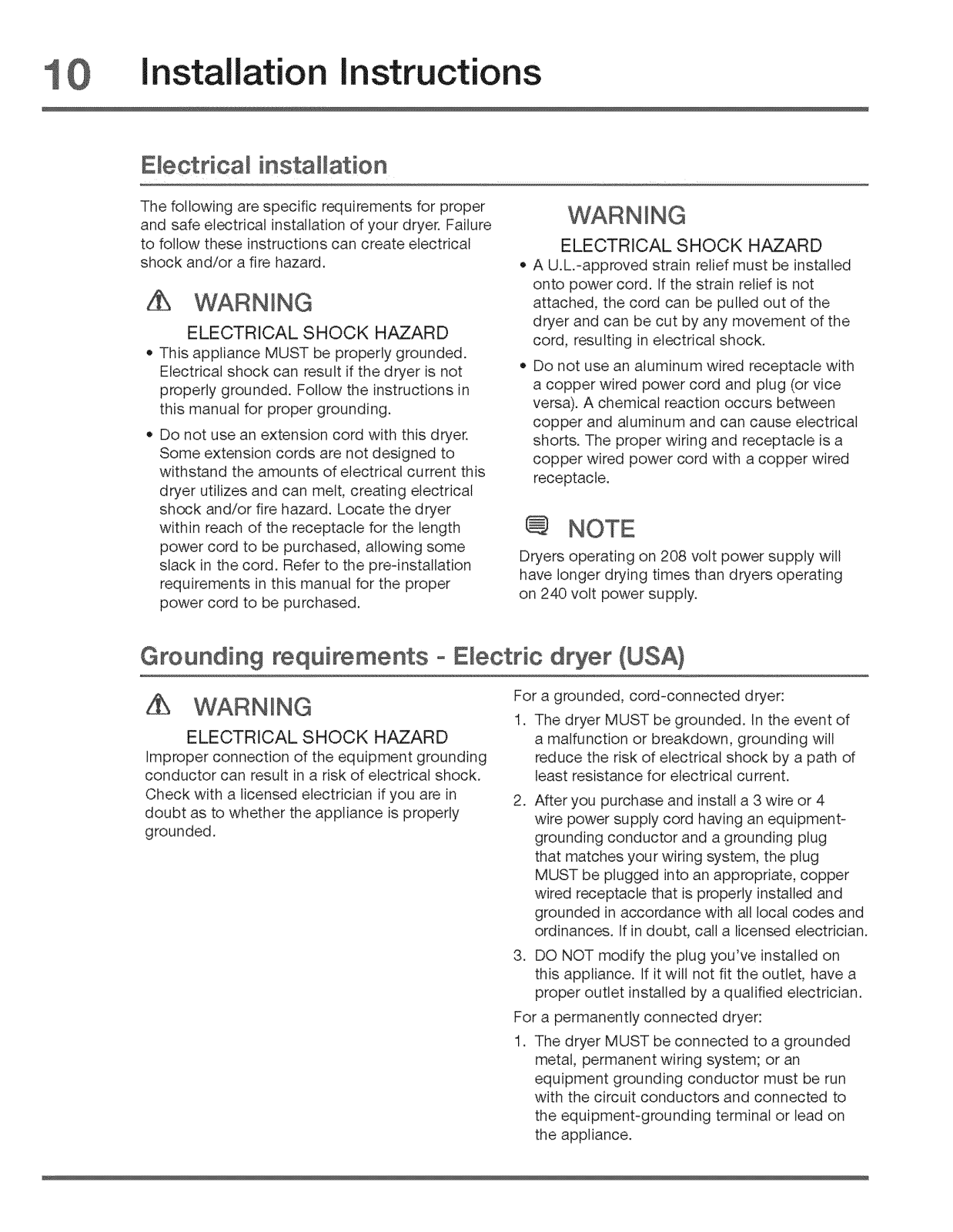

Eiectricai installation

The following are specific requirements for proper and safe electrical installation of your dryer. Failure

to follow these instructions can create electrical shock and/or a fire hazard.

ELECTRICAL SHOCK HAZARD

This appliance MUST be properly grounded.

Electrical shock can result if the dryer is not properly grounded. Follow the instructions in

this manual for proper grounding.

Do not use an extension cord with this dryer.

Some extension cords are not designed to withstand the amounts of electrical current this

dryer utilizes and can melt, creating electrical shock and/or fire hazard. Locate the dryer within reach of the receptacle for the length

power cord to be purchased, allowing some

slack in the cord. Refer to the pre-installation

requirements in this manual for the proper power cord to be purchased.

WARNING

ELECTRICAL SHOCK HAZARD

A U.L-approved strain relief must be installed onto power cord. Ifthe strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the

cord, resulting in electrical shock. Do not use an aluminum wired receptacle with

a copper wired power cord and plug (or vice versa). A chemical reaction occurs between

copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper wired power cord with a copper wired receptacle.

NOTE

Dryers operating on 208 volt power supply will have longer drying times than dryers operating on 240 volt power supply.

Grounding requirements - Electric dryer (USA}

For a grounded, cord-connected dryer:

1. The dryer MUST be grounded. In the event of

ELECTRICAL SHOCK HAZARD

Improper connection of the equipment grounding

conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in

doubt as to whether the appliance is properly grounded.

a malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of

least resistance for electrical current.

2. After you purchase and install a 3 wire or 4 wire power supply cord having an equipment- grounding conductor and a grounding plug that matches your wiring system, the plug MUST be plugged into an appropriate, copper wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.

3. DO NOT modify the plug you've installed on this appliance. If it wilt not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dryer:

1. The dryer MUST be connected to a grounded metal, permanent wiring system; or an equipment grounding conductor must be run

with the circuit conductors and connected to the equipment-grounding terminal or lead on

the appliance.

Installation instructions 1

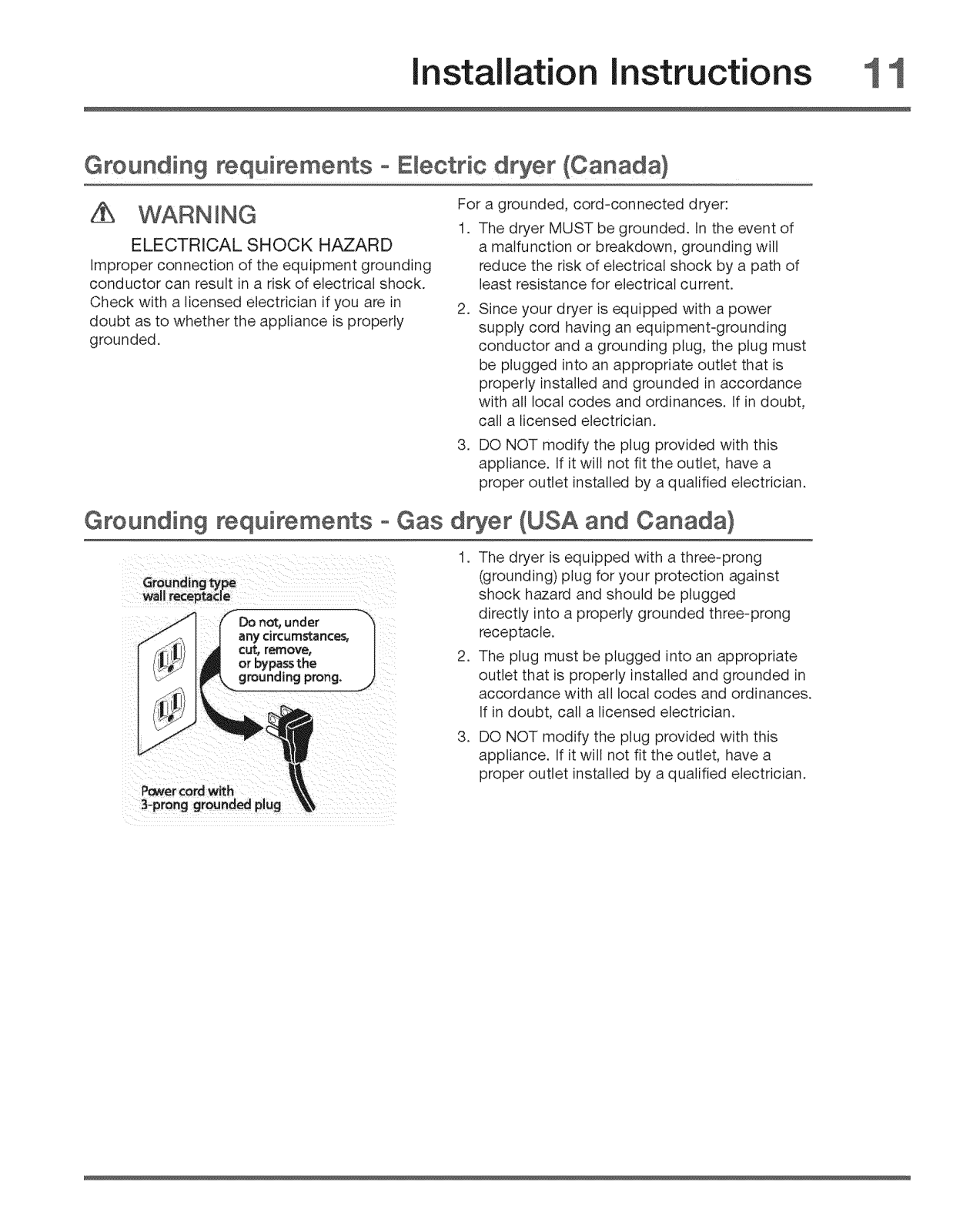

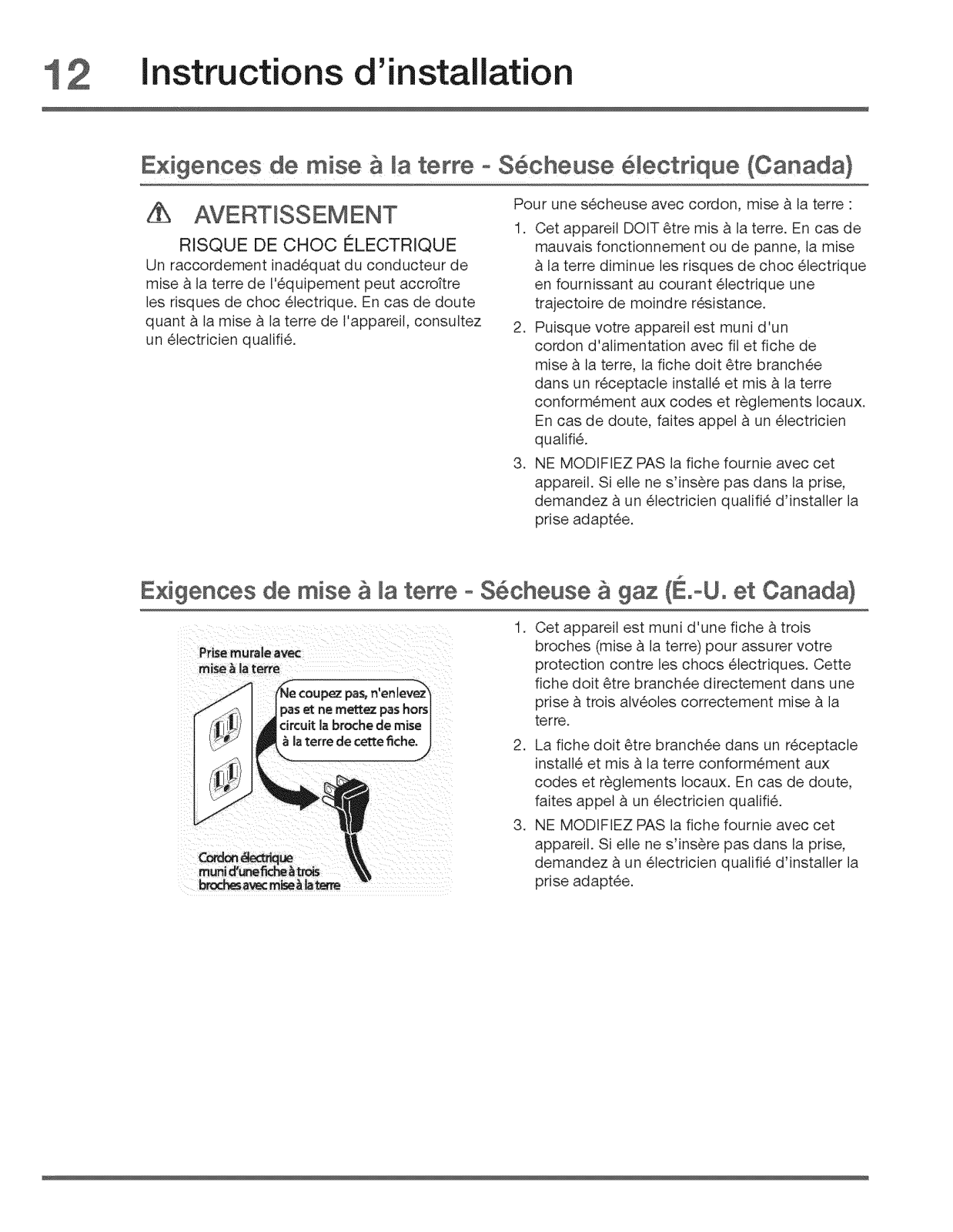

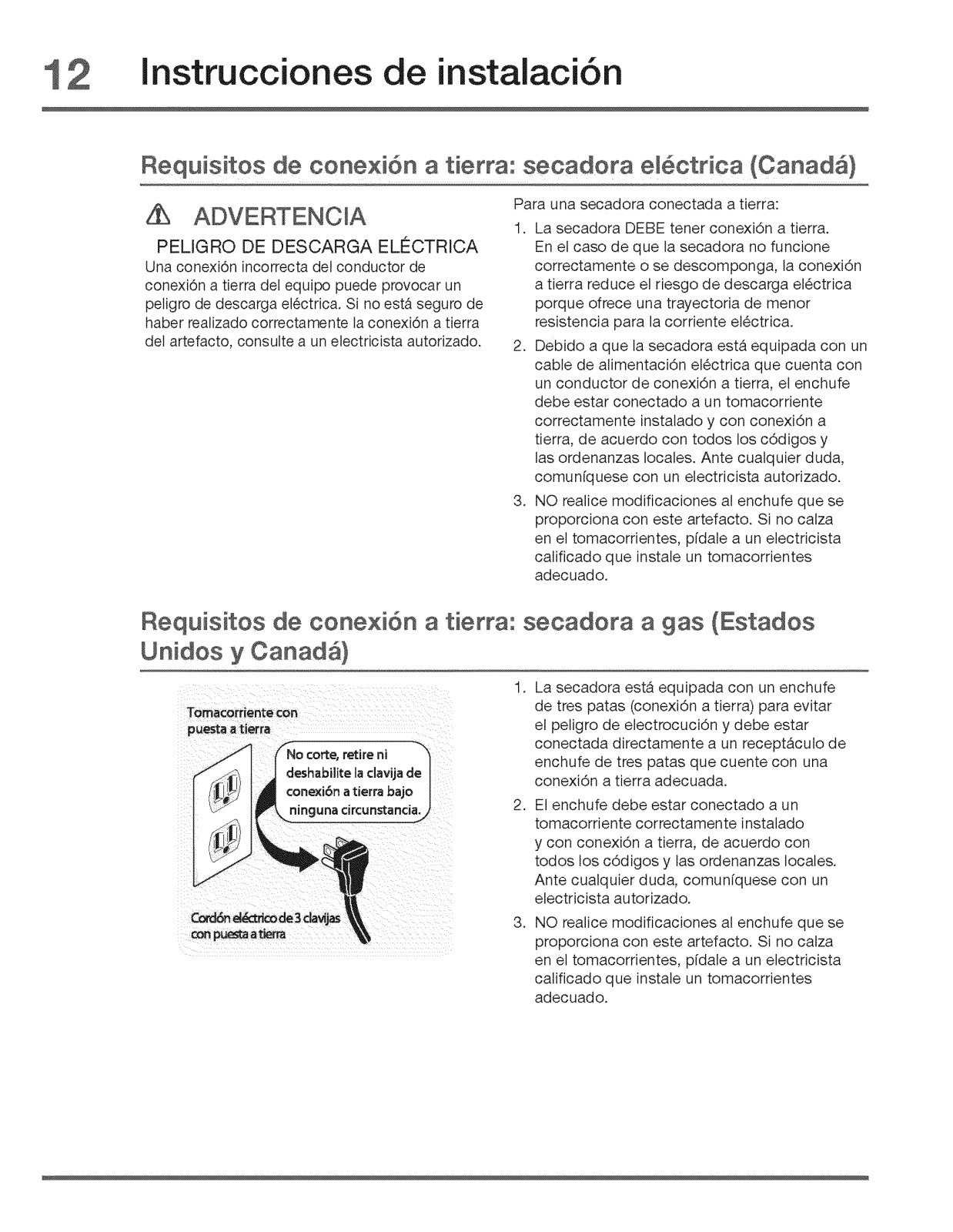

Groundin 9 requirements o Electric dryer (Canada)

WARNING

ELECTRICAL SHOCK HAZARD

Improper connection of the equipment grounding

conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in

doubt as to whether the appliance is properly grounded.

For a grounded, cord-connected dryer:

1. The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of

least resistance for electrical current.

Since your dryer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug must

be plugged into an appropriate outlet that is properly installed and grounded in accordance

with all local codes and ordinances. If in doubt,

call a licensed electrician.

DO NOT modify the plug provided with this appliance. If it will not fit the outlet have a proper outlet installed by a qualified electrician.

Grounding requirements o Gas dryer (USA and Canada}

1. The dryer is equipped with a three-prong

Groundingtype wallreceptacle

Do not, under

anycircumstances, cut,remove, orbypassthe grounding prong.

Paver cordwith

3-prong grounded plug

(grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.

2. The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances. If in doubt, call a licensed electrician.

3. DO NOT modify the plug provided with this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Installation Instructions

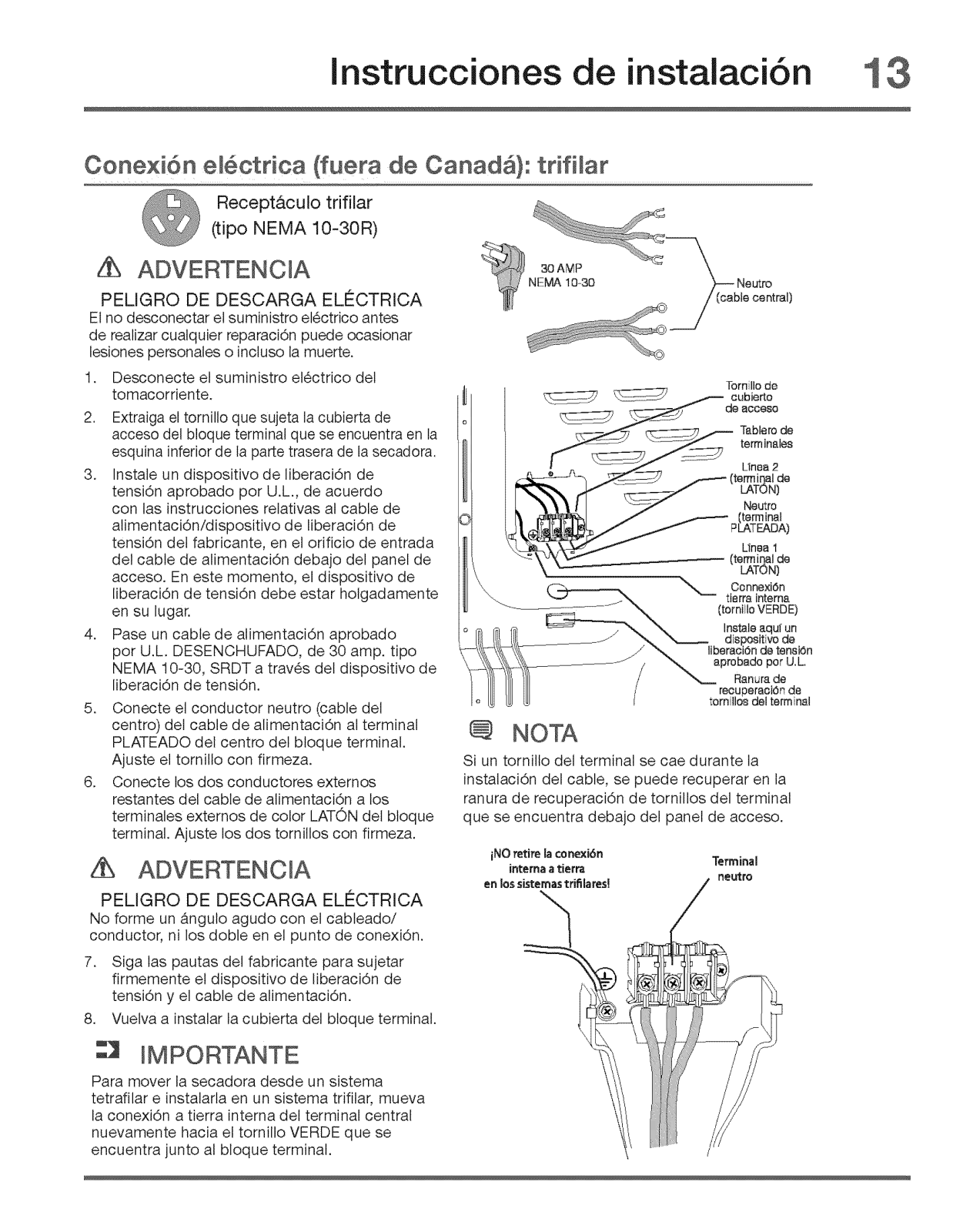

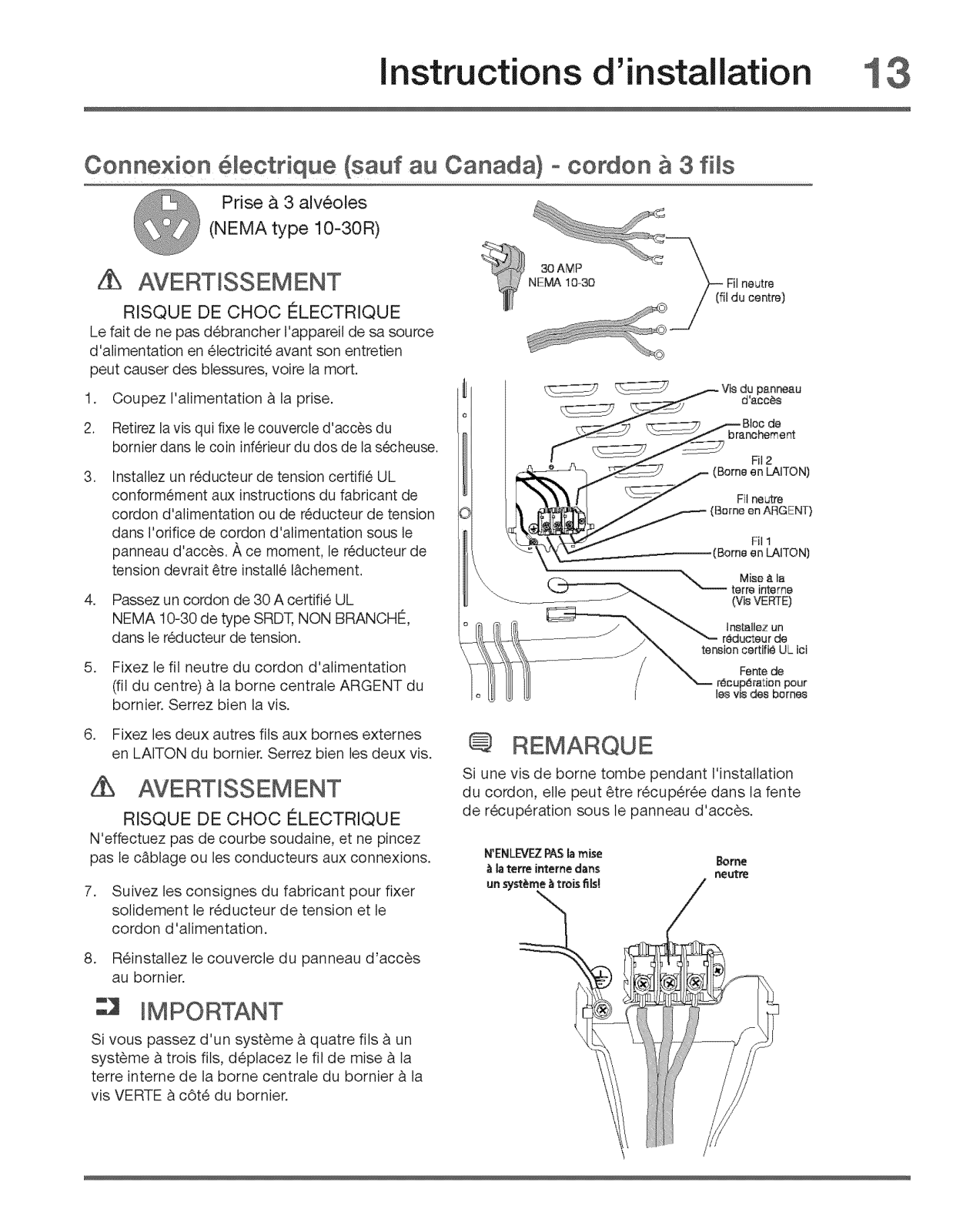

Electrical connection (non-Canada) o3 wire cord

3-wire receptacle

(NEMA type 10-30R)

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing

could result in personal injury or even death.

Turn off power supply to outlet.

Remove the screw securing the terminal block access cover in the lower corner on the back of

the dryer.

Install a UL-approved strain relief according to the power cord/strain relief manufacturer's instructions in the power cord entry hole below

the access panel. At this time, the strain relief should be loosely in place.

Thread an UNPLUGGED, UL=approved, 30 amp.

power cord, NEMA 10-30 type SRDT, through the strain relief.

Attach the power cord neutral (center wire)

conductor to the SILVER colored center terminal on the terminal block. Tighten the

screw securely.

Attach the remaining two power cord outer

conductors to the outer, BRASS colored terminals on the terminal block. Tighten both

screws secu rely.

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring/

conductor at connections.

7. Follow manufacturer's guidelines for firmly securing the strain relief and power cord.

8. Reinstall the terminal block cover.

=l IMPORTANT

install

UL-approved

strain relief here

Terminal screw

recovery slot

@ NOTE

If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery

slot below the access panel.

DO NOT remove

internal ground in

a3-wire rtstem!!

Neutral

terminal

If moving dryer from a 4-wire system and installing it in a 3-wire system, move the internal ground from the center terminal back to the

GREEN screw next to the terminal block.

installation instructions 3

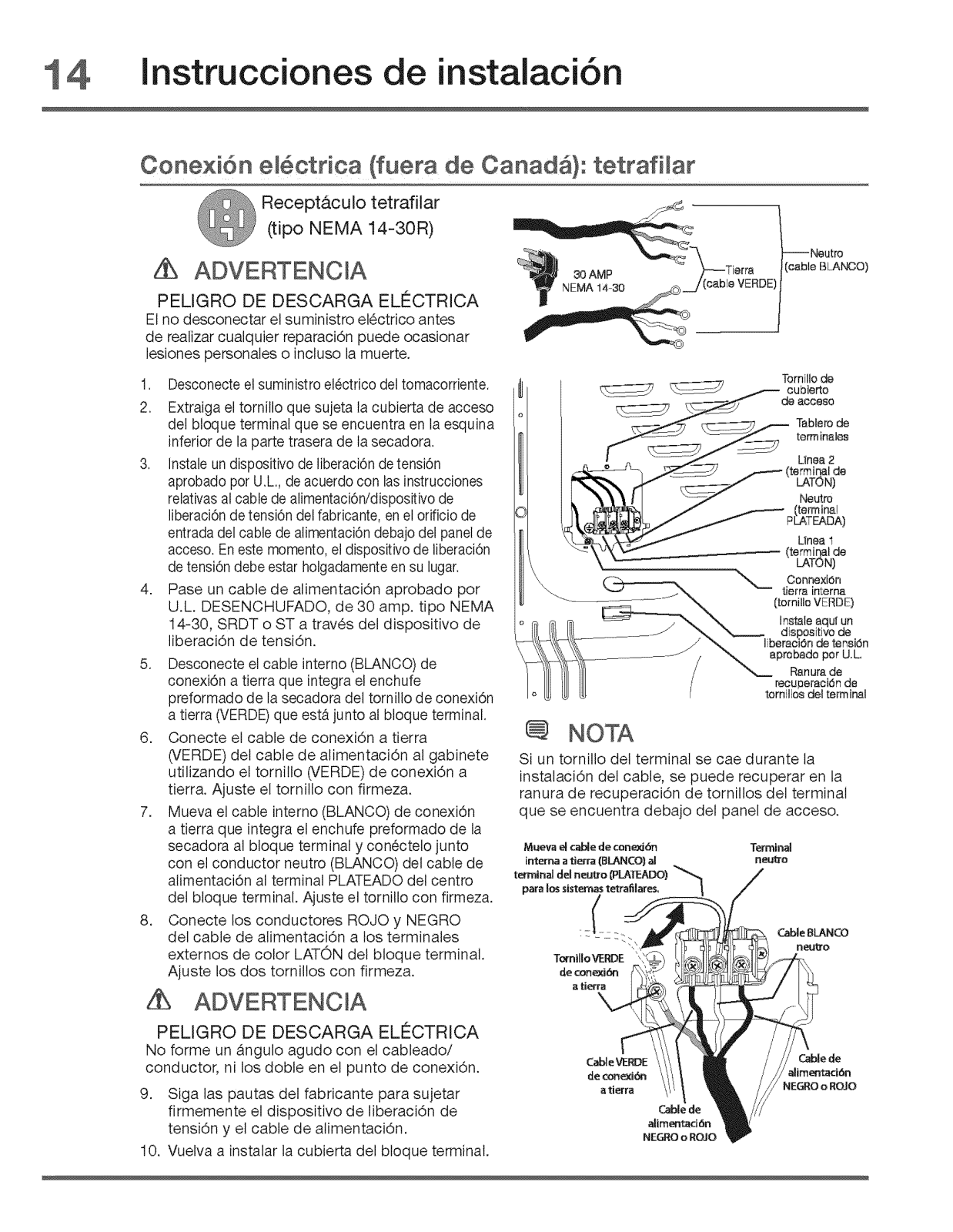

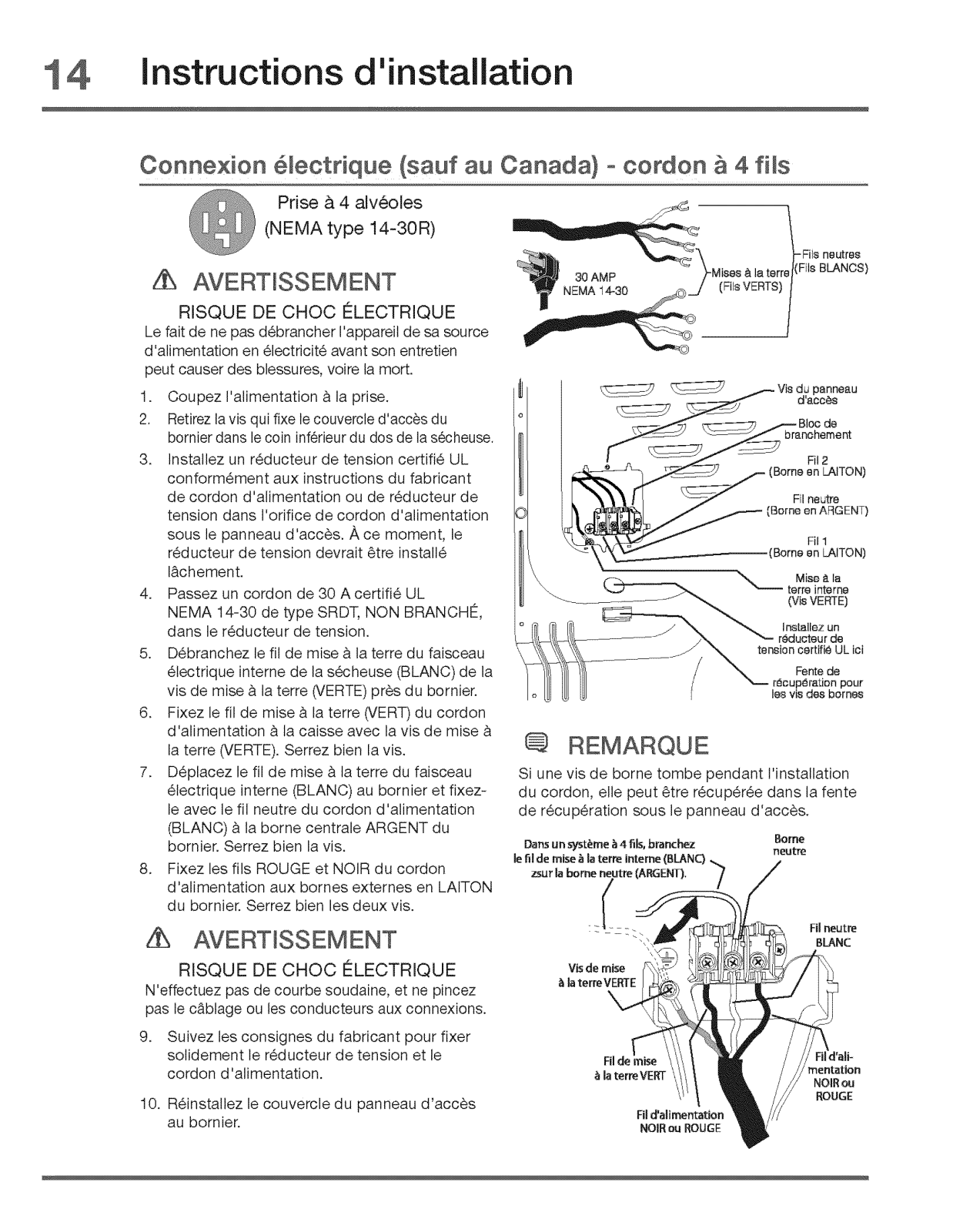

EJectrical connection (non-Canada} o4 wire cord

4-wire receptacle

(NEMA type 14-30R)

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injuryor even death.

1. Turn off power supply to outlet.

2. Remove the screw securing the terminal block access cover in the lower corner on the back of

the dryer.

3. Install a UL-approved strain relief according to the power cord/strain relief manufacturer's

instructions Anthe power cord entry hole below the access panel. At this time, the strain relief should be loosely in place.

4. Thread an UNPLUGGED, UL-approved, 30 amp. power cord, NEMA 14-30 type ST or SRDT, through the strain relief.

5. Disconnect the internal (WHITE) dryer harness ground wire from the (GREEN) ground screw

next to the terminal block.

6. Attach the ground (GREEN) power cord wire to the cabinet with the ground (GREEN) screw.

Tighten the screw securely.

7. Move the internal dryer harness ground (WHtTE) wire to the terminal block and attach it along with the neutral (WHITE) power cord

wire conductor to the center, SILVER colored terminal on the terminal block. Tighten the screw securely.

8. Attach the RED and BLACK power cord conductors to the outer, BRASS colored

terminals on the terminal block. Tighten both screws secu rely.

If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery

slot below the access panel.

NOTE

Move internal ground (WHITE)

wiretoneutral(SILVER) ,_

terminal for4-wire system. -_,_

-- Neutral IWHITEwire)

blod<

Une2

(BP_L_$terminal)

Neutral

{SILVERterminal)

Install

UL-approved

strain relief here

Terminal screw

recovery slot

Neutral

terminal

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring! conductor at connections.

9. Fotlow manufacturer's guidelines for firmly securing the strain relief and power cord.

10. Reinstall the terminal block cover.

GREEN

ground screw

ground wi_

GREEN

REDpower wire

BLACK

or RED

powerwire

BLACKer

Installation instructions

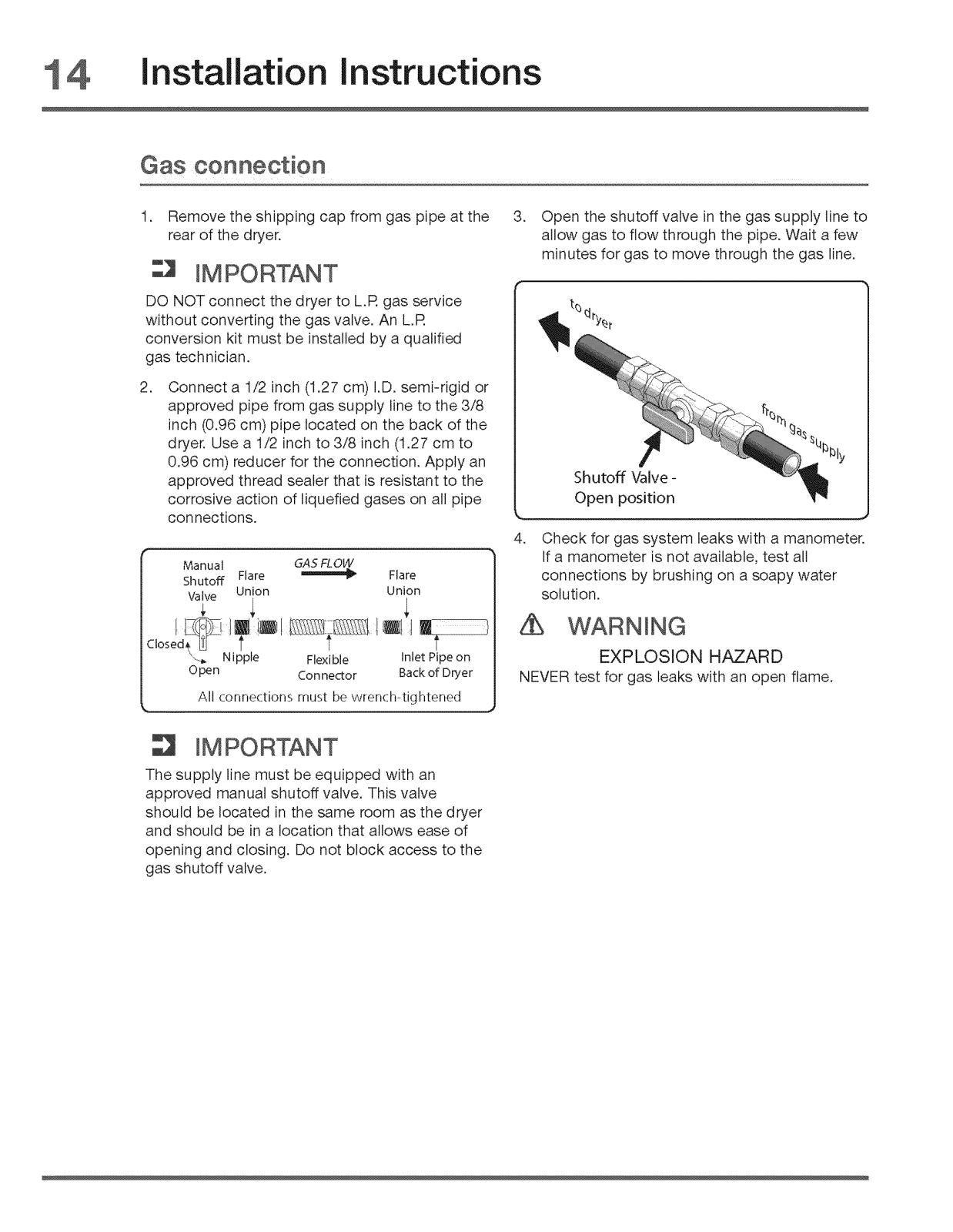

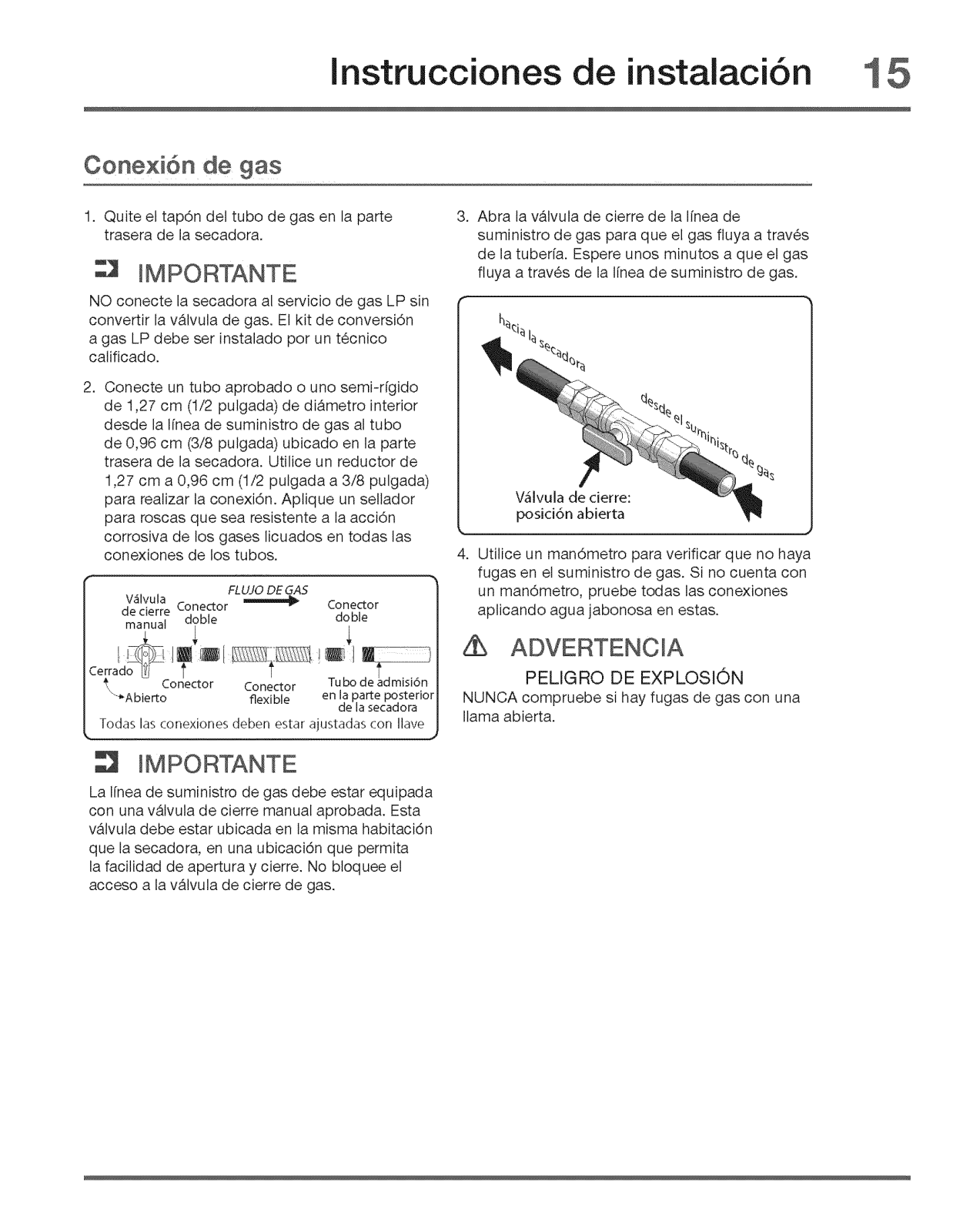

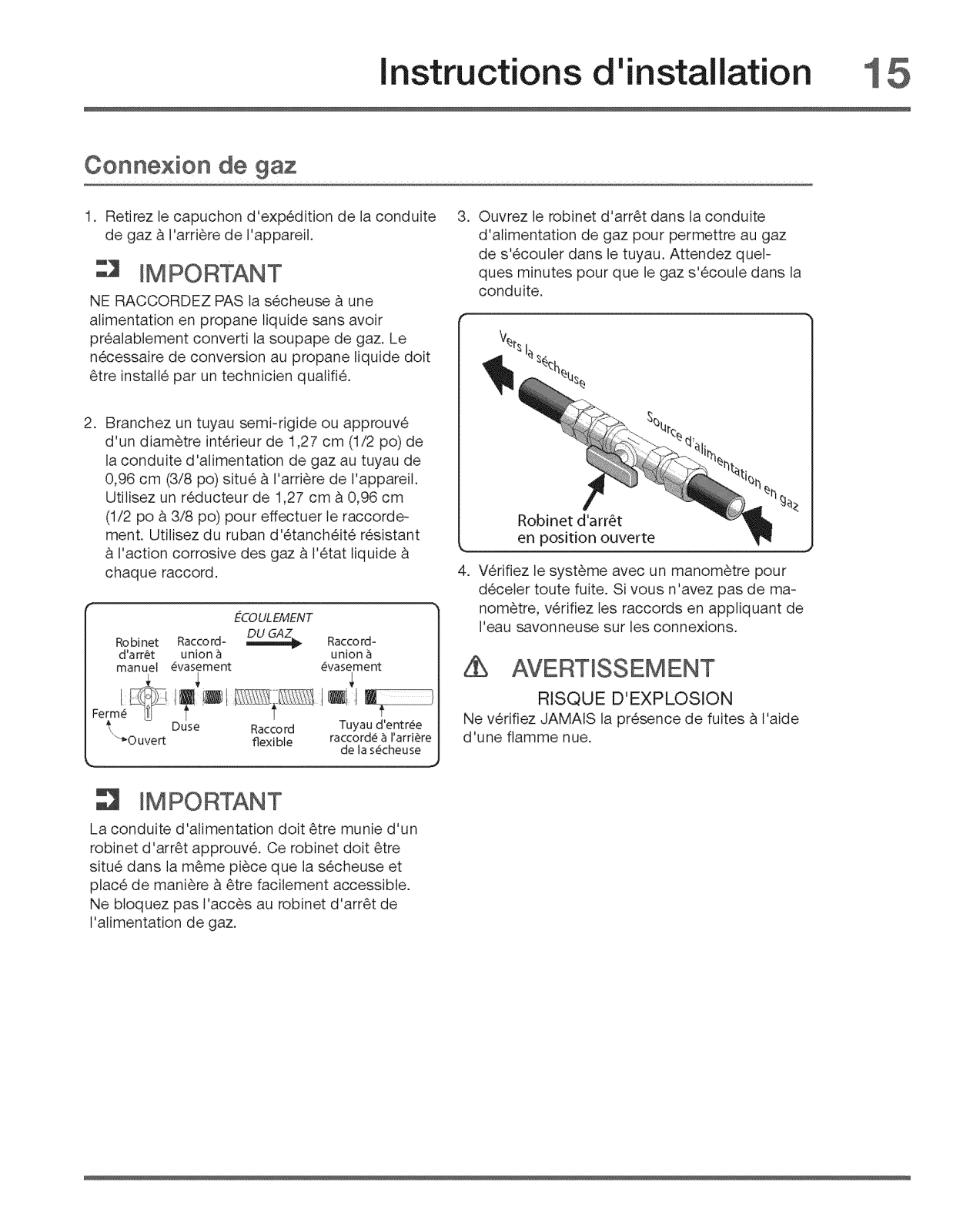

Gas connection

1. Remove the shipping cap from gas pipe at the rear of the dryer.

IMPORTANT

DO NOT connect the dryer to L.R gas service

without converting the gas valve. An L.R conversion kit must be installed by a qualified gas technician.

Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or approved pipe from gas supply line to the 3/8 inch (0.96 cm) pipe located on the back of the dryer. Use a t/2 inch to 3/8 inch (1.27 cm to

0.96 cm) reducer for the connection. Apply an approved thread sealer that is resistant to the

corrosive action of liquefied gases on all pipe connections.

Manual GAS FLOW Shutoff Flare _ Flare

Valve Union Union

"._ Nipple Flexible Inlet Pipeon O pen Connector Back of Dryer

All connections must be wrench-tightened

3. Open the shutoff valve in the gas supply line to allow gas to flow through the pipe. Wait a few

minutes for gas to move through the gas line.

Shutoff Valve-

Open position

Check for gas system leaks with a manometer. If a manometer is not available, test all

connections by brushing on a soapy water solution.

WARNING

EXPLOSION HAZARD

NEVER test for gas leaks with an open flame.

IMPORTANT

The supply line must be equipped with an approved manual shutoff valve. This valve should be located in the same room as the dryer

and should be in a location that allows ease of opening and closing. Do not block access to the

gas shutoff valve.

installation instructions 5

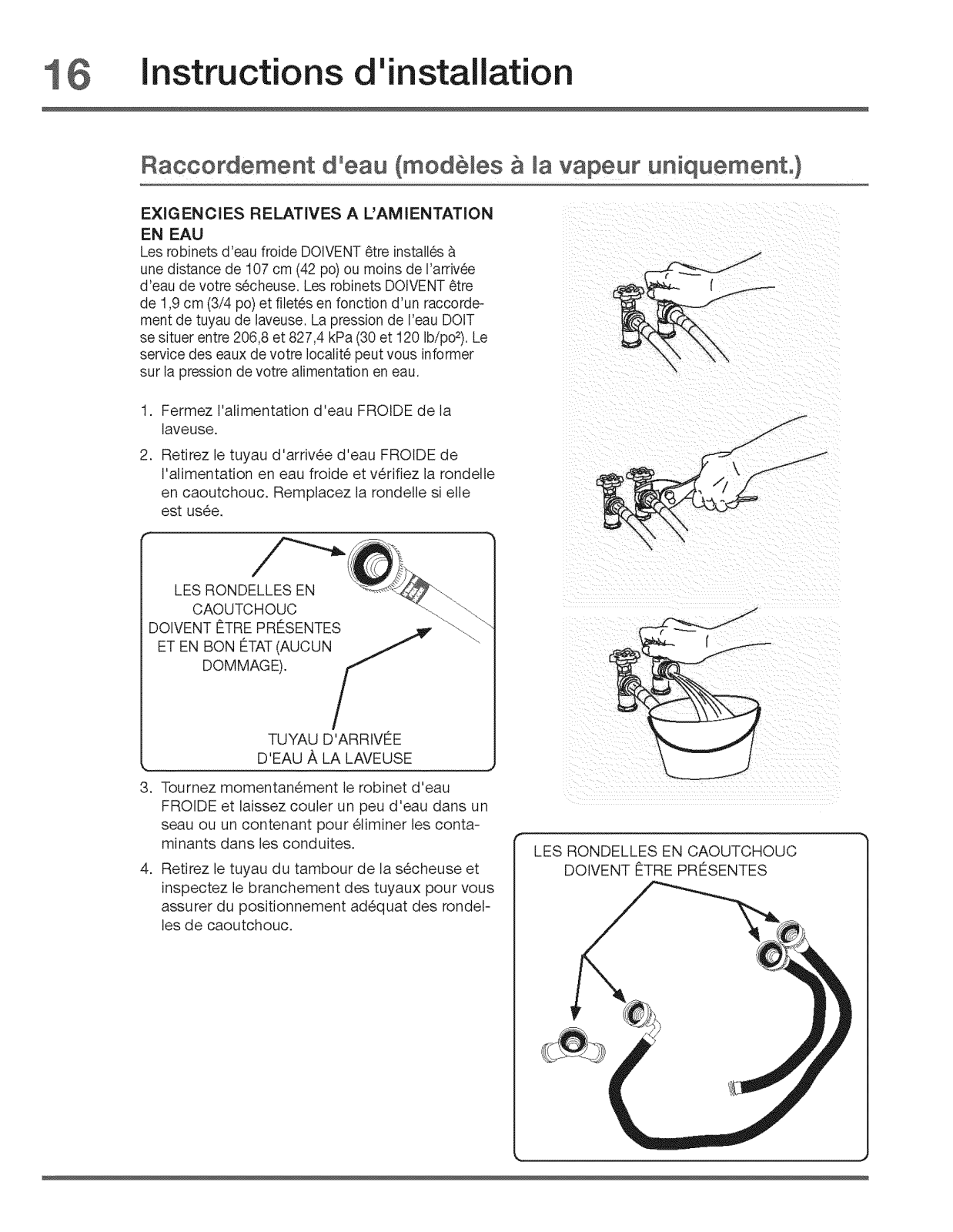

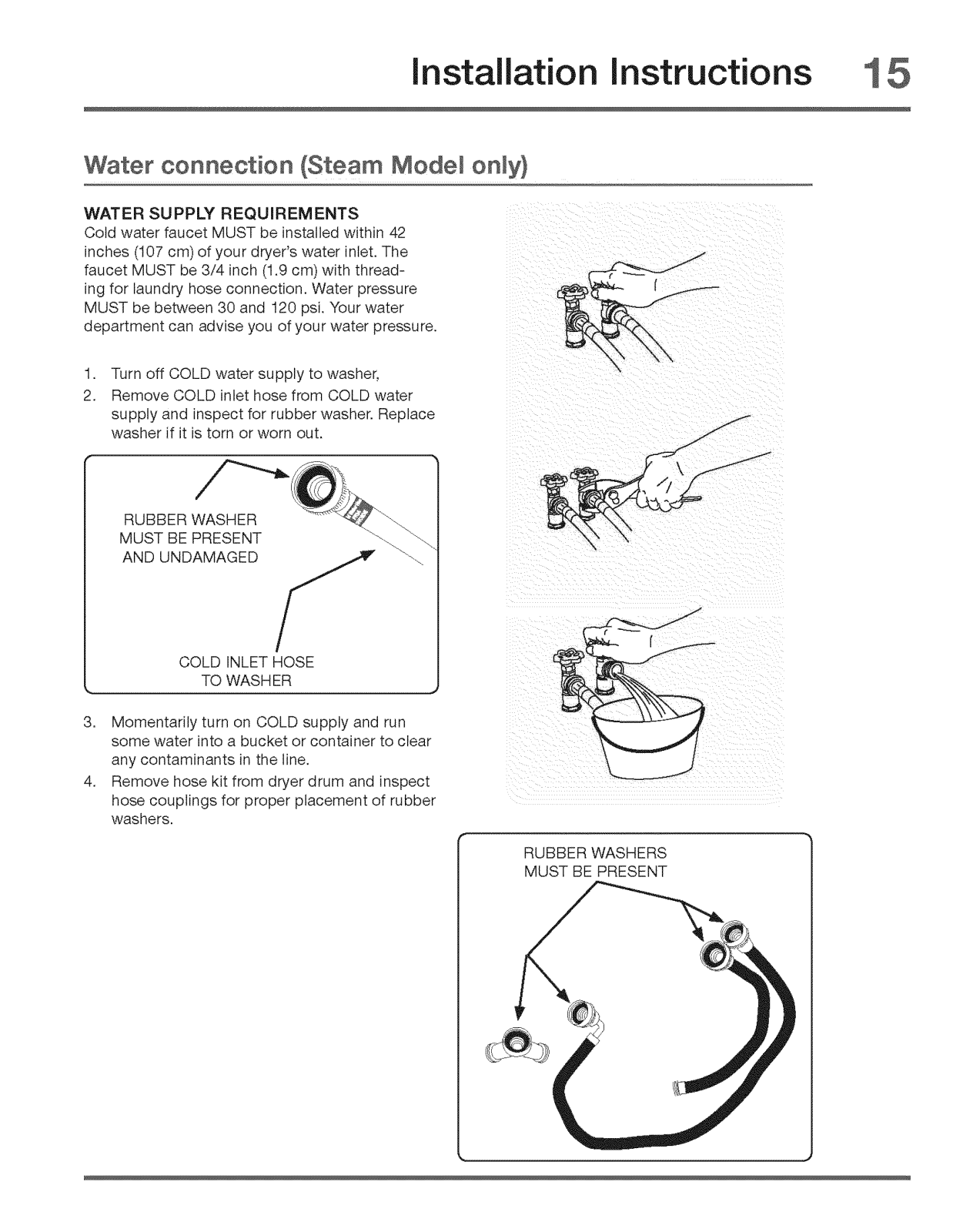

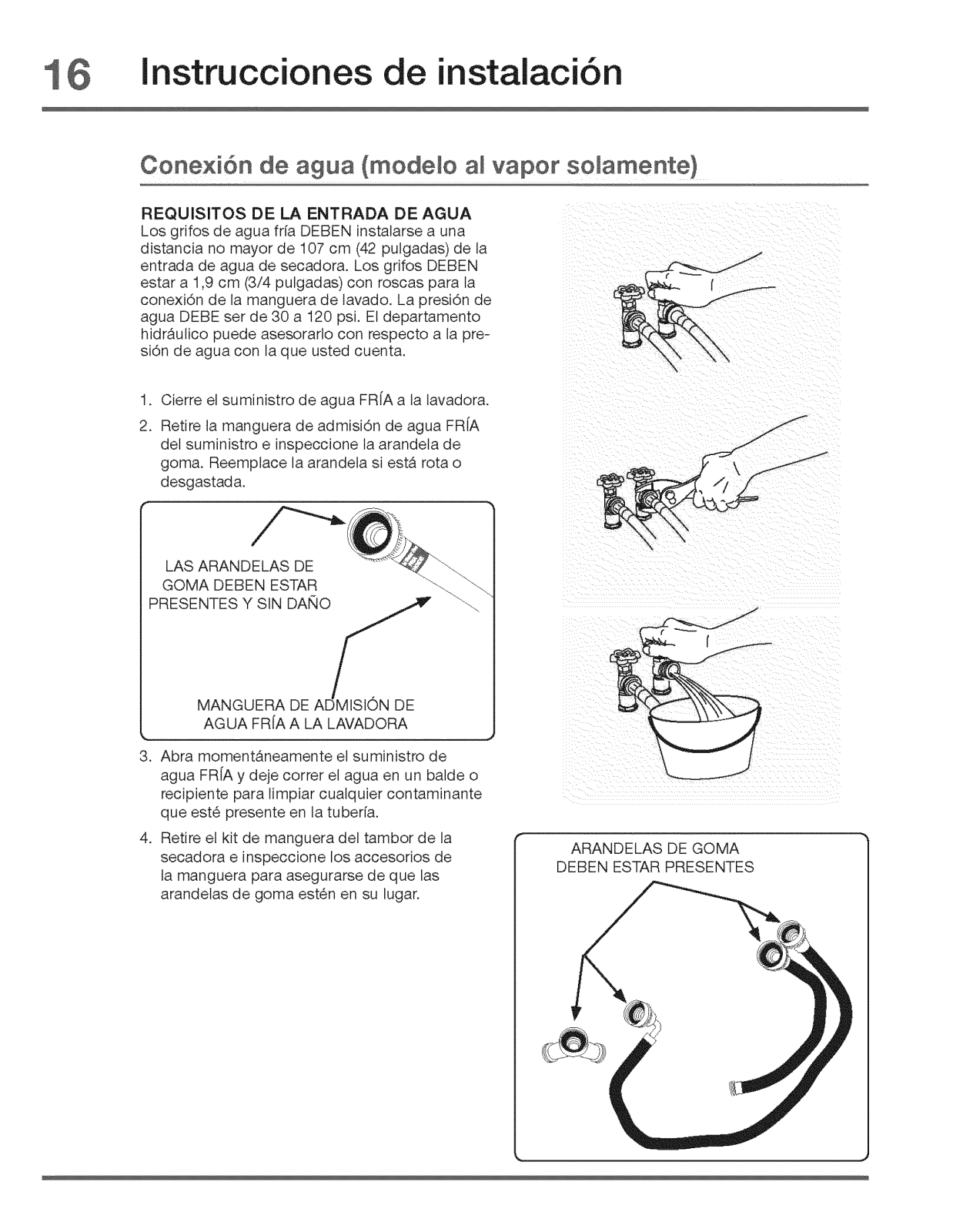

Water connection (Steam Model on y}

WATER SUPPLY REQUIREMENTS

Cold water faucet MUST be instaHled within 42 inches (107 cm) of your dryer's water inlet. The

faucet MUST be 3/4 inch (1.9 cm) with thread-

ing for laundry hose connection. Water pressure MUST be between 30 and 120 psi. Your water

department can advise you of your water pressure.

Turn off COLD water supply to washer,

Remove COLD inlet hose from COLD water supply and inspect for rubber washer. Replace

washer if it is torn or worn out.

RUBBER WASHER

MUST BE PRESENT

AND UNDAMAGED

COLD INLET HOSE

TO WASHER

3. Momentarily turn on COLD supply and run some water into a bucket or container to clear

any contaminants in the line.

4. Remove hose kit from dryer drum and inspect hose couplings for proper placement of rubber

washers.

RUBBER WASHERS MUST BE PRESENT

6 Installation instructions

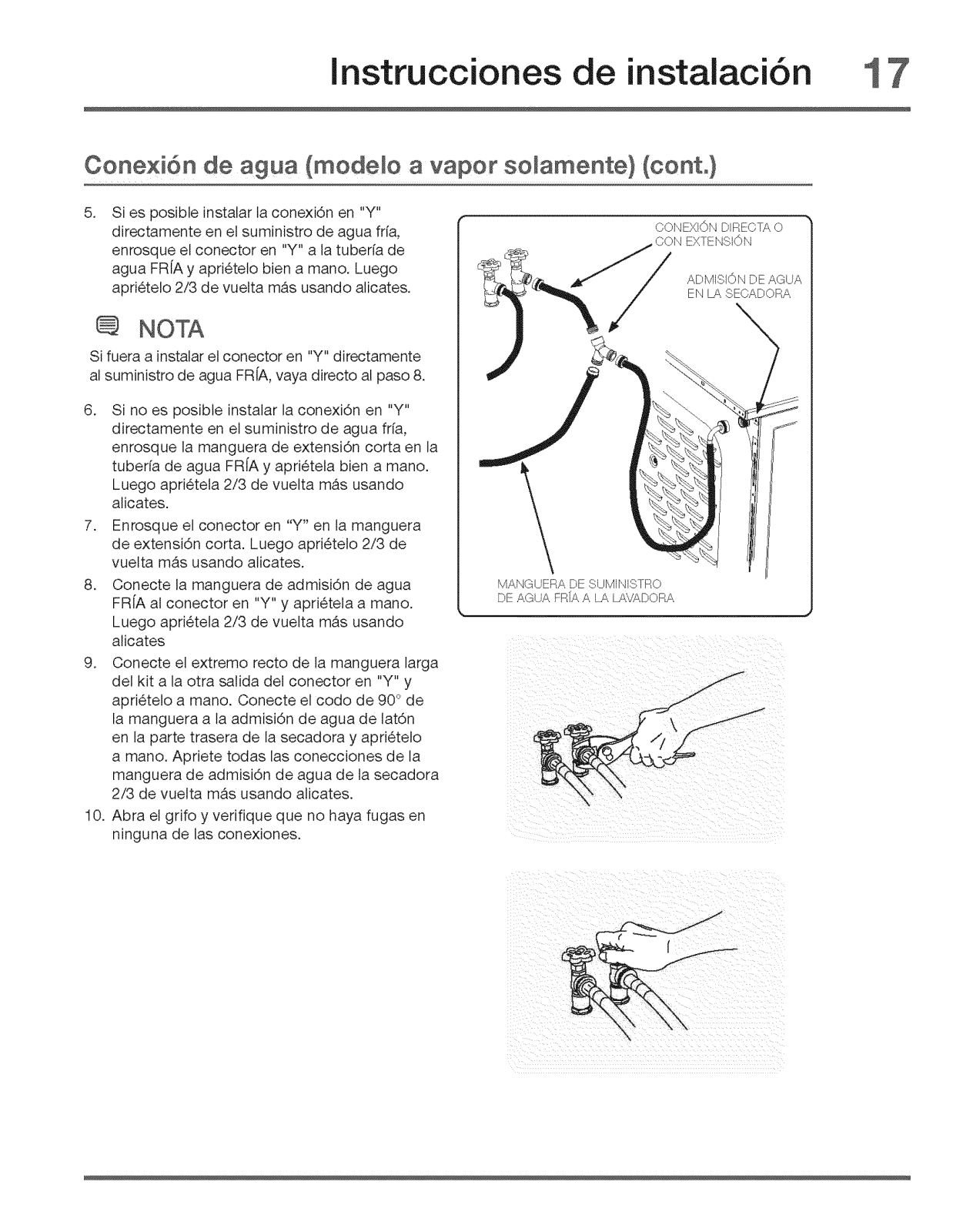

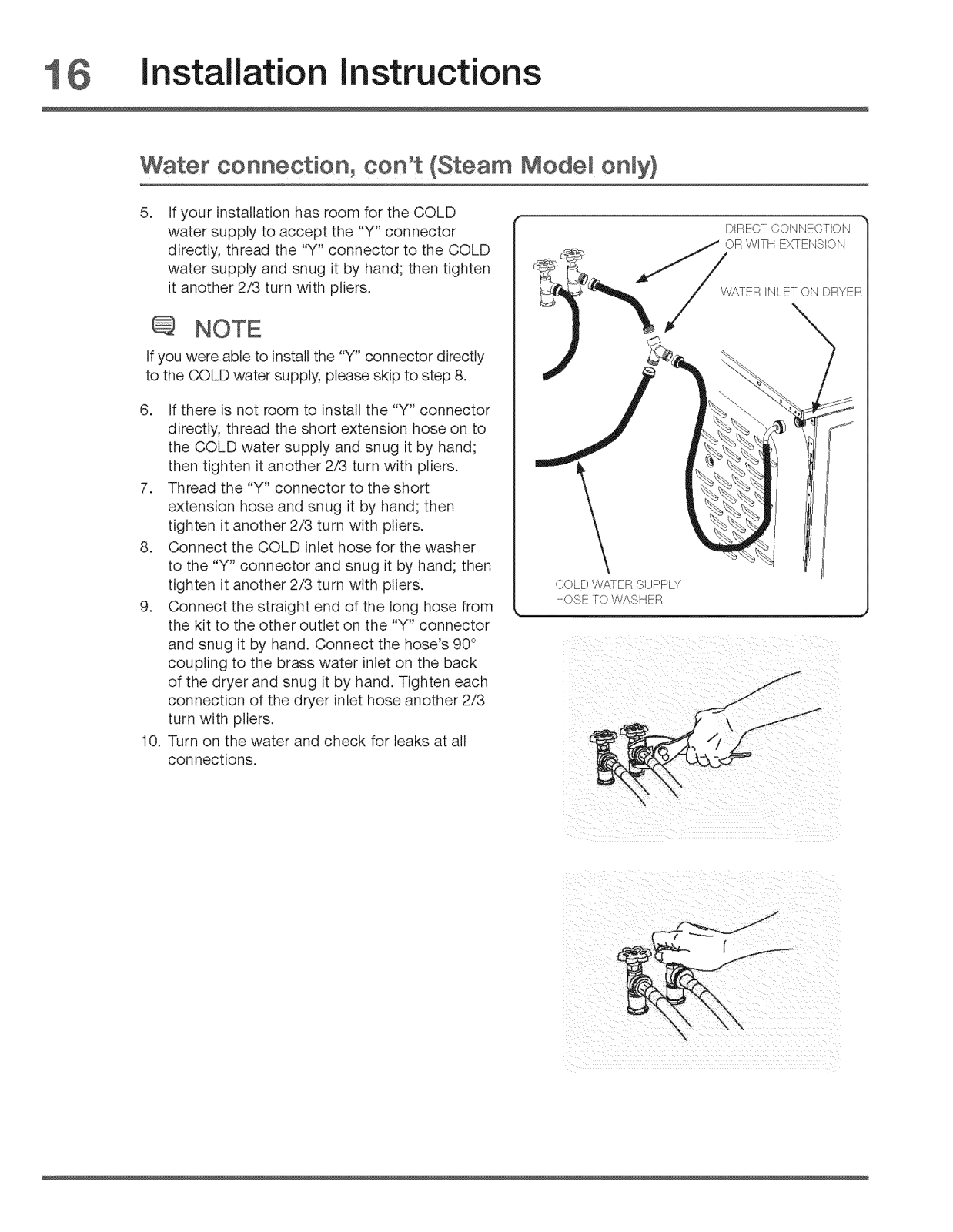

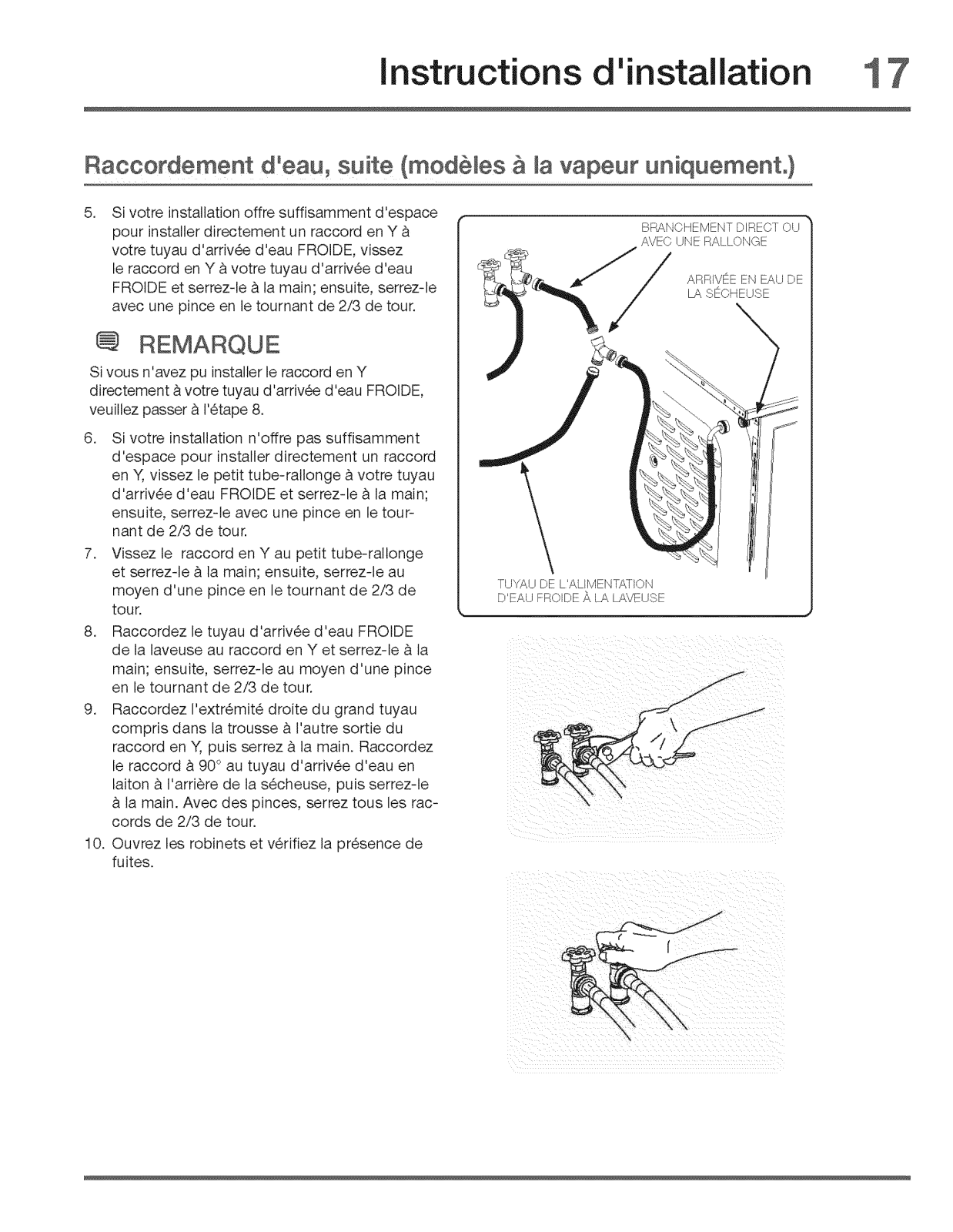

Water connection, con't (Steam Model only}

If your installation has room for the COLD

water supply to accept the "Y" connector

directly, thread tile "Y" connector to the COLD

water supply and snug it by hand; then tighten

it another 2/3 turn with pliers.

NOTE

If you were able to install the "Y" connector directly

to the COLD water supply, please skip to step 8.

6. Ifthere is not room to install the "Y" connector directly, thread the short extension hose on to

the COLD water supply and snug it by hand; then tighten it another 2/3 turn with pliers.

7. Thread the "Y" connector to the short extension hose and snug it by hand; then tighten it another 2/3 turn with pliers.

8. Connect the COLD inlet hose for the washer to the "Y" connector and snug it by hand; then

tighten it another 2/3 turn with pliers.

9. Connect the straight end of the long hose from the kit to the other outlet on the "Y" connector

and snug it by hand. Connect the hose's 90 ° coupling to the brass water inlet on the back of the dryer and snug it by hand. Tighten each connection of the dryer inlet hose another 2/3 turn with pliers.

10. Turn on the water and check for leaks at all connections.

DIREOT OONNEOTION

OR WiTH EXTENSION

WATER INLET ON DRYER

OOLD WATER SUPPL"f_

L OHOoE TO WASHER

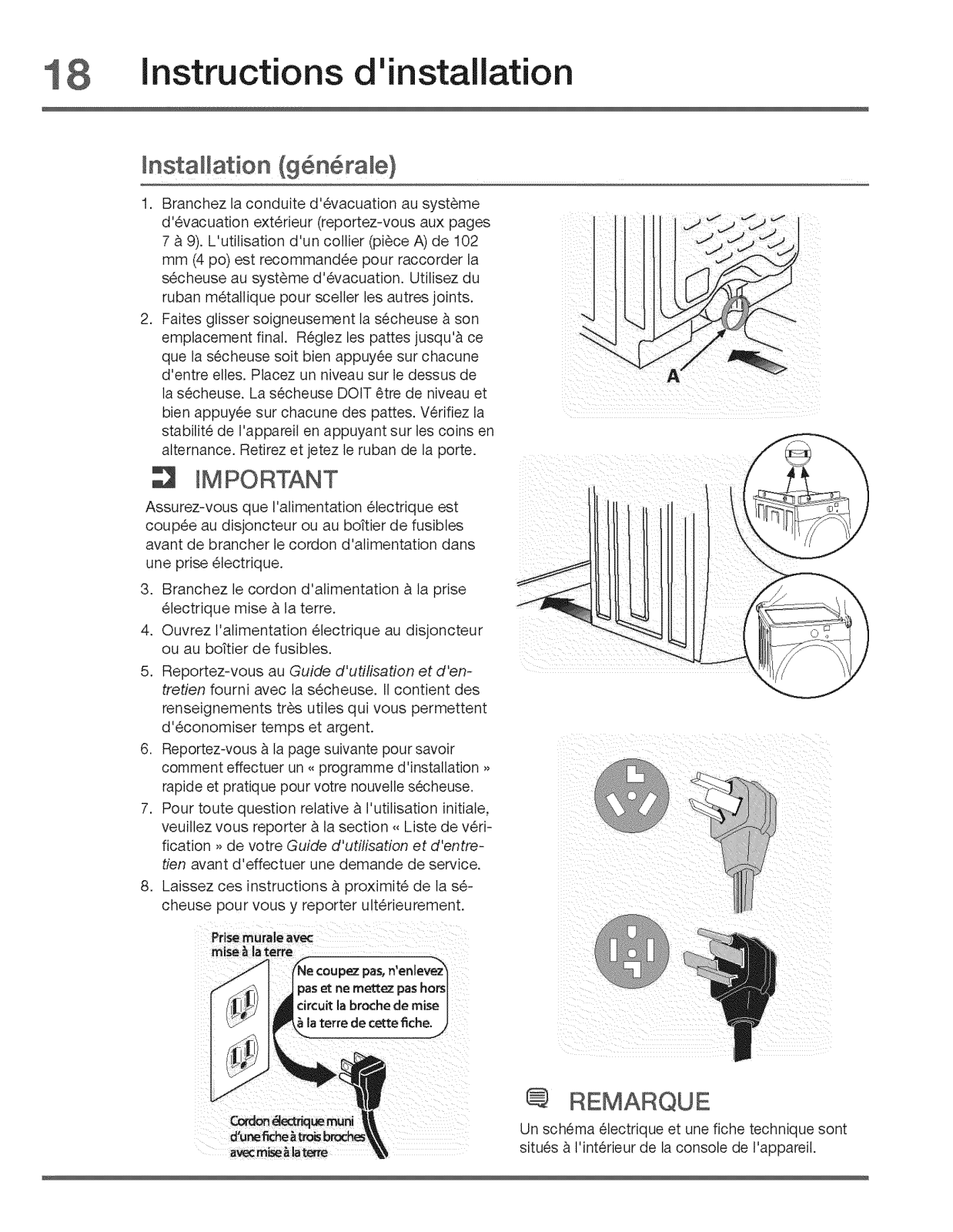

General installation

Connect the exhaust duct to the outside exhaust system (see pages 5 through 7). Use of a 4" (102

mm) clamp (item A) is recommended to connect

the dpjer to the exhaust vent system. Use metal foil tape to seal all other joints.

Carefully slide the dryer to its final position.

Adjust one or more of the legs until the dryer is

resting solidly on all four legs. Place a level on

top of the dryer. The dryer MUST be level and

resting solidly on all four legs. Rock alternating corners to check for stability. Remove and discard door tape.

IMPORTANT

Be sure the power is off at a circuit breaker/fuse box before plugging the power cord into an outlet.

installation instructions 7

3. Plug the power cord into a grounded outlet.

4. Turn on the power at the circuit breaker/fuse box.

5. Read the Use & Care Guide provided with

the dryer. It contains valuable and helpful

information that will save you time and money.

6. See the next page about performing a brief, helpful "installation Cycle" for your new dryer.

7. If you have any questions during initial operation, please review the "Avoid Service

Checklist" in your Use & Care Guide before

calling for service.

8. Place these instructions in a location near the dryer for future reference.

NOTE

A wiring diagram and technical data sheet are located inside the dryer console.

Installation instructions

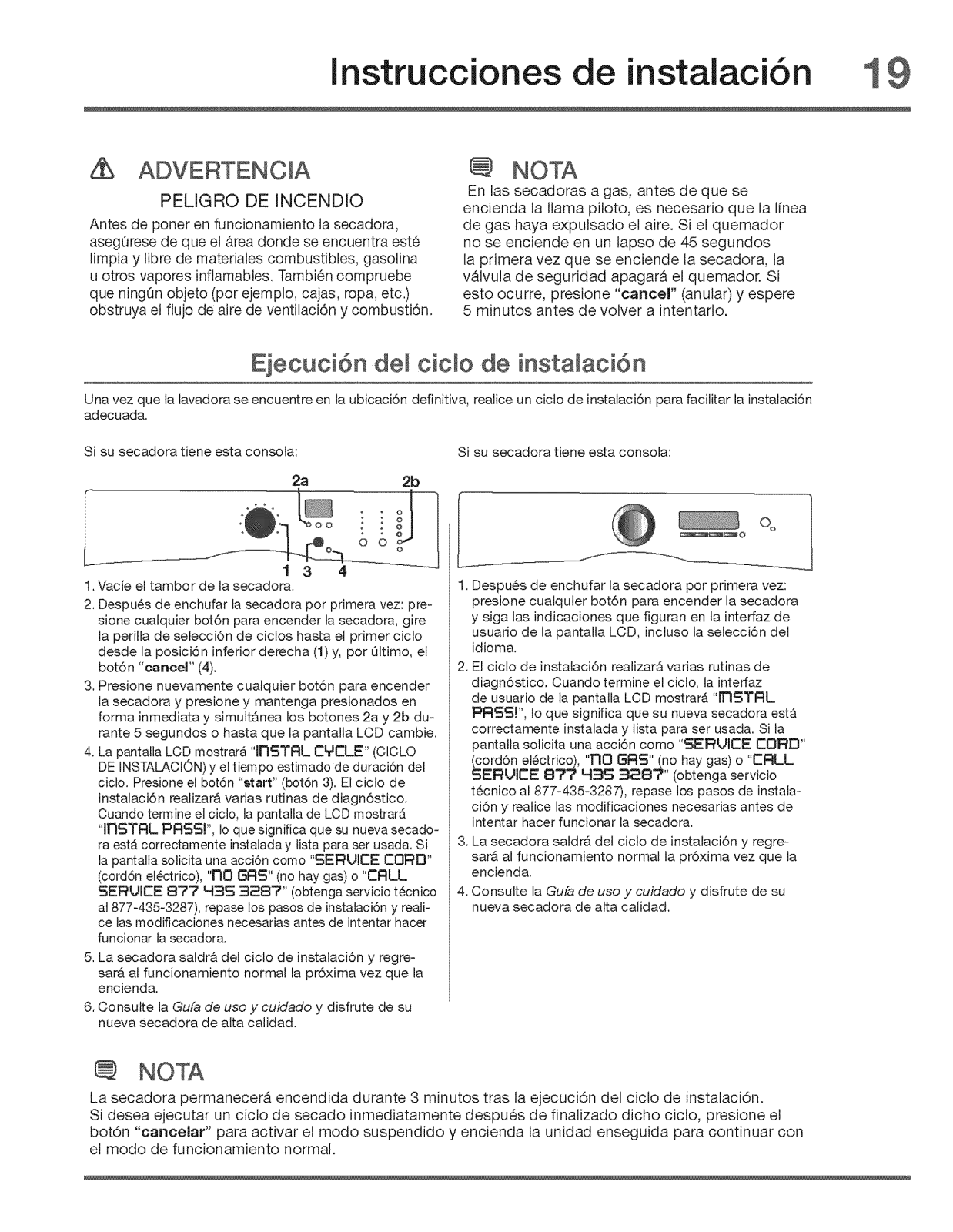

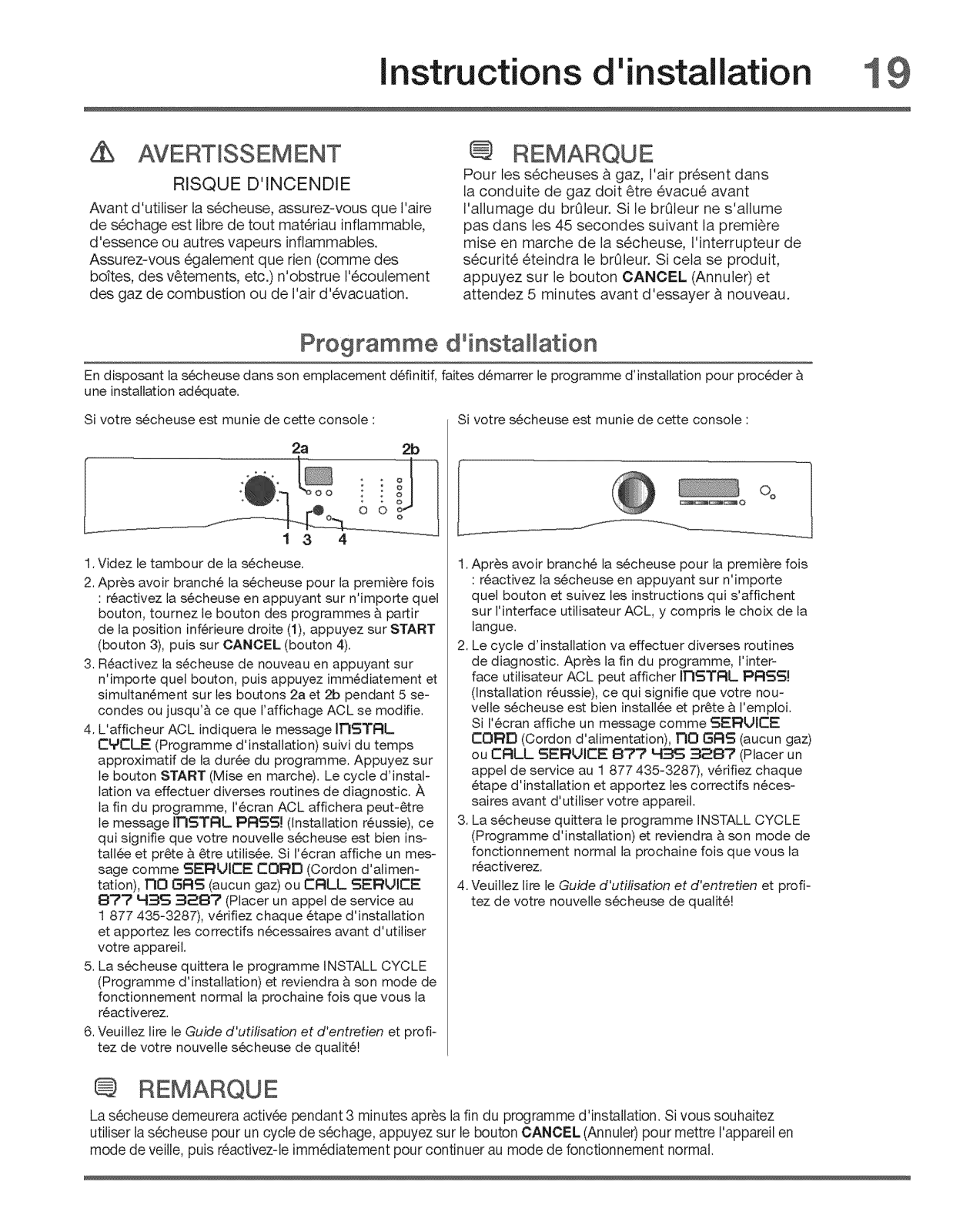

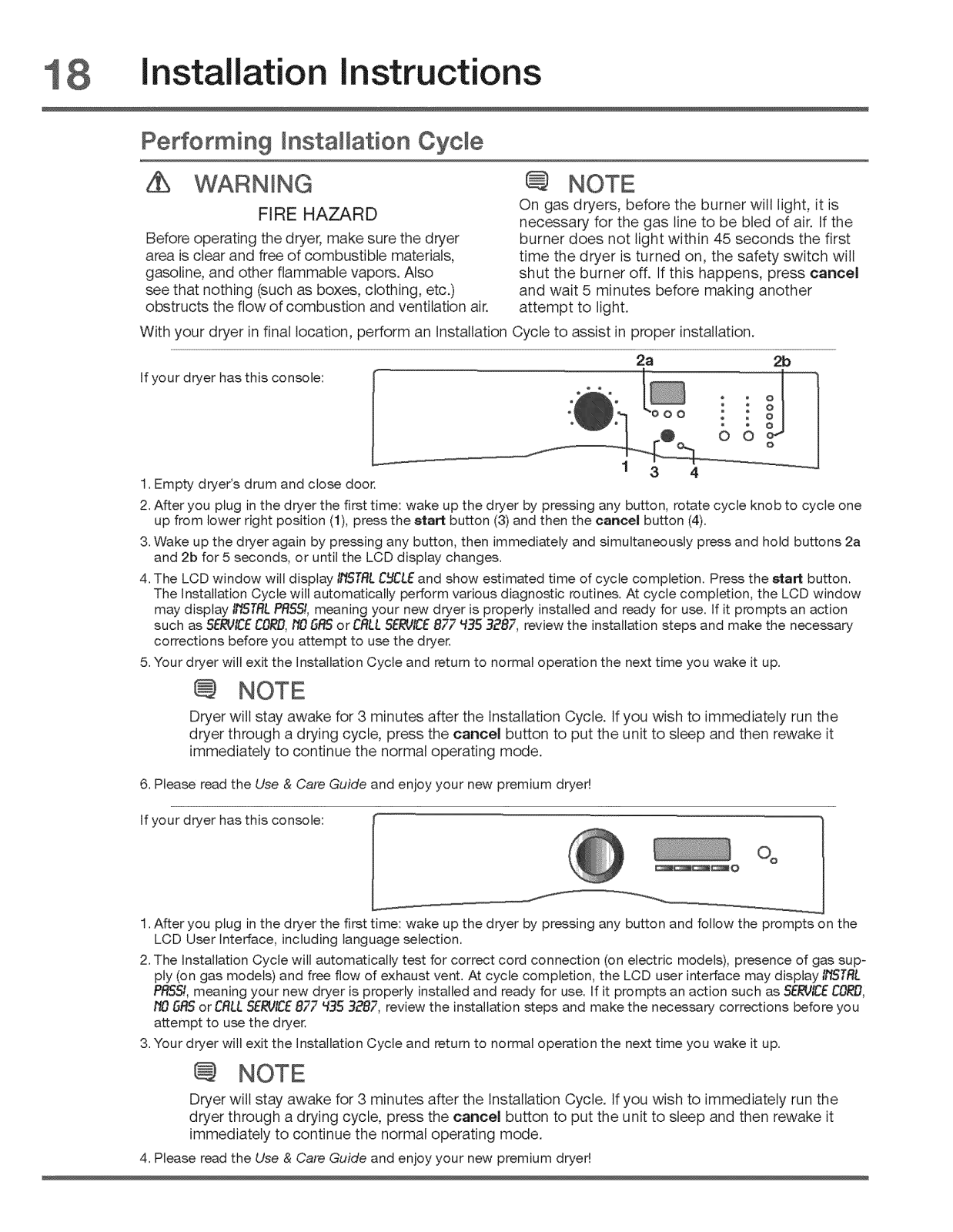

Performing lnstalJation Cycle

NOTE

FIRE HAZARD

Before operating the dryer, make sure the dryer

area is clear and free of combustible materials, gasoline, and other flammable vapors. Also

see that nothing (such as boxes, clothing, etc.) obstructs the flow of combustion and ventilation air.

With your dryer in final location, perform an installation Cycle to assist in proper installation.

If your dryer has this console:

On gas dryers, before the burner wilt light, it is necessary for the gas line to be bled of air. If the burner does not light within 45 seconds the first time the dryer is turned on, the safety switch will shut the burner off. If this happens, press cancel and wait 5 minutes before making another attempt to light.

2a 2b

Empty dryer's drum and close door.

After you plug inthe dryer the first time: wake up the dryer by pressing any button, rotate cycle knob to cycle one up from lower right position (1), press the 8tart button (3) and then the cancel button (4).

3.Wake up the dryer again by pressing any button, then immediately and simultaneously press and hold buttons 2a and 2b for 5 seconds, or until the LCD display changes.

4. The LCD window will display II1STRLCYCLEand show estimated time of cycle completion. Press the start button. The Installation Cycle will automatically perform various diagnostic routines. At cycle completion, the LCD window

may display ItfSTRLPRSS_,meaning your new dryer is properly installed and ready for use. If it prompts an action such as SER_JICECORD,NB 5RS or CRLLSE_JtCE877 ff35 32B7, review the installation steps and make the necessary

corrections before you attempt to use the dryer.

5,Your dryer will exit the Installation Cycle and return to normal operation the next time you wake it up,

3 4

Dryer will stay awake for 3 minutes after the Installation Cycle. tf you wish to immediately run the dryer through adrying cycle, press the cancel button to put the unit to sleep and then rewake it

immediately to continue the normal operating mode.

6. Please read the Use & Care Guide and enjoy your new premium dryer!

If your dryer has this console:

__O

1.After you plug in the dryer the first time: wake up the dryer by pressing any button and follow the prompts on the LCD User Interface, including language selection.

2.The Installation Cycle will automatically test for correct cord connection (on electric models), presence of gas sup- ply (on gas models) and free flow of exhaust vent. At cycle completion, the LCD user interface may display INSTRL

PRSSI,meaning your new dryer is properly installed and ready for use. If it prompts an action such as SE_:_JfCECORD; fro 6RSor CRLLSERI21CE877 ff35 3287, review the installation steps and make the necessary corrections before you

attempt to use the dryer,

3.Your dryer will exit the Installation Cycle and return to normal operation the next time you wake it up,

NOTE

Dryer will stay awake for 3 minutes after the Installation Cycle. tf you 'wish to immediately run the dryer through a drying cycle, press the cancel button to put the unit to sleep and then rewake it immediately to continue the normal operating mode.

4. Please read the Use & Care Guide and enjoy your new premium dryer!

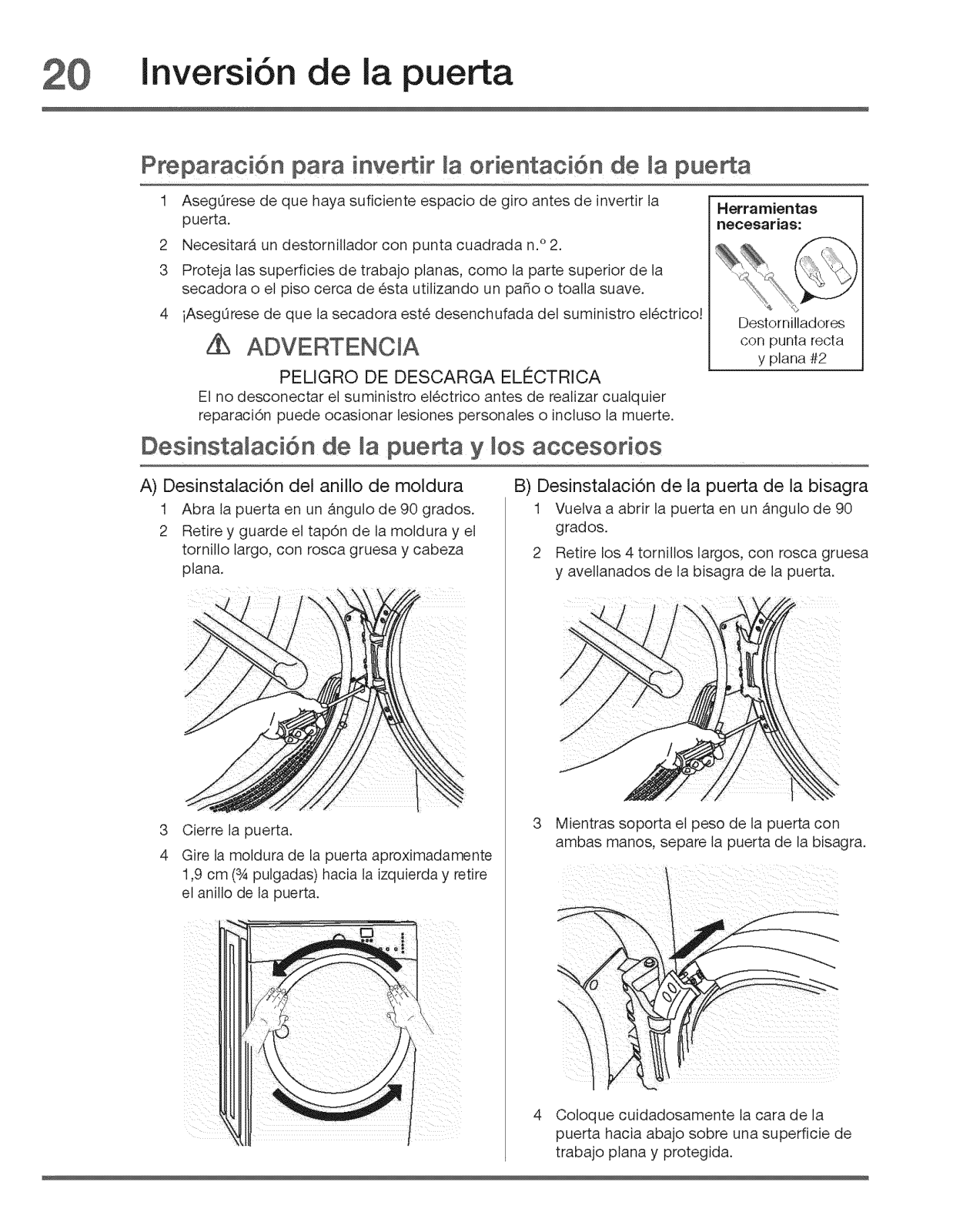

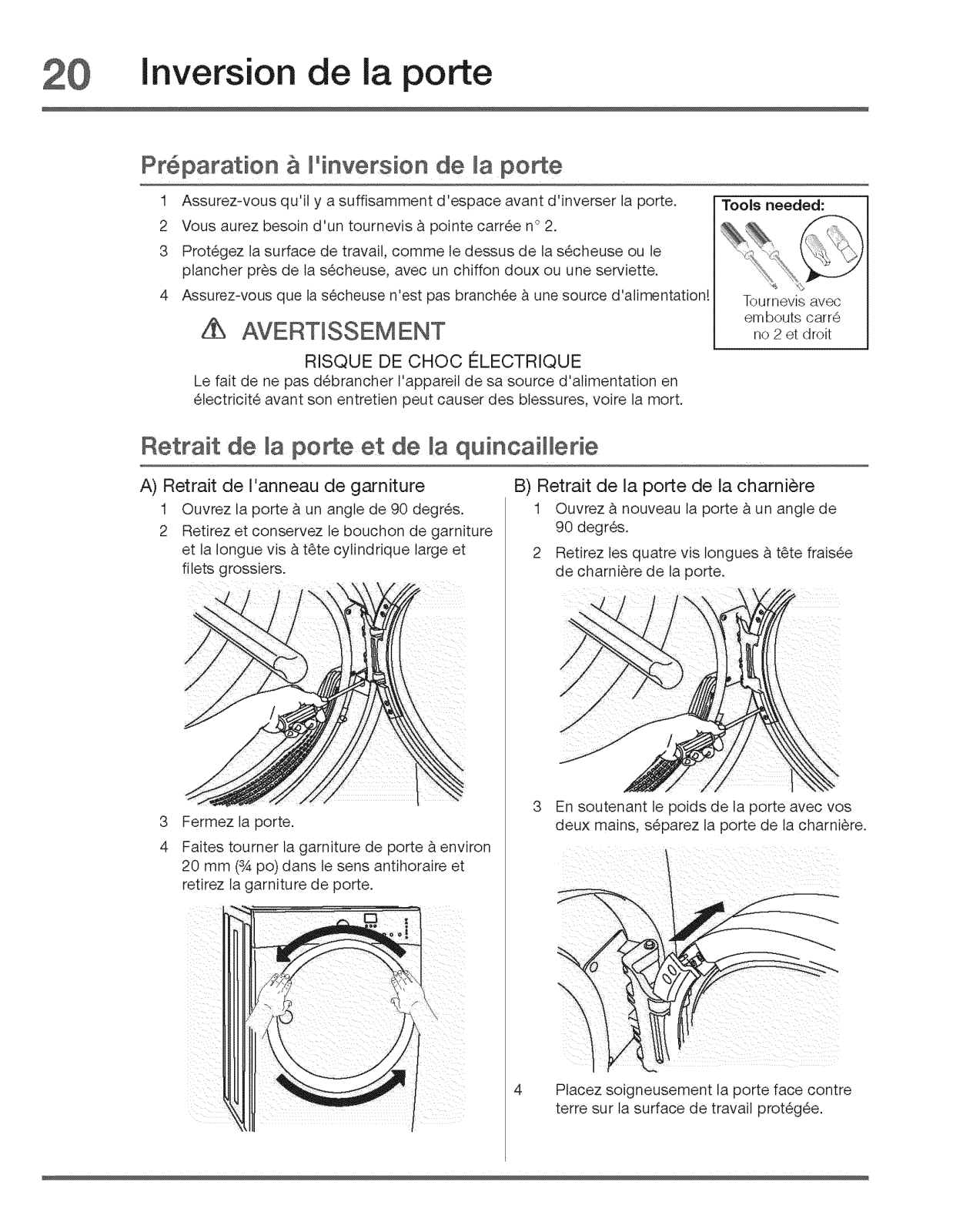

Preparing to reverse door swing

Reversing Door 9

1 Be sure you have adequate swing area before reversing door.

2 You will need a screw driver with a #2 square bit. 3 Protect flat work surface, such as top of dryer or floor near dryer,

with a soft cloth or towel.

4 Be sure dryer is unplugged from power source!

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

Removing door and hardware

A) Removing Trim Ring

1 Open door to 90 degree angle.

2 Remove and save trim plug and long,

course-thread, panhead screw.

B) Removing Door from Hinge

1 Reopen door to 90 degree angle. 2 Remove 4 tong, course-thread, counter-sunk

hinge screws from door.

Tools needed:

Screwdrivers with

#2 square &

straight bit

34Close door.

Rotate door trim approximately 3A"counter- clockwise and pull ring away from door.

While supporting the weight of the door with both hands separate the door from the hinge.

4 Gently place door face down on flat, covered

work surface.

Reversing Door

Reversin9 door and hardware

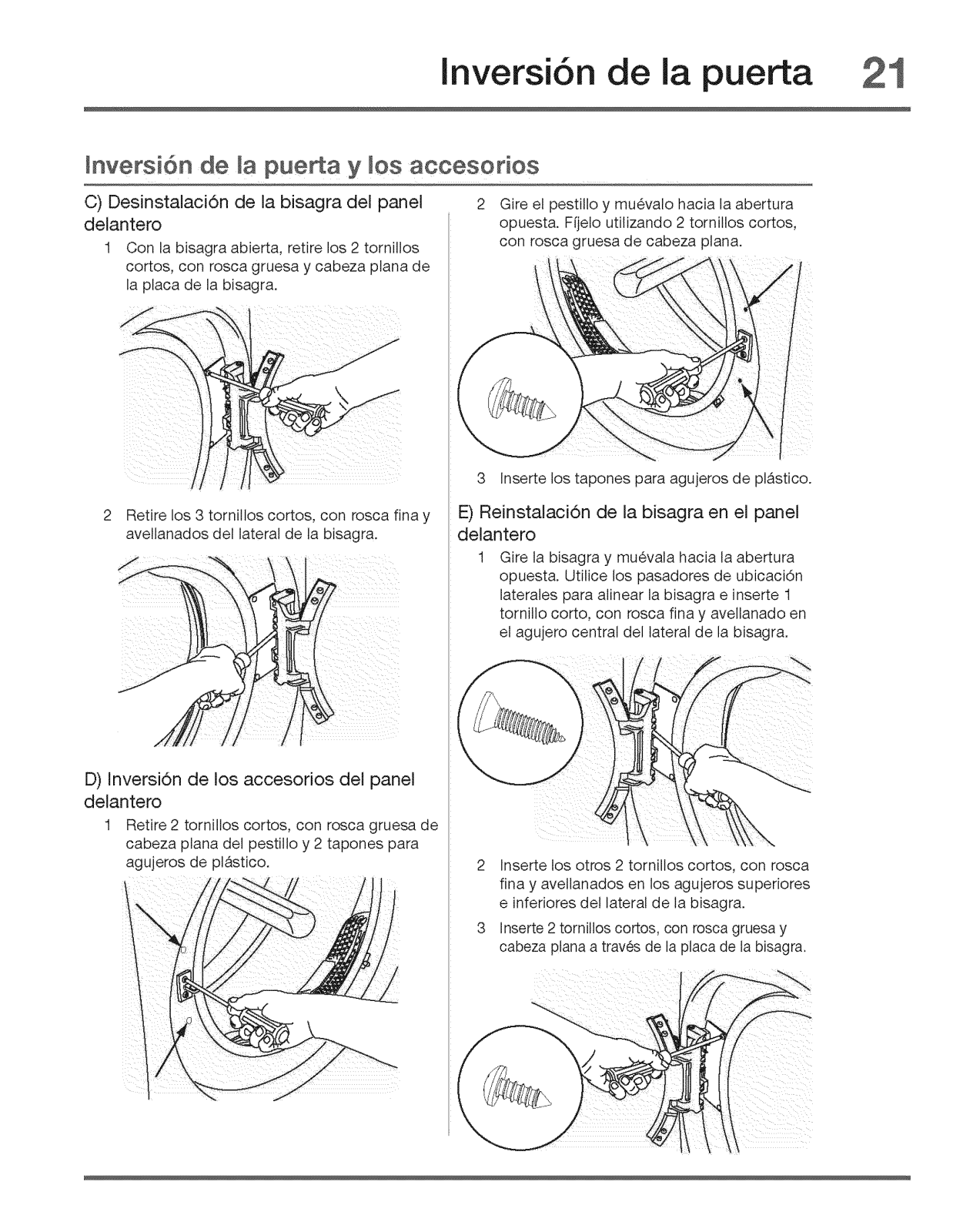

C) Removing Hinge from Front Panel

1 With the hinge in open position, remove 2

short, course-thread, panhead screws on hinge plate.

Remove 3 short, fine-thread, counter-sunk screws in hinge side.

Rotate striker and move to opposite

opening. Attach with 2 short, course-thread,

panhead screws.

3 Install plastic hole plugs.

E) Reattaching Hinge to Front Panel

1 Rotate the hinge and move it to the opposite

opening. Use the side locating pins to align the

hinge and install 1 short, fine-thread, counter-

sunk screw inthe center hole of hinge side.

D) Reversing Hardware on Front Panel

1 Remove 2 short, course-thread, panhead

screws from striker and 2 plastic hole plugs.

2 Install the other 2 short, fine-thread, counter-

sunk screws in the upper and lower holes of

hinge side.

3 Install 2 short, course-thread, panhead

screws through hinge plate.

Reversing Door 21

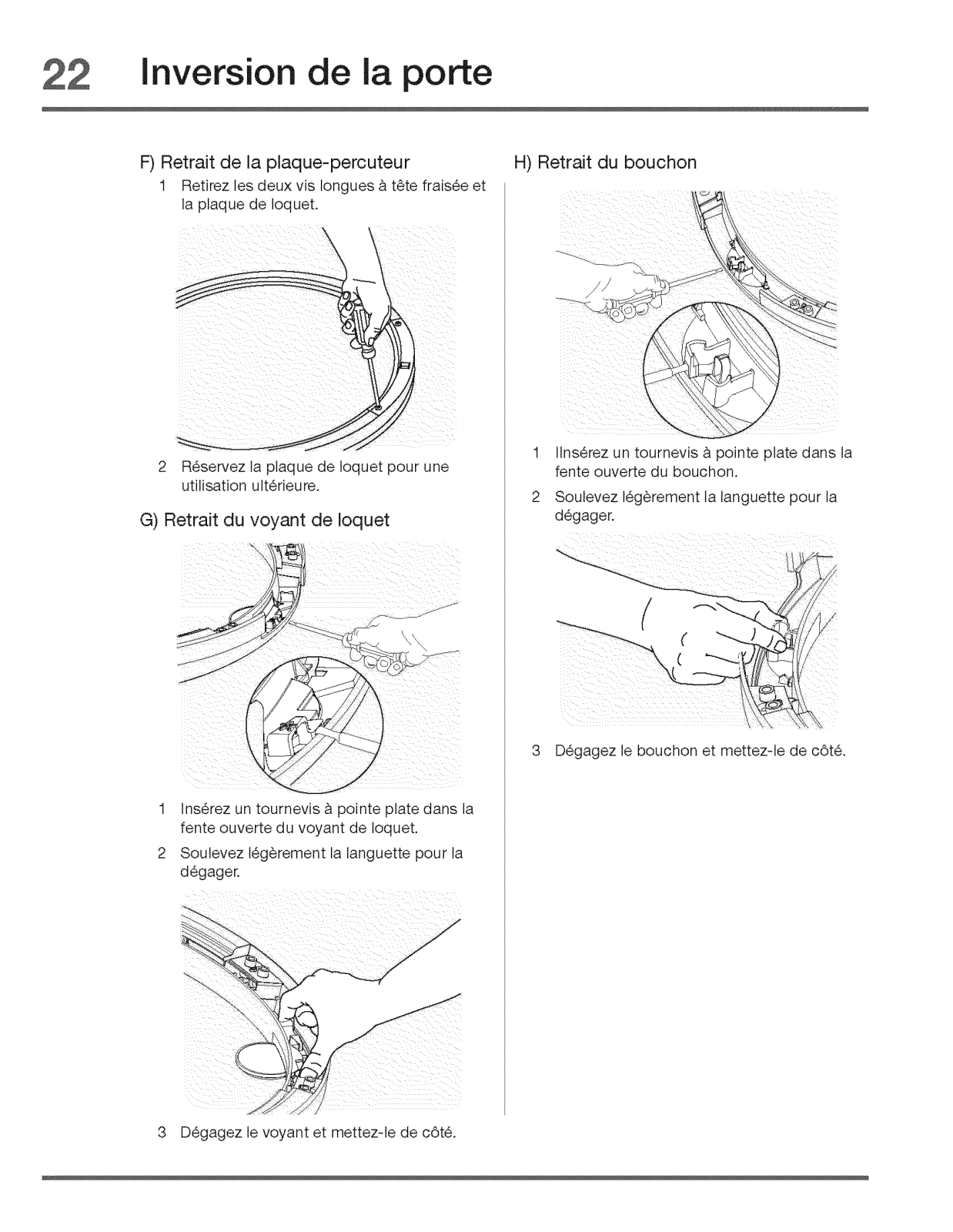

F) Removing Striker Plate

1 Remove 2 long, course-thread, counter-sunk

screws and latch plate.

2 Set the latch plate to the side for later.

G) Removing Latch Indicator

H) Removing Hole Plug

1 Insert flat blade screwdriver into open slot of

hole plug.

2 Gently pry upward to release tab.

insert flat blade screwdriver into open slot of latch indicator.

2 Gently pry upward to release tab.

3 Pull the indicator out and set it aside.

3 Pull the hole plug out and set it aside.

22 Reversing Door

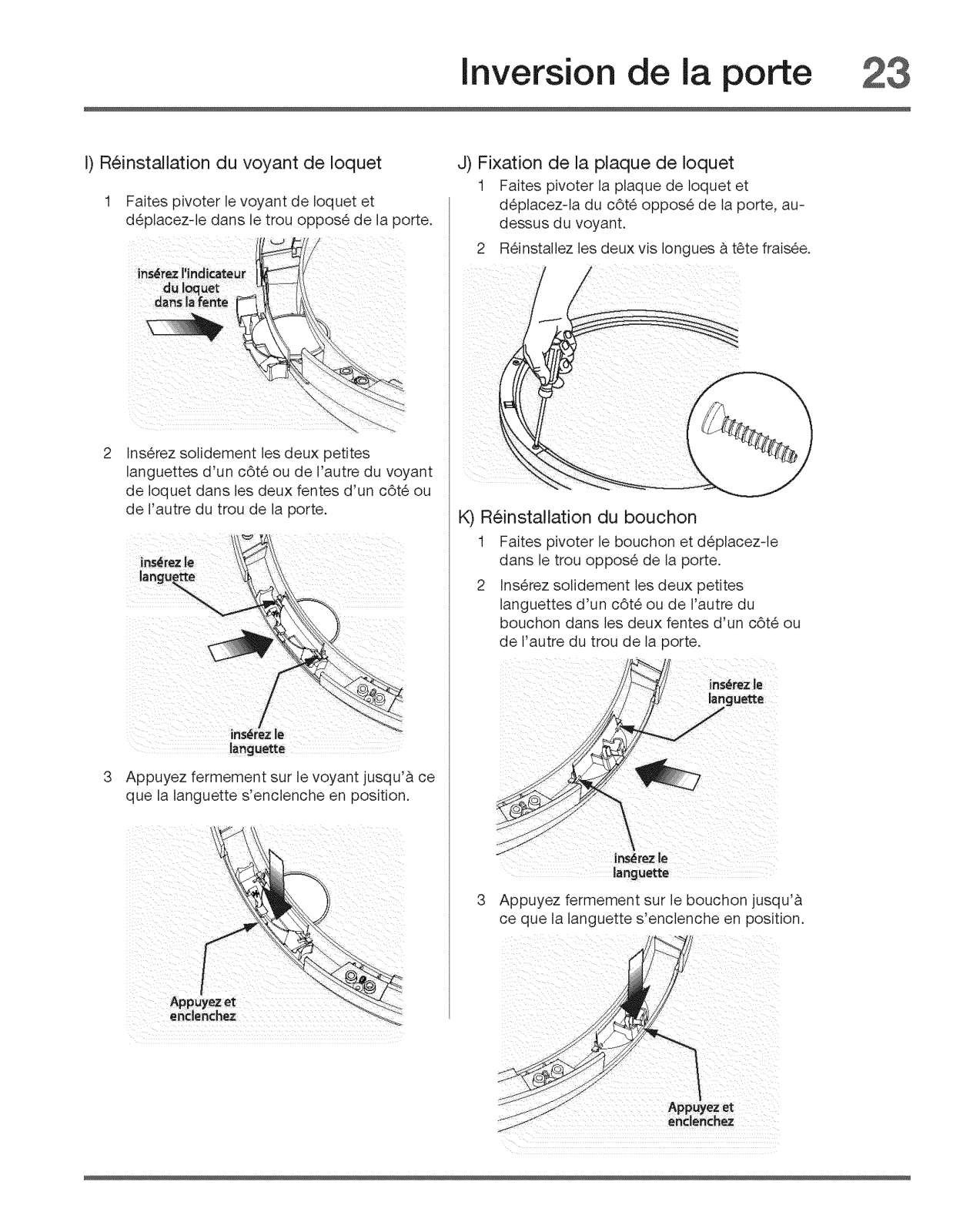

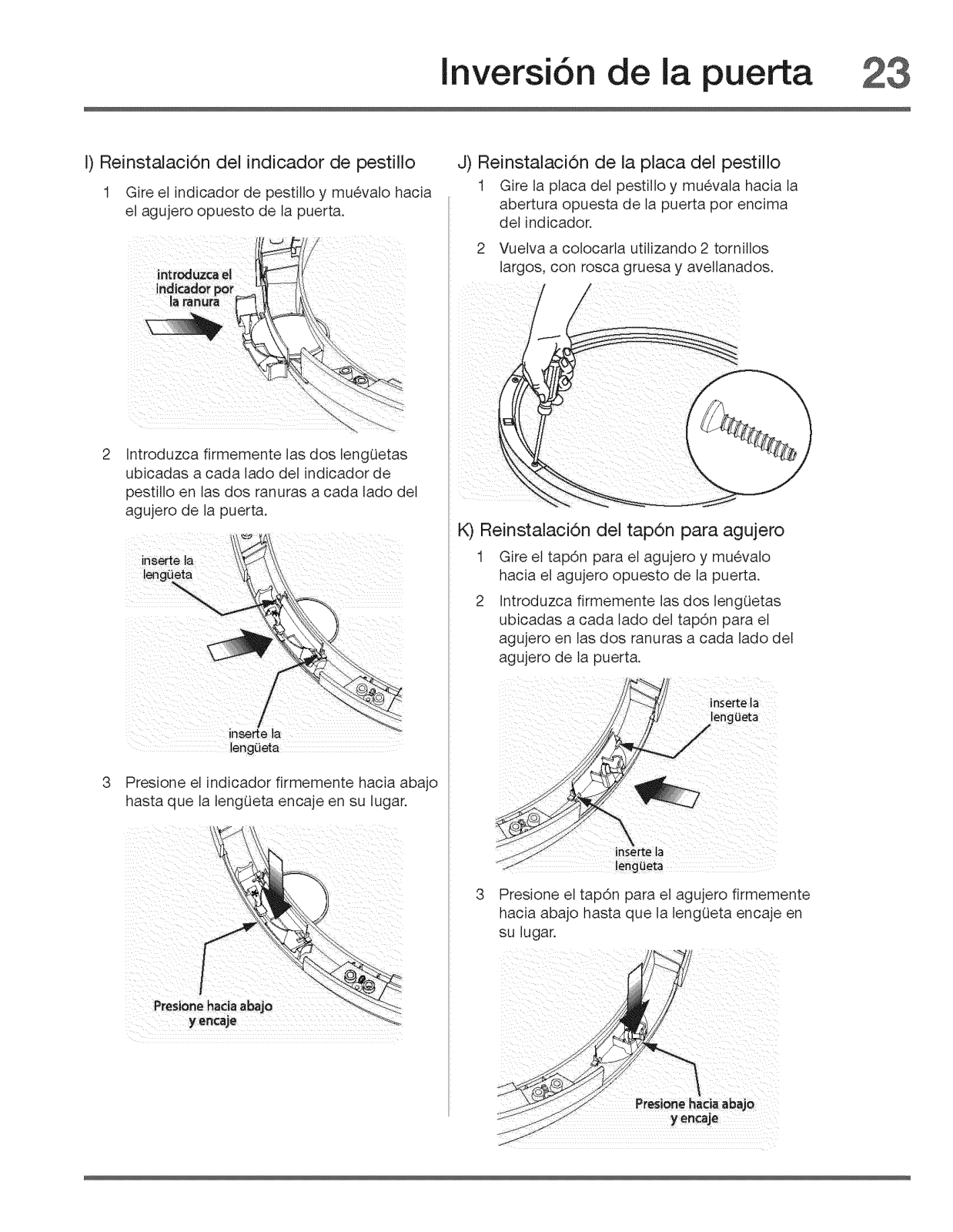

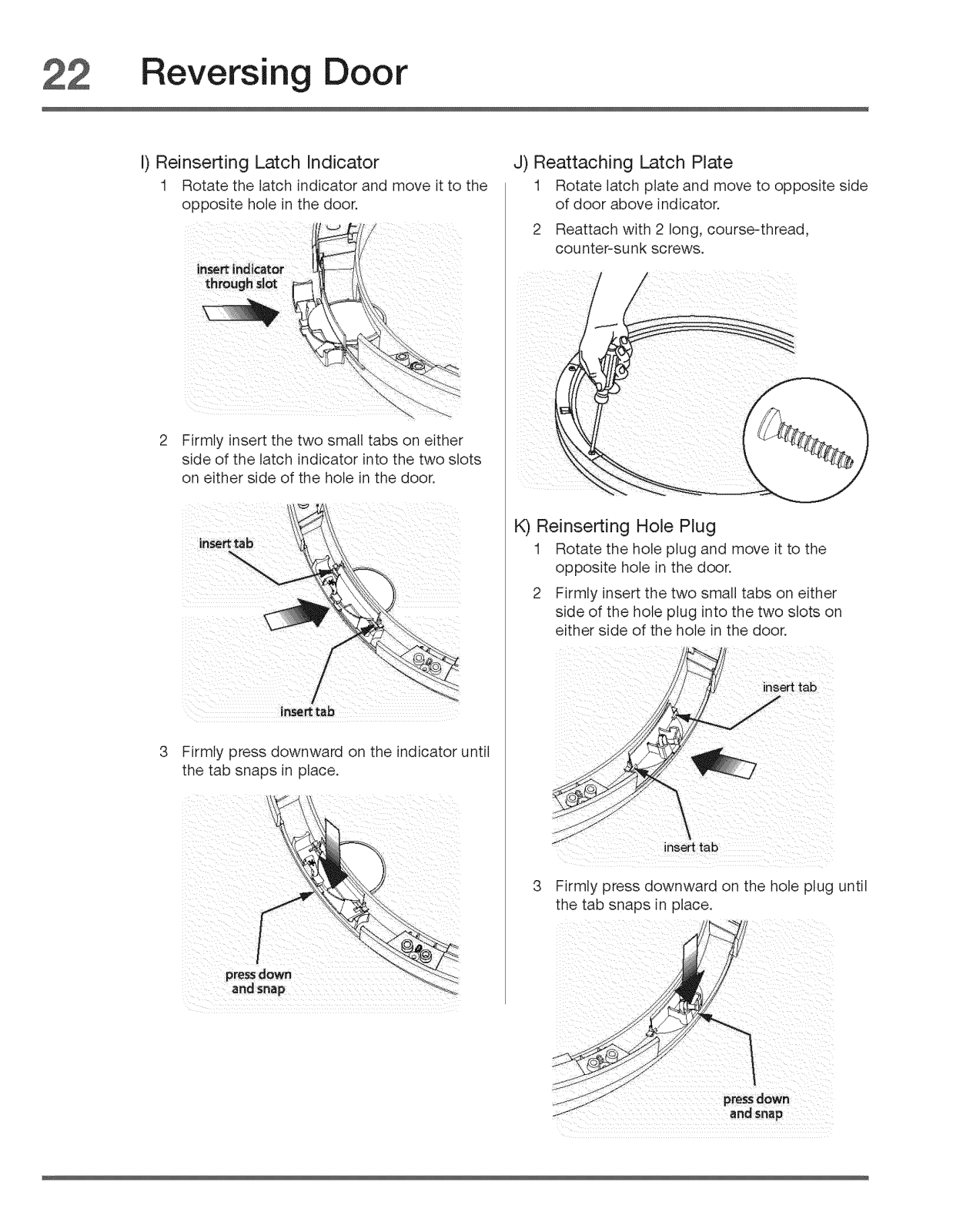

I) Reinserting Latch Indicator

1 Rotate the latch indicator and move it to the

opposite hole in the door.

insertindicator

through slot

2 Firmly insert the two small tabs on either

side of the latch indicator into the two slots on either side of the hole in the door.

J) Reattaching Latch Plate

1 Rotate latch plate and move to opposite side

of door above indicator.

2 Reattach with 2 long, course-thread,

counter-sunk screws.

K) Reinserting Hole Plug

1 Rotate the hole plug and move it to the

opposite hole in the door.

2 Firmly insert the two small tabs on either

side of the hole plug into the two slots on either side of the hole in the door.

inserttab

3 Firmly press downward on the indicator until

the tab snaps in place.

pressdown

andsnap

insertta5

inserttab

3 Firmly press downward on the hole plug until

the tab snaps in place.

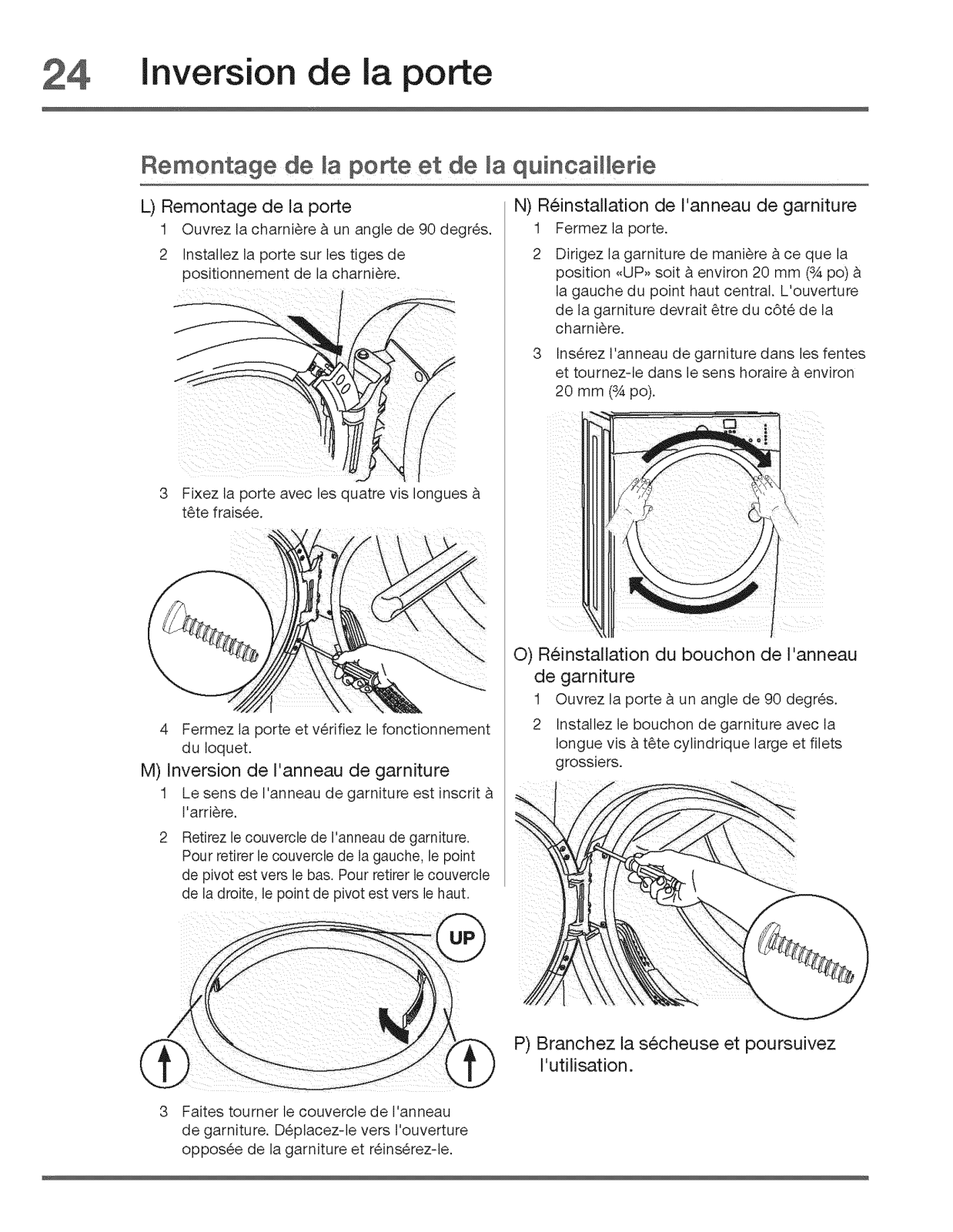

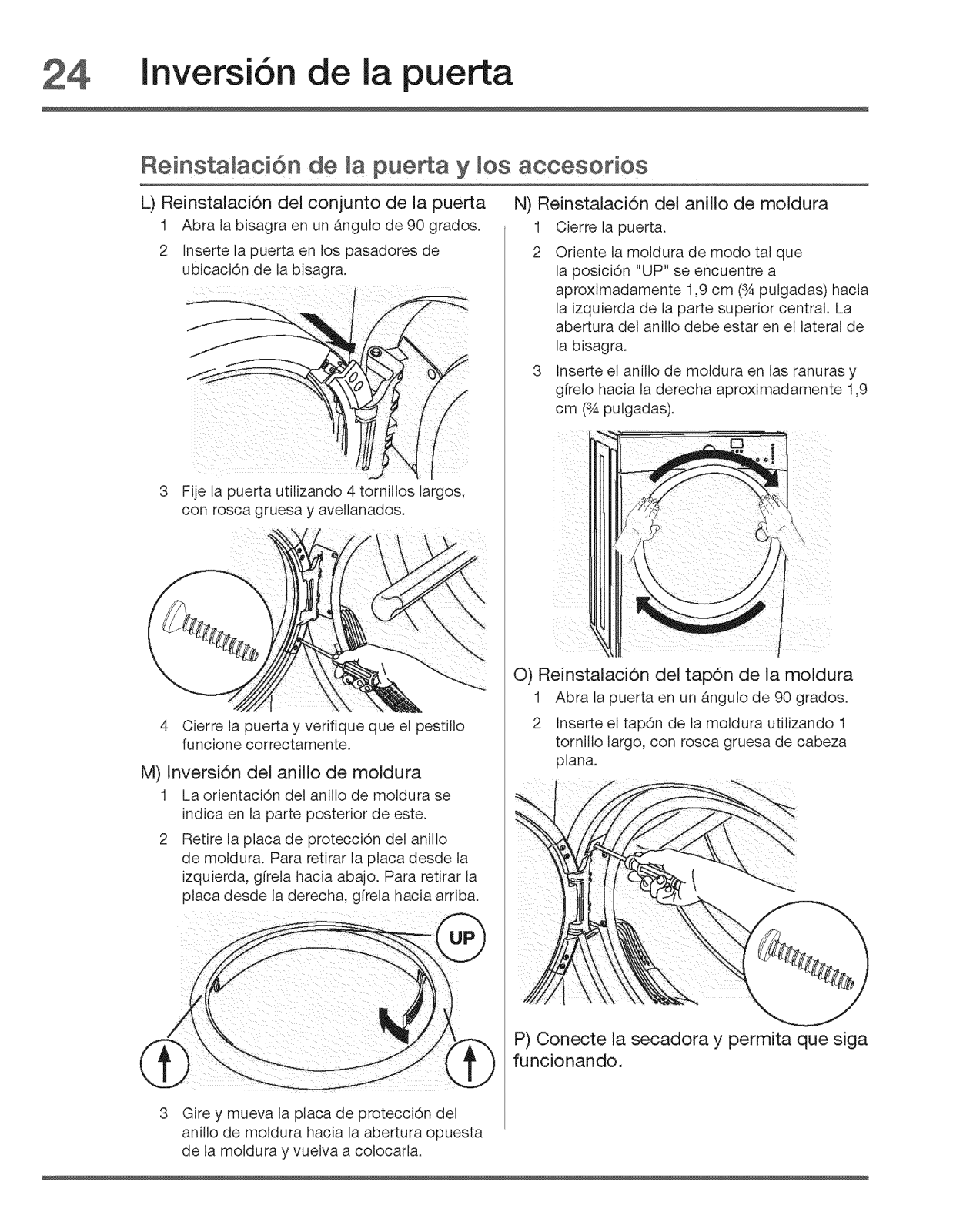

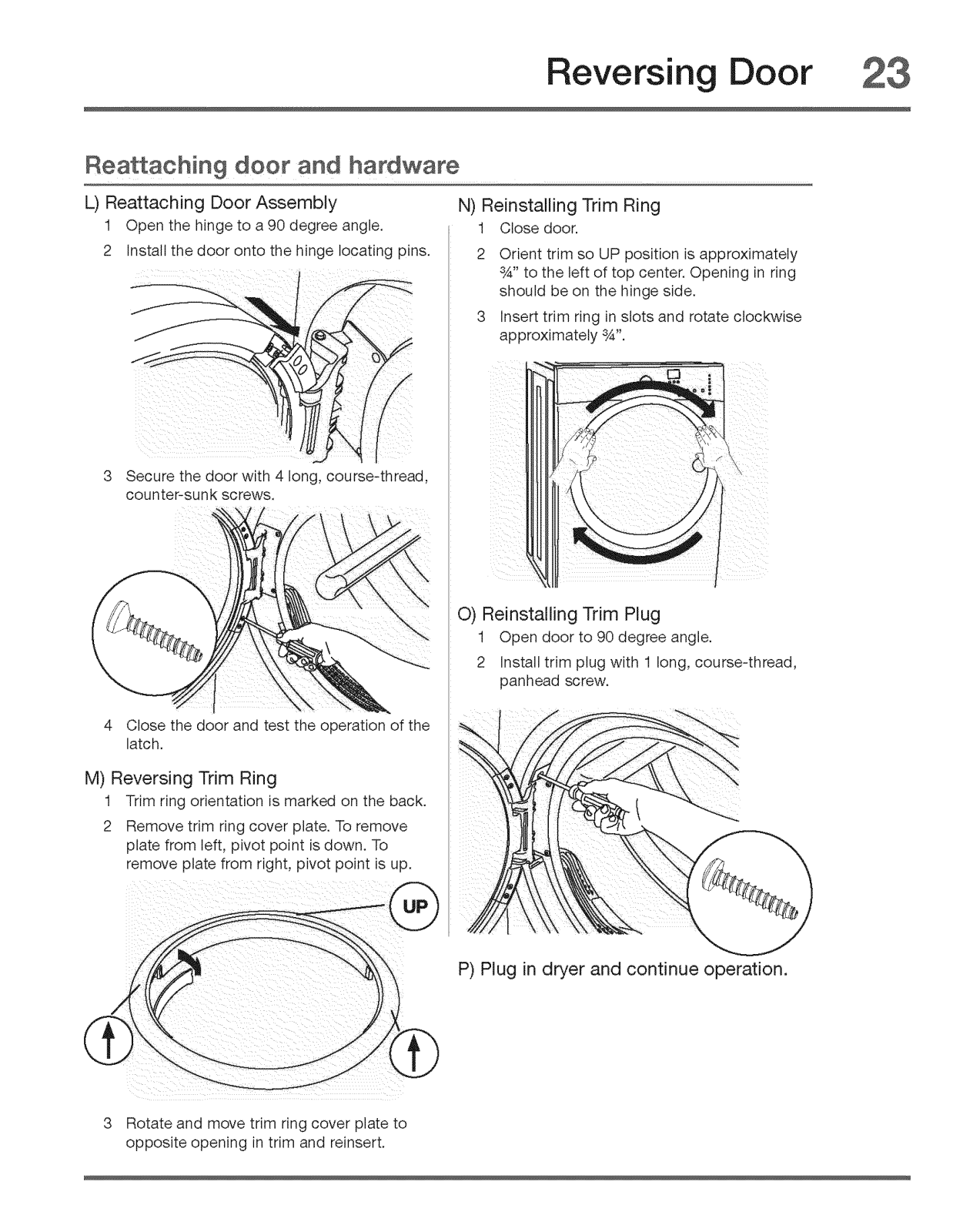

Reattaching door and hardware

Reversing Door 23

L) Reattaching Door Assembly

1 Open the hinge to a 90 degree angle.

2 Install the door onto the hinge locating pins.

3 Secure the door with 4 long, course-thread,

counter-sunk screws.

N) Reinstalling Trim Ring

1 Close door.

2 Orient trim so UP position is approximately

3A"to the left of top center. Opening in ring should be on the hinge side.

3 Insert trim ring in slots and rotate clockwise

approximately 3A".

O) Reinstalling Trim Plug

1 Open door to 90 degree angle.

2 Install trim plug with 1 long, course-thread,

panhead screw.

4 Close the door and test the operation of the

latch.

M) Reversing Trim Ring

1 Trim ring orientation is marked on the back.

2 Remove trim ring cover plate. To remove

plate from left, pivot point is down. To remove plate from right, pivot point is up.

3 Rotate and move trim ring cover plate to

opposite opening in trim and reinsert.

P) Plug in dryer and continue operation.

+ 53 hidden pages
