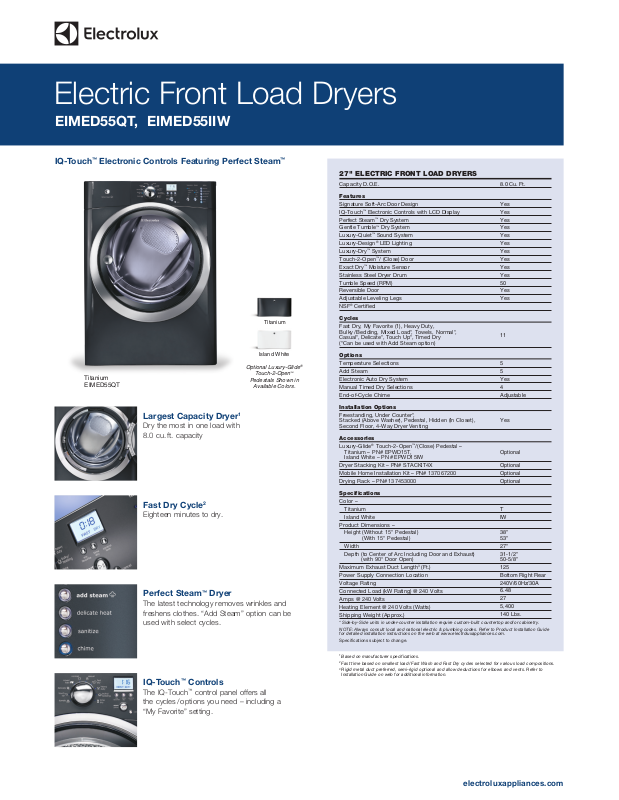

Electrolux EIMED55QT, EIMED55IIW Specification Sheet

Electric Front Load Dryers

EIMED55QT, EIMED55IIW

IQ-Touch™ Electronic Controls Featuring Perfect Steam™

	Titanium
	Island White
	Optional Luxury-Glide®
Titanium	Touch-2-Open™
Titanium	Pedestals Shown in
EIMED55QT	Available Colors.

Largest Capacity Dryer1

Dry the most in one load with 8.0 cu. ft. capacity

Fast Dry Cycle2

Eighteen minutes to dry.

Perfect Steam™ Dryer

The latest technology removes wrinkles and freshens clothes. “Add Steam” option can be used with select cycles.

IQ-Touch™ Controls

The IQ-Touch™ control panel offers all the cycles / options you need – including a “My Favorite” setting.

27" ELECTRIC FRONT LOAD DRYERS

	Capacity D.O.E.	8.0 Cu. Ft.
	Features
	Signature Soft-Arc Door Design	Yes
	IQ-Touch™ Electronic Controls with LCD Display	Yes
	Perfect Steam™ Dry System	Yes
	Gentle Tumble™ Dry System	Yes
	Luxury-Quiet™ Sound System	Yes
	Luxury-Design® LED Lighting	Yes
	Luxury-Dry™ System	Yes
	Touch-2-Open™/ (Close) Door	Yes
	Exact Dry™ Moisture Sensor	Yes
	Stainless Steel Dryer Drum	Yes
	Tumble Speed (RPM)	50
	Reversible Door	Yes
	Adjustable Leveling Legs	Yes
	NSF® Certified
	Cycles
	Fast Dry, My Favorite (1), Heavy Duty,
	Bulky / Bedding, Mixed Load, Towels, Normal,	11
	Casual, Delicate, Touch Up*, Timed Dry	11
	Casual, Delicate, Touch Up*, Timed Dry
	(*Can be used with Add Steam option)
	Options
	Temperature Selections	5
	Add Steam	5
	Electronic Auto Dry System	Yes
	Manual Timed Dry Selections	4
	End-of-Cycle Chime	Adjustable
	Installation Options
	Freestanding, Under Counter*,
	Stacked (Above Washer), Pedestal, Hidden (In Closet),	Yes
	Second Floor, 4-Way Dryer Venting
	Accessories
	Luxury-Glide® Touch-2-Open™/(Close) Pedestal –
	Titanium – PN # EPWD15T,	Optional
	Island White – PN # EPWD15IW
	Dryer Stacking Kit – PN# STACKIT4X	Optional
	Mobile Home Installation Kit – PN# 137067200	Optional
	Drying Rack – PN# 137453000	Optional
	Specifications
	Color –
	Titanium	T
	Island White	IW
	Product Dimensions –
	Height (Without 15" Pedestal)	38"
	(With 15" Pedestal)	53"
	Width	27"
	Depth (to Center of Arc Including Door and Exhaust)	31-1/2"
	(with 90° Door Open)	50-5/8"
	Maximum Exhaust Duct Length3 (Ft.)	125
	Power Supply Connection Location	Bottom Right Rear
	Voltage Rating	240V/60Hz/30A
	Connected Load (kW Rating) @ 240 Volts	6.48
	Amps @ 240 Volts	27
	Heating Element @ 240 Volts (Watts)	5,400
	Shipping Weight (Approx.)	140 Lbs.

* Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.

NOTE: Always consult local and national electric & plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at www.electroluxappliances.com.

Specifications subject to change.

1 Based on manufacturer specifications.

2 Fast time based on smallest load / Fast Wash and Fast Dry cycles selected for various load compositions.

3 Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows and vents. Refer to Installation Guide on web for additional information.

electroluxappliances.com

Electric Front Load Dryers

EIMED55QT, EIMED55IIW

Electric Dryer Specifications

•Product Weight – 130 Lbs.

•Voltage Rating –240V/60Hz/30 Amps

•Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line. (Do not use same circuit as washer.)

•Connected Load (kW Rating) @240 Volts = 6.48kW

•Amps @ 240 Volts = 27 Amps

•Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum, 30 amp power supply cord marked for use with clothes dryers (not supplied).

•Grounding through neutral link prohibited in specific applications and certain locales, requiring use of 4-wire system. (For detailed electrical requirements, refer to Product Installation Guide on web.)

•Always consult local and national electric & plumbing codes.

•Can be installed alone, with or without optional 15" drawer pedestal,

or stacked above matching Electrolux Washer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.)

•Can be built in with matching Electrolux Washer in under-counter, recessed or closet installation. Installations requiring countertop and/ or cabinetry will require custom building. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.)

•Closet installation requires vented door with 2 unobstructed louvered openings, minimum 60 sq. in. each, located 3" from top and bottom of door. Full-length120 sq. in. opening also acceptable. Allow 1" clearance between door and fronts of units.

Electrolux Major Appliances, N.A.

•Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored.

•Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface.

•Dryer MUST exhaust to outside of building, NOT into any concealed space.

•Dryer equipped for 4-way venting and approved for up to 125-foot- equivalent of duct length, determined by length of run and number of elbows needed.

•Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal duct with approved, unobstructed vent hood having swing-out damper(s). If installing rigid metal duct (preferred), do not exceed MAXIMUM venting run length of 125 ft., allow deductions for elbows and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM venting run length of 8 ft., always allow deductions for elbows and vents (Refer to Product Installation Guide on web for additional information). Do NOT use flexible plastic or metal foil duct and use shortest run possible.

•Leveling legs supplied to level dryer properly and reduce excessive noise and vibration.

•Water inlet hose for steam setting connects to cold water supply with “Y” connector and requires 3/4" clearance between back of unit and wall.

Note: For planning purposes only. Refer to Product Installation Guide on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•Pedestal Drawers – Titanium (PN # EPWD15T), Island White (PN # EPWD15IW).

•Dryer Stacking Kit – (PN# STACKIT4X).

•Mobile Home Installation Kit – (PN# 137067200).

• Drying Rack – (PN# 137453000).
