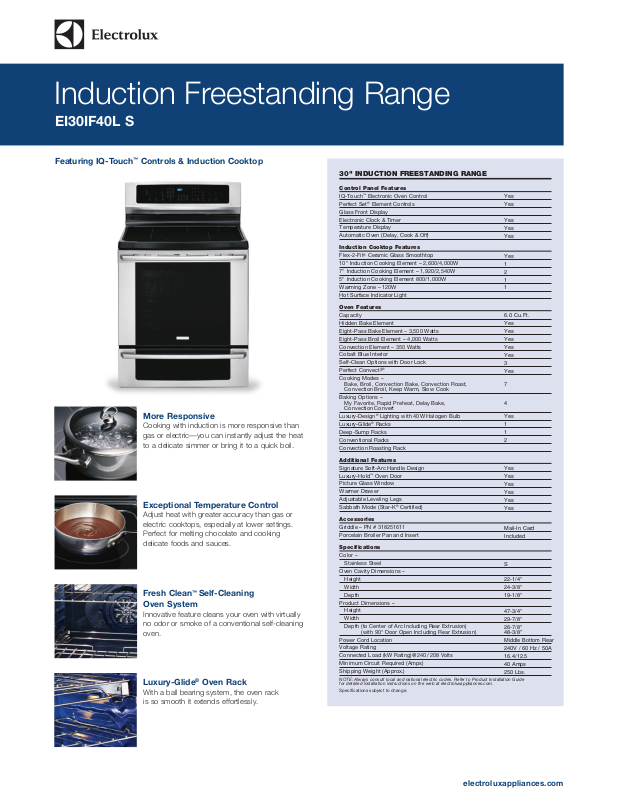

Electrolux EI30IF40L S User Manual
Induction Freestanding Range
EI30IF40L S
Featuring IQ-Touch™ Controls & Induction Cooktop
30" INDUCTION FREESTANDING RANGE
Control Panel Features
™
IQ-Touch
Electronic Oven Control
®
Element Controls
®
Ceramic Glass Smoothtop
®
3
Convection Broil, Keep Warm, Slow Cook
Convection Convert
®
Lighting with 40W Halogen Bulb
®
Racks
™
Oven Door
®
Certified)
(with 90° Door Open Including Rear Extrusion)
More Responsive
Cooking with induction is more responsive than
gas or electric—you can instantly adjust the heat
to a delicate simmer or bring it to a quick boil.
Exceptional Temperature Control
Adjust heat with greater accuracy than gas or
electric cooktops, especially at lower settings.
Perfect for melting chocolate and cooking
delicate foods and sauces.
Fresh Clean™ Self-Cleaning
Oven System
Innovative feature cleans your oven with virtually
no odor or smoke of a conventional self-cleaning
oven.
Luxury-Glide® Oven Rack
With a ball bearing system, the oven rack
is so smooth it extends effortlessly.
Perfect Set
Glass Front Display
Electronic Clock & Timer
Temperature Display
Automatic Oven (Delay, Cook & Off)
Induction Cooktop Features
Flex-2-Fit
10" Induction Cooking Element – 2,600/4,000W
7" Induction Cooking Element – 1,920/2,540W
5" Induction Cooking Element 800/1,000W
Warming Zone – 120W
Hot Surface Indicator Light
Oven Features
Capacity
Hidden Bake Element
Eight-Pass Bake Element – 3,500 Watts
Eight-Pass Broil Element – 4,000 Watts
Convection Element – 350 Watts
Cobalt Blue Interior
Self-Clean Options with Door Lock
Perfect Convect
Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast,
Baking Options –
My Favorite, Rapid Preheat, Delay Bake,
Luxury-Design
Luxury-Glide
Deep-Sump Racks
Conventional Racks
Convection Roasting Rack
Additional Features
Signature Soft-Arc Handle Design
Luxury-Hold
Picture Glass Window
Warmer Drawer
Adjustable Leveling Legs
Sabbath Mode (Star-K
Accessories
Griddle – PN # 318251611
Porcelain Broiler Pan and Insert
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height
Width
Depth (to Center of Arc Including Rear Extrusion)
Power Cord Location
Voltage Rating
Connected Load (kW Rating) @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
Yes
Yes
Yes
Yes
Yes
Yes
1
2
1
1
6.0 Cu. Ft.
Yes
Yes
Yes
Yes
Yes
3
Yes
7
4
Yes
1
1
2
Yes
Yes
Yes
Yes
Yes
Yes
Mail-In Card
Included
S
22-1/4"
24-3/8"
19-1/8"
47-3/4"
29-7/8"
26-7/8"
48-3/8"
Middle Bottom Rear
240V / 60 Hz / 50A
16.4/12.5
40 Amps
250 Lbs.
electroluxappliances.com
Induction Freestanding Range
EI30IF40L S
30" Induction Freestanding Range Specifications
•
Product Weight – 241 lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,
fused on both sides of line with ground.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 16.4 / 12.5
•
Amps @ 240 / 208 Volts = 40 Amps
•
Recommended Circuit Breaker – 50 Amps
•
Always consult local and national electric codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum 1" clearance required from edge of rangetop to nearest
combustible wall on either side of range above 36" height.
•
Allow 30" minimum clearance between top of cooking surface and
bottom of unprotected wood or metal overhead cabinet; or 24" minimum
clearance when bottom of wood or metal overhead cabinet is protected
by not less than 1/4" flame retardant millboard covered with not less
than No. 28 MSG sheet steel, 0.015" stainless steel, 0.024" aluminum or
0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Follow all dimension requirements provided to prevent property damage,
potential fire hazard, and incorrect countertop and cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Griddle – (PN # 318251611) – Mail-In Card
Electrolux Major Appliances, N.A.
•
USA
10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
•
CANADA
EI30IF40L 08/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
