Warewashing
Green&Clean Hood Type Dishwasher,
Automatic with ESD, ZERO LIME
Device & CLEAR BLUE System
Warewashing
Green&Clean Hood Type Dishwasher,
Automatic with ESD, ZERO LIME Device &
CLEAR BLUE System
504253
(EHT8TIELG8)
504252
(EHT8TIELG4)
Green & Clean Hood T ype Dishwasher,
Automatic Double skin hood with ESD, ZERO
LIME Device, CLEAR BLUE Filtering System
& Detergent and Rinse aid dispenser, 80racks/
hour - 208 V/3/60 Hz
Green & Clean Hood T ype Dishwasher,
Automatic Double skin hood with ESD, ZERO
LIME Device, CLEAR BLUE Filtering System
& Detergent and Rinse aid dispenser, 80racks/
hour - 240 V/3/60 Hz
Short Form Specification
Item No.
Unit to be Electrolux Green & Clean EHT hot water sanitizing dishwasher with WASH
SAFE CONTROL. Electrical characteristics to be 240 volts or 208 volts, three phase
operation. Energy Star 2.0 ceritified product. Unit to feature Energy Saving Device (ESD)
to recover the steam heat. ESD to need no more than 11 seconds to recover the steam
heat. Features atmospheric built-in booster system with built-in rinse booster pump
thus guaranteeing rinse pressure during rinse cycle. Maximum water consuption of 1/2
gal (2 L) per rack. Washing performance is guaranteed by a powerful 1.1 HP (0.8 kW)
wash pump and upper and lower stainless steel revolving washing spray arms. Unit to
feature ZERO LIME Device to automatically de-scale the whole hydraulic circuit and
washing chamber. Unit to feature "WASH SAFE CONTROL" led light. Green light will
indicate that all items washed have been properly rinsed. CLEAR BLUE filtering to system
remove majority of soil from the wash water. LED bar on the top keeps operator informed
on machine status. 304 Stainless steel construction to include double skin insulated
hood, external, front and side panels, wash tank, tank filter plus wash and rinse arms.
Field convertible from straight to corner operation. Includes drain pump, detergent and
rinse aid dispenser pumps and is equipped with flexible fill hoses. Delivered on heightadjustable feet. Covered by Electrolux Platinum Star Service Program two-year parts
APPROVAL:
NAME #
SIS #
AIA #
and one-year labor warranty, installation start-up and performance check-up after one year from
installation.
Main Features
•Built-in high efficiency Energy Saving Device (ESD) transfers the
heat captured inside the machine to the incoming cold water before
entering the booster, thus saving energy; no ventilation hood is
needed for the machine (depending on local regulation).
•ZERO LIME Device ensures total scale removal from the hydraulic
circuits and the washing chamber allowing for lower energy
consumption thanks to the high-efficiency heating element.
•CLEAR BLUE advanced filtering system provides cleaner wash
water and higher active detergent thus ensuring better washing
performances and lower running costs.
•Requires only 1/2 gal (2 L) of water per rack thus ensuring low
energy, water, detergent and rinse aid consumption.
•Built-in high efficency Energy Saving Device (ESD) transfers hte
heat captured inside the machine to the incoming cold water before
entering the booster, thus saving energy; no ventilation hood is
needed for the machine (unless local regulations or restrictions
apply).
•ZERO LIME Device ensures total scale removal from the hydraulic
circuits and the washing chamber allowing for lower energy
consumption thanks to the high-efficiency of the heating elements.
•CLEAR BLUE advanced filtering system provides cleaner wash
water and higher active detergent thus ensuring better washing
performances and lower running costs.
•Requires only 1/2 gal (2 L) of water per rack thus ensuring low
energy, water, detergent and rinse aid consumption.
•Energy Star 2.0 certified product.
•Built-in atmospheric booster sized to raise incoming cold water to
a minimum of 180°F (82°C) for sanitizing rinse. No external booster
is required. Constant temperature above 180°F (82°C) throughout
the rinsing cycle.
•ETL C & US and ETL-Sanitation approved (ANSI/NSF 3 sanitation
standard).
•Green light of "WASH SAFE CONTROL" confirms that items have
been rinsed properly.
•Unique temperature interlock guarantees required temperatures in
both the wash and final rinse.
•Maximum capacity per hour of 63 racks or 1.134 dishes.
•57/84/150 seconds cycles (ETL-S mode).
•Incorporated Soft Start feature to offer additional protection to more
delicate items.
•Slanted wash arms and sloped ceiling to avoid detergent-filled wash
water dropping on clean dishes after the rinsing phase, thus
guaranteeing ideal washing results.
•Cycle may be interrupted at any time by lifting the hood.
•Automatic self-cleaning cycle and self-draining wash pump and
booster to avoid bacteria proliferation.
•LED bar on the top keeps operator informed on machine status.
•State-of-the-art electronic controls with built-in programming, self-
diagnostics for serviceability and automatic interior rinse-down
cycle.
•Built-in rinse aid and detergent dispenser with automatic initial and
continuous cycle loading for perfect result while minimizing service
and maintenance needs.
•Three phase electrical connection.
Green&Clean Hood Type Dishwasher, Automatic with ESD,
ZERO LIME Device & CLEAR BLUE System
Warewashing
Electrolux Professional, Inc.
10200 David Taylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547 -7401
www.electroluxusa.com/professional
Page 2
•Deep drawn pressed 6.4 gal (24 L) tank in front position with no welded
points offer a guaranteed water tight solution and eliminates dirt traps.
•Vertical self-draining wash pump ensures no bacteria proliferation and
bad smells during non-operation hours.
•Booster highly resistant to chlorinated water thanks to robotized TIG
welding technology.
Construction
•Heavy duty Stainless steel construction. Internal cavity as well as
exterior panels are in 304 series Stainless steel.
•Automatic double skin insulated hood.
•Specially designed Stainless steel wash/rinse arms and nozzles
provide superior cleaning action.
•Revolving interchangeable Stainless steel wash/rinse arms above and
below the rack, screw out for simple clean up.
•Pre-arranged for on-site HACCP implementation and Energy
Management device.
•Element protection from dry fire and low water.
•Unit to include drain pump detergent and rinse aid dispenser pumps.
•Utilizes standard 20" by 20" (500x500mm) racks for ease of operation.
•17- 5/16" (440mm) door opening accepts 18" trays.
Warewashing
Green&Clean Hood Type Dishwasher,
Automatic with ESD, ZERO LIME Device
& CLEAR BLUE System
Included Accessories
•2 of Yellow cutlery container (included with
product)
•1 of Basket for (18) dinner plates, yellow
(included with product)
•1 of Basket for (48) small cups or (24) large
cups, blue (included with product)
PNC 864242
PNC 867002
PNC 867007
Optional Accessories
•HACCP connection cable for double skin hood
type
•Back panel for double skin automatic hood
type with Energy Saving Device (ESD) - AISI
304
•- NOT TRANSLATED -PNC 864461 ❑
•- NOT TRANSLATED -PNC 864463 ❑
•- NOT TRANSLATED -PNC 864466 ❑
PNC 864007 ❑
PNC 864345 ❑
Page 3
Warewashing

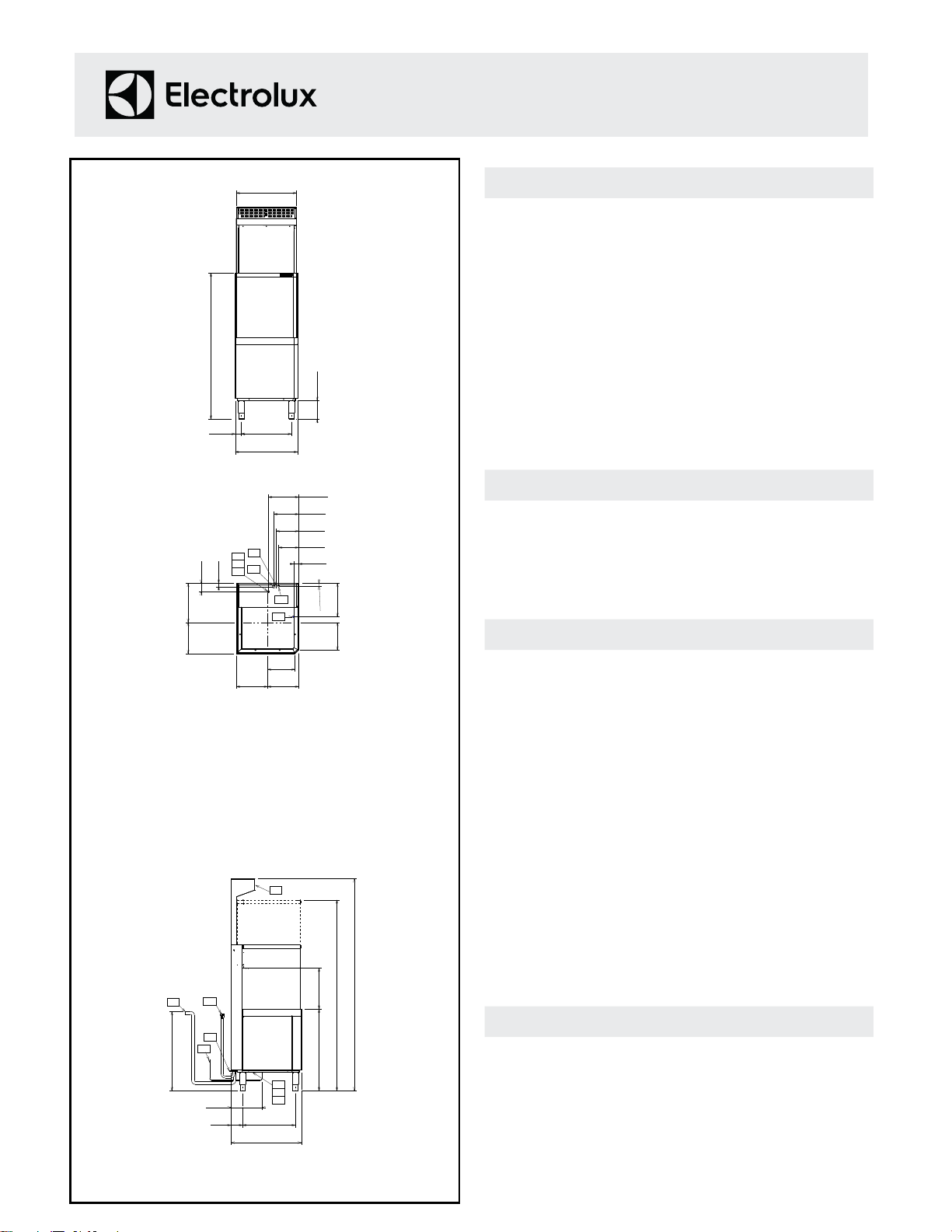

17 5/16”
440 mm
34 7/16”
875 mm
80 9/16”
2046 mm
89 1/2”
2273 mm
0 - 33 7/16”
0 - 850 mm
61 11/16”
1567 mm
7 7/8”
200 mm
13 1/16”
332 mm
4 7/8”
124 mm
22 1/4”
565 mm
25 7/16”
647 mm
2 9/16”
65 mm
21 3/16”
538 mm
26 1/4”
667 mm
XI
XR
XD
CWI
EI
D
V
EQ
1 1/4”
31 mm
14 1/8”
358 mm
11 5/8”
295 mm
1 7/16”
36 mm
3 9/16”
90 mm
16 9/16”
420 mm
13 3/16”
335 mm
17 5/16”
440 mm
34 7/16”
875 mm
80 9/16”
2046 mm
89 1/2”
2273 mm
0 - 33 7/16”
0 - 850 mm
61 11/16”
1567 mm
7 7/8”
200 mm
12 13/16”
325 mm
10 9/16”
268 mm
9 1/2”
241 mm
8 7/16”
215 mm
2 3/16”
55 mm
11 9/16”
294 mm
13 1/8”
334 mm
13 1/8”
334 mm
13 1/16”
332 mm
4 7/8”
124 mm
22 1/4”
565 mm
29 11/16”
755 mm
25 7/16”
647 mm
2 9/16”
65 mm
21 3/16”
538 mm
26 1/4”
667 mm
XI
XR
XD
XI
XR
XD
CWI
EI
D
EQ
CWI
EI
D
V
EQ
17 5/16”
440 mm
34 7/16”
875 mm
80 9/16”
2046 mm
89 1/2”
2273 mm
0 - 33 7/16”
0 - 850 mm
13 1/16”
332 mm
4 7/8”
124 mm
22 1/4”
565 mm
29 11/16”
755 mm
XI
XR
XD
CWI
EI
D
V
EQ
Green&Clean Hood Type Dishwasher,
Automatic with ESD, ZERO LIME Device
& CLEAR BLUE System
Front
Electric
Supply voltage:
504253 (EHT8TIELG8)208 V/3 ph/60 Hz
504252 (EHT8TIELG4)240 V/3 ph/60 Hz
Default Installed Power:9.9 kW at 50°F (10°C)
Booster Heating Elements Power:9.9 kW at 50°F (10°C)
Tank heating elements:3 kW
Wash pump size:1.1 hp (0.8 kW)
Minimum current:
504253 (EHT8TIELG8)28A
504252 (EHT8TIELG4)24A
MOP:
504253 (EHT8TIELG8)50A
504252 (EHT8TIELG4)40A
MCA:
504253 (EHT8TIELG8)40A
504252 (EHT8TIELG4)34A
Top
Water:
Water supply temperature:50-68°F (10-30°C)
Inlet Water supply pressure:7 - 102 psi (0.5 - 7 bar)
Water consumption per cycle:0.53 gal (2 L)
Booster Capacity:3.17 gal (12 L)
Tank Capacity:6.34 gal (24 L)
Drain line size:0.8'' (20.5 mm) pumped drain
Incoming water line size:G 3/4"
Key Information:
Wash temperature (MIN):
504253 (EHT8TIELG8)160°F (71°C)
CWI1
=Cold Water inlet
D=Drain
XI=Chemicals inlet
XR=Rinse aid connection
EI=Electrical connection
V=Air vents
V=Vents
WI=Water inlet
XD=Detergent connection
Side
504252 (EHT8TIELG4)160°F (71°C)
N° of cycles:3
Duration cycle - NSF:*57/84/150 sec.
Racks per hour - ETL-S: *63
Dishes per hour - ETL-S: *1134
Rinse temperature (MIN):183.2°F (84°C)
External dimensions, Width:26 1/4" (667 mm)
External dimensions, Depth:29 3/4" (755 mm)
External dimensions, Height:89 1/2" (2273 mm)
Net weight:335 lbs (152 kg)
Shipping width:28 13/16" (732 mm)
Shipping depth:32 1/4" (819 mm)
Shipping height:68 1/8" (1730 mm)
Shipping weight:284 lbs (129 kg)
Shipping volume:36.62 ft³ (1.04 m³)
Shipping volume (ESD):11.67 ft³ (0.33 m³)
Packaging size ESD (WxDxH):29 1/8"x18 11/16"x37 1/64"
Shipping weight (ESD):79 lbs (36 kg)
Noise level:<63 dBA
Air Emission:
Air Flow:17 CFM (28 m3/h)
Air temperature:86°F (30°C)
Air humidity:55% r.h.
* without considering additional 11 seconds for ESD operation.
Page 4
==

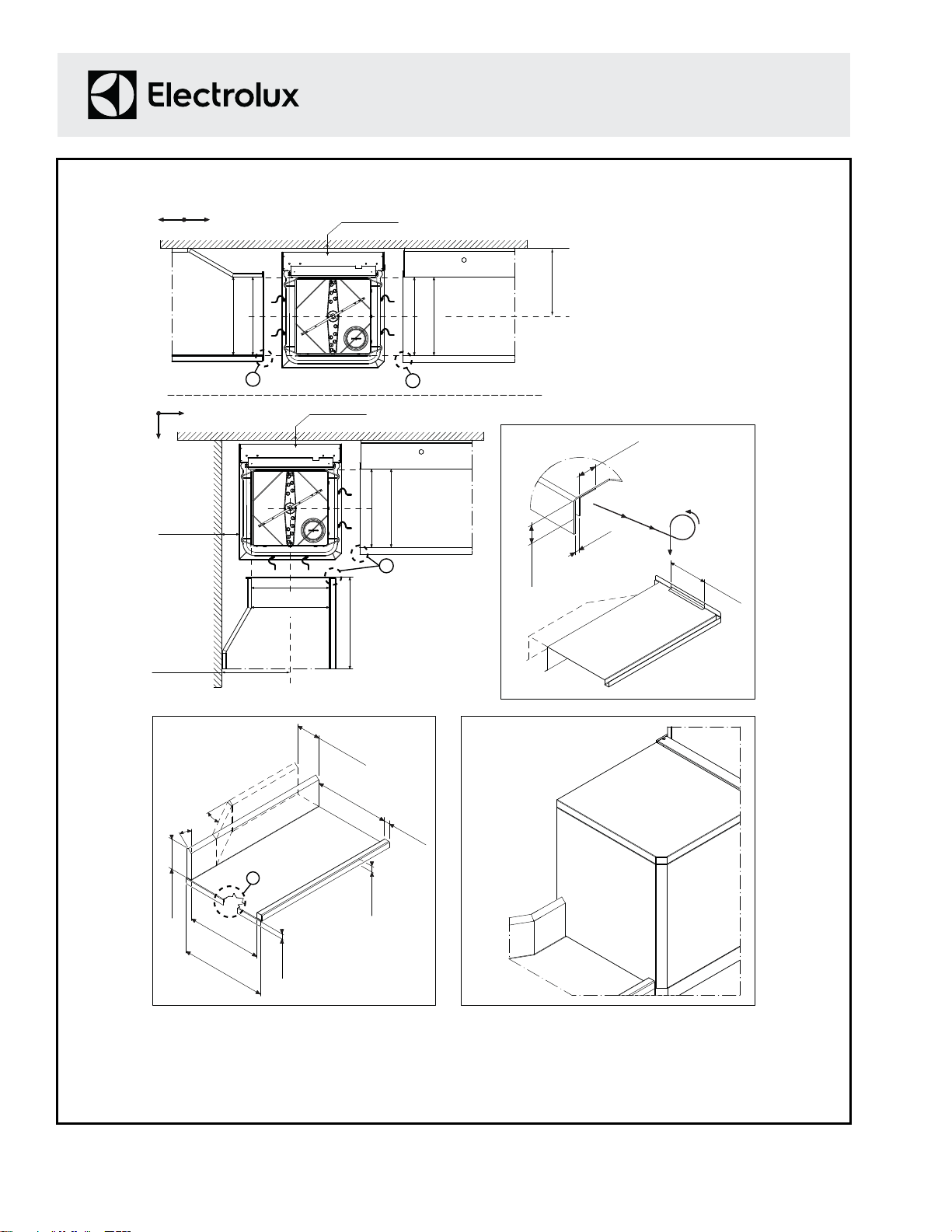

20 1/16”
510 mm
==
20 1/16”
510 mm
min 15/16”
min 23 mm
Line installation
==
20 1/16”
510 mm
min 15/16”
min 23 mm
==
20 1/16”
510 mm
Corner installation
20 1/16”
510 mm
Max sugg.
6 7/8”
165 mm
1 9/16”
40 mm
1 9/16"
40 mm
1 3/8"
35 mm
20 1/16”
510 mm
22 13/16”
580 mm
A
7 15/16"
201 mm
45°
30°
Suggested
design
*
13/16"
20 mm
Detail “ A ”
11 13/16"
300 mm
3/16"
5 mm
13/16"
20 mm
*
A
A
A
Doc Nr : 59566BD00
Recommended table connection
All tables must be connected to the dishwashing units according to local regulations and industry standards
which may differ from the recommendations herein suggested. Electrolux Professional is not liable for any
failure in complying with local design standards.
min 15/16”
min 23 mm
min 21 11/16”
min 550 mm
min 17 5/16”
min 440 mm
min 17 3/4”
min 451 mm
Warewashing
Green&Clean Hood Type Dishwasher,
Automatic with ESD, ZERO LIME Device
& CLEAR BLUE System

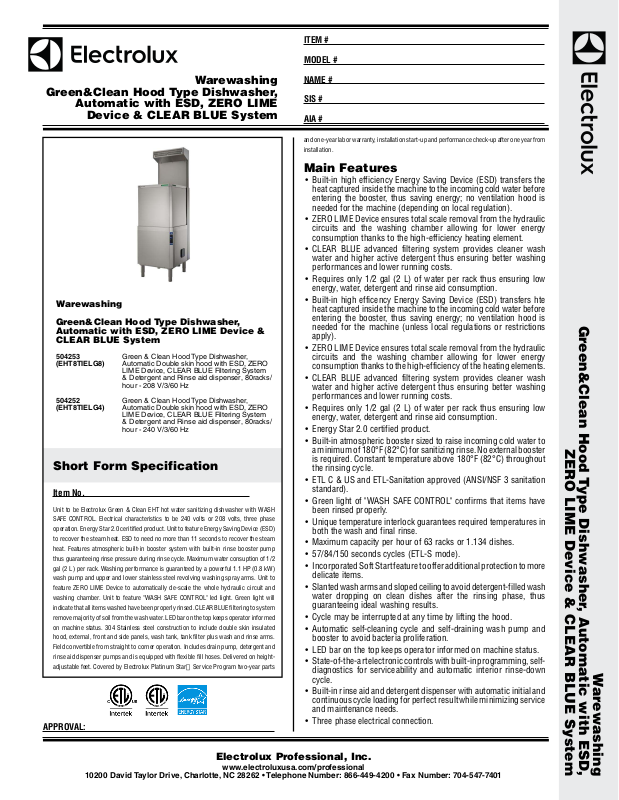

Green&Clean Hood Type Dishwasher, Automatic with ESD, ZERO LIME
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Warewashing
Device & CLEAR BLUE System
2016.03.08
Loading...
