EHL4
user manual
Oven
EHL4
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Product description 4
Before first use 5
Daily use 6
Clock functions 7
Using the accessories 8
Additional functions 8
Helpful hints and tips 9
Care and cleaning 18
What to do if… 20
Installation 21
Environment concerns 22
Subject to change without notice
SAFETY INFORMATION
Before the installation and use, read this
manual carefully:
•For your personal safety and the safety of
your property
• For the respect of the environment
• For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or sell it.
The manufacturer is not responsible if incorrect installation or use results in damage.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
• This appliance can be used by children
aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in safe way and understand the hazards involved. Children shall
not play with the appliance.
• Keep all packaging away from children.
There is the risk of suffocation or physical
injury.
• WARNING: Keep children and animals
away from the appliance when the door
is open or the appliance is in the operation, because it becomes hot. There is
the risk of injury or other permanent disability.
• If the appliance has Child Lock or Key
Lock (Control Lock) function, use it. It
prevents children and animals from accidental operation of the appliance.
GENERAL SAFETY
• Do not change the specifications of this
appliance. There is the risk of injury and
damage to the appliance.
• Do not let the appliance stay unattended
during operation.
• Switch off the appliance after each use.
INSTALLATION
• Only an approved electrician can install
and connect the appliance. Contact an
approved service centre. This is to prevent the risks of structural damage or
physical injury.
• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary,
contact the supplier.
• Remove all packaging, stickers and layers from the appliance before first use.
Do not remove the rating plate. It can invalidate the guarantee.
• Make sure that the appliance is disconnected from the power supply during the
installation.
• Be careful when you move the appliance.
The appliance is heavy. Always use safety gloves. Do not lift the appliance by the
handle.
• The electrical installation must have an
isolation device which lets you disconnect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
• You must have correct isolation devices:
line protecting cut-outs, fuses (screw
2 electrolux
type fuses removed from the holder),
earth leakage trips and contactors.

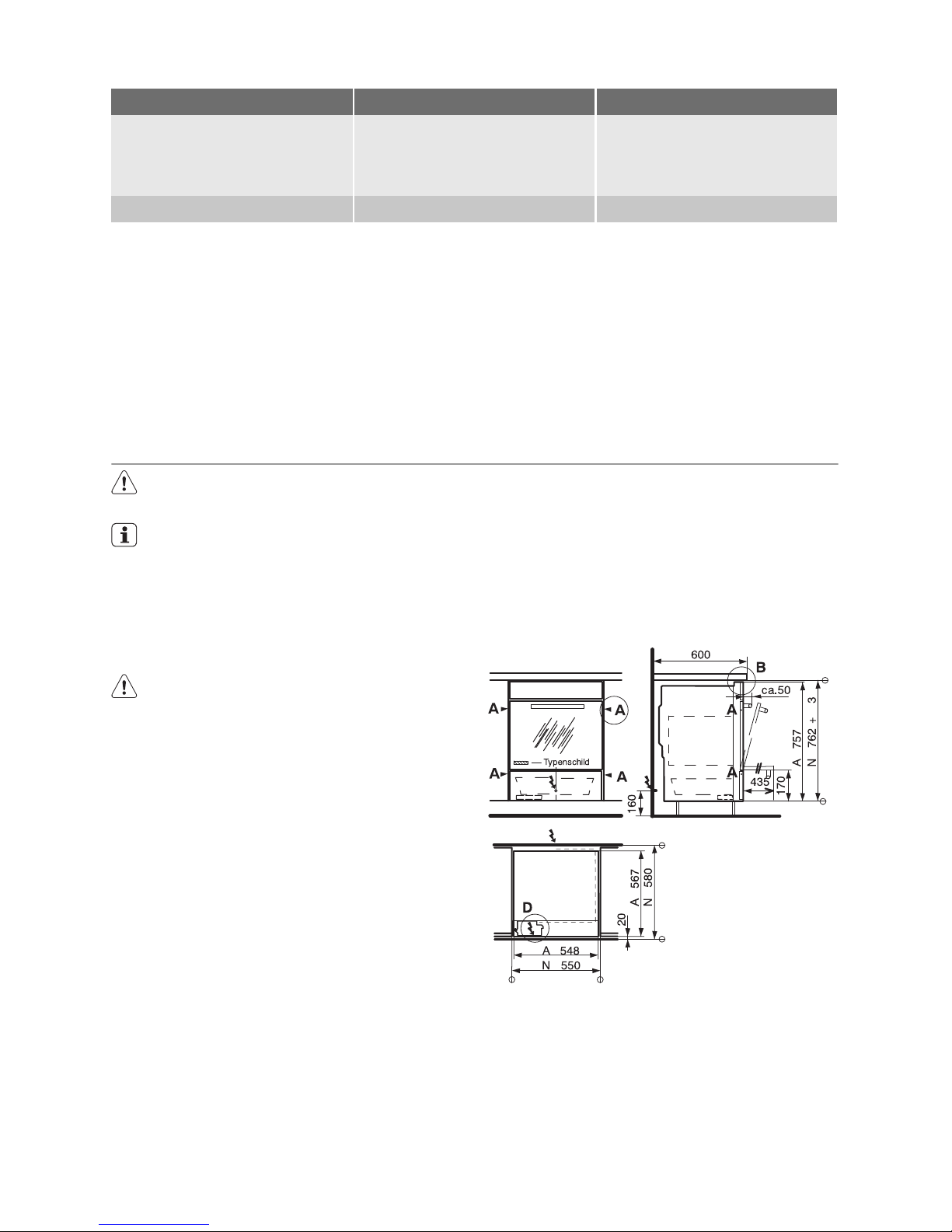

• Before the installation, make sure that the
kitchen cabinet has the recess dimensions applicable.
• Make sure that the appliance is installed
below and adjacent safe structures.
• Keep the minimum distances to the other
appliances and units.
• The appliance cannot be positioned on a
base.
• Built in ovens and built in cooking surfaces are attached with special connection
system. To prevent damage to the appliance, only use an appliance with the appliances from the same manufacturer.
ELECTRICAL CONNECTION
• The appliance must be earthed.
• Make sure that the electrical data on the
rating plate agree with your domestic
power supply.
• Information on the voltage is on the rating
plate.
• Always use a correctly installed shockproof socket.
• Do not use multi-way plugs, connectors
and extension cables. There is the risk of
fire.
• Do not replace or change the mains cable. Contact the service centre.
• Make sure not to squash or cause damage to the mains plug (if applicable) and
cable behind the appliance.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug
– if applicable.
USE
• The appliance is only for domestic use.
Do not use the appliance for commercial
and industrial use.
• Only use the appliance for domestic
cooking tasks. This is to prevent physical
injury to persons or prevent damage to
property.
• Do not use the appliance as a work surface or storage surface.
• The interior of the appliance becomes hot
during use. There is the risk of burns. Do
not touch the heating elements in the appliance. Use gloves when you insert or
remove the accessories or pots.
• Be careful when you remove or install the
accessories to prevent damage to the
oven enamel.
• Always stay away from the appliance
when you open the door while the appliance is in operation. Hot steam can release. There is the risk of skin burns.
• To prevent damage or discoloration to
the enamel:
– Do not put any objects directly on the
appliance floor and do not cover it with
aluminium foil.
– Do not put water directly into the hot
appliance.
– Do not keep moist dishes and food in
the appliance after you finish the cooking.
• Discoloration of the enamel has no effect
on the performance of the appliance so it
is not a defect in the sense of the warranty law.
• Do not apply pressure on the open door.
• Always close the appliance door when
you cook, even while grilling.
CARE AND CLEANING
• Before maintenance, switch off the appliance and disconnect the appliance from
the power supply.
• Before maintenance, make sure that the
appliance is cold. There is the risk of
burns. There is the risk that the glass
panels can break.
• Keep the appliance clean at all times. A
build-up of fats or other foodstuff can result in a fire.
• Regular cleaning prevents the surface
material from deteriorating
• Use a deep baking tray for very moist
cakes to prevent that fruit juices cause
stains that can be permanent.
•For your personal safety and the safety of
your property, only clean the appliance
with water and a soap. Do not use flammable products or products that can
cause corrosion.
• Do not clean the appliance with steam
cleaners, high-pressure cleaners, sharp
objects, abrasive cleaning agents, abrasive sponges and stain removers
• If you use an oven spray, follow the instructions from the manufacturer.
electrolux 3
• Do not clean the glass door with abrasive
cleaning agents or metal scraper. Heat
resistant surface of the inner glass can
break and shatter.
• When the door glass panels are damaged they become weak and can break.
You must replace them. Contact the
service centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Do not clean catalytic enamel (if applicable).
RISK OF FIRE
• Open the door carefully. The use of ingredients with alcohol can cause a mixture
of alcohol and air. There is the risk of fire.
• Do not let sparks or open flames come
near the appliance when you open the
door.
• Do not put flammable products or items
that are wet with flammable products,
and/or fusible objects (made of plastic or
aluminium) in, near or on the appliance.
OVEN LAMP
• The type of light bulb or halogen lamp
used for this appliance is only for house-
hold appliances. Do not use it for house
lighting.
• If it becomes necessary to replace the
lamp, use one of the same power and
specifically designed for household appliances only.
• Disconnect the appliance from the power
supply before the replacement of the
oven lamp. There is the risk of electrical
shock.
SERVICE CENTRE
• Only an approved engineer can repair or
work on the appliance. Contact an approved service centre.
• Use only original spare parts.
DISPOSAL OF THE APPLIANCE
• To prevent the risk of physical injury or
damage
– Disconnect the appliance from the
power supply.
– Cut off the mains cable and discard it.
– Discard the door catch. This prevents
children or small animals from being
closed inside of the appliance. There is
the risk of suffocation.

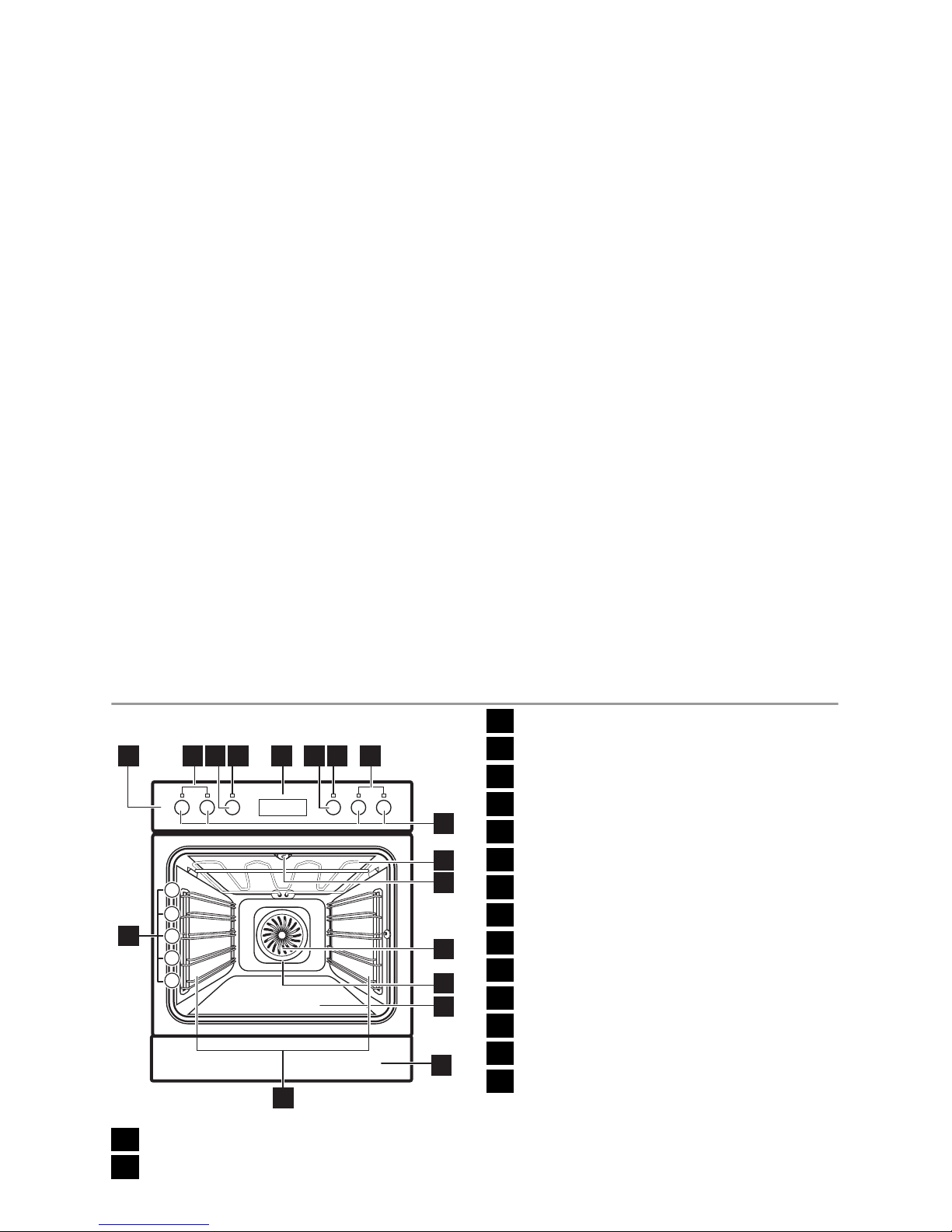

PRODUCT DESCRIPTION
GENERAL OVERVIEW
52 4 7 23 6
5
4
3
2
1
1
16
9
8
10
12
13
14
15
11
1
Control panel
2
Lamps/symbols of the cooking zones
3
Control knob for oven functions
4
Power lamp/symbol
5
Electronic programmer
6
Control knob for temperature
7
Temperature lamp/symbol/indicator
8
Control knobs for the coking zones
9
Heating element
10
Oven lamp
11
Fan
12
Rear wall heating element
13
Bottom heat
14
Drawer
15
Shelf support, removable
16
Shelf positions
ACCESSORIES
•
Wire shelf
For cookware, cake tins, roasts.
4 electrolux
•
Baking tray
For cakes and biscuits
• Storage drawer
Below the oven cavity is the storage
drawer.
Warning! The storage drawer can
become hot when the appliance
operates.
Do not store any flammable materials in
the drawer.
BEFORE FIRST USE
Warning! Refer to "Safety information"
chapter.
INITIAL CLEANING
• Remove all parts from the appliance.
• Clean the appliance before first use.
Important! Refer to chapter "Care and
Cleaning".
SETTING THE TIME
The oven only operates after time set.
hr minhr min
When you connect the appliance to the
electrical supply or in case of a power cut,
the Time function indicator flashes automatically.
To set the current time use " + " or " - "
button.
After approximately 5 seconds, the flashing
stops and the display shows the time of
day set.
For time change you must not set an
automatic function (Duration
or End
) at the same time.
electrolux 5
DAILY USE
Warning! Refer to "Safety information"
chapter.
To use the appliance, press the control
knob. The control knob comes out.
ACTIVATING AND DEACTIVATING THE
APPLIANCE
1. Turn the control knob for the oven
functions to select an oven function.
2. Turn the control knob for the temperature to select a temperature.
3. To deactivate the appliance turn the
control knobs for the oven functions
and temperature to off position.
Knob symbol, indicator or lamp
(depends on the model - refer to
the appliance overview):
• The indicator comes on when the
oven heats up.
• The lamp comes on when the appliance operates.
• The symbol shows whether the knob
controls one of the cooking zones,
the oven functions or the temperature.

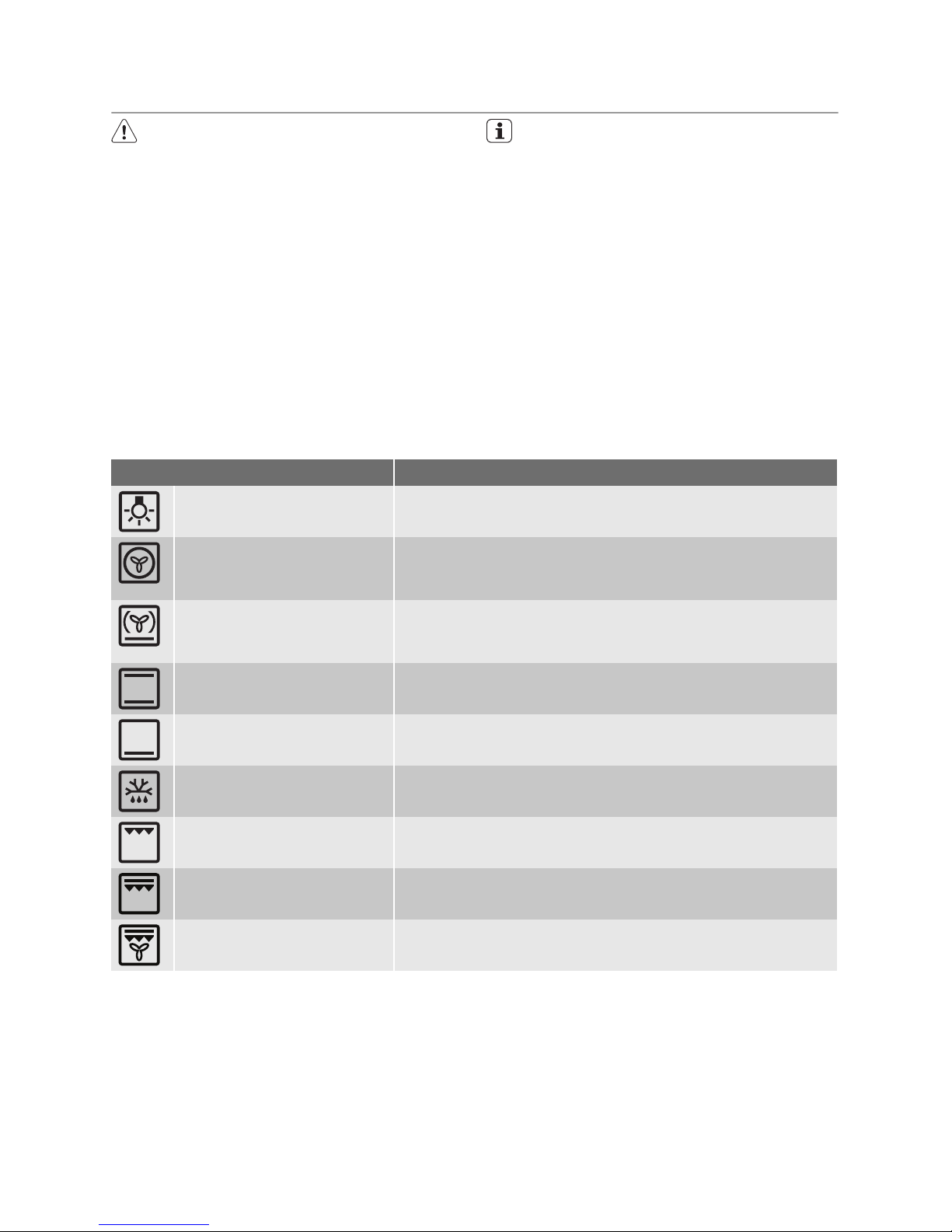

OVEN FUNCTIONS
Oven function Application
Light Use this function to light up the oven interior.
True Fan Cooking To bake maximum on three oven levels at the same time.
Decrease the oven temperatures (20-40 °C) compared with
Conventional. And to dry food.
Pizza Setting To bake on one oven level food with a more intensive
browning and a crispy base. Decrease the oven temperatures (20-40 °C) compared with Conventional
Conventional Cooking To bake and roast on one oven level.
Bottom Heat To bake cakes with crispy or crusty bases and to preserve
food
Defrost To defrost frozen food.
Grilling To grill flat food in the middle of the grill and to toast.
Fast Grilling To grill flat food in large quantities and to toast.
Turbo Grilling To roast larger joints of meat or poultry on one level. Also
for browning food e.g. gratin.
6 electrolux

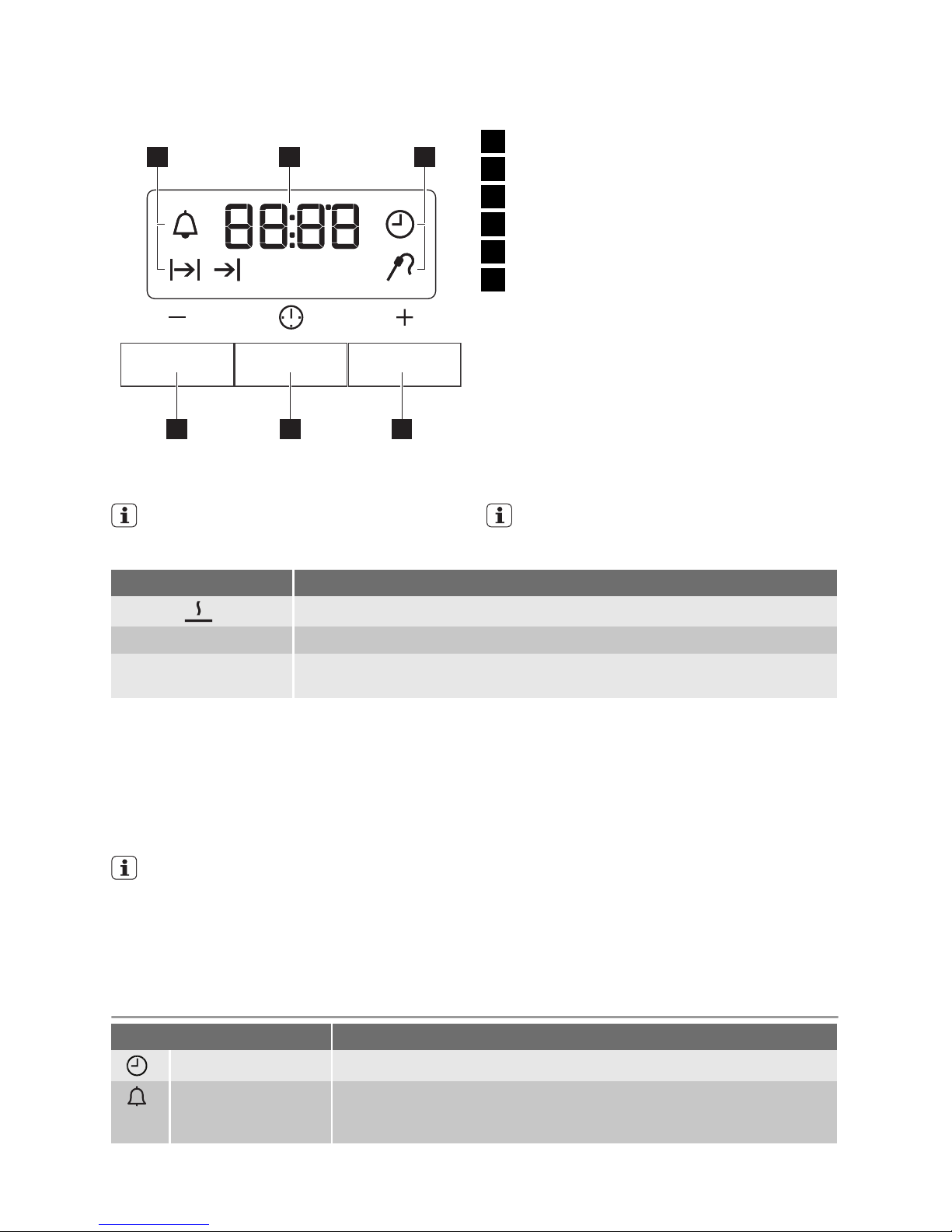

DISPLAY
hr minhr min
1 2 3
456
1
Function Indicators
2
Time display
3
Function Indicators
4
Button "+"
5
Selection Button
6
Button "-"
COOKING ZONES
You can operate the hob with the control knobs for the cooking zones. Refer
to the user manual for hob.
HOB COOKING ZONES
Indicators for the cooking zones (refer
to "General overview ") show which
zone you set.
Control knob Function
Keep warm setting
0 Off position
1-9 Heat settings
(1 = lowest heat setting; nine = highest heat setting)
Operating the hob:
1. Turn the temperature control knob to
set the temperature.
2. To end the cooking process, turn the
control knob to the off position.
Automatic heat-up function
This information is applicable only if you
install the hob with Automatic heat up
function!
The automatic heat-up function heats the
cooking zone with full power for some time.
Activating heat-up function:
1. To activate the function turn the control
knob clockwise as far as possible (beyond the highest heat setting).
2. To continue the cooking process turn
the control knob to set the temperature.
3. To end the cooking process turn the
control knob to the off position.
CLOCK FUNCTIONS
Clock function Application
Time of day Shows the time. To set, change or check the time.
Minute minder To set a countdown time.
A signal sounds, after the time period is completed.
This function has no effect on the operation of the oven.
electrolux 7
Clock function Application
Duration To set how long the oven has to be in operation.
End To set the switch-off time for an oven function.
Duration and End can be used at
the same time, if the oven is to be
switched on and off automatically later.
In this case first set Duration
, then
End
.
SETTING THE CLOCK FUNCTIONS
hr minhr min
1. Push the Selection button again and
again until necessary function indicator
flashes.
2.
To set the time for Minute minder
,
Duration
or End , use "+" or "-"
button.
The related function indicator comes
on.
When the time period is completed, the
function indicator flashes and an
acoustic signal sounds for 2 minutes.
With the functions Duration and End
the oven switches off automatically.
3. Push any button to stop the signal.
CANCELLING THE CLOCK FUNCTIONS
1. Push the Selection button again and
again until necessary function indicator
flashes.
2. Push and hold button "- ".
After some seconds the clock function
goes out.
USING THE ACCESSORIES
Warning! Refer to "Safety information"
chapter.
INSERTING THE OVEN ACCESSORIES
The wire shelf has side edges. These
edges and the shape of the guide-bars
causes the anti-tilt safety for the oven
accessories.
ADDITIONAL FUNCTIONS
COOLING FAN
When the appliance operates, the cooling
fan activates automatically to keep the surfaces of the appliance cool. If you deacti-
vate the appliance, the cooling fan can continue to operate until the appliance cools
down.
8 electrolux
Loading...
