EHL4CN
EHL4SW
EHL4WE
EN
OVEN USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 7
4. BEFORE FIRST USE............................................................................................7
5. DAILY USE.......................................................................................................... 8
6. CLOCK FUNCTIONS......................................................................................... 10
7. USING THE ACCESSORIES.............................................................................. 12
8. ADDITIONAL FUNCTIONS.................................................................................12
9. HINTS AND TIPS............................................................................................... 13
10. CARE AND CLEANING....................................................................................25
11. TROUBLESHOOTING......................................................................................27
12. INSTALLATION................................................................................................28
13. ENERGY EFFICIENCY..................................................................................... 29
14. GUARANTEE .................................................................................................. 30
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, this should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• The control panel must be connected to specified
heating unit with matching colours of connectors, to
avoid possible hazard.
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
ENGLISH
3
Page 4
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
• Always use oven gloves to remove or put in accessories
or ovenware.
• Before carrying out any maintenance, disconnect the
appliance from the power supply.
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualified persons to avoid an
electrical hazard.
• Be careful when you touch the storage drawer. It can
get hot.
• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite
sequence.
• The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• The kitchen cabinet and the recess
must have suitable dimensions.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• Parts of the appliance carry current.
Close the appliance with furniture to
prevent touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
www.electrolux.com4
Page 5
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
ENGLISH
5
Page 6
• Discoloration of the enamel or stainless
steel has no effect on the performance
of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
2.7 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
www.electrolux.com6
Page 7
3. PRODUCT DESCRIPTION
3.1 General overview
52 4 73 61
14
13
9
8
10
12
11
2
5
4
3
2
1
1
Control panel
2
Lamps / symbols of the cooking
zones
3
Knob for the oven functions
4
Power lamp / symbol
5
Electronic programmer
6
Knob for the temperature
7
Temperature indicator / symbol
8
Knobs for the cooking zones
9
Heating element
10
Lamp
11
Fan
12
Drawer
13
Shelf support, removable
14
Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
Storage drawer
The storage drawer is below the oven
cavity.
WARNING!
The storage drawer can
become hot when the
appliance operates. Do not
store any flammable materials
in the drawer.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
To set the Time of day refer
to "Clock functions" chapter.
ENGLISH
7
Page 8
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
5.2 Activating and deactivating
the appliance
It depends on the model if
your appliance has lamps,
knob symbols or
indicators:
• The lamp turns on when
the appliance operates.
• The symbol shows
whether the knob controls
one of the cooking zones,
the oven functions or the
temperature.
• The indicator turns on
when the oven heats up.
1. Turn the knob for the oven functions
to select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance, turn the
knobs for the oven functions and
temperature to the off position.
5.3 Oven functions
Oven function Application
Off position The appliance is off.
Light To activate the lamp without a cooking function.
True Fan Cooking
To bake on up to three shelf positions at the same
time and to dry food. Set the temperature 20 - 40 °C
lower than for Top / Bottom Heat.
Pizza Setting To bake food on one shelf position for a more inten-
sive browning and a crispy bottom. Set the temperature 20 - 40 °C lower than for Top / Bottom Heat.
www.electrolux.com8
Page 9
Oven function Application
Conventional
Cooking (Top /
Bottom Heat)
To bake and roast food on one shelf position.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Defrost This function can be used for defrosting frozen foods,
such as vegetables and fruits. The defrosting time depends on the amount and size of the frozen food.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on
one shelf position. Also to make gratins and to brown.
The lamp may automatically
deactivate at a temperature
below 60 °C during some
oven functions.
5.4 Display
A B C
A. Function indicators
B. Time display
C. Function indicator
If you do not use the
appliance for 3 minutes, the
brightness of the display
decreases to lower the power
consumption. When you
press a button, the display
goes back to the active
mode.
ENGLISH
9
Page 10
5.5 Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
5.6 Knobs for the cooking zones
You can operate the hob with the knobs
for the cooking zones. Refer to the hob
user manual.
You must read the Safety
chapters in the hob user
manual.
5.7 Heat settings
The cooking zone lamps show which zone
you set.
WARNING!
Refer to "Product
description" chapter.
Knob indication Function
0 Off position
Keep warm setting
Knob indication Function
1 - 9 Heat settings
Double zone switch
1. Turn the knob to a necessary heat
setting.
2. To complete the cooking process,
turn the knob to the off position.
5.8 Using the double zone (if
applicable)
To activate the double zone,
turn the knob clockwise. Do
not turn it through the stop
position.
1. Turn the knob clockwise to position 9.
2.
Turn the knob slowly to the symbol
until you can hear a click. The two
cooking zones are on.
3. To set the necessary heat setting refer
to "Heat settings".
6. CLOCK FUNCTIONS
6.1 Clock functions table
Clock function Application
TIME OF DAY To set, change or check the time of day.
DURATION To set how long the appliance operates.
END To set when the appliance deactivates.
TIME DELAY To combine DURATION and END function.
MINUTE MINDER To set countdown time. This function has no effect on the
operation of the appliance. You can set the MINUTE
MINDER at any time, also when the appliance is off.
www.electrolux.com10
Page 11
6.2 Setting the time. Changing
the time
You must set the time before you operate
the oven.
The flashes when you connect the
appliance to the electrical supply, when
there was a power cut or when the timer
is not set.
In case of a power cut up to
1 hour, the time of day is
shown and flashes. Make
sure that the time is correct
and press to stop the
flashing.
In case of a power cut longer
than 1 hour, you must set the
time again.
Press the or to set the correct time.
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
To change the time of day press again
and again until
starts to flash.
6.3 Setting the DURATION
1. Set an oven function and temperature.
2. Press
again and again until
starts to flash.
3. Press or to set the DURATION
time.
The display shows
.
4. When the time ends, flashes and
an acoustic signal sounds. The
appliance deactivates automatically.
5. Press any button to stop the acoustic
signal.
6. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
6.4 Setting the END
1. Set an oven function and temperature.
2. Press again and again until
starts to flash.
3. Press or to set the time.
The display shows .
4. When the time ends, flashes and
an acoustic signal sounds. The
appliance deactivates automatically.
5. Press any button to stop the signal.
6. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
6.5 Setting the TIME DELAY
1. Set an oven function and temperature.
2. Press again and again until
starts to flash.
3. Press or to set the time for
DURATION.
4. Press .
5. Press
or to set the time for
END.
6. Press to confirm.
Appliance turns on automatically later on,
works for the set DURATION time and
stops at the set END time. At the set time
an acoustic signal sounds.
7. The appliance deactivates
automatically. Press any button to
stop the signal.
8. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
6.6 Setting the MINUTE MINDER
1. Press again and again until
starts to flash.
2. Press or to set the necessary
time.
The Minute Minder starts automatically
after 5 seconds.
3. When the set time ends, an acoustic
signal sounds. Press any button to
stop the acoustic signal.
4. Turn the knob for the oven functions
to the off position.
6.7 Cancelling the clock
functions
1. Press the again and again until the
necessary function indicator starts to
flash.
2. Press and hold .
ENGLISH
11
Page 12
The clock function goes out after some
seconds.
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.

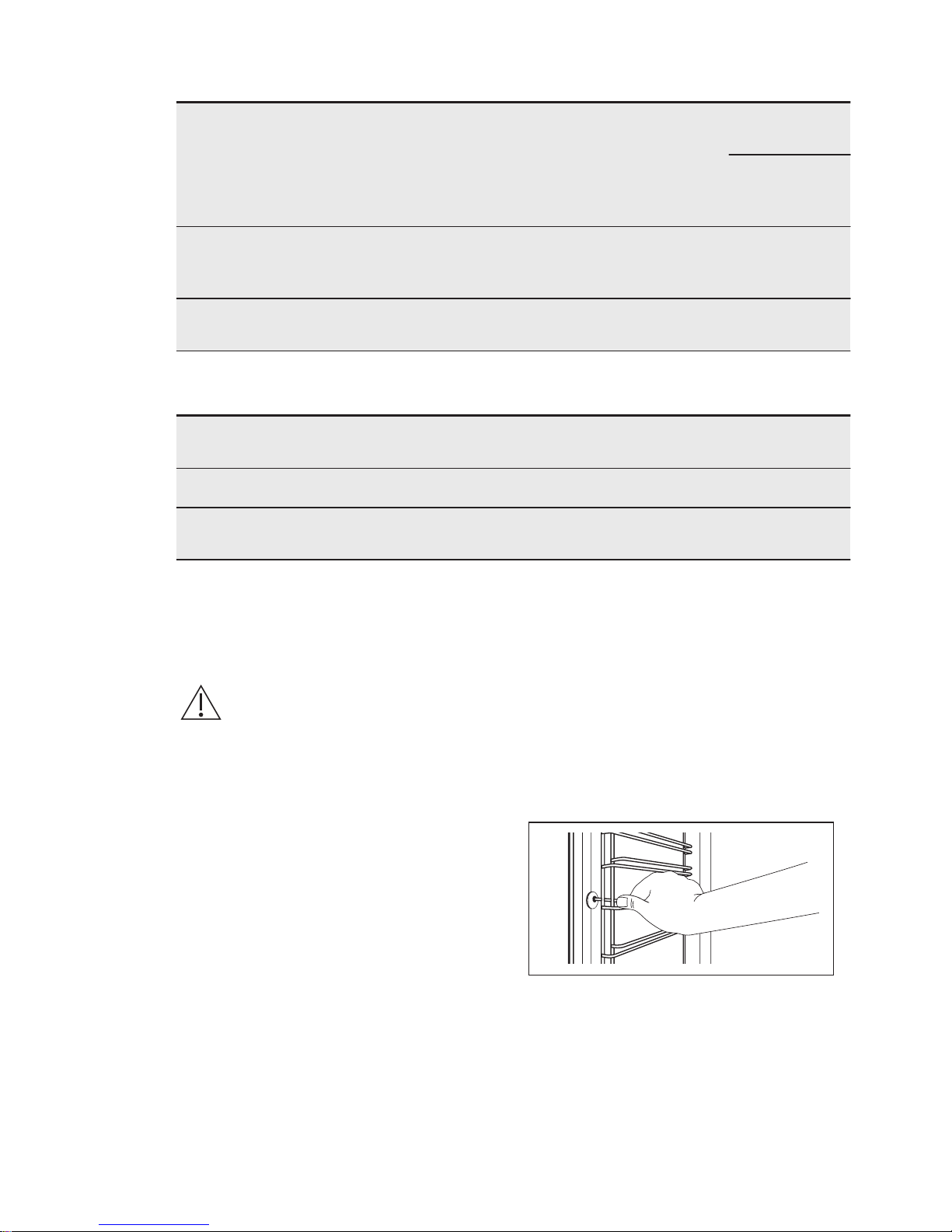

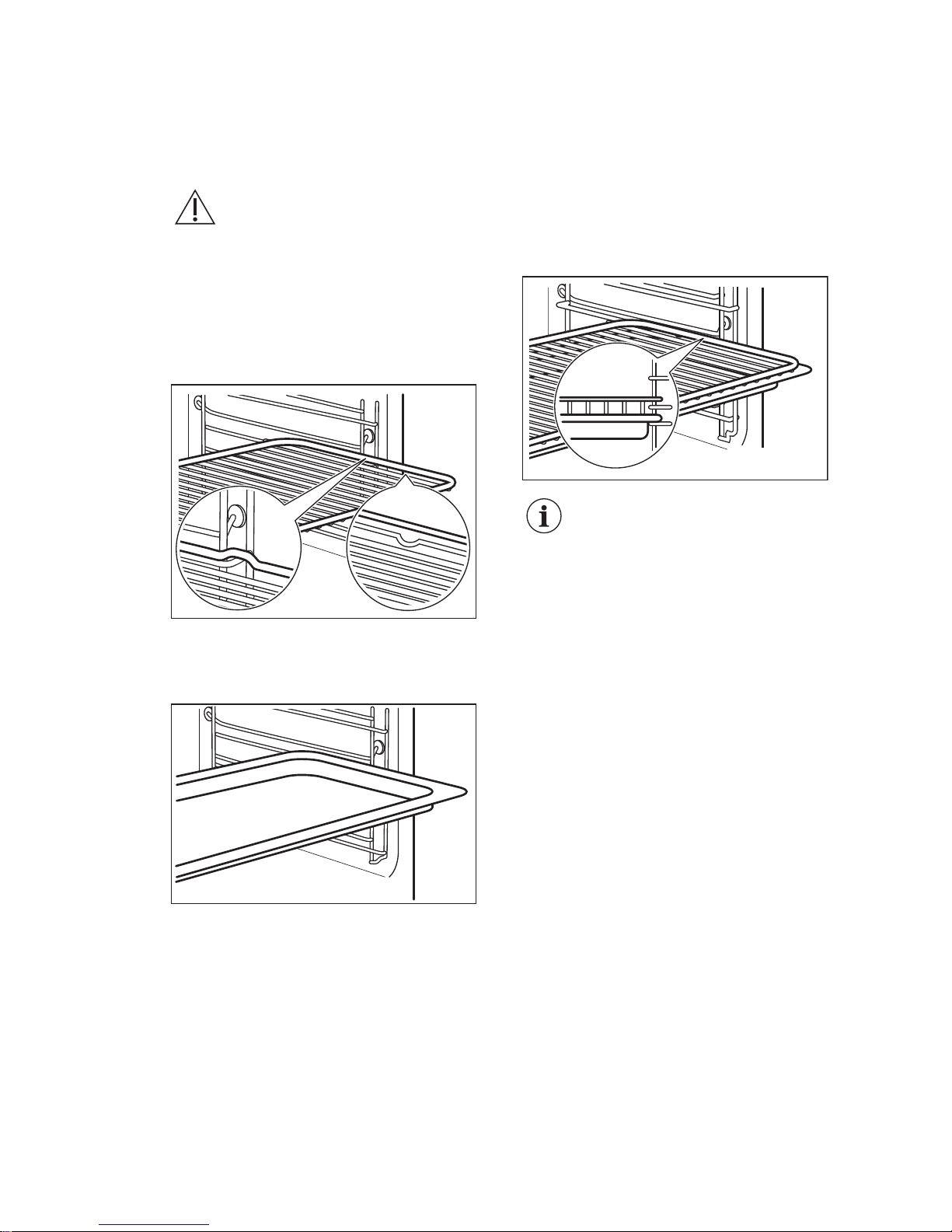

7.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray :
Push the baking tray between the guide
bars of the shelf support.
Wire shelf and baking tray together:
Push the baking tray between the guide
bars of the shelf support and the wire shelf
on the guide bars above.
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim around
the shelf prevents cookware
from slipping of the shelf.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
www.electrolux.com12
Page 13
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They depend
on the recipes and the quality
and quantity of the
ingredients used.
9.1 Examples of cooking applications for the hob
Heat setting
Application Time
(min)
Hints
1 To keep cooked food warm. as re-
quired
Put a lid on the cookware.
1 - 2 To make Hollandaise sauce,
and to melt butter, chocolate
and gelatine.
5 - 25 Mix at intervals.
1 - 2 To solidify fluffy omelettes and
baked eggs.
10 - 40 Cook with a lid on.
2 - 3 To simmer rice and milk-based
dishes, and to heat up readycooked meals.
25 - 50 Add a minimum of two times
as much liquid as rice. Stir
milk dishes halfway through.
3 - 4 To steam vegetables, fish and
meat.
20 - 45 Add some tablespoons of a
liquid.
4 - 5 To steam potatoes. 20 - 60 Use a maximum of 1/4 l water
for 750 g of potatoes.
4 - 5 To cook larger quantities of
food, stews and soups.
60 - 150 Add a maximum of 3 l of a liq-
uid to the ingredients.
6 - 7 To lightly fry escalopes, veal
cordon bleu, cutlets, rissoles,
sausages, liver, eggs, pancakes
and doughnuts, and to cook
roux.
as required
Turn halfway through.
7 - 8 To fry hash browns, loin steaks
and steaks.
5 - 15 Turn halfway through.
9 To boil large quantities of water, to cook pasta, to sear meat (goulash, pot
roast) and to deep-fry chips.
9.2 Baking
• Your oven may bake or roast differently
to the appliance you had before. Adapt
your usual settings such as
temperature, cooking time and shelf
position to the values in the tables.
• Use the lower temperature the first
time.
• If you cannot find the settings for a
special recipe, look for the similar one.
• You can extend baking times by 10 –
15 minutes if you bake cakes on more
than one shelf position.
ENGLISH
13
Page 14
• Cakes and pastries at different heights
do not always brown equally at first. If
this occurs, do not change the
temperature setting. The differences
equalize during the baking procedure.
• Trays in the oven can twist during
baking. When the trays become cold
again, the distortions disappear.
9.3 Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is
not browned sufficiently.
The shelf position is incorrect.
Put the cake on a lower
shelf.
The cake sinks and becomes soggy, lumpy or
streaky.
The oven temperature is too
high.
The next time you bake, set
a slightly lower oven temperature.
The cake sinks and becomes soggy, lumpy or
streaky.
The baking time is too
short.
Set a longer baking time.
You cannot decrease
baking times by setting
higher temperatures.
The cake sinks and becomes soggy, lumpy or
streaky.
There is too much liquid in
the mixture.
Use less liquid. Be careful
with mixing times, especially
if you use a mixing machine.
The cake is too dry. The oven temperature is too
low.
The next time you bake, set
a higher oven temperature.
The cake is too dry. The baking time is too long. The next time you bake, set
a shorter baking time.
The cake browns unevenly. The oven temperature is too
high and the baking time is
too short.
Set a lower oven temperature and a longer baking
time.
The cake browns unevenly. The mixture is unevenly dis-
tributed.
Spread the mixture evenly
on the baking tray.
The cake is not ready in the
baking time given.
The oven temperature is too
low.
The next time you bake, set
a slightly higher oven temperature.
9.4 Baking on one level:
Baking in tins
Food Function Temperature
(°C)
Time (min) Shelf position
Ring cake /
Brioche
True Fan Cooking
150 - 160 50 - 70 1
Madeira cake /
Fruit cakes
True Fan Cooking
140 - 160 70 - 90 1
www.electrolux.com14
Page 15
Food Function Temperature
(°C)
Time (min) Shelf position
Flan base short pastry
True Fan Cooking
170 - 180
1)
10 - 25 2
Flan base sponge mixture
True Fan Cooking
150 - 170 20 - 25 2
Cheesecake Top / Bottom
Heat
170 - 190 60 - 90 1
1)
Preheat the oven.
Cakes / pastries / breads on baking trays
Food Function Tempera-
ture (°C)
Time
(min)
Shelf position
Plaited bread / Bread crown Top / Bottom
Heat
170 - 190 30 - 40 3
Christmas stollen Top / Bottom
Heat
160 - 180
1)
50 - 70 2
Bread (rye bread):
1. First part of baking procedure.
2. Second part of baking
procedure.
Top / Bottom
Heat
1. 230
1)
2. 160 180
1. 20
2. 30 60
1
Cream puffs / Eclairs Top / Bottom
Heat
190 - 210
1)
20 - 35 3
Swiss roll Top / Bottom
Heat
180 - 200
1)
10 - 20 3
Cake with crumble topping
(dry)
True Fan Cooking 150 - 160 20 - 40 3
Buttered almond cake / Sugar cakes
Top / Bottom
Heat
190 - 210
1)
20 - 30 3
Fruit flans (made with yeast
dough / sponge mixture)
2)
True Fan Cooking 150 35 - 55 3
Fruit flans (made with yeast
dough / sponge mixture)
2)
Top / Bottom
Heat
170 35 - 55 3
Fruit flans made with short
pastry
True Fan Cooking 160 - 170 40 - 80 3
Yeast cakes with delicate
toppings (e.g. quark, cream,
custard)
Top / Bottom
Heat
160 - 180
1)
40 - 80 3
1)
Preheat the oven.
2)
Use a deep pan.
ENGLISH
15
Page 16
Biscuits
Food Function Temperature
(°C)
Time (min) Shelf position
Short pastry
biscuits
True Fan Cooking
150 - 160 10 - 20 3
Biscuits made
with sponge
mixture
True Fan Cooking
150 - 160 15 - 20 3
Pastries made
with egg white /
Meringues
True Fan Cooking
80 - 100 120 - 150 3
Macaroons True Fan Cook-
ing
100 - 120 30 - 50 3
Biscuits made
with yeast
dough
True Fan Cooking
150 - 160 20 - 40 3
Puff pastries True Fan Cook-
ing
170 - 180
1)
20 - 30 3
Rolls True Fan Cook-
ing
160
1)
10 - 25 3
Rolls Top / Bottom
Heat
190 - 210
1)
10 - 25 3
1)
Preheat the oven.
9.5 Bakes and gratins
Food Function Temperature
(°C)
Time (min) Shelf position
Pasta bake Top / Bottom
Heat
180 - 200 45 - 60 1
Lasagne Top / Bottom
Heat
180 - 200 25 - 40 1
Vegetables au
gratin
1)
Turbo Grilling 160 - 170 15 - 30 1
Baguettes topped with melted
cheese
True Fan Cooking
160 - 170 15 - 30 1
Sweet bakes Top / Bottom
Heat
180 - 200 40 - 60 1
Fish bakes Top / Bottom
Heat
180 - 200 30 - 60 1
www.electrolux.com16
Page 17
Food Function Temperature
(°C)
Time (min) Shelf position
Stuffed vegetables
True Fan Cooking
160 - 170 30 - 60 1
1)
Preheat the oven.
9.6 Multilevel Baking
Use the function True Fan Cooking.
Cakes / pastries / breads on baking trays
Food Temperature
(°C)
Time (min) Shelf position
2 positions 3 positions
Cream puffs /
Eclairs
160 - 180
1)
25 - 45 1 / 4 -
Dry streusel
cake
150 - 160 30 - 45 1 / 4 -
1)
Preheat the oven.
Biscuits / small cakes / small cakes / pastries / rolls
Food Temperature
(°C)
Time (min) Shelf position
2 positions 3 positions
Short pastry
biscuits
150 - 160 20 - 40 1 / 4 1 / 3 / 5
Biscuits made
with sponge
mixture
160 - 170 25 - 40 1 / 4 -
Biscuits made
with egg white,
meringues
80 - 100 130 - 170 1 / 4 -
Macaroons 100 - 120 40 - 80 1 / 4 -
Biscuits made
with yeast
dough
160 - 170 30 - 60 1 / 4 -
Puff pastries
170 - 180
1)
30 - 50 1 / 4 -
Rolls 180 20 - 30 1 / 4 -
1)
Preheat the oven.
ENGLISH
17
Page 18
9.7 Pizza Setting
Food Temperature (°C) Time (min) Shelf position
Pizza (thin crust)
200 - 230
1)2)
15 - 20 2
Pizza (with a lot of
topping)
180 - 200 20 - 30 2
Tarts 180 - 200 40 - 55 1
Spinach flan 160 - 180 45 - 60 1
Quiche Lorraine 170 - 190 45 - 55 1
Swiss Flan 170 - 190 45 - 55 1
Cheesecake 140 - 160 60 - 90 1
Apple cake, covered 150 - 170 50 - 60 1
Vegetable pie 160 - 180 50 - 60 1
Unleavened bread
230 - 250
1)
10 - 20 2
Puff pastry flan
160 - 180
1)
45 - 55 2
Flammekuchen (Pizza-like dish from Alsace)
230 - 250
1)
12 - 20 2
Piroggen (Russian
version of calzone)
180 - 200
1)
15 - 25 2
1)
Preheat the oven.
2)
Use a deep pan.
9.8 Roasting
• Use heat-resistant ovenware to roast.
Refer to the instructions of the
ovenware manufacturer.
• All types of meat that can be browned
or have crackling can be roasted in the
roasting tin without the lid.
• If necessary, turn the roast after 1/2 to
2/3 of the cooking time.
• To keep meat more succulent:
– roast lean meat in the roasting tin
with the lid or use roasting bag.
– roast meat and fish in pieces
weighting minimum 1 kg.
– baste large roasts and poultry with
their juices several times during
roasting.
9.9 Roasting tables
Beef
Food Quantity Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Pot roast 1 - 1.5 kg Top / Bot-
tom Heat
230 120 - 150 1
www.electrolux.com18
Page 19
Food Quantity Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Roast beef or
fillet: rare
per cm of
thickness
Turbo Grilling
190 - 200
1)
5 - 6 1
Roast beef or
fillet: medium
per cm of
thickness
Turbo Grilling
180 - 190
1)
6 - 8 1
Roast beef or
fillet: well done
per cm of
thickness
Turbo Grilling
170 - 180
1)
8 - 10 1
1)
Preheat the oven.
Pork
Food Quantity
(kg)
Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Shoulder /
Neck / Ham
joint
1 - 1.5 Turbo Grill-
ing
160 - 180 90 - 120 1
Chop / Spare
rib
1 - 1.5 Turbo Grill-
ing
170 - 180 60 - 90 1
Meatloaf 0.75 - 1 Turbo Grill-
ing
160 - 170 50 - 60 1
Pork knuckle
(precooked)
0.75 - 1 Turbo Grilling
150 - 170 90 - 120 1
Veal
Food Quantity
(kg)
Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Roast veal 1 Turbo Grilling 160 - 180 90 - 120 1
Knuckle of
veal
1.5 - 2 Turbo Grilling 160 - 180 120 - 150 1
Lamb
Food Quantity
(kg)
Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Leg of lamb /
Roast lamb
1 - 1.5 Turbo Grilling 150 - 170 100 - 120 1
Saddle of
lamb
1 - 1.5 Turbo Grilling 160 - 180 40 - 60 1
ENGLISH
19
Page 20
Game
Food Quantity
(kg)
Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Saddle / Leg
of hare
up to 1 Top / Bot-
tom Heat
230
1)
30 - 40 1
Saddle of
venison
1.5 - 2 Top / Bottom Heat
210 - 220 35 - 40 1
Haunch of
venison
1.5 - 2 Top / Bottom Heat
180 - 200 60 - 90 1
1)
Preheat the oven.
Poultry
Food Quantity
(kg)
Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Poultry portions
0.2 - 0.25
each
Turbo Grilling 200 - 220 30 - 50 1
Half chicken 0.4 - 0.5
each
Turbo Grilling 190 - 210 35 - 50 1
Chicken,
poulard
1 - 1.5 Turbo Grilling 190 - 210 50 - 70 1
Duck 1.5 - 2 Turbo Grilling 180 - 200 80 - 100 1
Goose 3.5 - 5 Turbo Grilling 160 - 180 120 - 180 1
Turkey 2.5 - 3.5 Turbo Grilling 160 - 180 120 - 150 1
Turkey 4 - 6 Turbo Grilling 140 - 160 150 - 240 1
Fish (steamed)
Food Quantity
(kg)
Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Whole fish 1 - 1.5 Top / Bot-
tom Heat
210 - 220 40 - 60 1
9.10 Grilling
• Always grill with the maximum
temperature setting.
• Set the shelf into the shelf position as
recommended in the grilling table.
• Always set the pan to collect the fat
into the first shelf position.
• Grill only flat pieces of meat or fish.
• Always preheat the empty oven with
the grill functions for 5 minutes.
CAUTION!
Always grill with the oven
door closed.
www.electrolux.com20
Page 21
Grilling
Food Temperature
(°C)
Time (min) Shelf position
1st side 2nd side
Roast beef 210 - 230 30 - 40 30 - 40 2
Filet of beef 230 20 - 30 20 - 30 3
Back of pork 210 - 230 30 - 40 30 - 40 2
Back of veal 210 - 230 30 - 40 30 - 40 2
Back of lamb 210 - 230 25 - 35 20 - 25 3
Whole Fish, 500
- 1000 g
210 - 230 15 - 30 15 - 30 3 / 4
Fast Grilling
Food Time (min) Shelf position
1st side 2nd side
Burgers / Burgers 8 - 10 6 - 8 4
Pork fillet 10 - 12 6 - 10 4
Sausages 10 - 12 6 - 8 4
Fillet / Veal steaks 7 - 10 6 - 8 4
Toast / Toast 1 - 3 1 - 3 5
Toast with topping 6 - 8 - 4
9.11 Bottom + Grill + Fan
Use the function True Fan Cooking.
Food Temperature (°C) Time (min) Shelf position
Pizza, frozen 200 - 220 15 - 25 2
Pizza American, frozen
190 - 210 20 - 25 2
Pizza, chilled 210 - 230 13 - 25 2
Pizza Snacks, frozen
180 - 200 15 - 30 2
French Fries, thin 200 - 220 20 - 30 3
French Fries, thick 200 - 220 25 - 35 3
Wedges / Croquettes
220 - 230 20 - 35 3
Hash Browns 210 - 230 20 - 30 3
ENGLISH
21
Page 22
Food Temperature (°C) Time (min) Shelf position
Lasagne / Cannelloni, fresh
170 - 190 35 - 45 2
Lasagne / Cannelloni, frozen
160 - 180 40 - 60 2
Oven baked cheese 170 - 190 20 - 30 3
Chicken Wings 190 - 210 20 - 30 2
9.12 Defrost
• Remove the food packaging and put
the food on a plate.
• Use the first shelf position from the
bottom.
• Do not cover the food with a bowl or a
plate, as this can extend the defrost
time.
• For large portions of food place an
upturned empty plate on the bottom of
the oven cavity. Put the food in a deep
plate or dish and set it on top of the
plate inside the oven. Remove shelf
supports if necessary.
Food Quantity
(kg)
Defrosting
time (min)
Further defrosting
time (min)
Comments
Chicken 1 100 - 140 20 - 30 Put the chicken on an upturned
saucer in a big plate. Turn halfway through.
Meat 1 100 - 140 20 - 30 Turn halfway through.
Meat 0.5 90 - 120 20 - 30 Turn halfway through.
Trout 0.15 25 - 35 10 - 15 -
Strawberries
0.3 30 - 40 10 - 20 -
Butter 0.25 30 - 40 10 - 15 -
Cream 2 x 0.2 80 - 100 10 - 15 Whip the cream when still slightly
frozen in places.
Gateau 1.4 60 60 -
9.13 Preserving - Bottom Heat
• Use only preserve jars of the same
dimensions available on the market.
• Do not use jars with twist-off and
bayonet type lids or metal tins.
• Use the first shelf from the bottom for
this function.
• Put no more than six one-litre preserve
jars on the baking tray.
• Fill the jars equally and close with a
clamp.
• The jars cannot touch each other.
• Put approximately 1/2 litre of water into
the baking tray to give sufficient
moisture in the oven.
• When the liquid in the jars starts to
simmer (after approximately 35 - 60
minutes with one-litre jars), stop the
oven or decrease the temperature to
100 °C (see the table).
www.electrolux.com22
Page 23
Soft fruit
Food Temperature (°C) Cooking time until
simmering (min)
Continue to cook
at 100 °C (min)
Strawberries / Blueberries / Raspberries / Ripe gooseberries
160 - 170 35 - 45 -
Stone fruit
Food Temperature (°C) Cooking time until
simmering (min)
Continue to cook
at 100 °C (min)
Pears / Quinces /
Plums
160 - 170 35 - 45 10 - 15
Vegetables
Food Temperature (°C) Cooking time until
simmering (min)
Continue to cook
at 100 °C (min)
Carrots
1)
160 - 170 50 - 60 5 - 10
Cucumbers 160 - 170 50 - 60 -
Mixed pickles 160 - 170 50 - 60 5 - 10
Kohlrabi / Peas /
Asparagus
160 - 170 50 - 60 15 - 20
1)
Leave standing in the oven after it is deactivated.
9.14 Drying - True Fan Cooking
• Cover trays with grease proof paper or
baking parchment.
• For a better result, stop the oven
halfway through the drying time, open
the door and let it cool down for one
night to complete the drying.
Vegetables
Food Temperature
(°C)
Time (h) Shelf position
1 position 2 positions
Beans 60 - 70 6 - 8 3 1 / 4
Peppers 60 - 70 5 - 6 3 1 / 4
Vegetables for
sour
60 - 70 5 - 6 3 1 / 4
Mushrooms 50 - 60 6 - 8 3 1 / 4
Herbs 40 - 50 2 - 3 3 1 / 4
ENGLISH
23
Page 24
Fruit
Food Temperature
(°C)
Time (h) Shelf position
1 position 2 positions
Plums 60 - 70 8 - 10 3 1 / 4
Apricots 60 - 70 8 - 10 3 1 / 4
Apple slices 60 - 70 6 - 8 3 1 / 4
Pears 60 - 70 6 - 9 3 1 / 4
9.15 Information for test
institutes
Tests according to EN 60350-1:2013 and
IEC 60350-1:2011.
Baking on one level. Baking in tins.
Food Function Temperature
(°C)
Time
(min)
Shelf position
Fatless sponge
cake / Fatless
sponge cake
True Fan Cooking 140 - 150 35 - 50 2
Fatless sponge
cake / Fatless
sponge cake
Top / Bottom Heat 160 35 - 50 2
Apple pie / Apple pie
(2 tins Ø20 cm, diagonally off set)
True Fan Cooking 160 60 - 90 2
Apple pie / Apple pie
(2 tins Ø20 cm, diagonally off set)
Top / Bottom Heat 180 70 - 90 1
Baking on one level. Biscuits.
Food Function Temperature
(°C)
Time
(min)
Shelf position
Short bread / Short
bread / Pastry stripes
True Fan Cooking 140 25 - 40 3
Short bread / Short
bread / Pastry stripes
Top / Bottom
Heat
160
1)
20 - 30 3
Small cakes / Small
cakes (20 per tray)
True Fan Cooking
150
1)
20 - 35 3
Small cakes / Small
cakes (20 per tray)
Top / Bottom
Heat
170
1)
20 - 30 3
1)
Preheat the oven.
www.electrolux.com24
Page 25
Multilevel Baking. Biscuits / small cakes / small cakes / pastries / rolls.
Food Function Temperature
(°C)
Time
(min)
Shelf position
2 positions
3 positions
Short bread / Short
bread / Pastry
Stripes
True Fan Cooking. 140 25 - 45 1 / 4 1 / 3 /
5
Small cakes / Small
cakes (20 per tray)
True Fan Cooking.
150
1)
23 - 40 1 / 4 -
1)
Preheat the oven.
Grilling
Food Function Temperature
(°C)
Time (min) Shelf posi-
tion
Toast / Toast Grilling max
1 - 3
1)
5
Beef Steak / Beef
Steak
Grilling max
24 - 30
1)2)
4
1)
Preheat the oven for 5 minutes.
2)
Turn halfway through.
10. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
10.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a
dedicated cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.

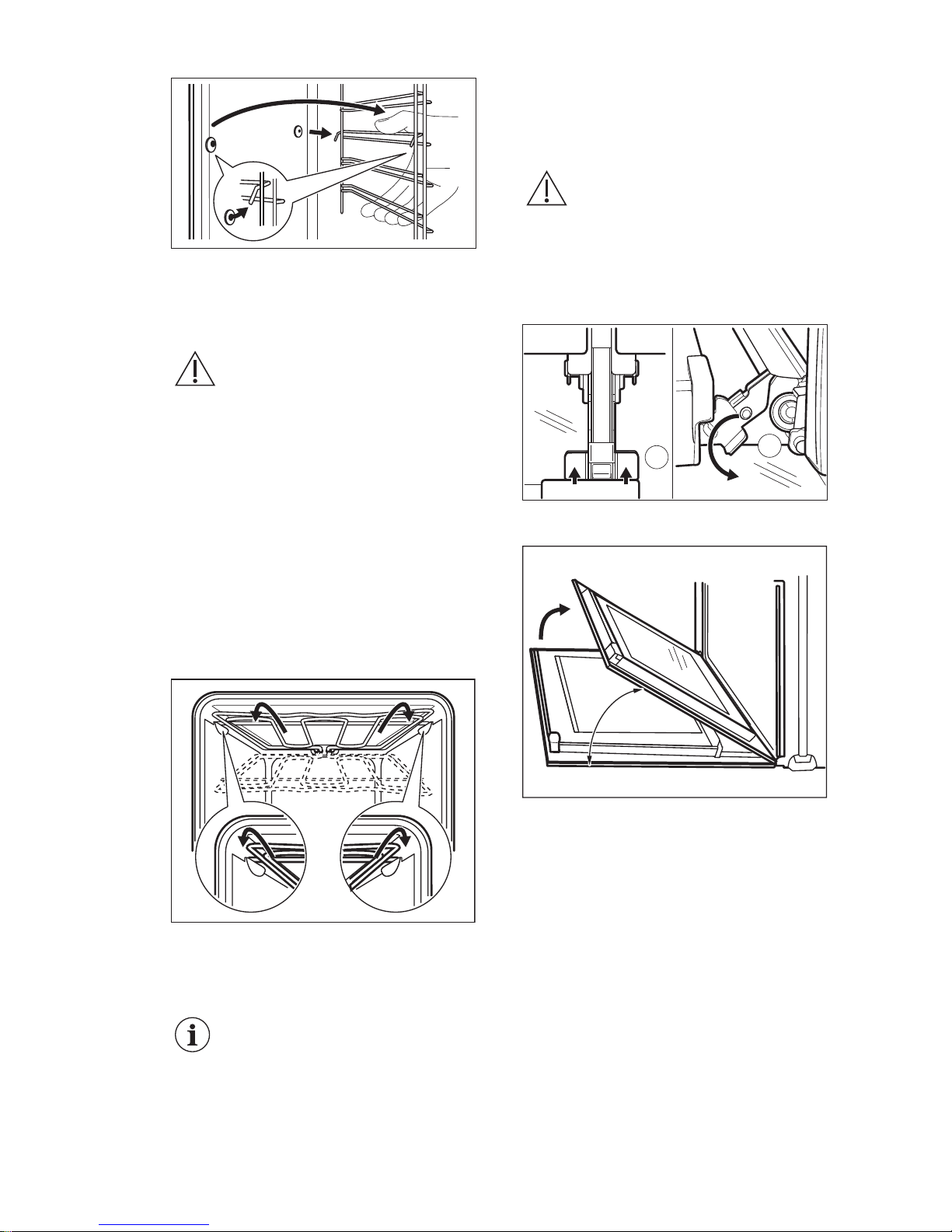

10.2 Removing the shelf
supports
To clean the oven, remove the shelf
supports.
1. Pull the front of the shelf support away
from the side wall.
2. Pull the rear end of the shelf support
away from the side wall and remove it.
ENGLISH
25
Page 26
2
1
Install the shelf supports in the opposite
sequence.
10.3 Oven ceiling
WARNING!
Deactivate the appliance
before you remove the
heating element. Make sure
that the appliance is cold.
There is a risk of burns.
Remove the shelf supports.

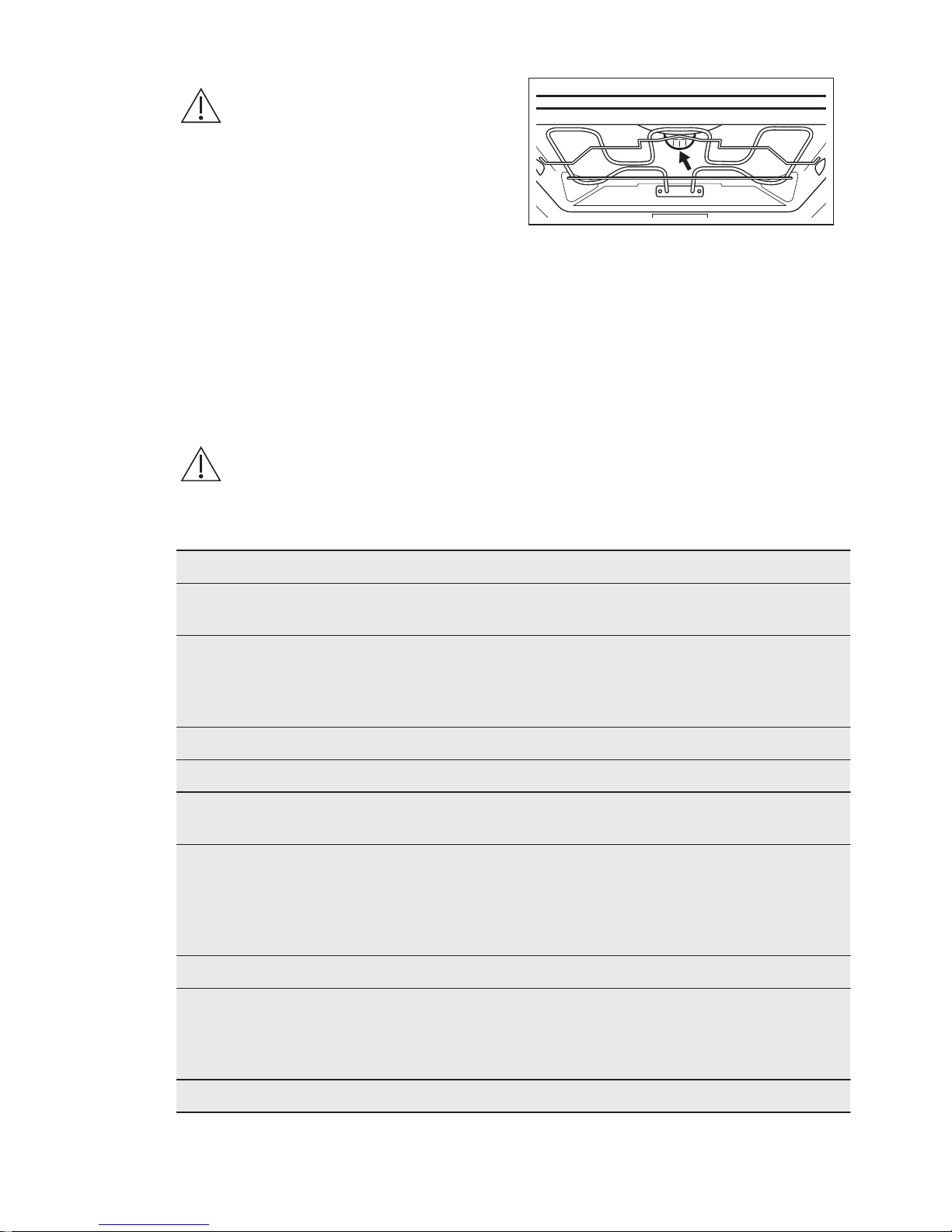

You can fold down the heating element on
the oven ceiling to clean the oven ceiling
easily.
1. Hold the heating element with two
hands at the front.
2. Pull it forwards against the spring
pressure and out along the supports
on the two sides.
The heating element folds down.
3. Clean the oven ceiling.
4. Install the heating element in the
opposite sequence.
Install the heating element
correctly above the supports
on the inner walls of the
appliance.
5. Install the shelf supports.
10.4 Removing and installing the
door
You can remove the door to clean it.
WARNING!
Be careful when you remove
the door from the appliance.
The door is heavy.
1. Open the door fully.
2. Fully press the clamping levers (A) on
the two door hinges.
A
A
3. Close the door until it is at an angle of
approximately 45°.
45°
4. Hold the door with one hand on each
side and pull it away from the
appliance at an upwards angle.
5. Put the door with the outer side down
on a soft cloth on a stable surface.
This is to prevent scratches.
6. Clean the glass panel with water and
soap. Dry the glass panel carefully.
When the cleaning is completed, install the
door. Do the above steps in the opposite
sequence.
10.5 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
www.electrolux.com26
Page 27
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The top lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a halogen, 230
V, 40 W, 300 °C heat resistant lamp.
4. Install the glass cover.
11. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
11.1 What to do if...
Problem Possible cause Remedy
The cooking zones do not
operate.
Refer to the operating instructions for the built-in cooking
surface.
You cannot activate or operate the oven. The display
shows “400” and an acoustic signal sounds.
The oven is incorrectly connected to an electrical supply.
Check if the oven is correctly connected to the electrical supply (refer to the connection diagram if available).
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The fuse is blown. Make sure that the fuse is
the cause of the malfunction. If the fuse is blown
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the cooking process ends.
The display shows "12.00". There was a power cut. Reset the clock.
ENGLISH
27
Page 28
11.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
12. INSTALLATION
WARNING!
Refer to Safety chapters.
12.1 Installing the oven under a
work surface
Installation into flammable
material must agree with NIN
SEV 1000 (Swiss Association
of the Cantonal Fire
Insurance Companies) fire
protection guidelines and
regulations.

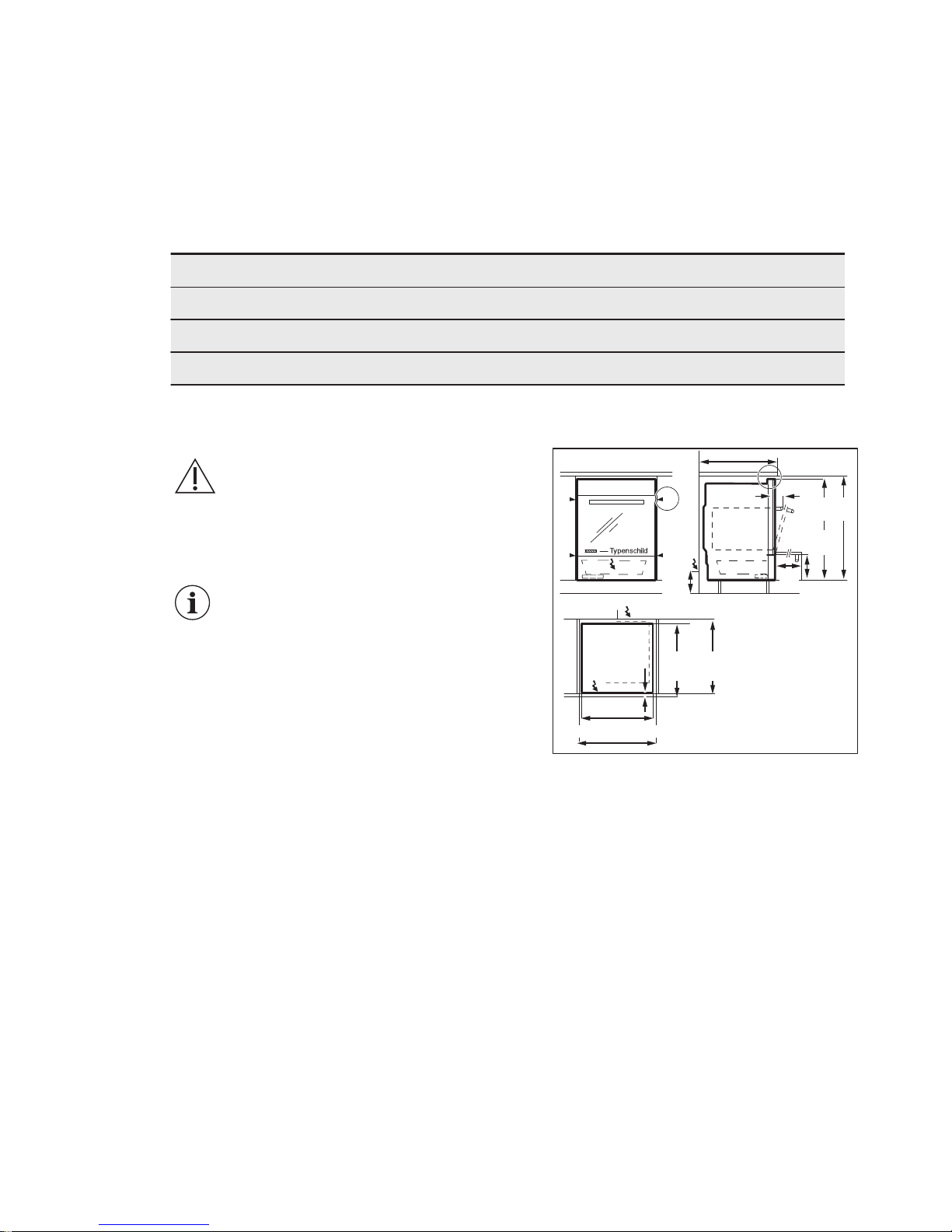

A = appliance, N = recess
1. Install the hob according to the
installation instruction number
374307900 / 374307901.
Before insert the oven into cabinet's
recess make sure to carry out the
hotplate socket and use the correct
socket connections. There is no need
to use a separate earthing.
2. Pull the appliance drawer out as far as
it goes and remove it.
3. Use the side handles to hold the oven
and slide it flush into the recess.
Make sure the cable is free when you
slide the appliance.
A
A
A A
B
A
A
D
N 550 (-0,+1) mm
20
mm
A 767
mm
N 780
mm
A 549 mm
435
mm
A 757
mm
160
mm
170
mm
600 mm
N 762 + 3
mm
~50 mm

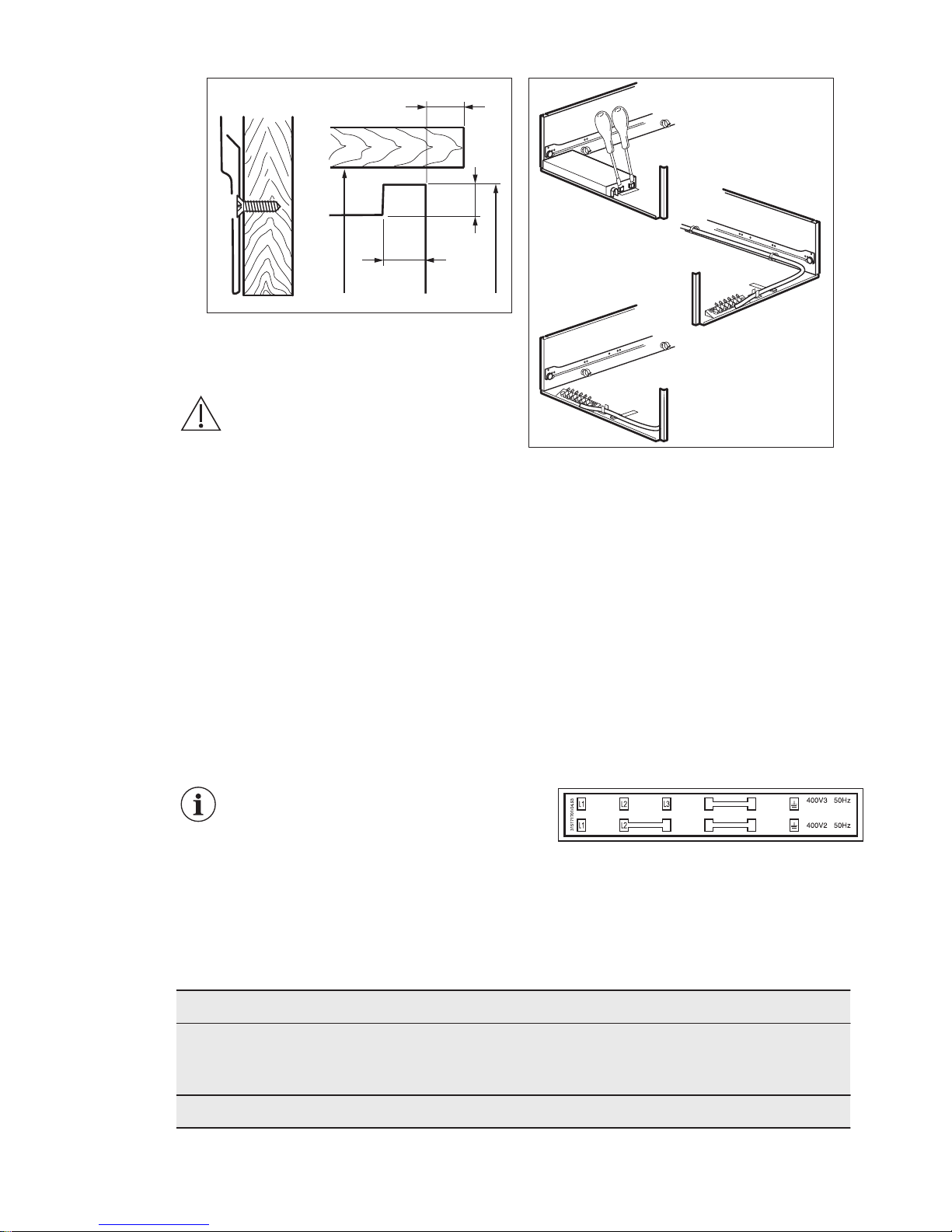

4. Use a minimum of 2 screws to attach
the oven on the 2 sides (A).
When installing next to a wood-fuelled
boiler, a heatproof and heat-insulating
plate must be mounted at the height
of the appliance and at least 30 cm
deep.
www.electrolux.com28
Page 29
A B
A
min. 20 mm
10
mm
20 mm
12.2 Electrical connection
WARNING!
If service is required always
disconnect the appliance
from the power supply.
Use a power cable of H05VV-F or higher.
Install the appliance with a socket supply
line. If there is no socket supply line, the
fixed home electrical system must include
an isolating device with at least a 3 mmcontact separation to enable a
simultaneous and all-pole cut off from the
mains (according to NIN SEV 1000). The
customer must have a socket for the
electrical connection that is accessible
and outside the coordination room. The
length of the connection cable must be
approximately 120 cm with lines
connected directly to the mains.
Only a qualified person can
connect the appliance to the
electricity supply.
1. Open the mains terminal cover (D).
D
E
F
2. Put the connection cable into the
supplied rings (E).
This is to prevent the cable from
rubbing against the drawer. The
connection cable is on the housing
side.
3. Install the cable grip (F).
4. Connect the terminal as in the
illustration.
5. Put the cable into the strain relief
clamp.
6. Close the mains terminal cover.
7. Do the electrical connections as in the
connection illustration.
Phase definitions: L1, L2, L3 (or R, S,
T).
Voltage: 400V
8. Secure the cable grip.
13. ENERGY EFFICIENCY
13.1 Product Fiche and information according to EU 65-66/2014
Supplier's name Electrolux
Model identification
EHL4CN
EHL4SW
EHL4WE
Energy Efficiency Index 103.5
ENGLISH
29
Page 30
Energy efficiency class A
Energy consumption with a standard load, conventional mode
0.99 kWh/cycle
Energy consumption with a standard load, fanforced mode
0.88 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 71 l
Type of oven Built-Under Oven
Mass
EHL4CN 47.2 kg
EHL4SW 47.2 kg
EHL4WE 47.2 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
13.2 Energy saving
The oven contains features
which help you save energy
during everyday cooking.
General hints
Make sure that the oven door is closed
properly when the appliance operates. Do
not open the door too often during
cooking. Keep the door gasket clean and
make sure it is well fixed in its position.
Use metal dishes to improve energy
saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature
to minimum 3 - 10 minutes before the end
of the cooking time, depending on the
duration of the cooking. The residual heat
inside the oven will continue to cook.
Use the residual heat to warm up other
dishes.
Keep breaks between baking as short as
possible when you prepare few dishes at
one time.
Cooking with fan
When possible, use the cooking functions
with fan to save energy.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm.
14. CH GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préverenges
Via Violino 11
6928 Manno
www.electrolux.com30
Page 31
Point of Service
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
Schlossstrasse 1
4133 Pratteln
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10,
5506 Mägenwil, Tel. 0848 848 111
Specialist advice/Sale Badenerstrasse
587, 8048 Zürich, Tel. 044 405 81 11
Warranty For each product we provide a
two-year guarantee from the date of
purchase or delivery to the consumer (with
a guarantee certificate, invoice or sales
receipt serving as proof). The guarantee
covers the costs of materials, labour and
travel. The guarantee will lapse if the
operating instructions and conditions of
use are not adhered to, if the product is
incorrectly installed, or in the event of
damage caused by external influences,
force majeure, intervention by third parties
or the use of non-genuine components.
15. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
For Switzerland:
Where should you take your
old equipment?
Anywhere that sells new
equipment or hand it in to
official SENS collection points
or official SENS recycling
firms.
The list of official SENS
collection points can be
found at www.erecycling.ch
*
ENGLISH
31
Page 32
www.electrolux.com/shop
867314482-C-062017
Loading...
