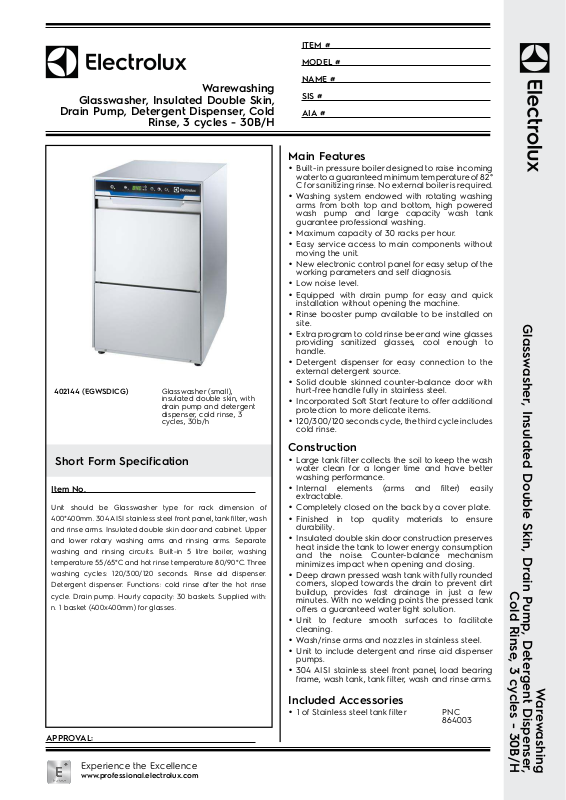

Page 1
Warewashing
Glasswasher, Insulated Double Skin,
Drain Pump, Detergent Dispenser, Cold
Rinse, 3 cycles - 30B/H
402144 (EGWSDICG)Glasswasher (small),
insulated double skin, with
drain pump and detergent
dispenser, cold rinse, 3
cycles, 30b/h
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Built-in pressure boiler designed to raise incoming
water to a guaranteed minimum temperature of 82°
C for sanitizing rinse. No external boiler is required.
•Washing system endowed with rotating washing
arms from both top and bottom, high powered
wash pump and large capacity wash tank
guarantee professional washing.
•Maximum capacity of 30 racks per hour.
•Easy service access to main components without
moving the unit.
•New electronic control panel for easy setup of the
working parameters and self diagnosis.
•Low noise level.
•Equipped with drain pump for easy and quick
installation without opening the machine.
•Rinse booster pump available to be installed on
site.
•Extra program to cold rinse beer and wine glasses
providing sanitized glasses, cool enough to
handle.
•Detergent dispenser for easy connection to the
external detergent source.
•Solid double skinned counter-balance door with
hurt-free handle fully in stainless steel.
•Incorporated Soft Start feature to offer additional
protection to more delicate items.
•120/300/120 seconds cycle, the third cycle includes
cold rinse.
Glasswasher, Insulated Double Skin, Drain Pump, Detergent Dispenser,
Short Form Specification
Item No.
Unit should be Glasswasher type for rack dimension of
400*400mm. 304 AISI stainless steel front panel, tank filter, wash
and rinse arms. Insulated double skin door and cabinet. Upper
and lower rotary washing arms and rinsing arms. Separate
washing and rinsing circuits. Built-in 5 litre boiler, washing
temperature 55/65°C and hot rinse temperature 80/90°C. Three
washing cycles: 120/300/120 seconds. Rinse aid dispenser .
Detergent dispenser. Functions: cold rinse after the hot rinse
cycle. Drain pump. Hourly capacity: 30 baskets. Supplied with:
n. 1 basket (400x400mm) for glasses.
Construction
•Large tank filter collects the soil to keep the wash
water clean for a longer time and have better
washing performance.
•Internal elements (arms and filter) easily
extractable.
•Completely closed on the back by a cover plate.
•Finished in top quality materials to ensure
durability.
•Insulated double skin door construction preserves
heat inside the tank to lower energy consumption
and the noise. Counter-balance mechanism
minimizes impact when opening and closing.
•Deep drawn pressed wash tank with fully rounded
corners, sloped towards the drain to prevent dirt
buildup, provides fast drainage in just a few
minutes. With no welding points the pressed tank
offers a guaranteed water tight solution.
•Unit to feature smooth surfaces to facilitate
cleaning.
•Wash/rinse arms and nozzles in stainless steel.
•Unit to include detergent and rinse aid dispenser
pumps.
•304 AISI stainless steel front panel, load bearing
frame, wash tank, tank filter, wash and rinse arms.
Included Accessories
•1 of Stainless steel tank filterPNC
864003
Cold Rinse, 3 cycles - 30B/H
Warewashing
APPROV AL:
Experience the Excellence
www.professional.electrolux.com
Page 2
Warewashing
Glasswasher, Insulated Double Skin, Drain
Pump, Detergent Dispenser, Cold Rinse, 3
cycles - 30B/H
•1 of Square basket for glasses
PNC 864470
400x400x150mm
Optional Accessories
•12lt external manual water softenerPNC 860412
•8lt external automatic water softenerPNC 860413
•20lt external manual water softenerPNC 860430
•Filter for partial demineralizationPNC 864017
•Kit to measure total and partial water
hardness
•Rinse booster pump kit for single tank
pressure dishwasher
•Yellow cutlery containerPNC 864242
•Filter for total demineralizationPNC 864367
•Pressure reducer for single tank
dishwasher
•Kit 4 plastic boxes for cutlery - yellowPNC 86557 4
•Cover rack for small and light items
(500x500 baskets)
•Basket for glasses (395x395x115)PNC 867033
•Insert for 12 saucers, 290X90x 75mmPNC 86 7048
•Basket for 16 plates diam.190 mm, 8
plates diam. 240 mm
•Basket for glasses (h 100 mm)PNC 867053
•Basket for glasses (h 200 mm)PNC 867054
•Basket for glasses and saucers/cutlery
inserts
•Basket for glasses with angled basePNC 867056
•Round basket kit with square framePNC 867057
•Insert for "flute" glassesPNC 867058
•Insert for 14 saucersPNC 867060
•Inclined insert for cupsPNC 867061
•Insert for 7 plates d. 240mmPNC 867062
❑
❑
❑
❑
PNC 864050
❑
PNC 864051
❑
❑
❑
PNC 864461
❑
❑
PNC 867016
❑
❑
❑
PNC 867052
❑
❑
❑
PNC 867055
❑
❑
❑
❑
❑
❑
❑
Glasswasher, Insulated Double Skin, Drain Pump, Detergent Dispenser,
The company reserves the right to make modifications to the pr oducts
without prior notice. All information correct at time of printing.
Cold Rinse, 3 cycles - 30B/H
Warewashing
2019.05.28
Page 3
Warewashing
Glasswasher, Insulated Double Skin, Drain
Pump, Detergent Dispenser, Cold Rinse, 3
cycles - 30B/H
CWI1=Cold W ater inlet 1
D=Drain
EI=Electrical inlet (power )
EO=Electrical Outlet
WI=Water inlet
XD=Detergent connection
XR=Rinse aid connection
Front
Electric
Supply voltage:
402144 (EGWSDICG)220-240 V /1N ph/50 Hz
Default Installed Power:3.3 kW
Tank heating elements:0.8 kW
Water:
Pressure, bar min/max:1.8-3 bar
Water supply temperature*:10-55 °C
Working cycles time (sec.):120/300/120
Boiler Capacity (lt):5
Incoming water line size:G 3/4"
Washing tank capacity (lt):6
Cold rinse cycle duration:10 sec.
Cold rinse cycle water
consumption:1.8 lt/cycle
Hot rinse cycle duration
Side
(sec.):
Min hot rinse water
consumption (lt/cycle)**:
16
2.3
Key Information:
N° of working cycles - sec.:3 (120/300/120)
Cell dimensions - width:400 mm
Cell dimensions - depth:400 mm
Cell dimensions - height:290 mm
External dimensions, Width:460 mm
External dimensions, Height:715 mm
External dimensions, Depth:565 mm
Net weight:37 kg
Shipping weight:42 kg
Shipping height:880 mm
Shipping width:620 mm
Shipping depth:500 mm
Shipping volume:0.27 m³
Noise level:58 dBA
The claimed noise level is measured according to EN
60335-2-58 (Annex ZAA) / ISO 11204.
Basket capacity:30/h
The claimed capacity is measured when the unit is
Top
connected to hot inlet water of 55°C; if the inlet water is cold,
the cycle time could be longer.
Washing cycle temperature:55-65 °C
Cold rinse cycle temperature:10 °C
Hot rinse cycle temperature:80-90 °C
Glasswasher, Insulated Double Skin, Drain Pump, Detergent Dispenser,
The company reserves the right to make modifications to the pr oducts
without prior notice. All information correct at time of printing.
Cold Rinse, 3 cycles - 30B/H
Warewashing
2019.05.28
